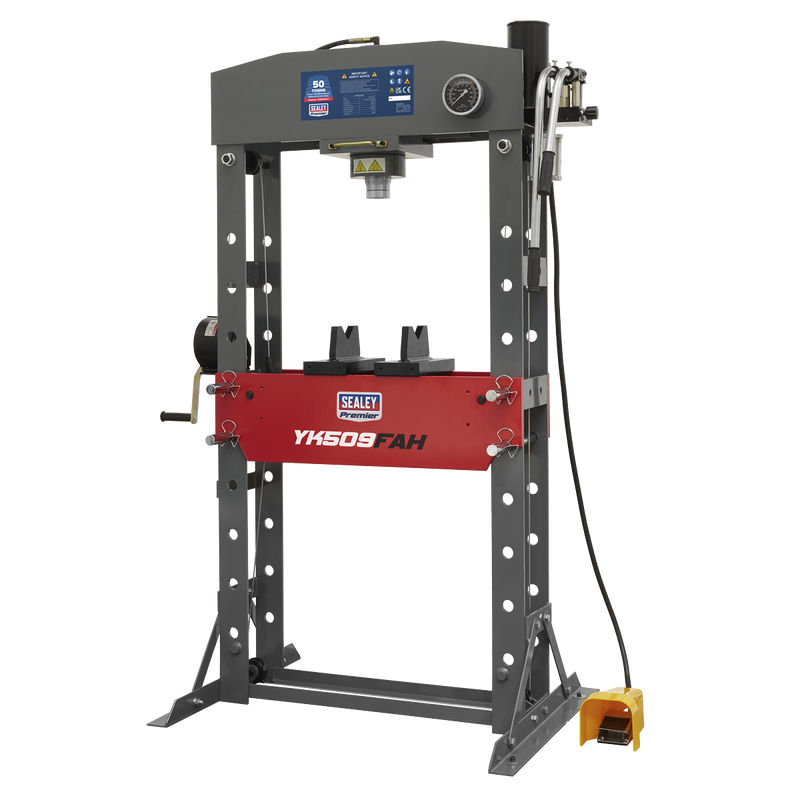

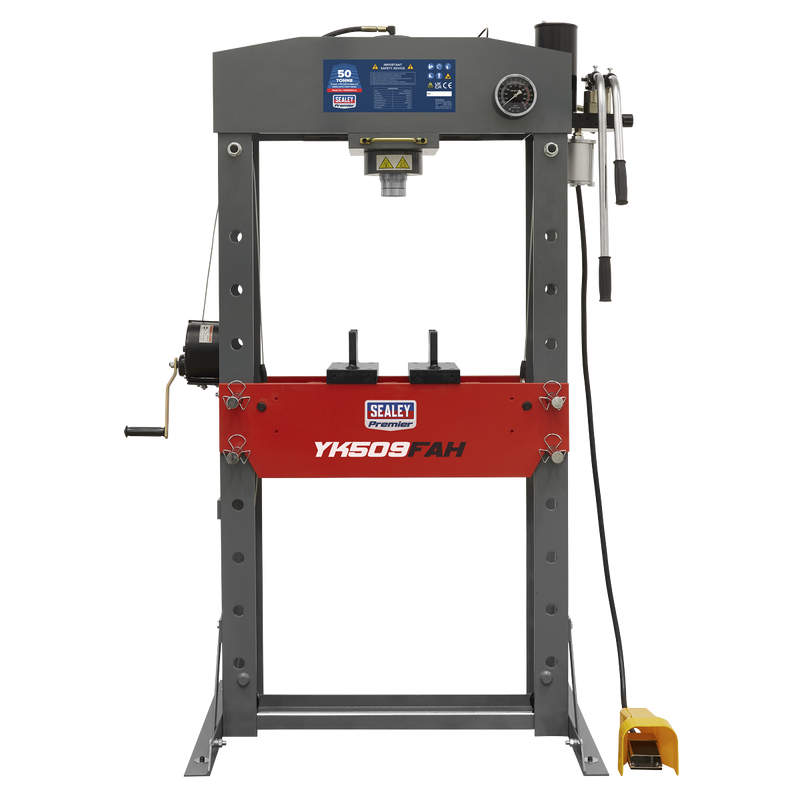

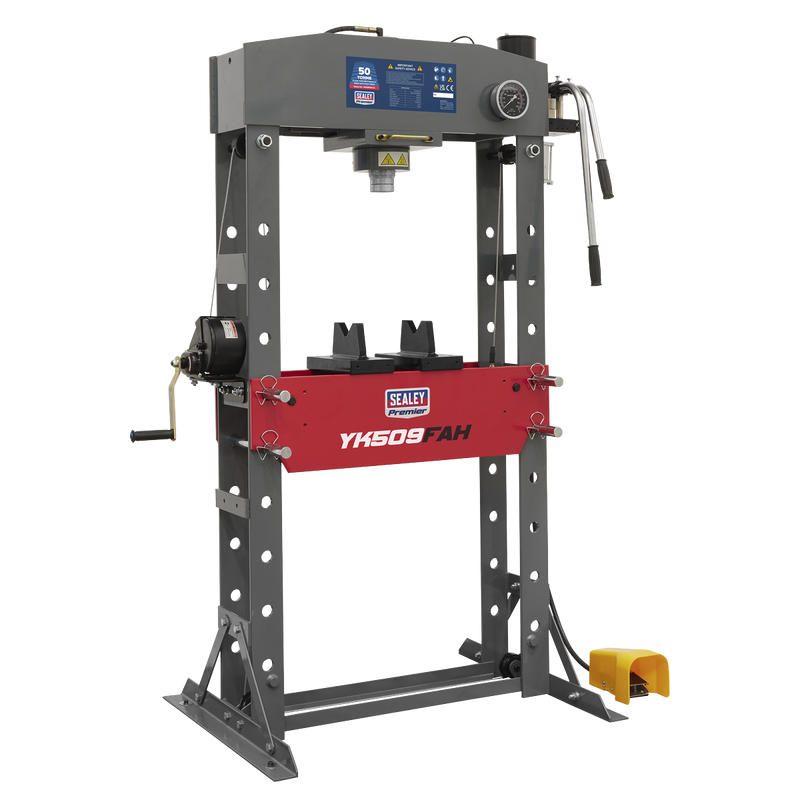

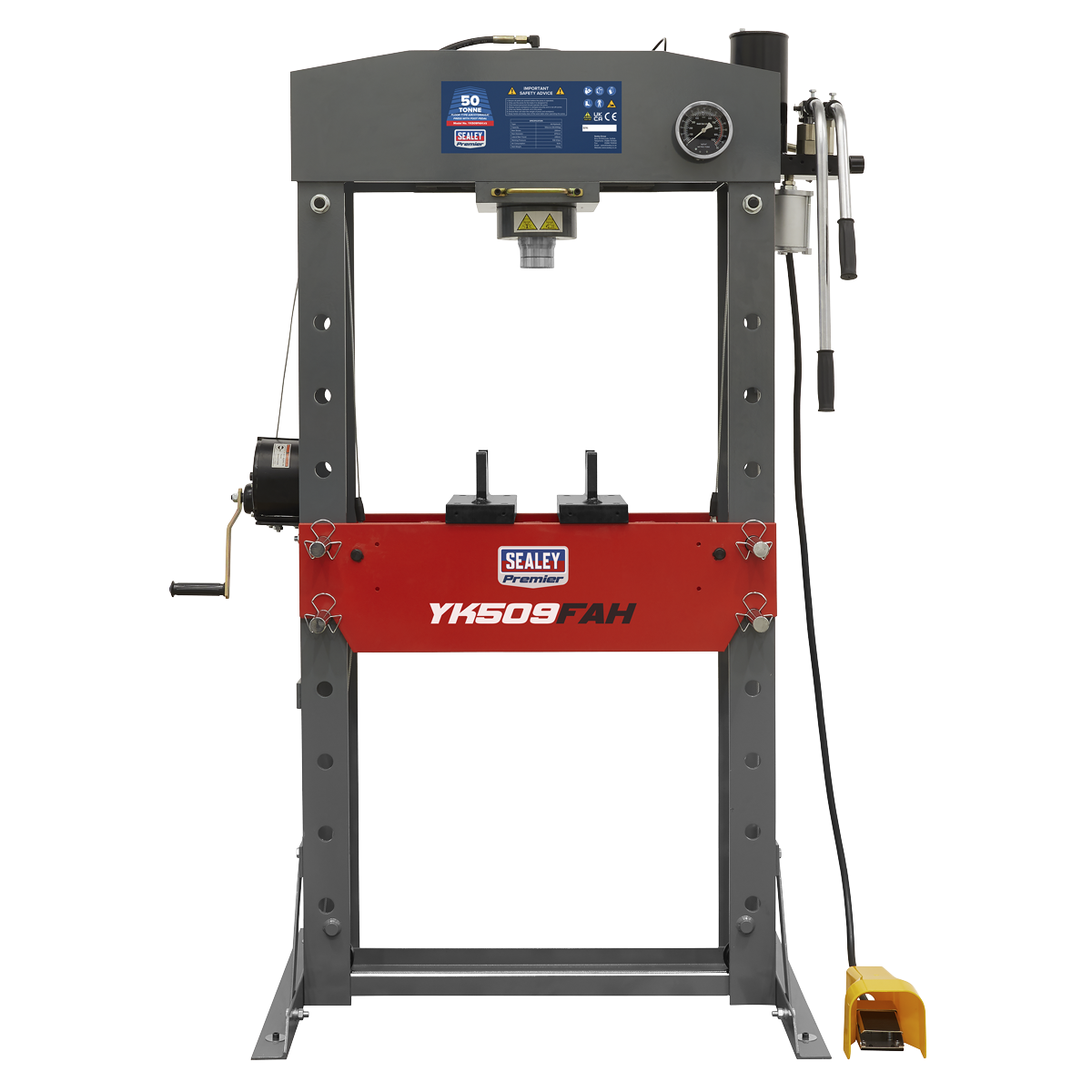

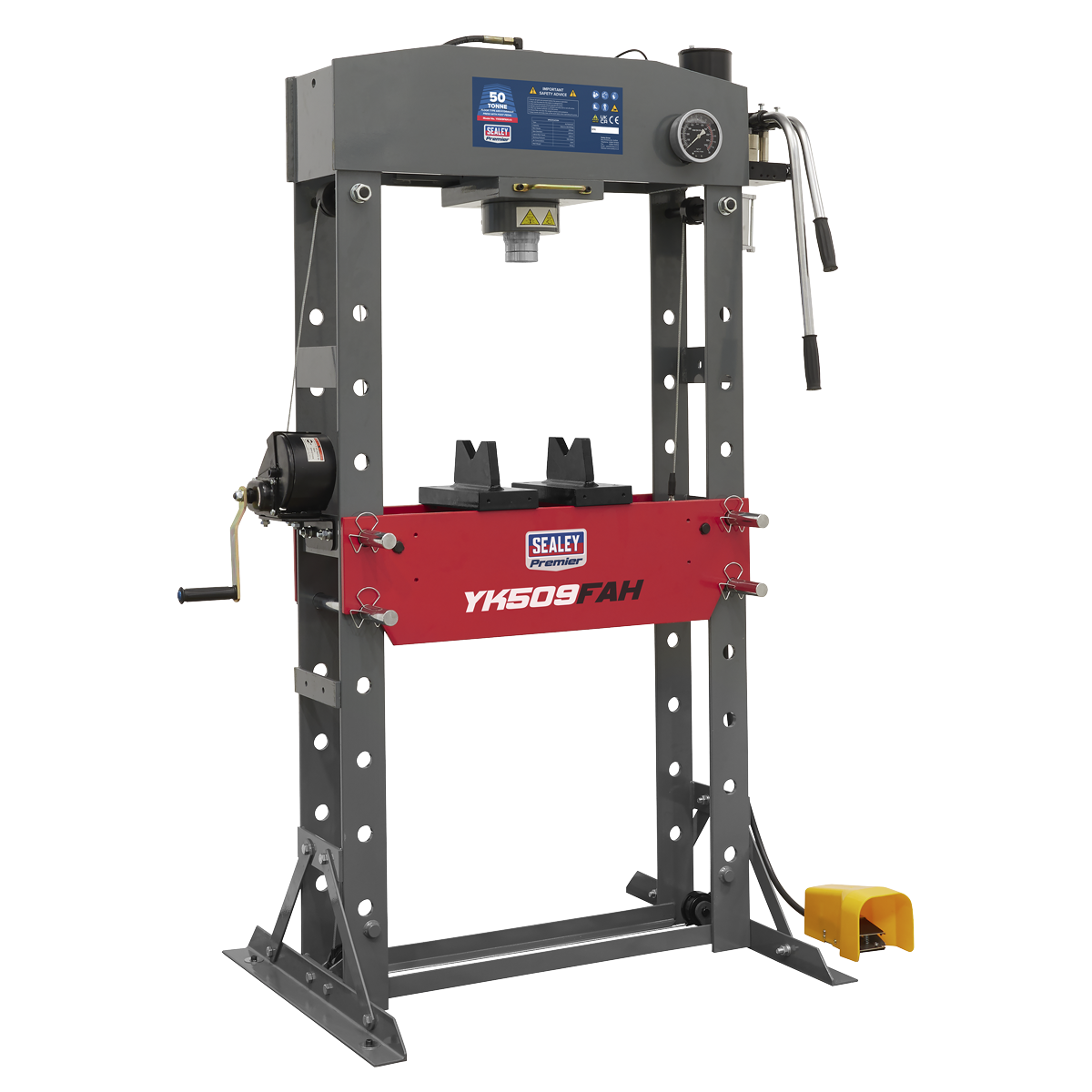

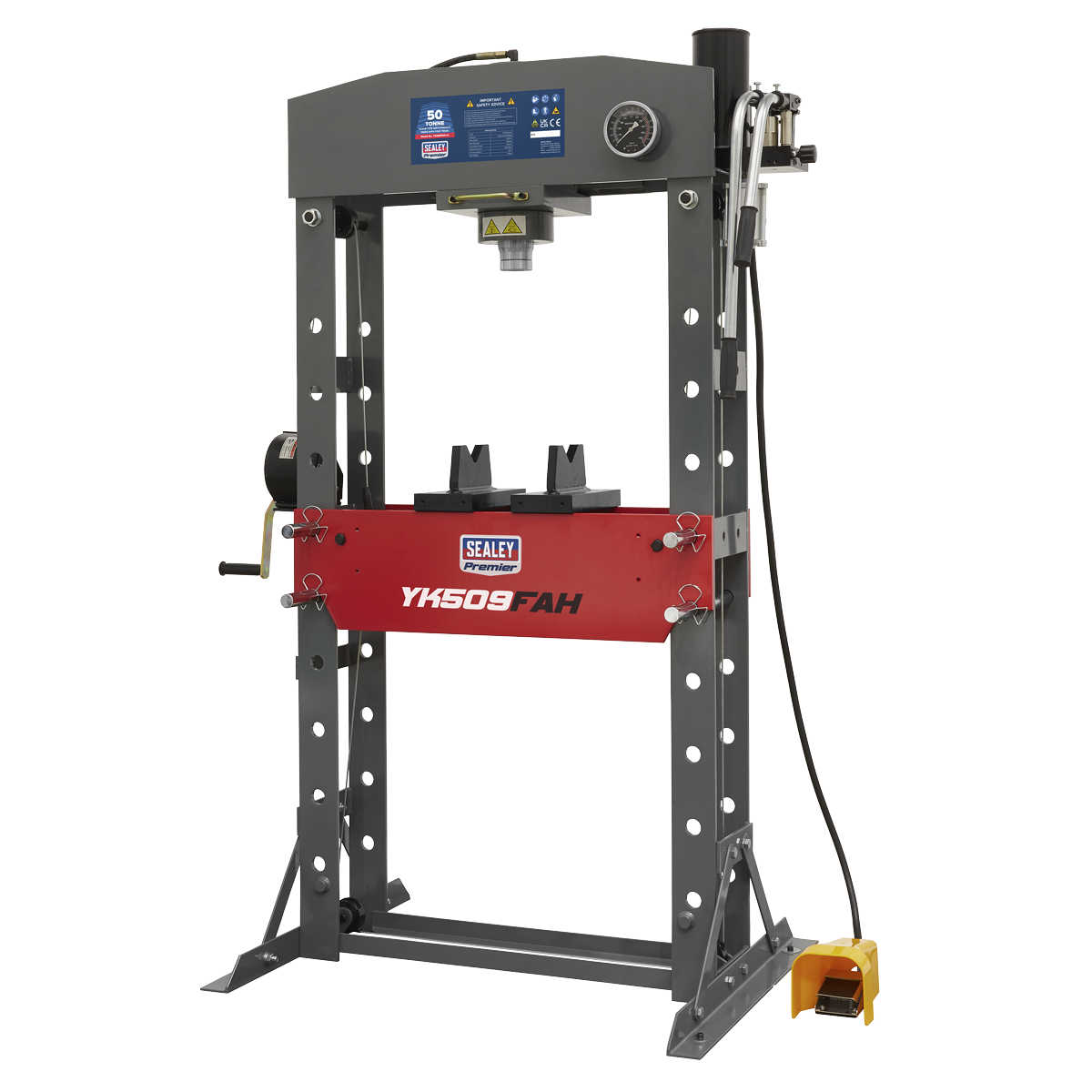

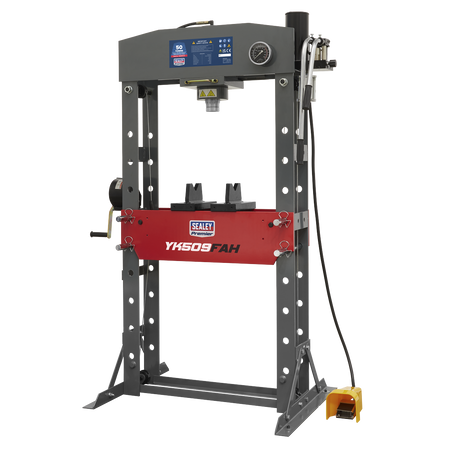

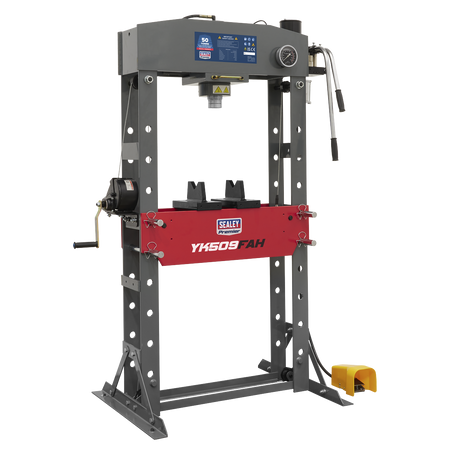

Steel frame construction with side mounted air motor powering hydraulic pump unit. 2-speed manual operation and sliding hydraulic ram assembly giving 245mm of lateral travel for off-centre pressing applications.
Fitted with ram pressure gauge and supplied with table winch and flat pressing plate/V-blocks.
Specification
- Table Aperture: 235mm.
- Working Table Width: 910mm.
- Ram Stroke: 200mm.
- Steel frame construction.
- Side mounted air motor powering hydraulic pump unit.
- 2-Speed manual operation.
- Sliding hydraulic ram assembly giving 245mm of lateral travel for off-centre pressing applications.
- Fitted with ram pressure gauge.
- Supplied with table winch and flat pressing plate/V-blocks.
- 2 Year guarantee*.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
- Model No. YK509FAH
