Self-setting insert spanner, for hexagon screw heads and bolts, for torque wrenches of the Click-Torque X and XP series with 14x18 mm mounting. Covers all metric and imperial dimensions in the respective field of application. With its continuous and parallel jaws, the tool replaces several single spanner sizes. The required size is automatically and continuously set when attaching the tool to the hexagon bolt or screw. The integrated lever mechanism securely clamps the hexagon screw or bolt between the jaws, which significantly reduces the risk of slippage or damage. The ratchet feature ensures fast and consistent screwdriving without removing the tool. By using the corner-width rectangular prisms, a return angle of only 30¡ can be achieved.
- Square insert tool 14x18 mm
- For torque wrenches of the Click-Torque X series with 14x18 mm holder
- The adjustable 7880 Joker covers all metric and imperial dimensions in the respective field of application
- Automatic and continuous gripping of the hexagon screw or bolt
- Lever mechanism when gripping avoids slippage and damage
Features

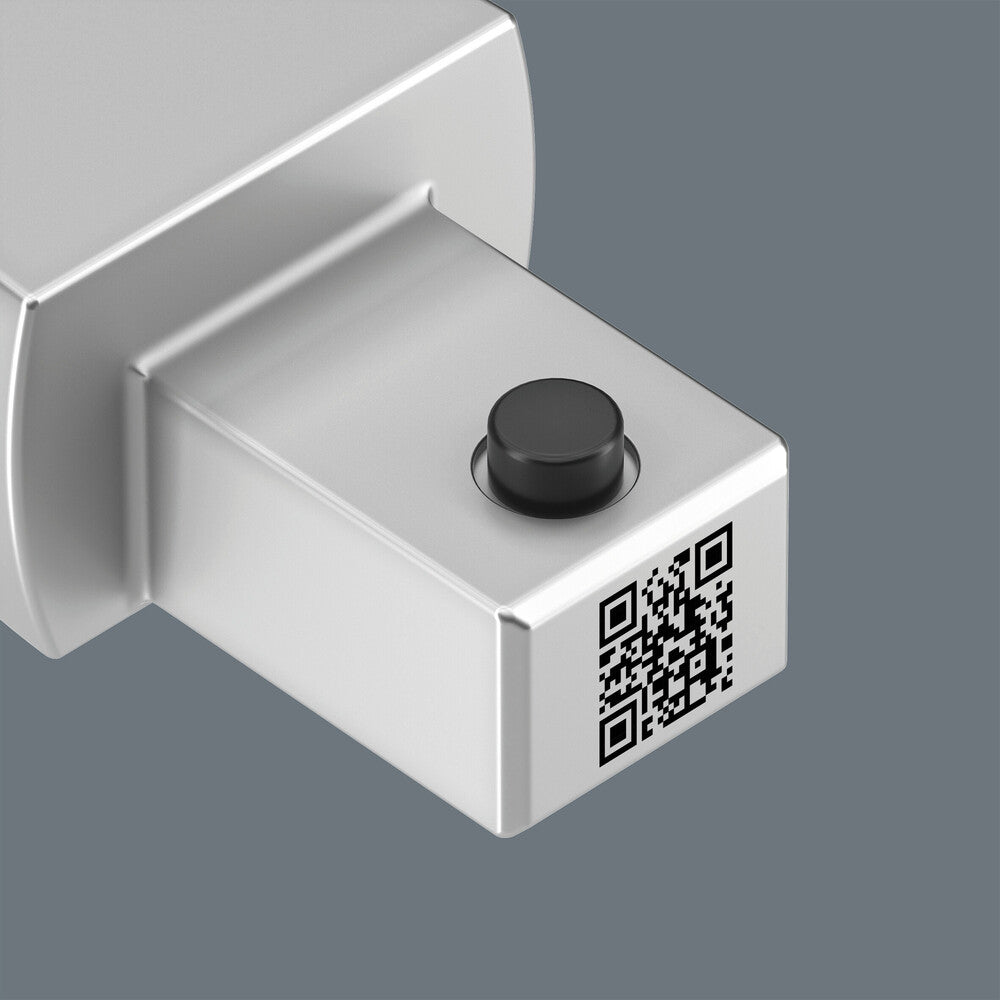

- The laser-engraved, abrasion-proof QR code makes it easier to determine the correct torque value depending on the torque wrench and insert tool used. Simply scan with your smartphone and tablet (if available, both QR codes: Torque wrench and insert tool). A website opens automatically which recognizes the scanned tools (no app needed!). Then enter the required torque value; the corrected value is determined automatically. No need to use formulas/calculations.

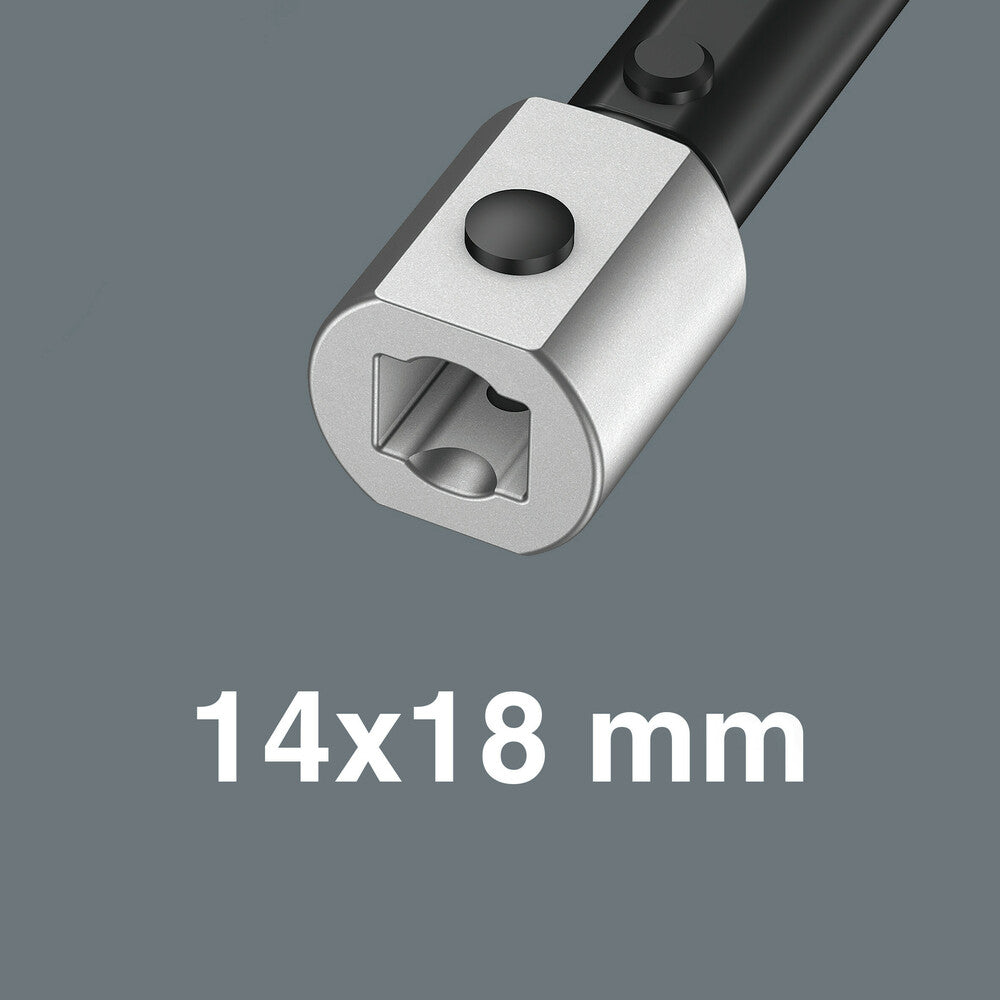

- For torque wrenches of the Click-Torque X series with 14x18 mm holder.

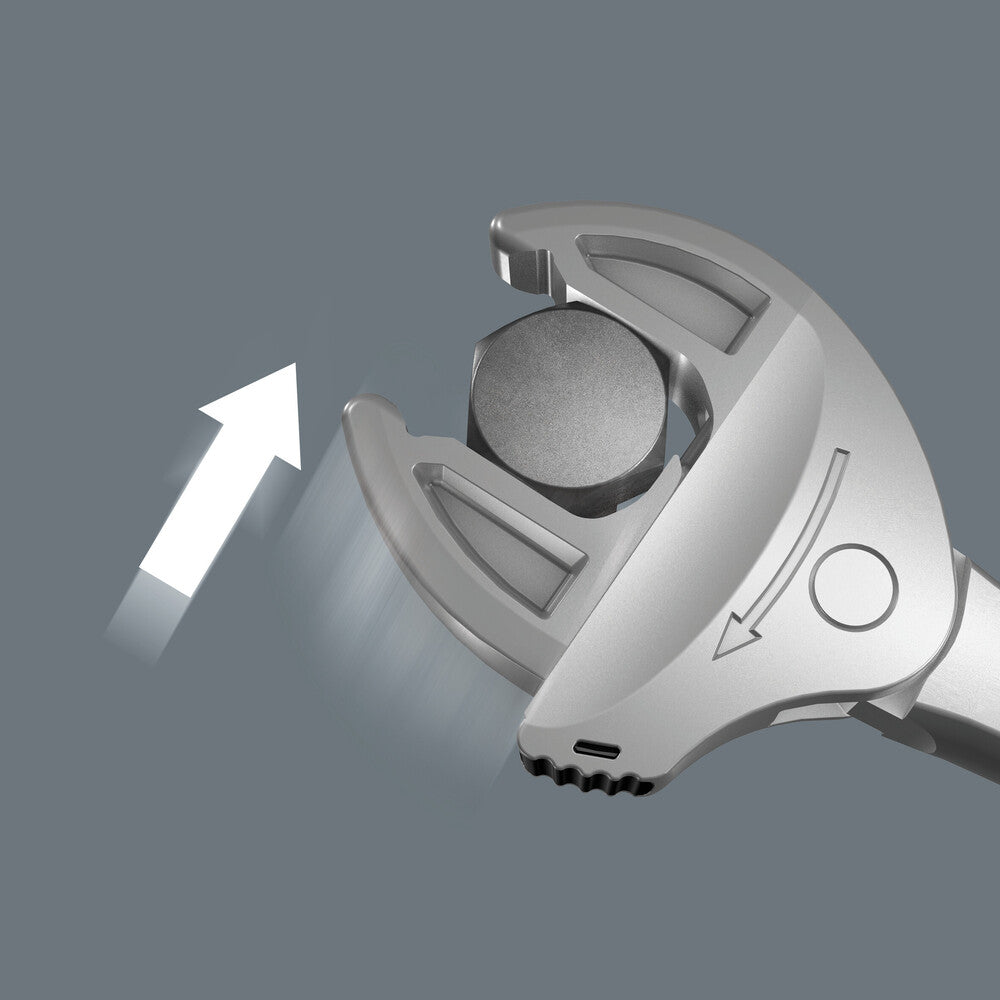

- With its automatically and continuously gripping parallel jaws the Joker 7880 covers all dimensions within the potential operative range. The tool finds the required size by itself when attaching it to the bolt or screw.

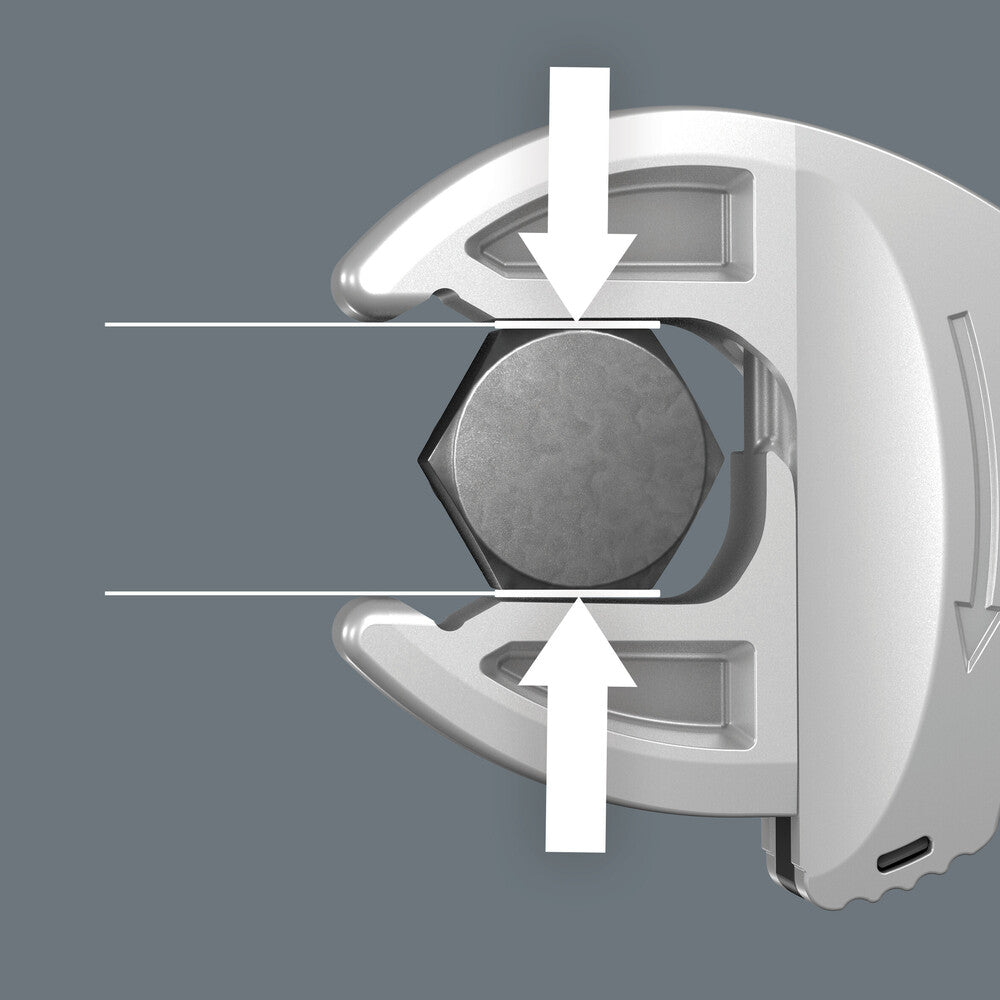

- The parallel, smooth jaws of the Joker 7880 offer a seating stress and can thus prevent the nut or screw head from rounding, which can occur when power is transmitted over corners.

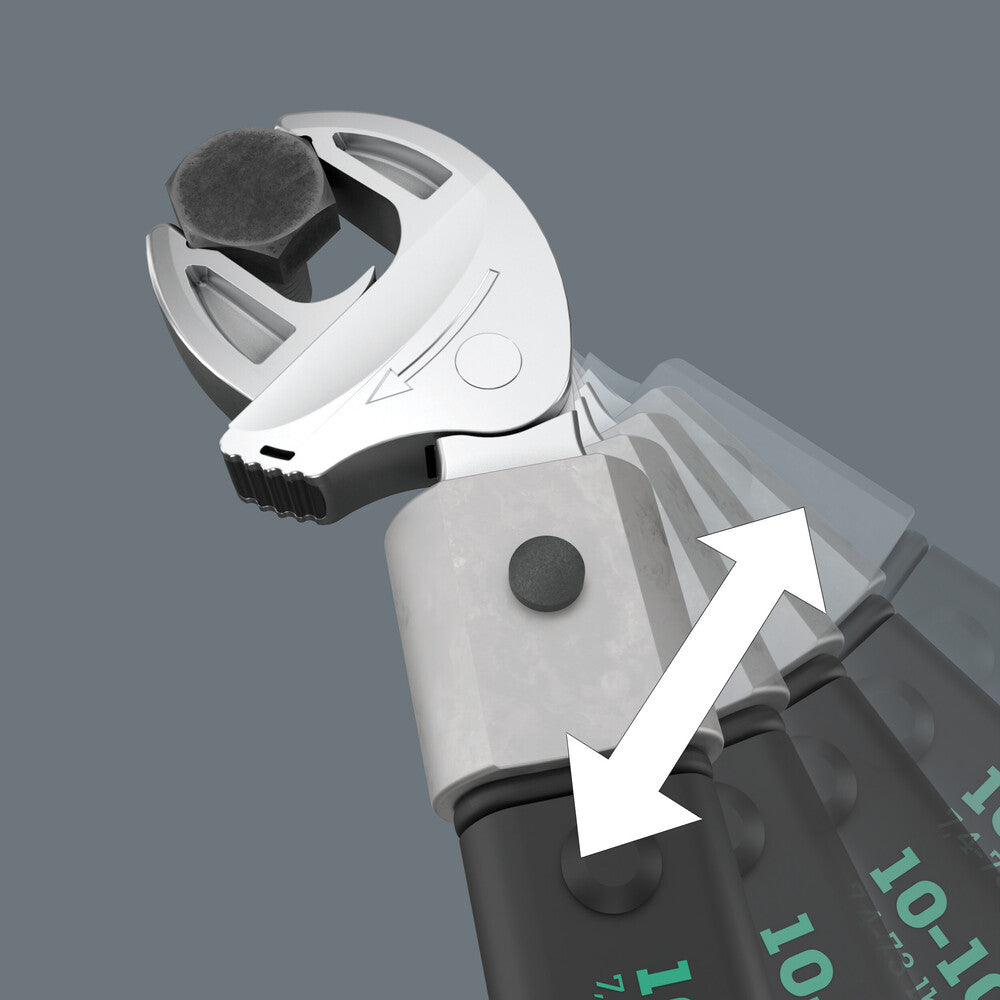

- The ratchet functionality in the open end sees to fast and consistent screwdriving without removing the tool.

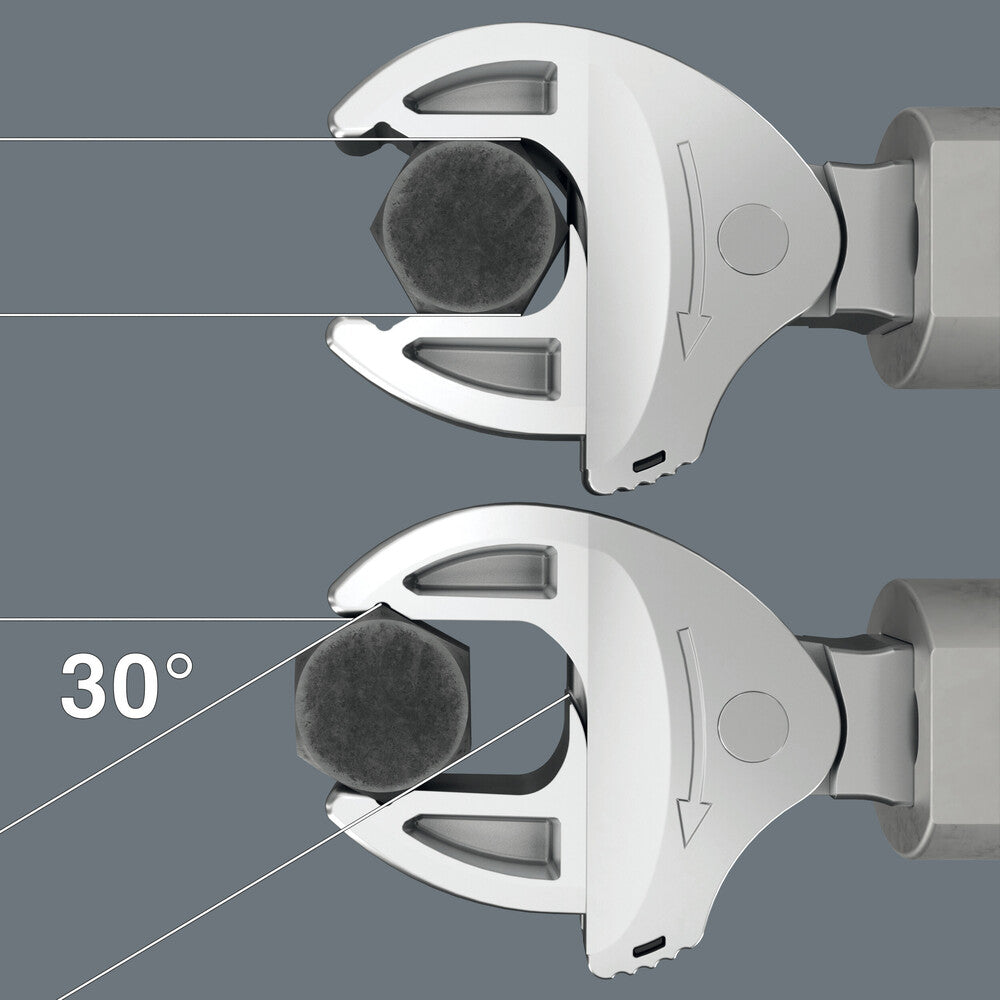

- Thanks to the corner-width rectangular prisms, a return angle of only 30¡ can be achieved.

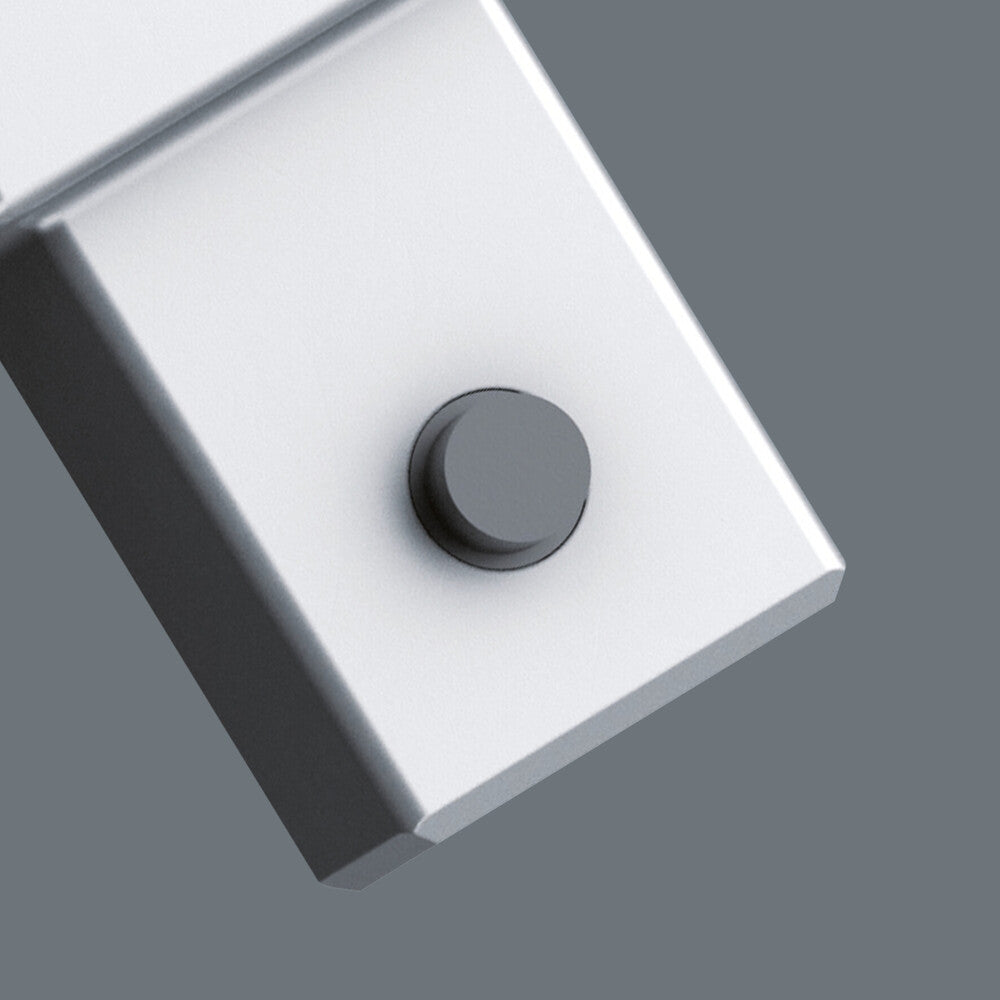

- The safety pin of the insert tools enables safe working and fast tool change.
- The chrome-vanadium steel version makes the plug-in tools suitable for heavy loads.

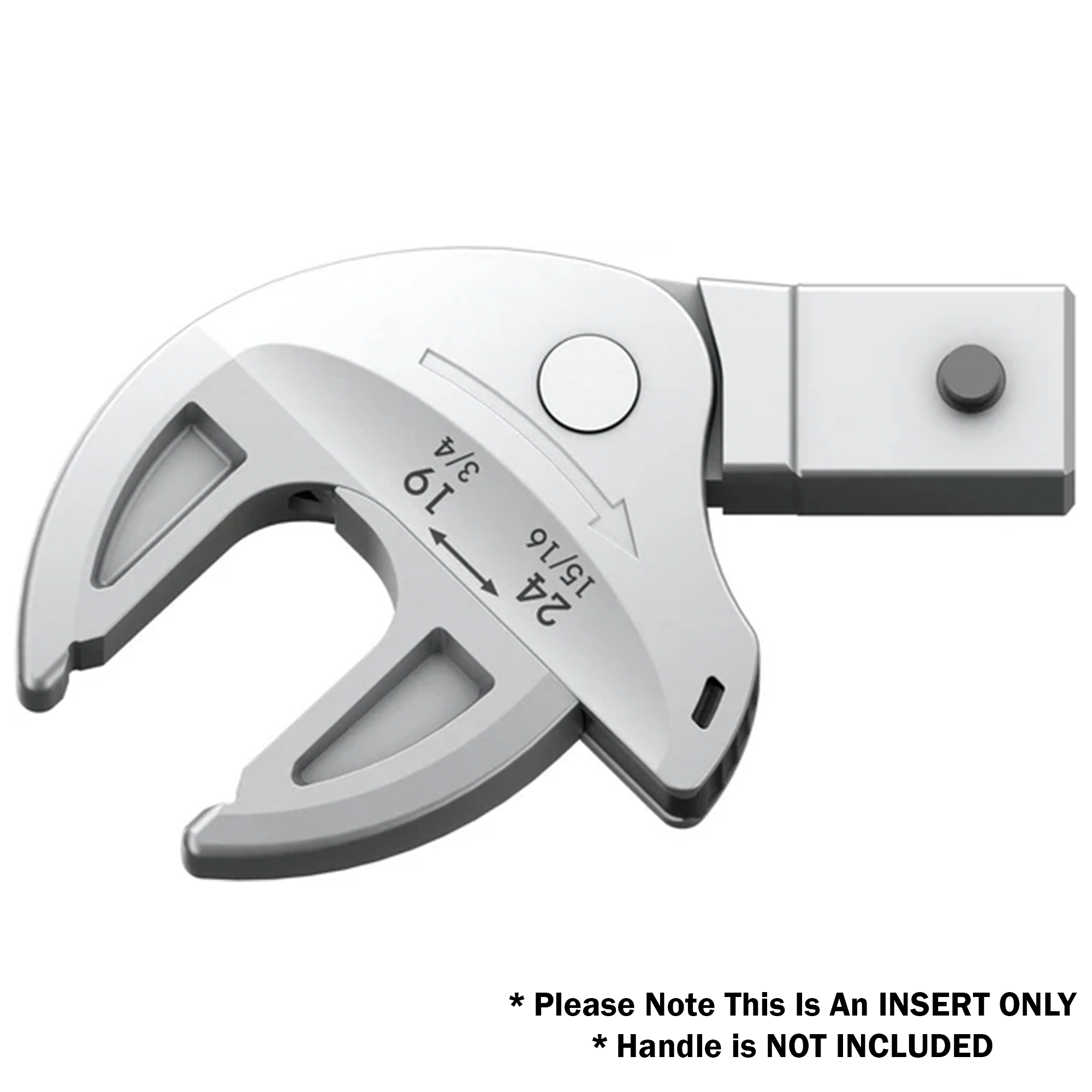

*Please Note This Is An INSERT ONLY
*Handle Is Not Included
