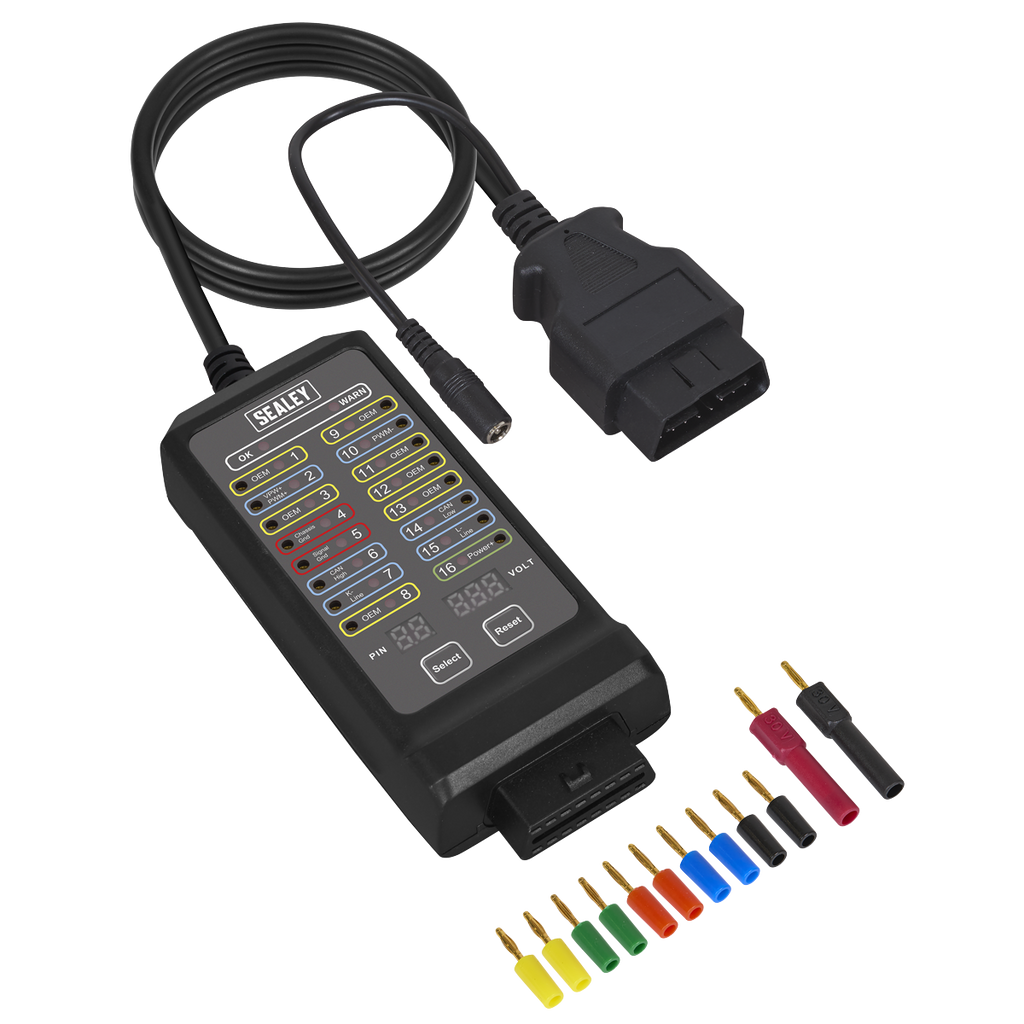

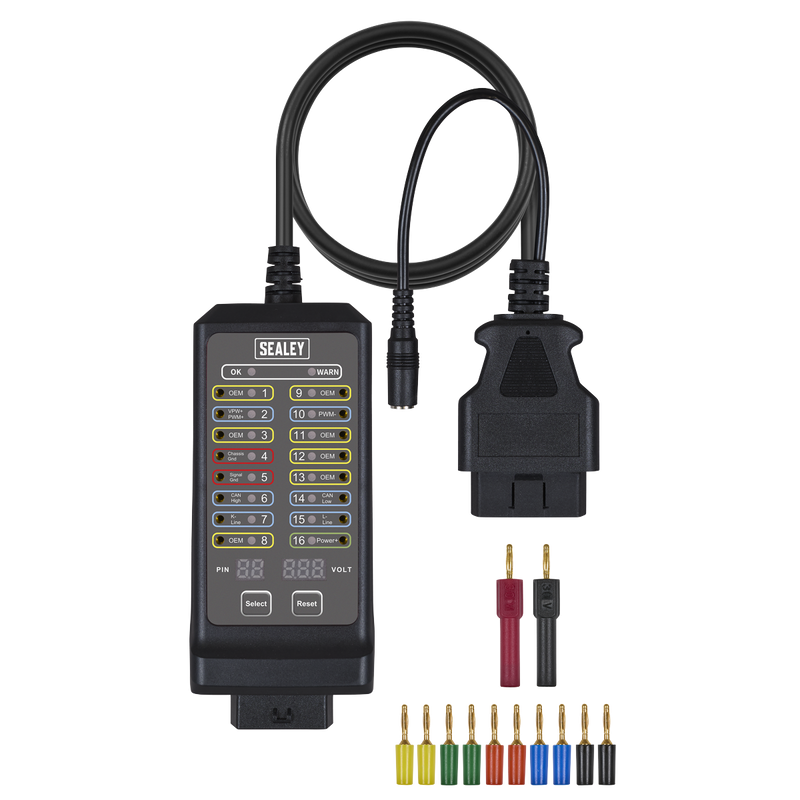

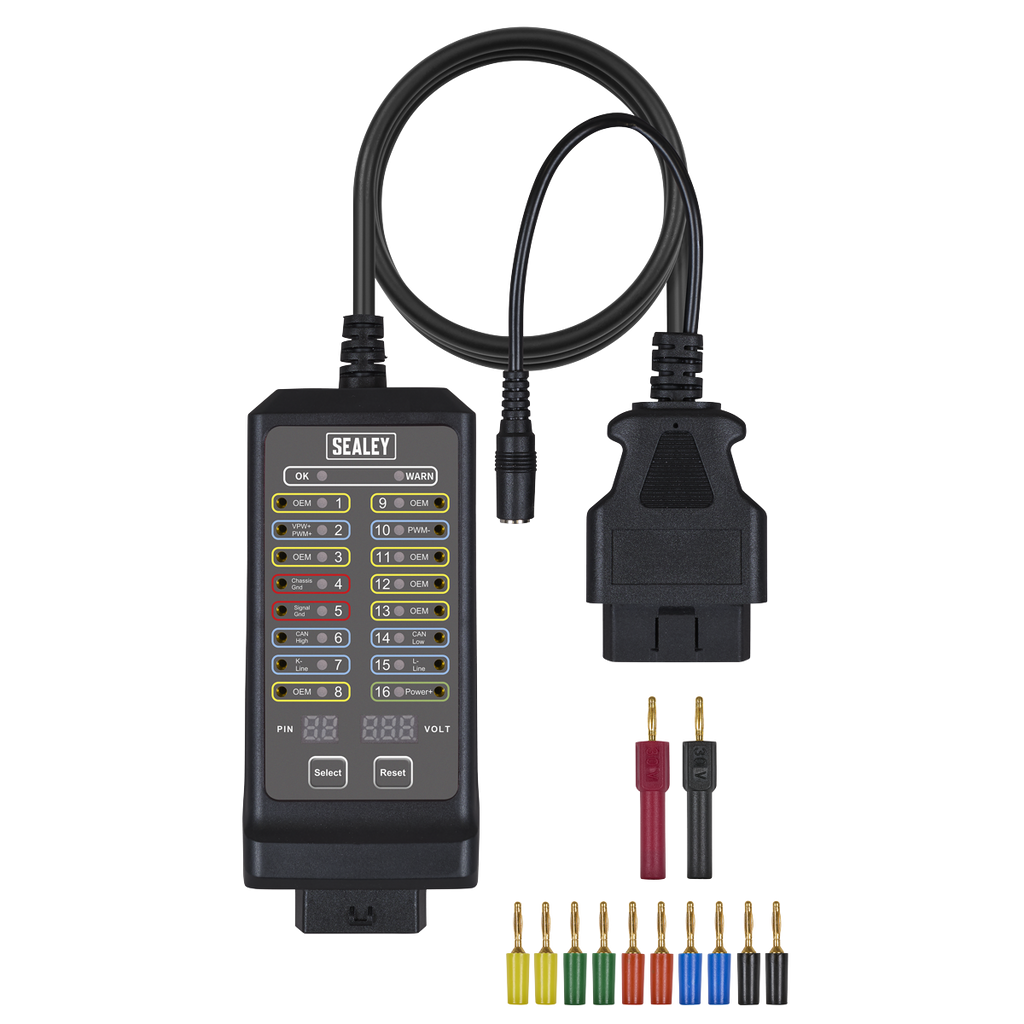

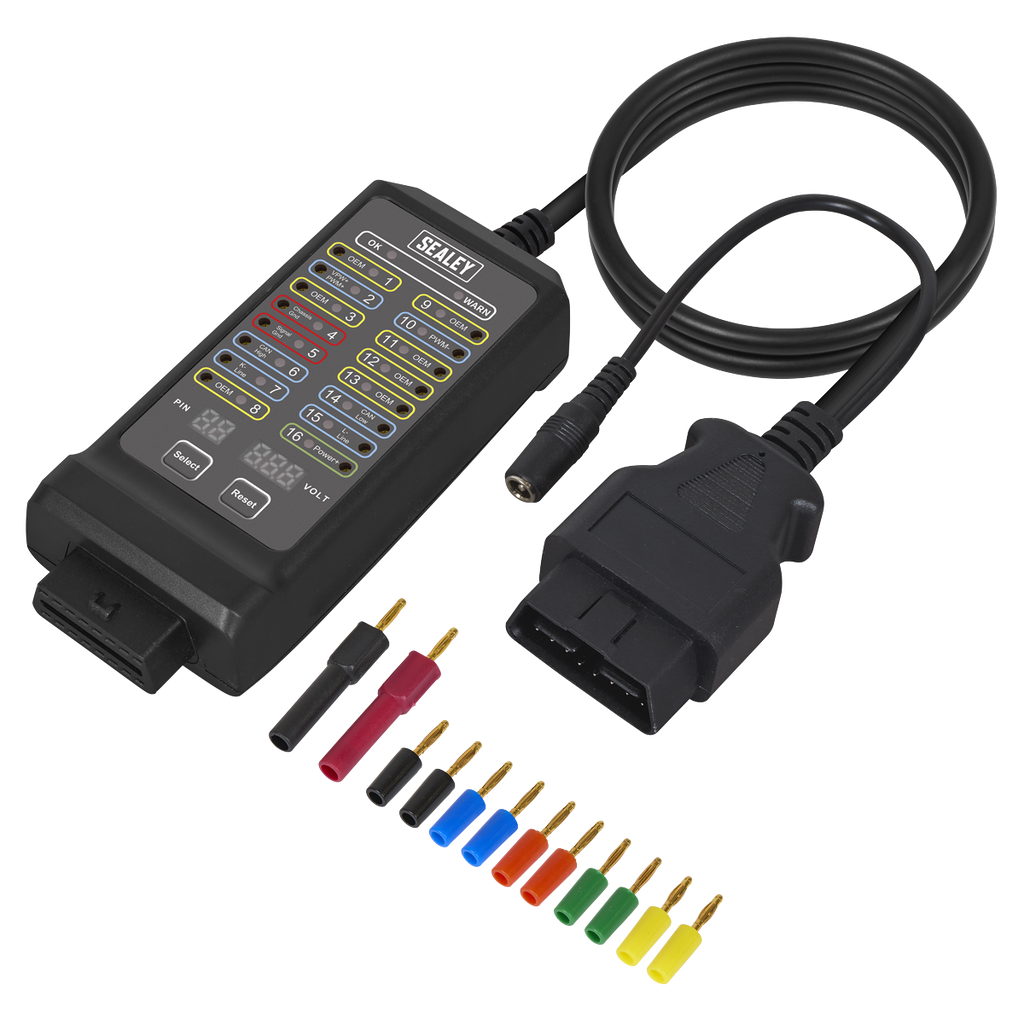

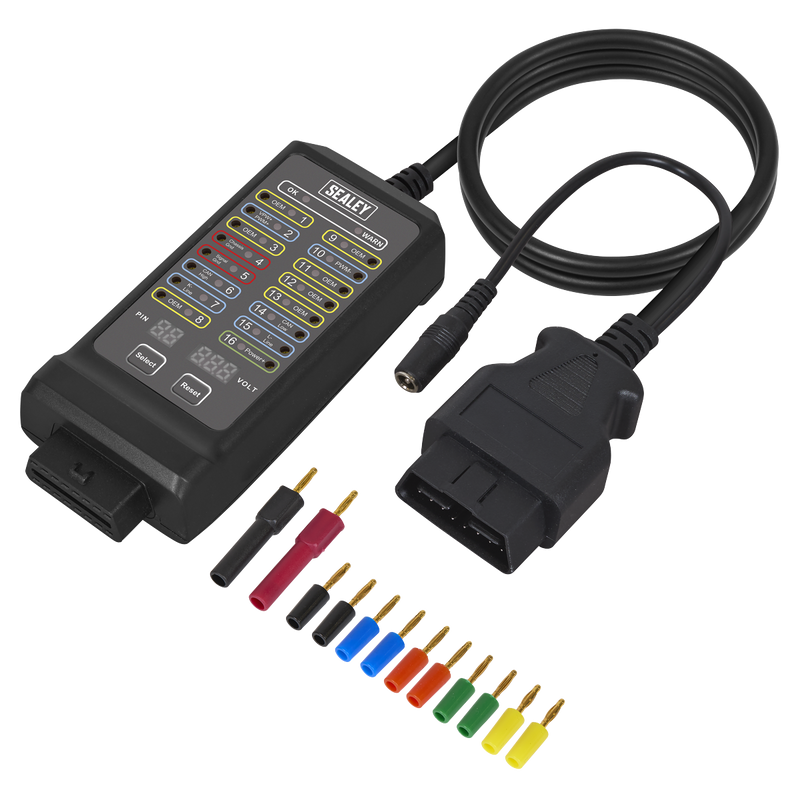

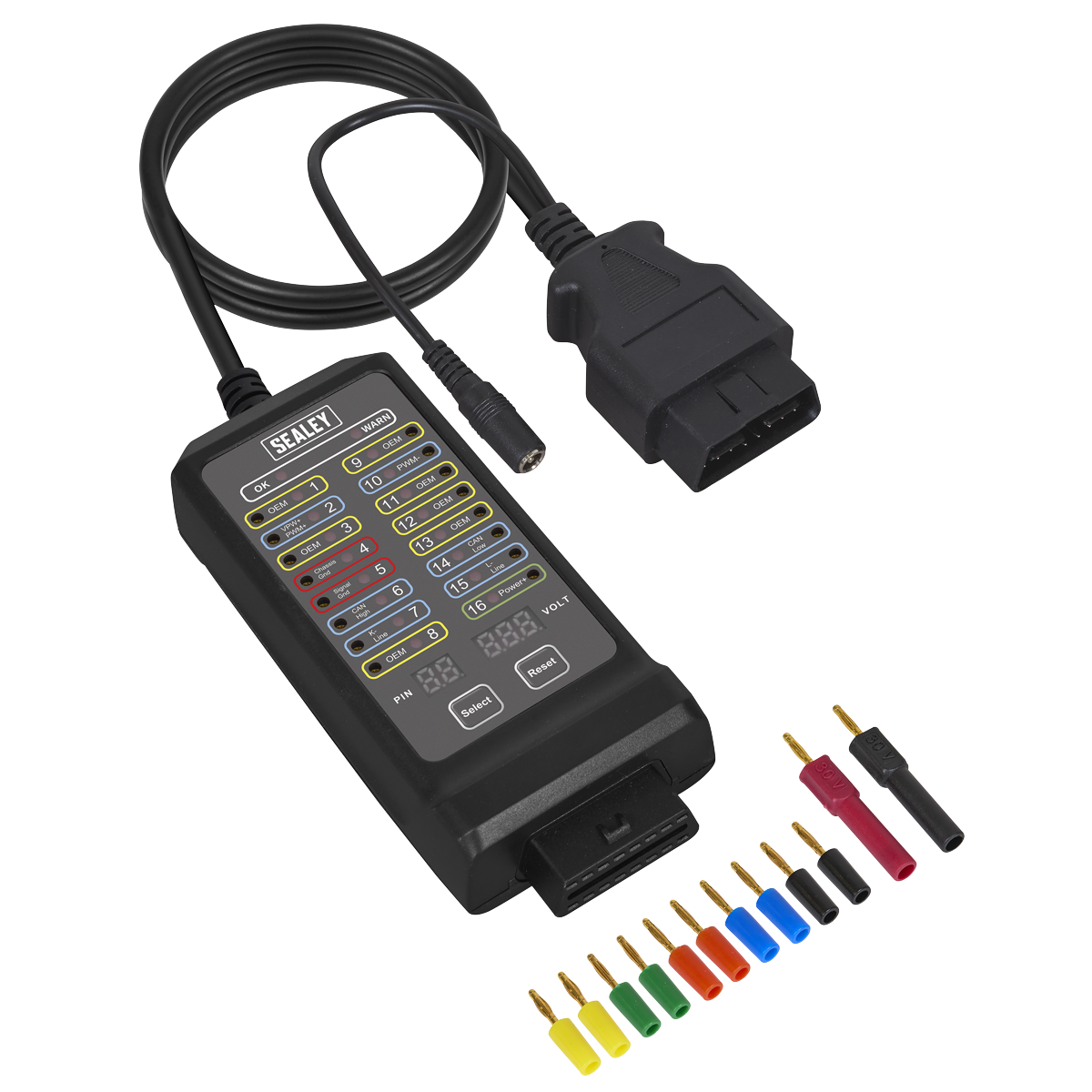

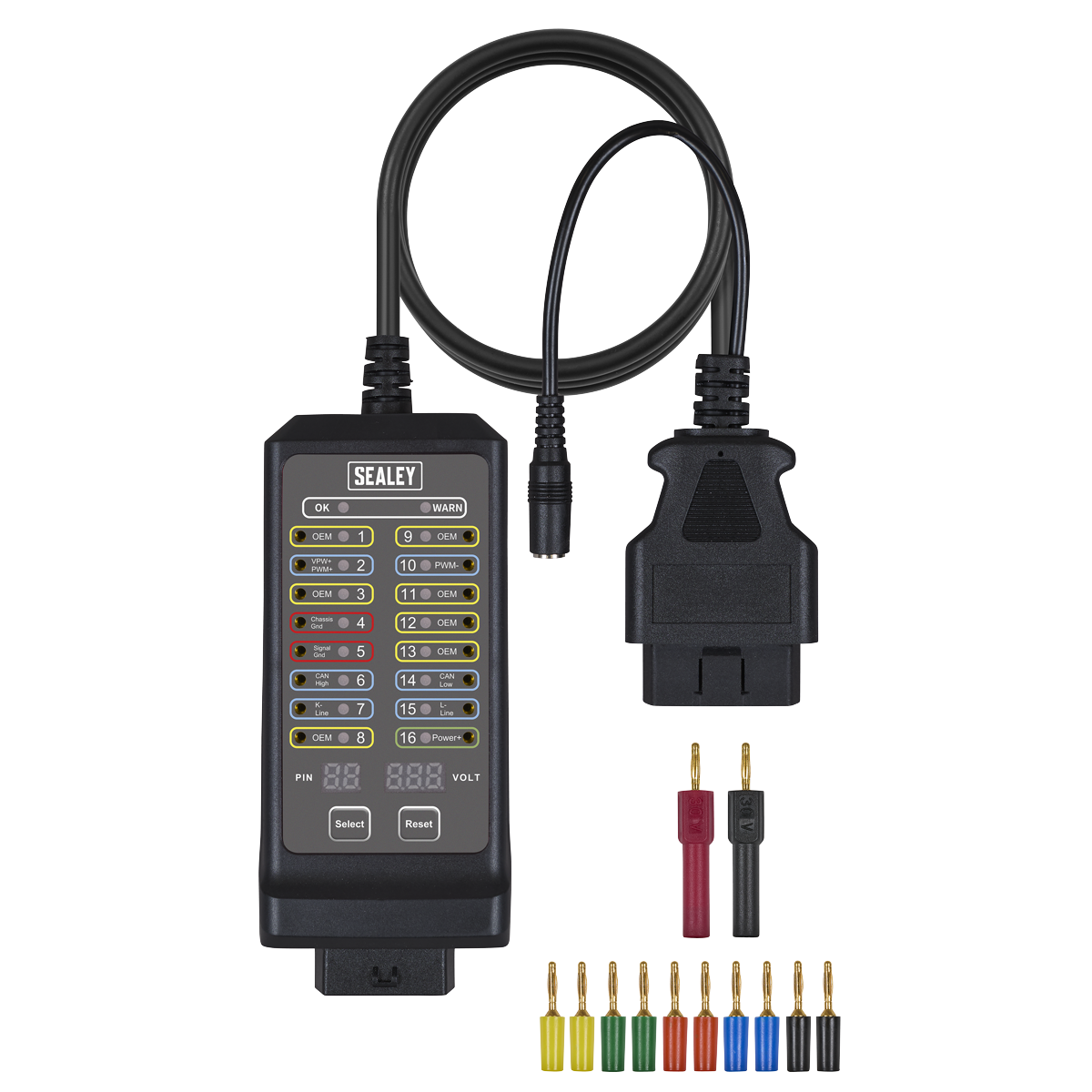

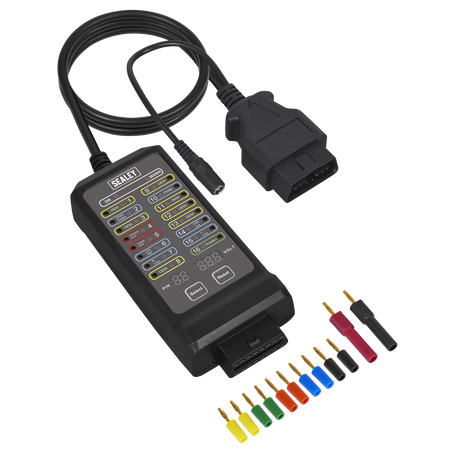

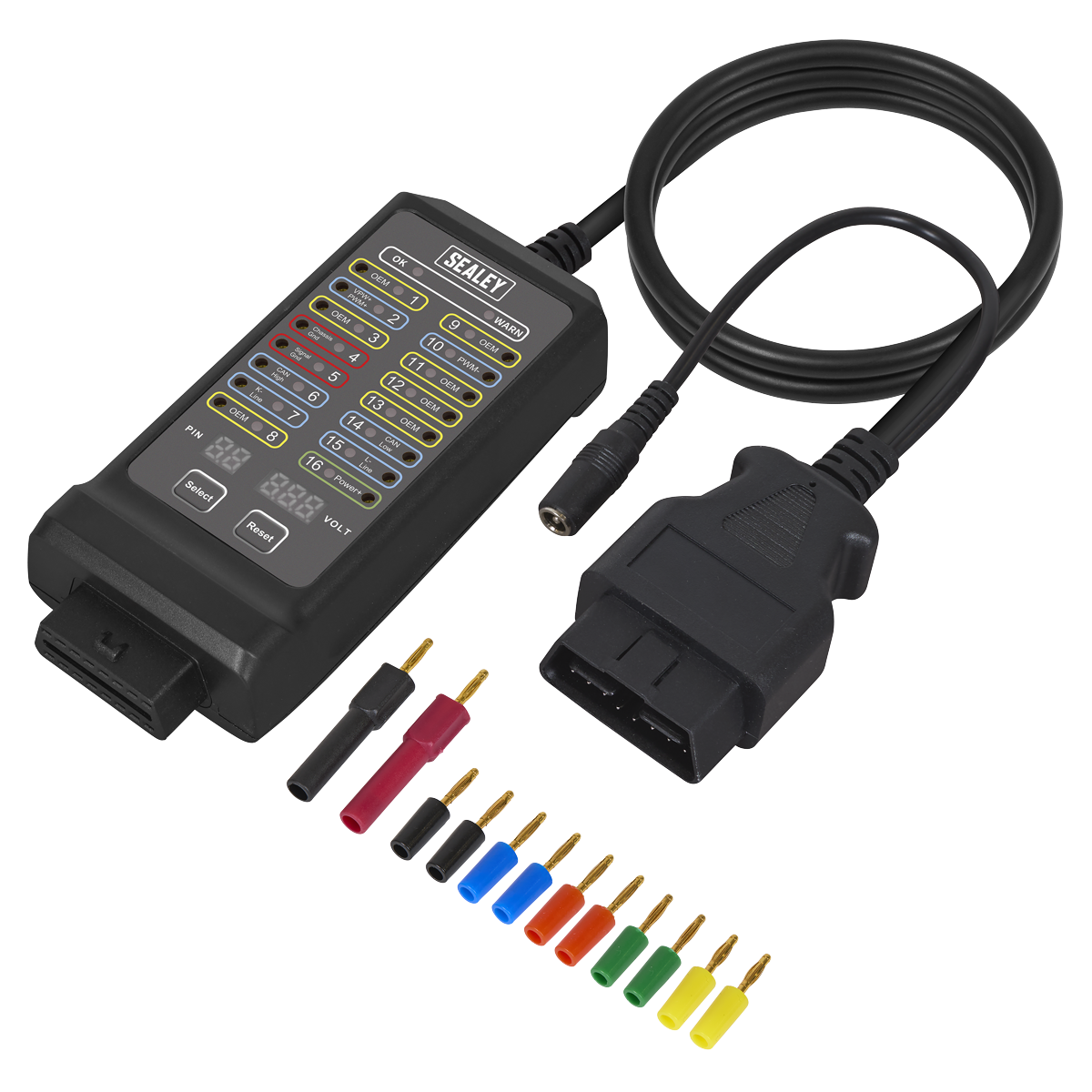

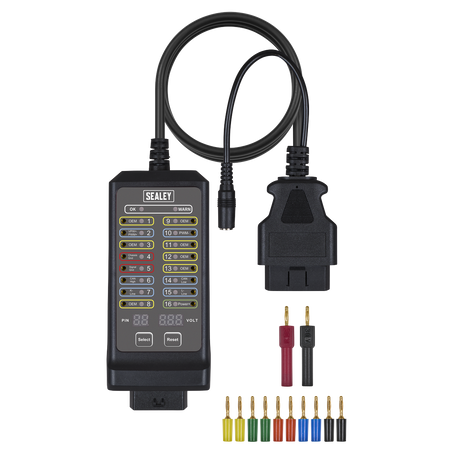

Sealey VS8813 OBD Breakout Box 16-Pin 12V/24V

Test the onboard diagnostics port for any faults before connecting other diagnostic devices to the DLC. The breakout box is designed to be connected in series with 16-pin OBDII/EOBDII diagnostic equipment. It can also be connected to multimeters and oscilloscopes. Compatible with 12 and 24V systems. The selectable pin voltage indicator shows the real-time voltage of the selected pin. Communication Protocol Indicator - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE. Overload protection protects any connected diagnostic equipment from damage.

Features

• OBD Breakout Box 16-Pin 12V/24V
• TESTS THE ON-BOARD DIAGNOSTOC PORT - For any faults before connecting other diagnostic devices to the DLC.

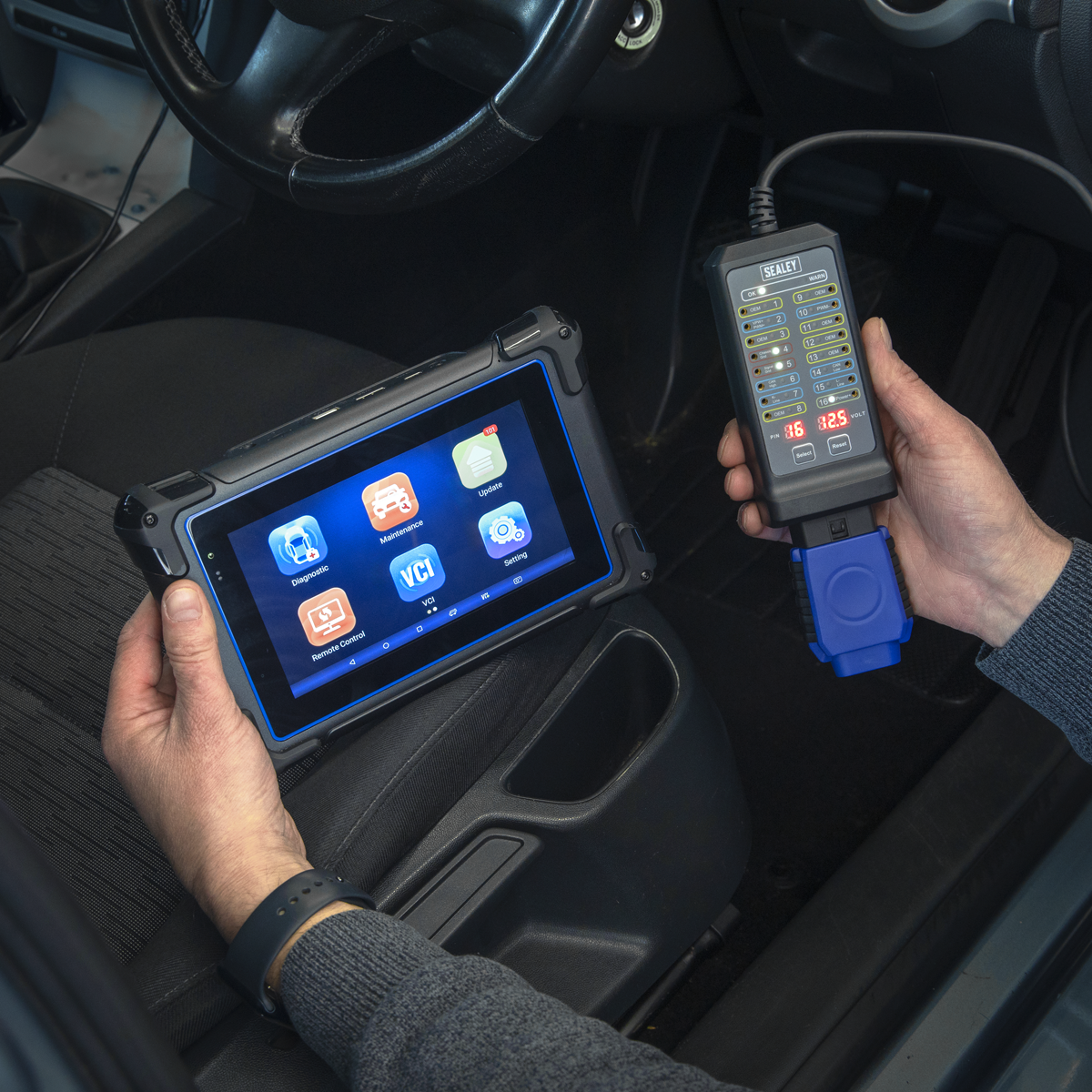

• UNIQUE DESIGN – The breakout box can be connected in series with 16-pin OBDII/EOBDII diagnostic equipment.
• CONNECTS TO MULTIMETERS AND OSCILLOSCOPES – To enable further testing.
• COMPATIBLE - With 12 and 24V systems.

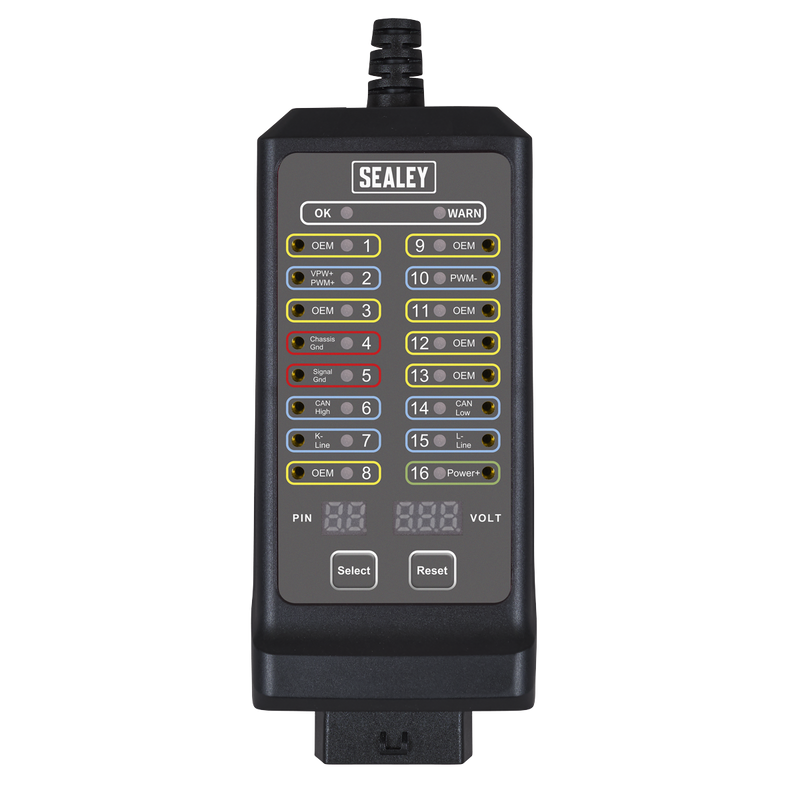

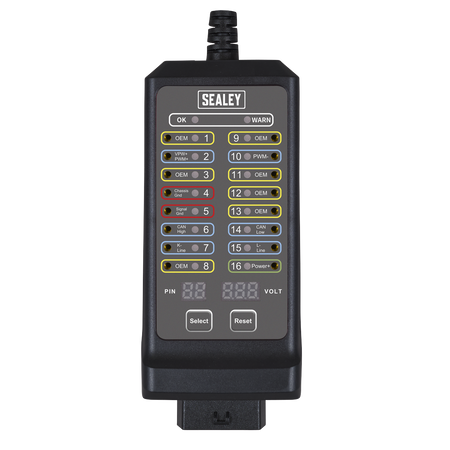

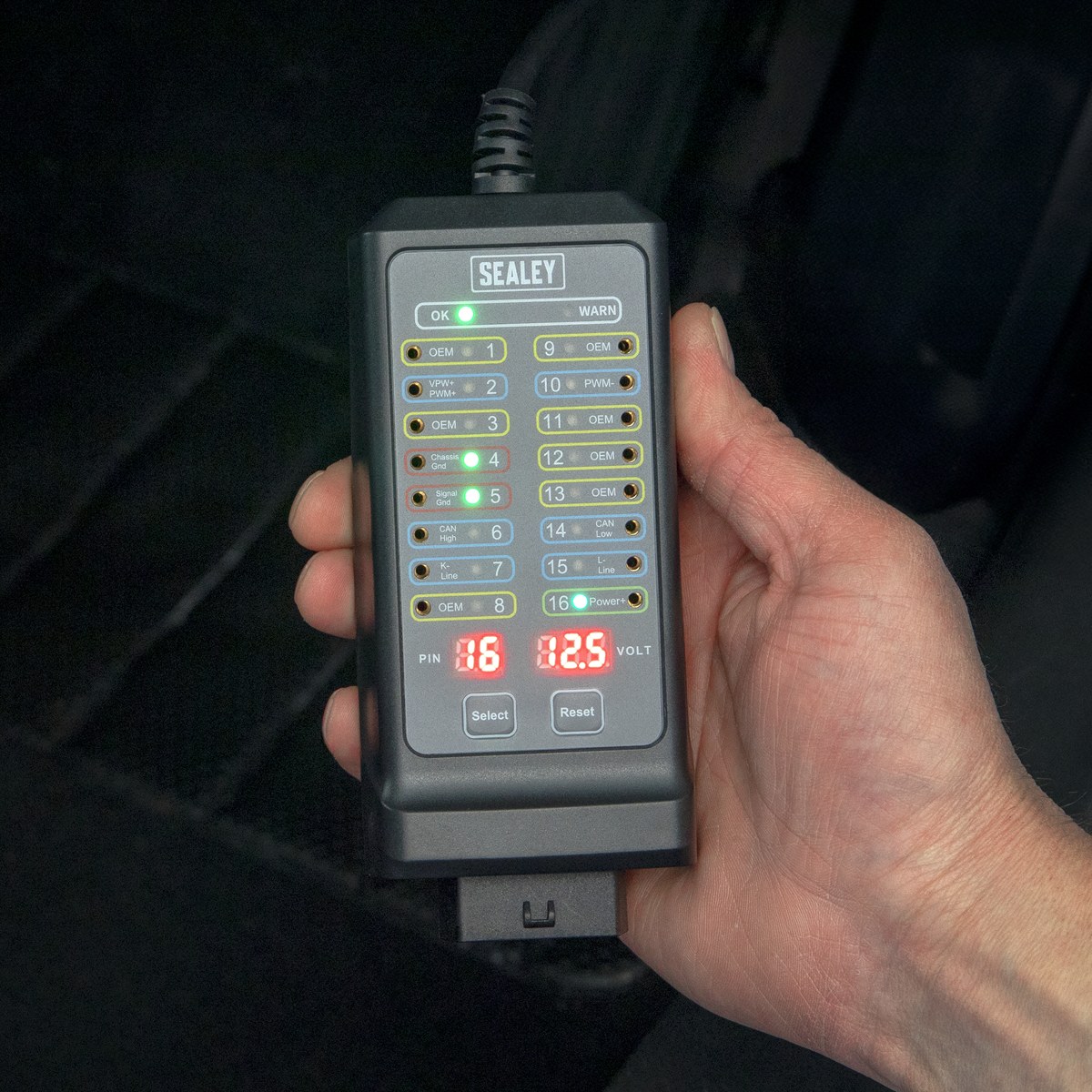

• SELECTABLE PIN VOLTAGE INDICATOR - Shows the real-time voltage of the selected pin.

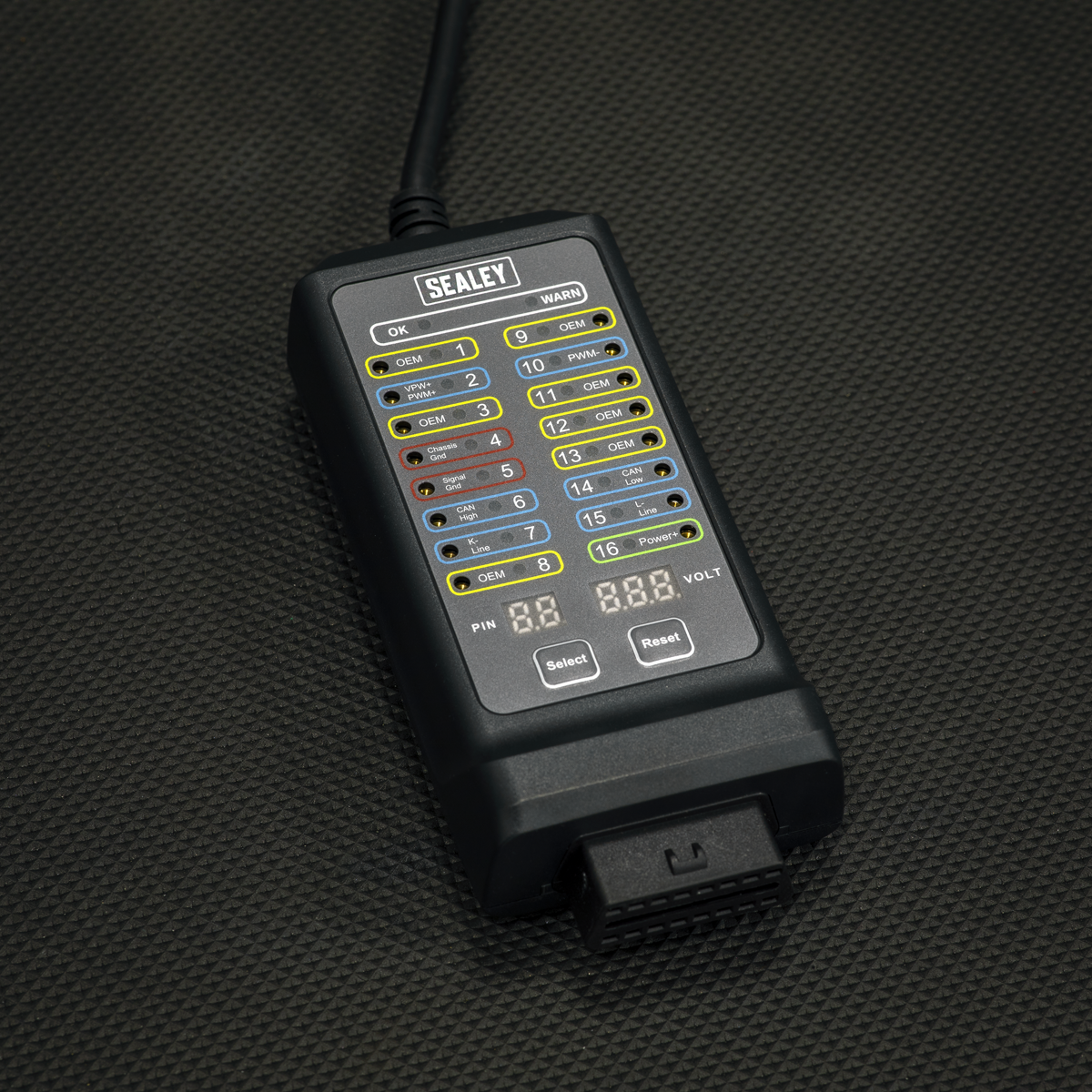

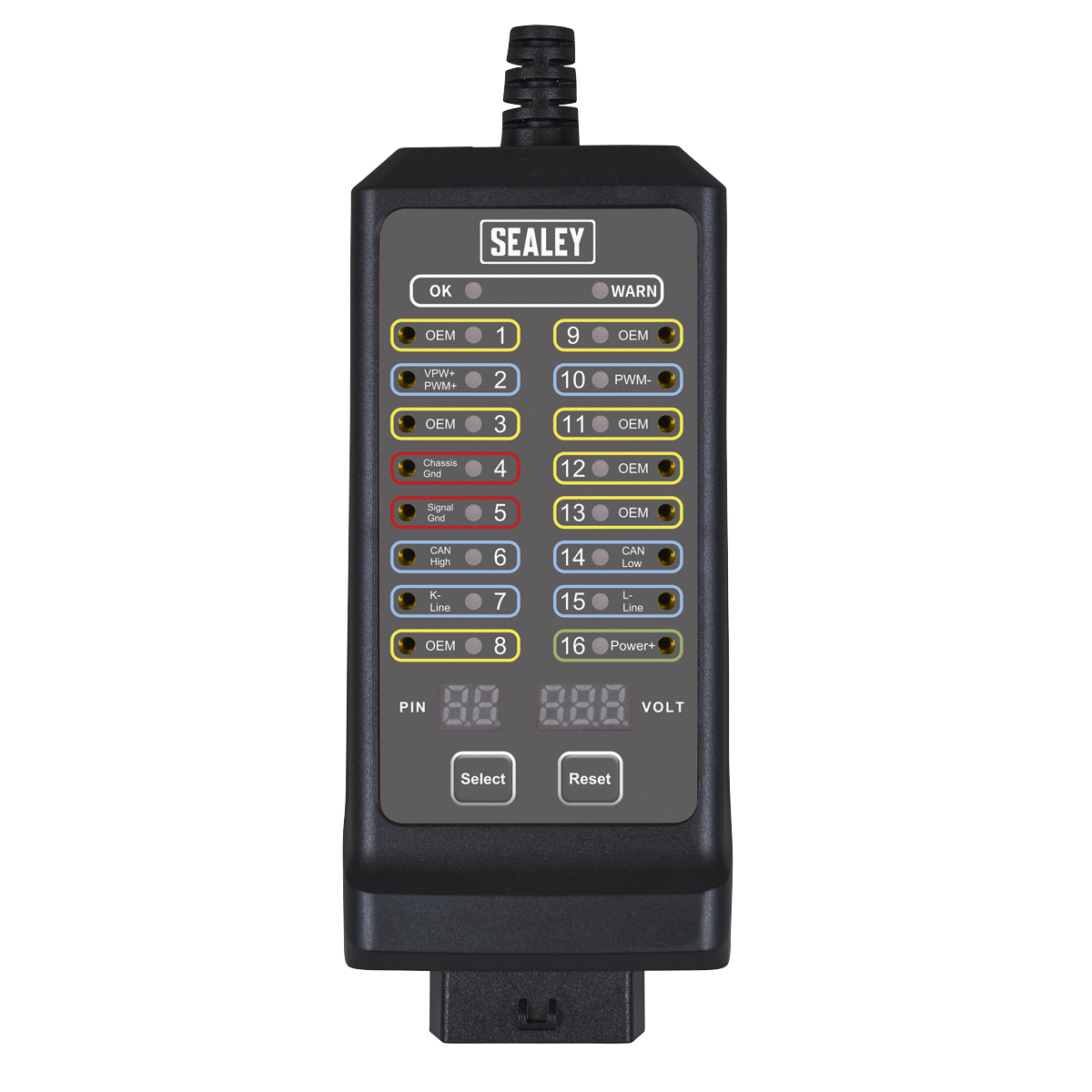

• COMMUNICCATION PROTOCOL INDICATOR - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE.
• OVERLOAD PROTECTION - Protects any connected diagnostic equipment from damage.
