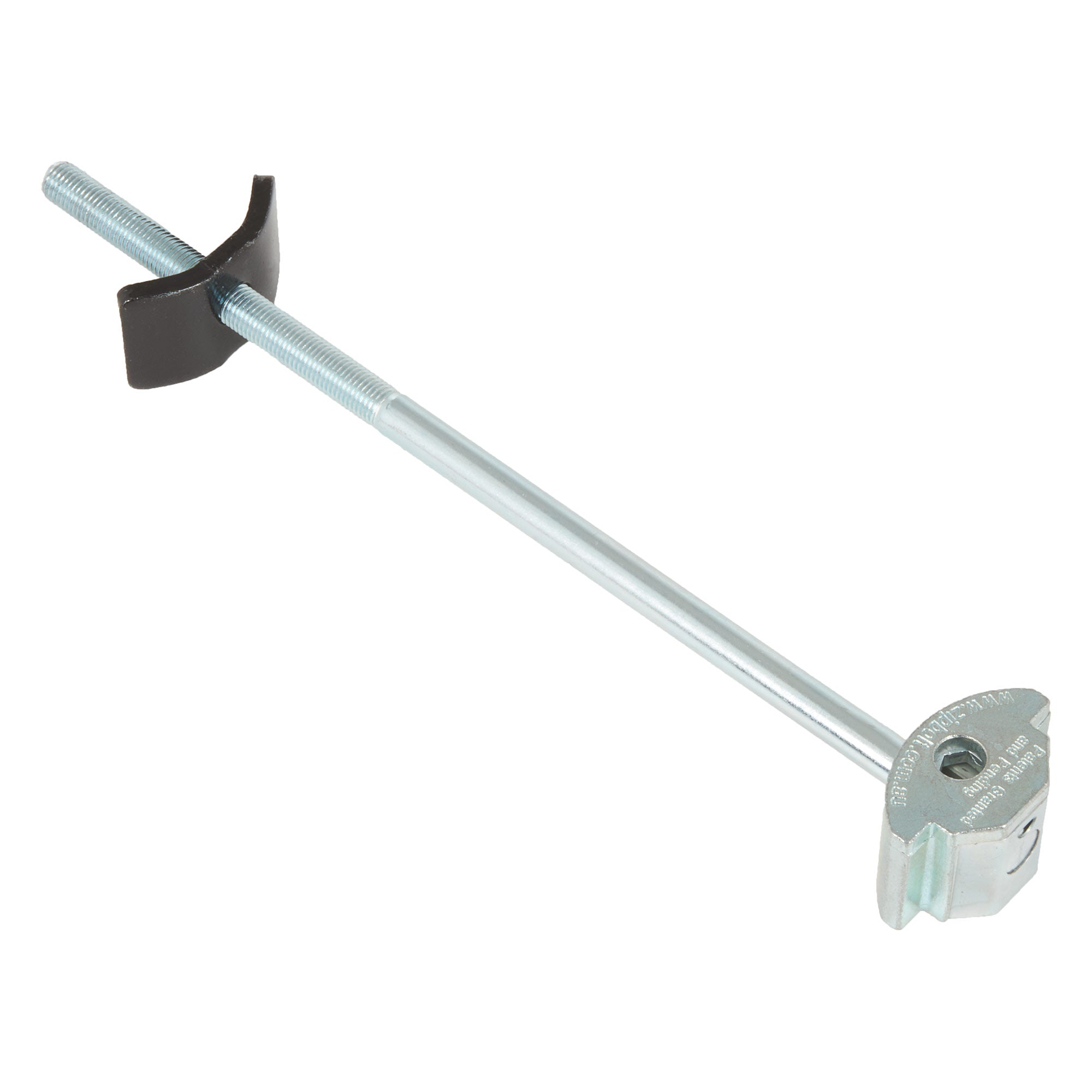

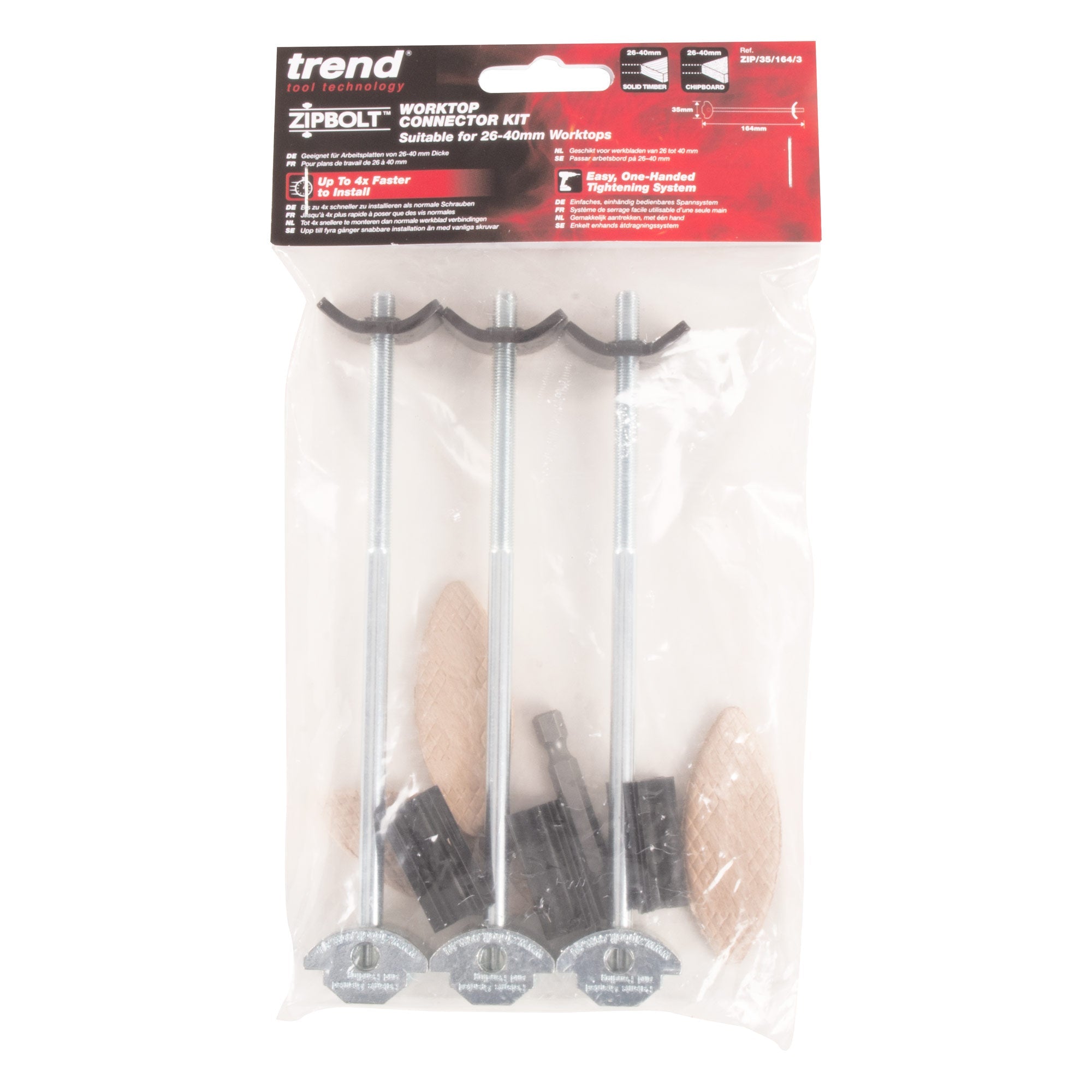

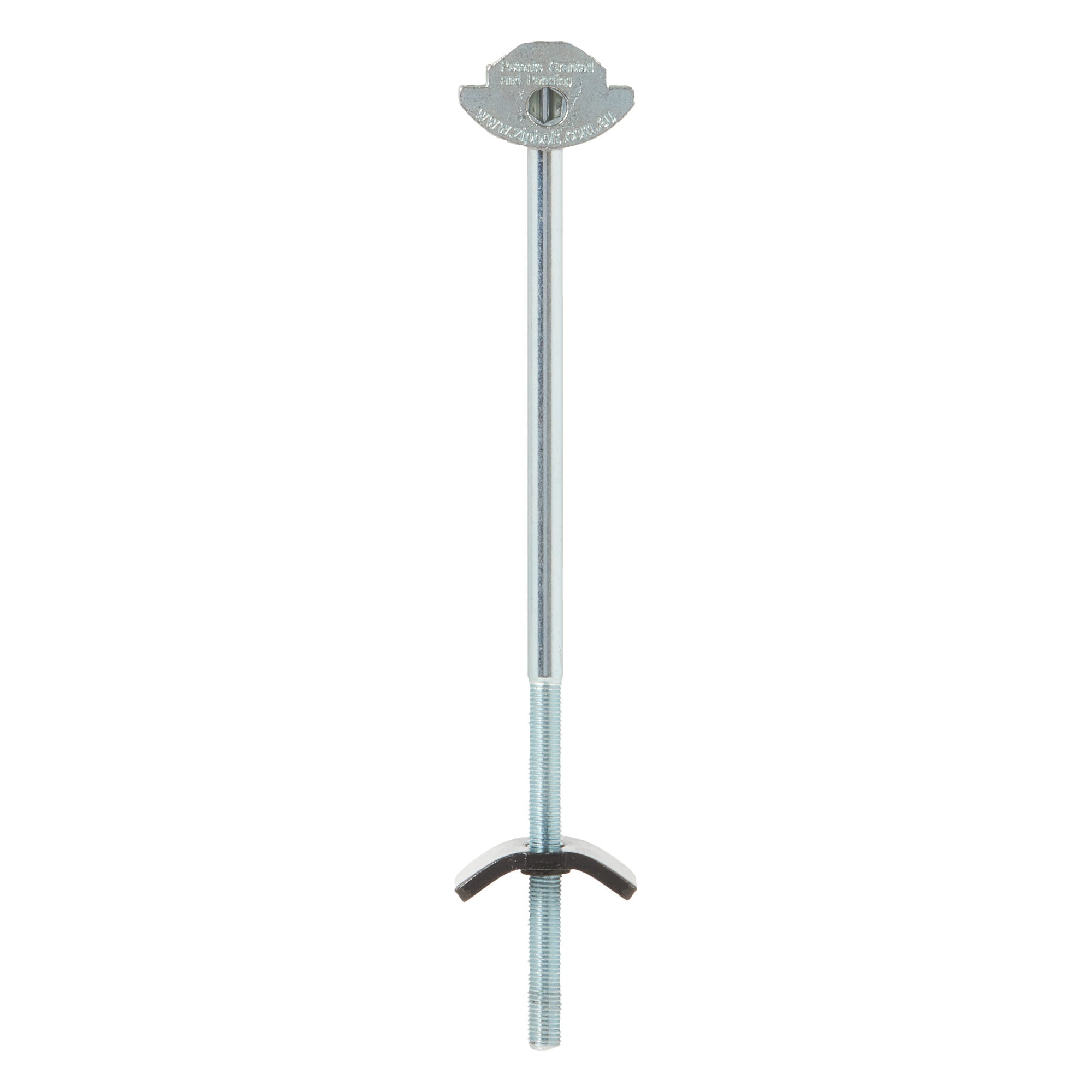

Trend Tools ZIP/35/164/3 Zipbolt Standard Worktop Connector Kit (26-40Mm)

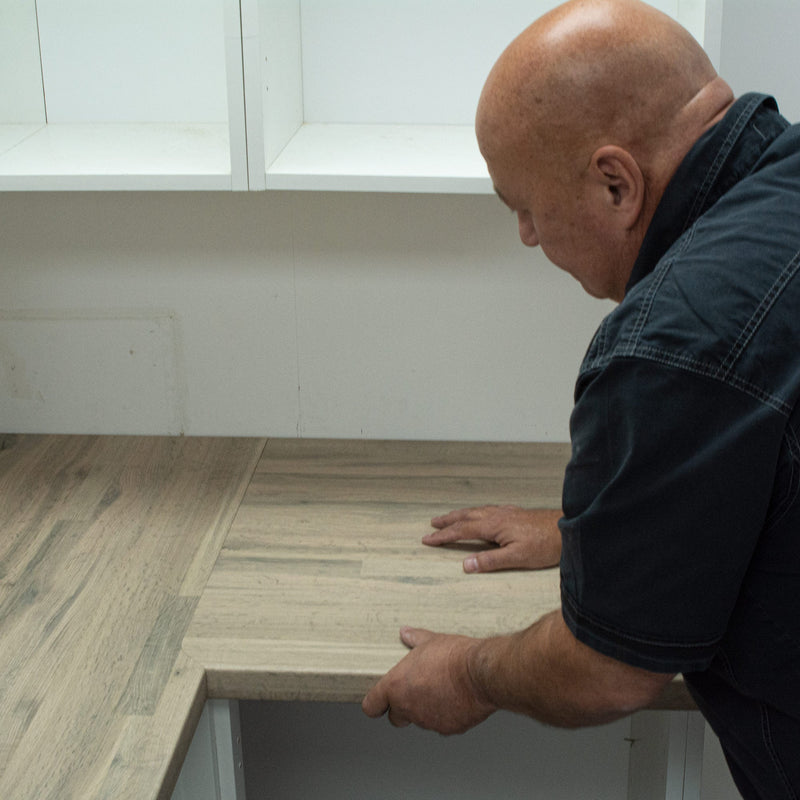

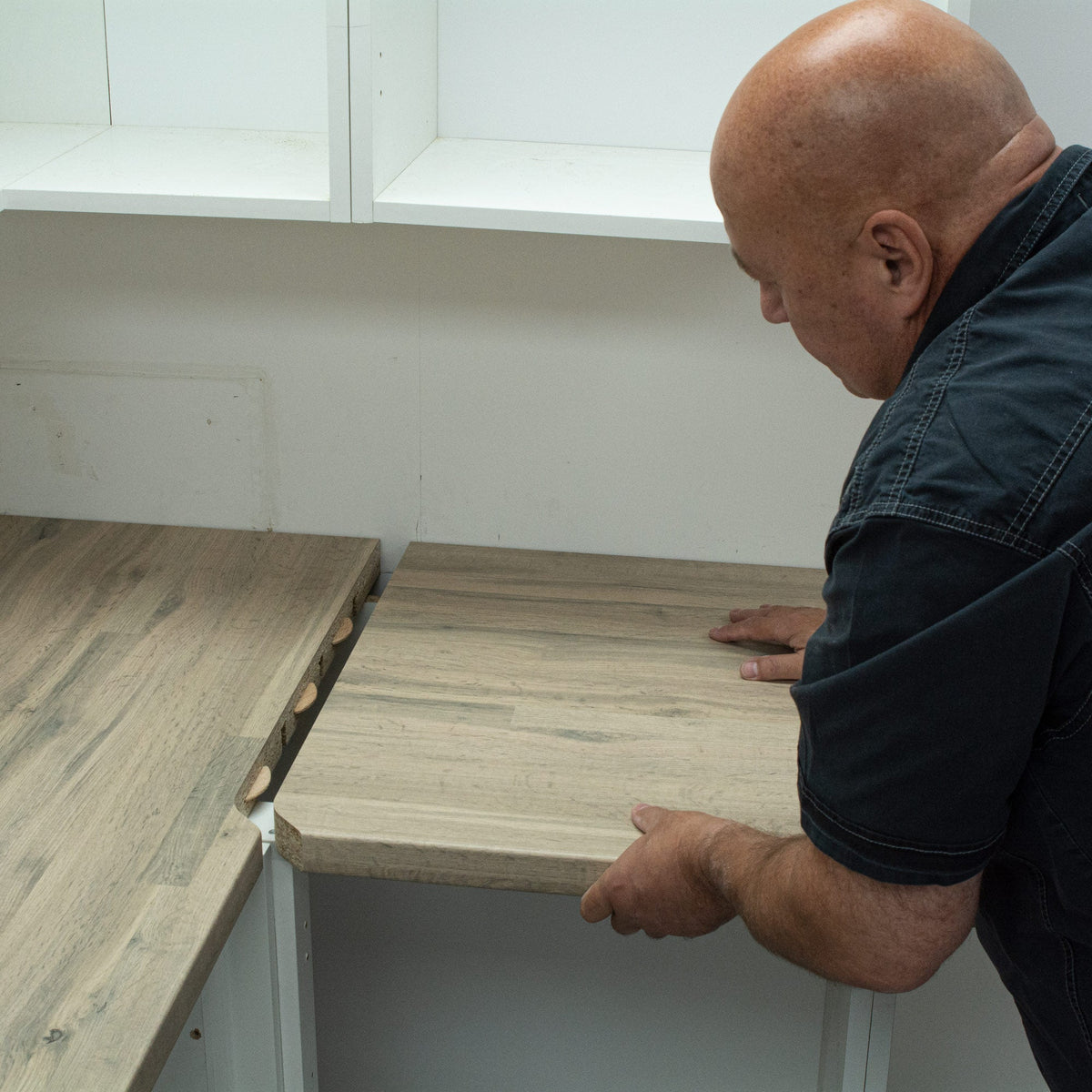

• Engineered by kitchen installers, for kitchen installers. With a unique patented design for easy worktop joining and over four times faster than conventional bolts to fit. Available in sizes to suit all types and thicknesses of worktop.
• Heat-Treated End Plate can handle high torque levels to prevent deformation or damage.
• Zinc-Plated Steel Construction for long-lasting strength and rust protection.

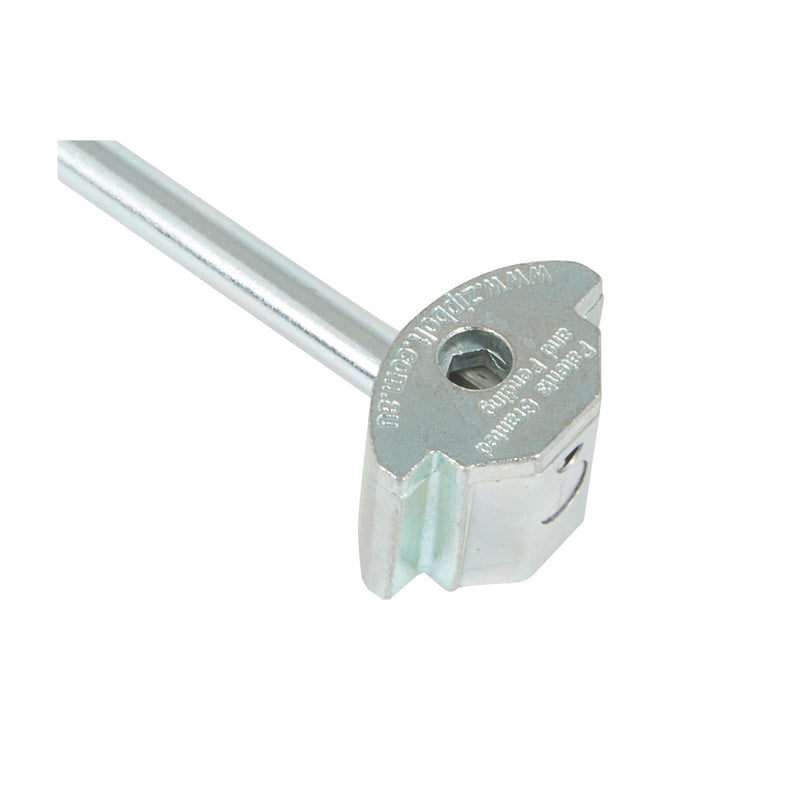

• Robust Geared Head Mechanism is driven by 5mm Hex bit and tightens in seconds with one hand and a drill/driver.

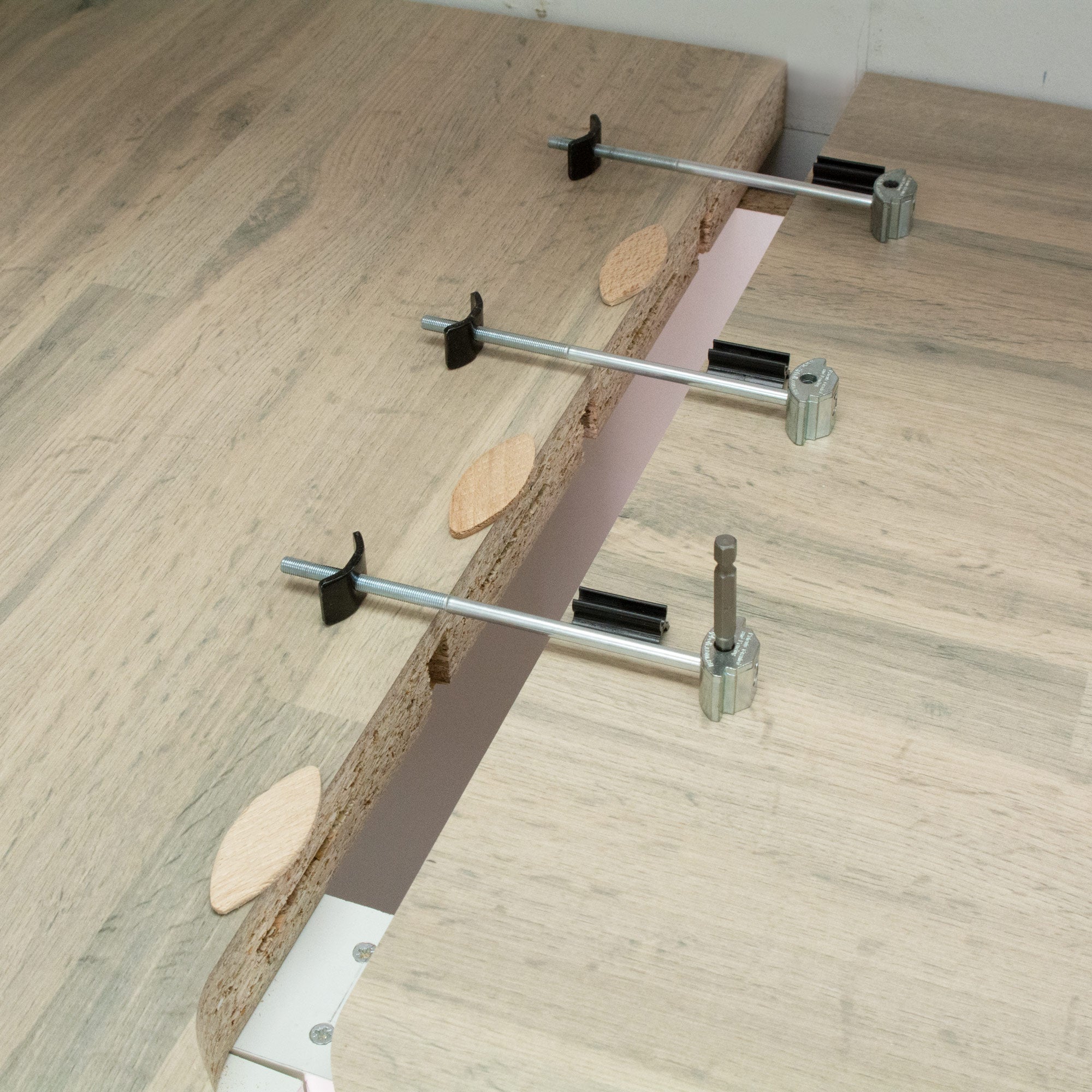

• Standard and Slimline ZIPBOLT kits also include 3 x ZIPCLIPS to speed up and further simplify installation.

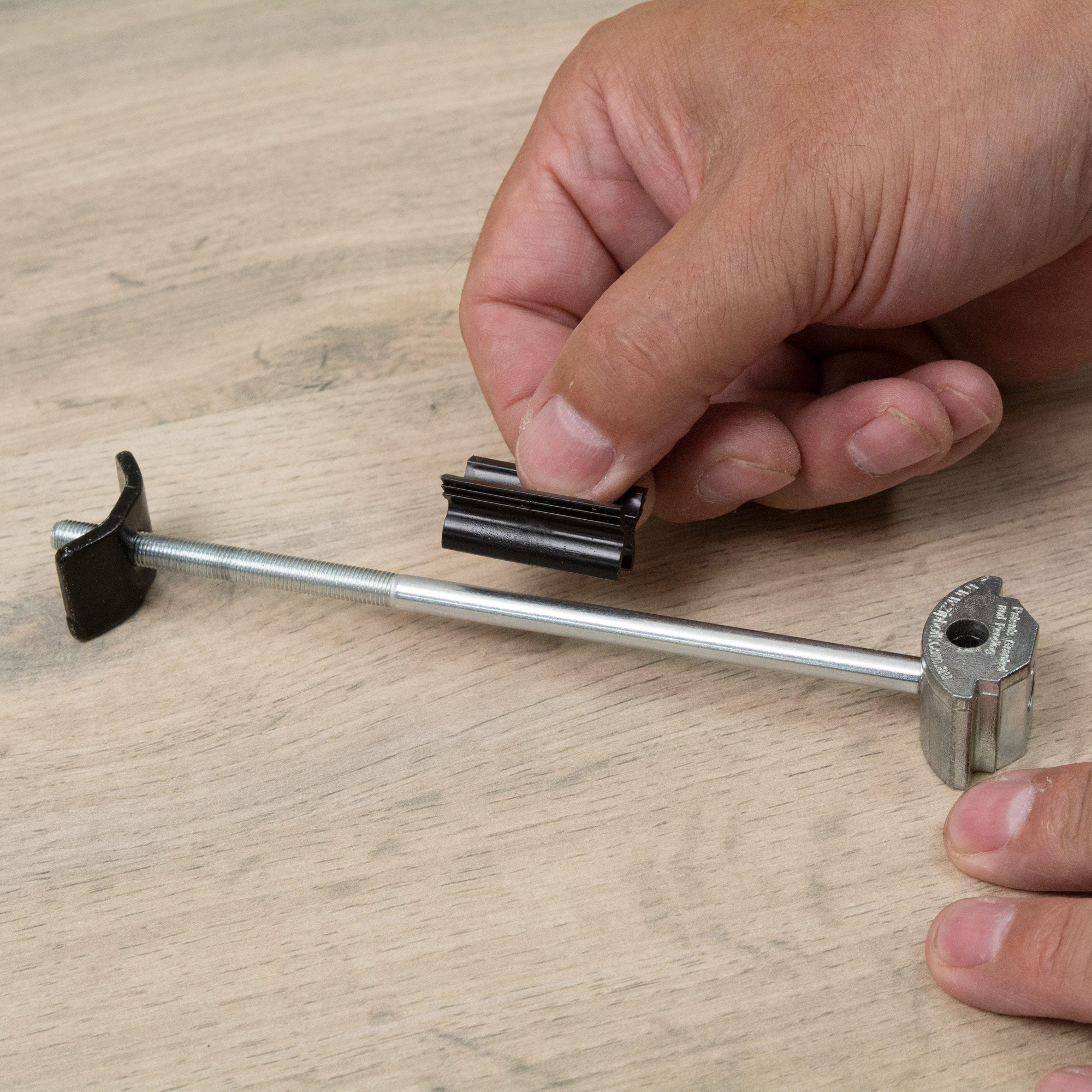

• ZIPCLIPS hold the bolt securely in the routed recess, preventing it from falling out before it is tightened.
• Flexible Wings grip to hold the ZIPBOLT firmly in place.

Specifications

• Bolt Length=164 mm
• Shank Diameter=6 mm
• Geared Head Diameter=35 mm
• Guide Bush Required=30 mm
• Cutter Diameter Required=12.7 mm
• Min Cut Depth=20 mm
• Supplied Driver Bit=5 mm Hex

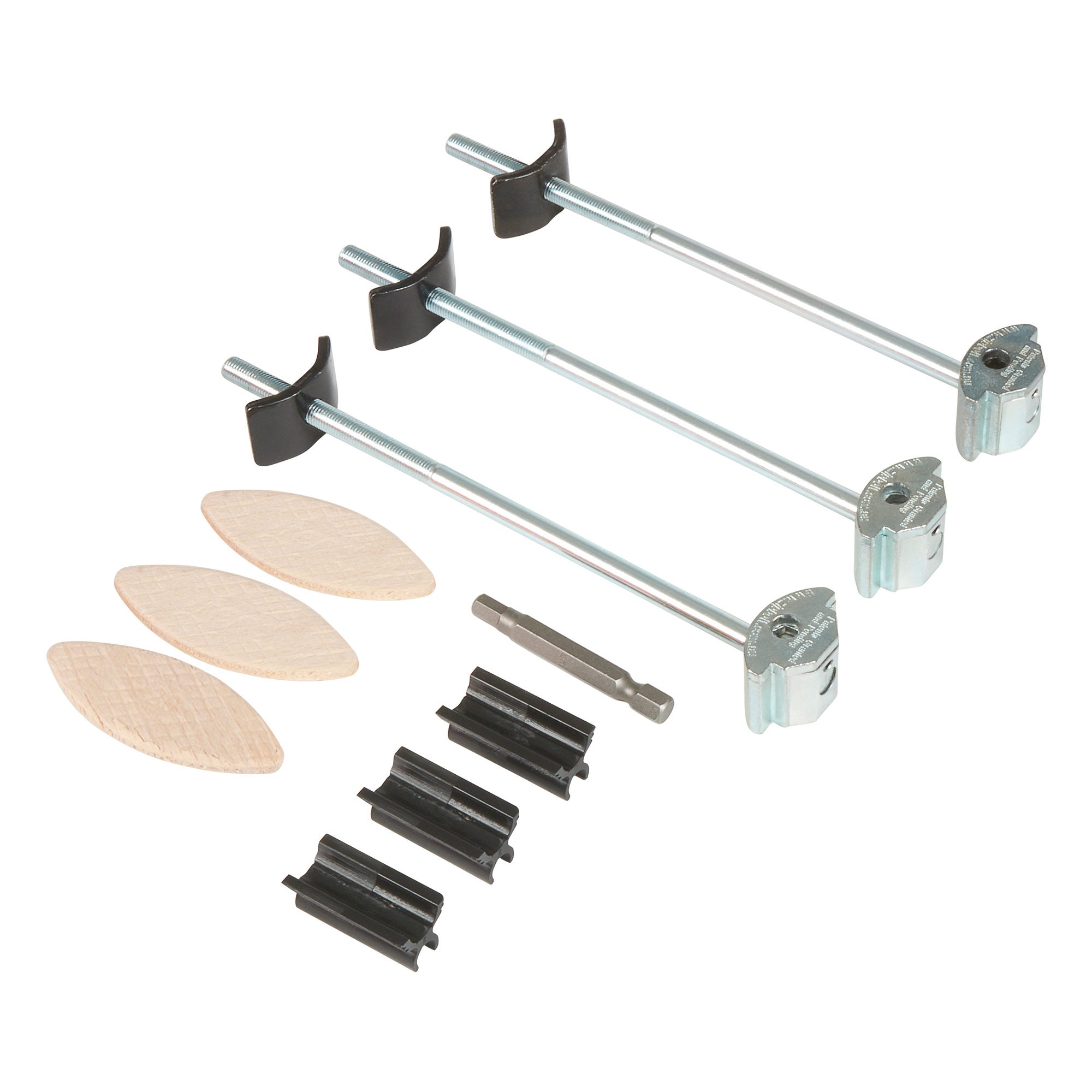

• Supplied Trend No.20 Biscuits=3
• Supplied ZIPCLIPS=3
• For Worktop Thicknesses=26-40 mm
• Suitable for Laminated Chipboard
• Suitable for Solid Wood
• Recommended Cutter Ref. C153X1/2TC
