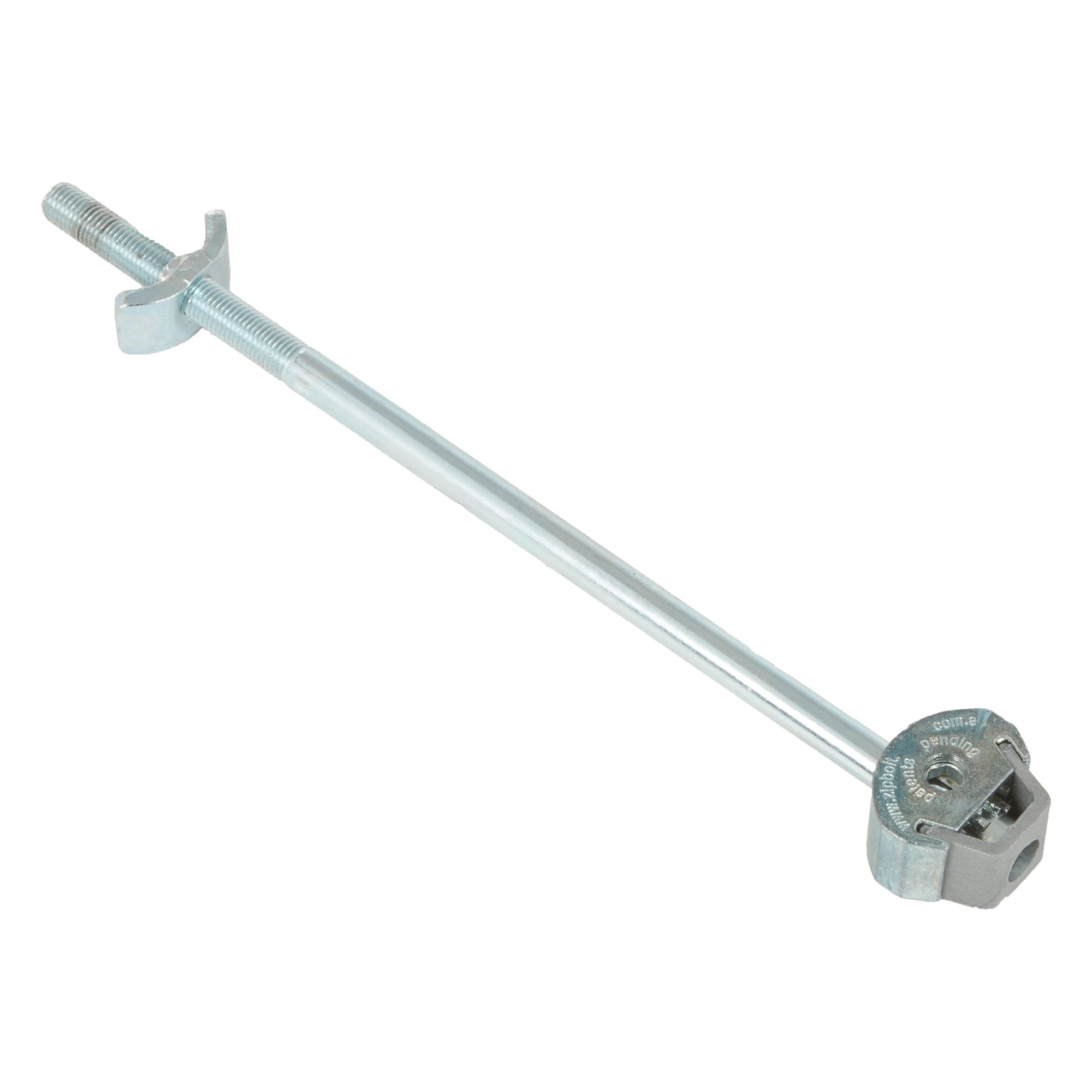

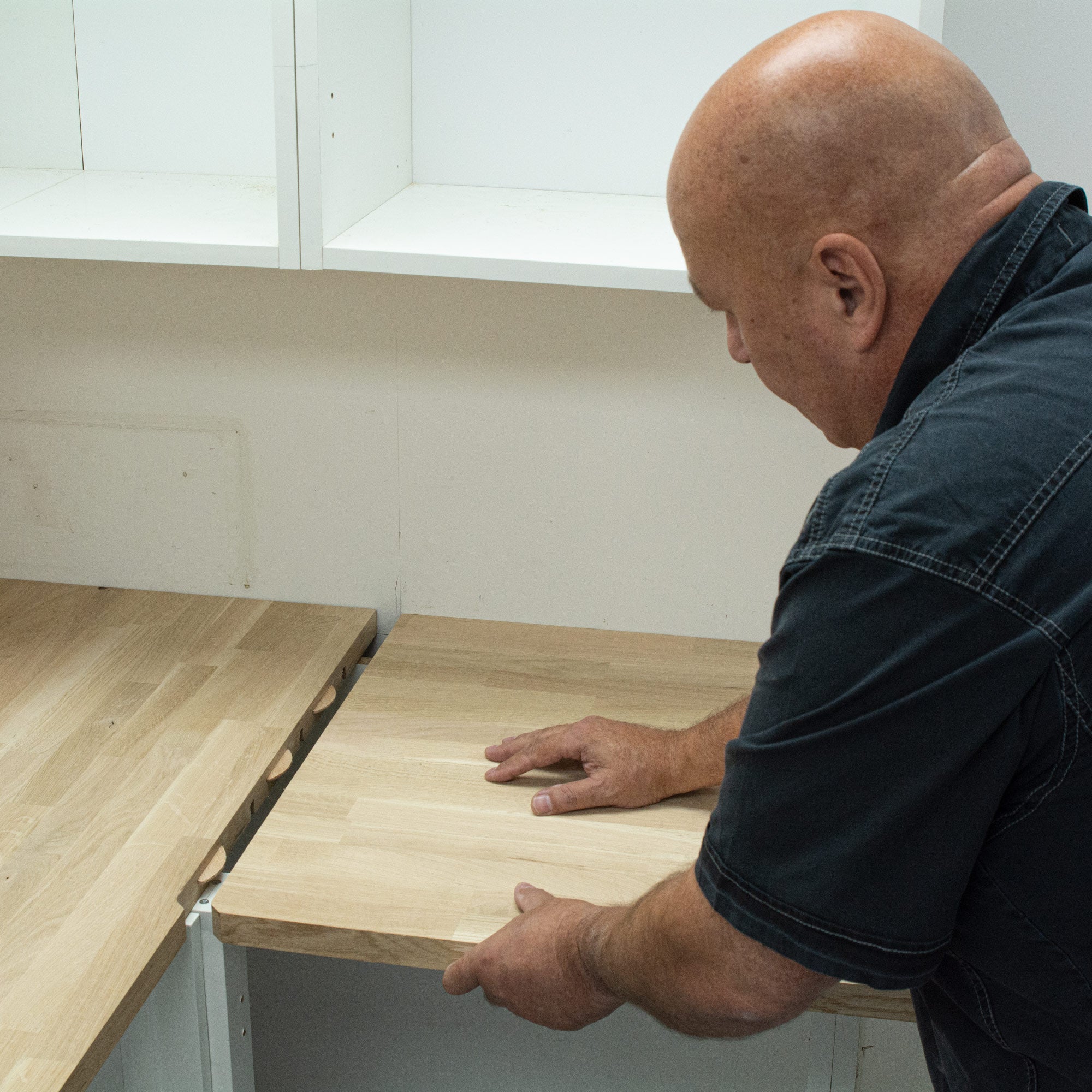

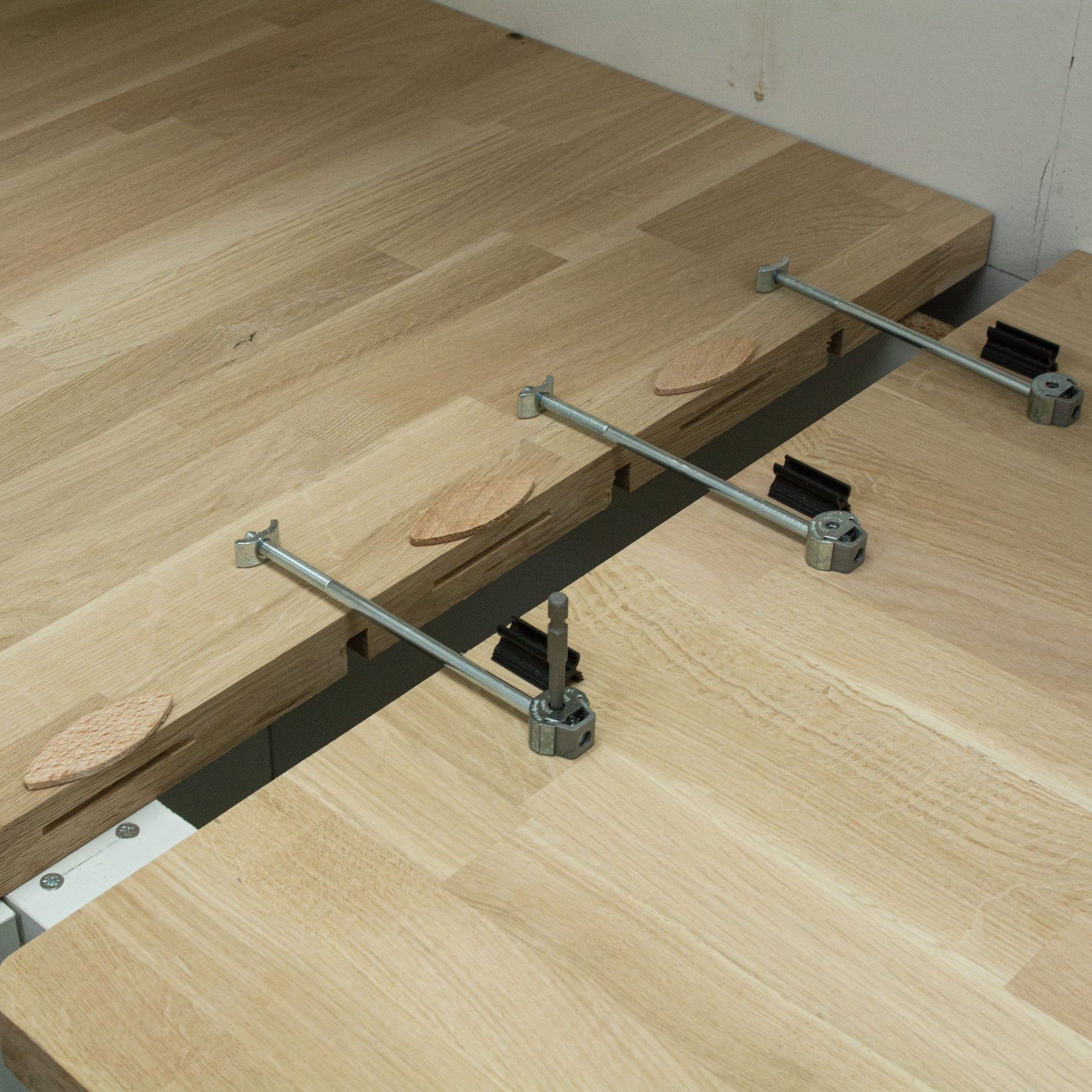

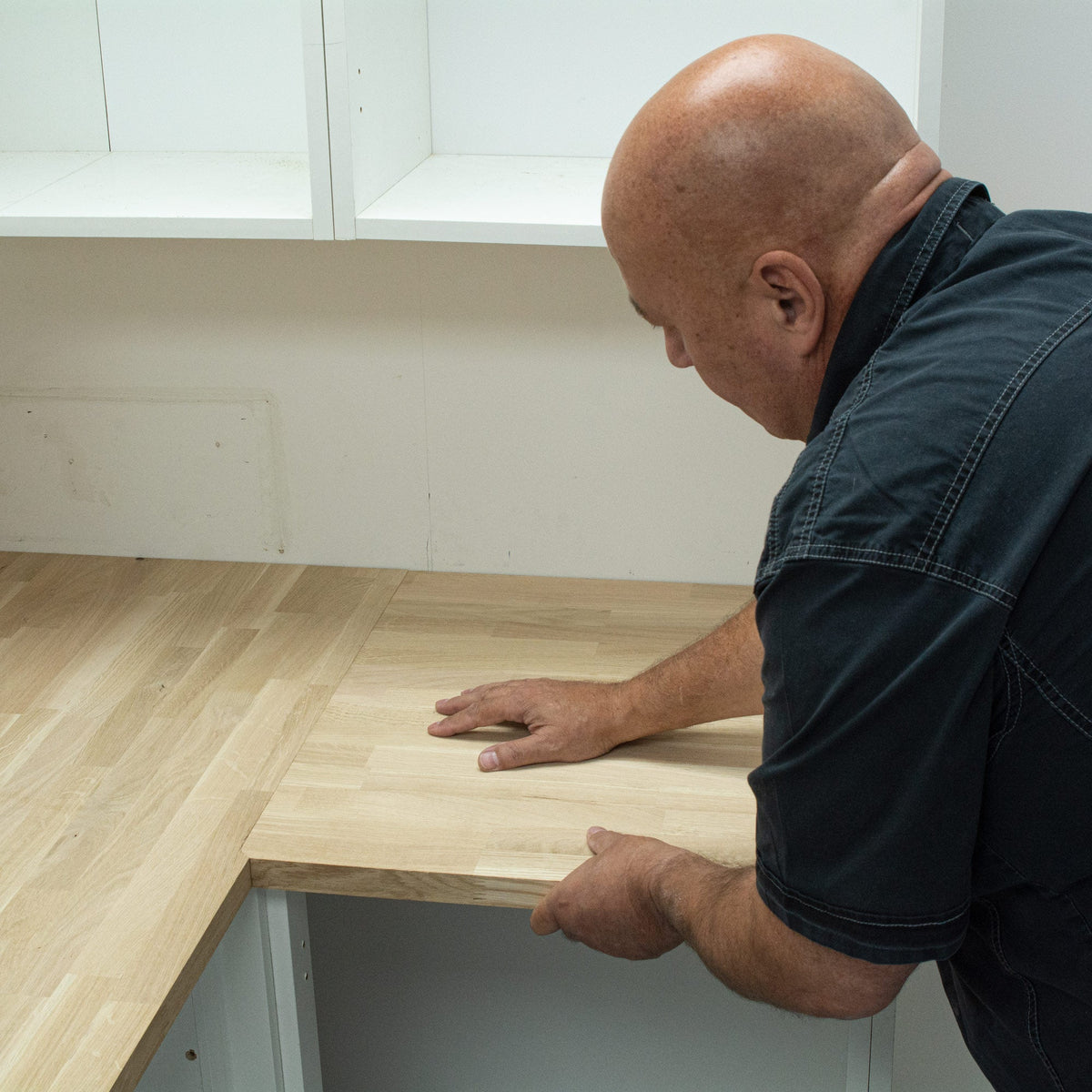

Engineered by kitchen installers, for kitchen installers. With a unique patented design for easy worktop joining and over four times faster than conventional bolts to fit. Available in sizes to suit all types and thicknesses of worktop.
Zinc-Plated Steel Construction for long lasting strength and rust protection.

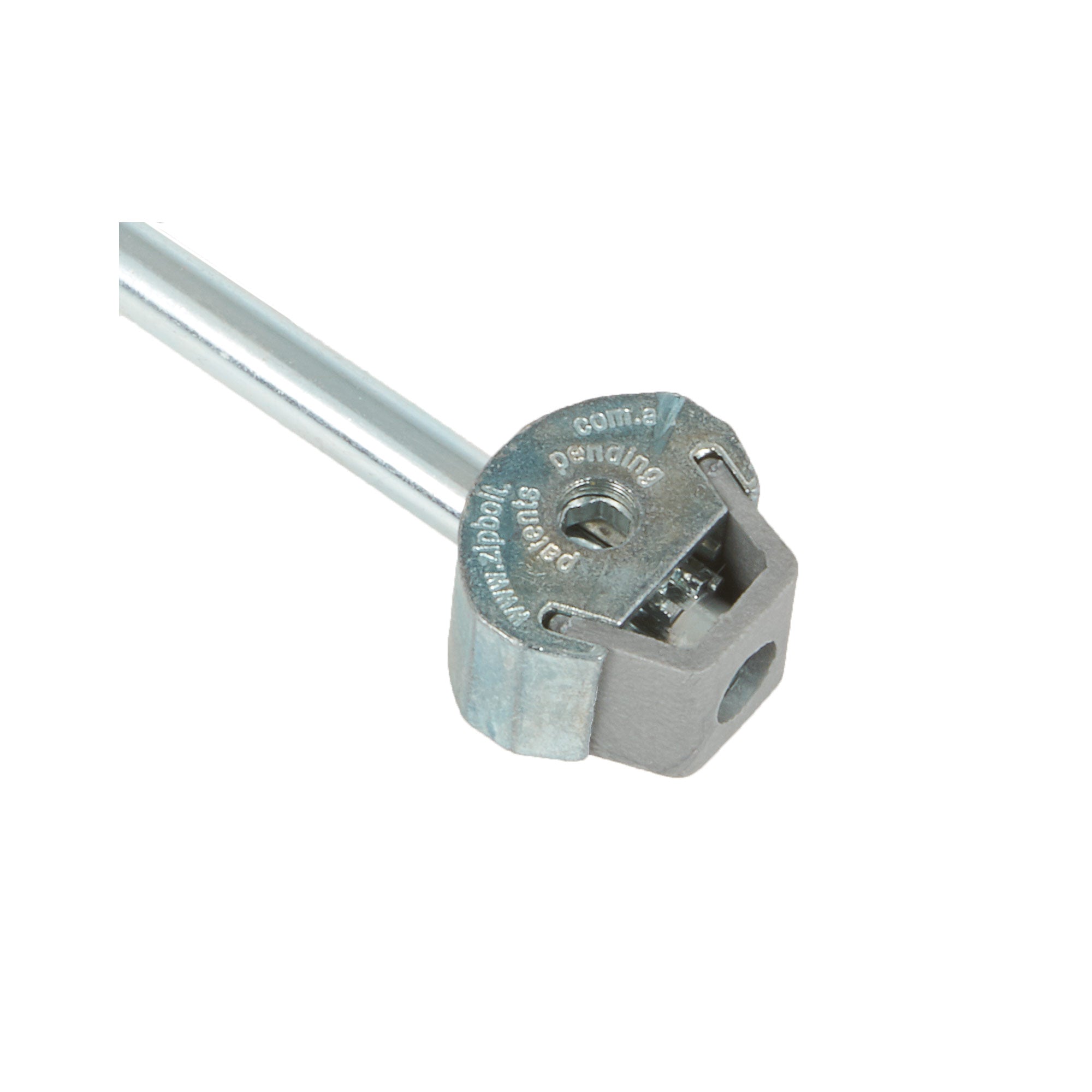

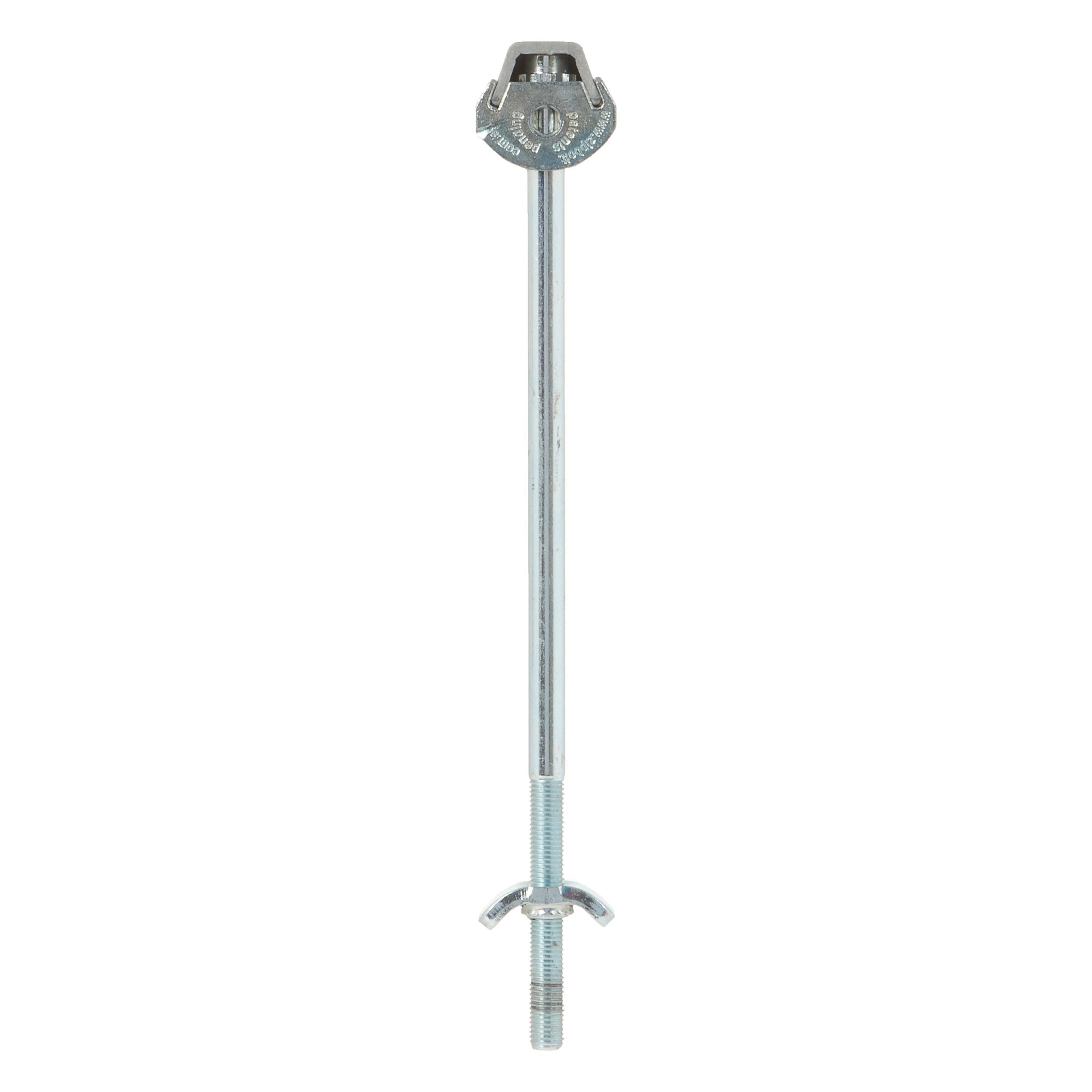

Robust Geared Head Mechanism is driven by a 4mm Hex bit and tightens in seconds with one hand and a drill/driver.

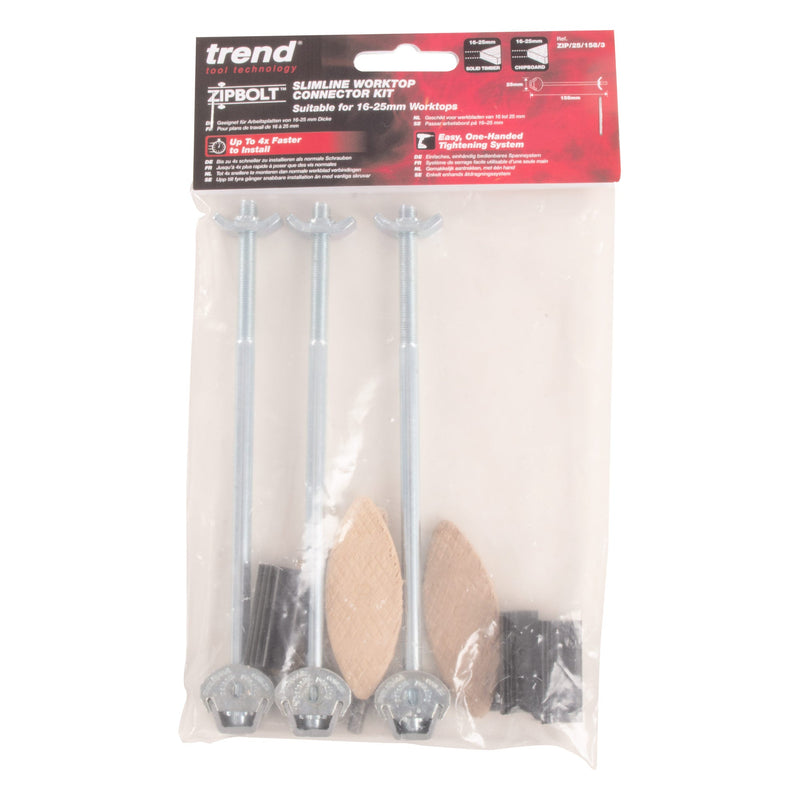

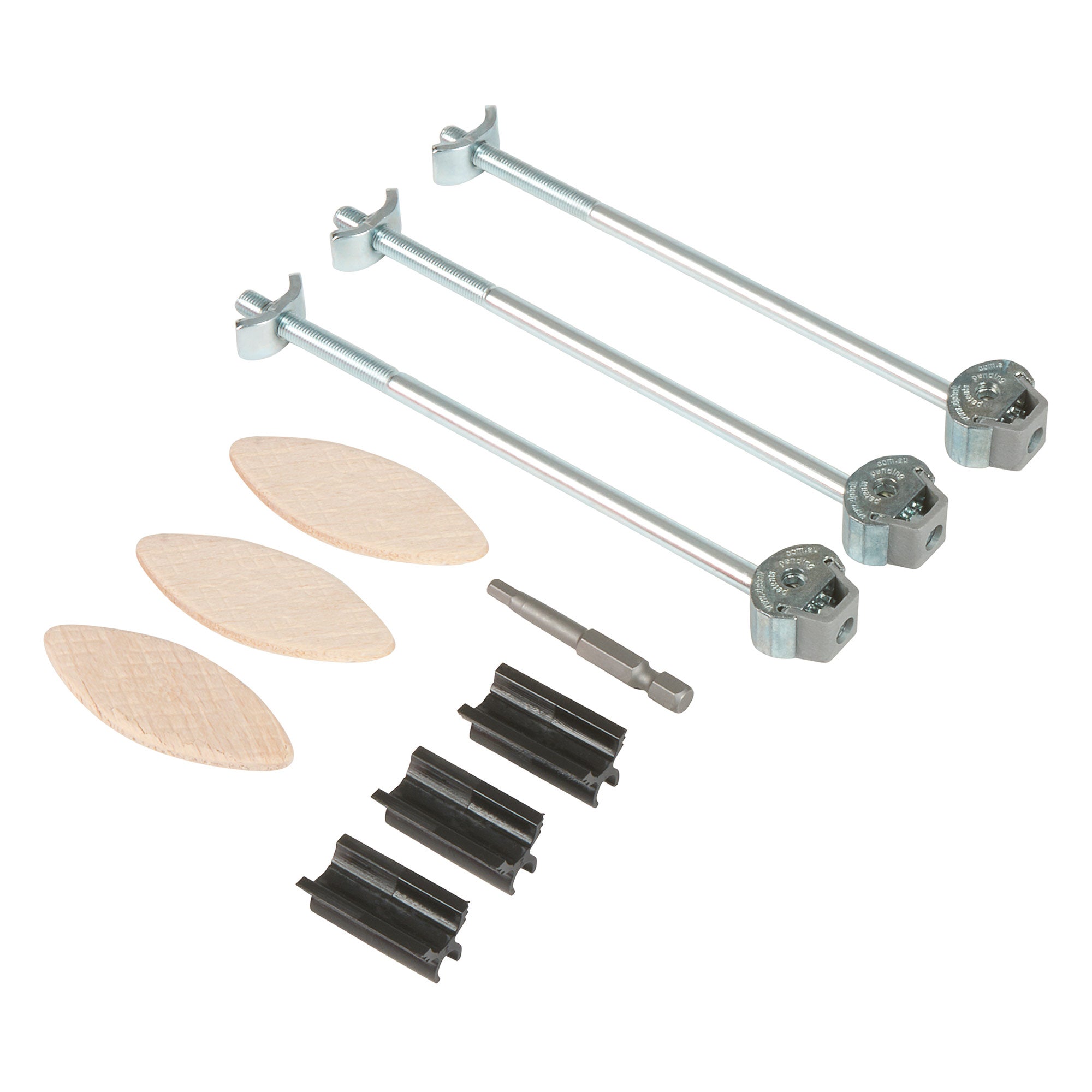

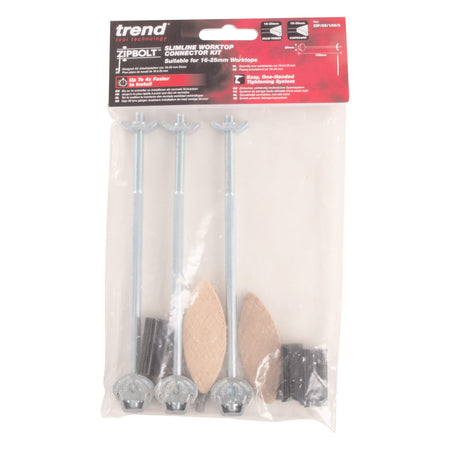

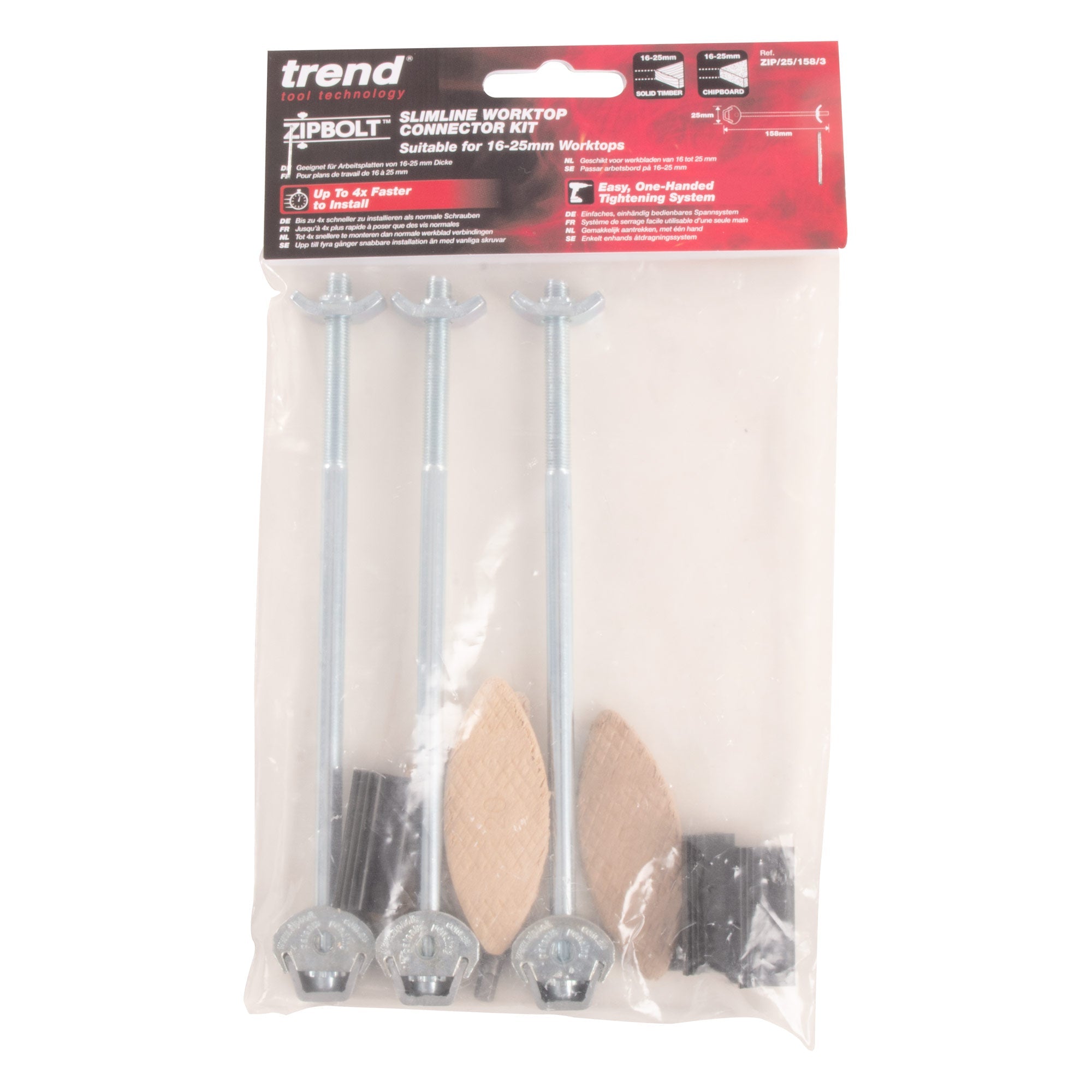

Standard and Slimline ZIPBOLT kits also include 3 x ZIPCLIPS to speed up and further simplify installation.

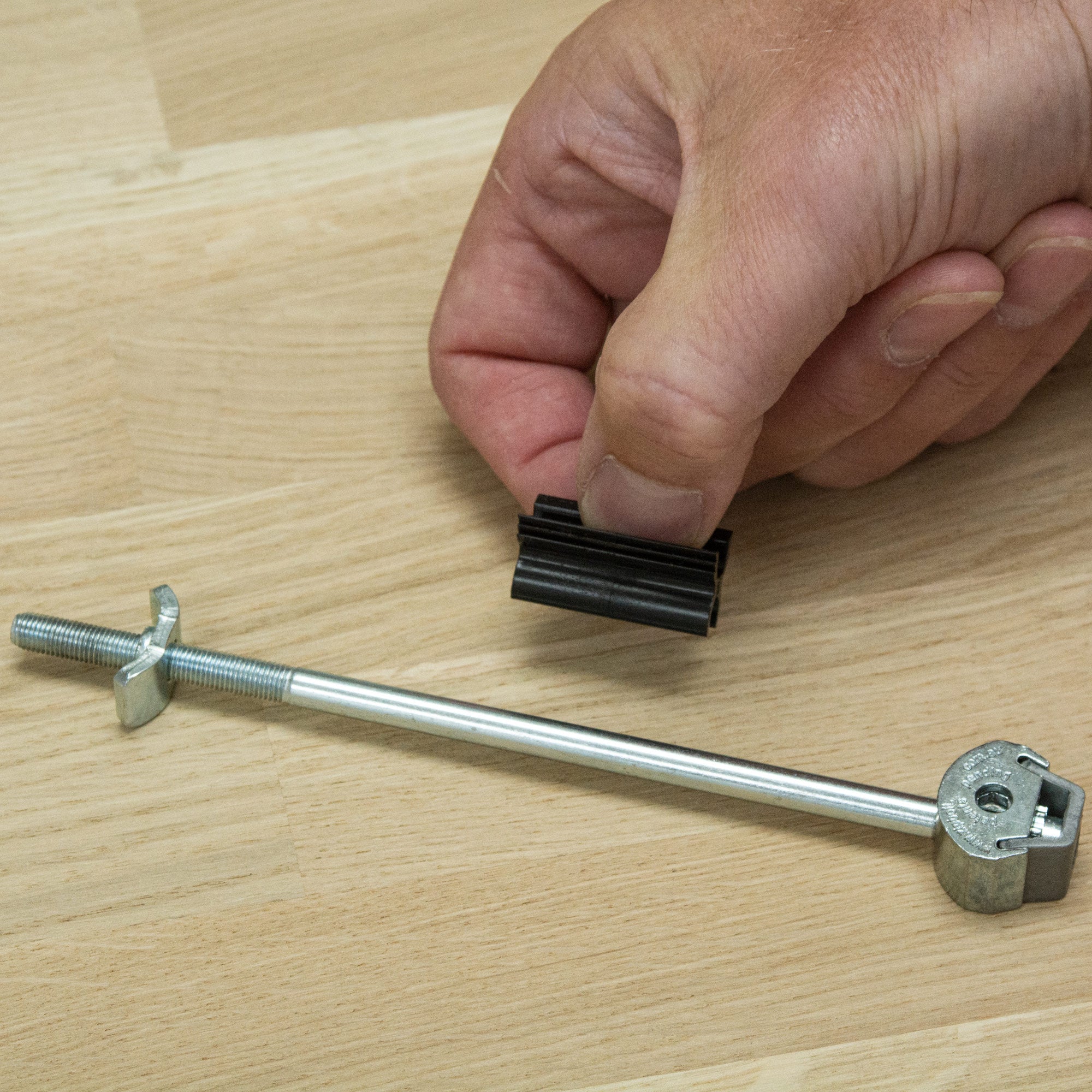

ZIPCLIPS hold the bolt securely in the routed recess, preventing it from falling out before it is tightened.

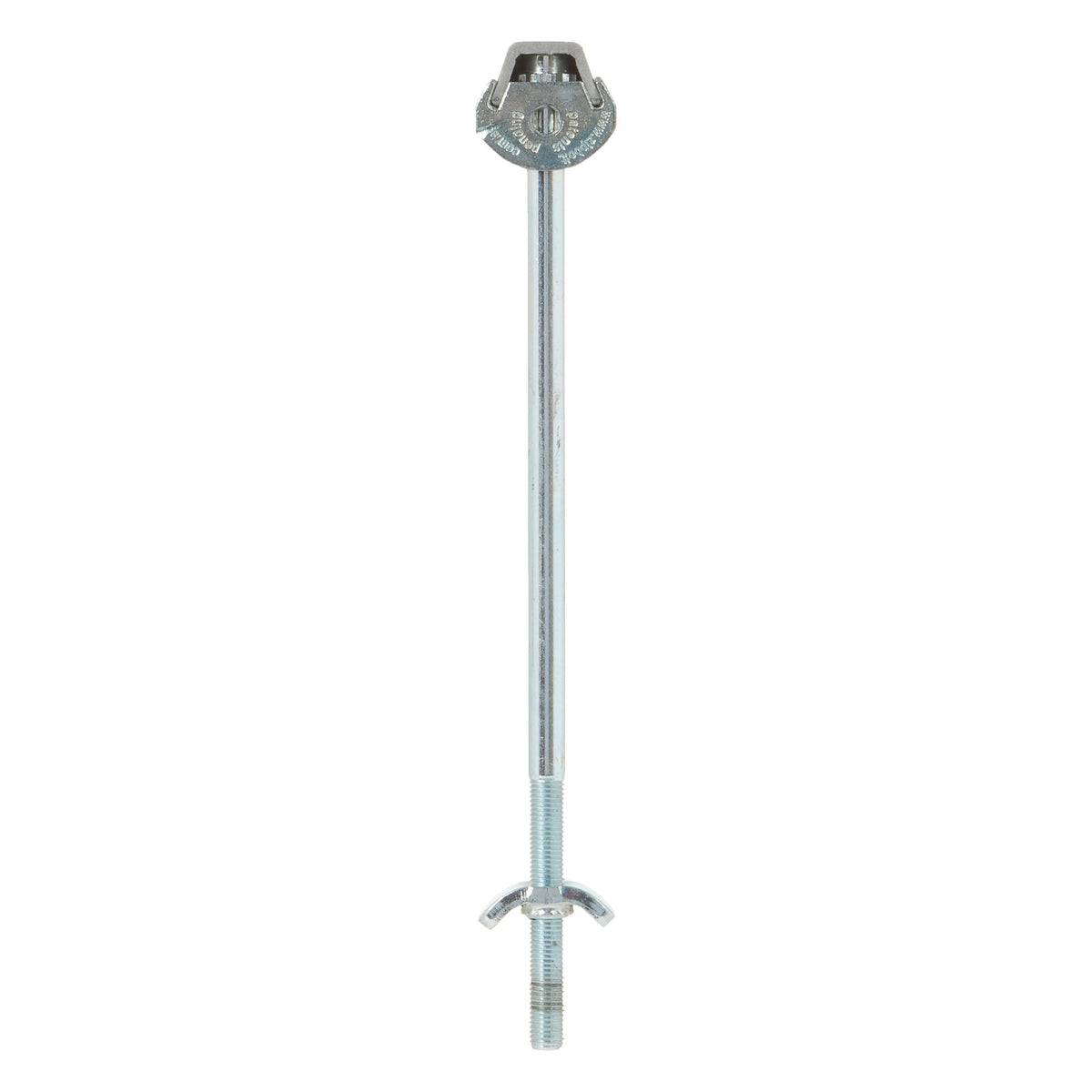

Flexible Wings grip to hold the ZIPBOLT firmly in place.
Specifications
Bolt Length=158 mm
Shank Diameter=6 mm
Geared Head Diameter=25 mm
Guide Bush Required=30 mm
Cutter Diameter Required=8 mm
Min Cut Depth=12.5 mm
Supplied Driver Bit=4 mm Hex
Supplied Trend No.20 Biscuits=3
Supplied ZIPCLIPS=3
For Worktop Thicknesses=16-25 mm
Suitable for Laminated Chipboard
Suitable for Solid Wood
Recommended Cutter Ref. C012CX1/2TC
