Trend Tools WP-LOCK/T/SET Lock Template Set (16 Pieces)

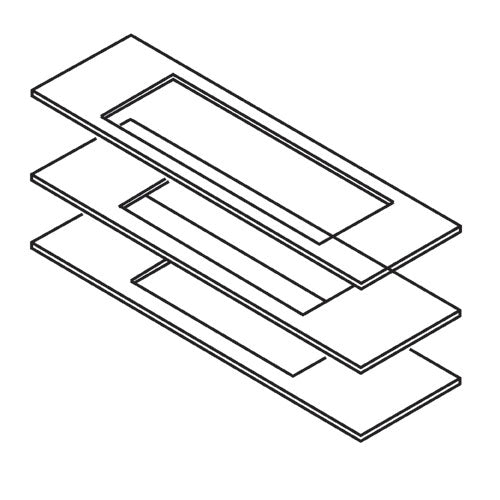

• Pack of 16 templates as supplied in standard Lock Jig. Comprises of face templates 1-12 & mortise templates A-D.

Specifications

• Includes templates for locks having the following face-plate dimensions:

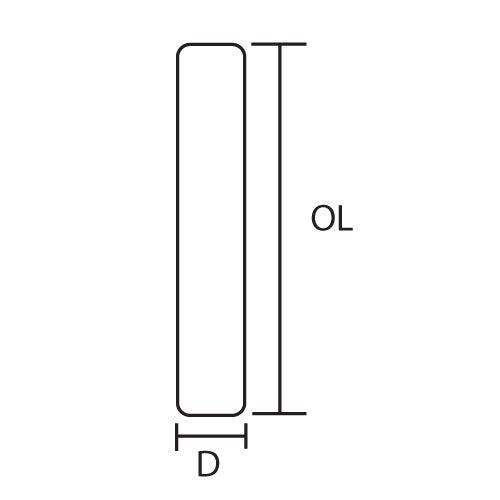

• Metric (Imperial approx.) (D x OL)=Template
• 22.2x156 mm (7/8"x 6 1/8")=1
• 22.5x152.5 mm (7/8"x 6")=2
• 25.4x121 mm (1"x 4 3/4")=3
• 25.4x127.5 mm (1"x 5")=4
• 25.4x133.5 mm (1"x 5 1/4")=5
• 25.4x145 mm (1"x 5 3/4")=6
• 25.4x153 mm (1"x 6")=7
• 25.4x156.5 mm (1"x 6")=8
• 25.4x165.5 mm (1"x 6 1/2")=9
• 25.4x177 mm (1"x 7")=10
• 25x57.5 mm (1"x 2 1/4")=11 UPPER
• 26x56.5 mm (1"x 2 1/4")=11 LOWER
• 25.6x162mm (1"x 6 3/8")=12
• Mortise Lock Dimensions
• Imperial (Metric) (D x OL)=Template
• 16x72 mm* (5/8" x 2 7/8")=A
• 16x107 mm* (5/8" x 4 1/4")=B
• 19x78 mm* (3/4" x 3 1/8")=C
• 19x109 mm* (3/4" x 4 1/4")=D
• *These are maximum mortise lock case (body) lengths, unless radius ends are squared with a chisel. Actual length of mortise is 7mm longer.
