Trend Tools VJS/TG/JIG Varijig Tenon & Grooving Jig

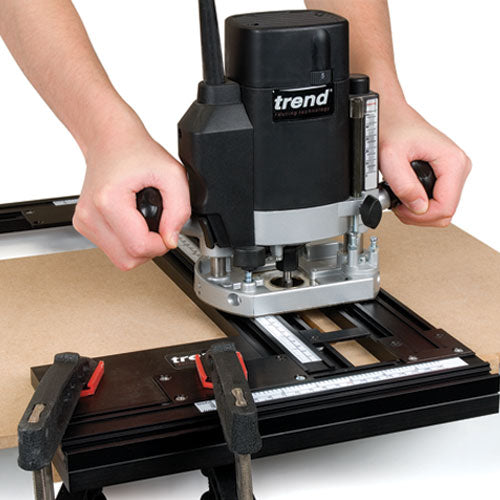

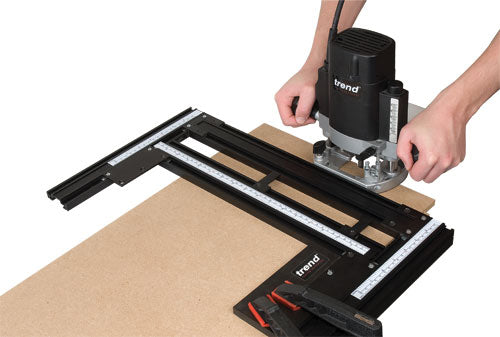

• Allows grooves and tenons to be cut using a router.

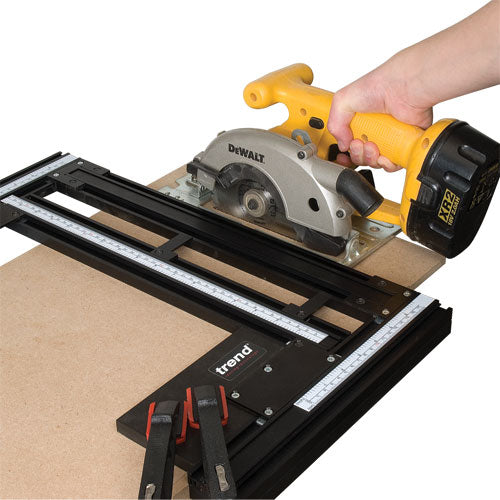

• Can be used to crosscut boards with a router or circular saw.
• Frame is adjustable to allow narrower or wider grooves to be routed.
• The max. adjustment is 70mm depending on the diameter of the router base.

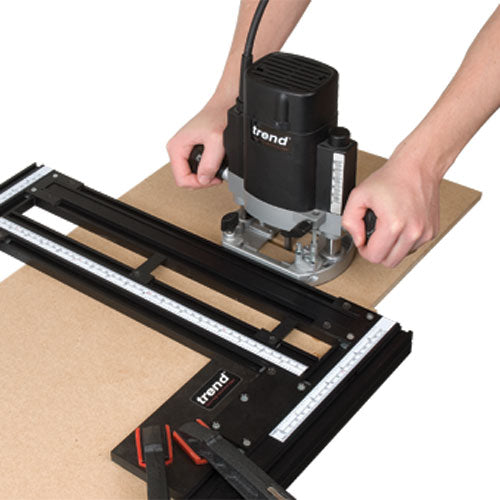

• The edge of the frame can be used as a guide to trim a panel square using a router.
• Two sliding stops to set groove length.
• Squaring butt has the facility to accept a spelch block to allow a full-length groove.
• Fixing screws are included for this purpose. Working length is 400mm.
• Can be used with any plunge router fitted with a guide bush of minimum 8mm projetction.
• Router not included.

Specifications

• Working length based on 30 mm guide bush and 12 mm diameter cutter being used:-
• Max. without end stops used=412 mm
• Max. with one end stop used=397 mm
• Max. with two end stops used=382 mm
• Max. working width using end stops* (12mm dia. cutter)= 18 mm
• Max. width adjustment depending on router base diameter=70 mm
