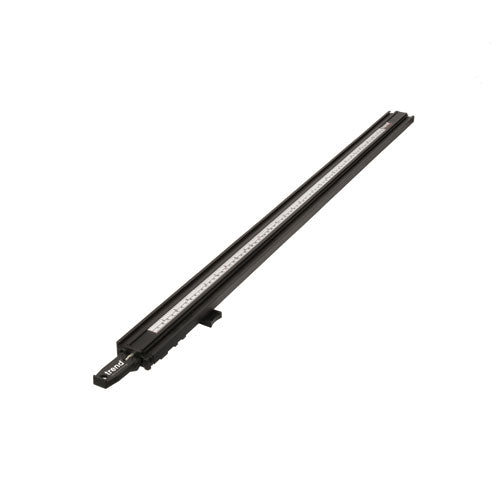

Trend Tools VJS/CG/24 Varijig Clamp Guide 24 Inch

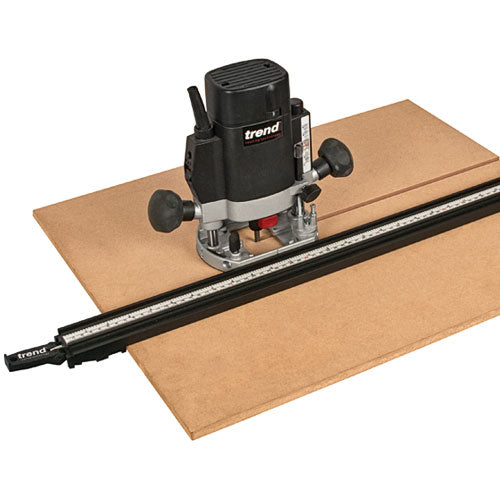

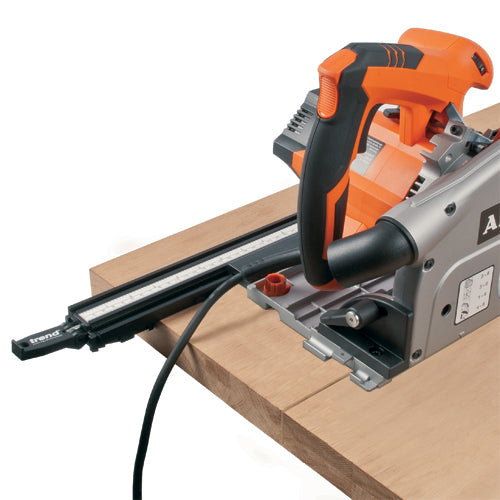

• For accurate guiding of router, saws and jigsaws.

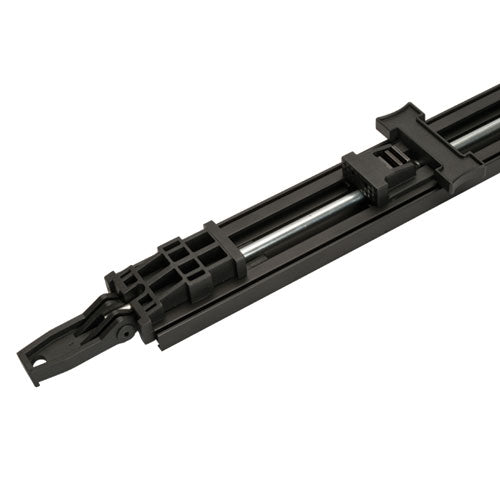

• Integral clamping jaws and a locking lever provide a quick way of clamping the guide batten.
• Ideal for holding and clamping work pieces.
• Aluminium extrusion incorporating T-slots.

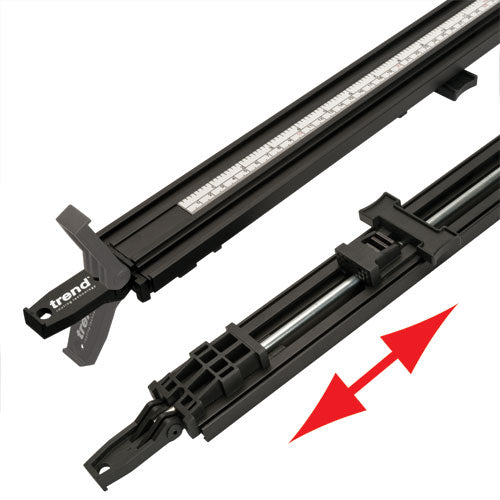

• The clamps are fitted with a metric/imperial scale for setting lengths and stop positions. Scale can be positioned by removing 20mm of the self adhesive backing.
• Three lengths of clamp available 24 inch, 36 inch and 50 inch.
• Router not included.
• Patent No. US7,007,731.

Specifications

• Max clamp length=24 inches (610 mm)
• Min clamp length=1/2 inch (12.7 mm)
• Extrusion width=54mm
• Extrusion height=15.8mm
• Overall length=835mm
• Length fixed jaw to end of handle=125mm
• Length max position of sliding jaw to clamp end=98mm
• Sliding jaw finger wing width =73mm
