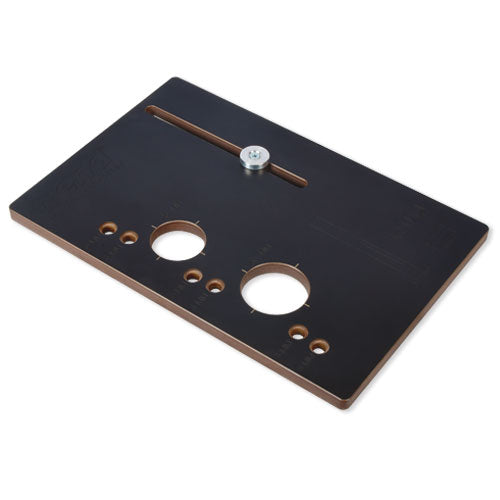

Trend Tools TEMP/CDH/A Template Cabinet Door Hinge 35 & 26Mm

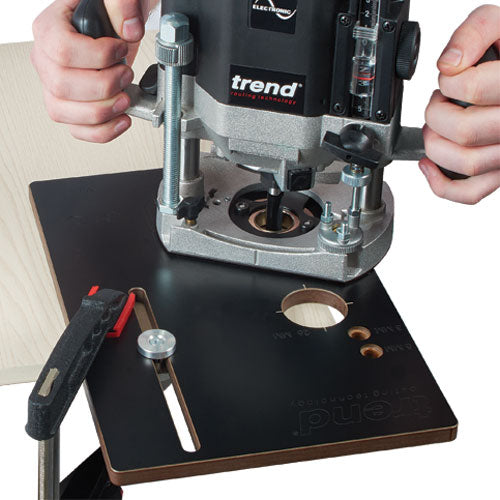

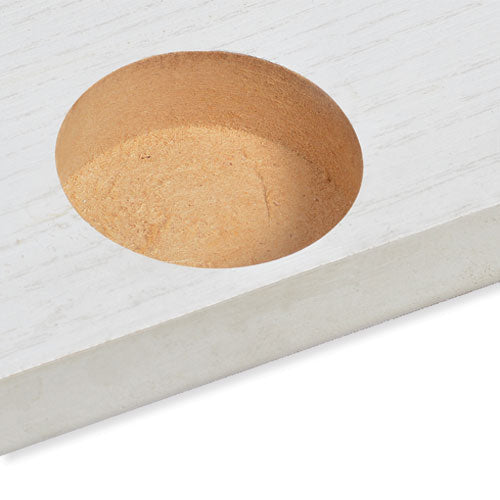

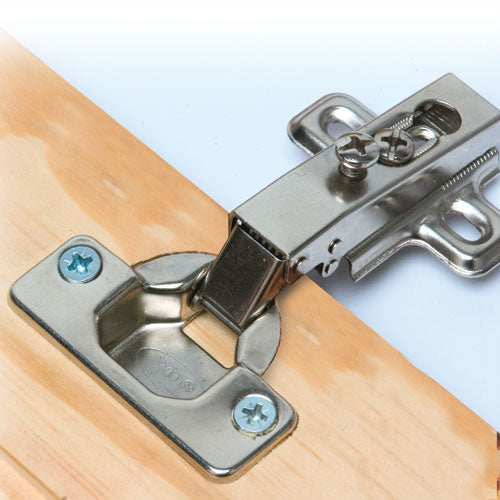

• A routing template that allows a router to create a 26mm or 35mm diameter blind hole recess for a circular cabinet door hinge.

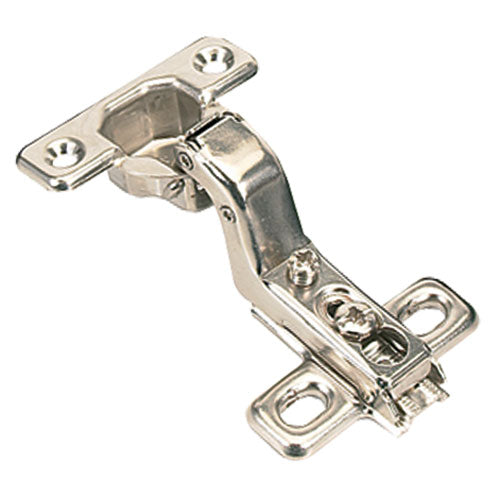

• Cuts an accurate recess for either 26mm or 35mm circular hinges.
• Adjustable alloy edge guide for adjustment of recess position from top or bottom of door.
• Removable alloy edge guide for middle hinge recess.
• 3mm and 5mm location holes to accurately position the recesses relative to the edge of the door.
• Engraved centre sight lines.

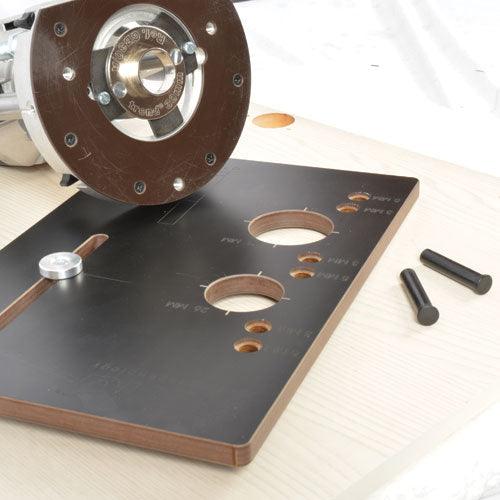

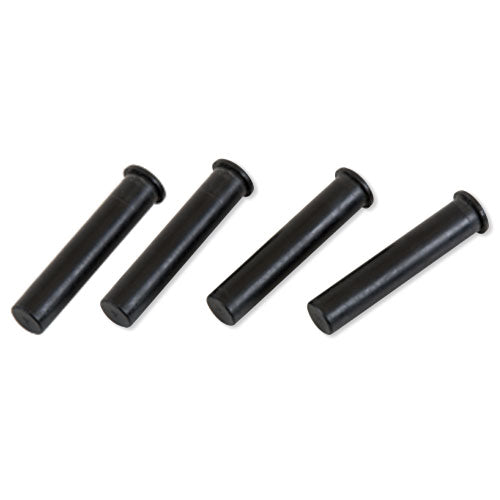

• Pin holes reversible for left hand and right hand doors.
• Made from hard wearing 12mm thick high pressure laminate.
• Requires 12.7mm diameter cutter, 30mm guide bush and two 100mm throat F-clamps.

Specifications

• Size=355 mm x 320 mm x 12 mm
• Hinge dia.=26 mm and 35 mm
• 26 mm dia.=50 to 105mm*
• 35 mm dia.=50 to 190 mm*
• * Hinge centre normally positioned 100 mm from top/bottom of door.
