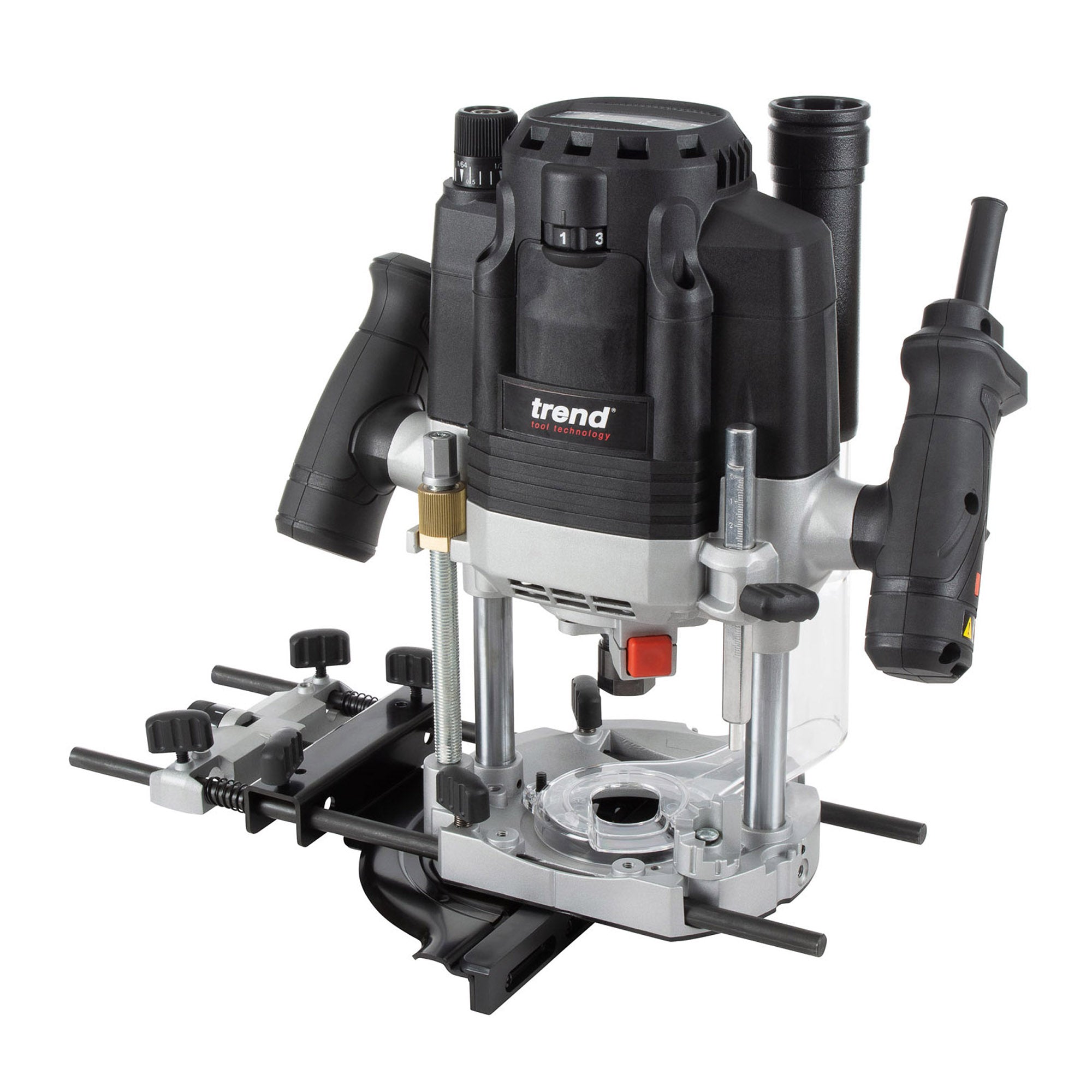

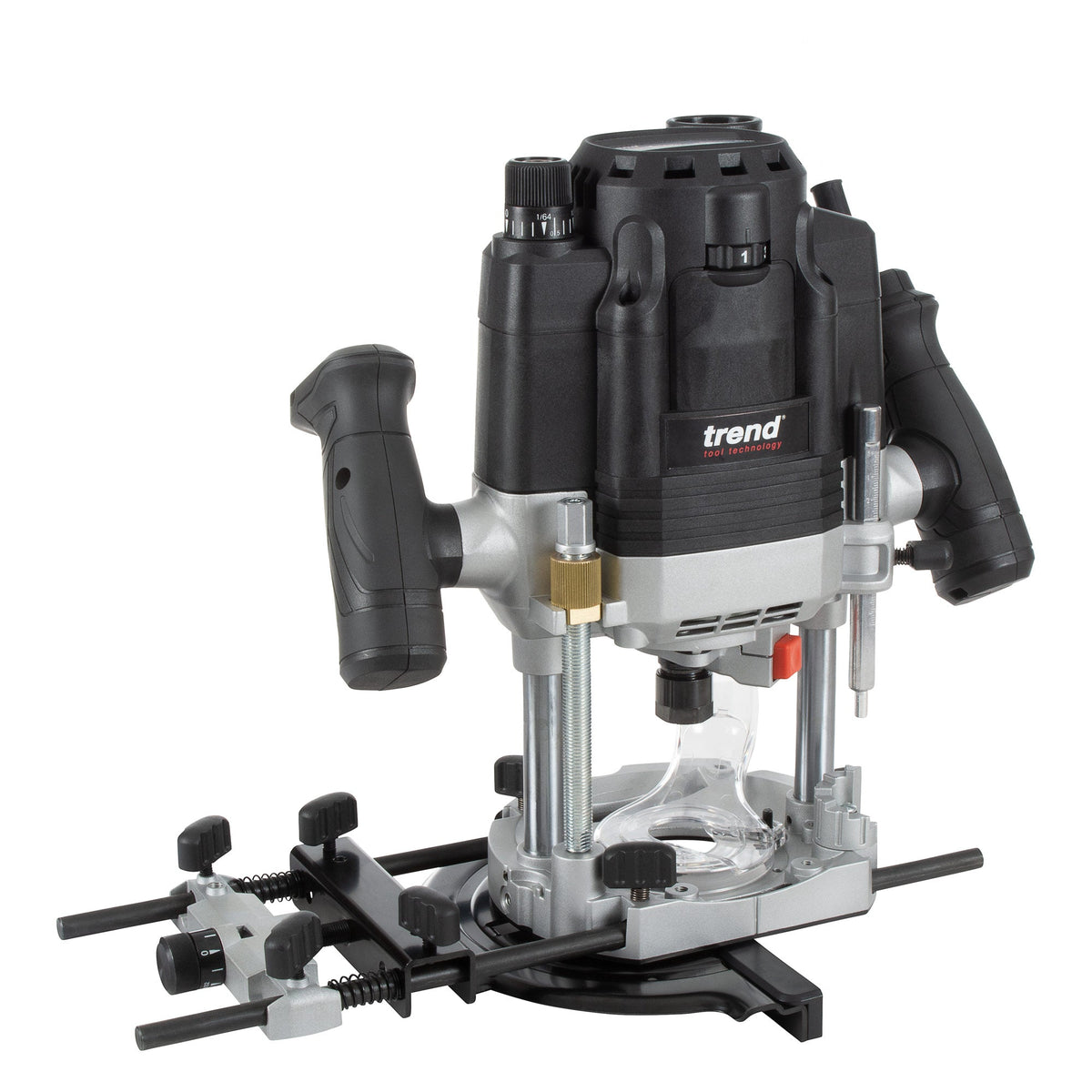

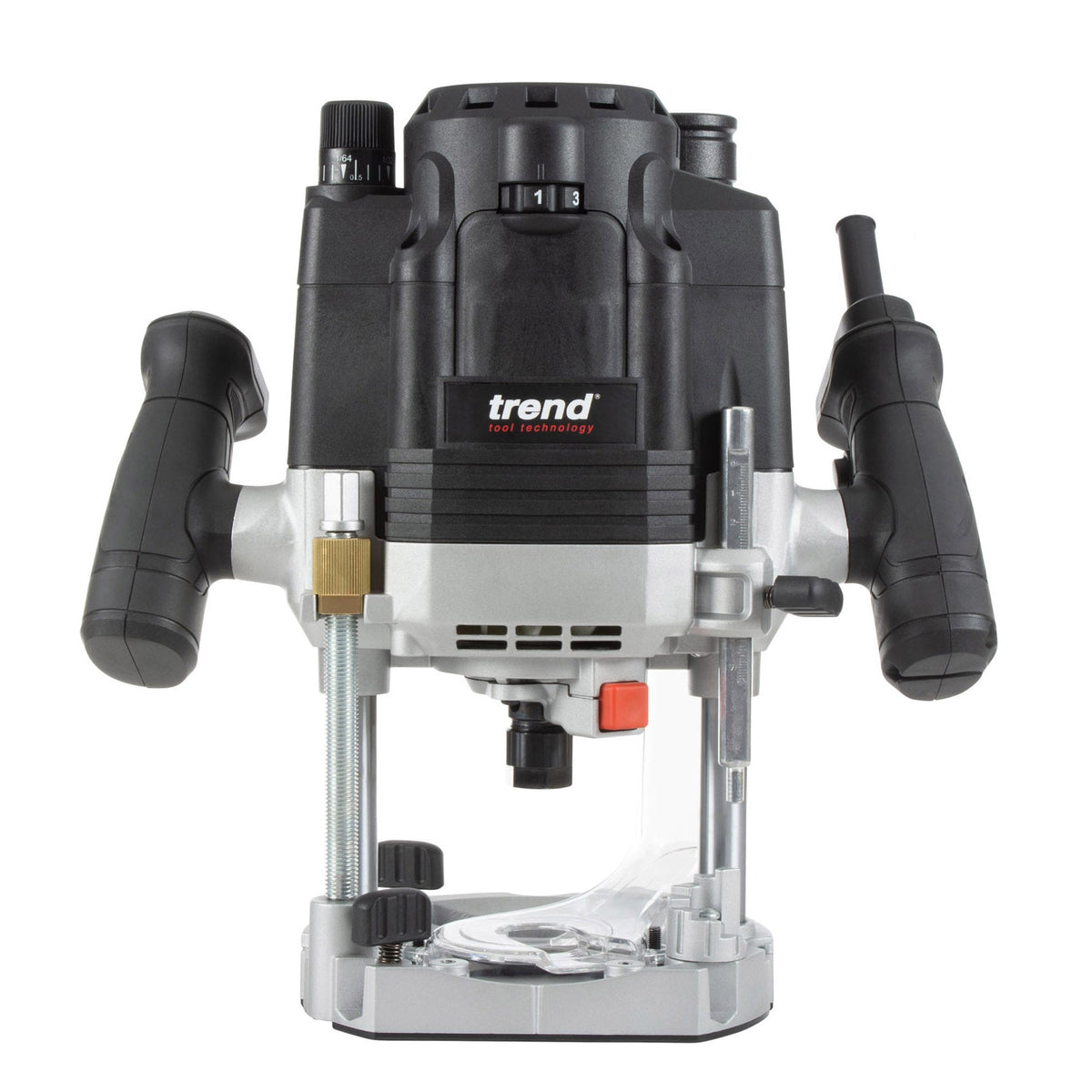

Trend Tools T8EK/EURO 2200W 12Mm Dual-Mode Plunge Router 230V Eu

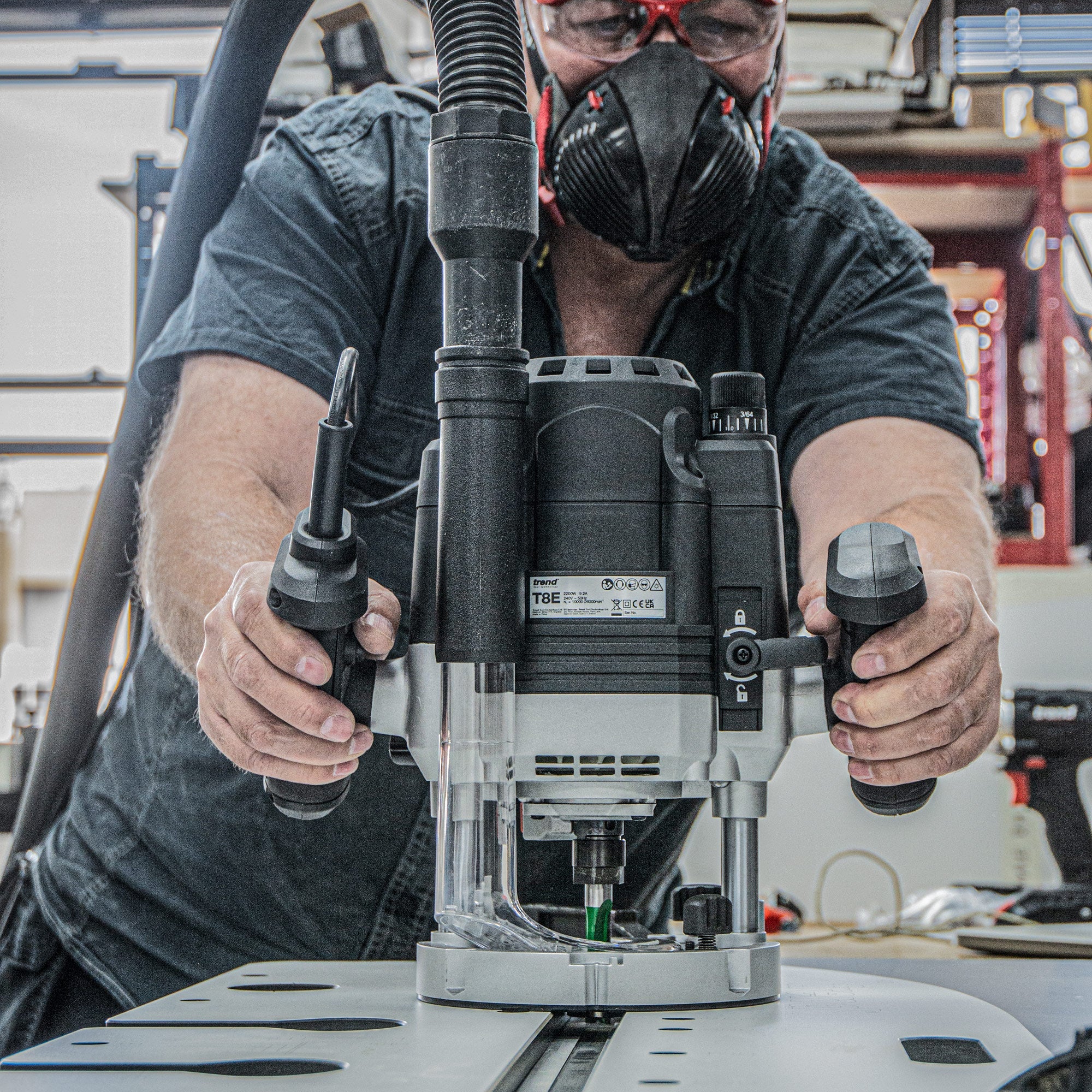

• Trade-focused and engineered for both hand-held and router table use.

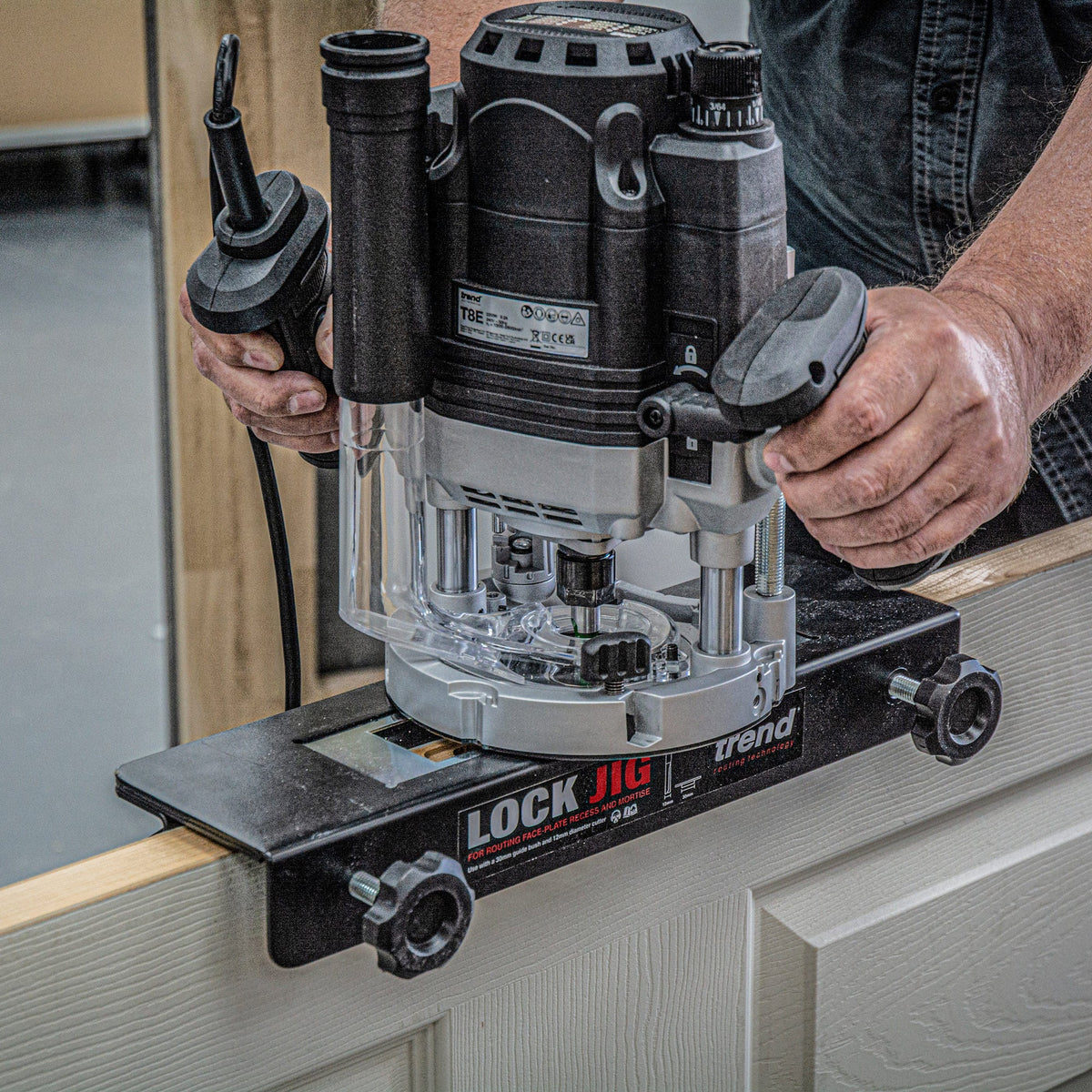

• 80mm Plunge Depth is ideal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling.

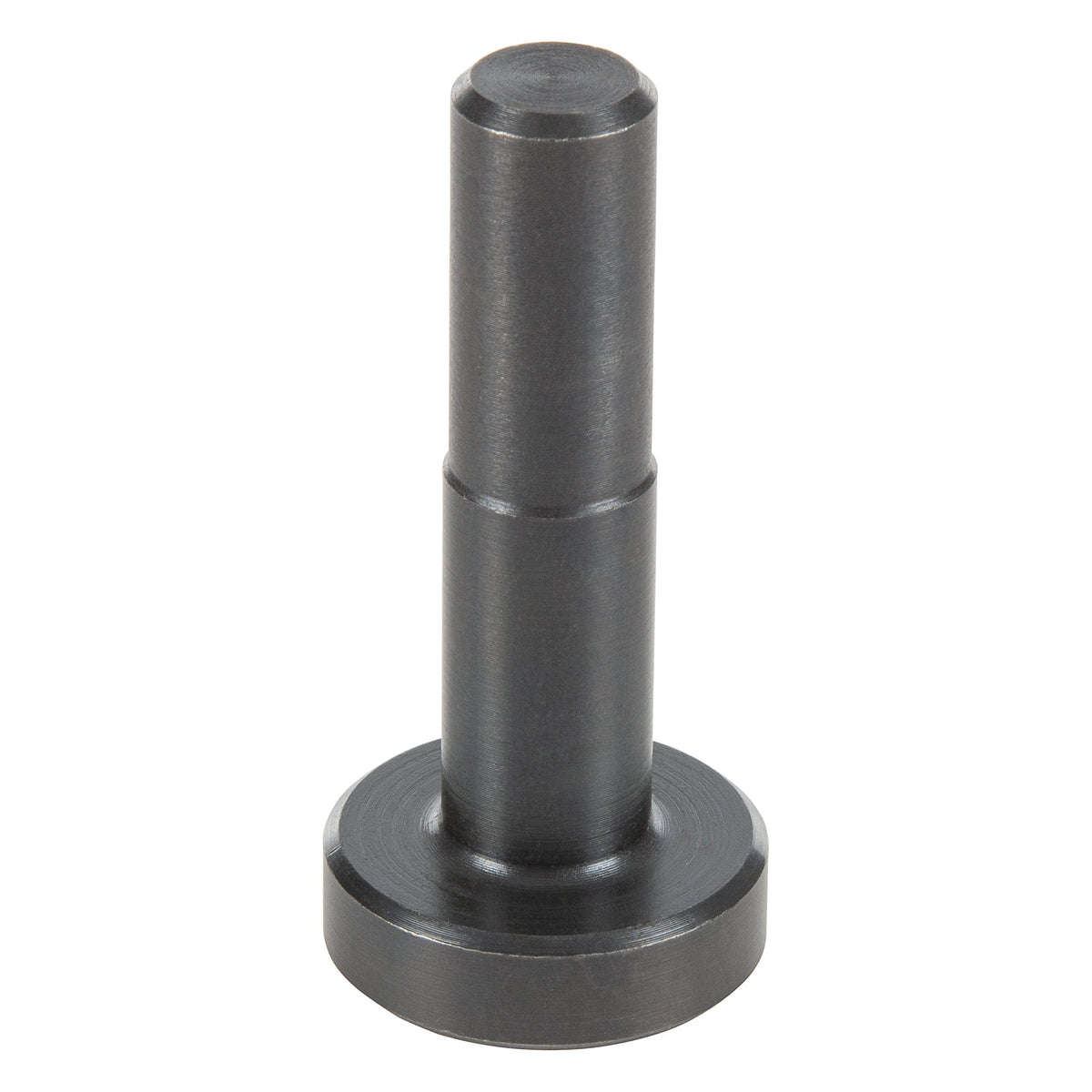

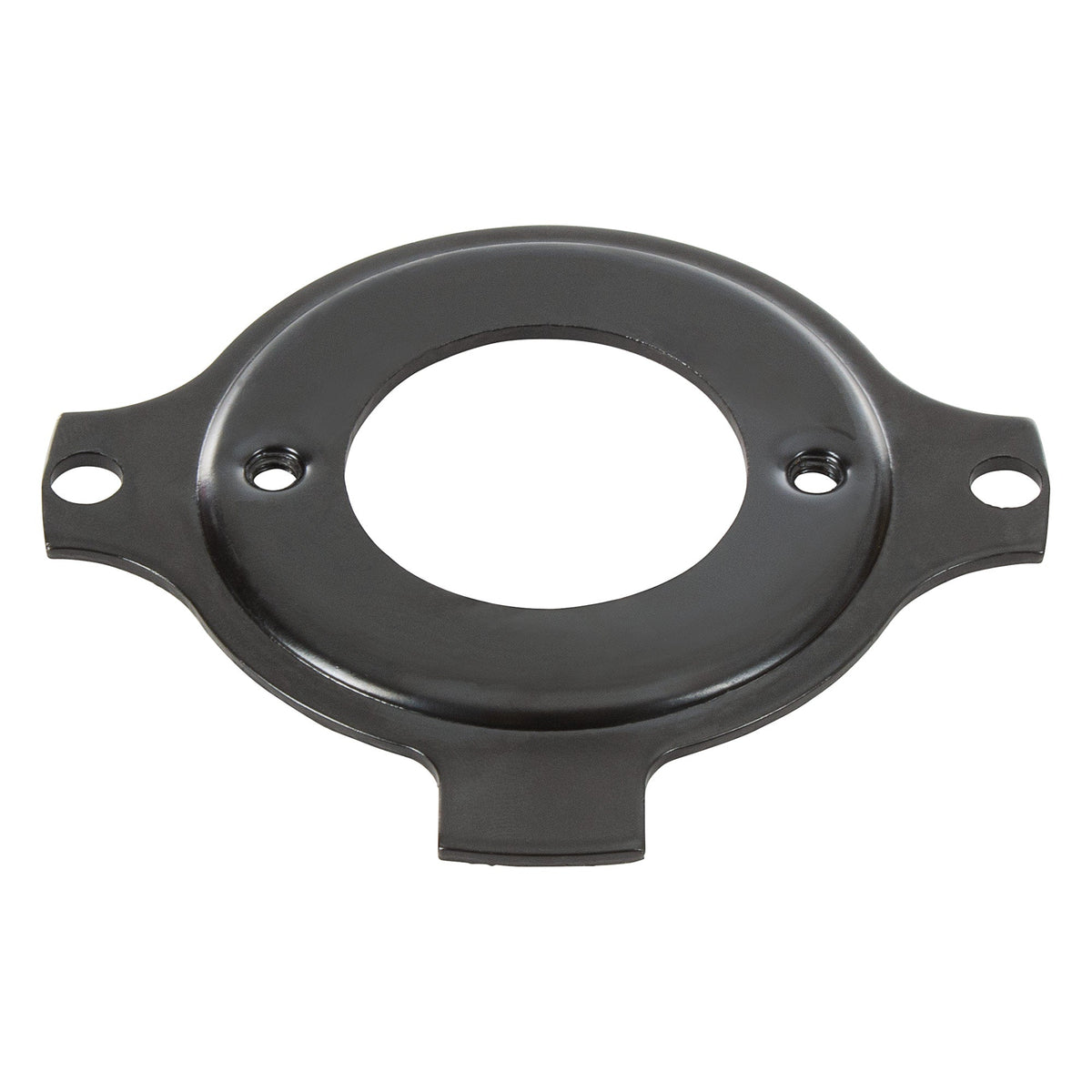

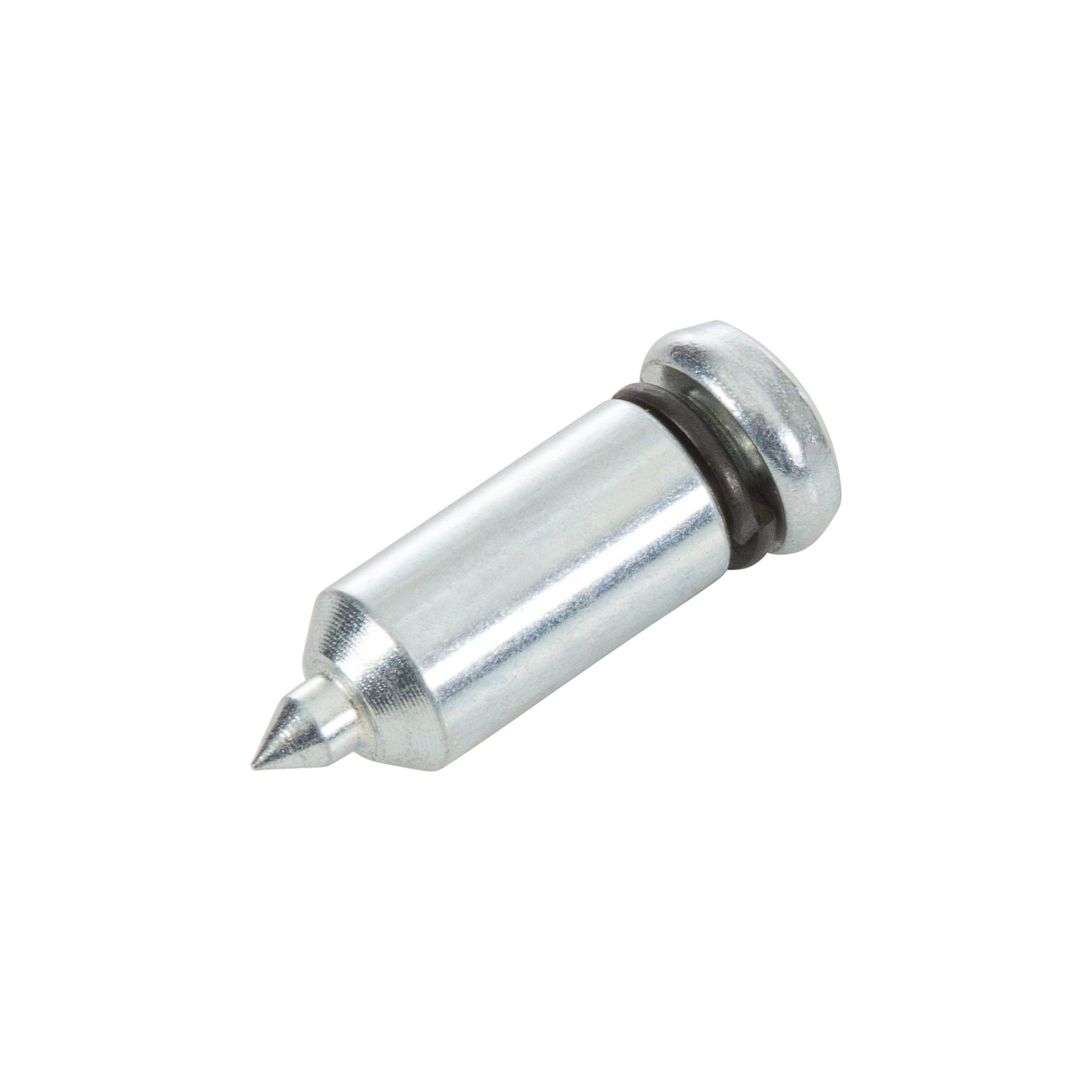

• Precision Centring System to ensure perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
• Router Table Compatible with height adjuster to easily and safely change cutting height from above the table.
• Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.
• 11-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.

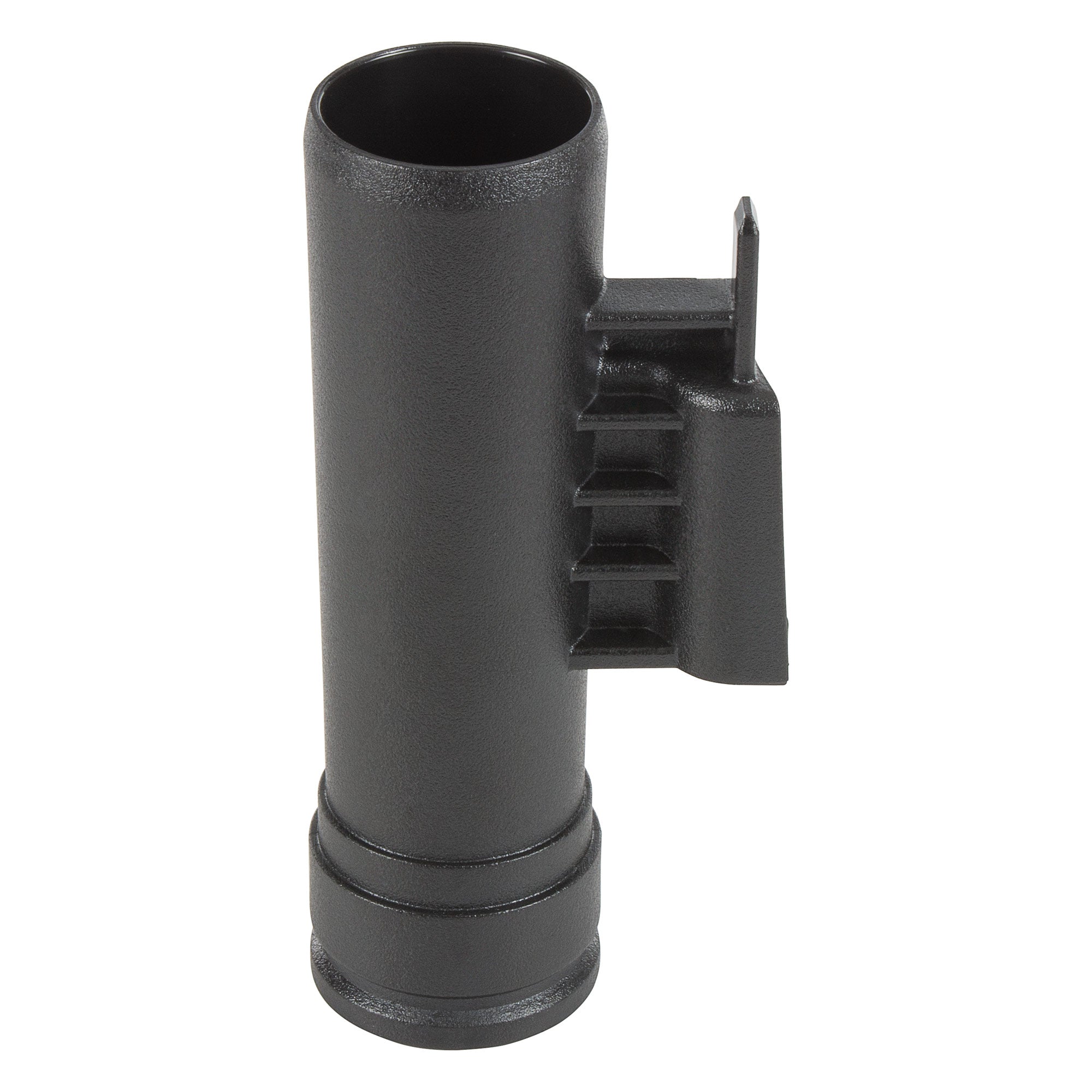

• Vertical Extraction Spout prevents extraction hoses from ÔsnaggingÕ on jigs and materials.
• Twin LED Worklights illuminate the cutting area to improve safety and accuracy in low-light situations.
• Extra-Wide 75mm Base Aperture to accommodate over-size cutters, such as panel raisers.
• 7-Position Rotating Turret with pre-set plunge depth limits for fast, repeatable batch and stepped cutting.

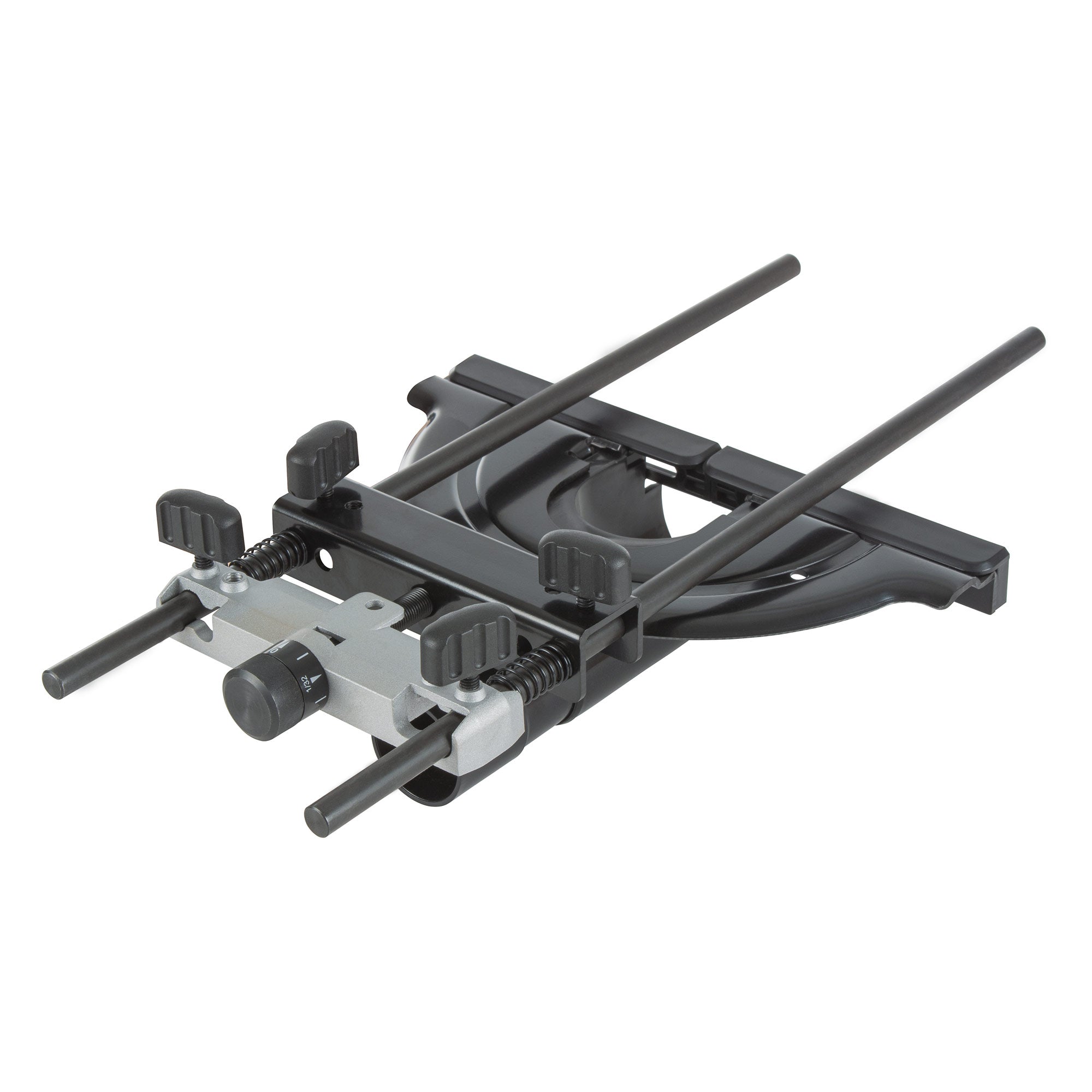

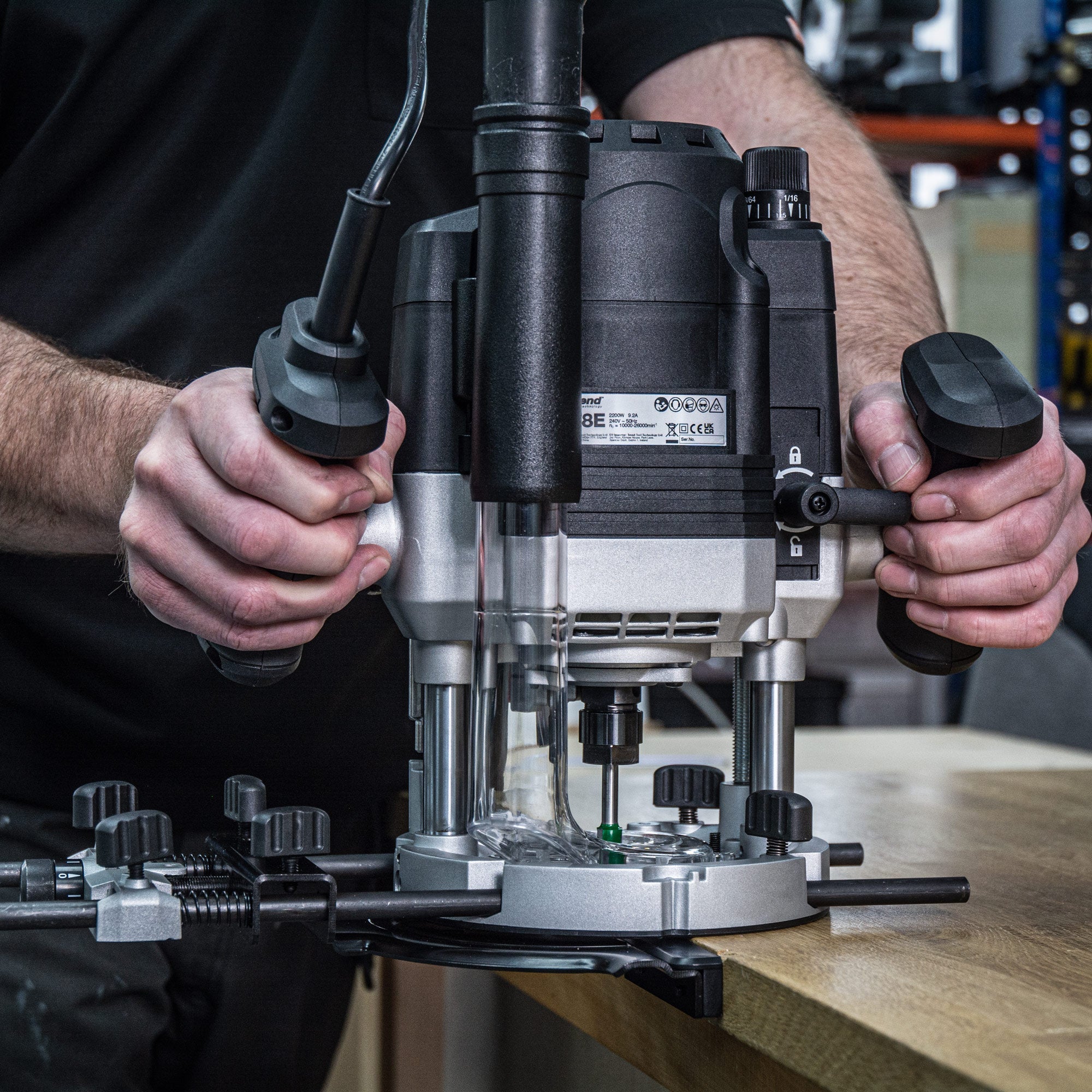

• Micro-Adjustable Fence with Extraction Port featuring adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding
• Fine Height Adjuster with an easy-to-read display for precision depth adjustments. 1 rotation equals 2mm height adjustment.
• Trend Base Configuration is a standardised fixing pattern of holes that allow routers to be attached to a range of compatible router tables, jigs and accessories.
• Ergonomic Inclined Handles feature an integrated power trigger and a soft grip moulding for comfortable operation

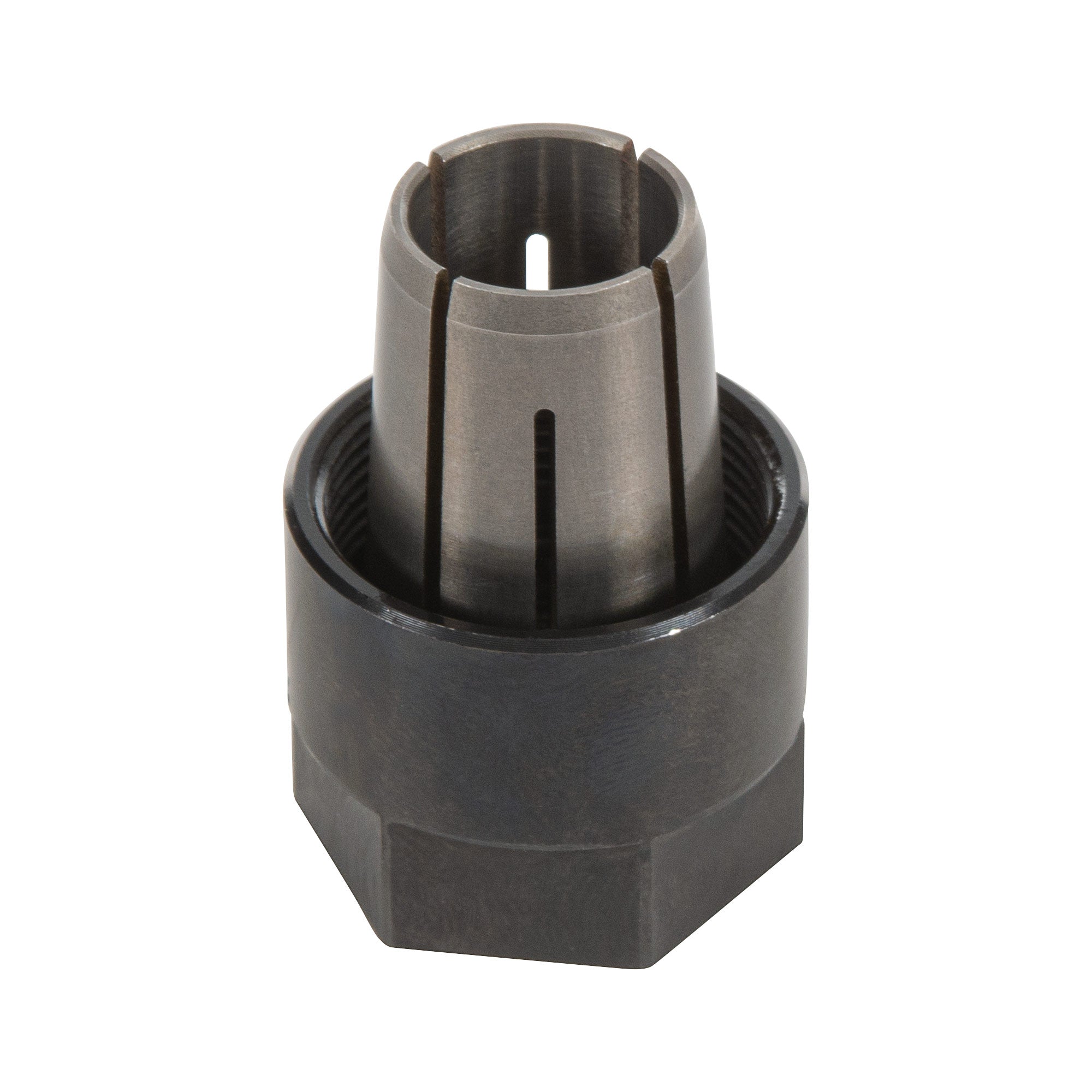

• Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.

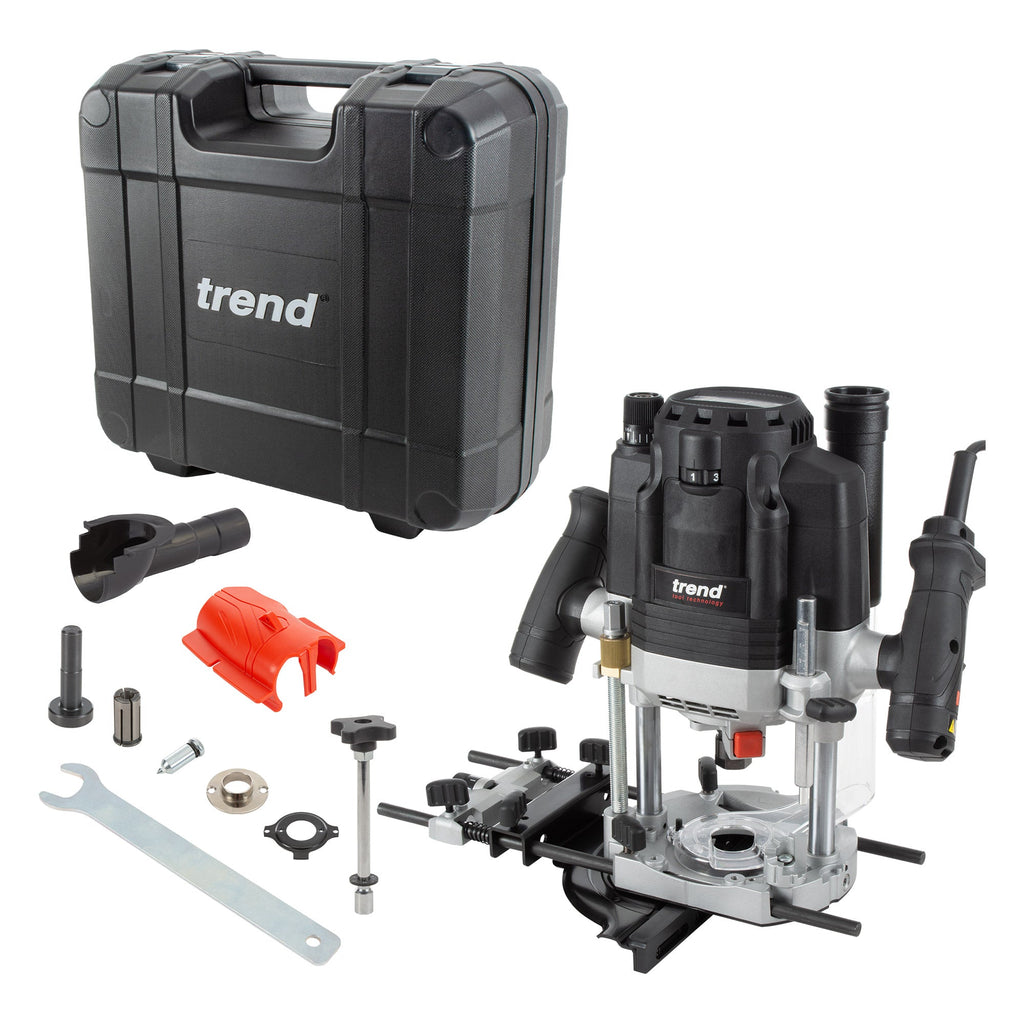

• Moulded Carry Case provides safe storage for router and accessories.
• *3 year warranty Ð Online registration required

Specifications

• Duty Rating=Medium/Trade
• Motor Power=2200W
• AC Voltage=230V
• Plug Type=EU 2 pin

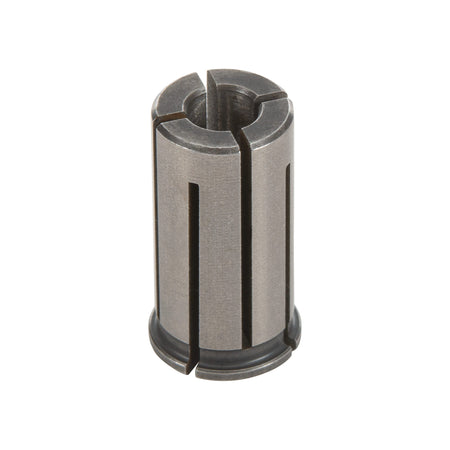

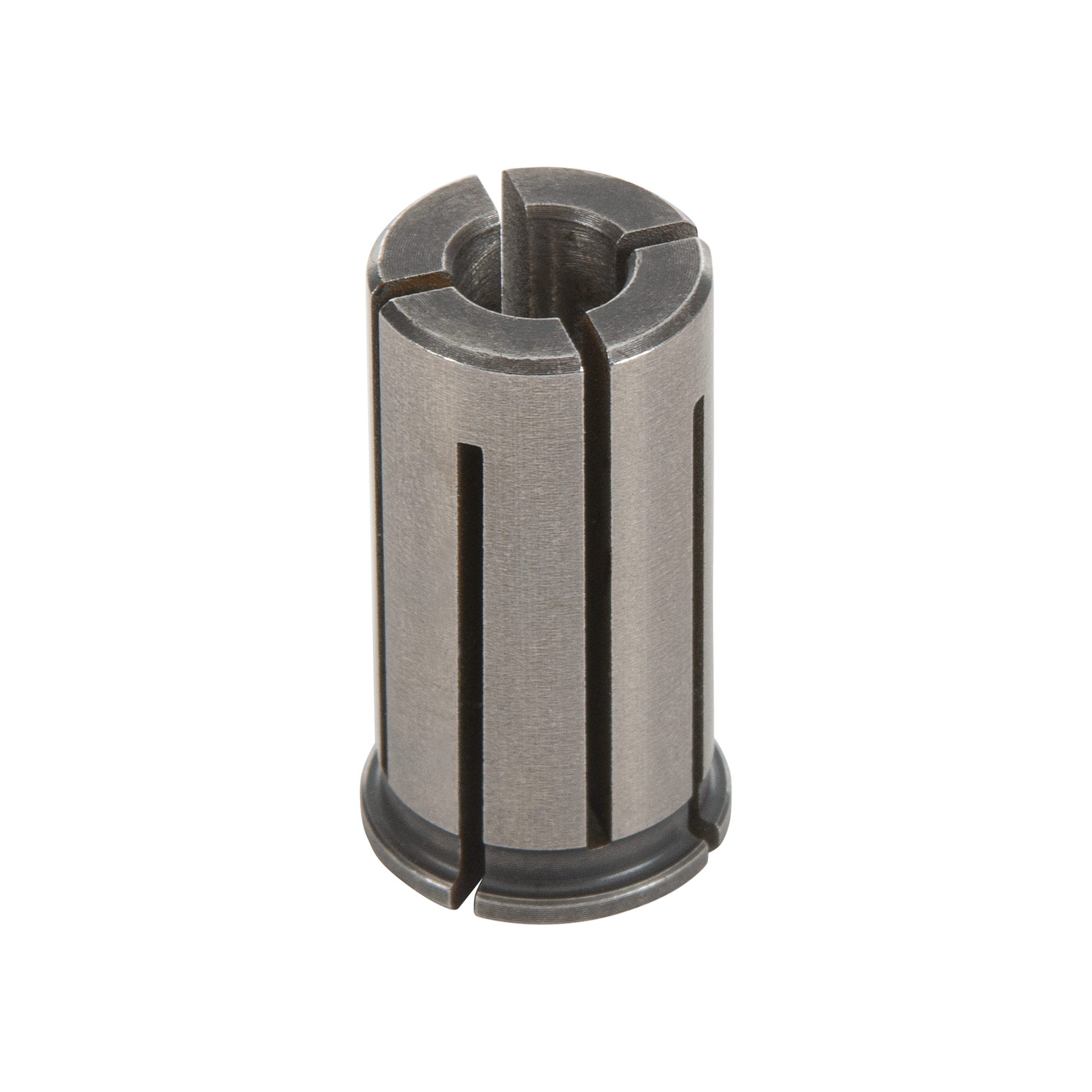

• Supplied Collet Size=12mm
• Plunge Stroke (Max)=80mm
• No Load Speed=10,000-26,000rpm

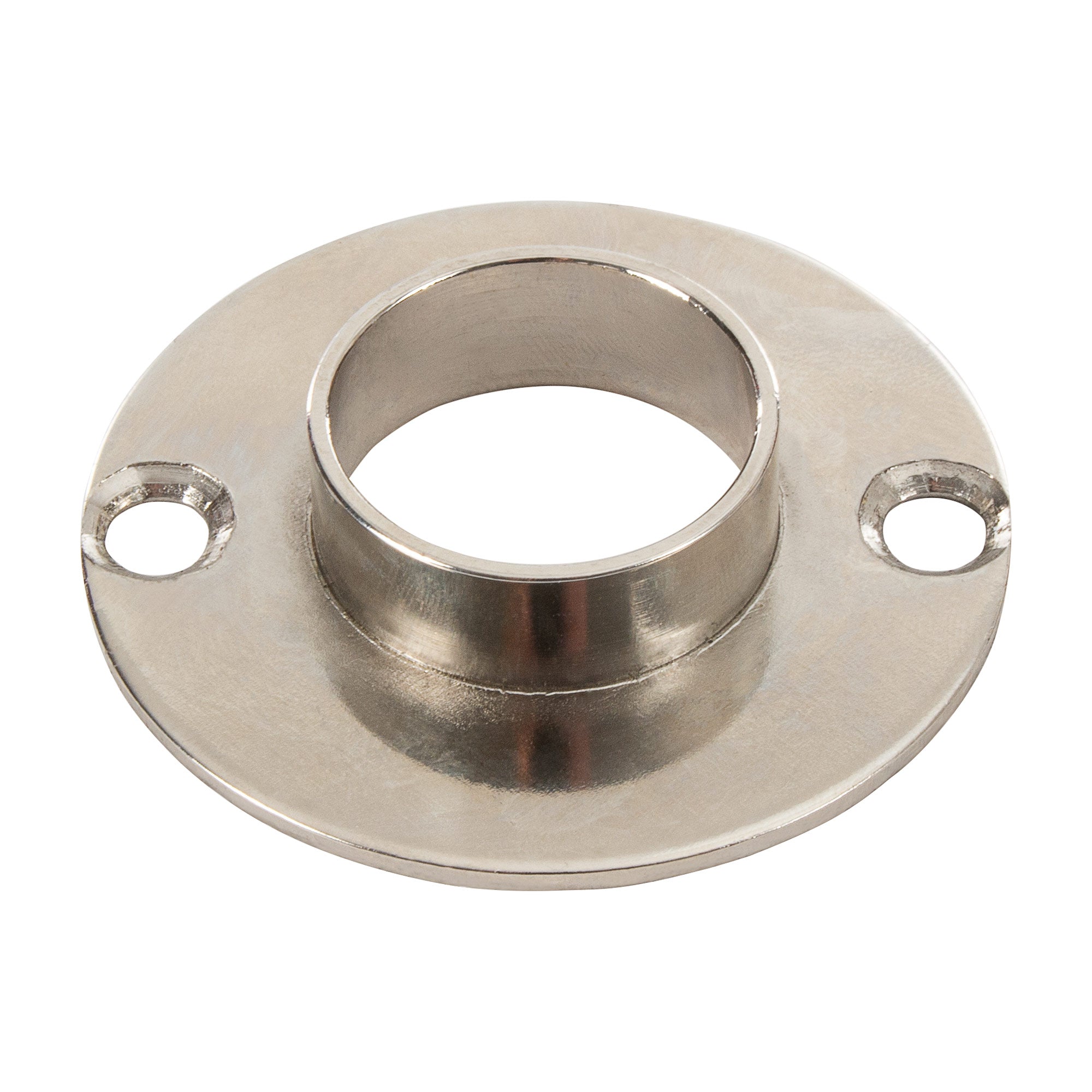

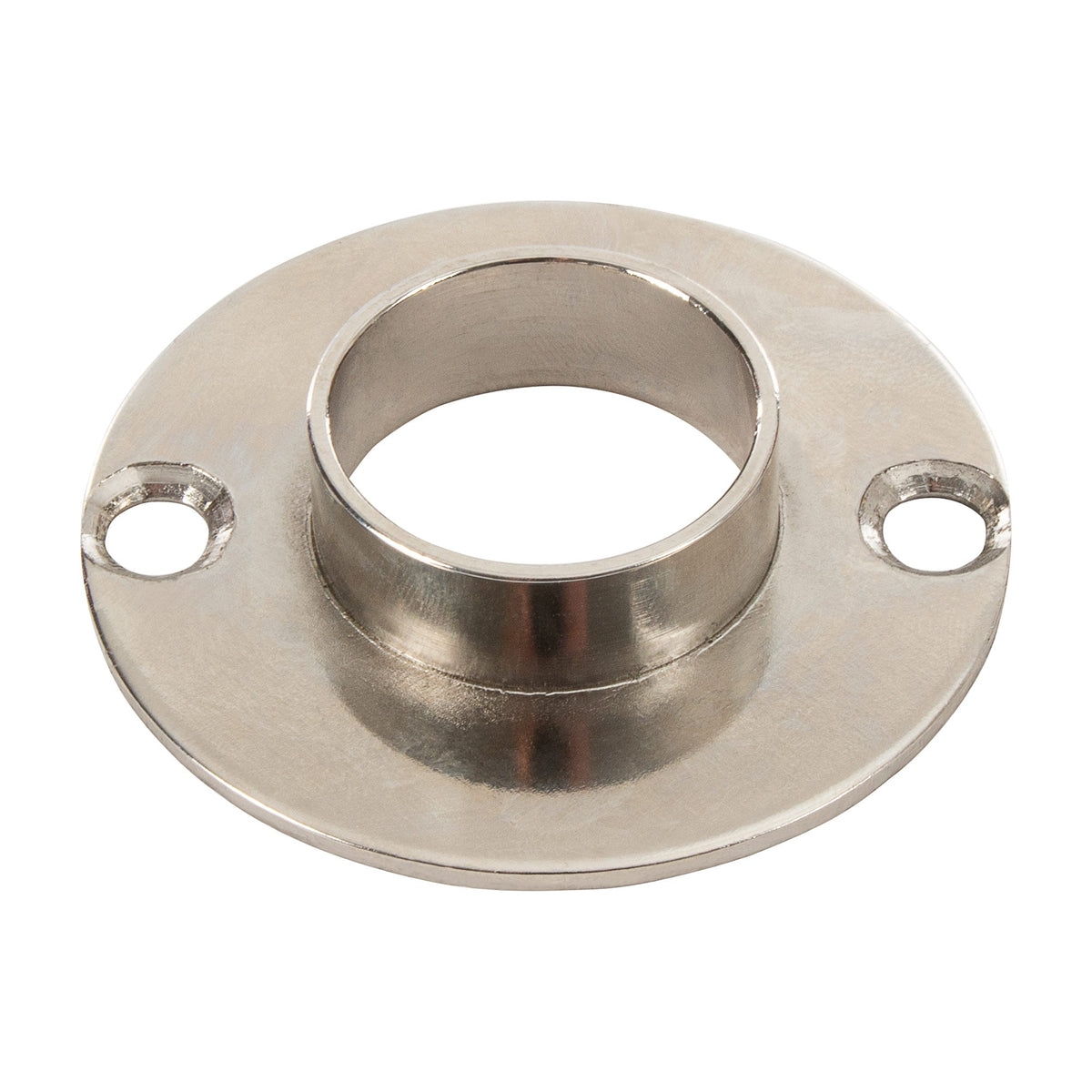

• Supplied Guide Bush=30mm
• Fence Rod Length=360mm
• Fence Rod Centres=84mm
• Fence Rod Diameter=8mm
• Base Aperture Diameter=75mm
• Cutter Diameter (Max)=50mm
• Dust Spout Internal Diameter=35mm
• Sound Pressure (Lpa)=94.1 dB(A)
• Acoustic Pressure (Lwa)=105.1 dB(A)
• Hand/Arm Vibration=<3.8m/s2
• Weight (Net)=5.8kg
• Power Cable Length=3m
• Router Table Compatible=Yes
• End of Life=See environmental policy
• Router fine height adjustment=One revolution of the handle equals 1.5mm.
