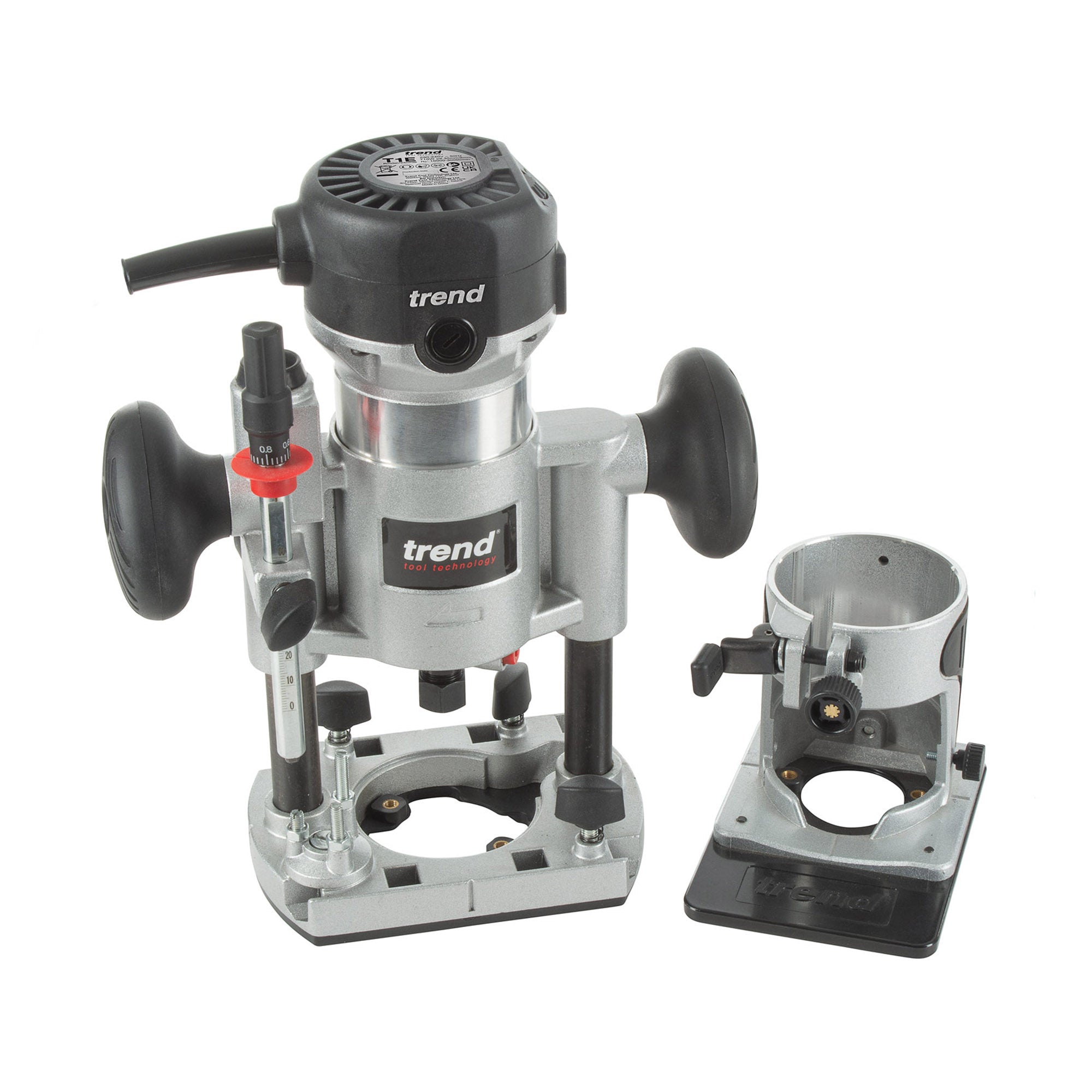

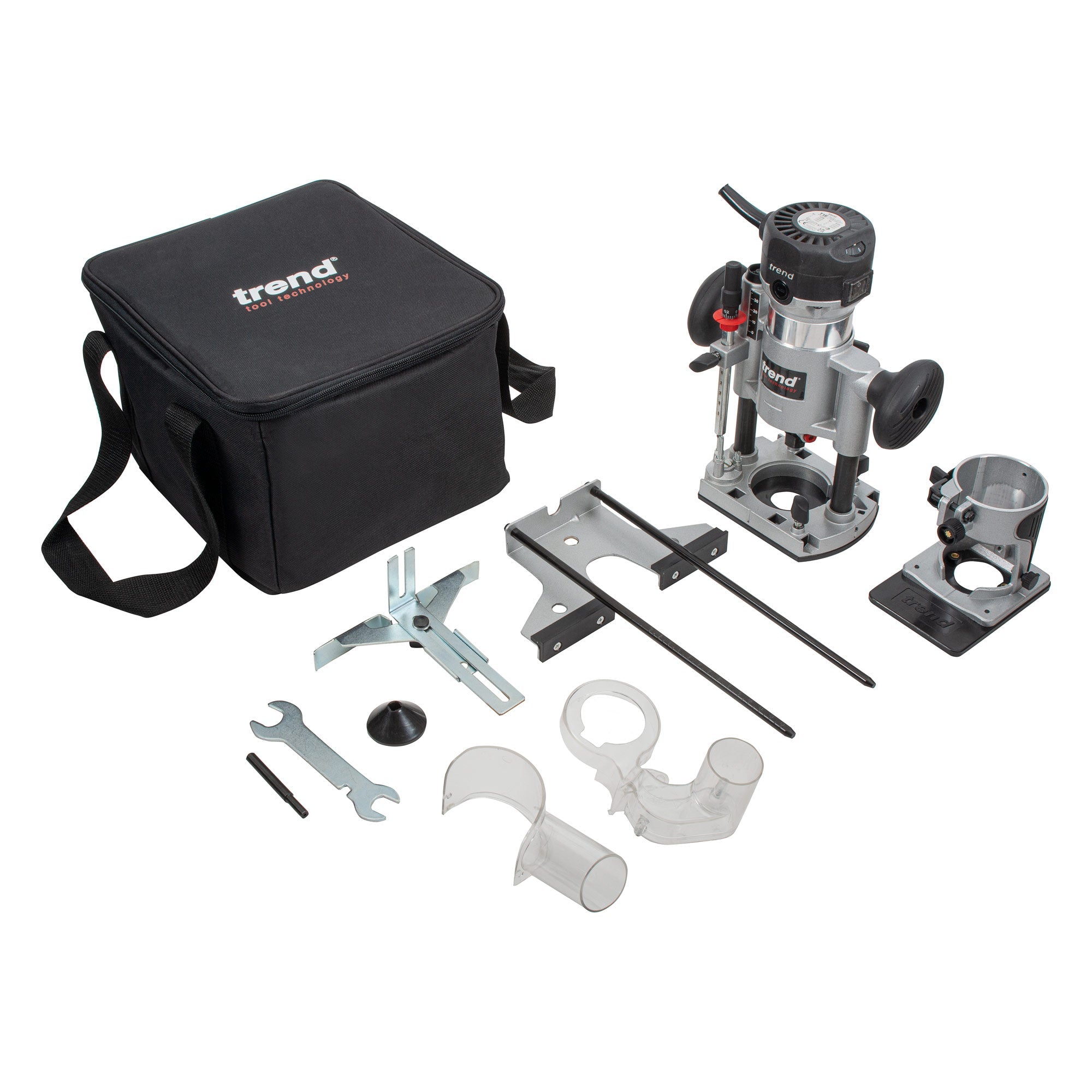

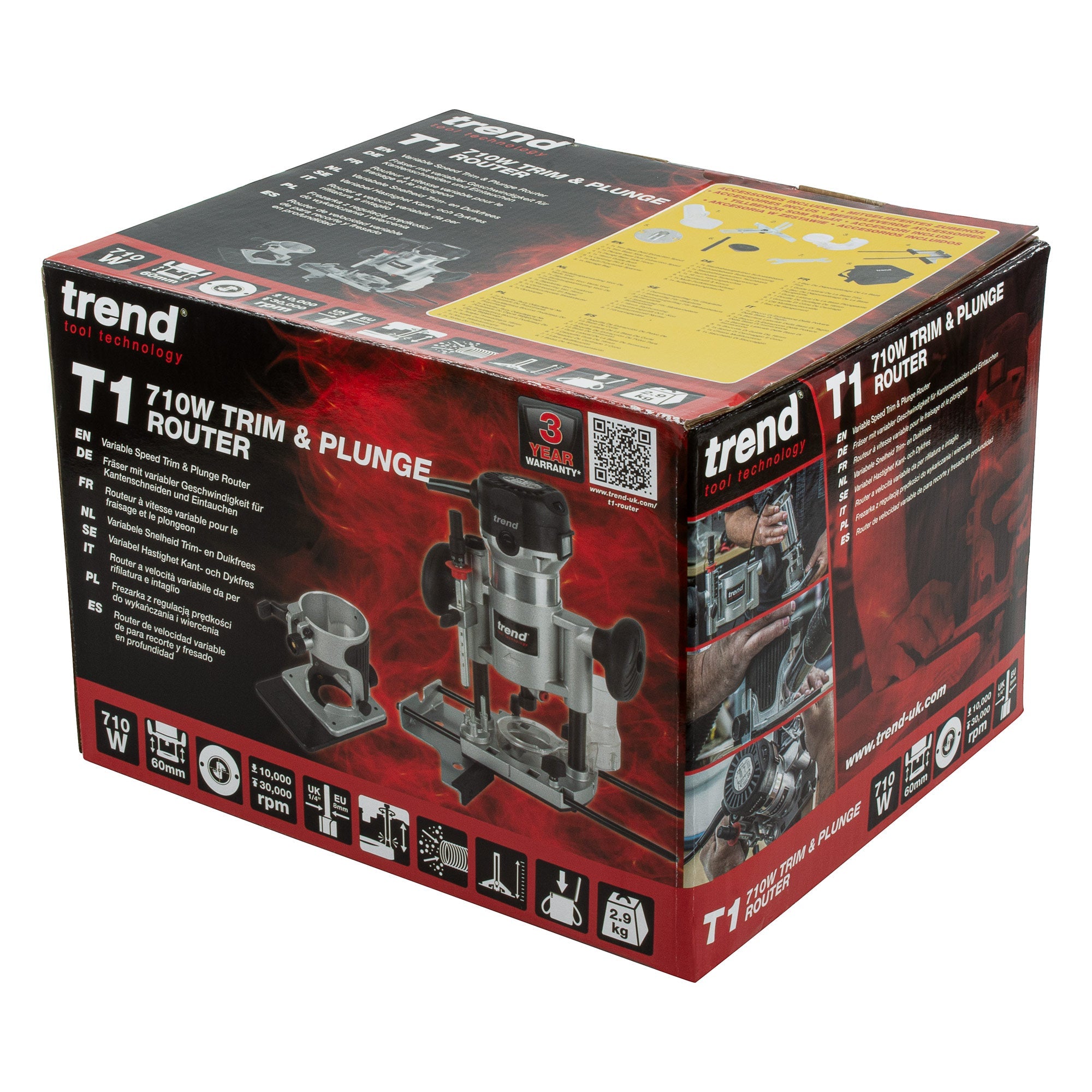

Trend Tools T1EPS/EURO 710W 8Mm Dual-Base Trim & Plunge Router 230V Eu

• 710W Motor with Soft-Start to prevent kick-back and protect the workpiece.

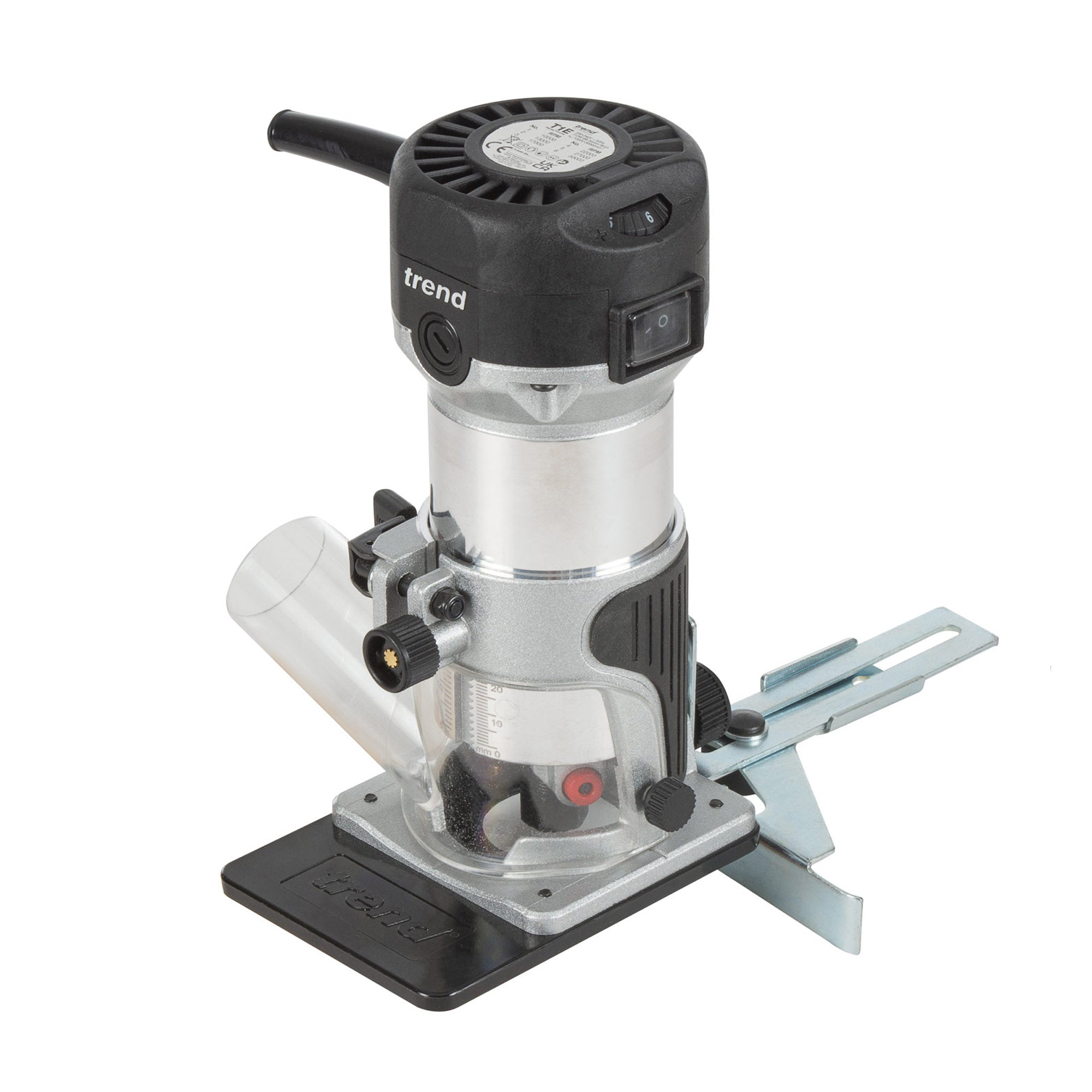

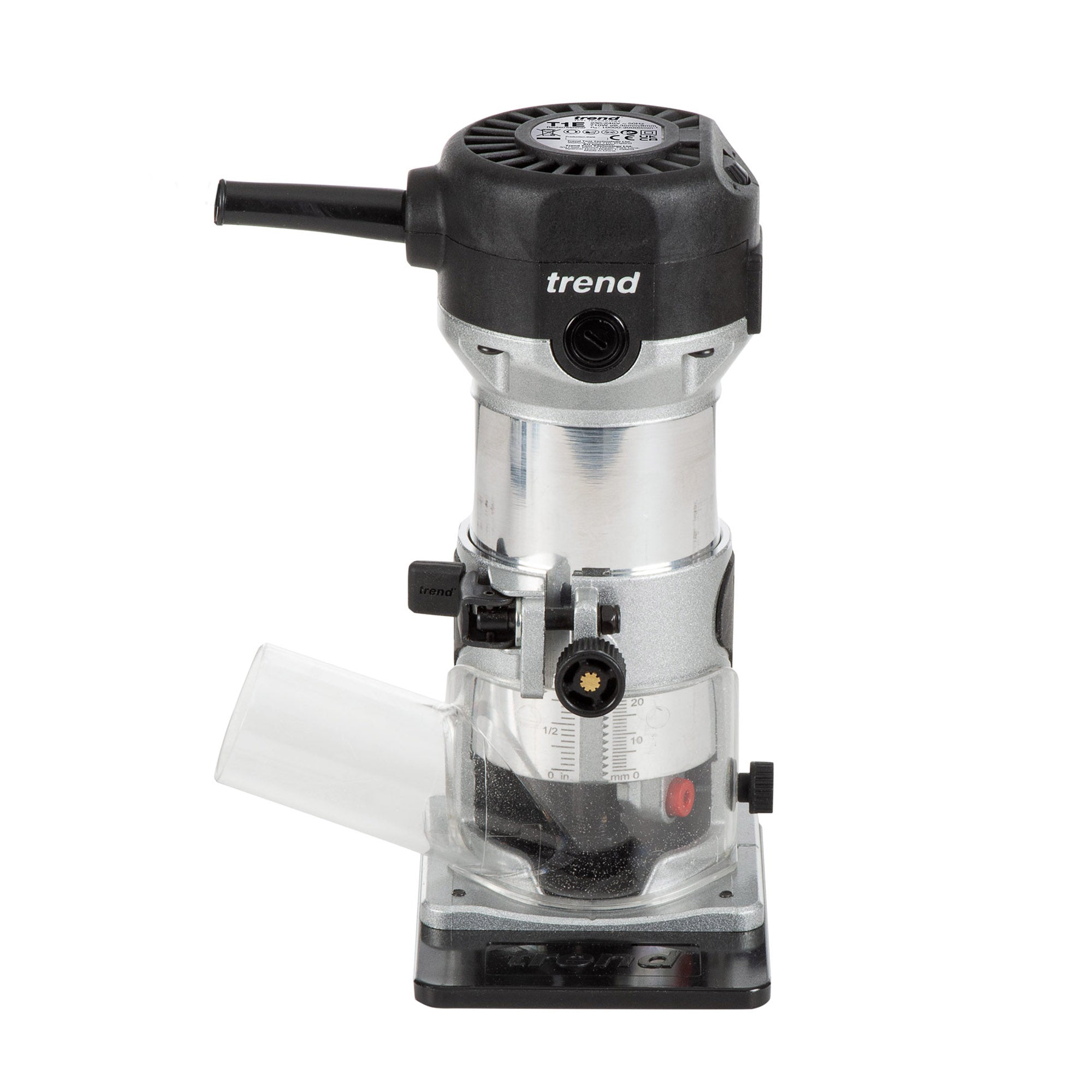

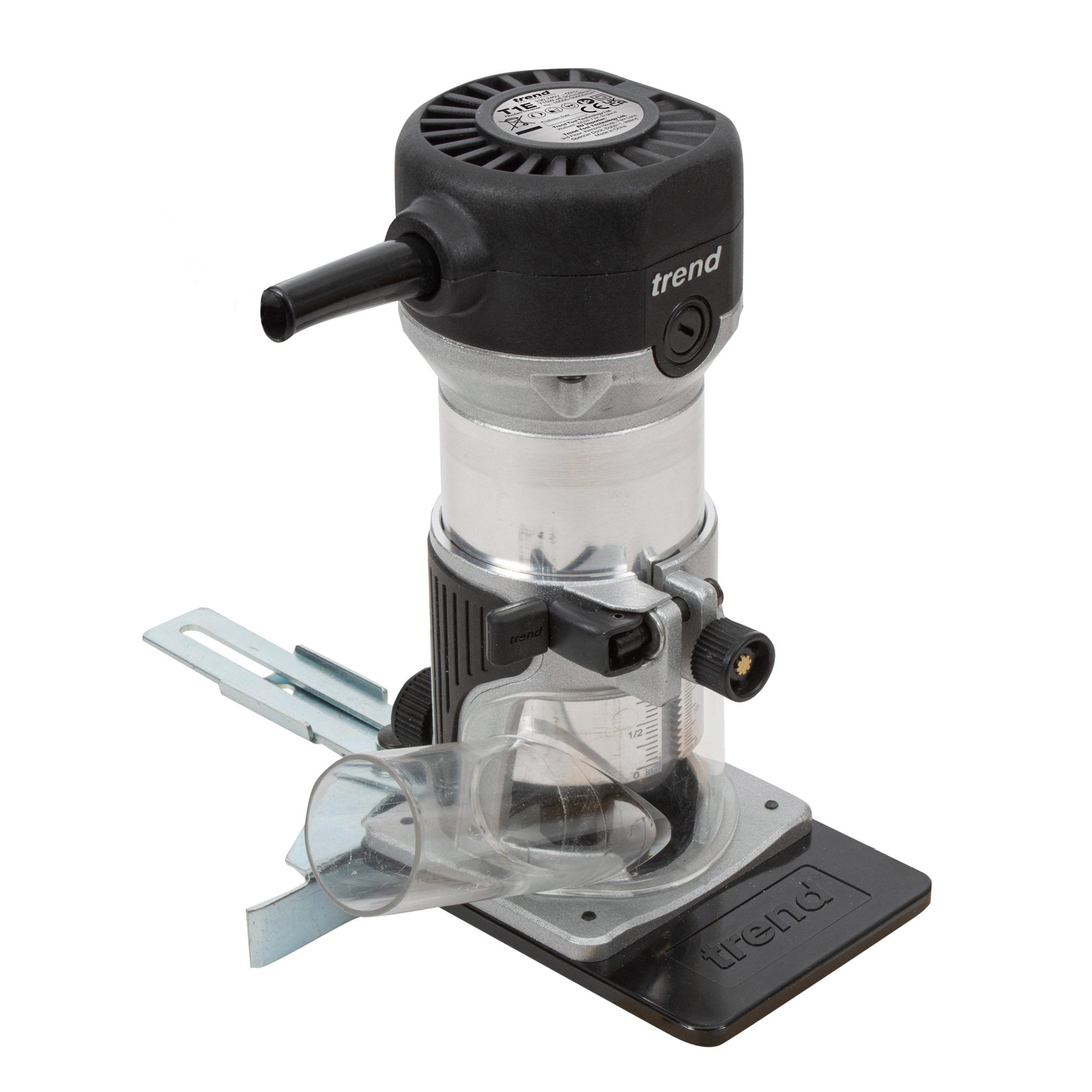

• Extended Trim Base with Rack & Pinion Height Adjustment and up to 37mm cut depth.

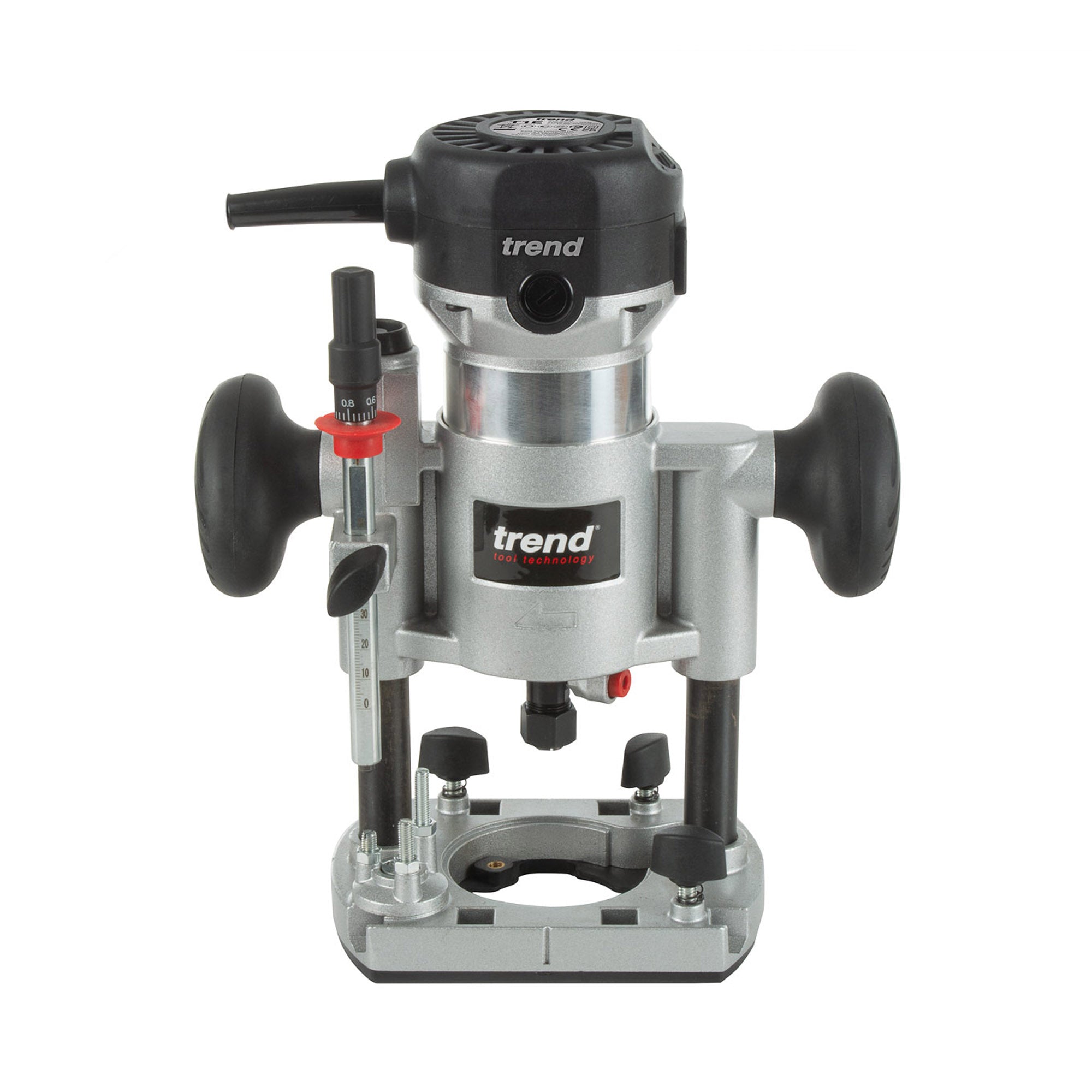

• Plunge Base with 60mm Plunge Depth for light-duty jig, deep or long-reach cutting applications such as hinge fitting, trenching or intumescent strip installation.
• Precision Centring System to ensure concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
• 6-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
• Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.
• Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
• Fine Height Adjuster** with an easy-to-read 0.2mm increment display for precision depth adjustments.
• Height-Adjustable 3-Position Rotating Turret** for fast, repeatable batch and stepped cutting.
• Compact Inclined Handles** feature a soft grip moulding for comfortable operation
• Offset Dust Extraction Spout** for an unimpeded view of the workpiece.
• Compatible with Trend Guide Bushes for jig use, templating and inlaying.

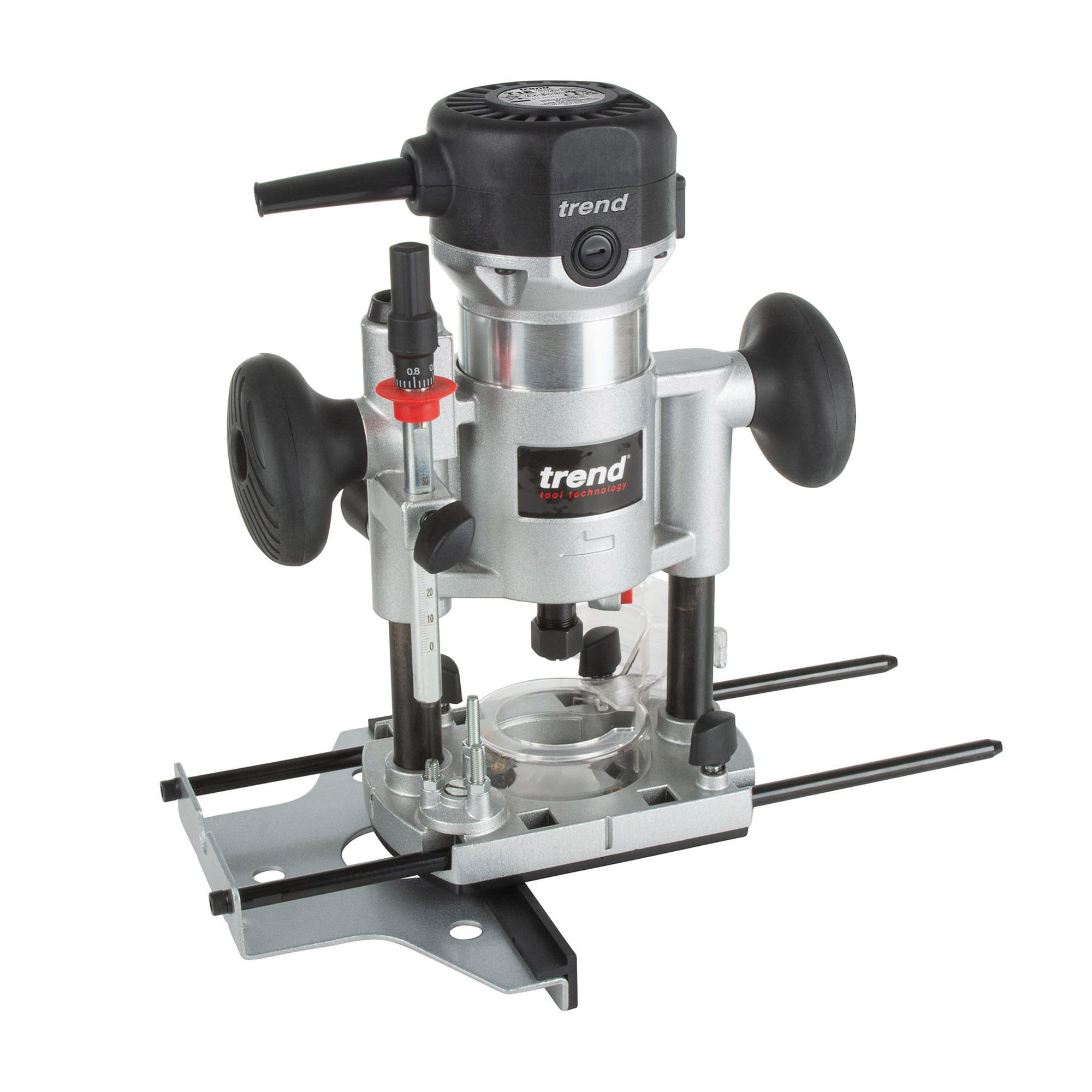

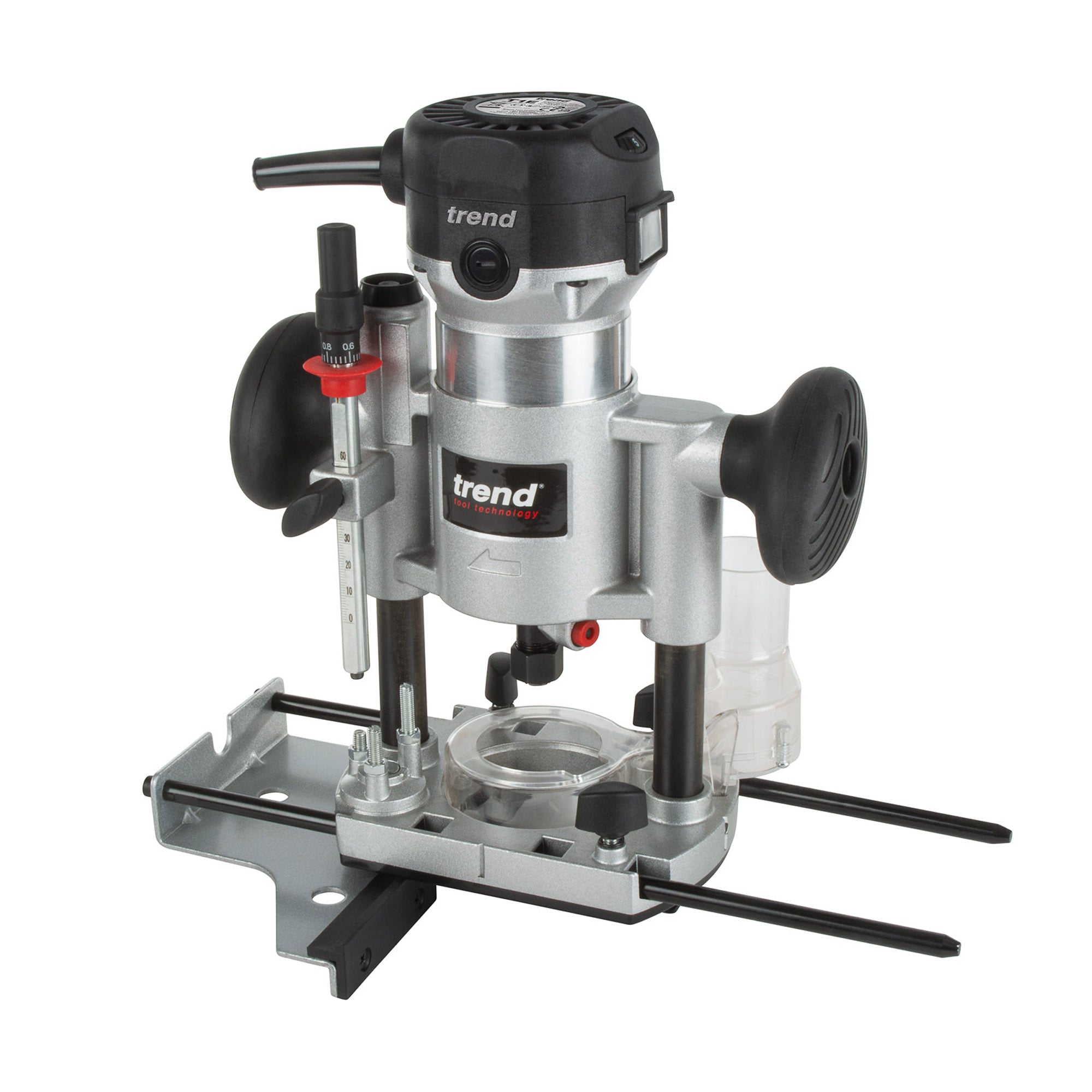

• Adjustable Side Fences for templating and edge rebating.
• *3 year warranty Ð Online registration required
• **Plunge base only**

Specifications

• Duty Rating=Light
• Motor Power=710W
• AC Voltage=230V
• Plug Type=EU 2 pin
• Supplied Collet Size=8mm
• Plunge Stroke (Max)=60mm
• Cutter Height Adjustment - Trim Base=37mm
• No Load Speed=10,000-30,000rpm
• Supplied Guide Bush=16mm (GB160)
• Fence Rod Length=300mm
• Fence Rod Centres=84mm
• Fence Rod Diameter=8mm
• Base Aperture Diameter=40mm
• Cutter Diameter (Max)=35mm
• Dust Spout Internal Diameter=35mm
• Weight of Base - Trim=0.32kg
• Weight of Base - Plunge=1.35kg
• Weight of Motor=1.49kg
• Sound Pressure (Lpa)=85 dB(A)
• Acoustic Pressure (Wpa)=96 dB(A)
• Hand/Arm Vibration - Trim Base=4.6m/s2
• Hand/Arm Vibration - Plunge Base=4.5m/s2
• Power Cable Length=3m
• Router Table Compatible=No
• End of Life=See environmental policy
