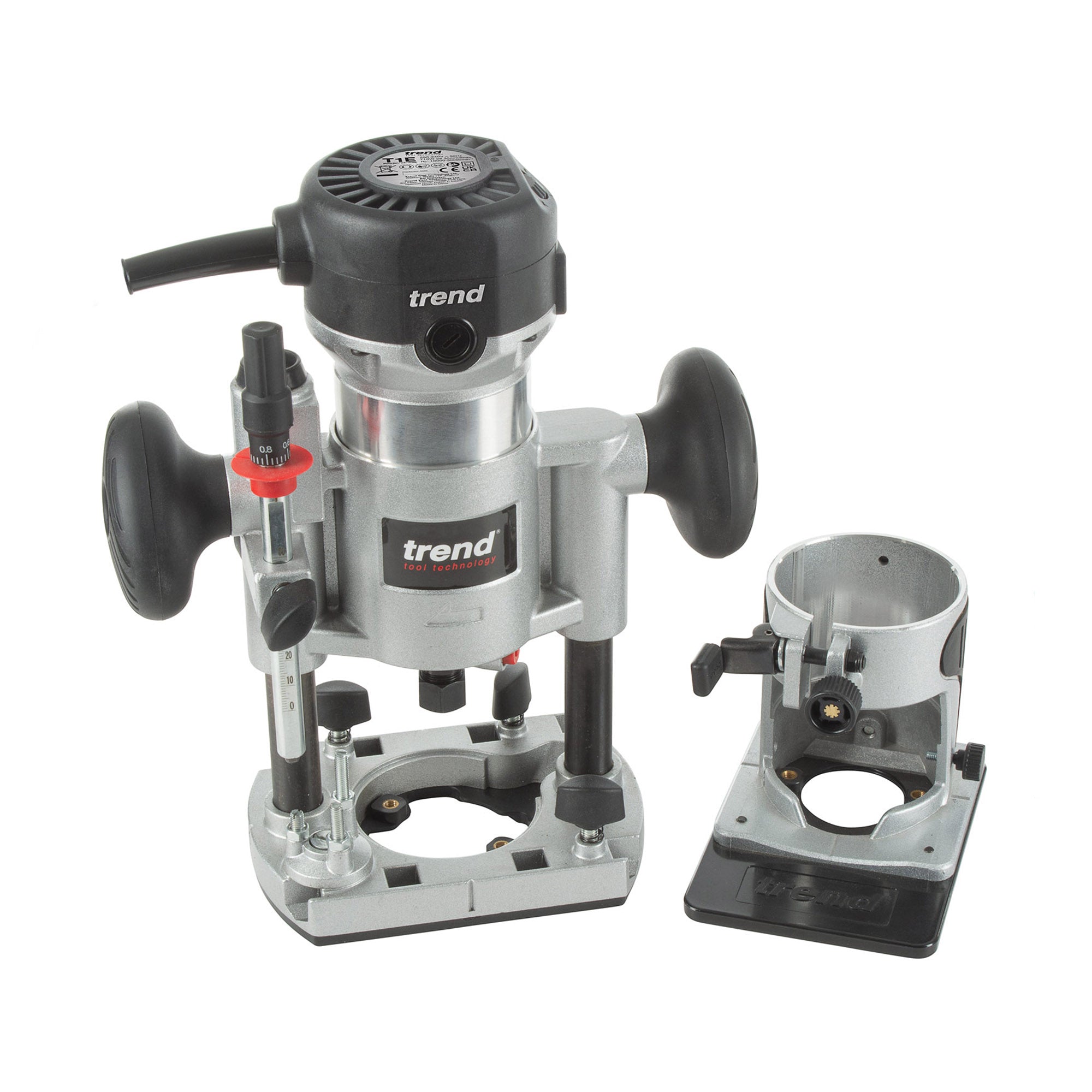

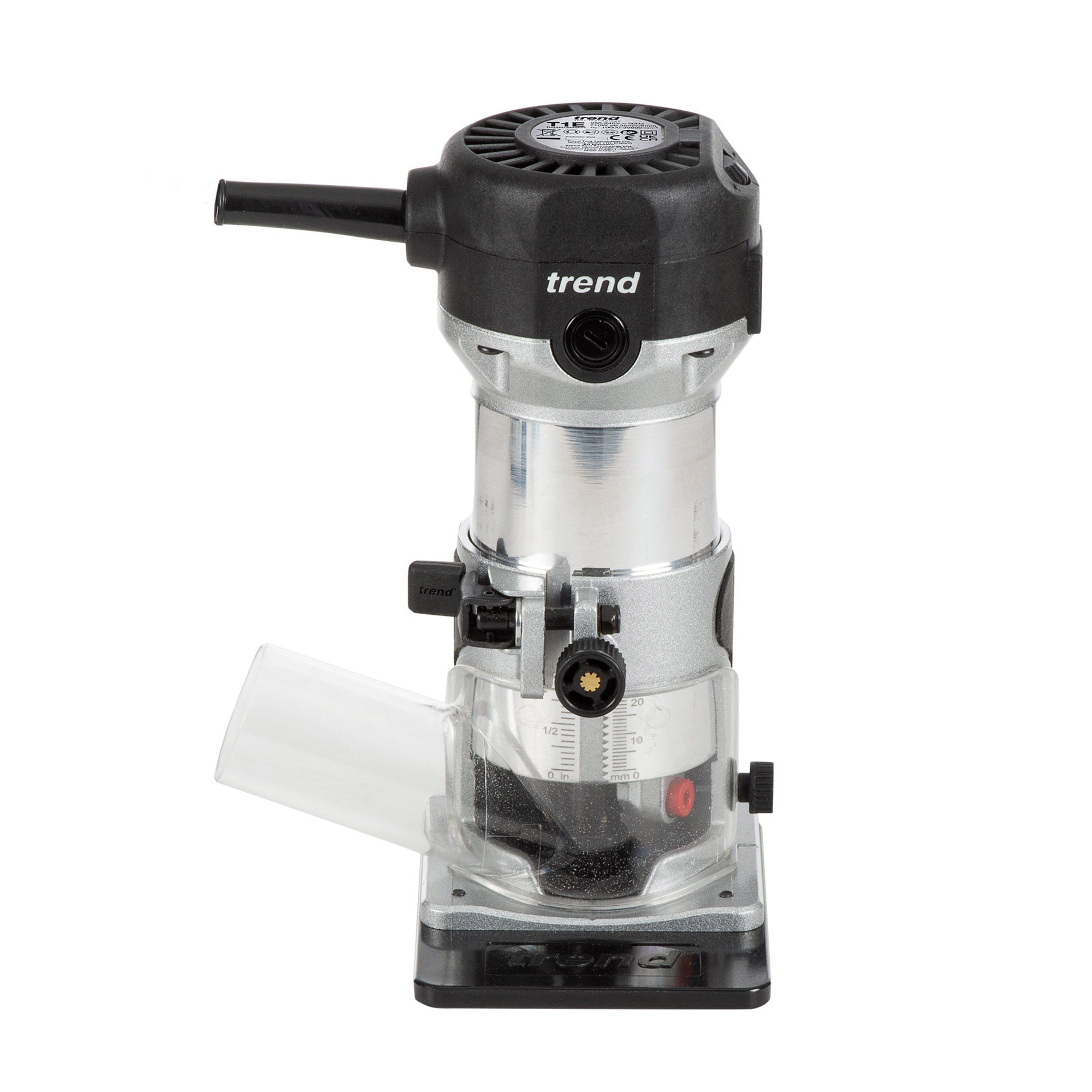

Trend Tools T1EPS 710W ?Ó Dual-Base Trim & Plunge Router 240V Uk & Ireland Only

SKU: TREND-T1EPS
Regular price £147.83

Need help with this purchase?

  • 710W Motor with Soft-Start to prevent kick-back and protect the workpiece.

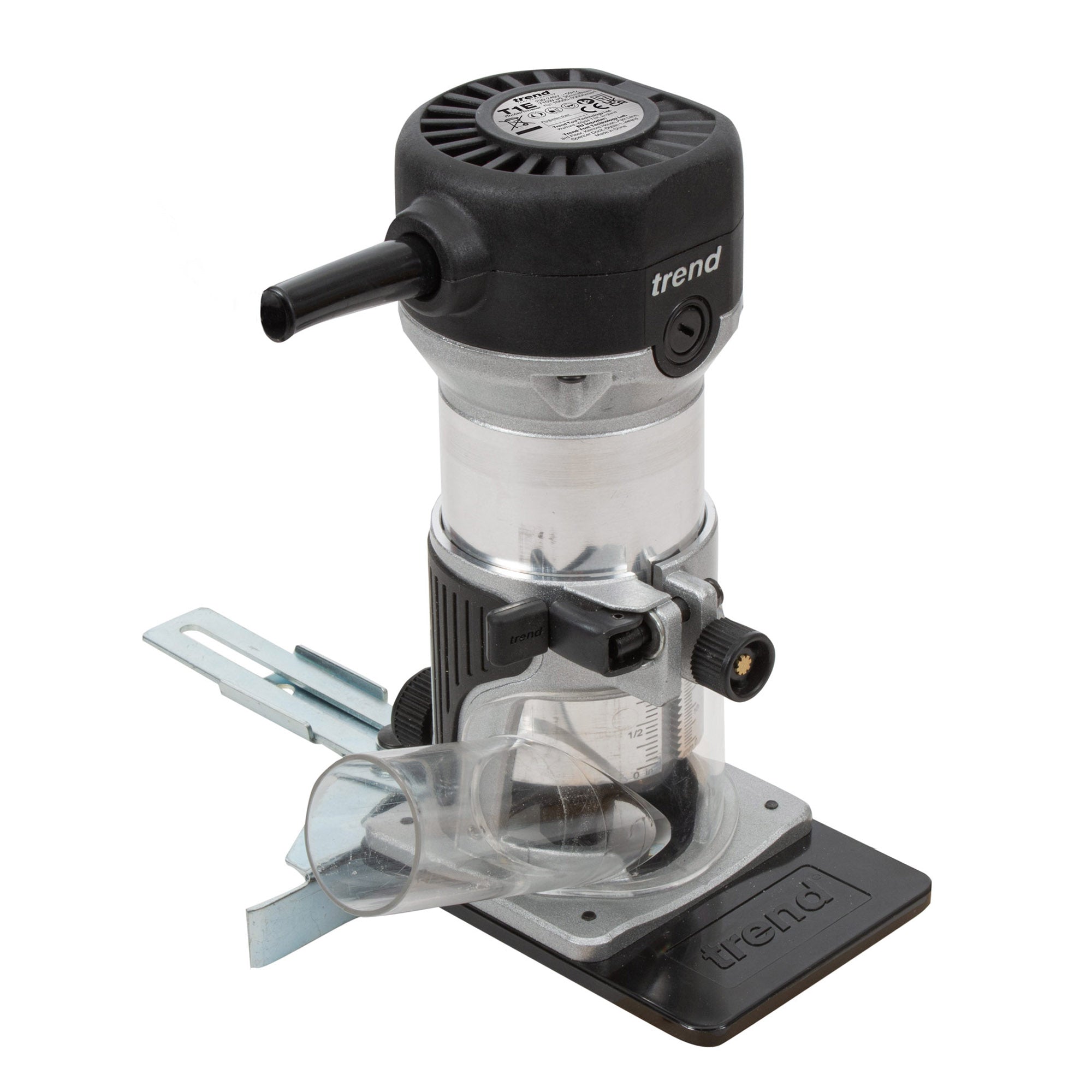

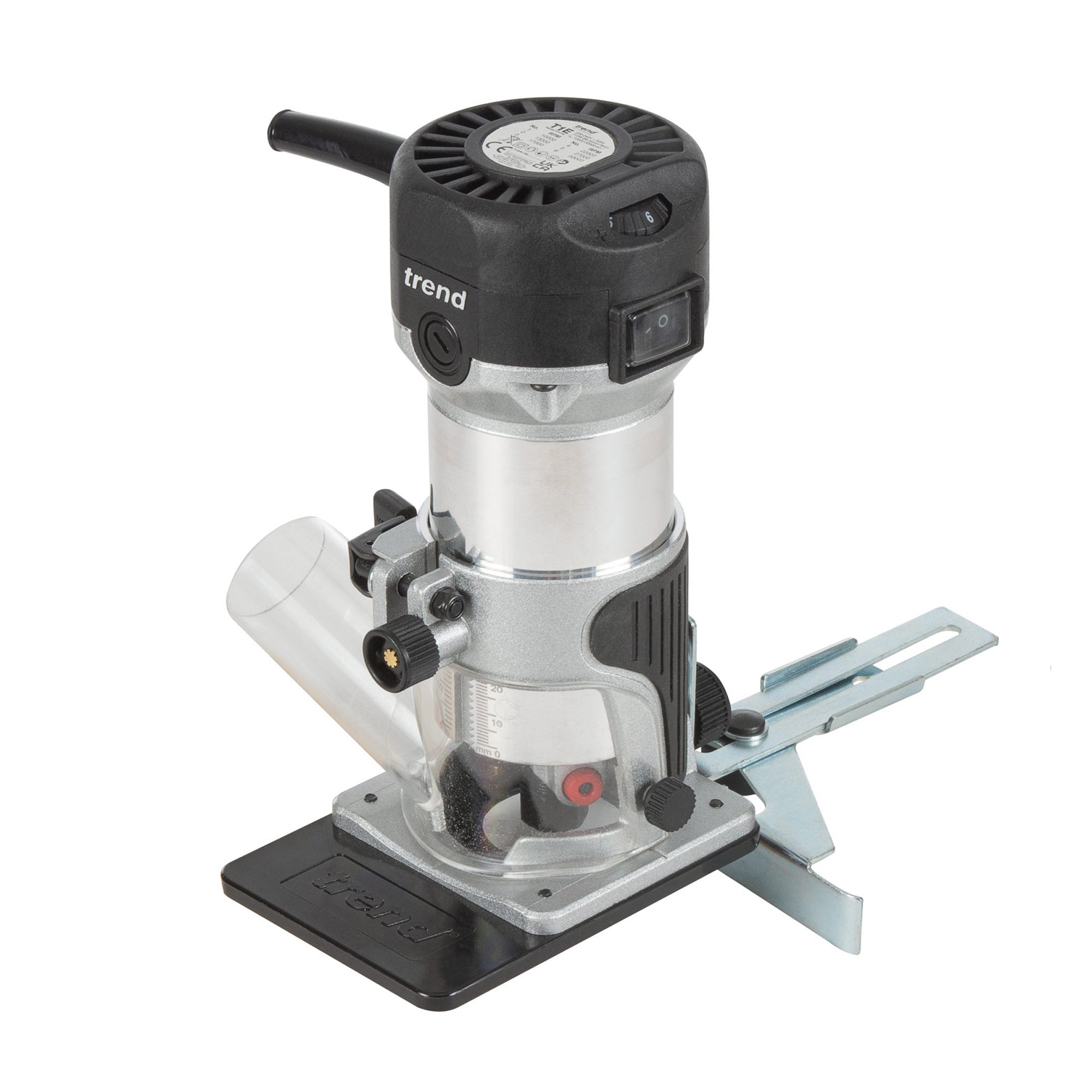

  • Extended Trim Base with Rack & Pinion Height Adjustment and up to 37mm cut depth.

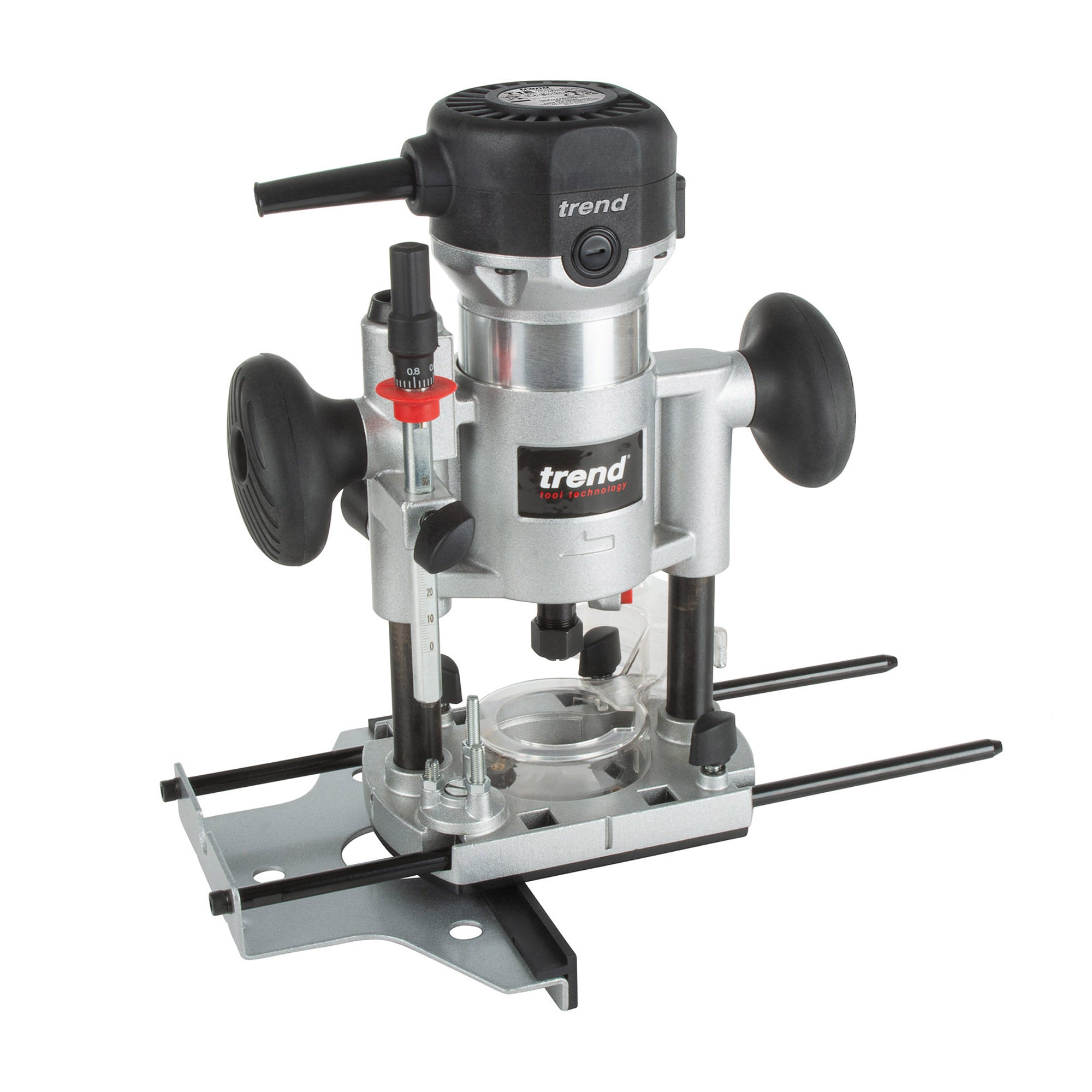

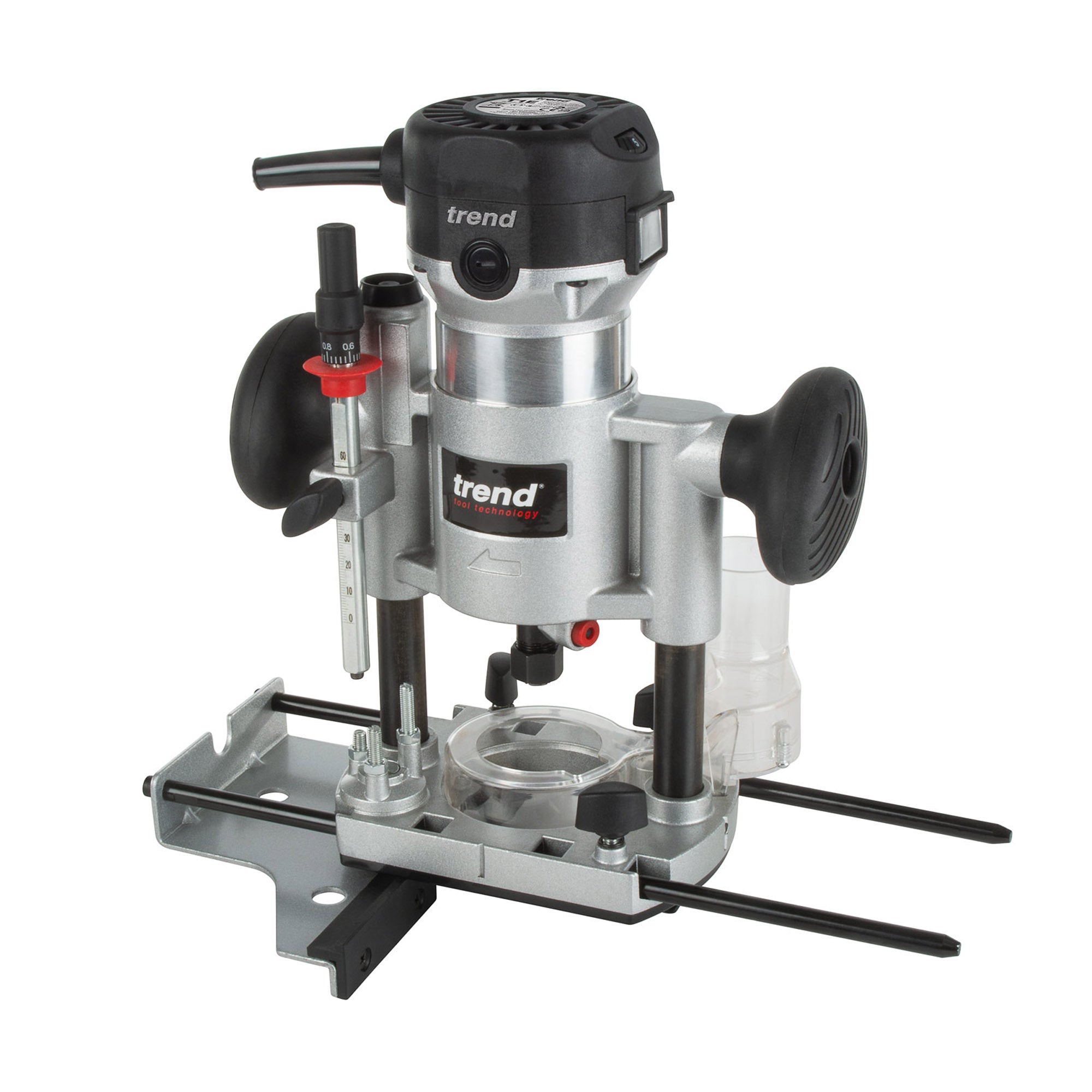

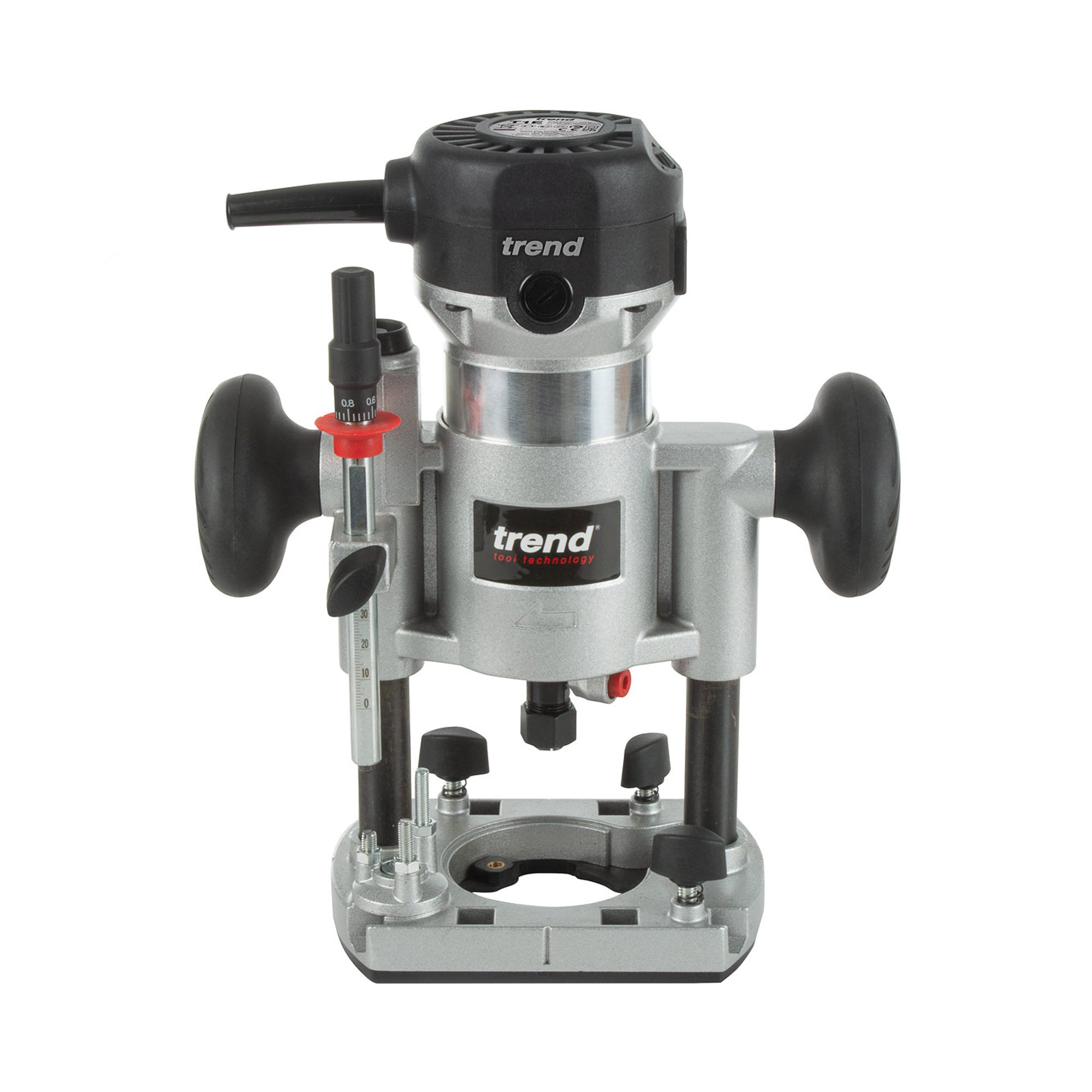

  • Plunge Base with 60mm Plunge Depth for light-duty jig, deep or long-reach cutting applications such as hinge fitting, trenching or intumescent strip installation.
  • Precision Centring System to ensure concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
  • 6-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
  • Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.
  • Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
  • Fine Height Adjuster** with an easy-to-read 0.2mm increment display for precision depth adjustments.
  • Height-Adjustable 3-Position Rotating Turret** for fast, repeatable batch and stepped cutting.
  • Compact Inclined Handles** feature a soft grip moulding for comfortable operation.
  • Offset Dust Extraction Spout** for an unimpeded view of the workpiece.
  • Compatible with Trend Guide Bushes for jig use, templating and inlaying.
  • Adjustable Side Fences for templating and edge rebating.
  • *3 year warranty Ð Online registration required
  • **Plunge base only

Specifications

  • Duty Rating=Light
  • Motor Power=710W
  • AC Voltage=240V
  • Plug Type=UK 3 Pin
  • Supplied Collet Size=1/4"
  • Plunge Stroke (Max)=60mm
  • Cutter Height Adjustment - Trim Base=37mm
  • No Load Speed=10,000-30,000rpm
  • Supplied Guide Bush=16mm (GB160)
  • Fence Rod Length=300mm
  • Fence Rod Centres=84mm
  • Fence Rod Diameter=8mm
  • Base Aperture Diameter=40mm
  • Cutter Diameter (Max)=35mm
  • Dust Spout Internal Diameter=35mm
  • Weight of Base - Trim=0.32kg
  • Weight of Base - Plunge=1.35kg
  • Weight of Motor Body=1.49kg
  • Sound Pressure (Lpa)=85 dB(A)
  • Acoustic Pressure (Lwa)=96 dB(A)
  • Hand / Arm Vibration -Trim=4.6m/s2
  • Hand / Arm Vibration - Plunge=4.5m/s2
  • Power Cable Length=3m
  • Router Table Compatible=No
  • End of Life=See environmental policy
  • For UK & Ireland sale only.
  • SKU TREND-T1EPS
  • Barcode 5027654085981
