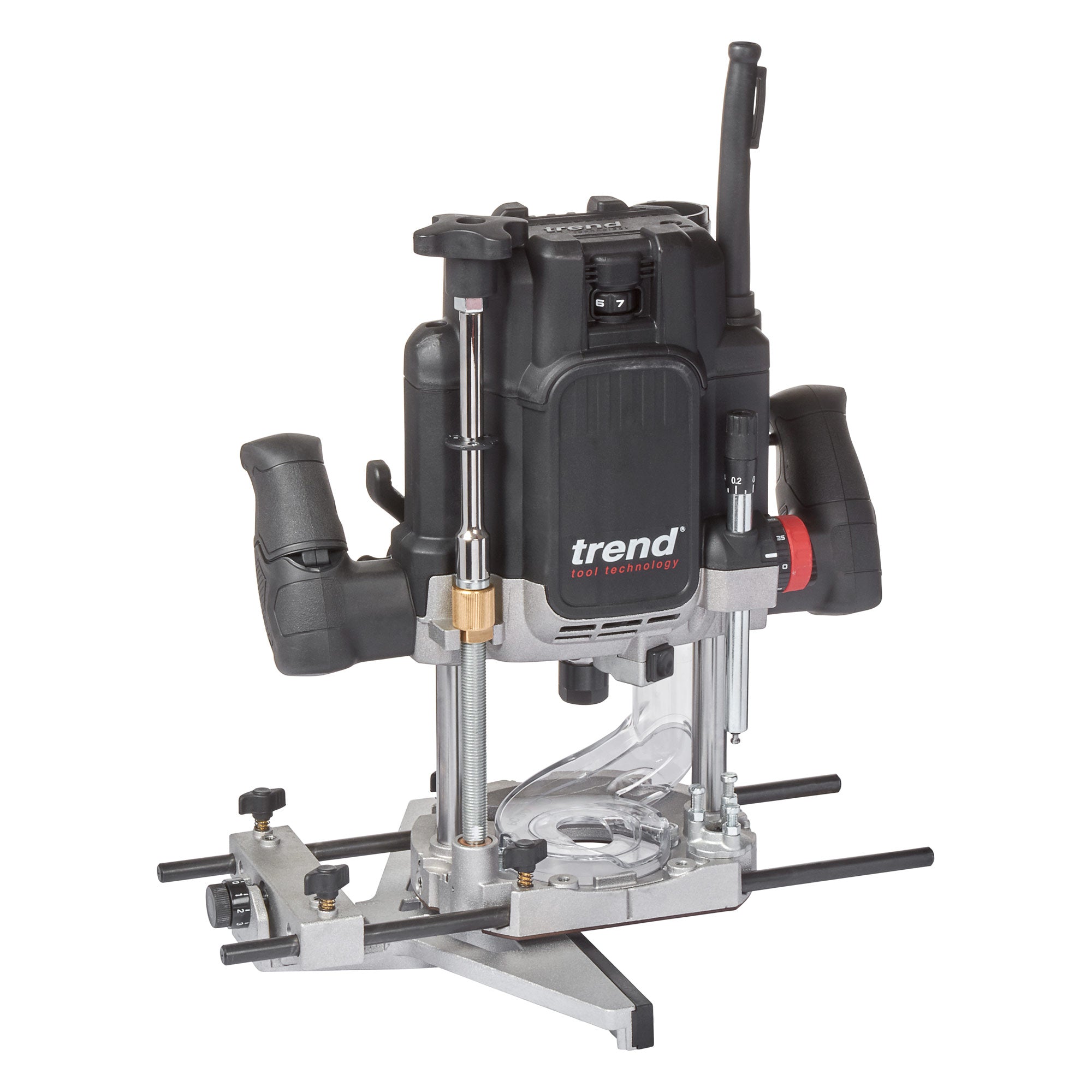

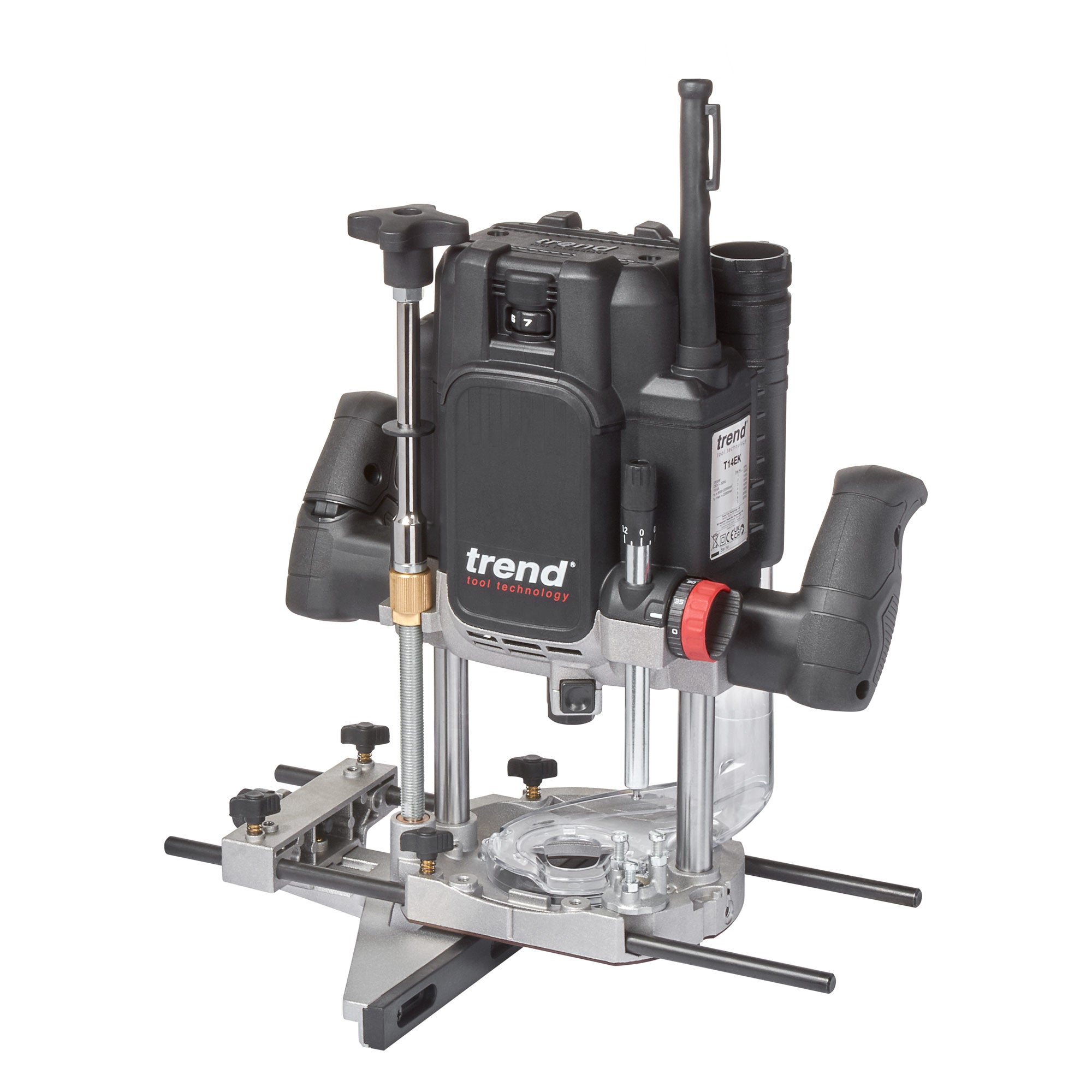

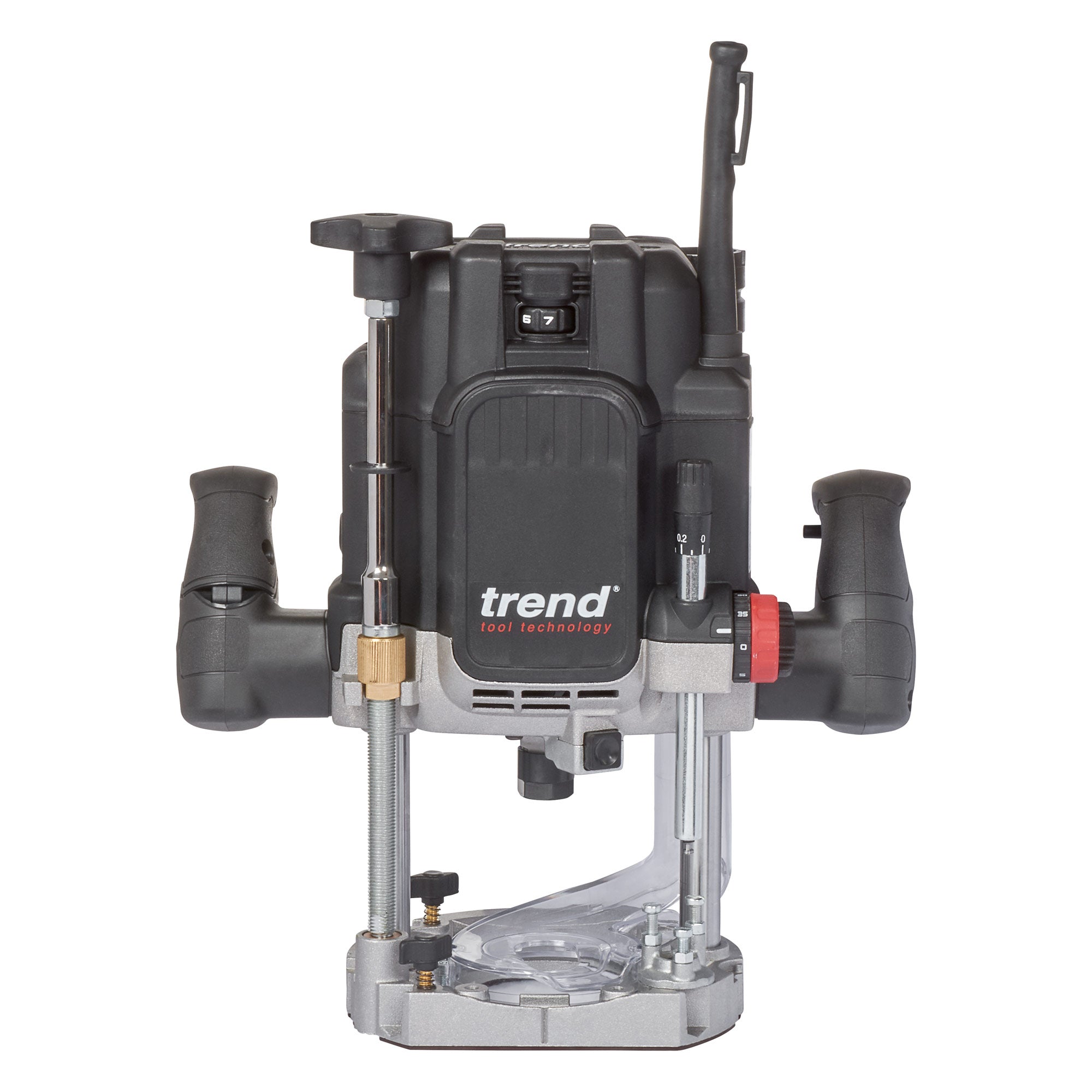

Trend Tools T14EK 2300W 1/2" Dual-Mode Plunge Router 240V Uk & Ireland Only

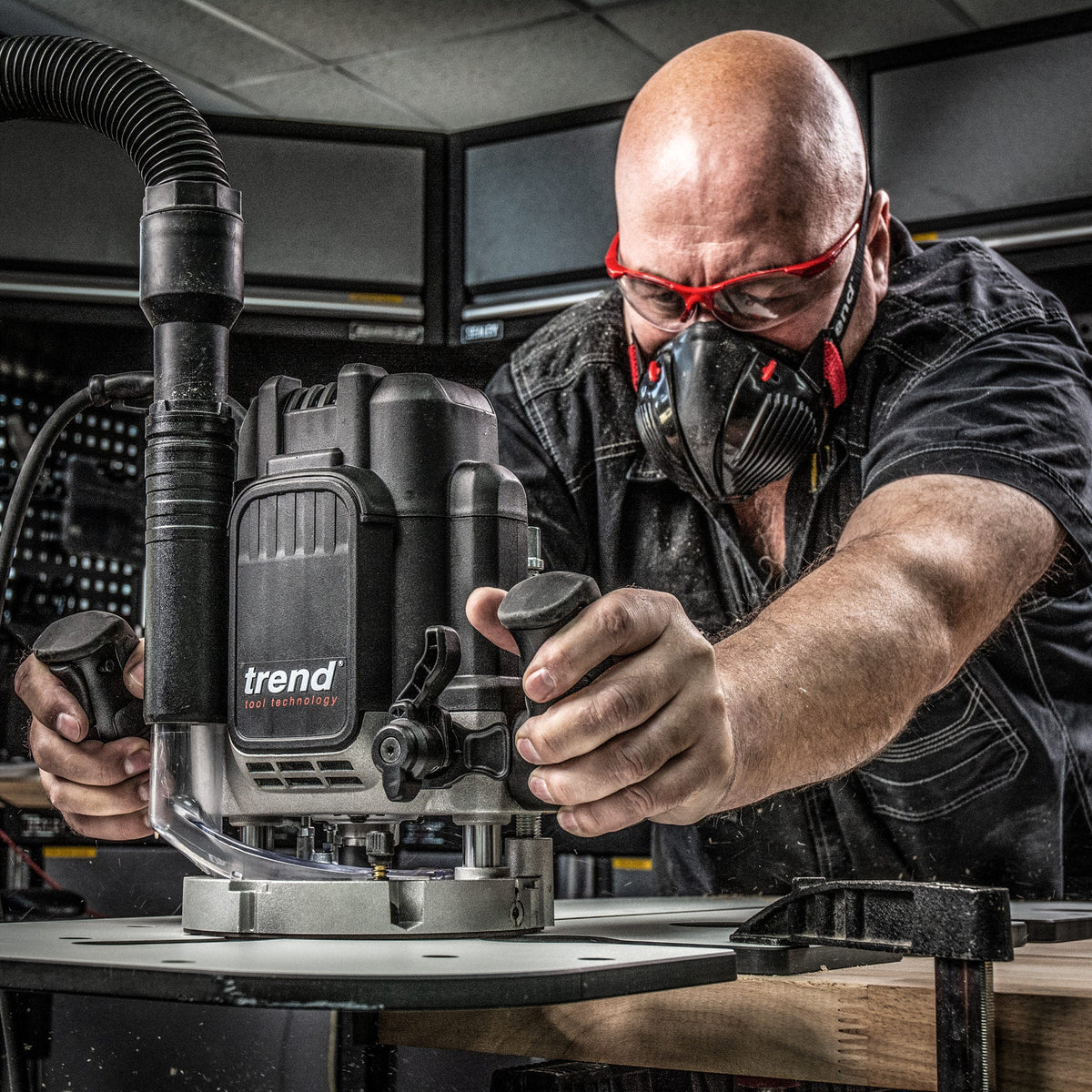

• High-performance plunge router with advanced safety features, engineered to deliver reliable, fast, accurate cuts. Perfect for hand-held and Router Table use.
• Powerful 2300W Motor with Constant Speed Control delivers consistently high power, torque and speed, and features soft-start to prevent kick-back.

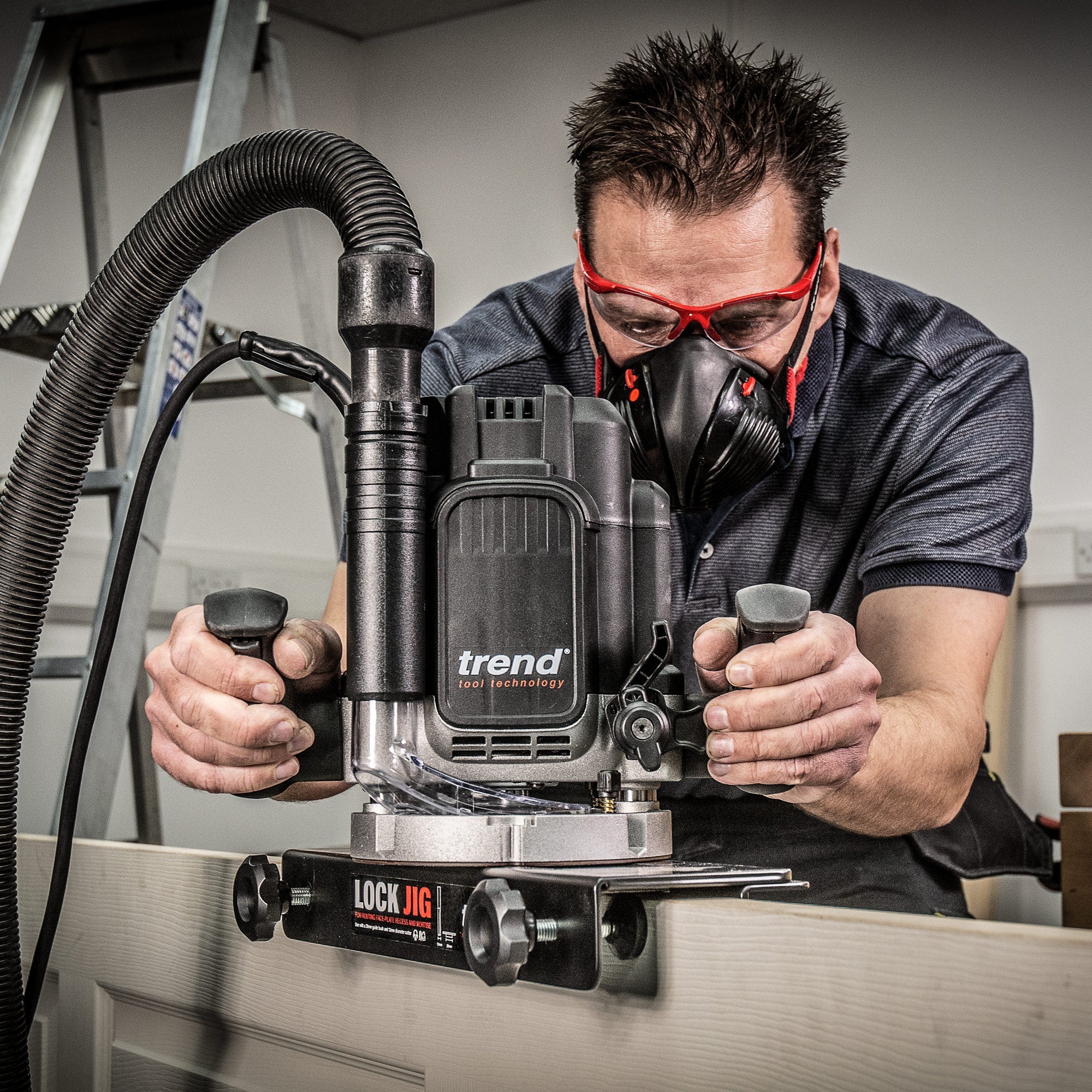

• 80mm Plunge Depth is ideal for deep cutting applications. Perfect for lock fitting, worktop joints and timber profiling.
• Trend Base Configuration is a standardised fixing pattern of holes that allow routers to be attached to a range of compatible tables, jigs and accessories.
• Anti-Restart Protection prevents the router from accidental start-up if the trigger lock-on switch is engaged, and the power supply is interrupted or lost and restored.
• Router Table Safety Switch bypasses the Anti-Restart Protection feature and replaces the need for a typical NVR (No Volt Release) switch.
• 2-in-1 Plunge & Router Table Height Adjuster can be used from above AND below the router, in both table and hand-held mode. Each 360¡ turn gives 1.5mm adjustment.
• Precision Centring System features a unique guide bush centring pin and adaptor plate that ensures perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
• Auto-Lock Plunge Lever allows users to quickly, accurately and safely reposition the plunge position without releasing the handles.
• Router Table Cam-Lock Quick-Release Mounts make mounting and unmounting the router quick and easy (optional accessory).
• Extra-Wide 75mm Base Aperture to accommodate over-size cutters, such as panel raisers, when used with a Router Table.
• 7-Level Variable Speed Control ranges from 9,000 to 22,000rpm, giving the user total control across a range of cutters, materials, and applications.

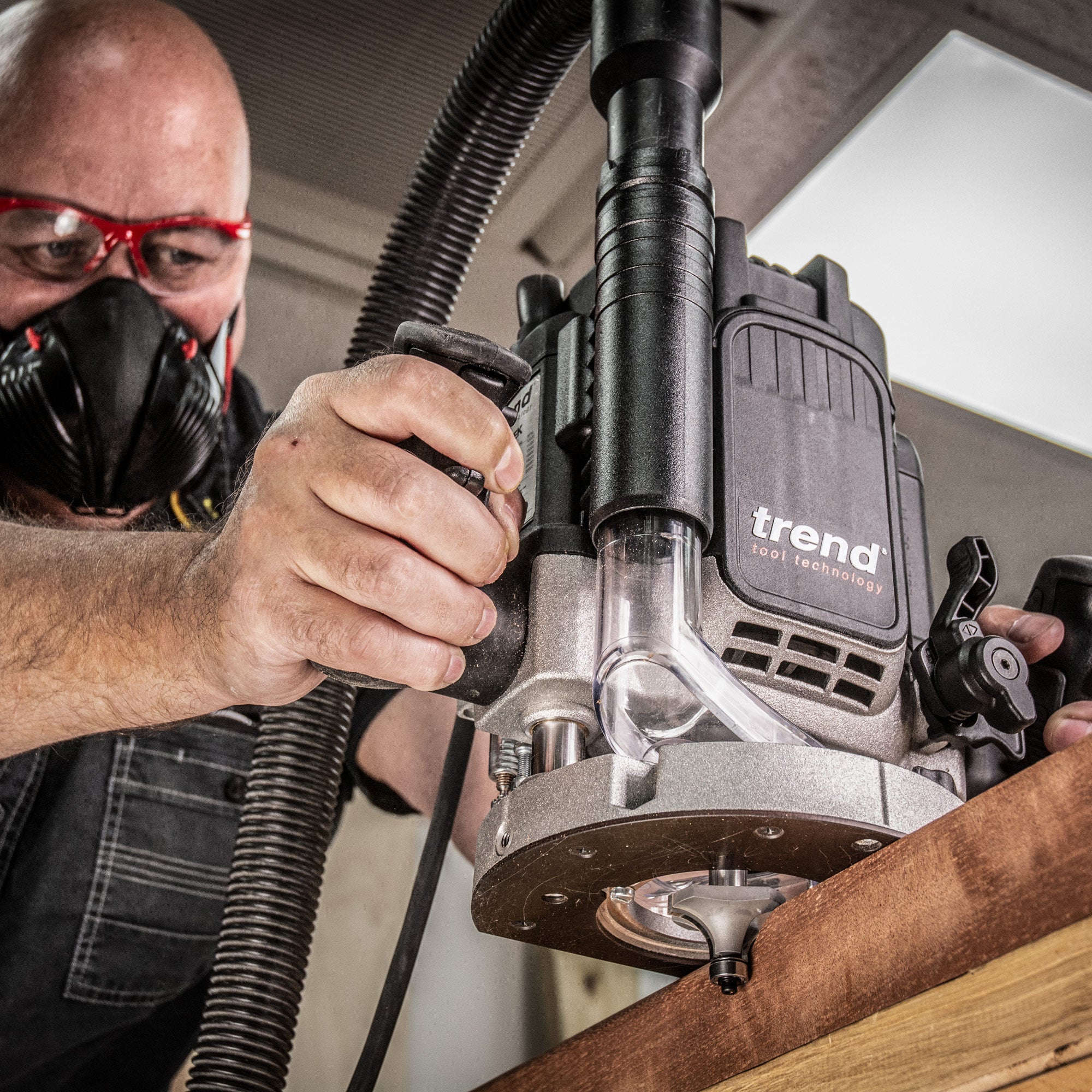

• Top-Mount Cyclone Extraction with enhanced dust adapter efficiently clears debris to give users 360¡ visibility and prevent extraction hoses from ÔsnaggingÕ.
• Ergonomic Inclined Handles support a natural wrist position, reduce strain, and increase control when routing with arms outstretched.
• Quick-Set Depth Post with rack & pinion 1.0mm indexed increments and zeroing function for fast, easy adjustment.
• Micrometer Fine Height Adjuster features 0.1mm increments and an easy-to-read display for precision depth adjustment.
• Integrated Power Trigger bult into the inclined handle for precise and safe control of the routerÕs on/off function.
• Micro-Adjustable Side Fence with adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding.
• Automatic LED Work Lights allow users to accurately position the cutter in low-light situations, prior to engaging the material and making costly errors.
• Phosphor Bronze Bushings are corrosion resistant, durable and self-lubricating to prevent racking and deliver a smooth, accurate plunge action.
• Anti-Scratch Base Plate made from replaceable, smooth Phenolic materials for a low-friction routing experience.
• Integrated Router Rest provides users with a safe way of changing cutters whilst preventing debris from entering motor vents.
• *3 year warranty Ð Online registration required

Specifications

• Duty Rating=Heavy/Professional/Trade
• Motor Power=2300 W
• AC Voltage=240 V
• Plug Type=UK 3 pin
• Supplied Collet Size=1/2"
• Plunge Stroke (Max)=80 mm
• No Load Speed=9,000-20,000 rpm
• Supplied Guide Bush=30 mm
• Fence Rod Length=360 mm
• Fence Rod Centres=110 mm
• Fence Rod Diameter=10 mm
• Base Aperture Diameter=75 mm
• Cutter Diameter (Max)=50 mm
• Dust Spout Internal Diameter=35 mm
• Sound Pressure (Lpa)=95.1 dB(A)1
• Acoustic Pressure (Lwa)=106.1 dB(A)2
• Hand/Arm Vibration=<2.1 m/s2
• Weight (Net)=6.5 kg
• Power Cable Length=3.5 m
• Router Table Compatible=Yes
• End of Life=See below for Environmental Policy link
• For UK & Ireland sale only.
• Router fine height adjustment=One revolution of the handle equals 1.5mm.
