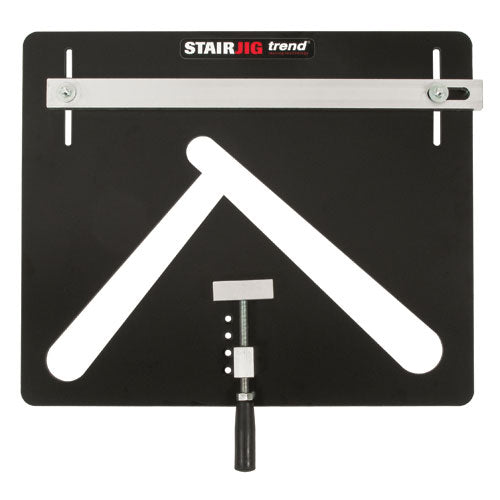

Trend Tools STAIR/A Stair Jig A Complete Closed Riser

• This template jig is a well proven means of routing out stair housings quickly and accurately.
• Constructed from hard wearing Compact Grade High Pressure Laminate and includes a reversible fence for exact matching of stair strings and fully adjustable nosing piece.
• Built-in heavy duty front clamp for quick clamping for each trench.
• Adjustable to suit private and common stair angle pitch.
• Standard TCT dovetail cutters are offered for various tread thicknesses.
• All heavy duty routers over 1600 watts can be used.
• Sub-base is pre-drilled to suit Trend/DeWalt/Elu 1/2 inch routers, for other makes the sub-base will have to be redrilled.
• Please state the make and model in the special requirements/comments box on the delivery details page when ordering.
• Router not included.

Specifications

• Tread Thickness=22-32 mm
• Slider Diameter=30 mm
• Nosing Adjustment=16-19 mm
• Length=585 mm
• Height=485 mm
• Width=12.5 mm
• Weight=6.17kg
