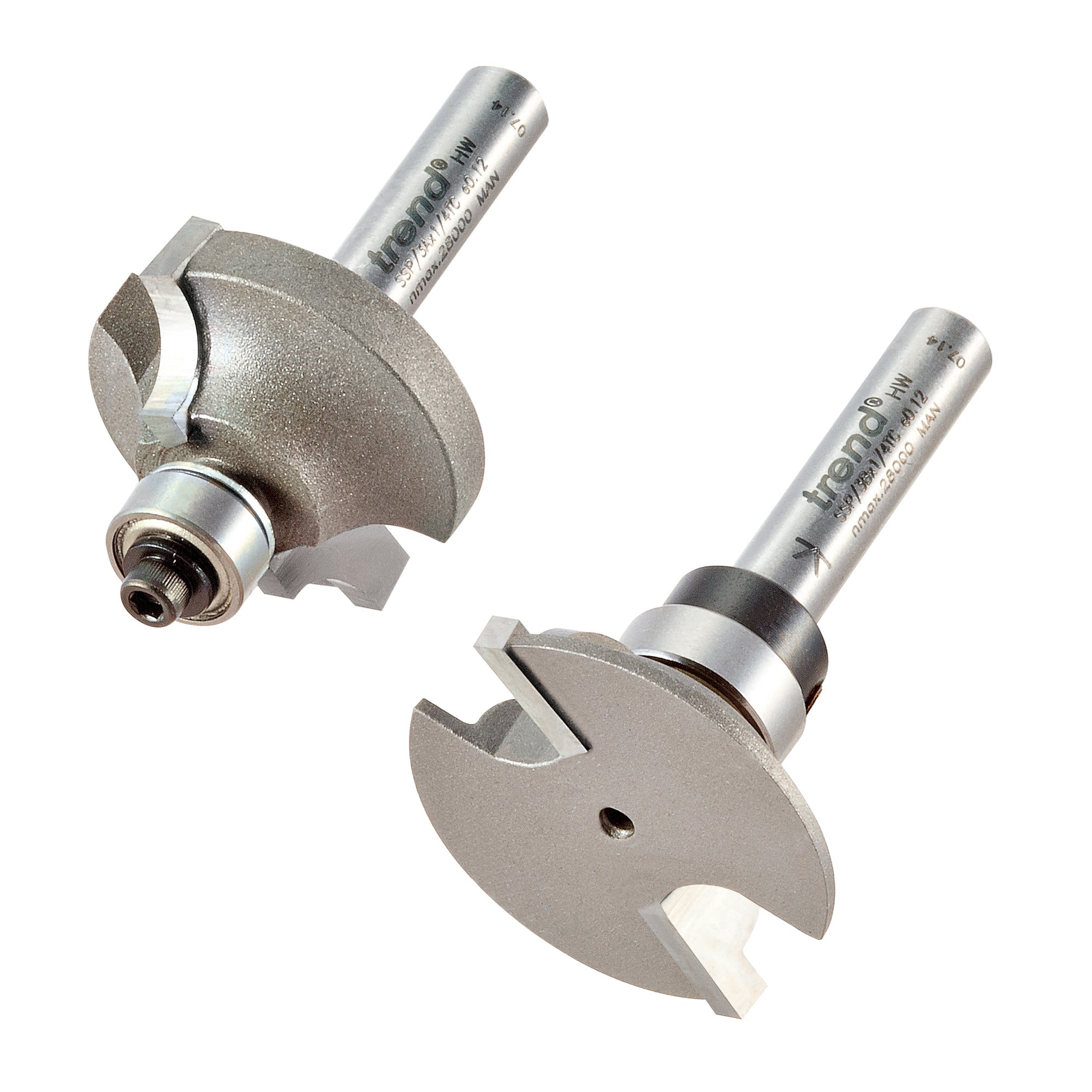

Trend Tools SSP/3X1/4TC Shoulder Scribe Cutter

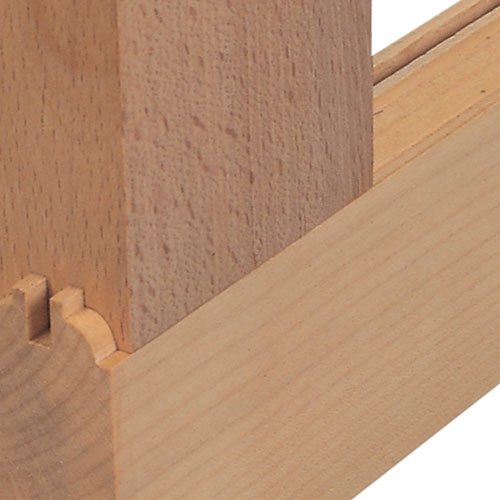

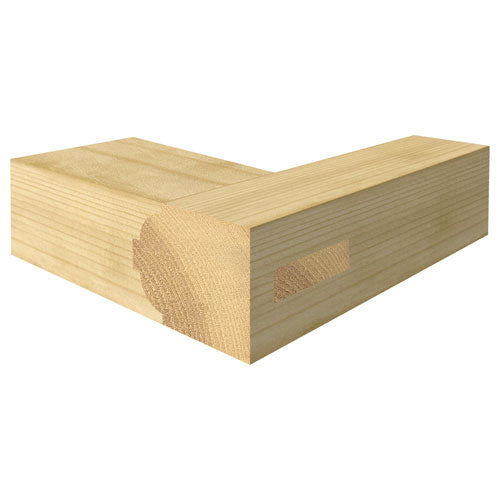

• For door and window construction, decorative panelling and many other joinery applications.
• Designed for 35mm timber thicknesses.

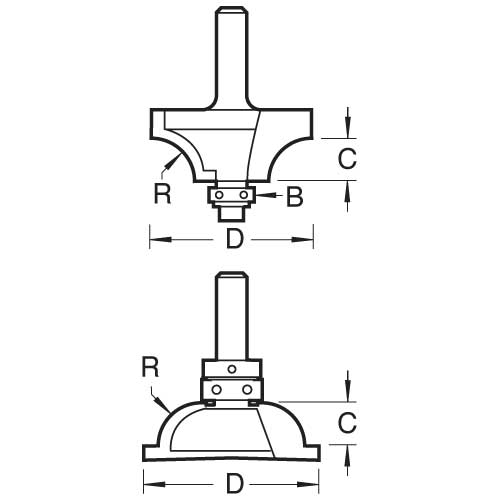

Specifications

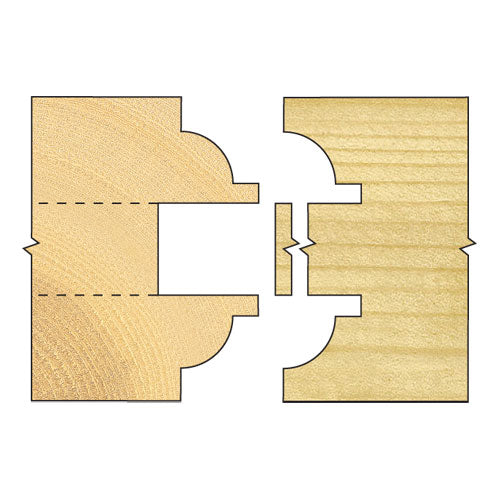

• Shoulder profile dimensions
• Shoulder=6.7 mm
• Bottom diameter=12.3 mm
• Overall diameter=27.5 mm
• Cut length=6 mm
• Radius=6 mm
• Bearing=9.5 mm
• Scribe profile dimensions
• Diameter=30.8 mm
• Scribe kerf=3.2 mm
• Cut length=6mm
• Overall cut length=9.2 mm
• Radius=6 mm
• Bearing=12.7 mm
• Shank Diameter=1/4 inch
• Timber thickness max.
• Timber thickness max.=35 mm
