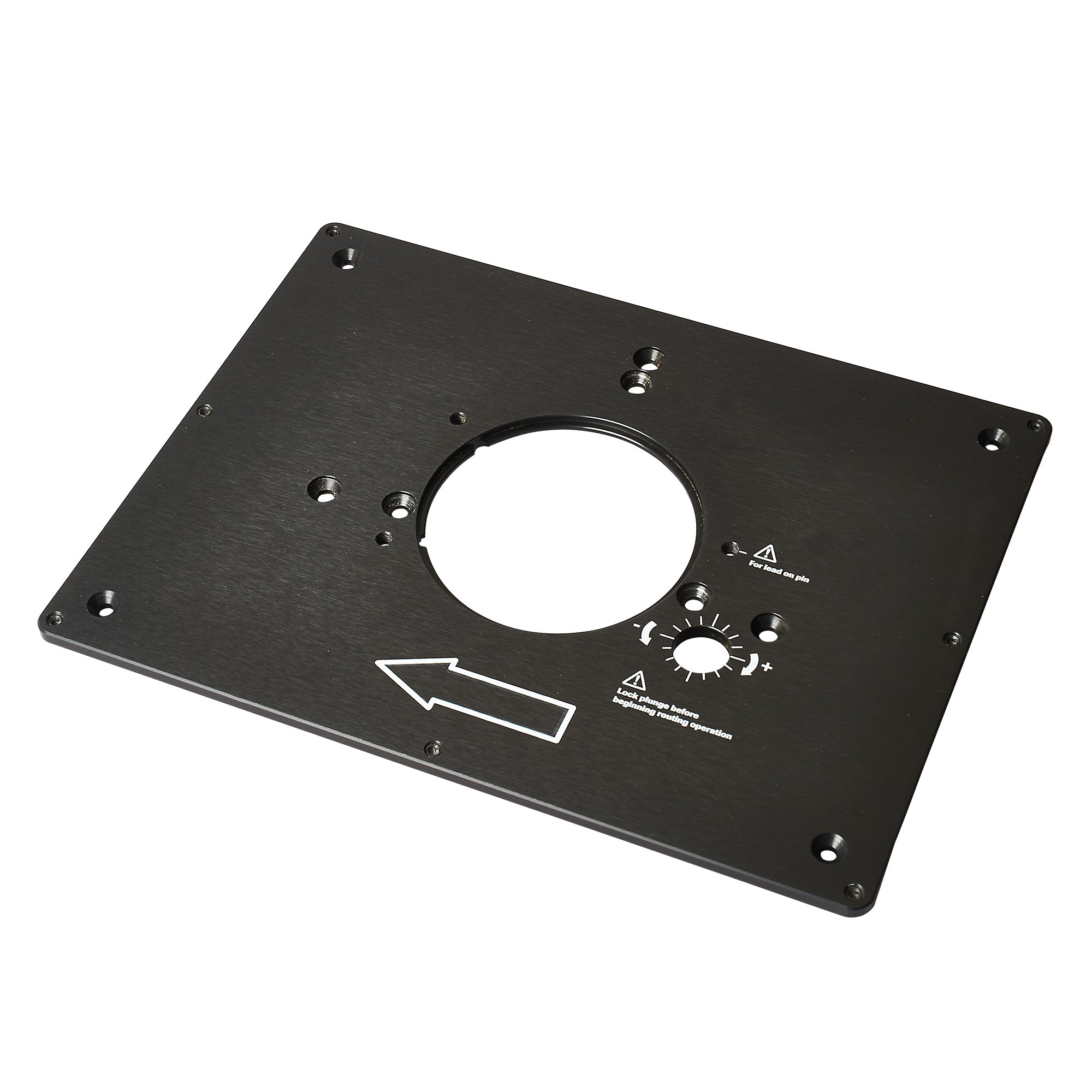

Trend Tools RTI/PLATE/A Router Table Insert Plate Alloy

• A large rigid aluminium router table insert plate for incorporation into user-made router tables.

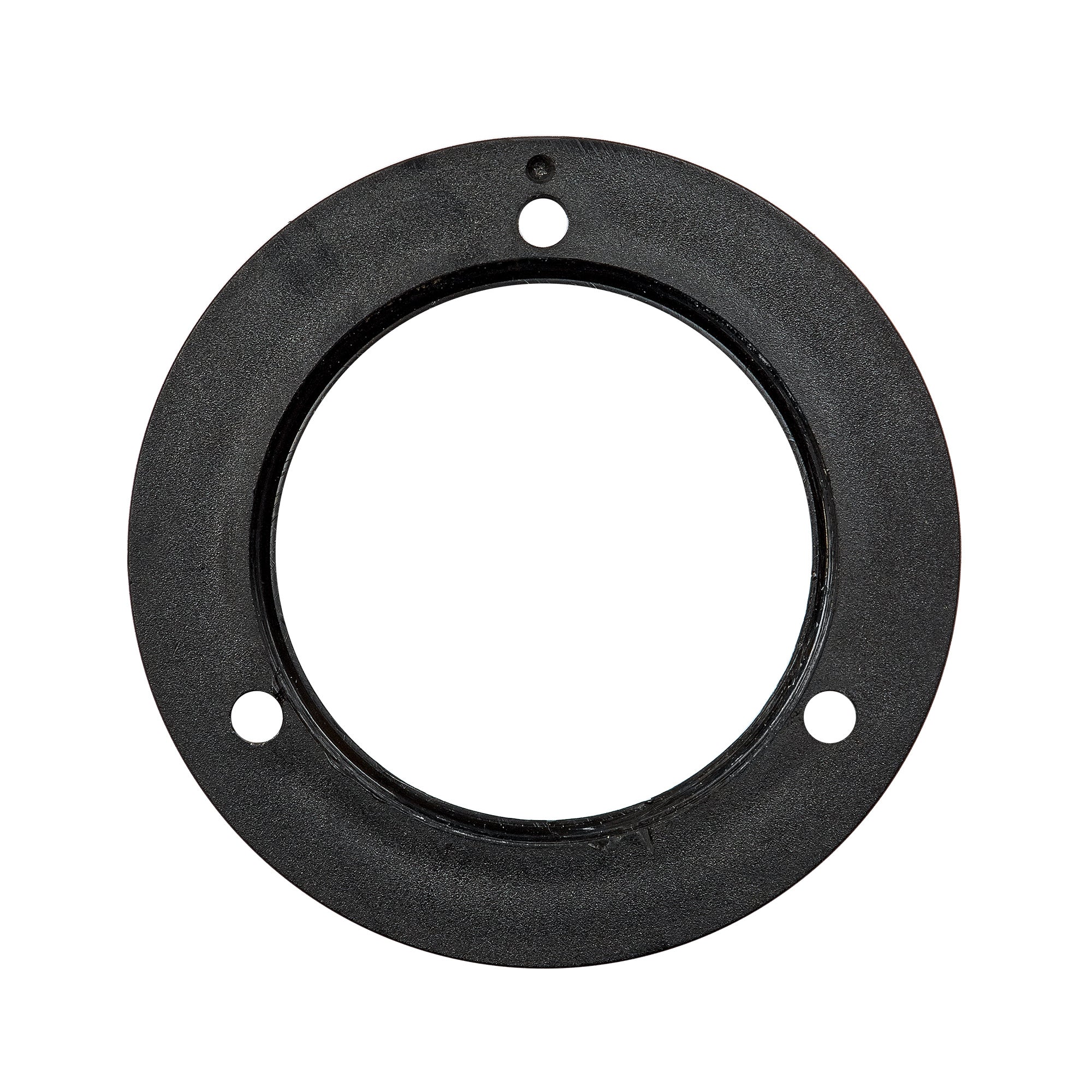

• Two concentric snap-in insert rings.
• Three hole sizes of 98mm, 68mm & 32mm dia.
• Thickness of 6.35mm to reduce cutter height loss.
• Can be mounted to 19mm tops with edge rebate of 8mm deep x 12.7mm wide.
• Plate will require drilling by user to suit make and model of router to be fitted.
• Smallest insert ring will accept screw on USA style guide bushes for copy work.
• User made router table will require safety device accessories to be fitted.
• Pre-drilled for Trend TBC base configuration and for Trend T11 router.

Specifications

• Length=305.8 mm
• Width=229 mm
• Thickness=6.35 mm
• Aperture=98.5 mm
• Max router weight=8 kg
• Max router base dia=200 mm
• Max cutter dia=86 mm
• Insert ring ID=31.8 mm & 67.5 mm
