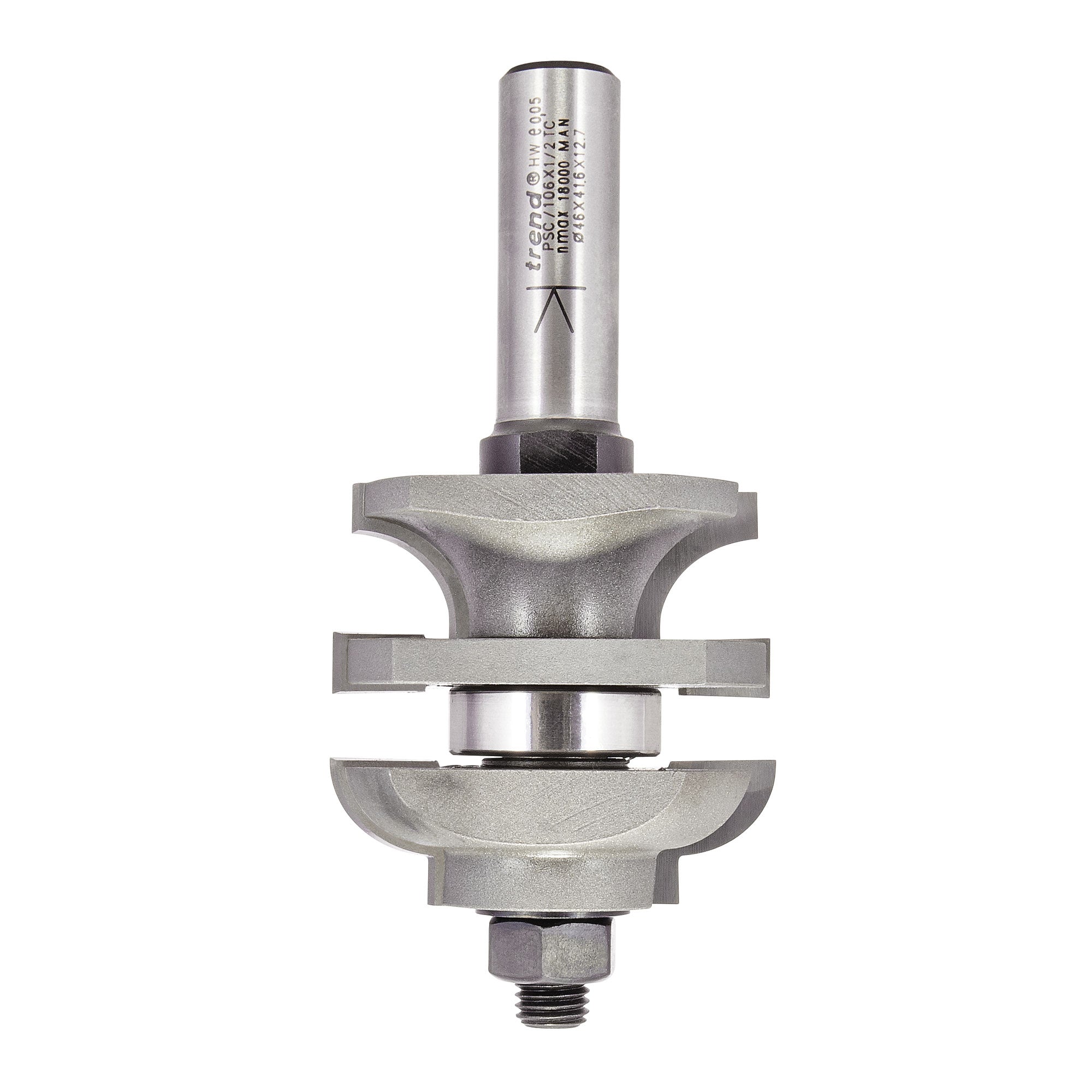

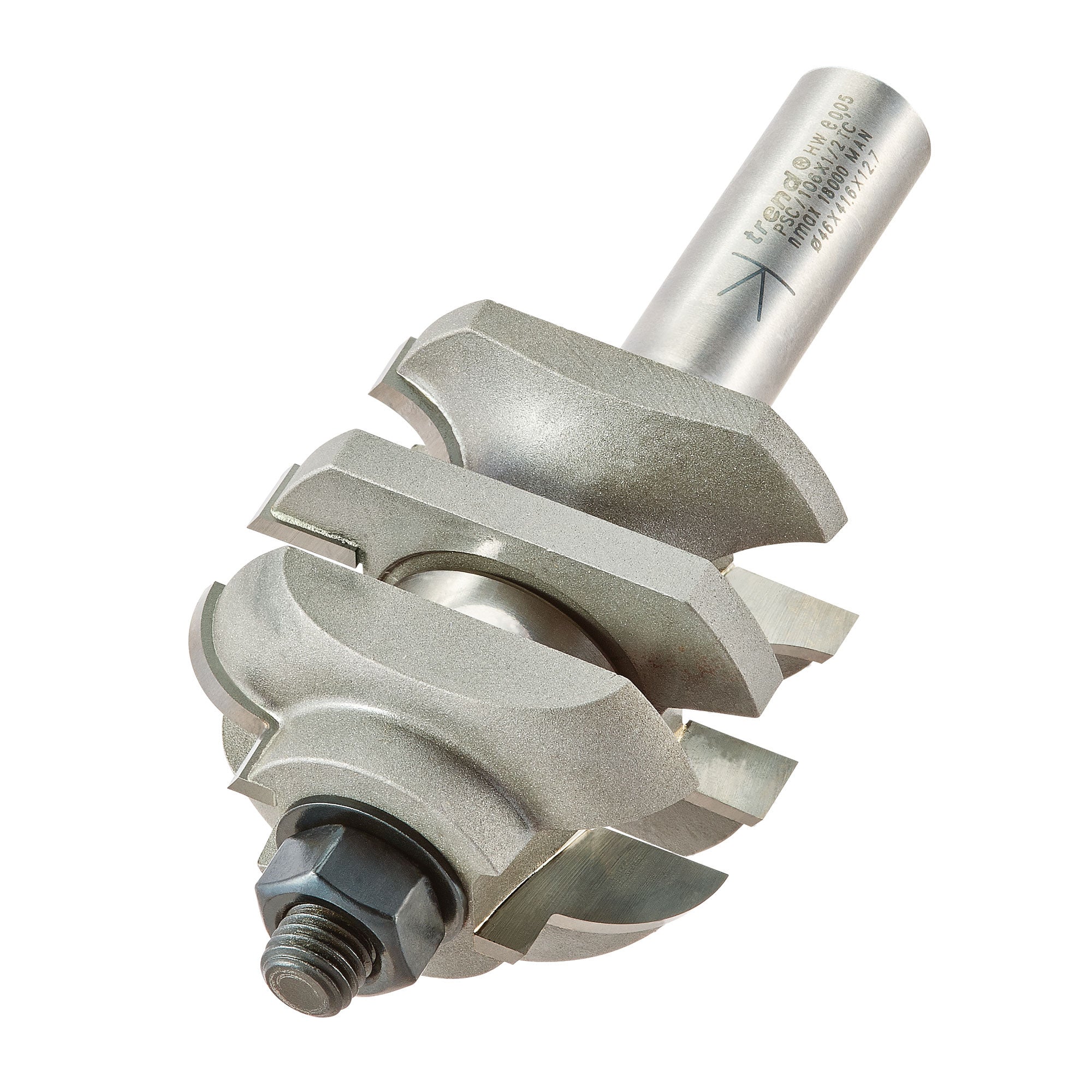

Trend Tools PSC/106X1/2TC Easyset Profile Scribe Set

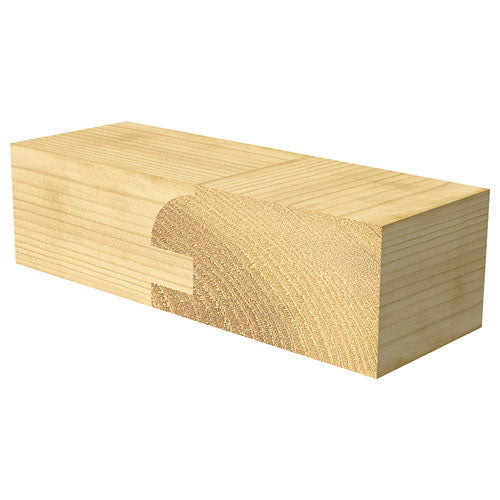

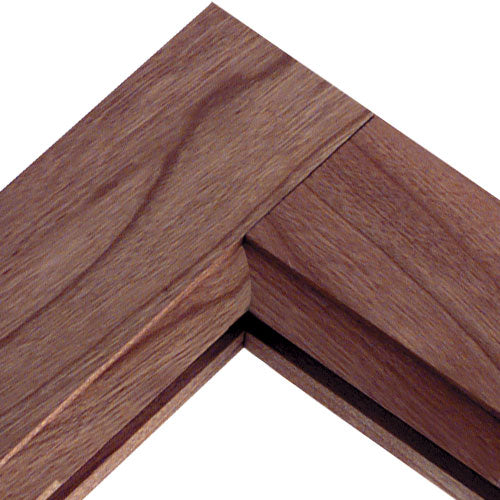

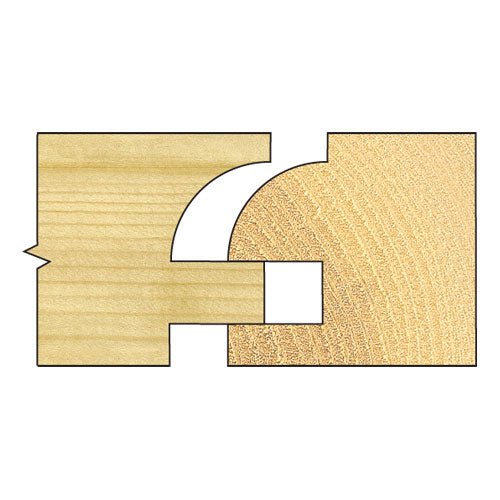

• These tools produce the same type of joint & use the same components as the combination PSC sets.

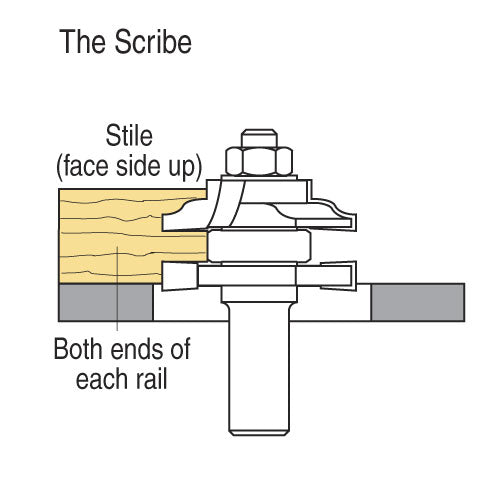

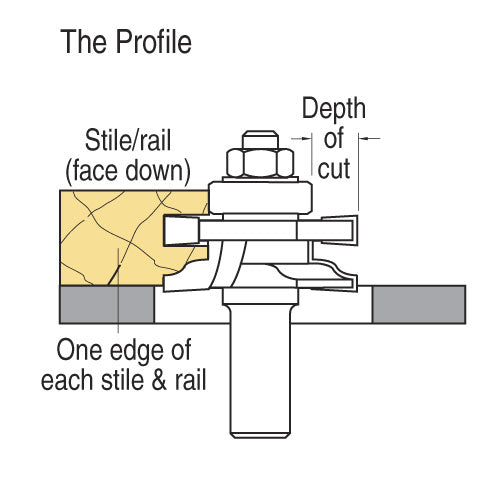

• Both parts of the joint are cut by only changing the cutter height.
• No reassembly of parts is required, to convert the tool from scribing mode to profiling mode and vise-versa.

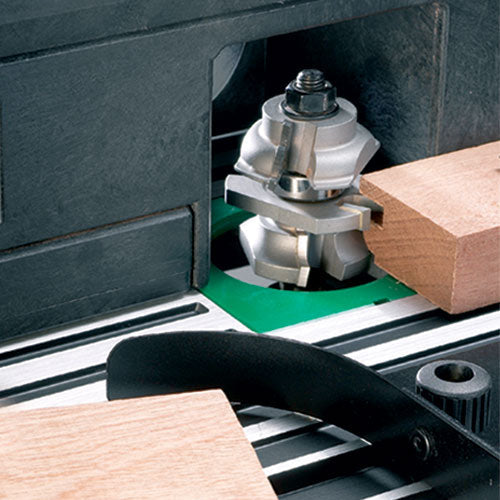

• Router table use only.

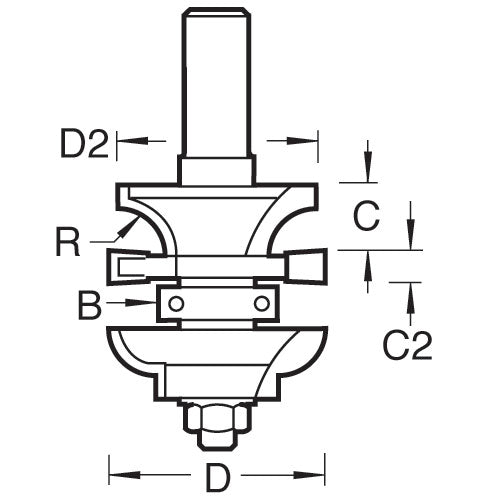

Specifications

• D=46 mm
• D2=42 mm
• C=15 mm
• C2=6.3 mm
• B=22 mm
• R=10 mm
• OL=80 mm
• Shank Diameter=1/2 inch
• Timber thickness min.=21 mm
• Timber thickness max.=26.5 mm
• For stationary machines at max. recommended speed 18,000 RPM
