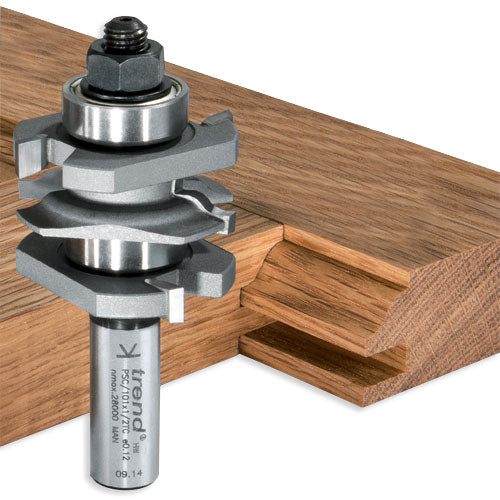

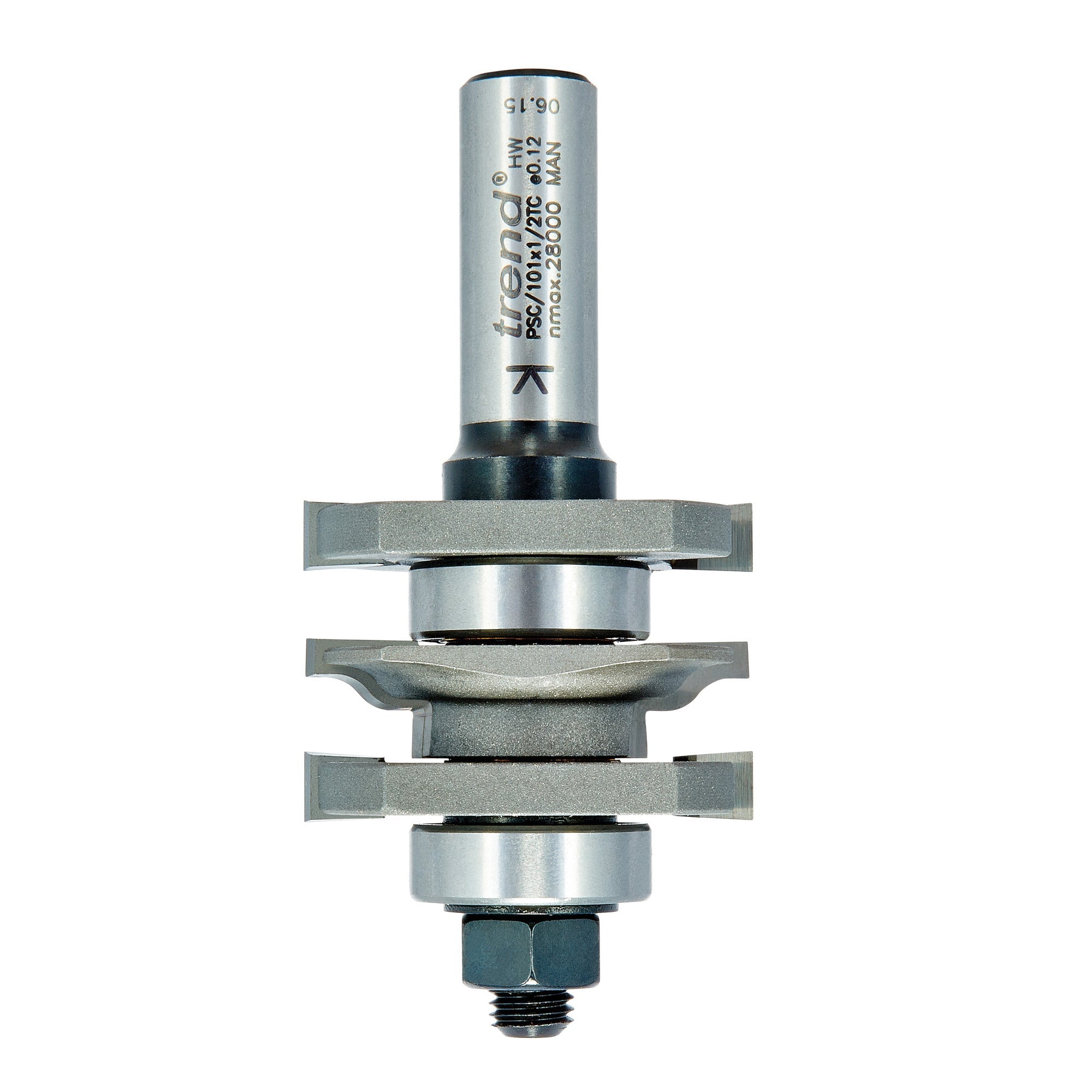

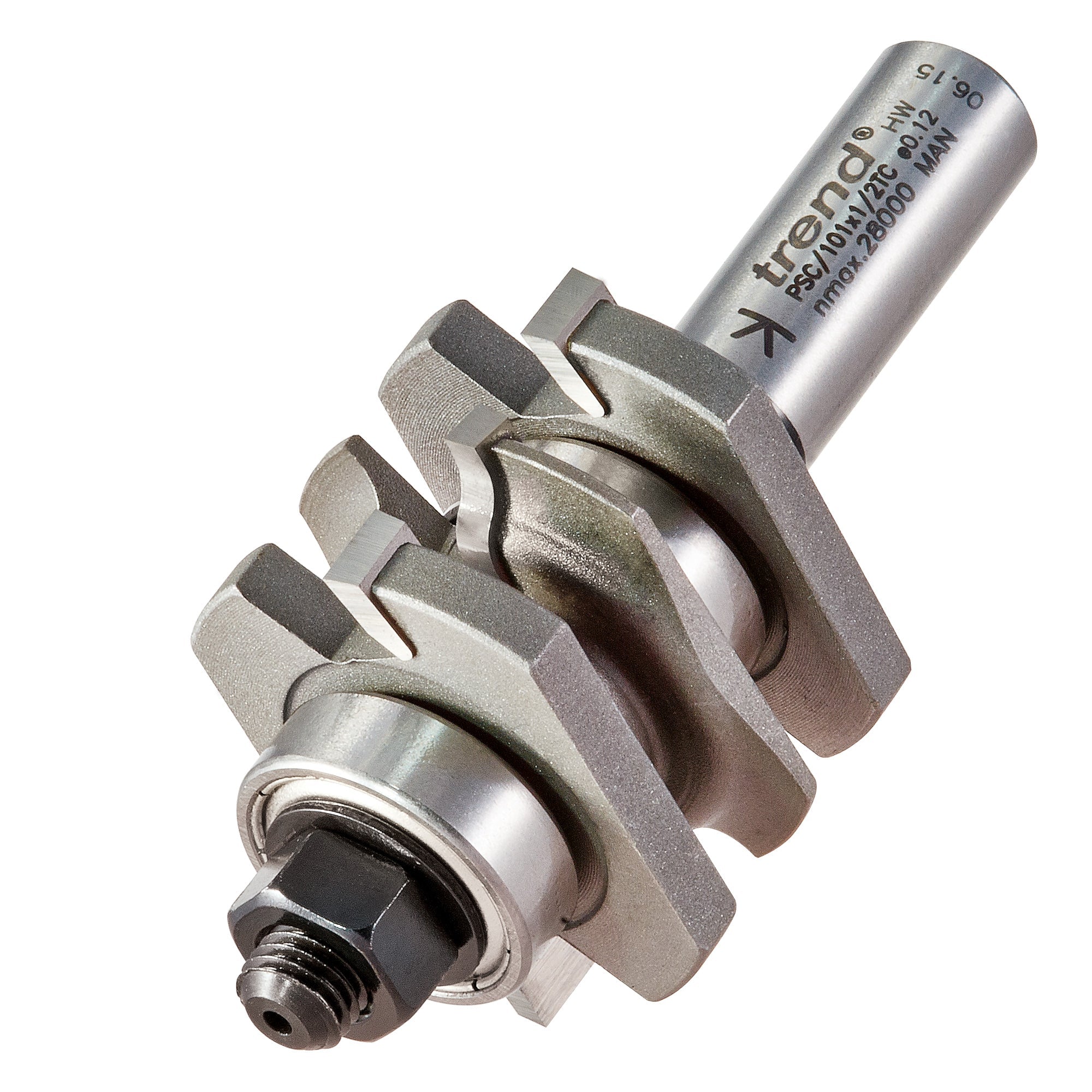

Trend Tools PSC/101X1/2TC Easyset Profile Scribe Set

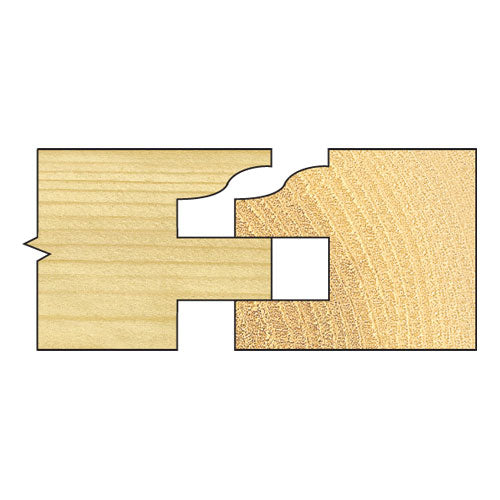

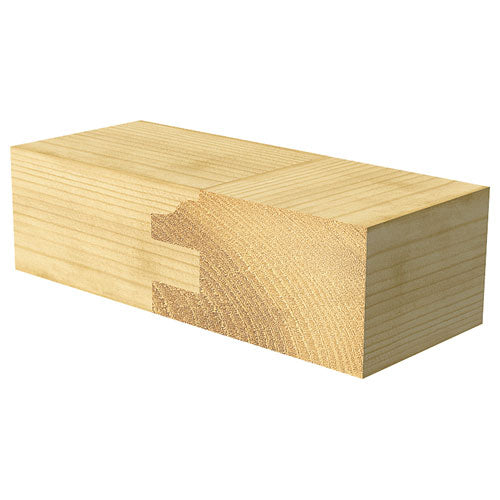

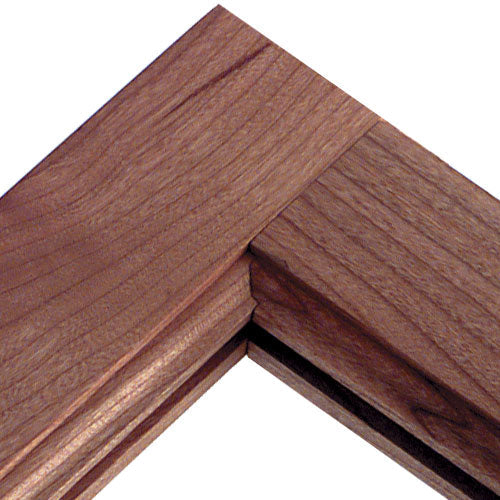

• These tools produce the same type of joint & use the same components as the combination PSC sets.
• Both parts of the joint are cut by only changing the cutter height.

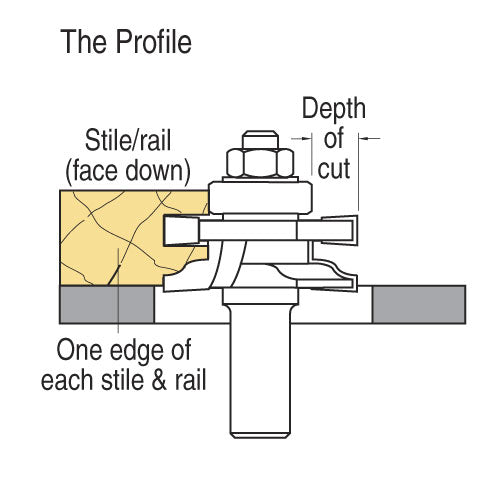

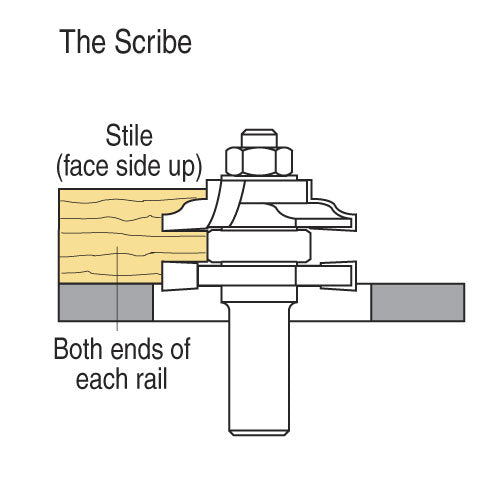

• No reassembly of parts is required, to convert the tool from scribing mode to profiling mode and vise-versa.
• Router table use only.

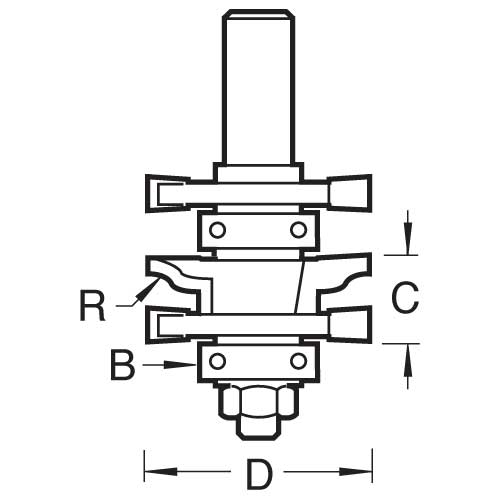

Specifications

• D=41 mm
• C=11 mm
• C2=6.3 mm
• B=22 mm
• R=4 mm
• OL=87 mm
• Shank Diameter=1/2 inch
• Timber thickness min.=18 mm
• Timber thickness max.=22 mm
• For stationary machines at max. recommended speed 18,000 RPM
