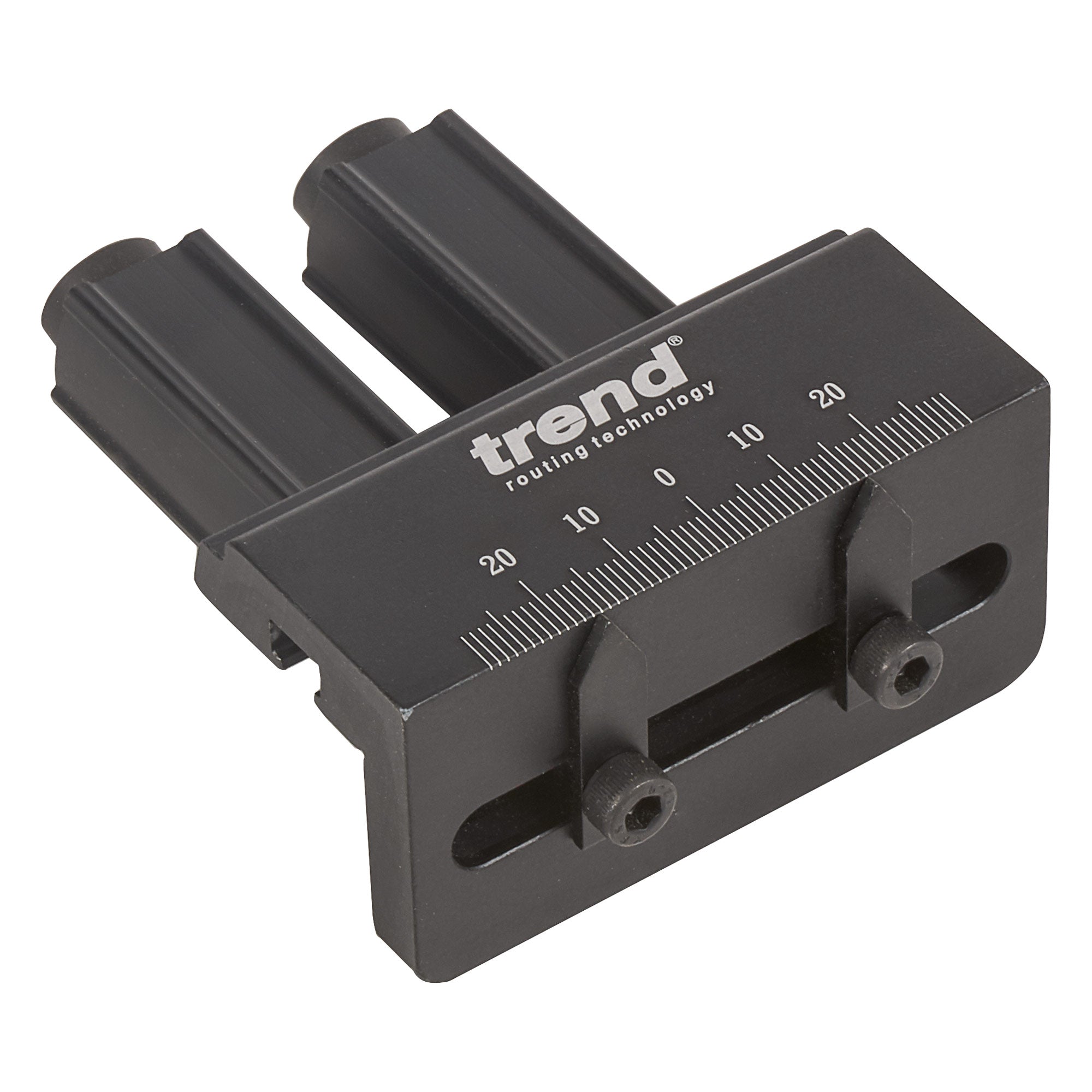

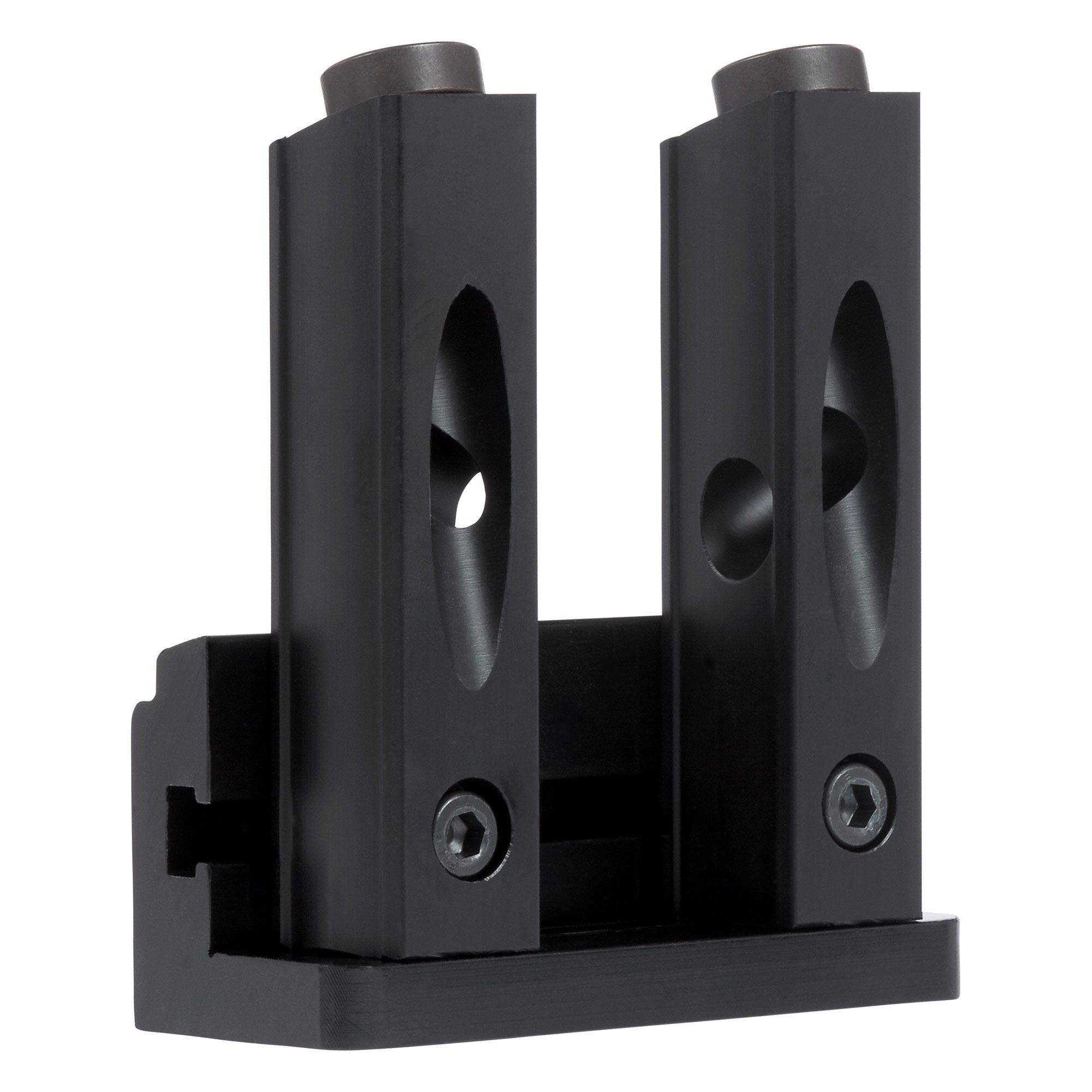

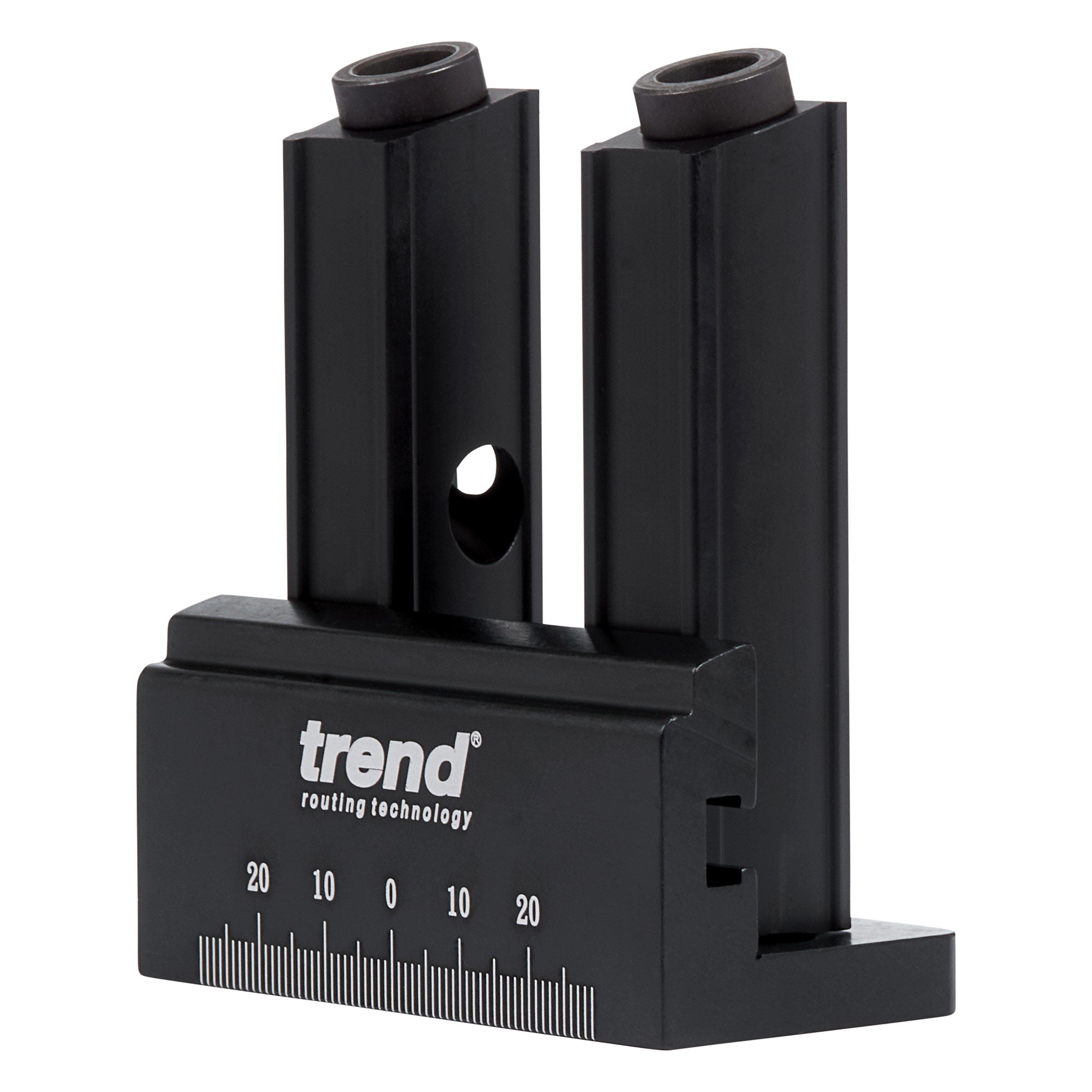

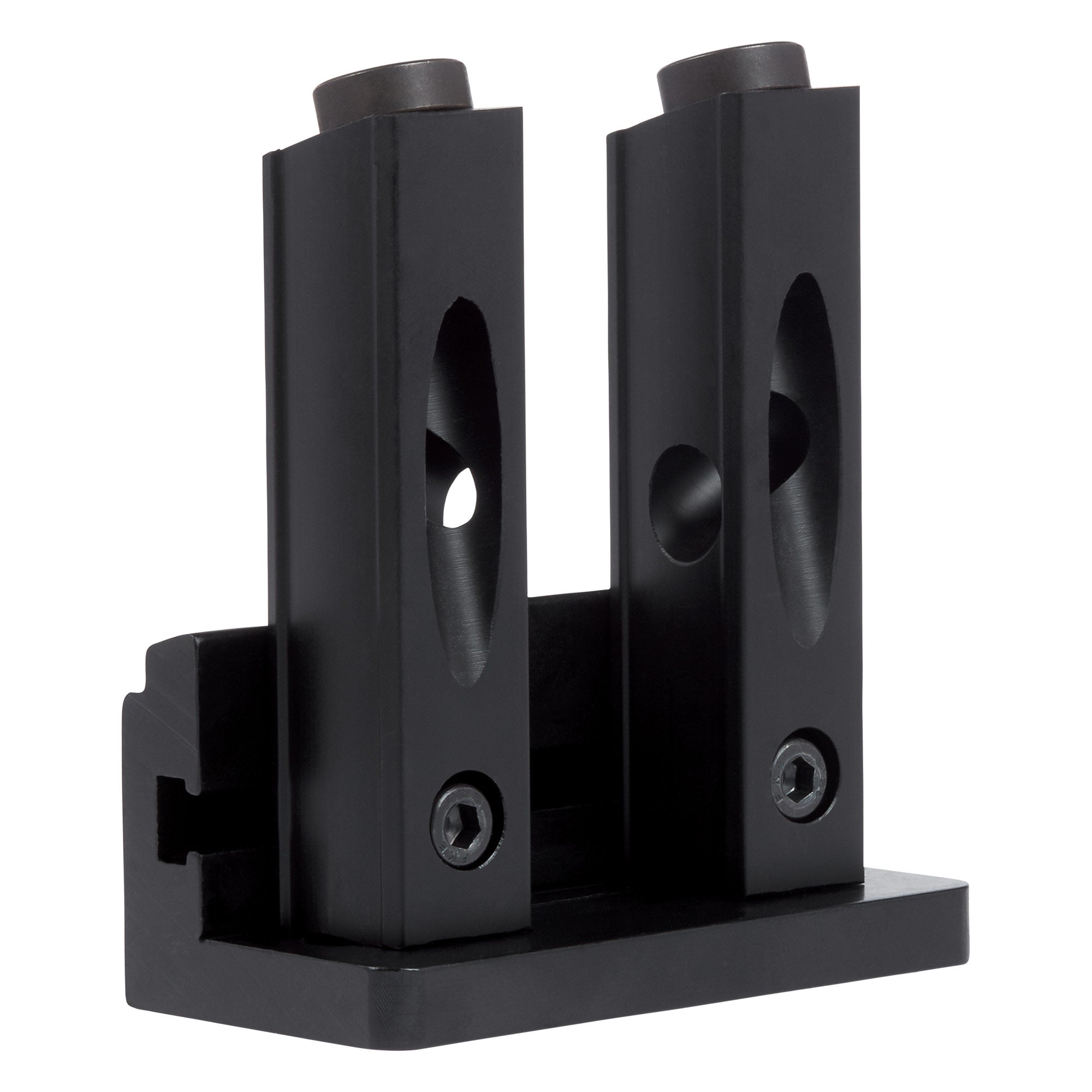

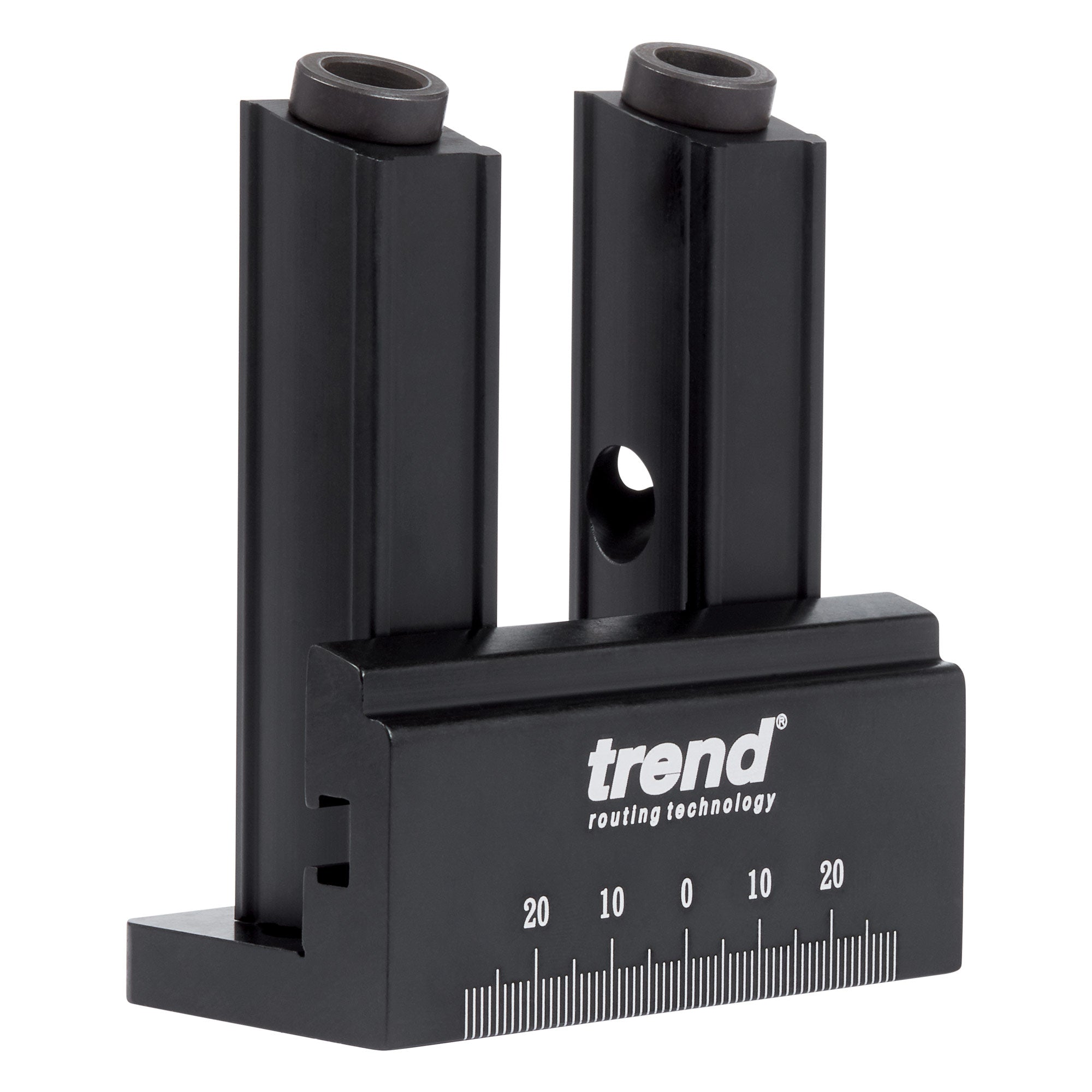

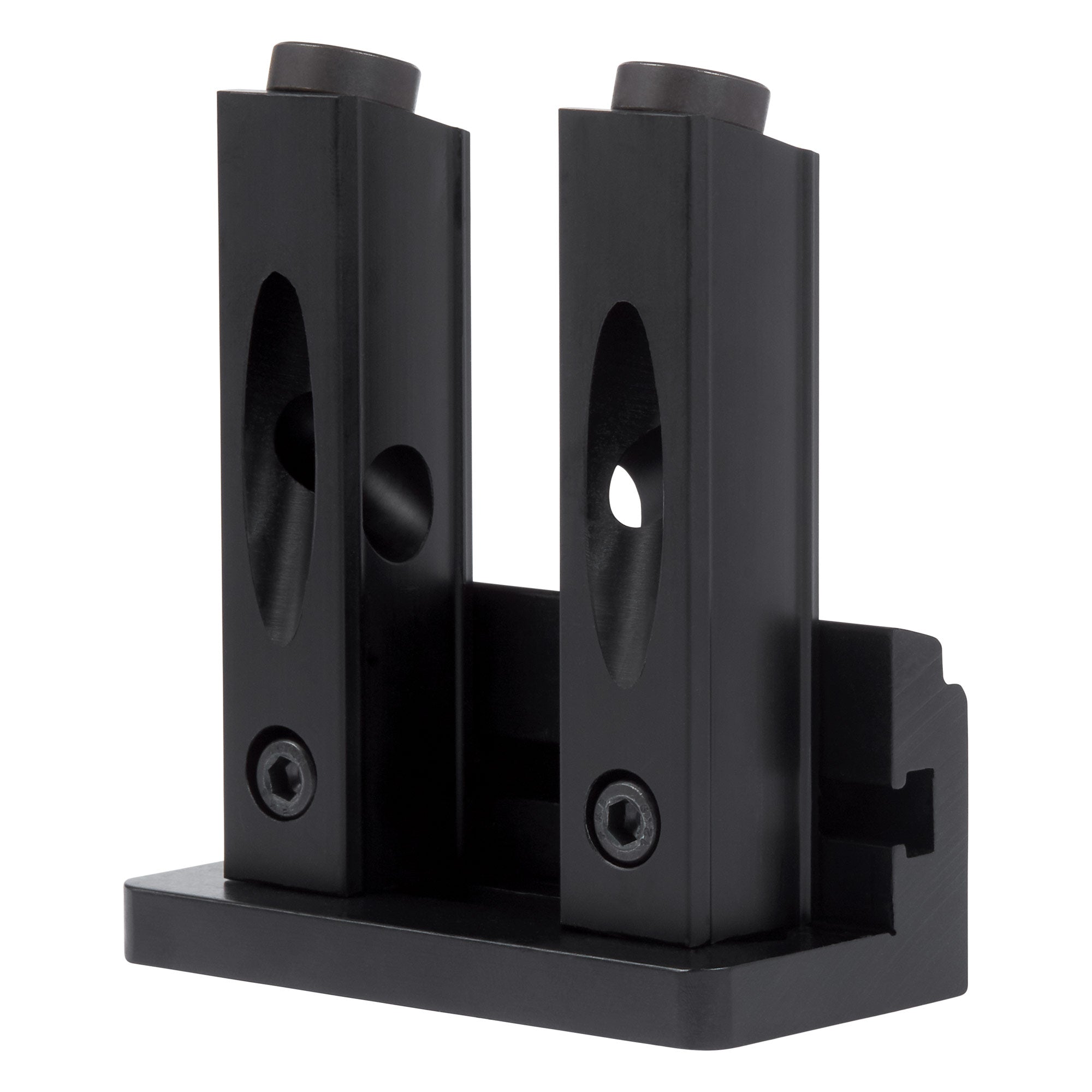

Trend Tools PH/JIG/M Pocket Hole Jig Mini

• Trend Pocket Hole Jig Mini - Portable Pocket Hole Jig
• Compact design perfect for repair work in situ on furniture, cupboards, and cabinets.

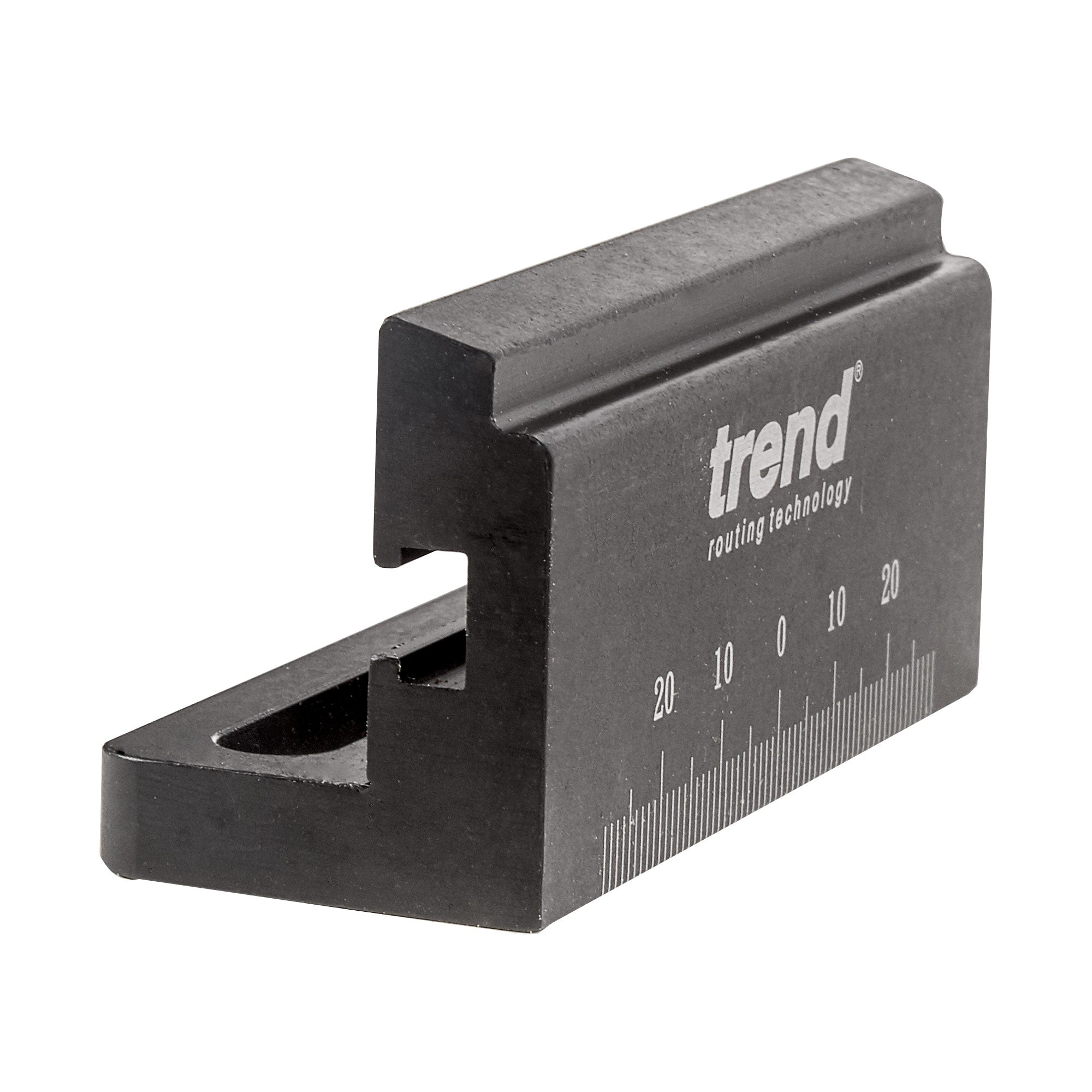

• Supplied with twin bases for use on new work and repairs for increased diversity.
• Fully adjustable from 18mm to 54mm centres for twin holes or stripped down for single pockets; ideal for repairs or joints on thinner components.

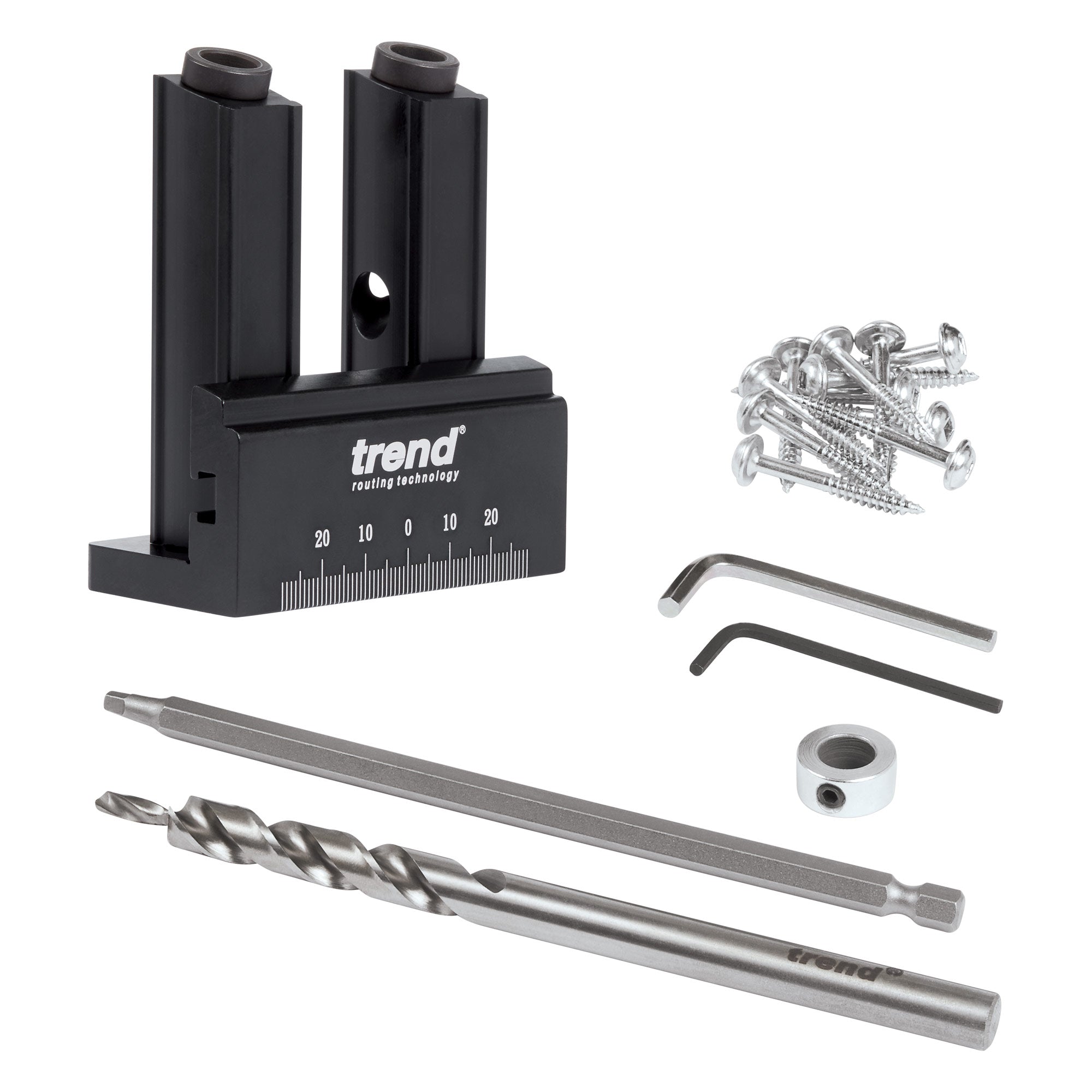

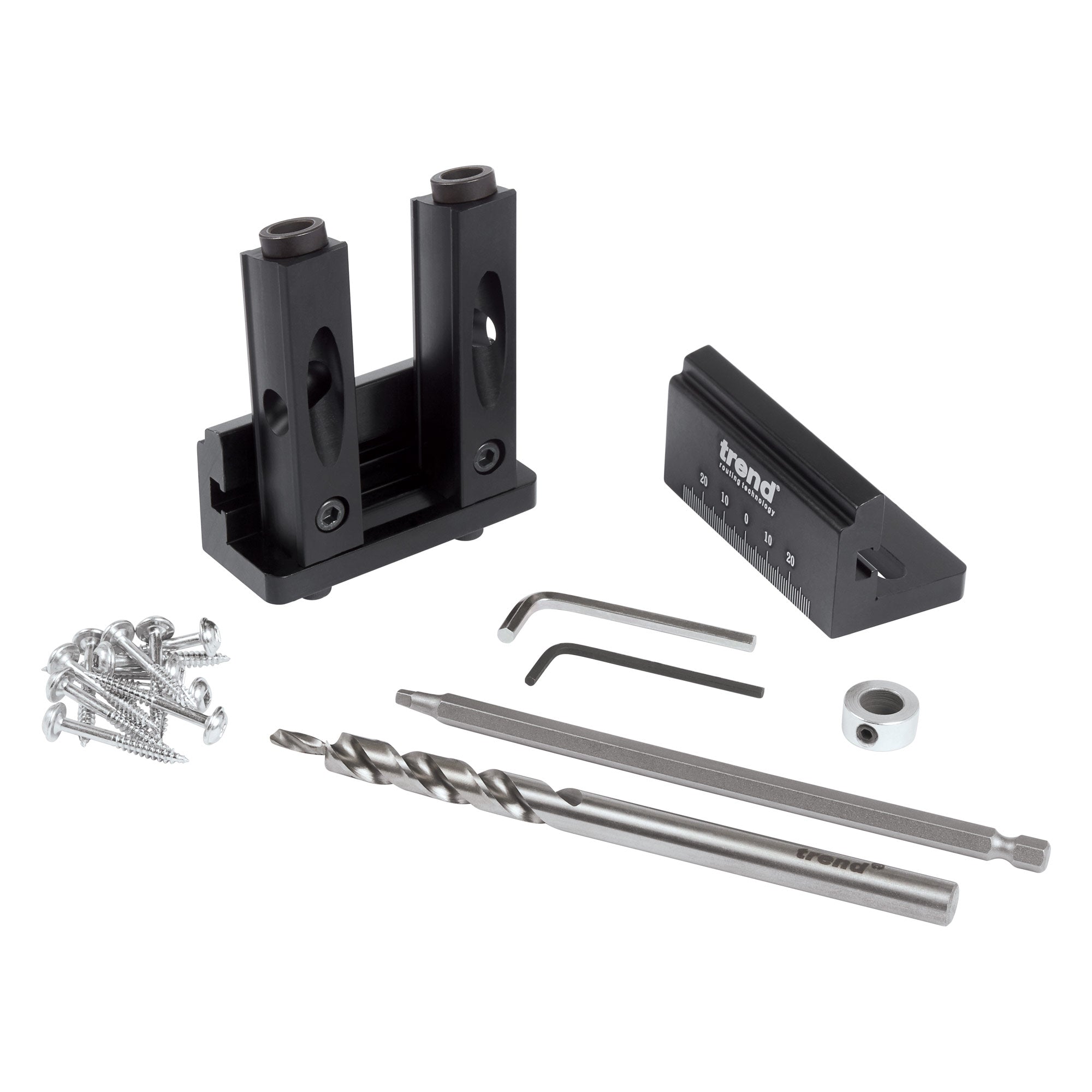

• Comes ready to use, complete with drill, driver bit and screws.
• High quality all metal build quality for durability, solid performance and consistency in any project.

Specifications

• Material thickness min.=16 mm
• Material thickness max.=38 mm
• Material width min.=38 mm
• Hole pitch=18 mm-54 mm

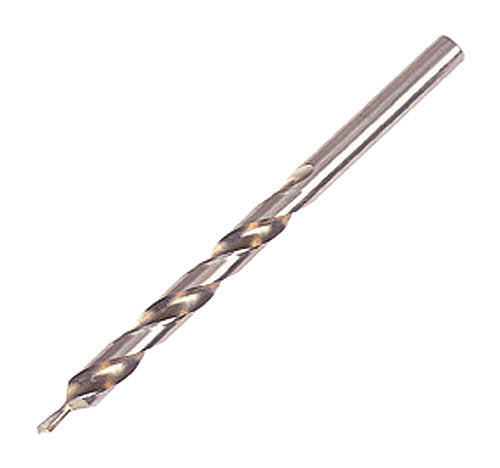

• Drill diameter=9.5 mm
• Square drive bit size=No.2

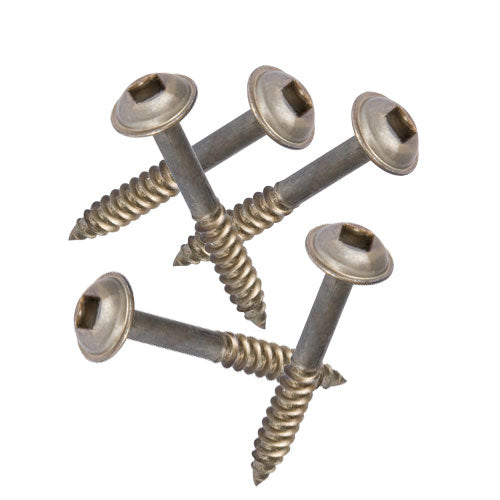

• Screw sizes=Fine No.7 x 30 mm
• Drilling angle=15 degrees
