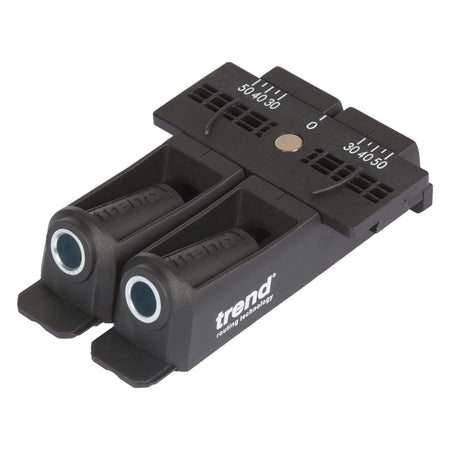

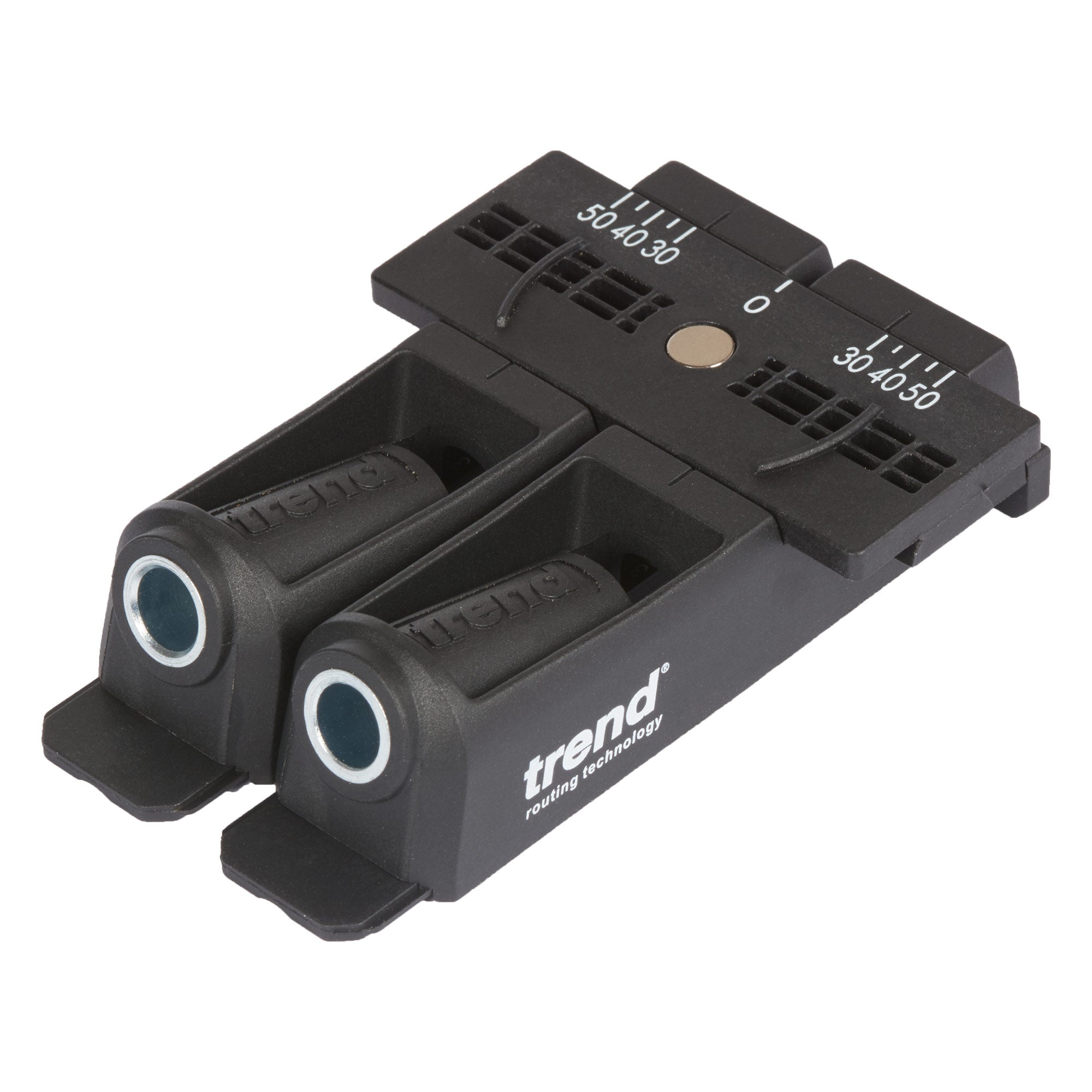

Multi-function jig for drilling 9.5mm pocket hole joints suited to both new and repair work. Lightweight glass-fibre reinforced nylon construction with full-length, hardened drill guide bushes. Unique drill depth setting system for fast set-up on materials from 12.7 to 38mm. Adjustable centres are ideal for narrow and wide stock, and detachable drill guides are perfect for narrow repairs in confined spaces.

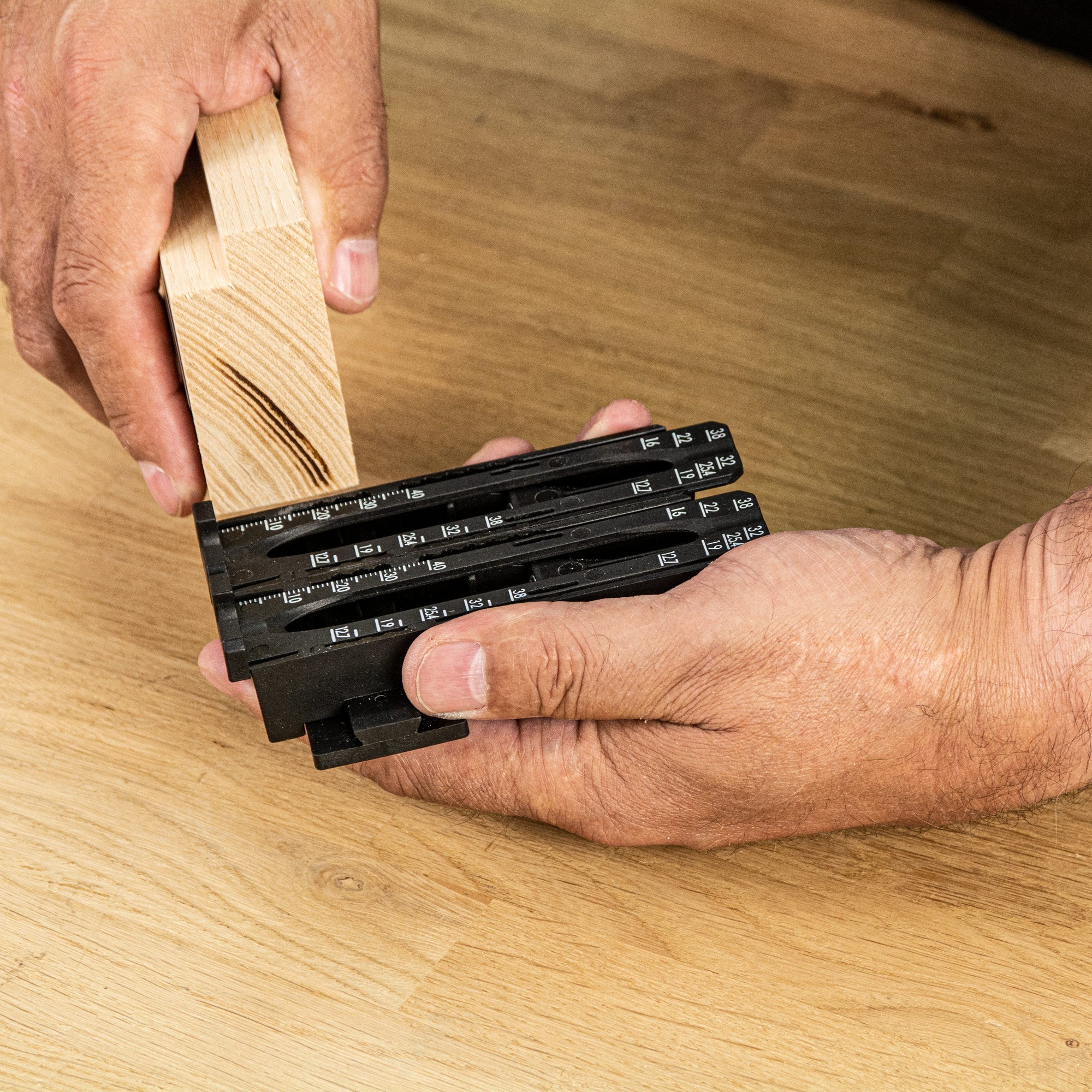

Material Thickness Gauge allows fast checking of material thickness without the use of a tape measure.
Pre-set Depth Gauge adjusts the pocket position to suit the timber thickness.

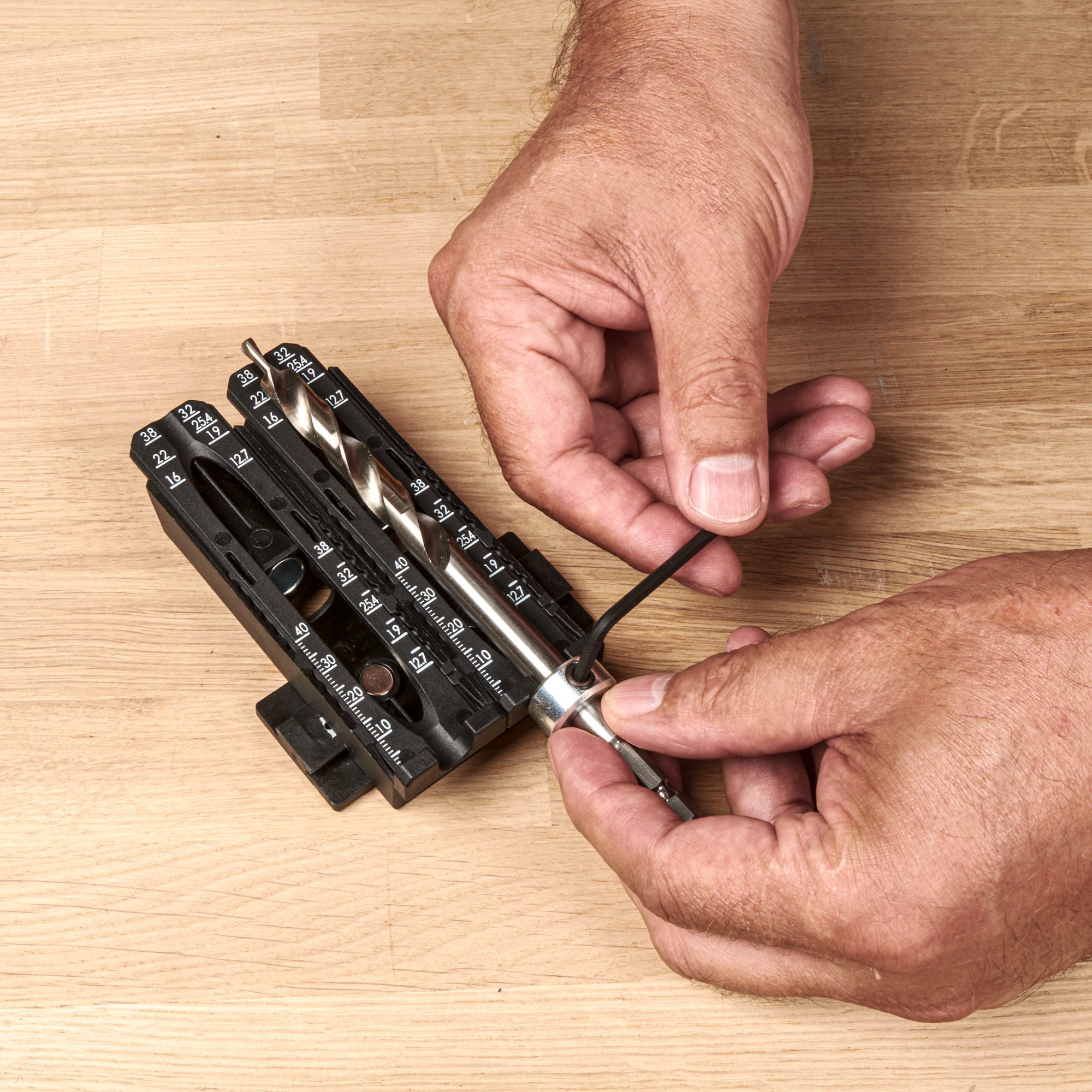

Drill Bit Setting Gauge is used to set the correct drilling position for materials between 12.7mm and 38mm thick.
Full-Length Hardened Drill Guide Bushes for long life and accurate drilling.

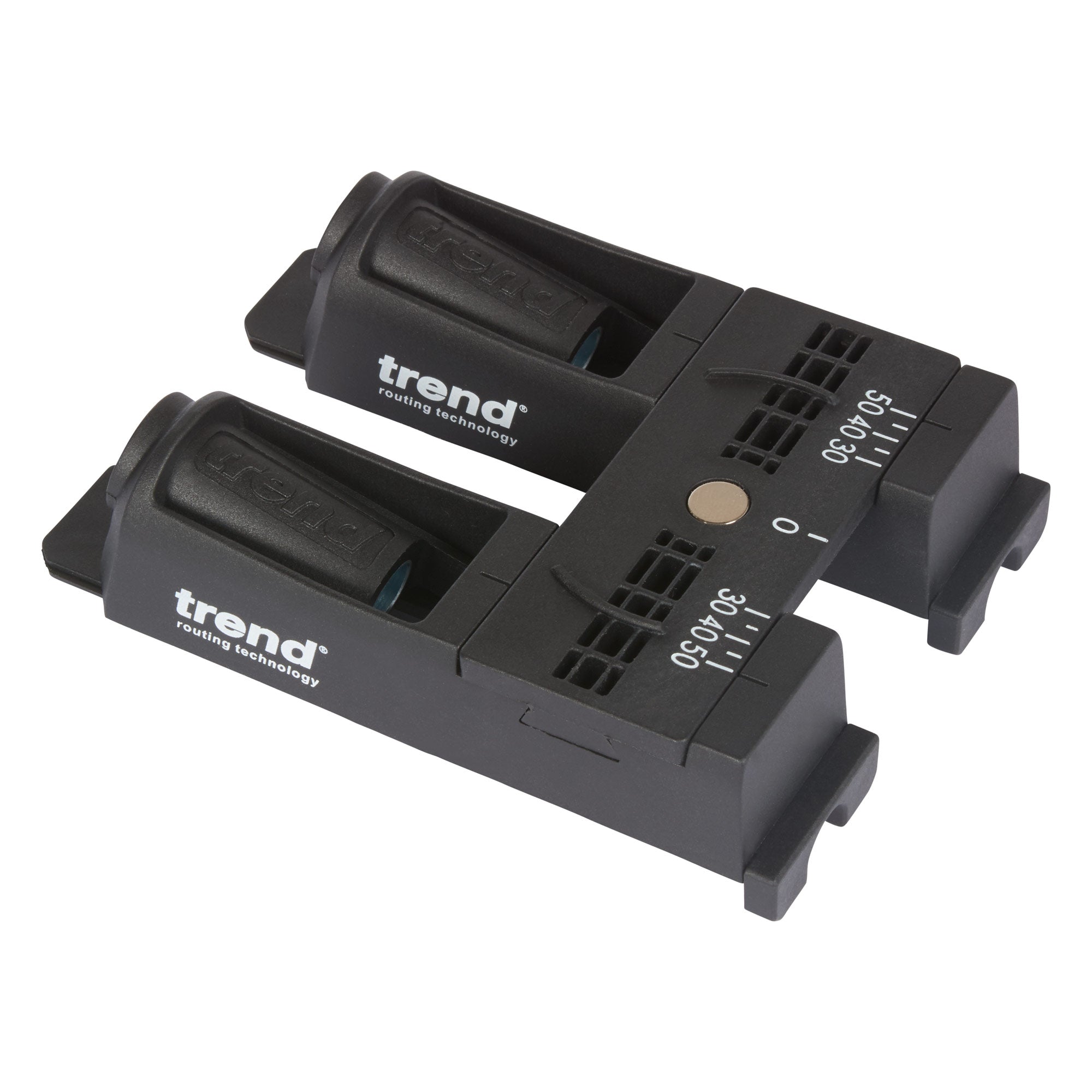

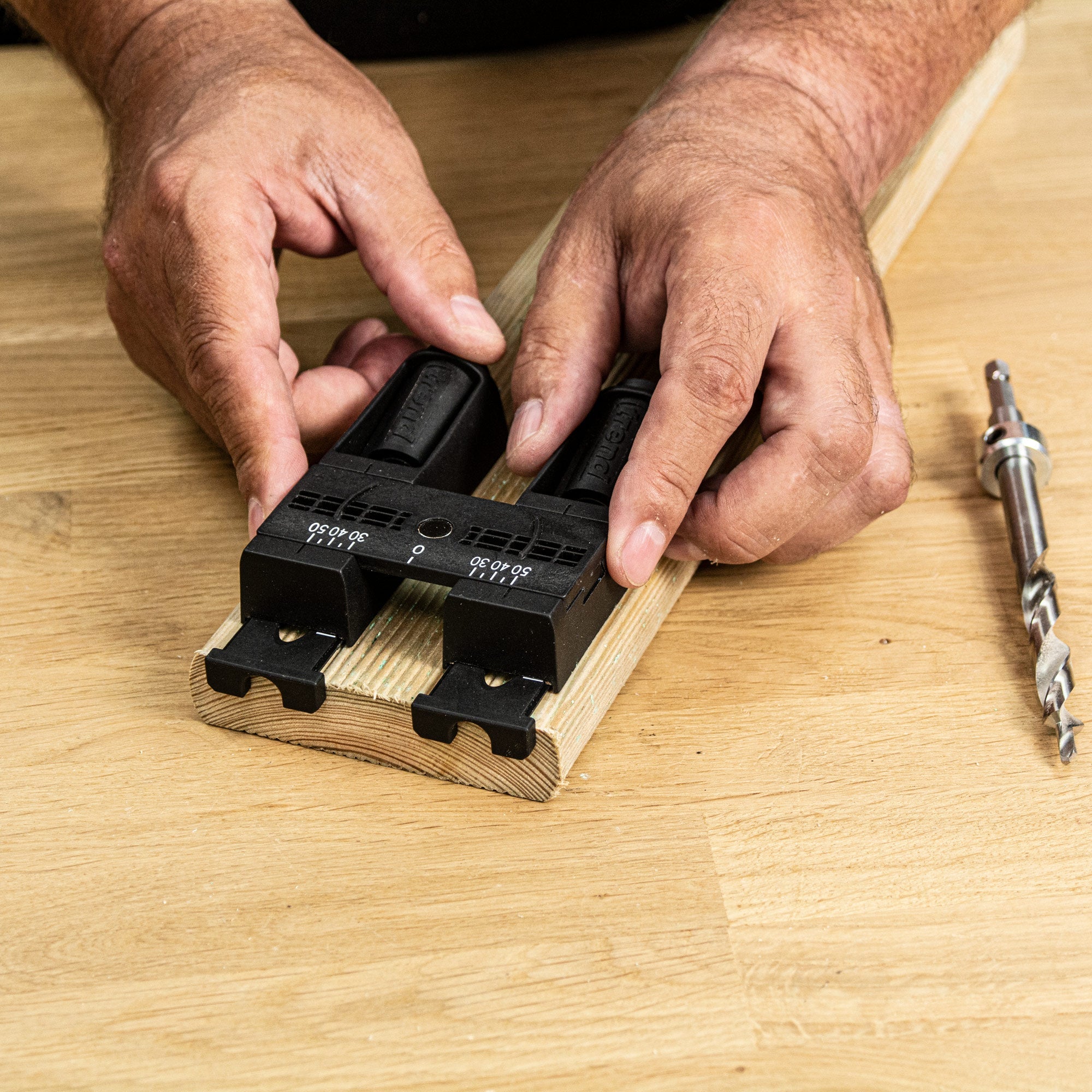

Repositionable Drilling Guides allow the hole centres to be altered between 28mm and 50mm ensuring stronger joints in wider material.
Woodchip Relief Holes help protect against clogging inside the drilling guides.
Flip-Over End Stop allows the jig to hook over for an external joint or butt up to an edge for an internal joint.

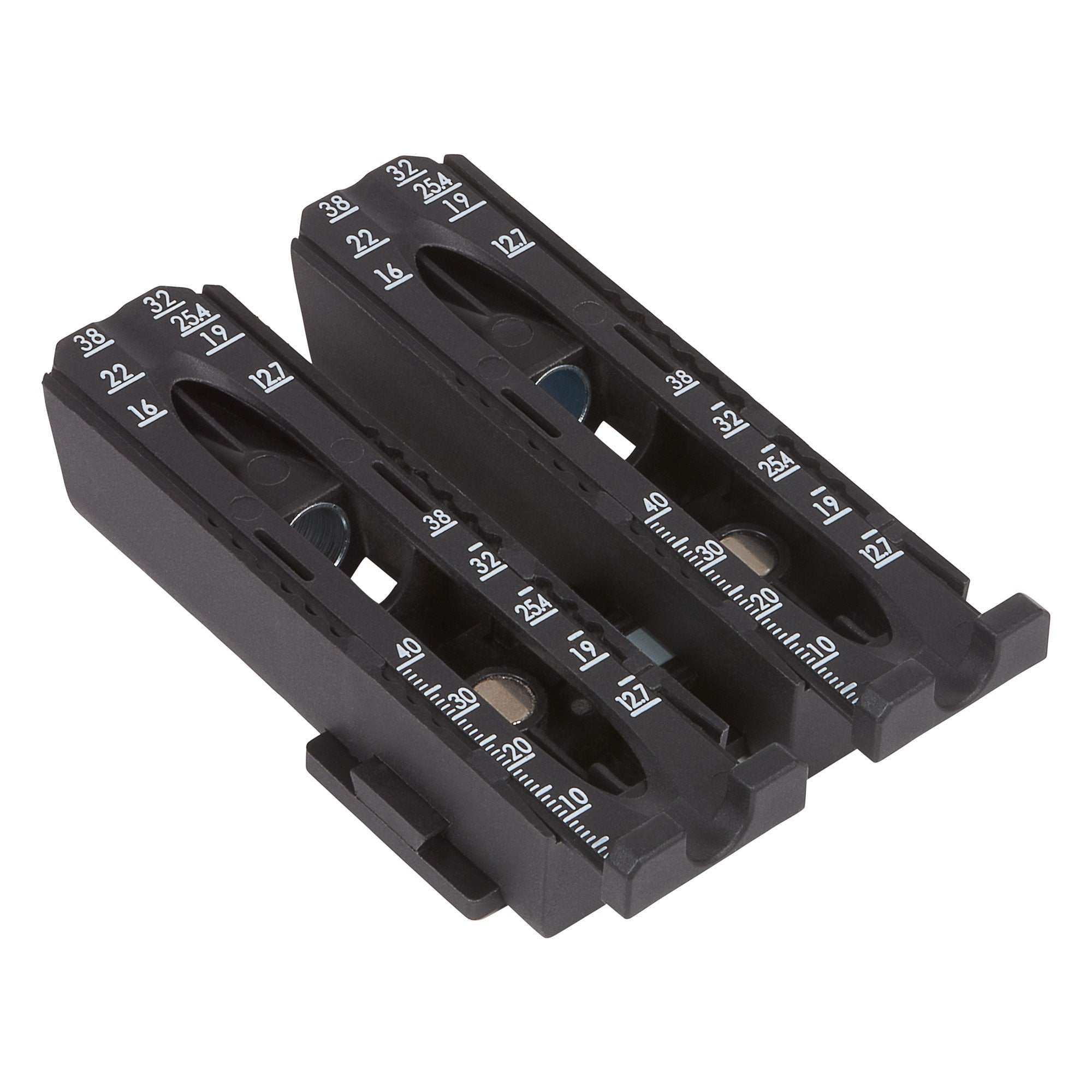

Pocket Hole Guides can be removed and used as single pocket hole jigs for narrow stock or repairs.
Magnetic Clamp Position allows a face clamp to attach to the jig for easier repositioning.
Centering Plate Index for setting the drill guides to pre-set positions.
Glass Fibre Reinforced Nylon Body minimises weight whilst retaining strength.
Specifications
Material thickness min.=12.7 mm
Material thickness max.=38 mm
Hole pitch=28 to 50 mm
Drilling angle=15 degrees
Screw size=Fine No.7 x 30 mm
Screw sizes=Coarse No. 7 x 25 mm, No.7/8 x 30 mm, No.8 x 37 mm, No.8 x 50 mm, No.8 x 63 mm
