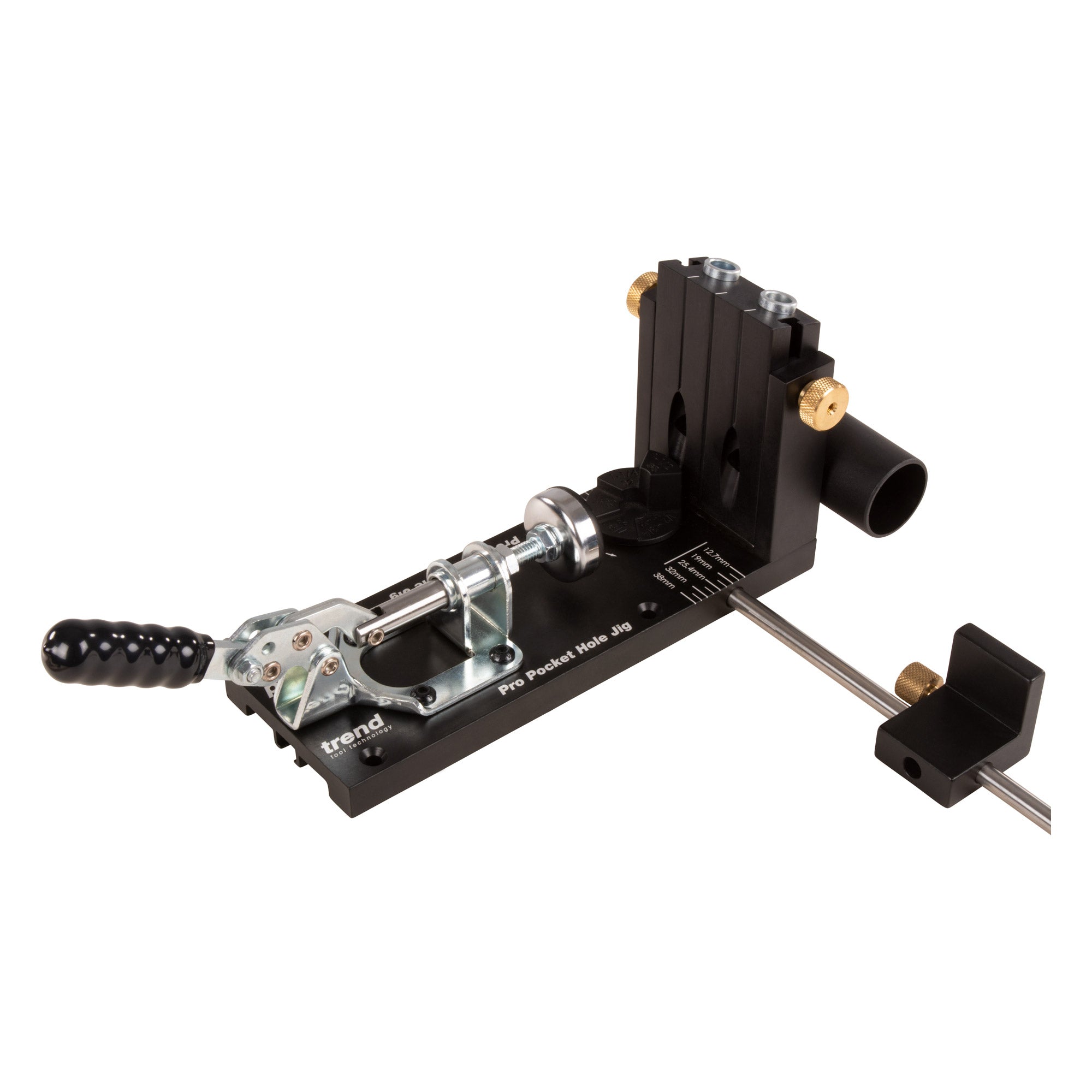

Trend Tools PH/JIG/AK Pro Pocket Hole Jig

• All-metal Pocket Hole Jig for drilling 9.5mm pocket holes in a range of material thicknesses. Twin 30mm centred pocket holes are ideal for large builds such as wardrobes, bookcases and cabinets. Can be bench-mounted for batch work or guides can be used independently for in-situ internal & external applications.
• Full Length Hardened Drill Guide Bushes for long life and accurate drilling.

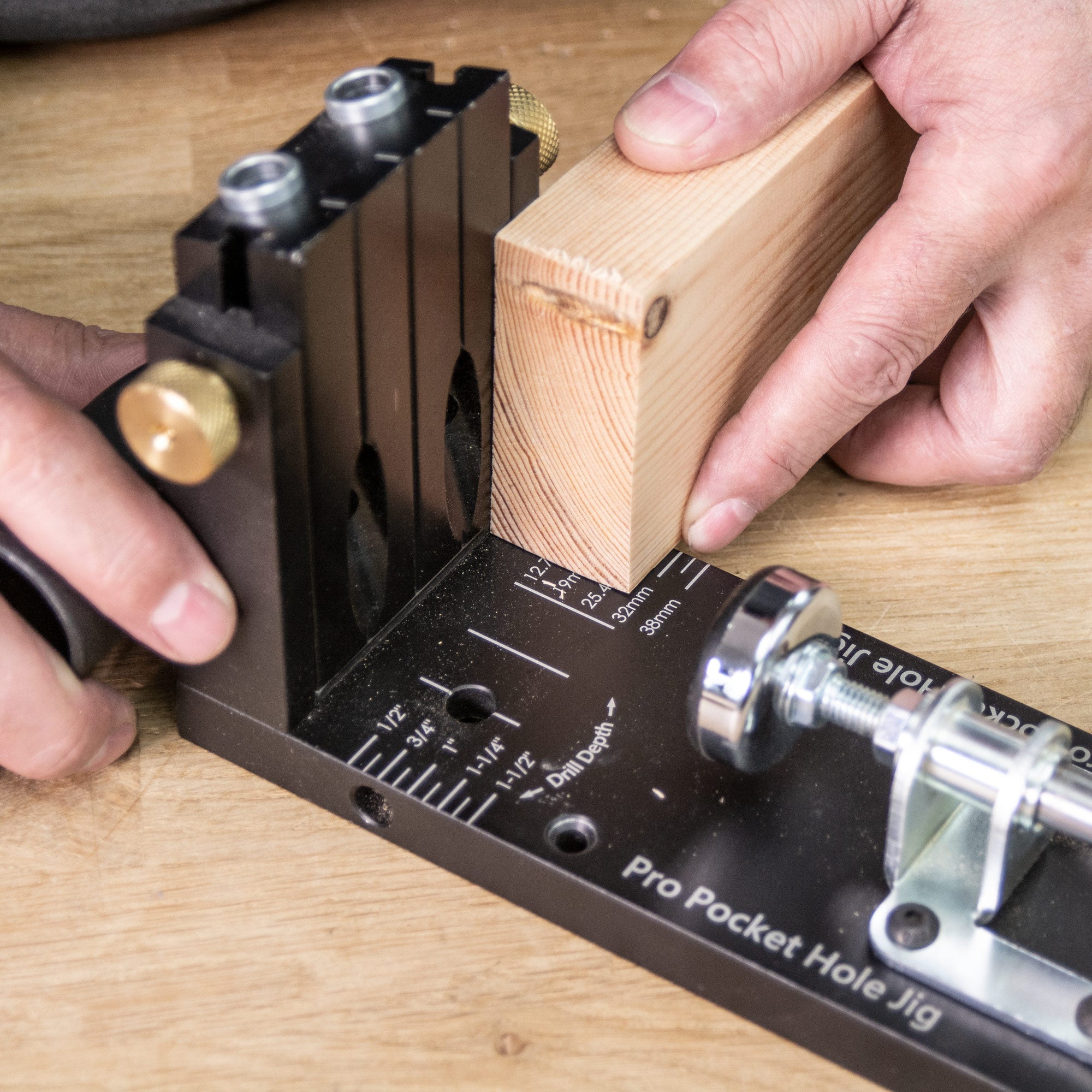

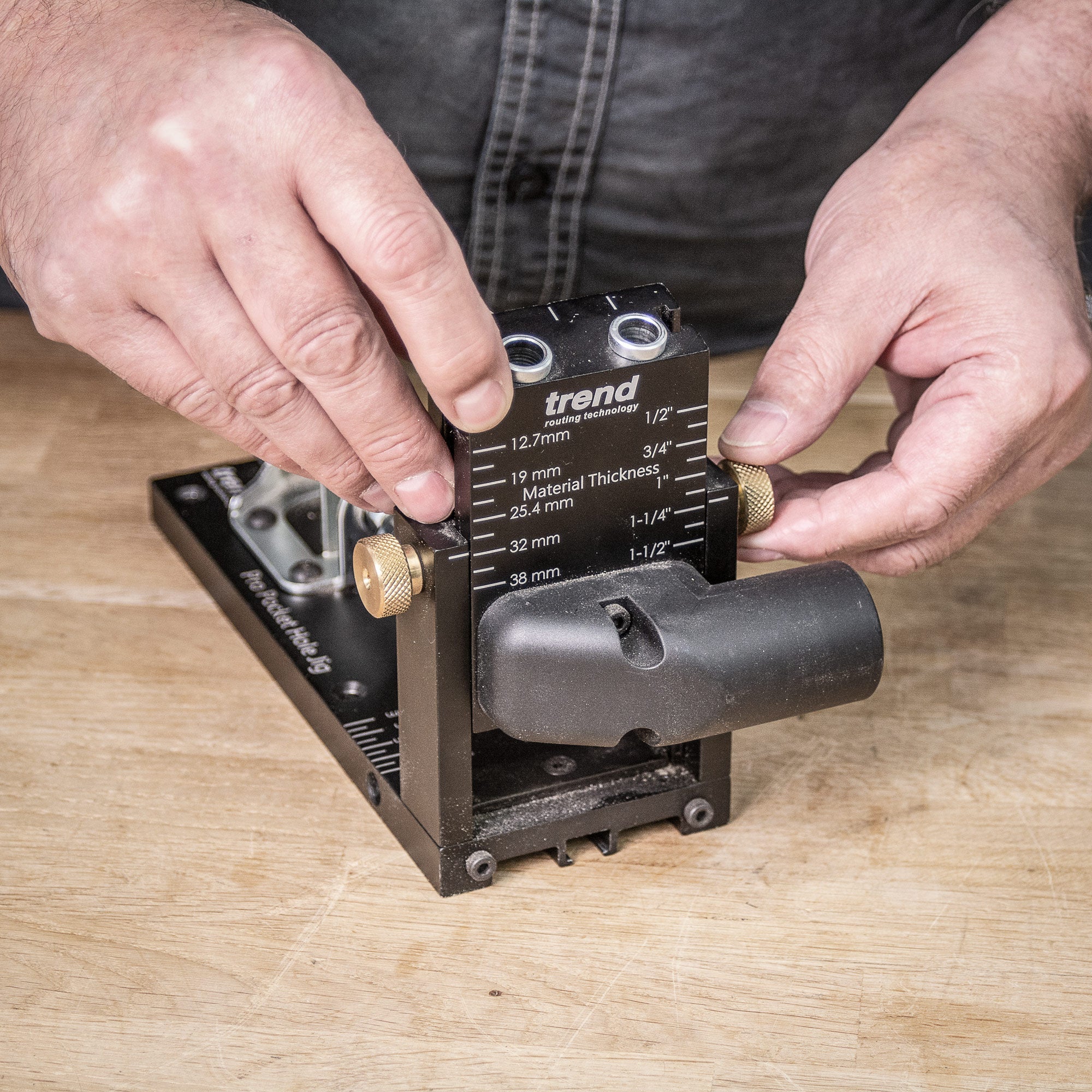

• Material Thickness Gauge allows fast checking of material thickness without the use of a tape measure.

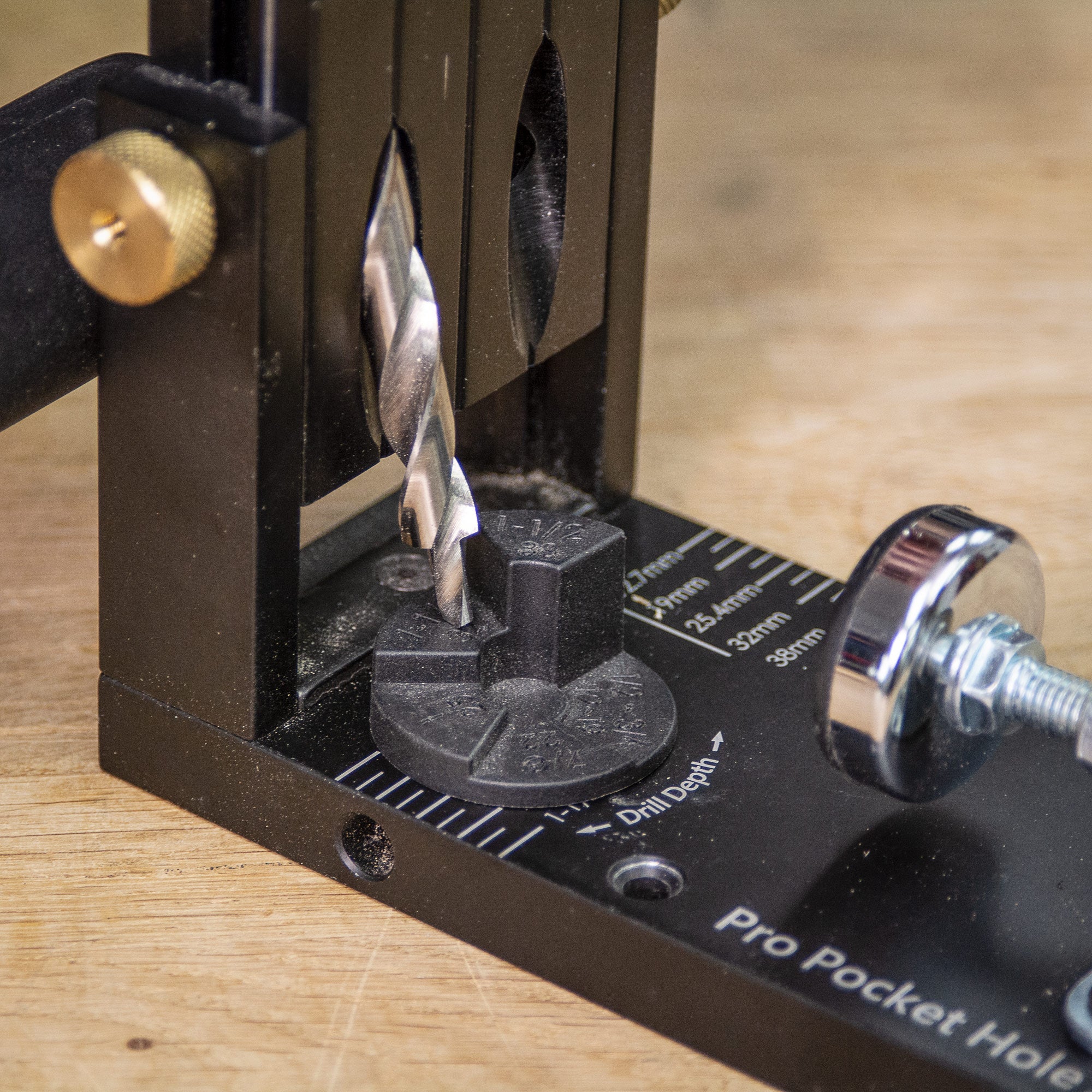

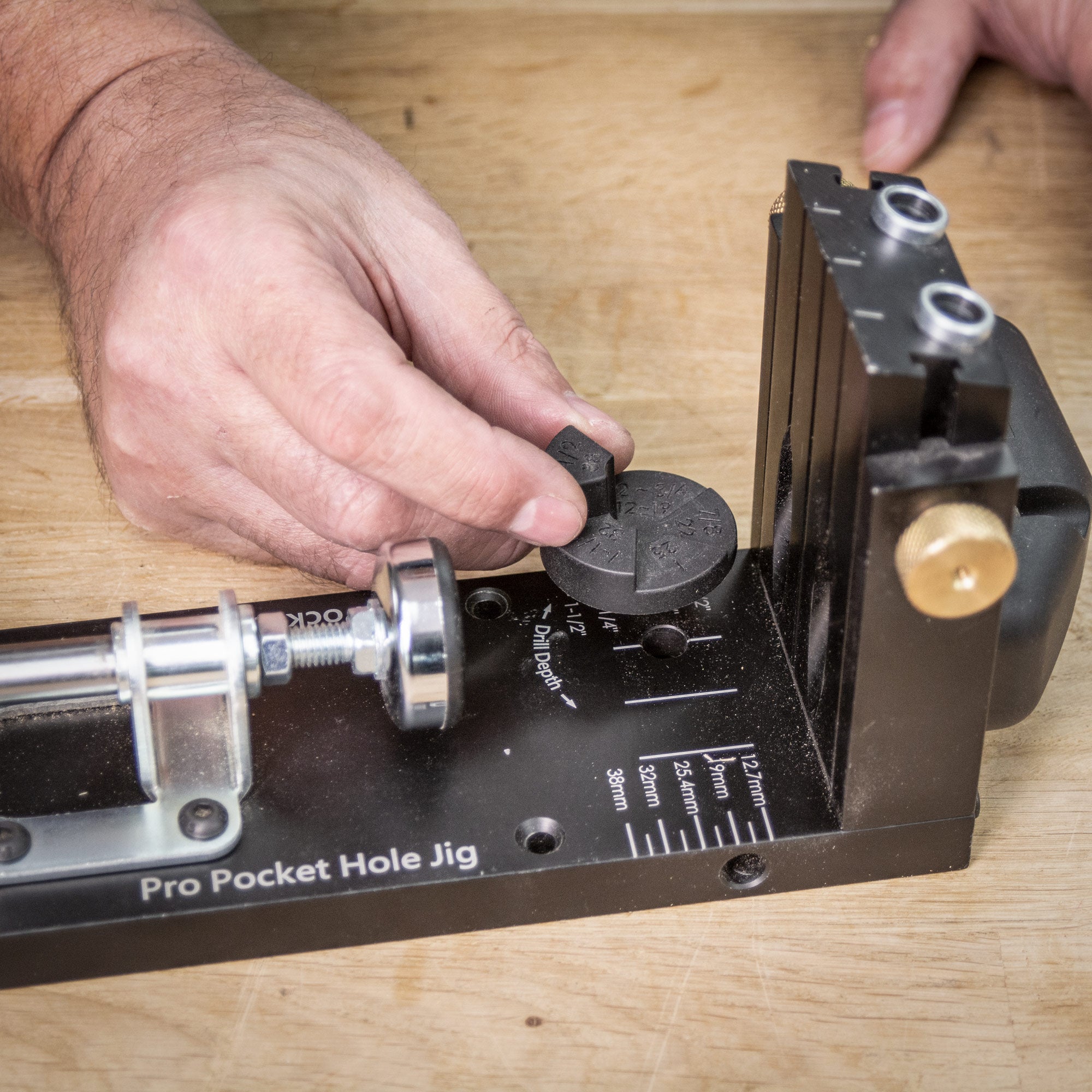

• Drill Bit Setting Turret for setting the correct drill depth to the material thickness.
• Work Support Rods prevent twisting when drilling longer material.

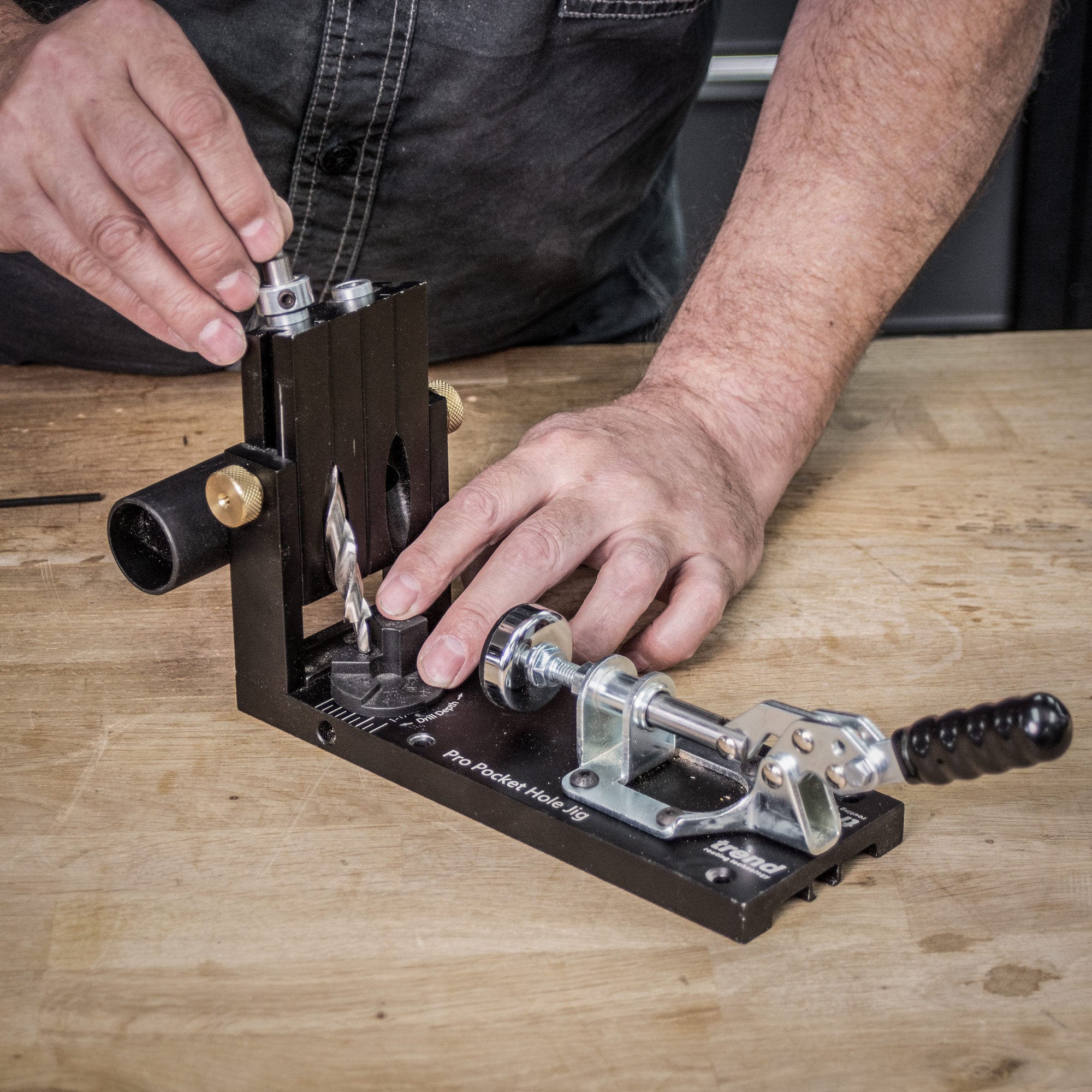

• Removable Drilling guides allows the column to be used separately for repair applications.
• Guide Locking Knobs lock the drilling guide in place once height has been adjusted.
• Dust Collection Port efficiently clears dust and debris for faster, cleaner drilling.
• On-Board Adjustable Clamp with quick-release mechanism.
• Non-Marring Clamp Pad to prevent pressure marks on the workpiece.
• T-Slot Clamp Guide supports the use of rail clamps to securely hold the jig to a work surface.

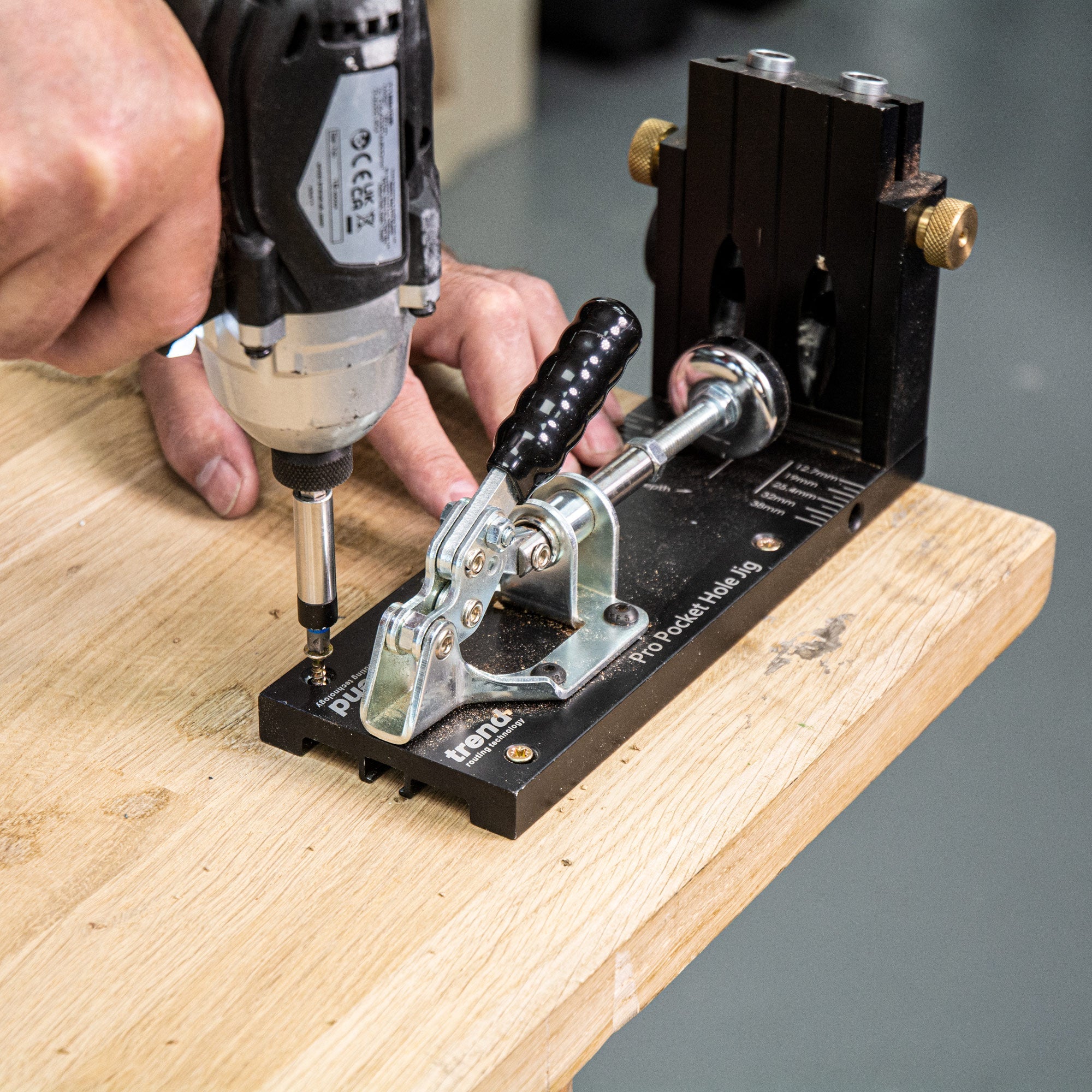

• Countersink Screw positions allows the jig to be screwed to a base board for extra support.

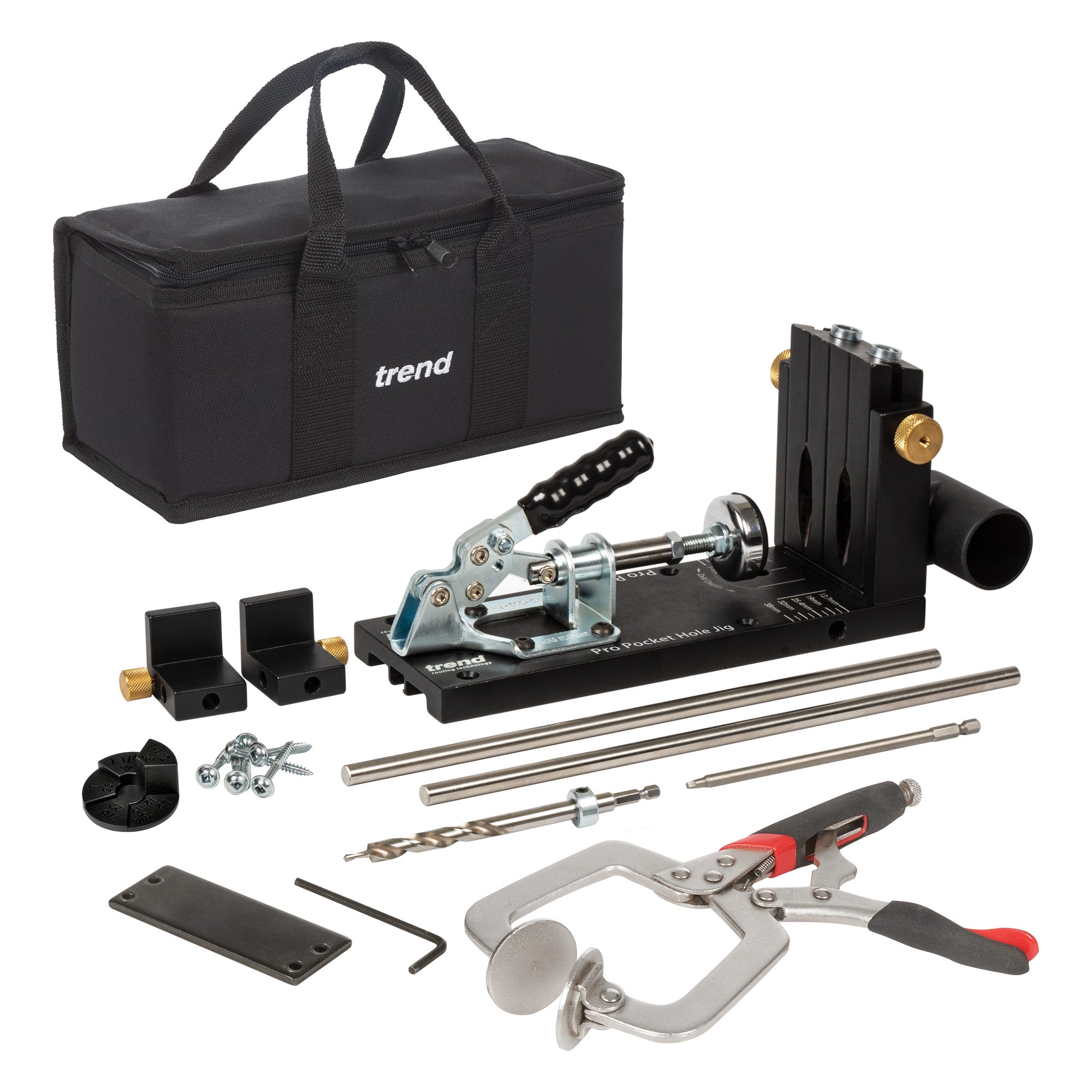

• Custom Carry Bag designed to optimise storage space.

Specifications

• Material thickness min.=12.7 mm
• Material thickness max.=38 mm
• Material width min.=38 mm
• Hole pitch=30 mm

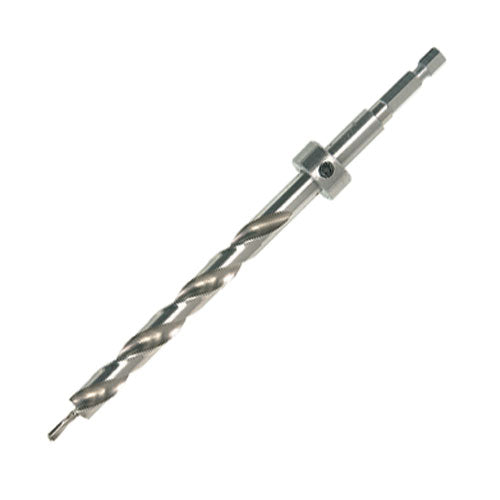

• Drill diameter=9.5 mm

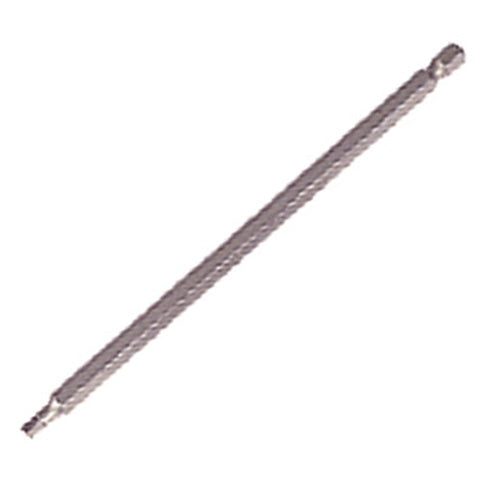

• Square drive bit size=No.2
• Dust spout ID=30 mm
• Underside T slot=12.2/8.4mm x 6mm
• Drilling angle=15 degrees

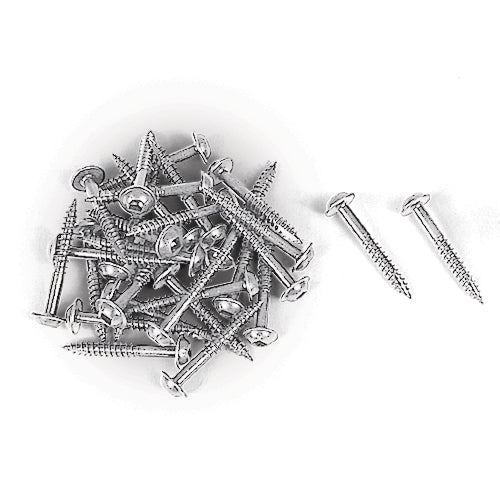

• Screw size=Fine No.7 x 30 mm
• Screw sizes=Coarse No.7 x 25 mm, No.7/8 x 30 mm, No.8 x 38 mm, No.8 x 50 mm, No.8 x 63 mm
