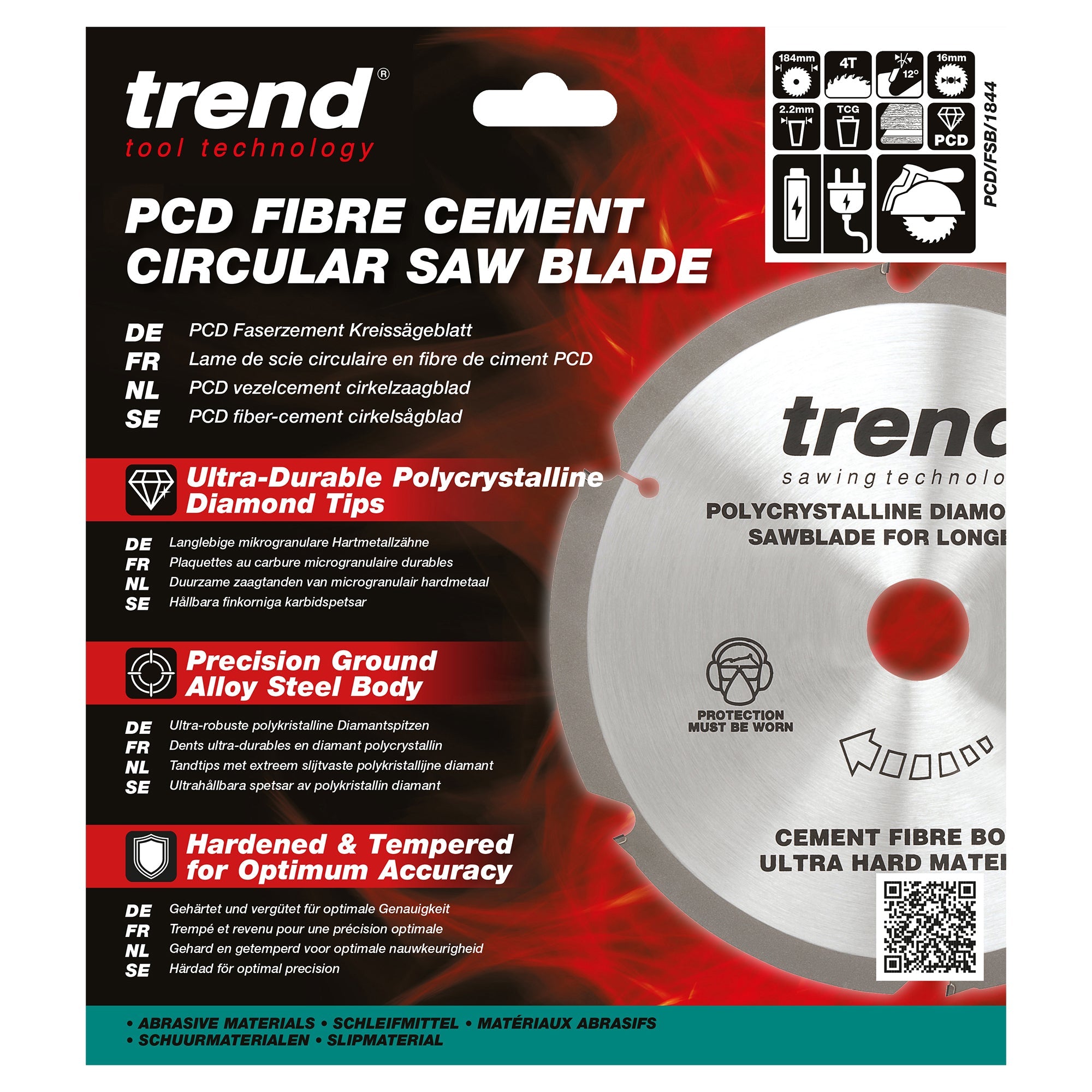

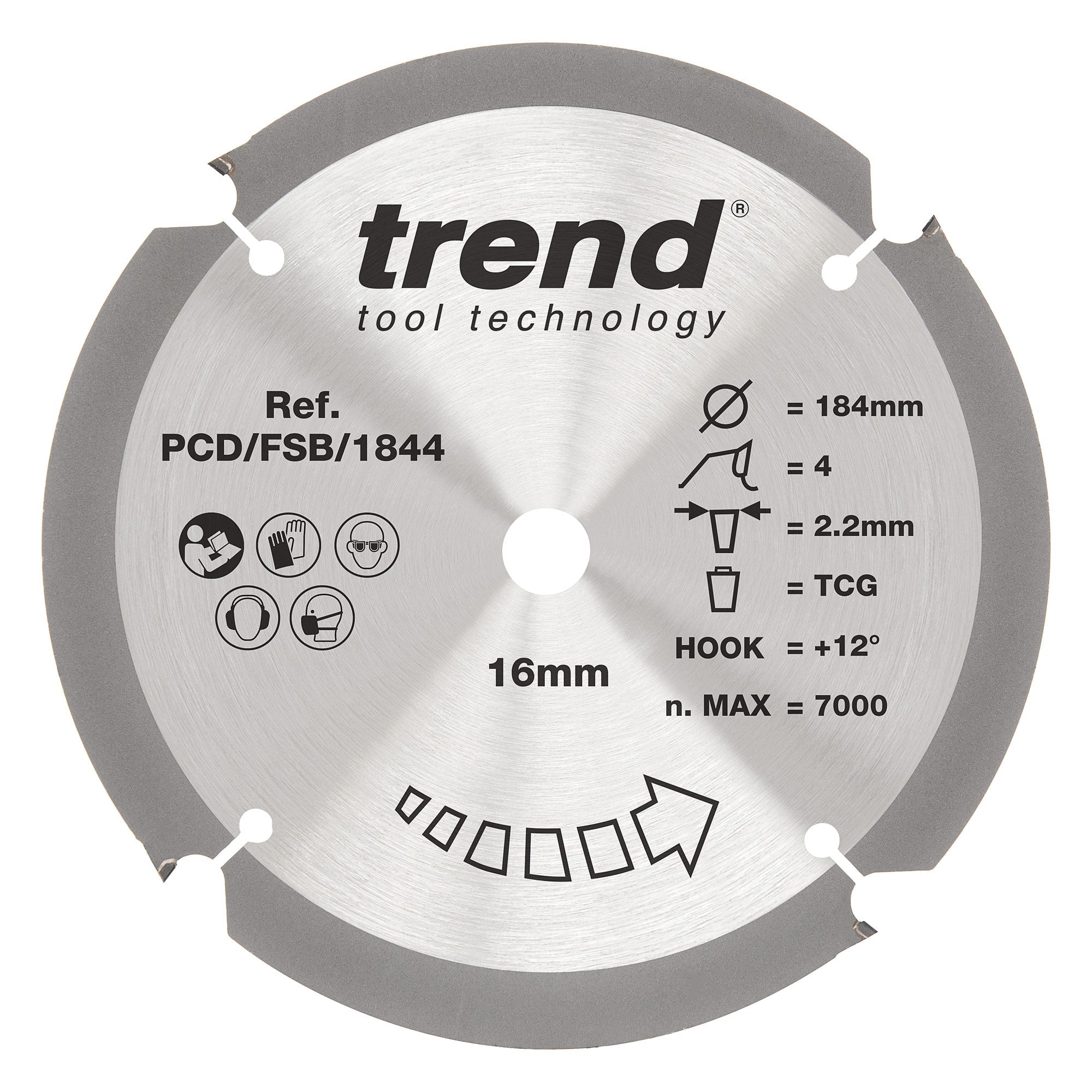

Trend Tools PCD/FSB/1844 Trend Pcd Fibre Cement Circular Saw Blade 184Mm X 20Mm X 4T

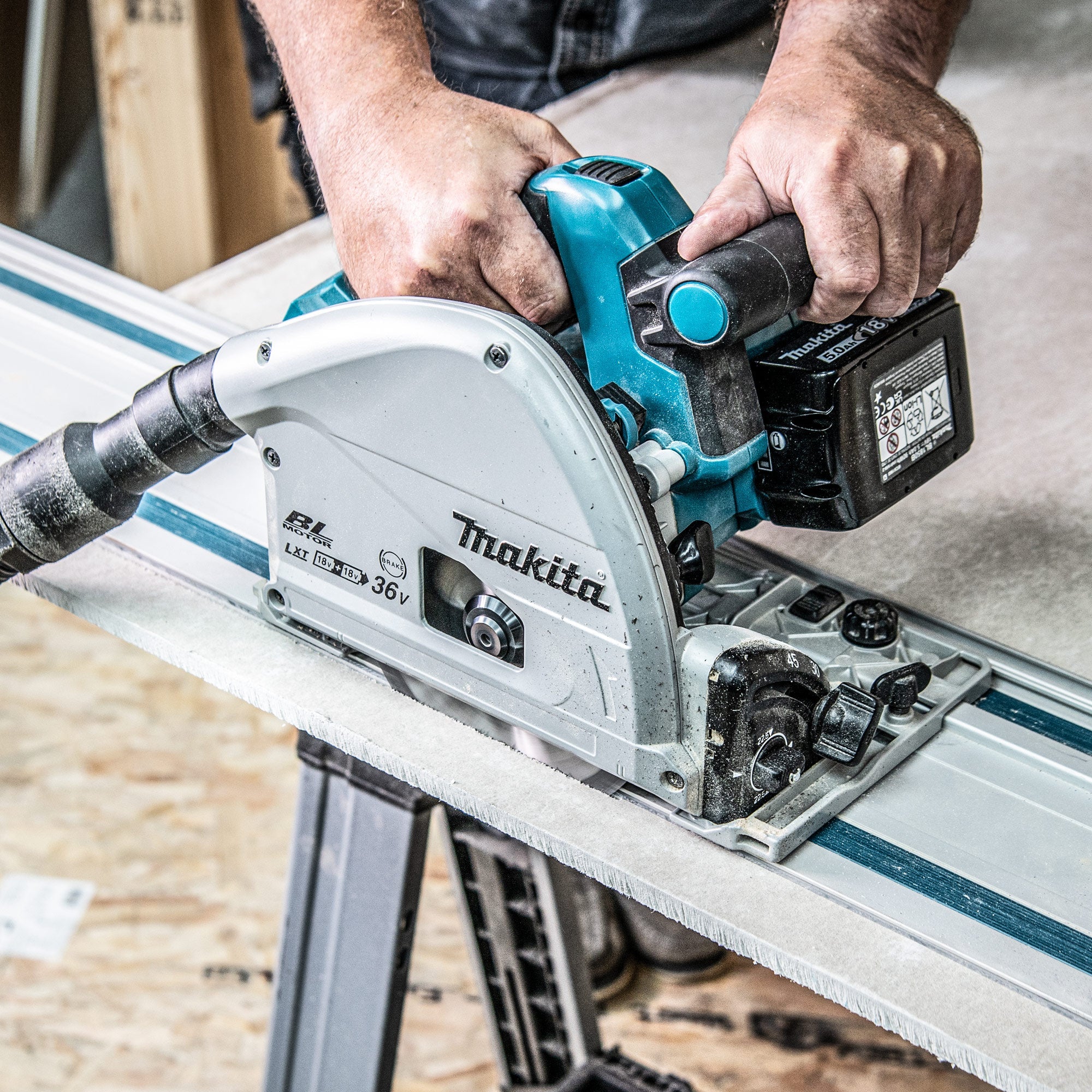

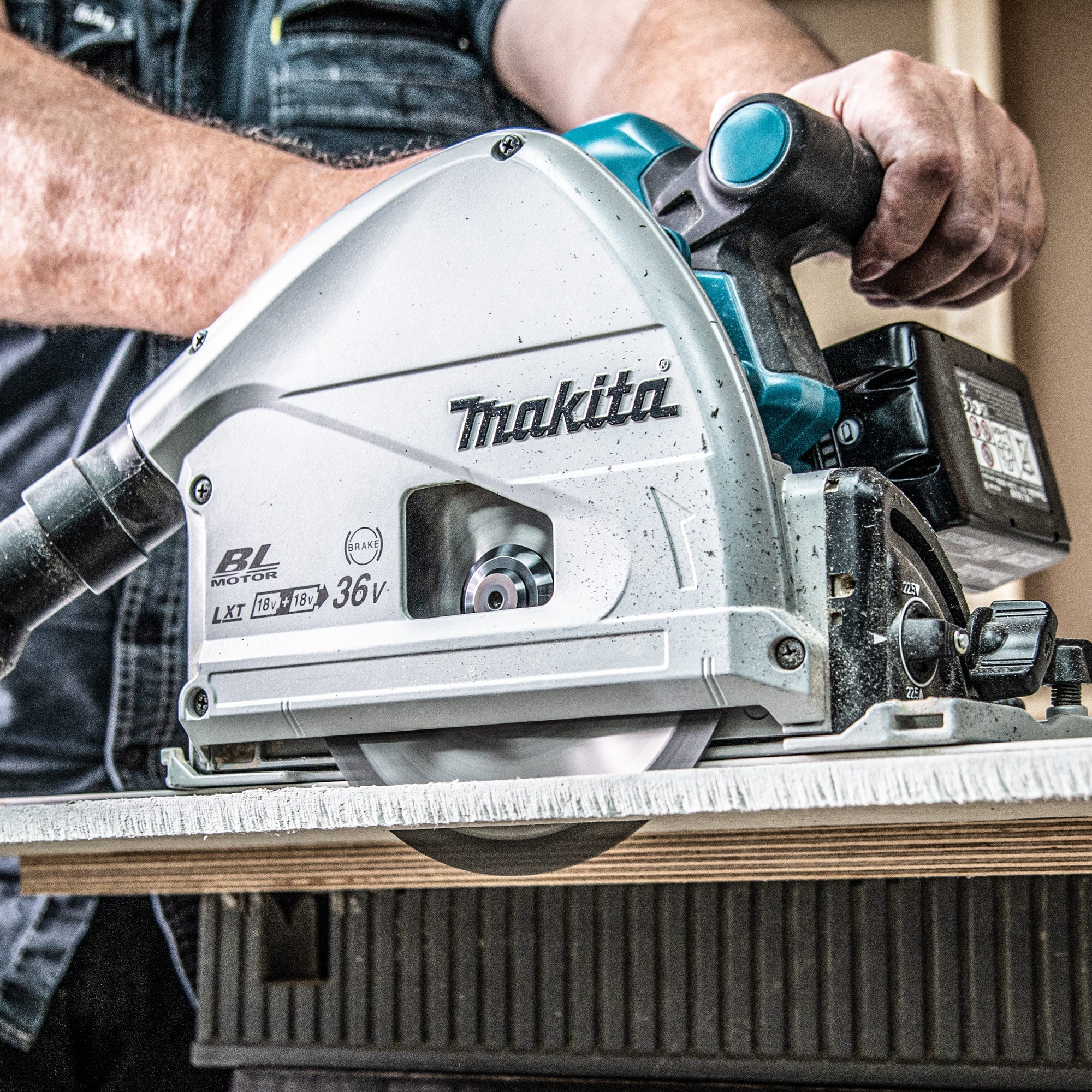

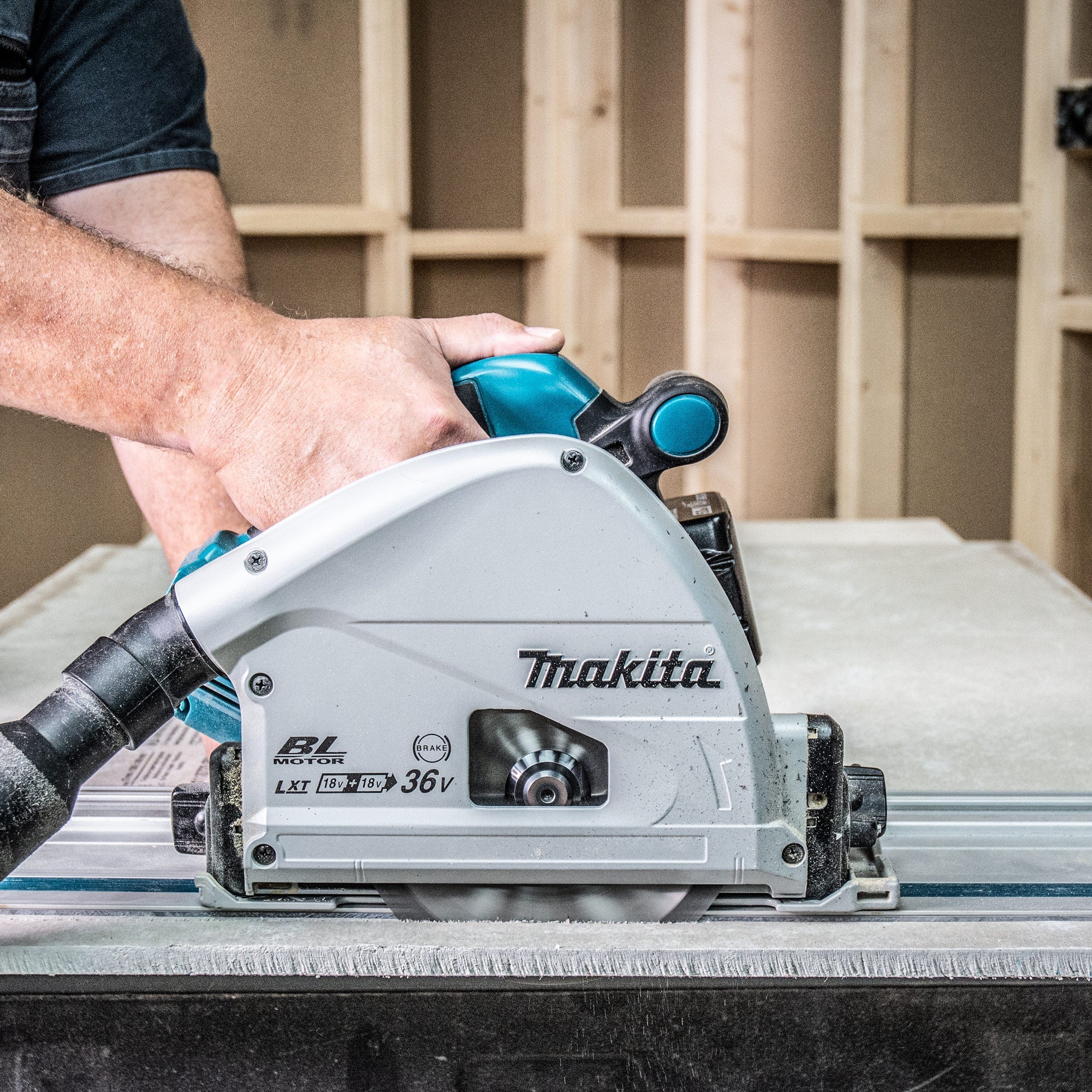

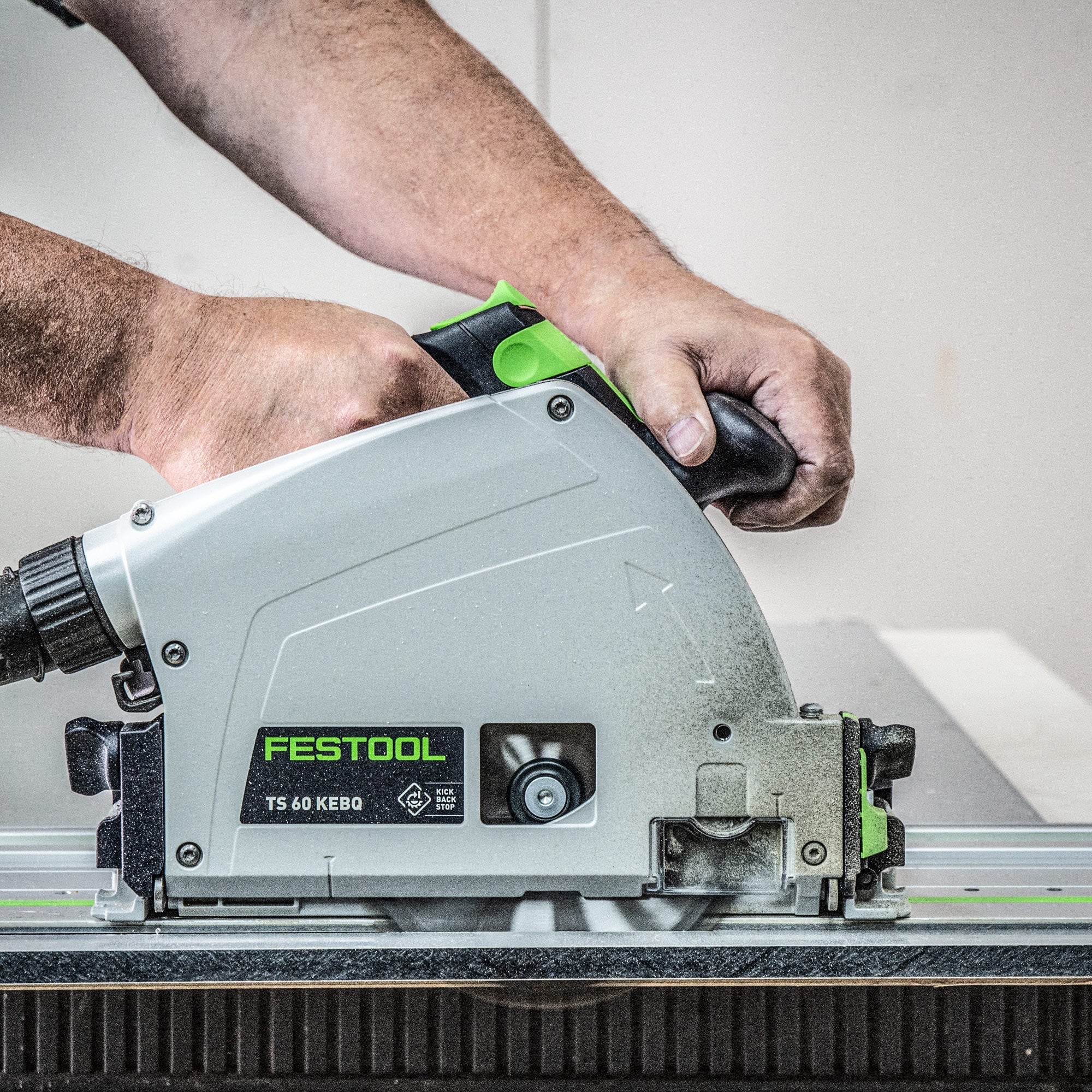

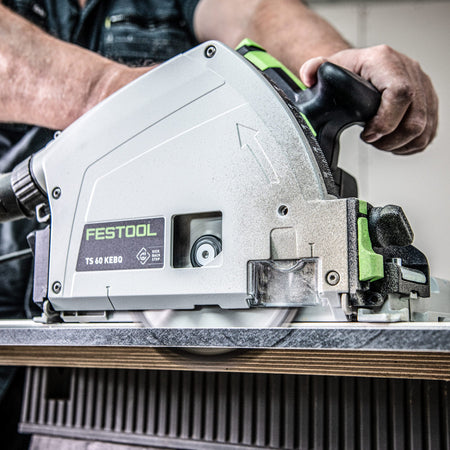

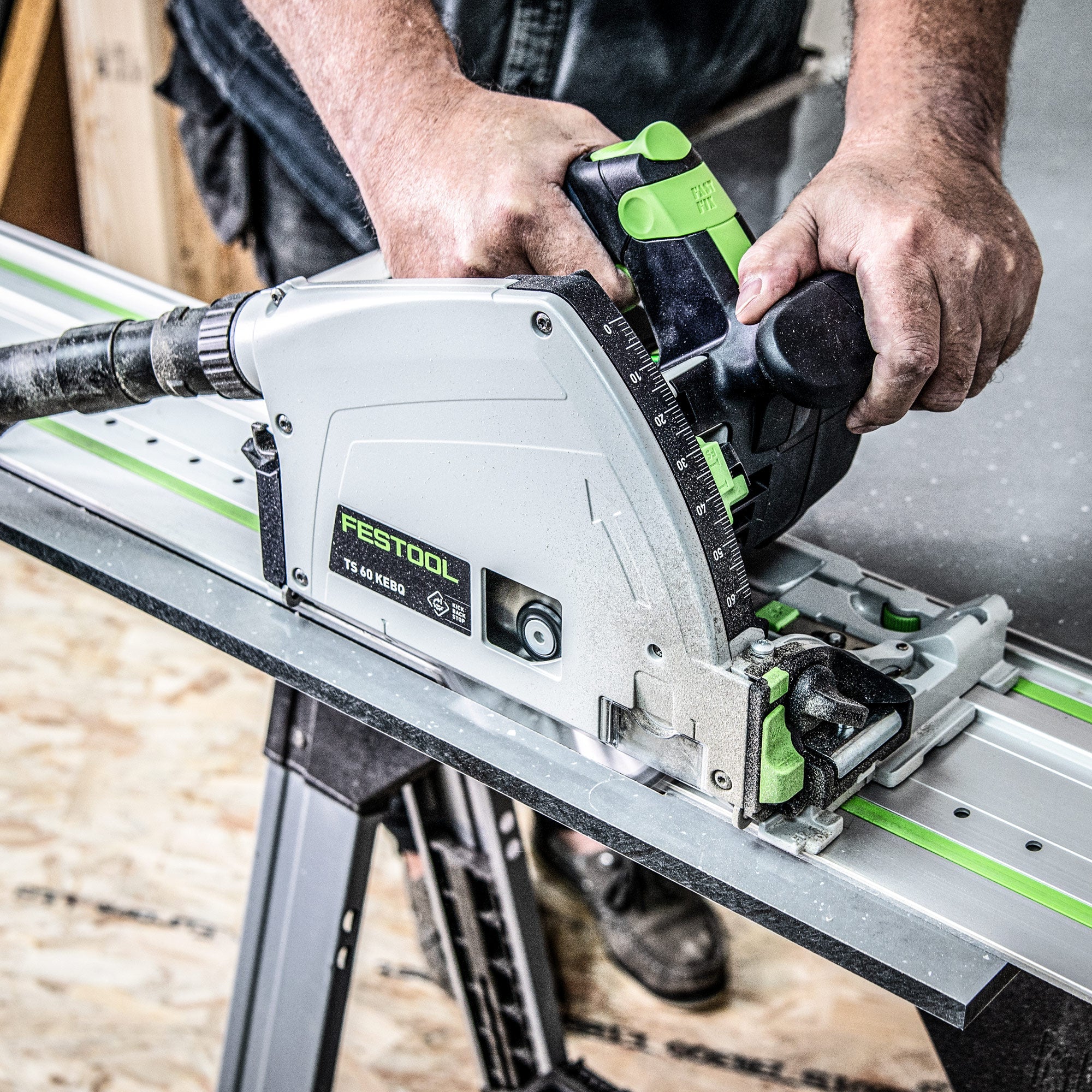

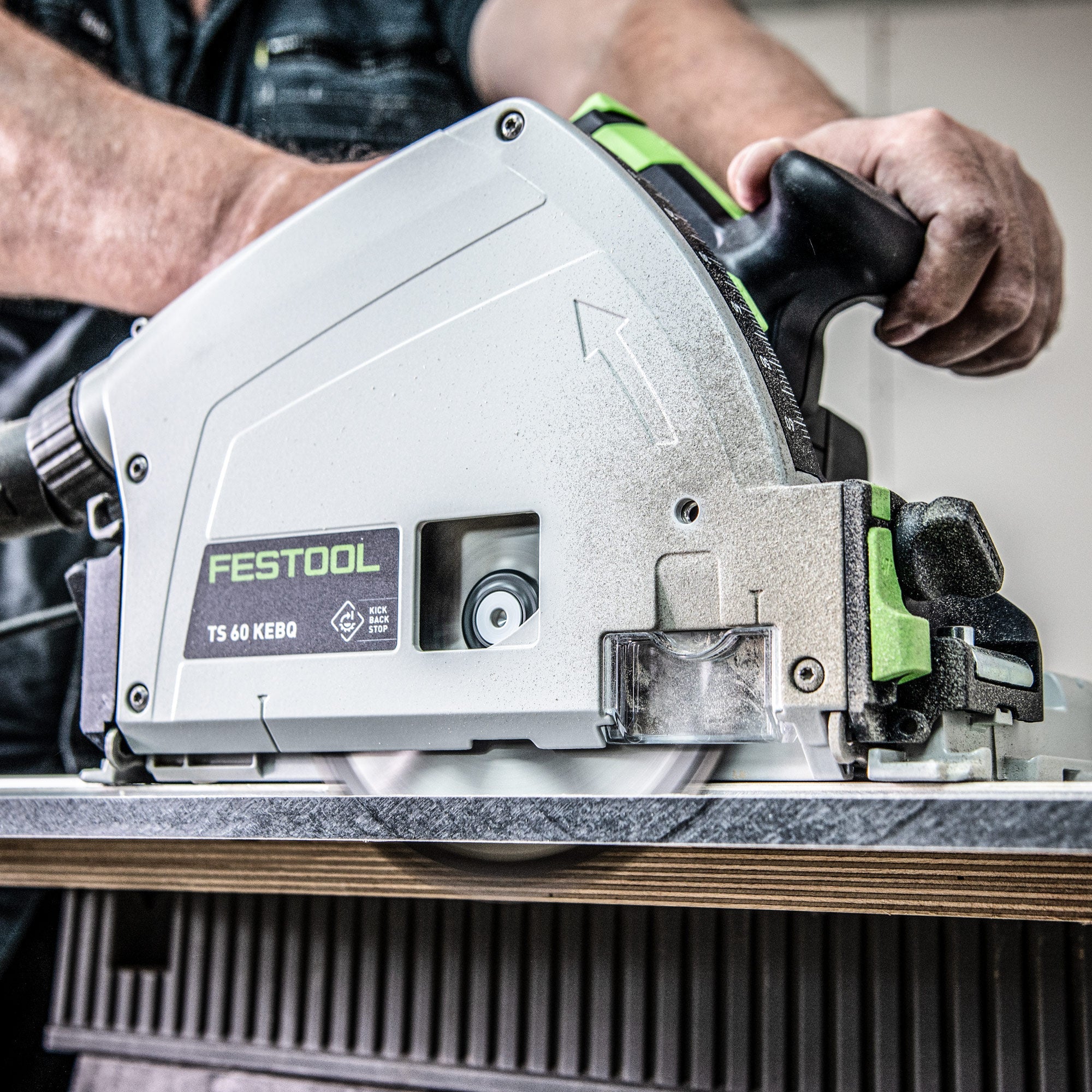

• A range of polycrystalline diamond blades for cutting a wide variety of ultra-hard and abrasive materials. For use in circular, plunge, table and mitre saws, Trend PCD Fibre Cement blades are exceptionally durable and retain their cutting edge for longer than TCT alternatives. Ideal for AQUAPANEL¨, HardieBacker¨, gypsum, composite decking & cladding, laminate flooring, fibre & glass reinforced polymer and compact laminate worktops.
• Precision EDM-ground polycrystalline diamond (PCD) tips for optimum edge retention and cut quality in abrasive sheet materials.

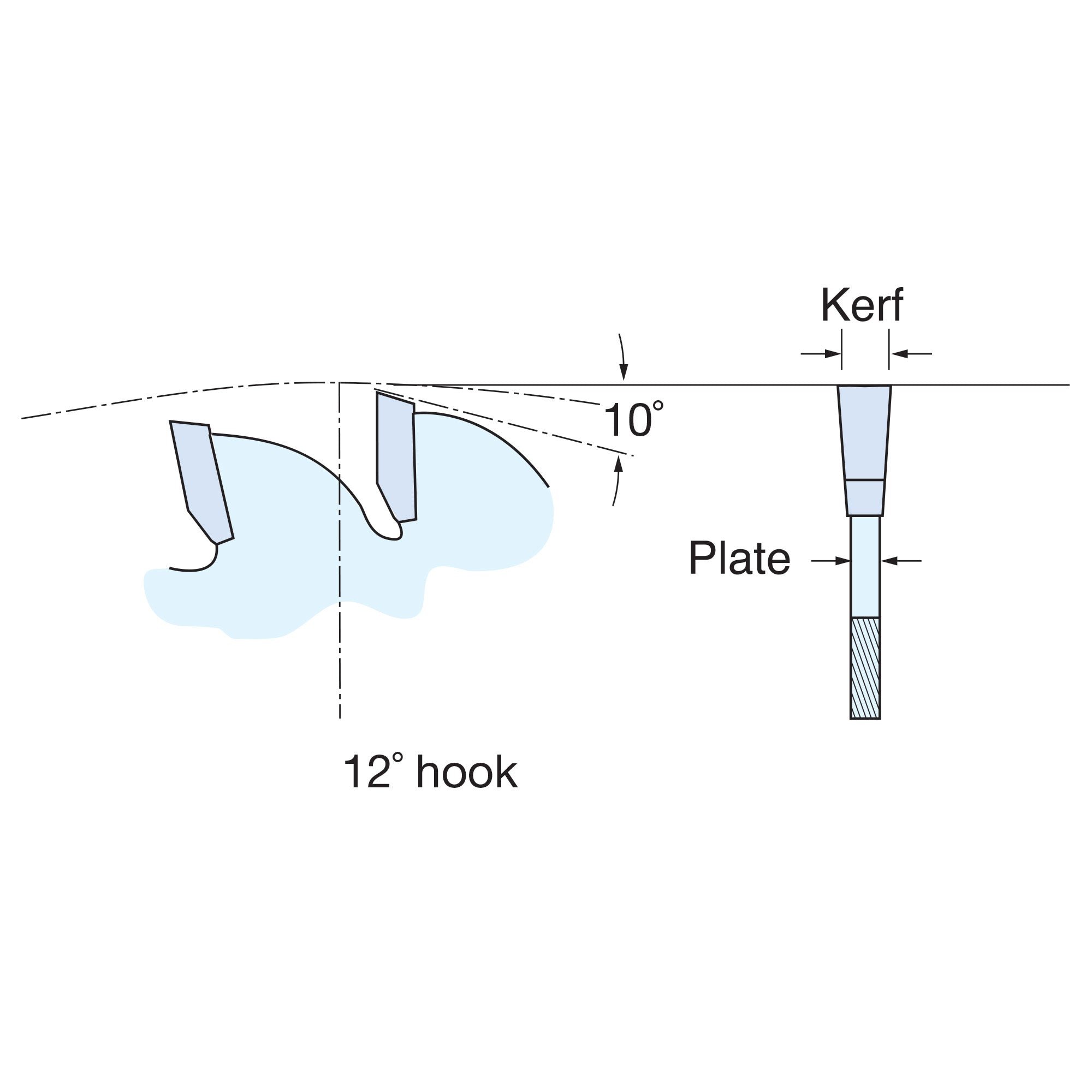

• Triple chip ground (TCG) tooth form with +12¡ hook for a clean, controlled, efficient cutting action through tough materials.
• Precision ground alloy steel plate to maintain flatness.
• Body hardened and tempered to minimise deflection under load.
• Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
• Etched blade information to EN847 safety standard.
• Reamed Bore ensures precise spindle fit.
• Compatible with Dewalt DCS570, Dewalt DCS572, Dewalt DWE560

Specifications

• DIMENSIONS:
• D1=7 1/4 inches
• D1=184 mm
• Bore=5/8 inches
• Bore=16 mm
• Kerf=2.2 mm
• Plate thick=1.6 mm
• No. of Teeth=4
• Tooth Form=TCG
• Hook Angle=12 degrees
