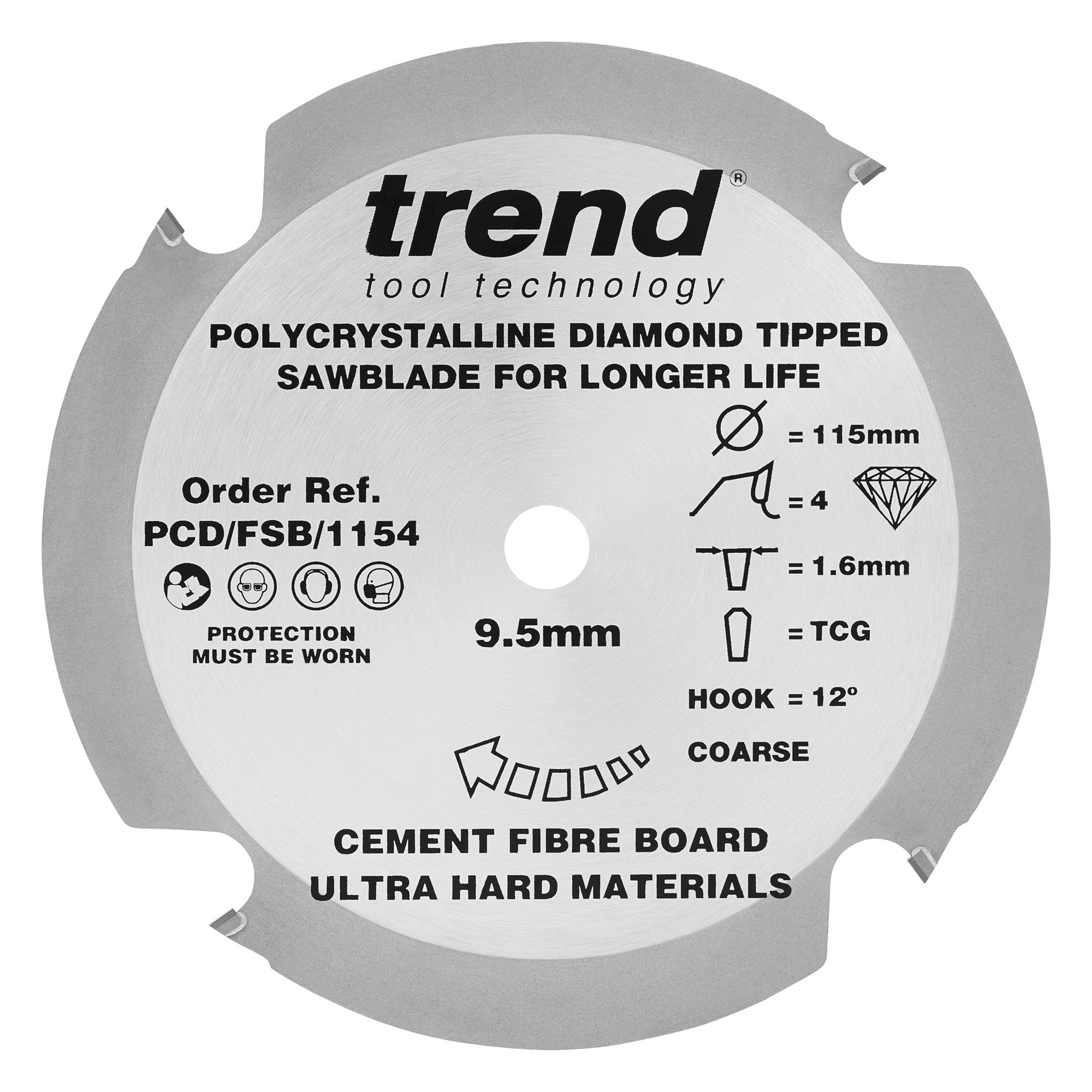

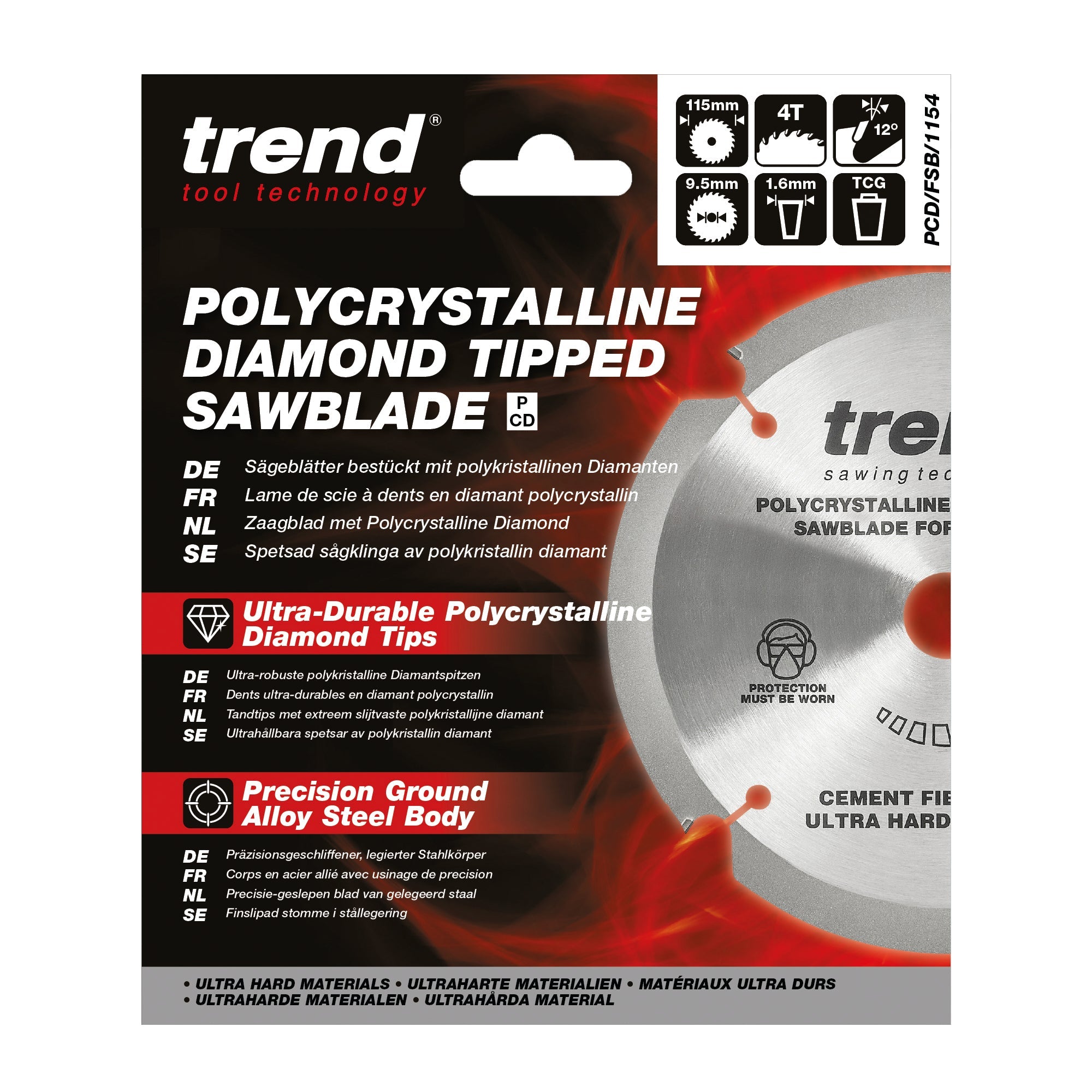

Trend Tools PCD/FSB/1154 Trend Pcd Fibre Cement Circular Saw Blade 115Mm X 9.5Mm X 4T

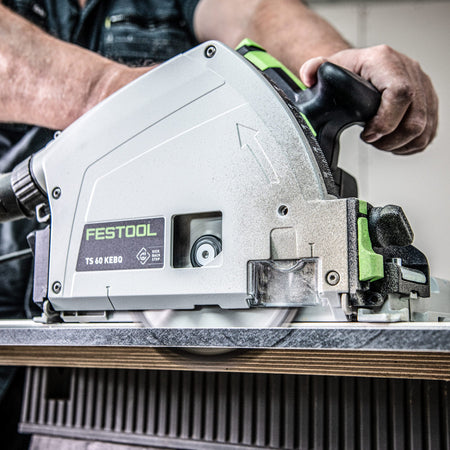

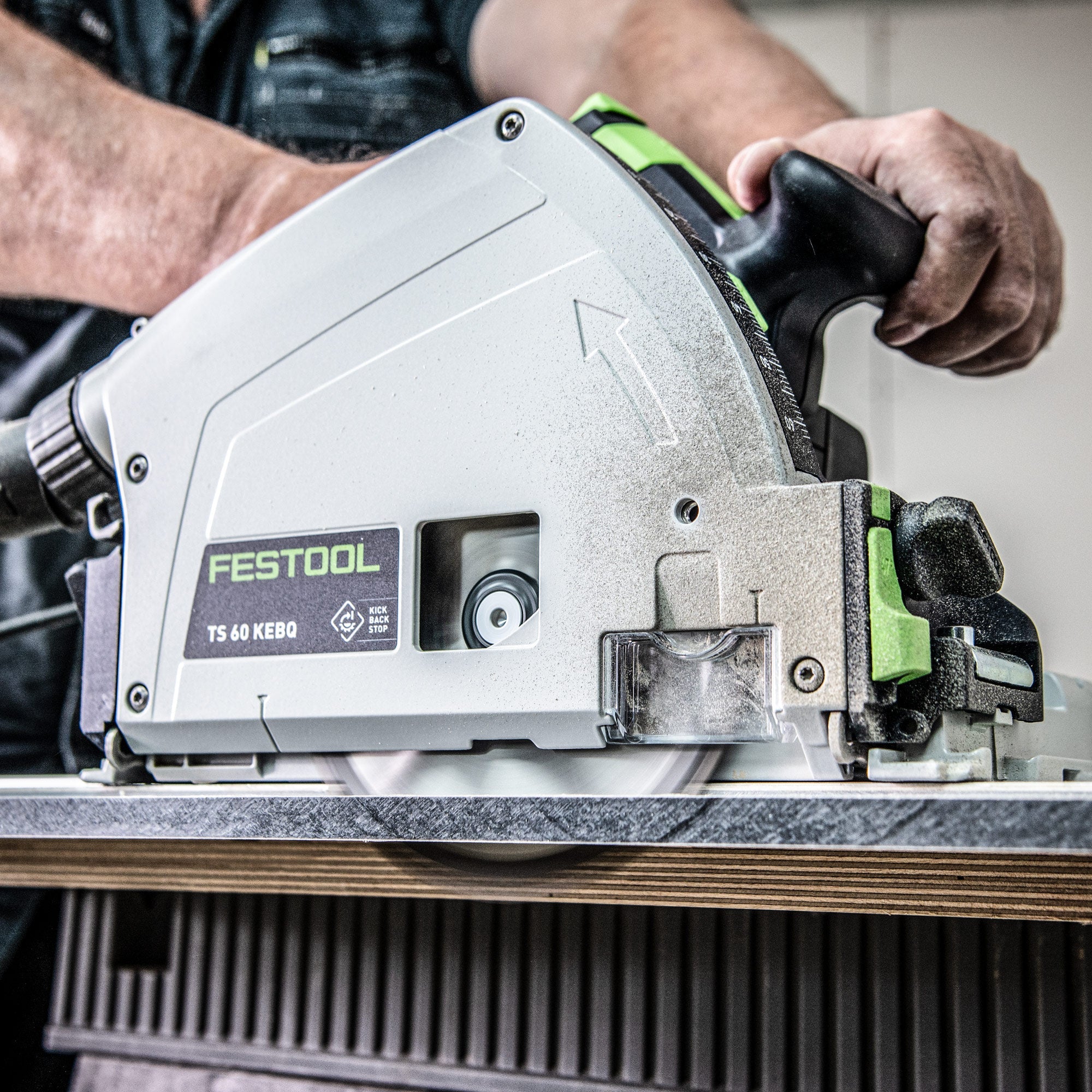

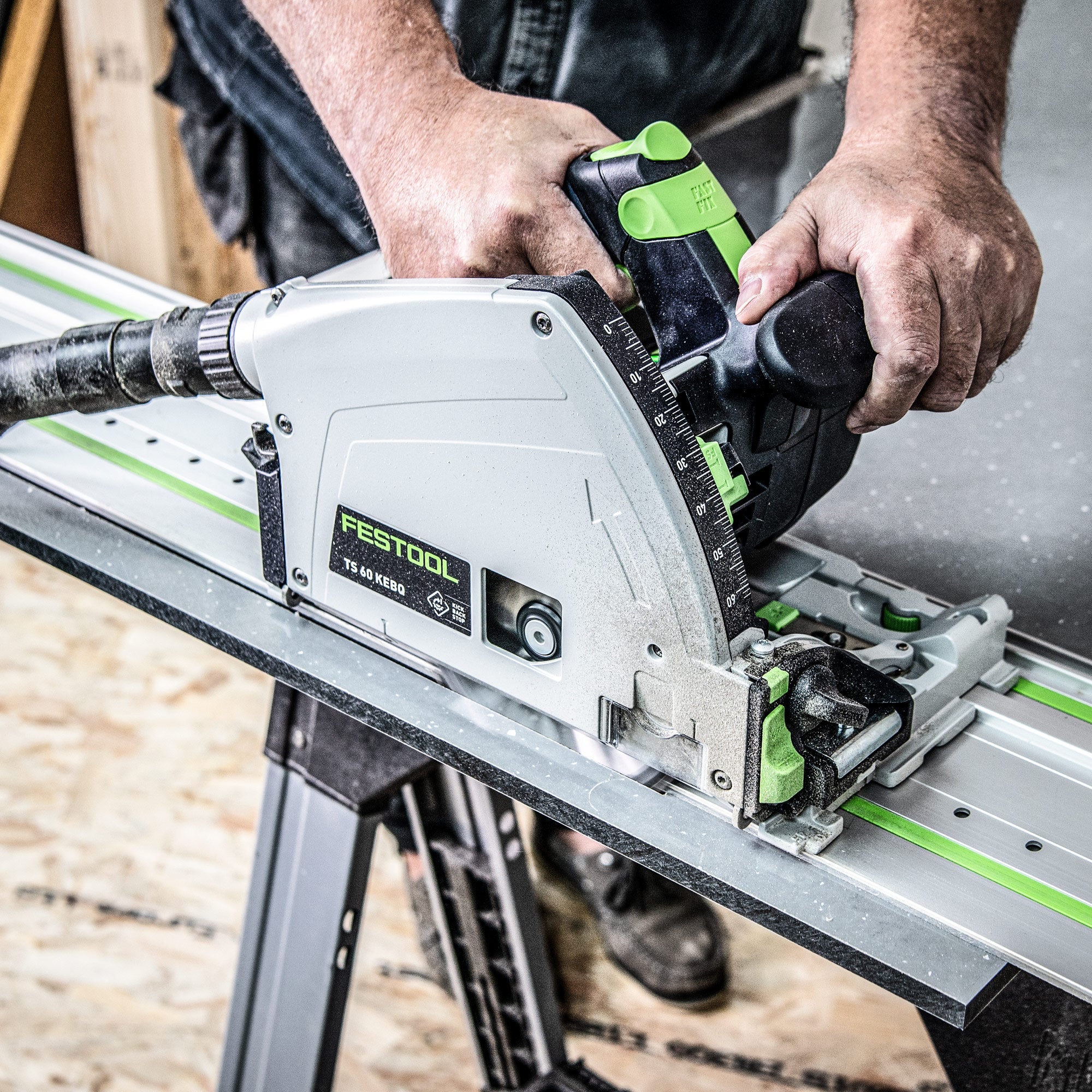

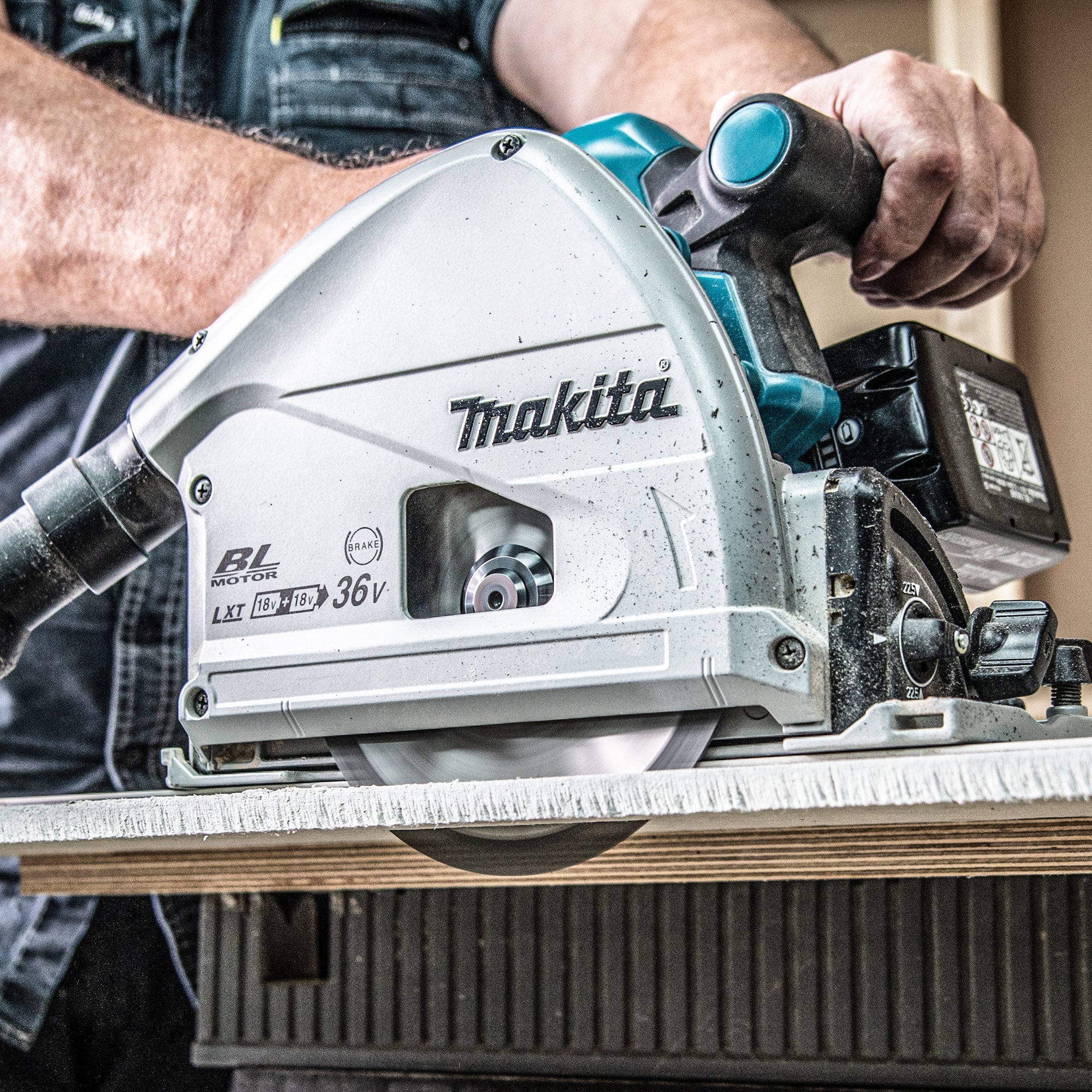

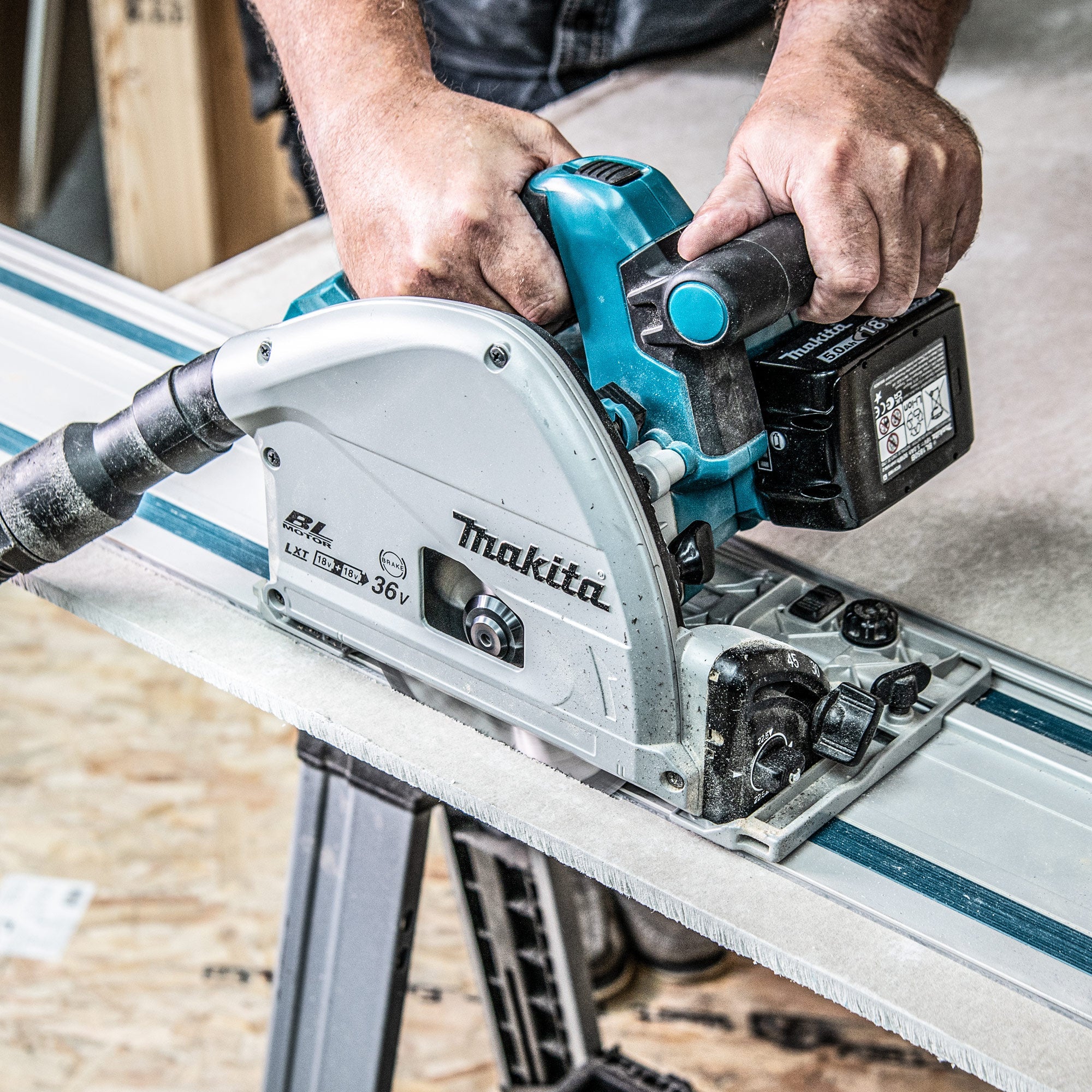

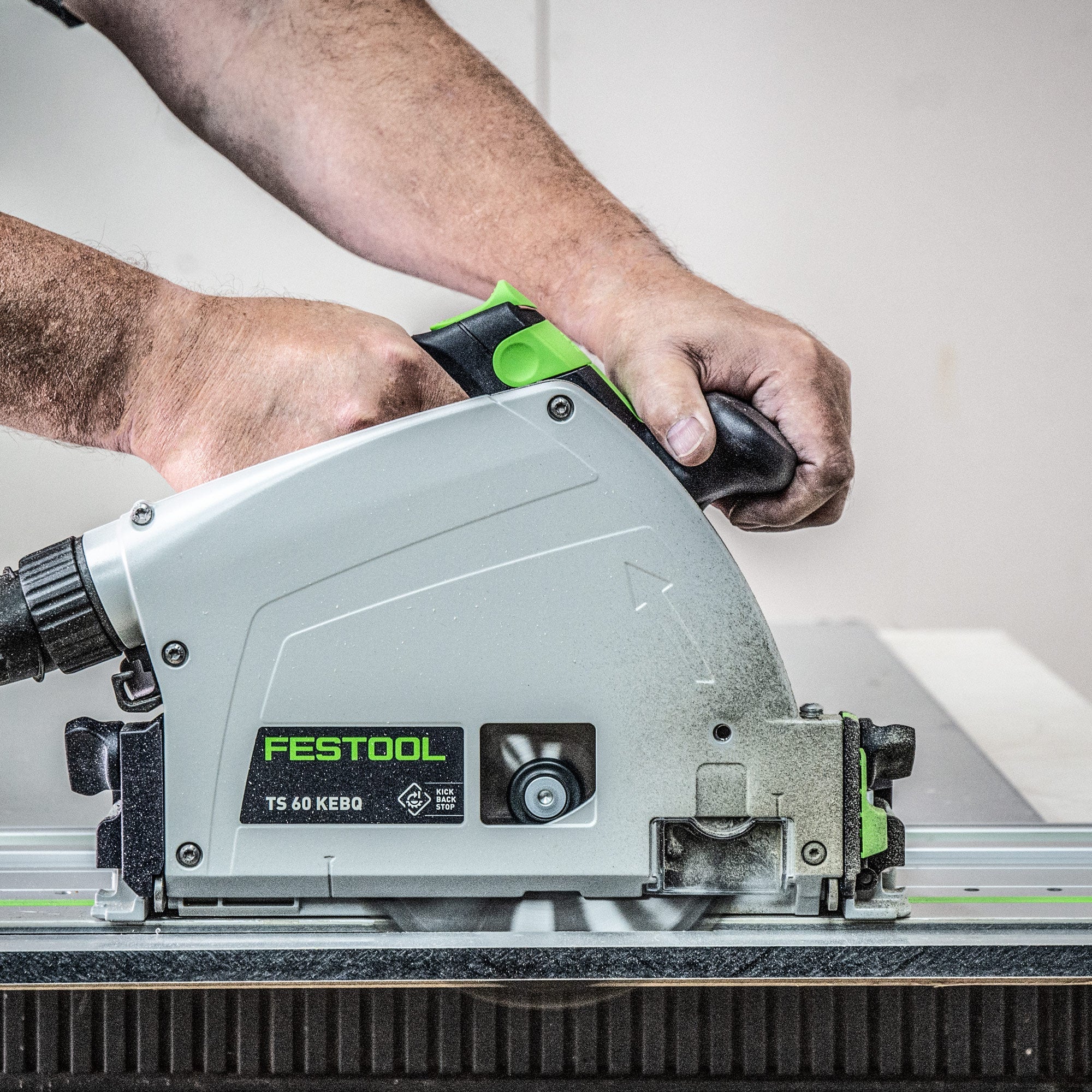

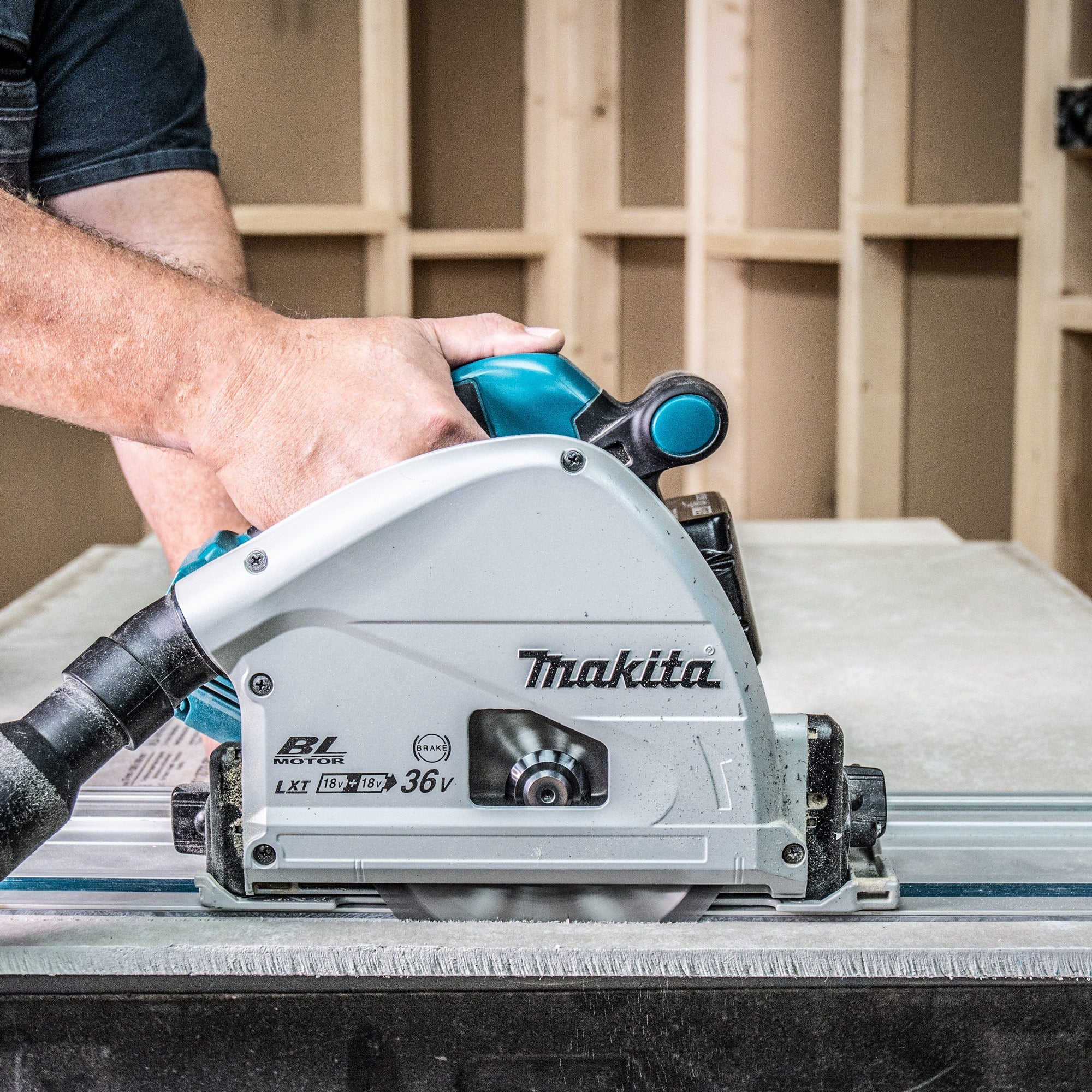

• A range of polycrystalline diamond blades for cutting a wide variety of ultra-hard and abrasive materials. For use in circular, plunge, table and mitre saws, Trend PCD Fibre Cement blades are exceptionally durable and retain their cutting edge for longer than TCT alternatives. Ideal for AQUAPANEL¨, HardieBacker¨, gypsum, composite decking & cladding, laminate flooring, fibre & glass reinforced polymer and compact laminate worktops.
• Precision EDM-ground polycrystalline diamond (PCD) tips for optimum edge retention and cut quality in abrasive sheet materials.

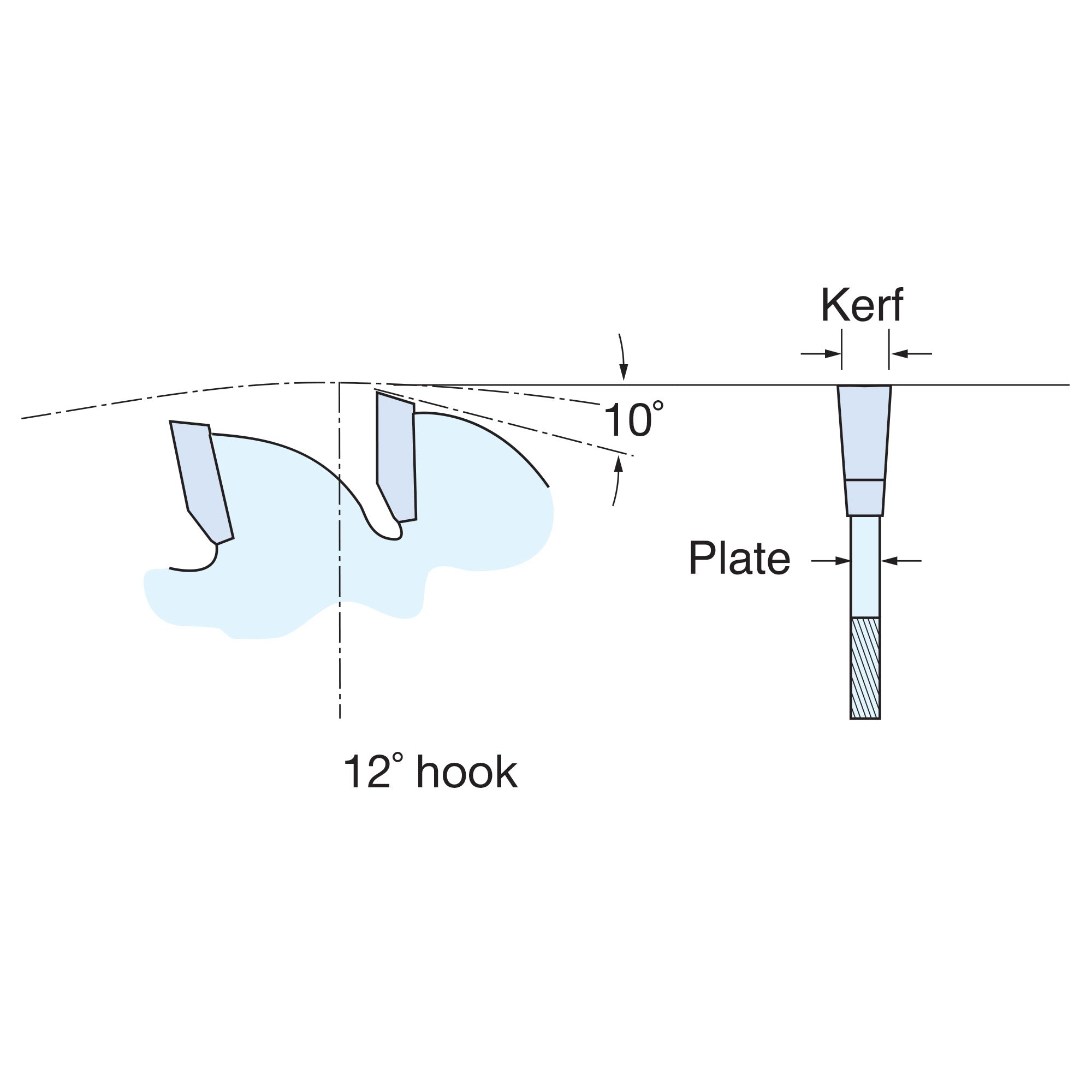

• Triple chip ground (TCG) tooth form with +12¡ hook for a clean, controlled, efficient cutting action through tough materials.
• Precision ground alloy steel plate to maintain flatness.
• Body hardened and tempered to minimise deflection under load.
• Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
• Etched blade information to EN847 safety standard.
• Reamed Bore ensures precise spindle fit.

Specifications

• D1=4 1/2 inches
• D1=115 mm
• Bore=9.5 mm
• Kerf=1.6 mm
• Plate thick=1.2 mm
• No. of Teeth=4
• Tooth form=TCG
• Hook=12 degrees
• Quick Selector No.=M6
• Cut Finish=Coarse
• Max rpm=12000
• It is recommended that the blade should not project more than 1mm out of bottom of substrate.
• Dewalt DCS571N-XJ
