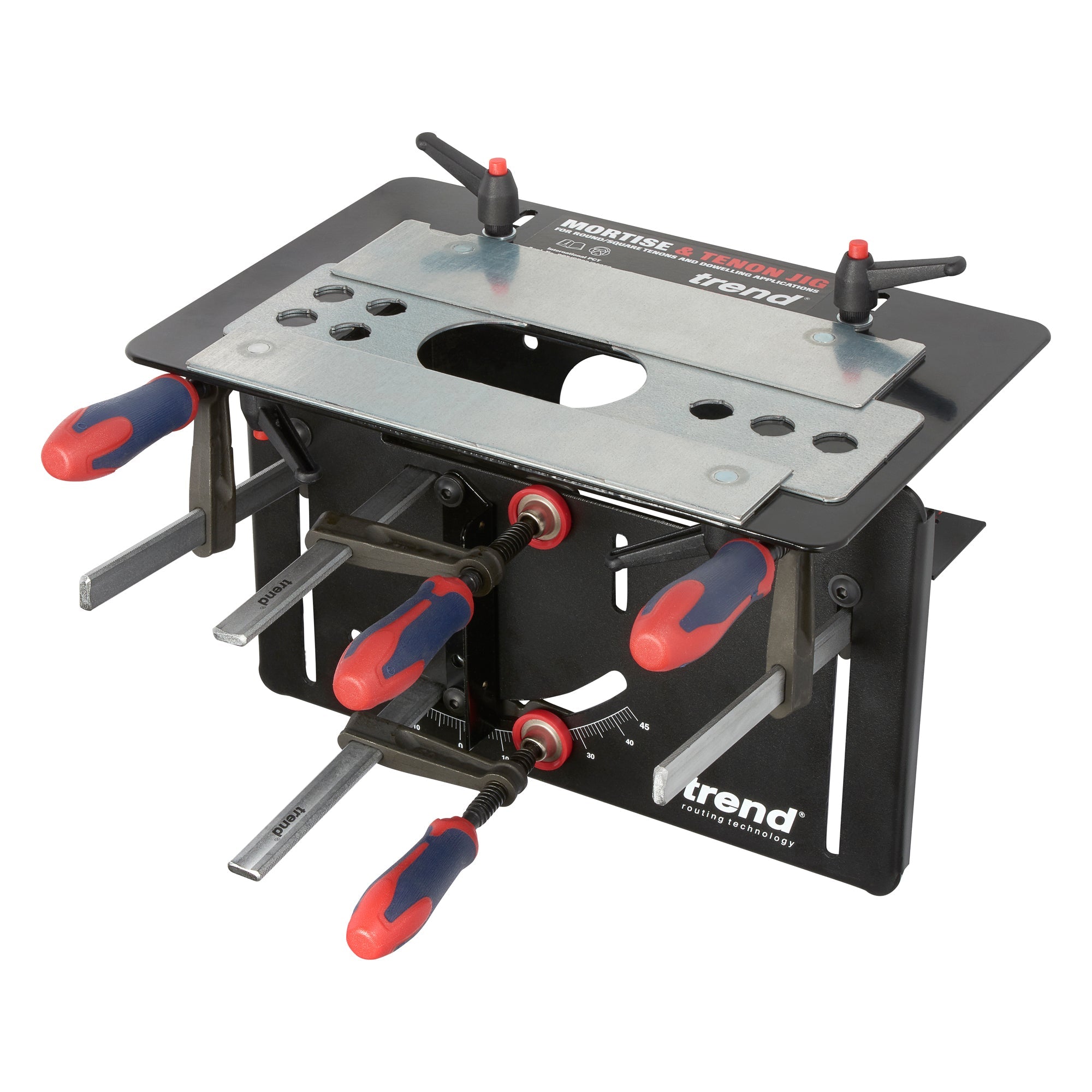

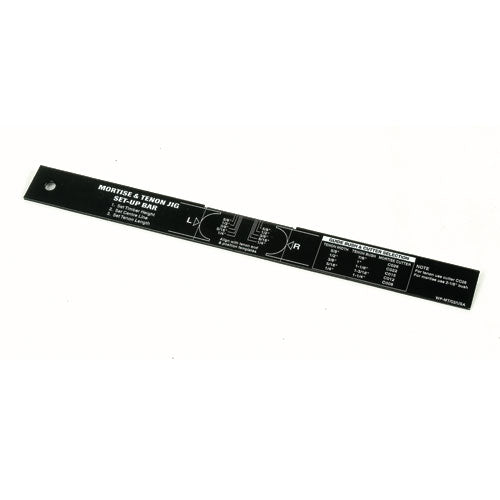

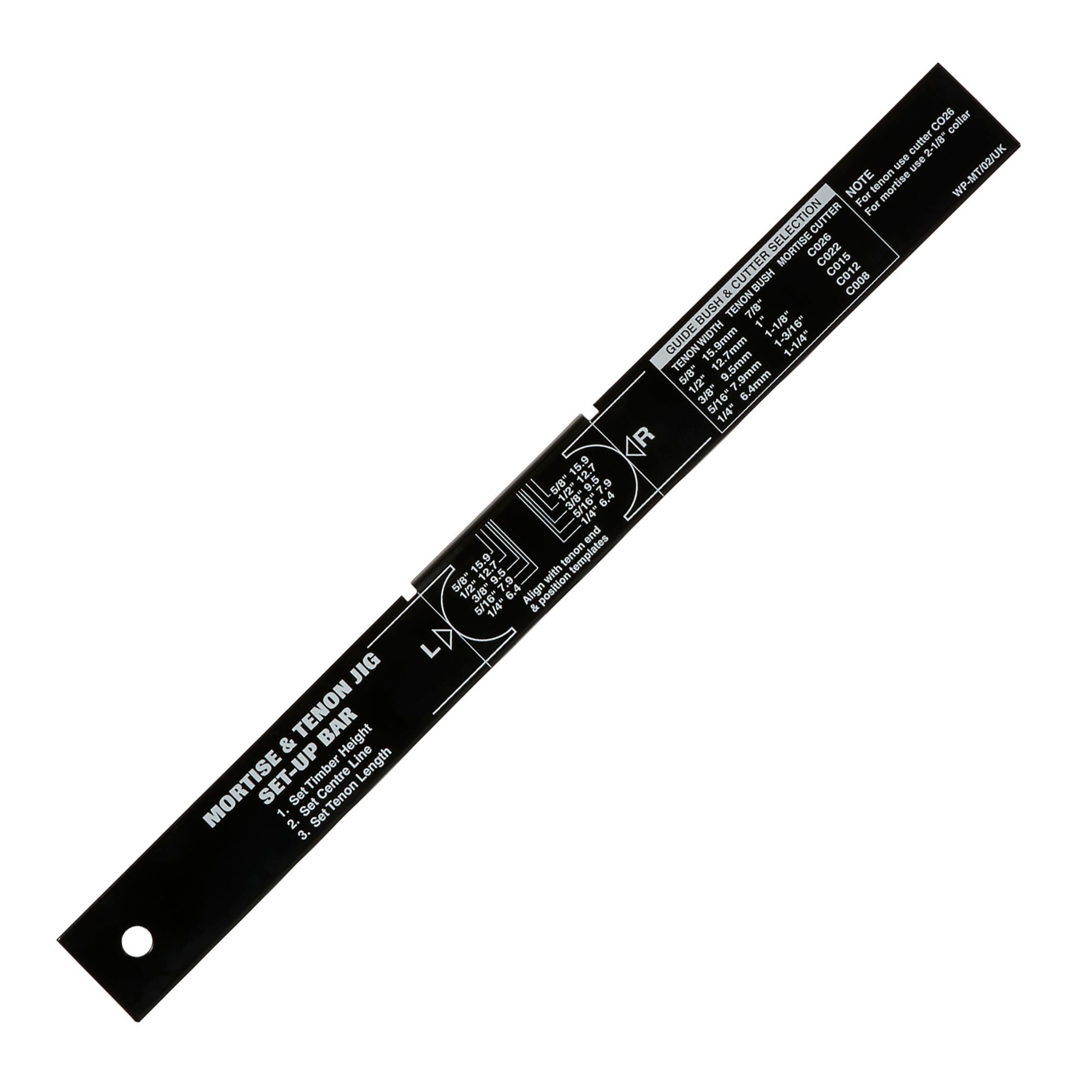

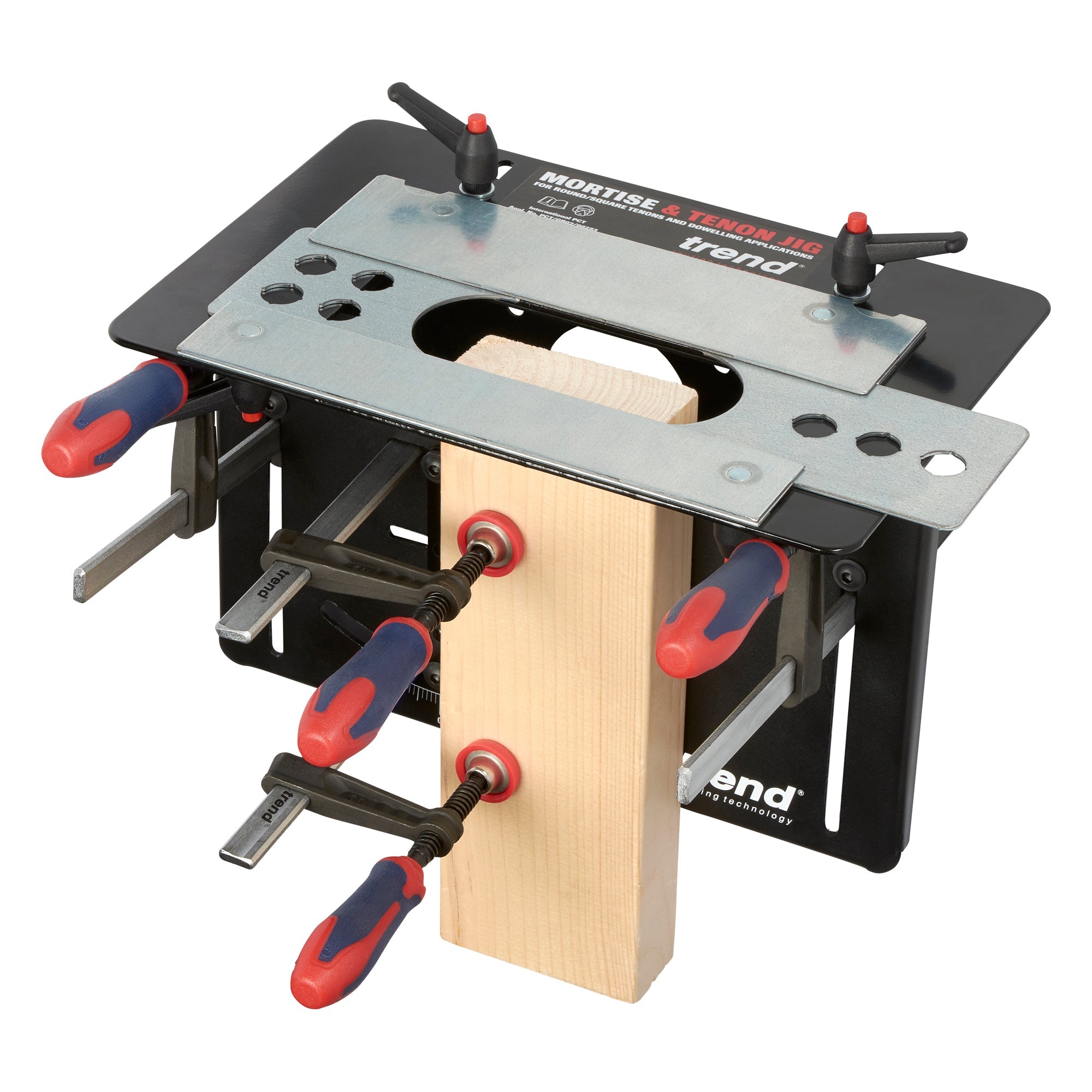

Trend Tools MT/JIG/EURO Mortise And Tenon Jig Euro (Metric Size)

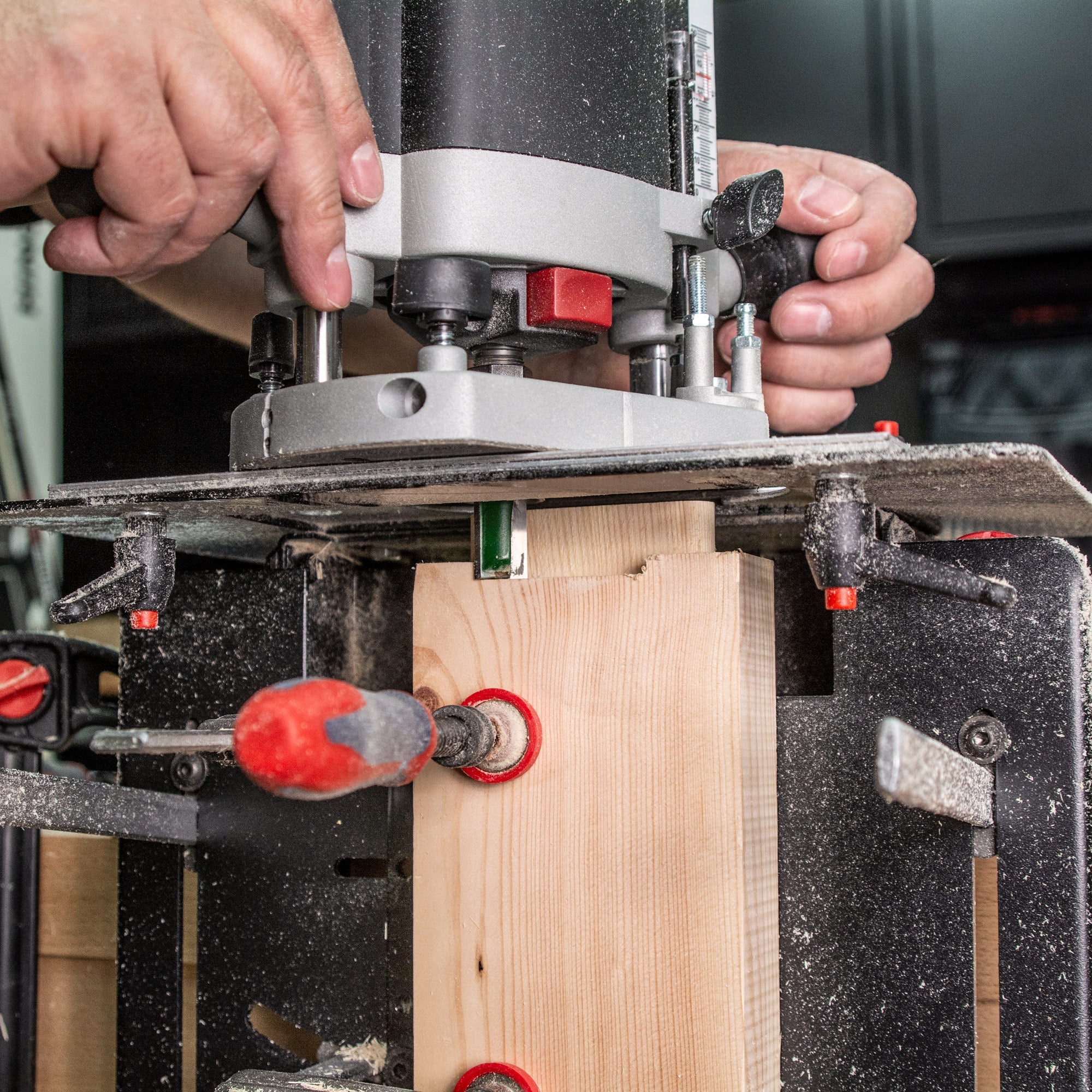

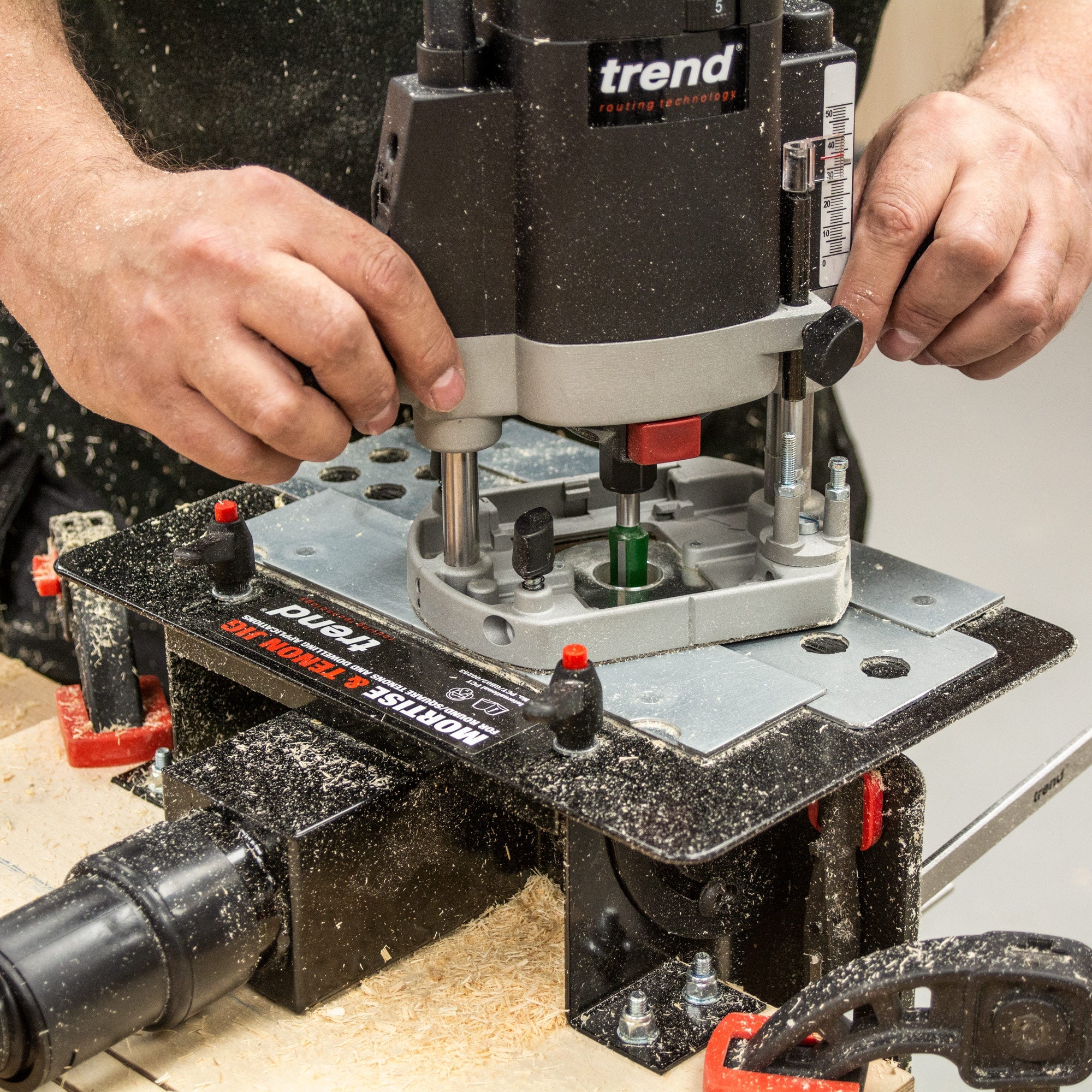

• Enables mortise & tenons and dowel joints to be cut with a router.
• Ideal for cabinet, chair and table.
• CNC precision manufactured plates and body.
• One set-up for both mortise and tenon giving perfectly fitting joints.
• Fully adjustable for compound angle joints up to 45 degree.
• Reversible templates to produce round and square end tenons.
• Templates can be used for accurate dowelling applications.
• Cuts mortise & tenon sizes of 6mm to 16mm.

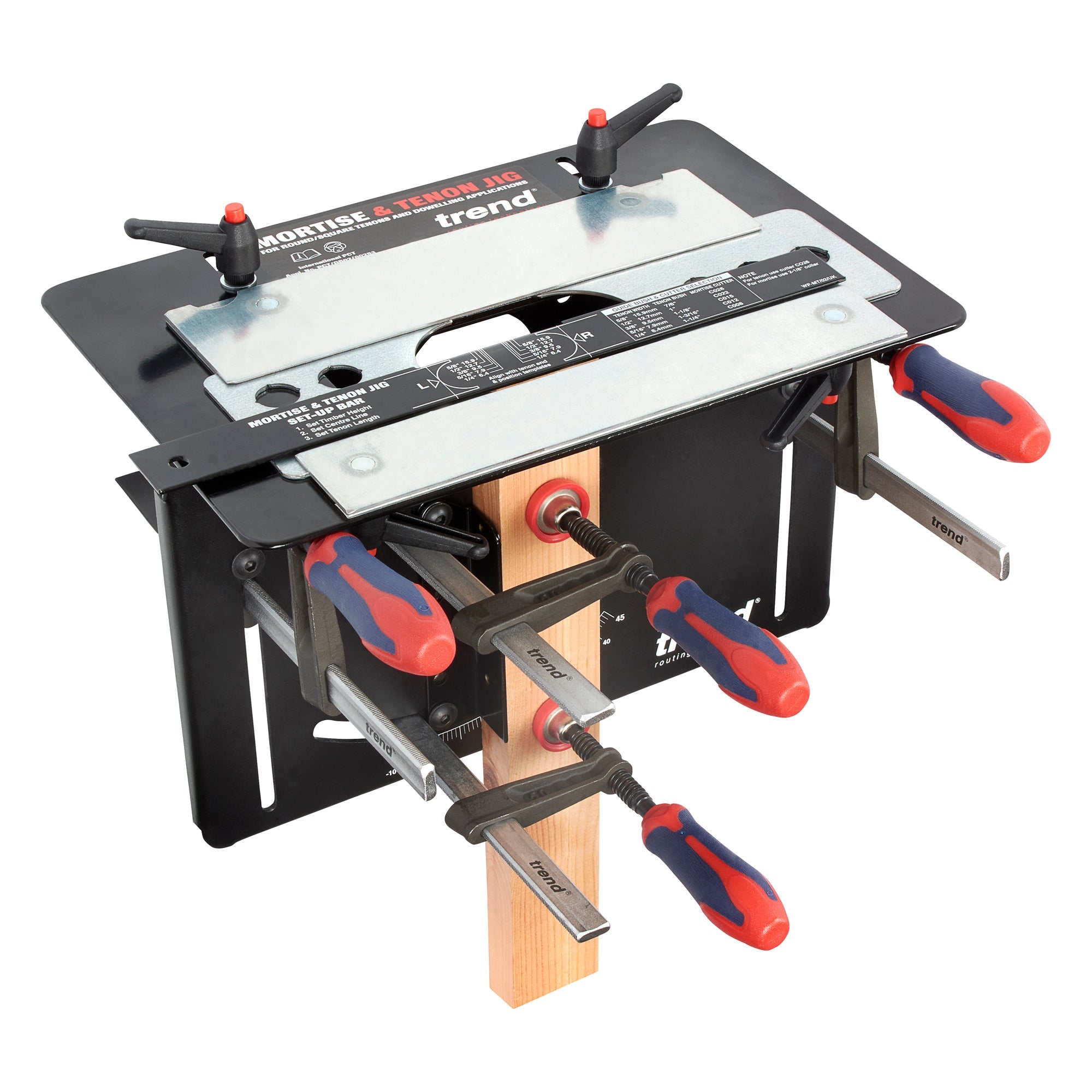

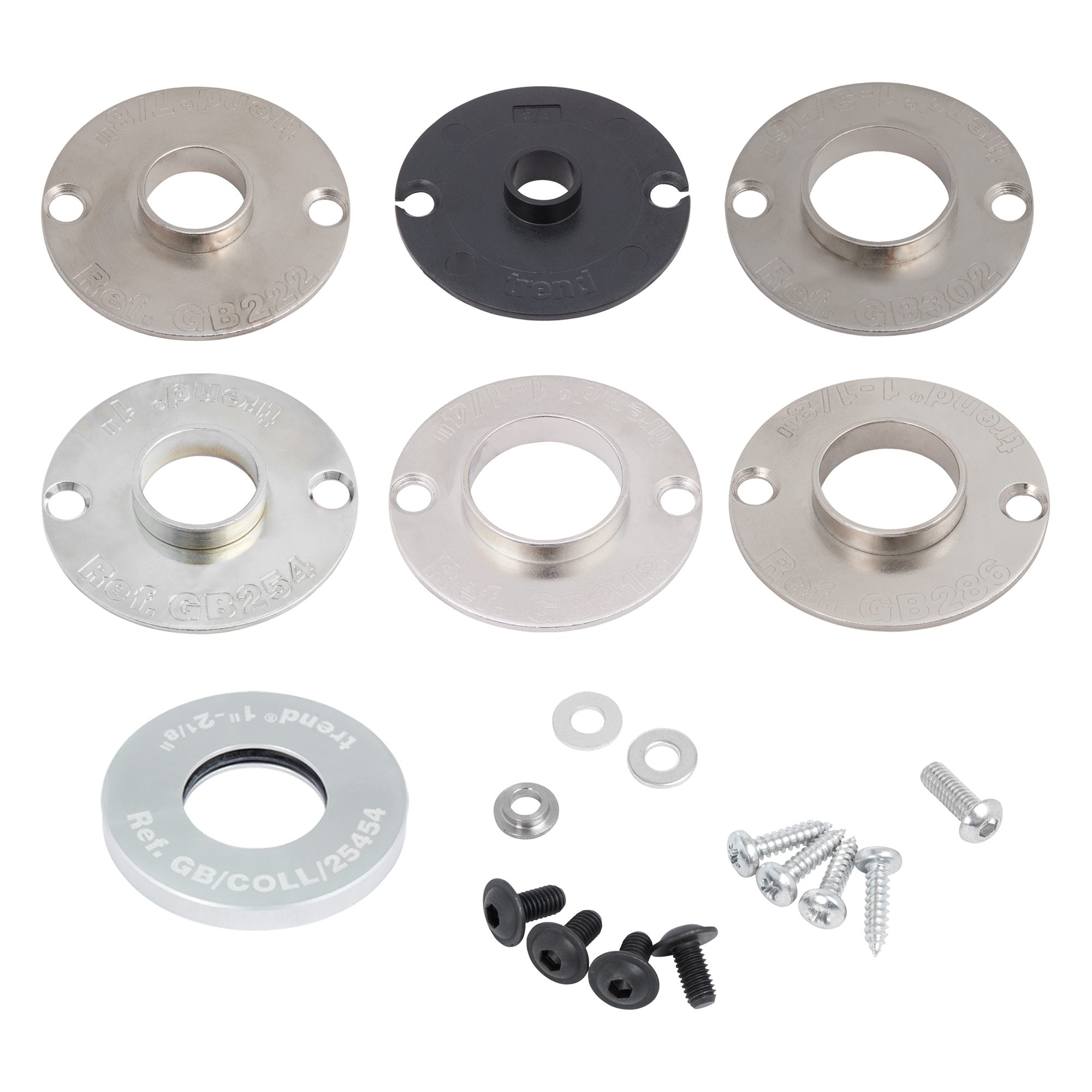

• Guide bushes are included but cutters are required.
• A Unibase may be required for certain makes & models of router.
• All tenons are cut with a 16mm diameter straight cutter (Ref. C025B).

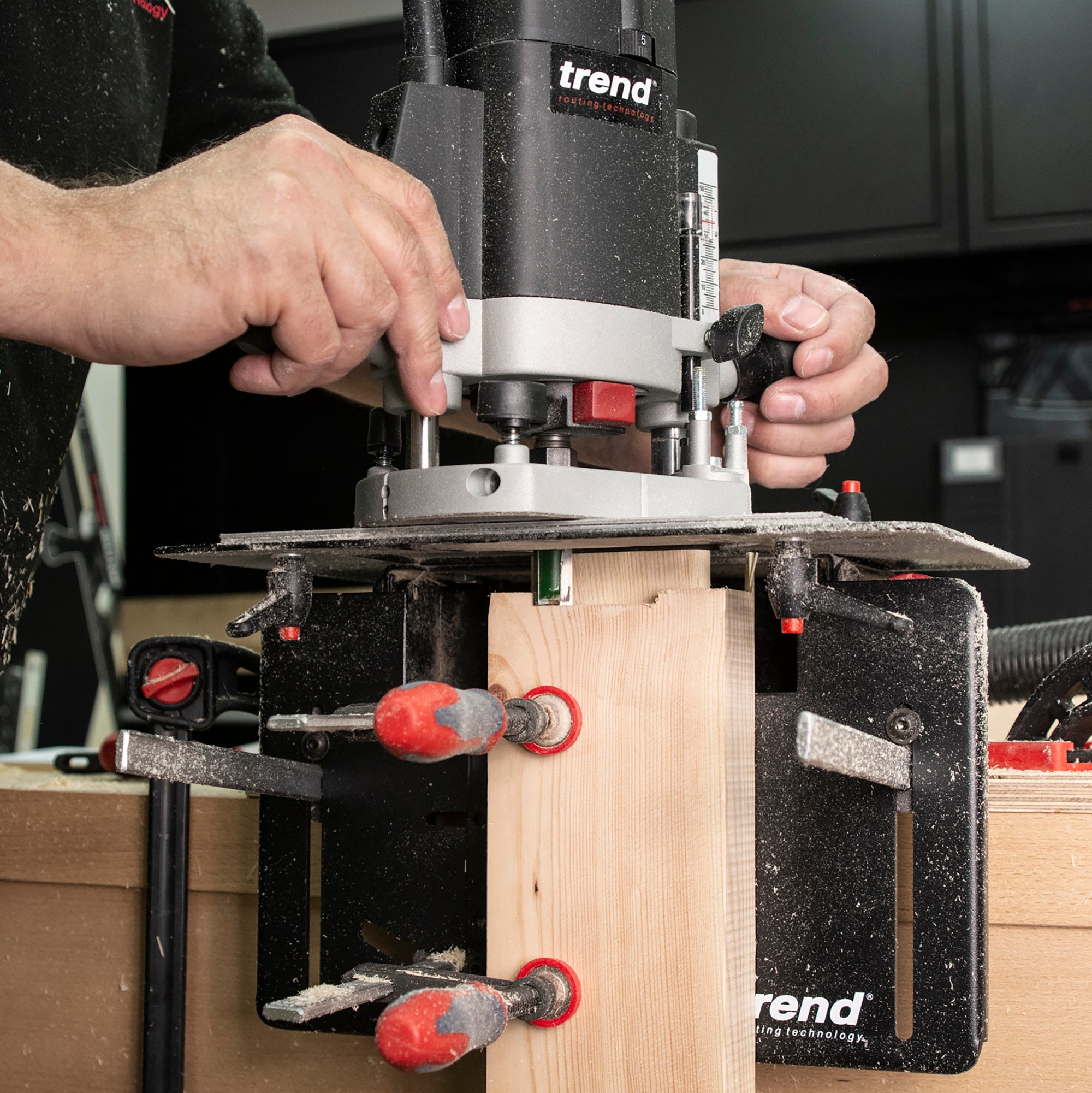

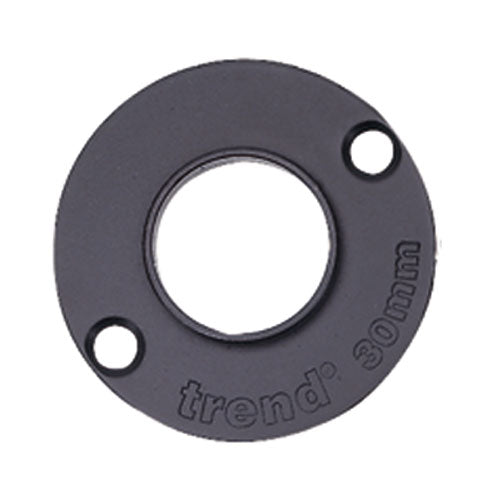

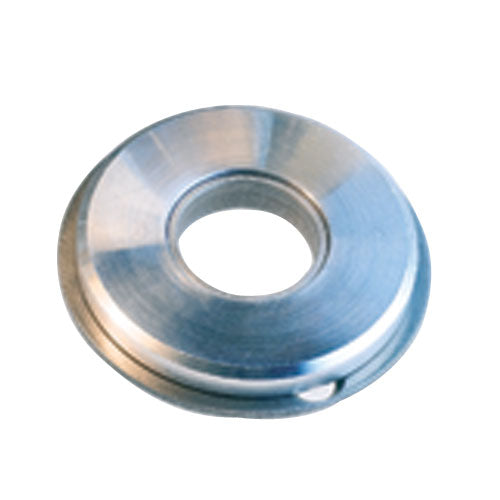

• The width of the tenon is adjusted by using different guide bush diameters.
• Jig requires:
• A portable plunge router with 8 mm shank capacity.

Specifications

• Material thickness min.=12 mm
• Material thickness max.=47 mm
• Tenon thickness min.=4.8 mm
• Tenon thickness max.=16 mm
• Tenon width max. using vertical guide+=90 mm
• Tenon length max.++=Approx. 25 mm
• Mortise length max. using vertical guide+++=90 mm
• Angle tilt compound=-10 degree to 45 degrees
• ++ depends on cut length and plunge depth of the router.
• +++unlimited if vertical guide removed and wood repositioned.
