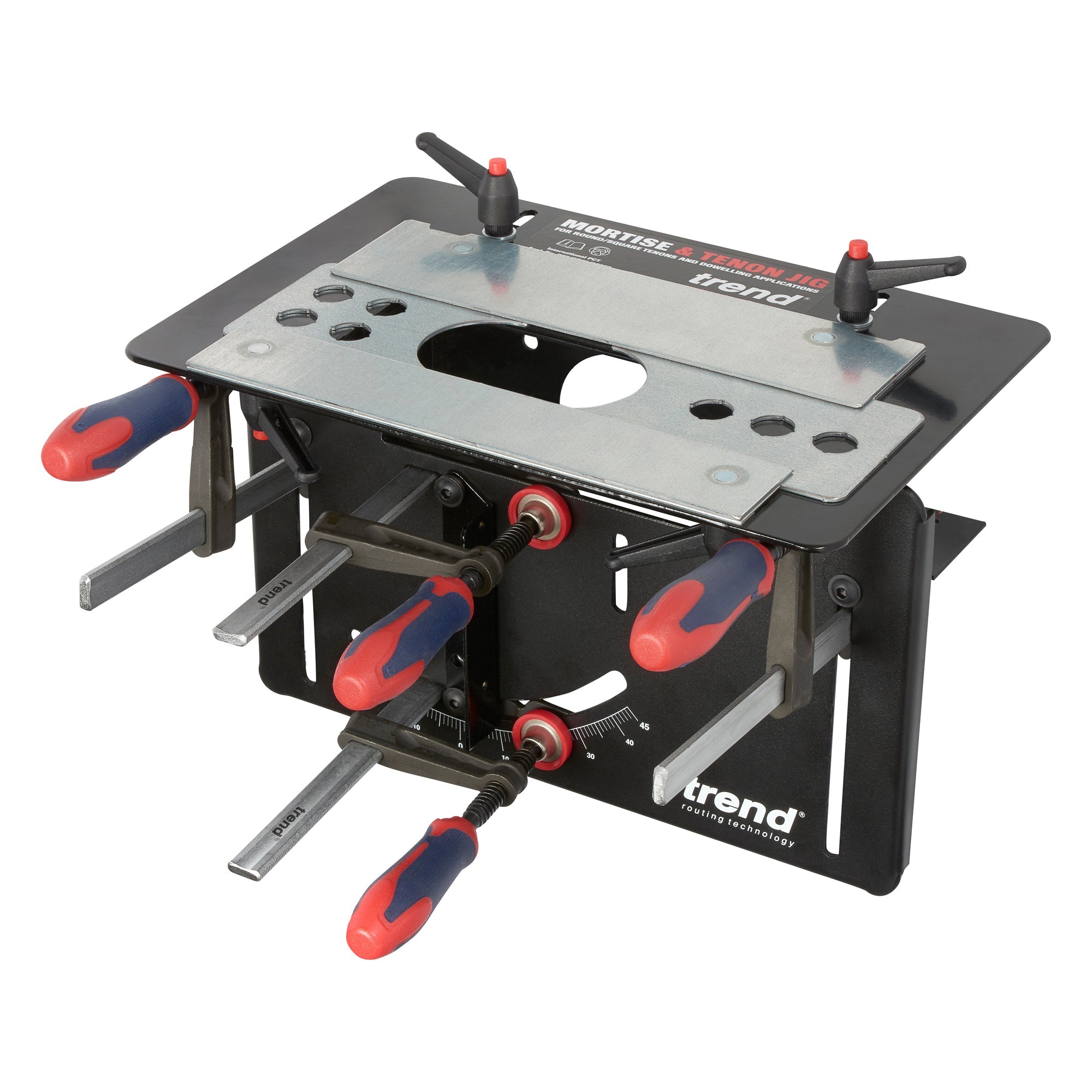

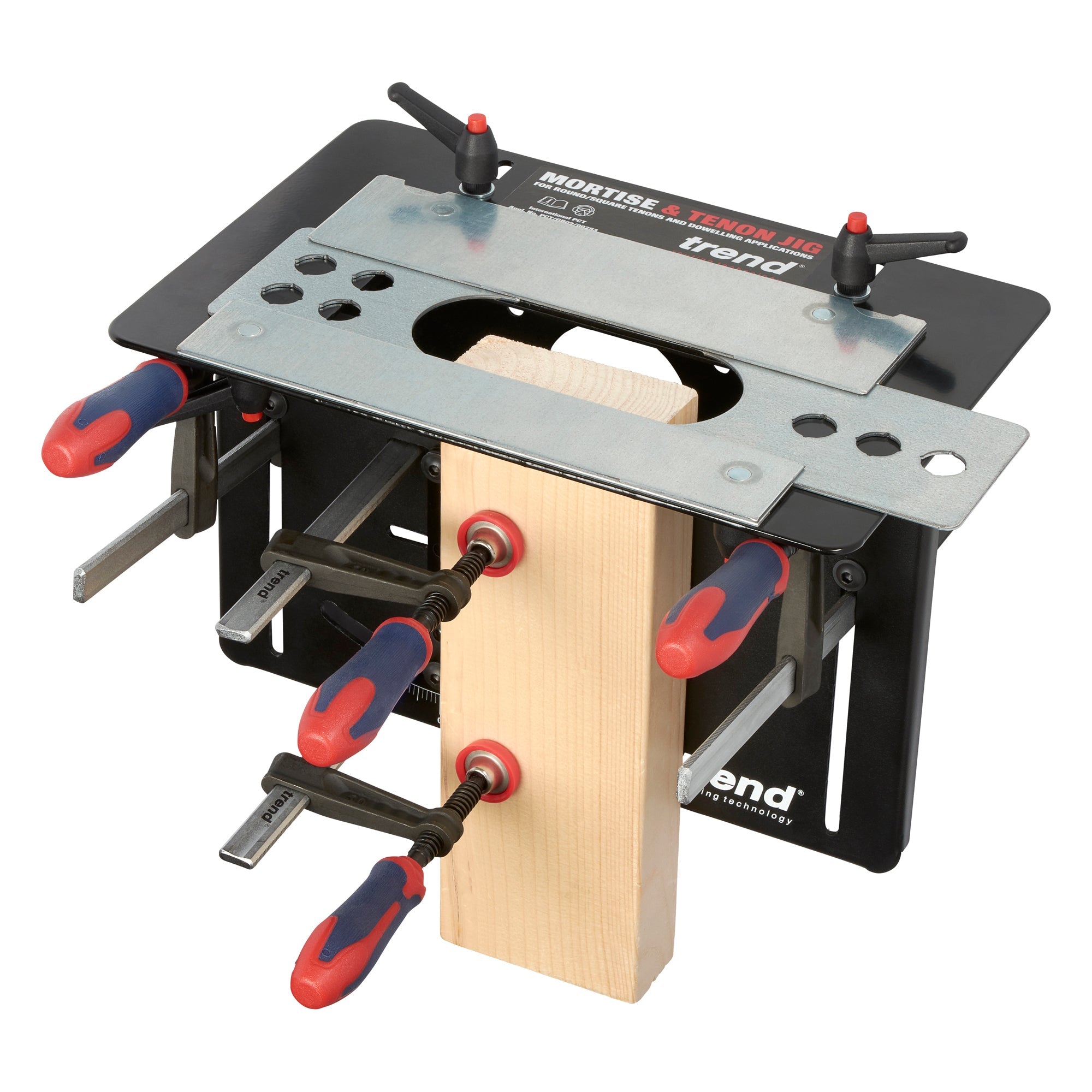

Trend Tools MT/JIG Mortise And Tenon Jig (Imperial Size)

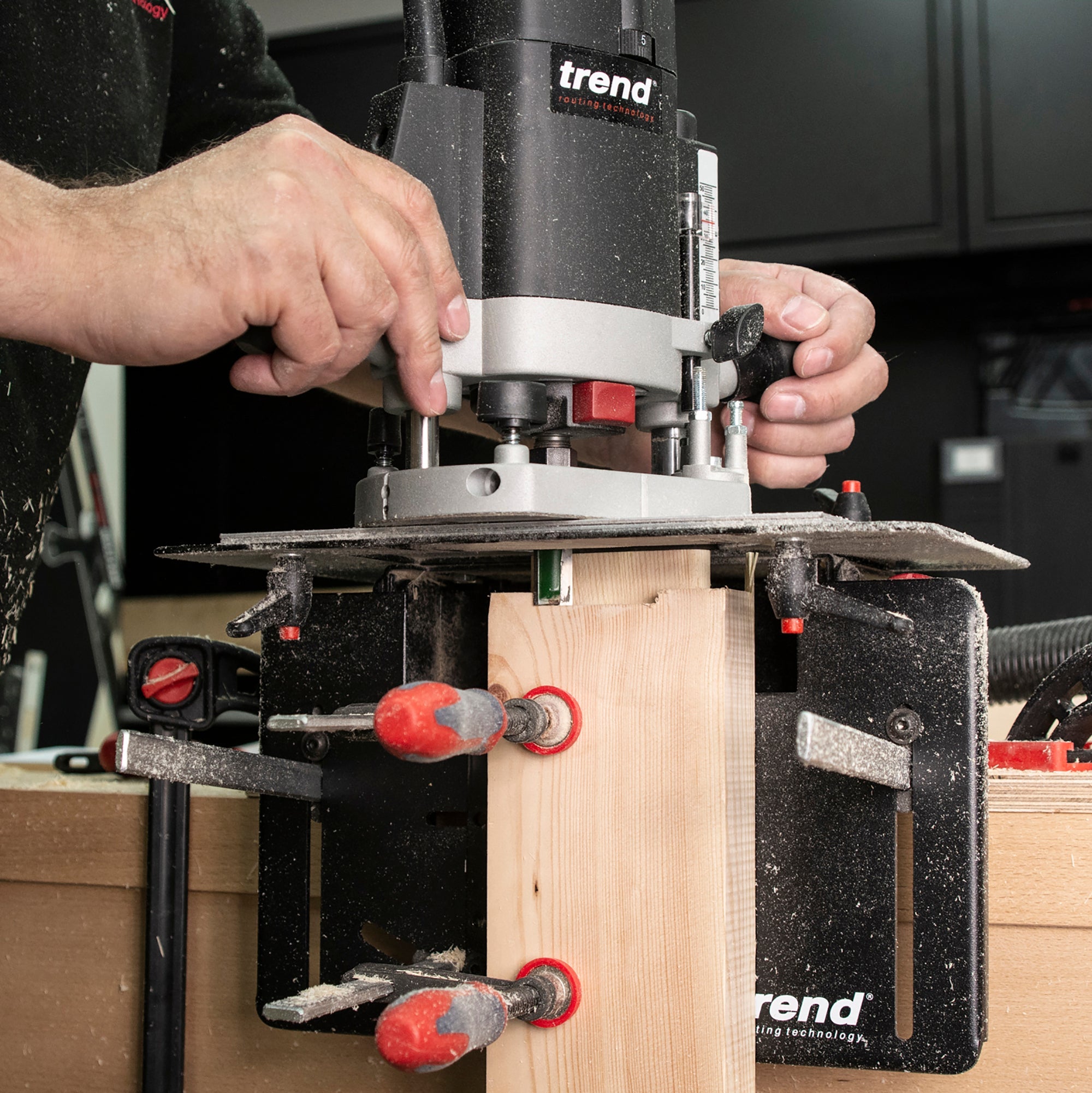

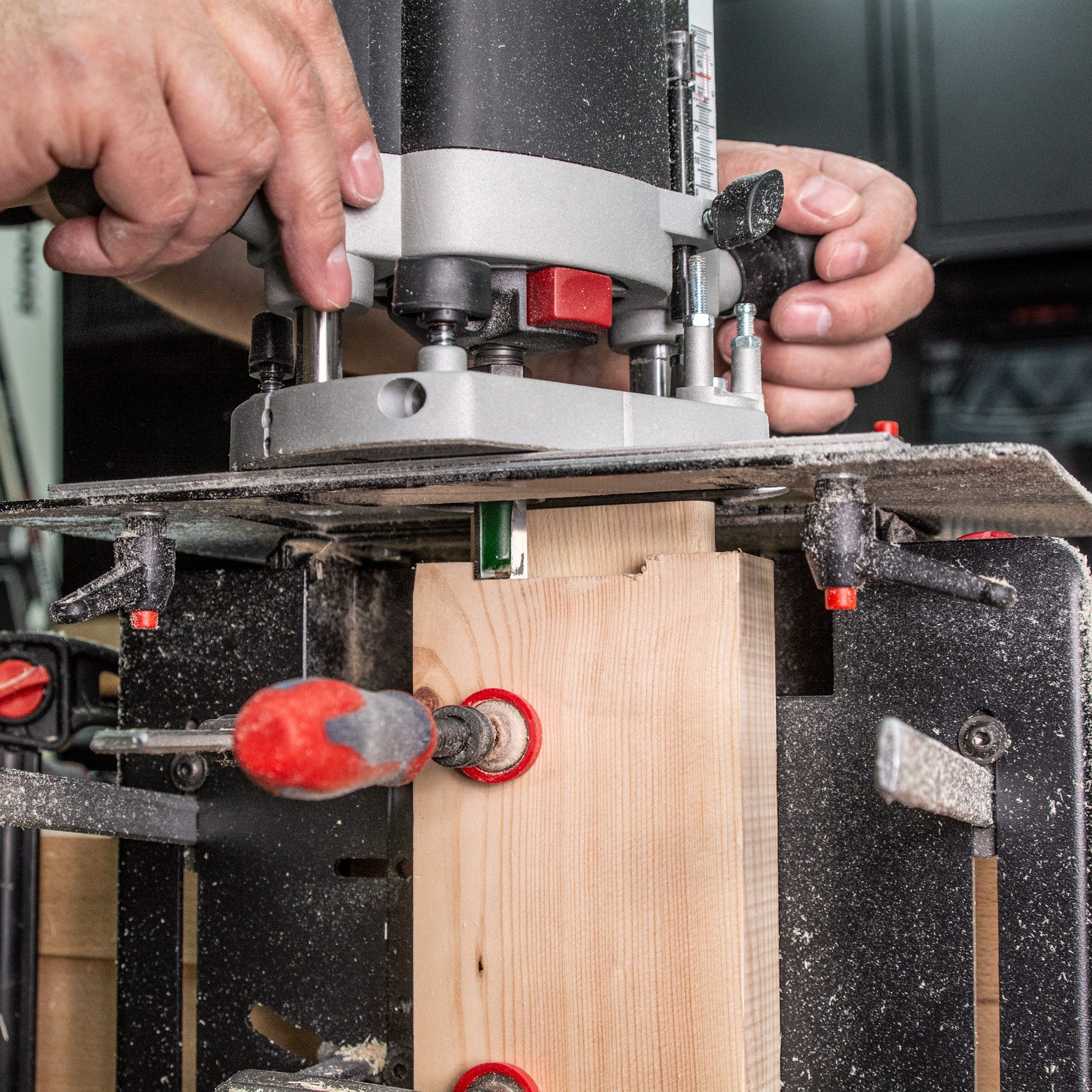

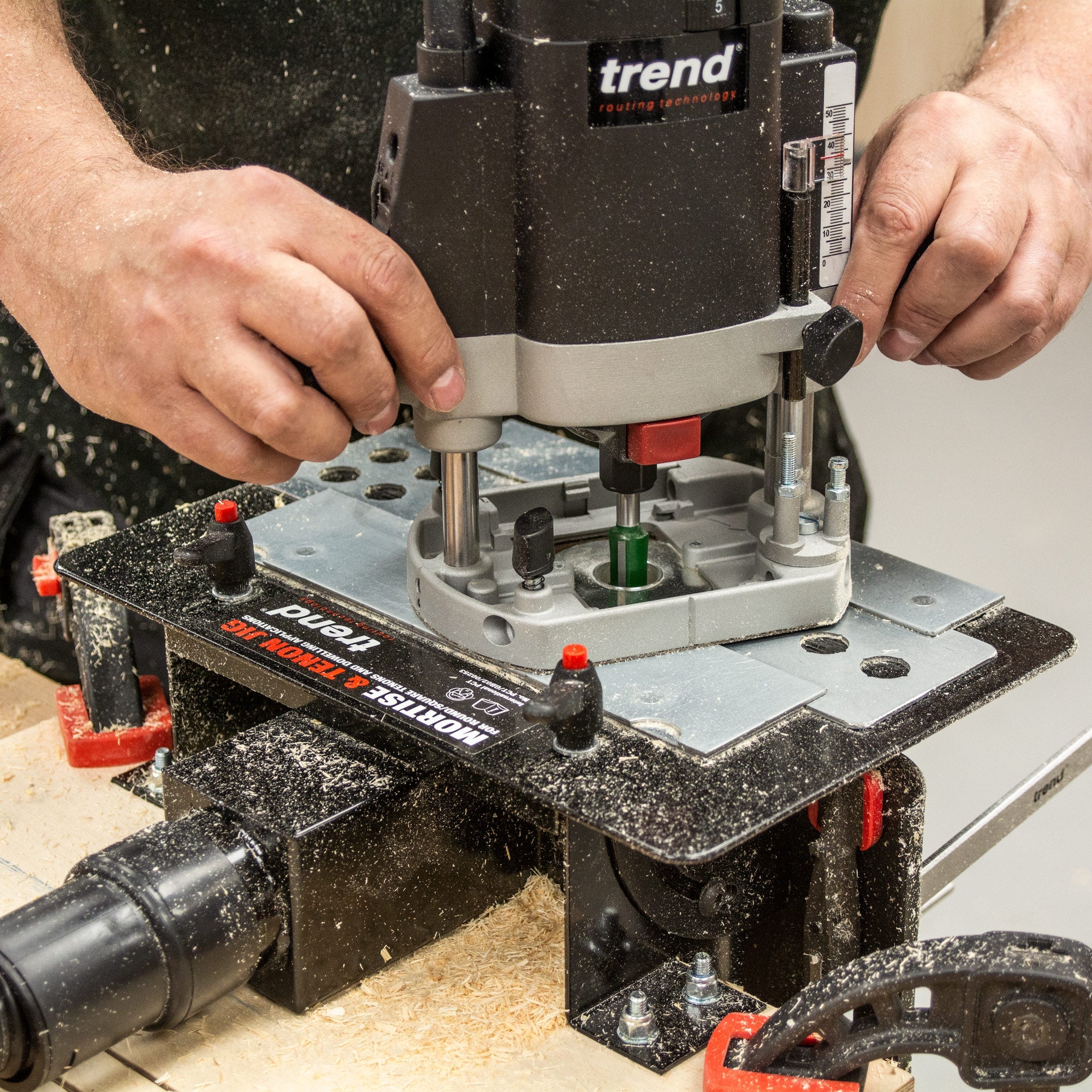

• Enables mortise & tenons and dowel joints to be cut with a router.
• Ideal for cabinet, chair and table.
• CNC precision manufactured plates and body.

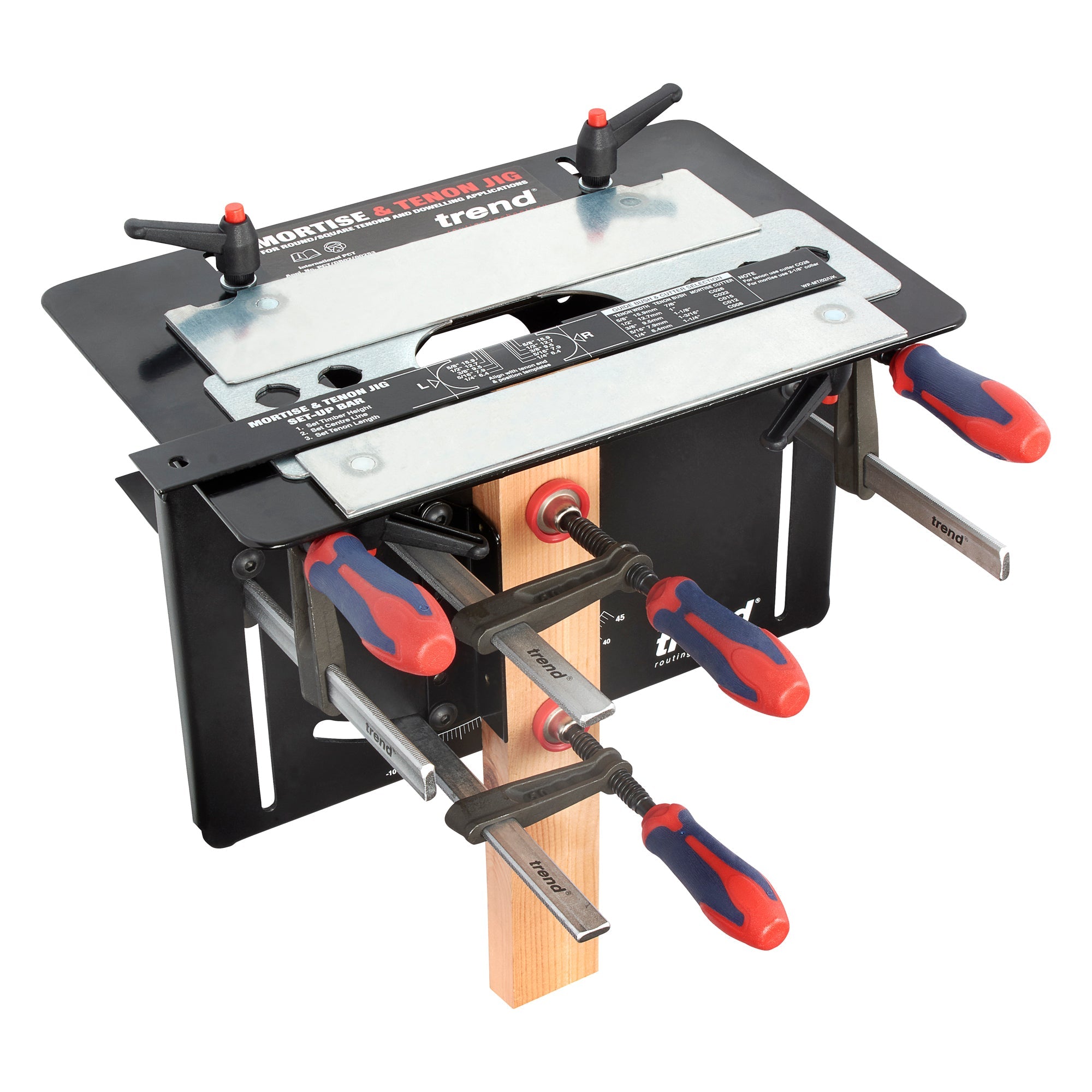

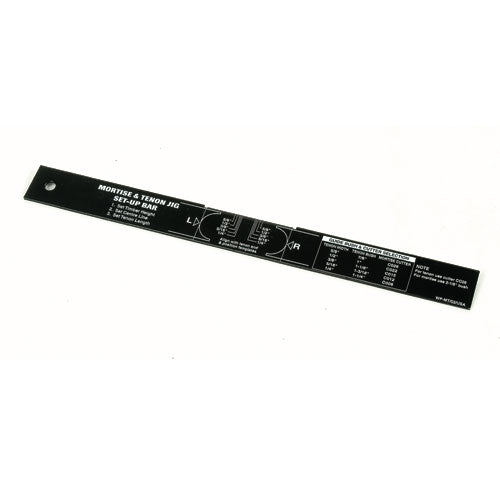

• One set-up for both mortise and tenon giving perfectly fitting joints.
• Fully adjustable for compound angle joints up to 45 degree.
• Reversible templates to produce round and square end tenons.
• Templates can be used for accurate dowelling applications.
• Cuts mortise & tenon sizes of 1/4 inch (6.35mm) to 5/8 inch (15.9mm).

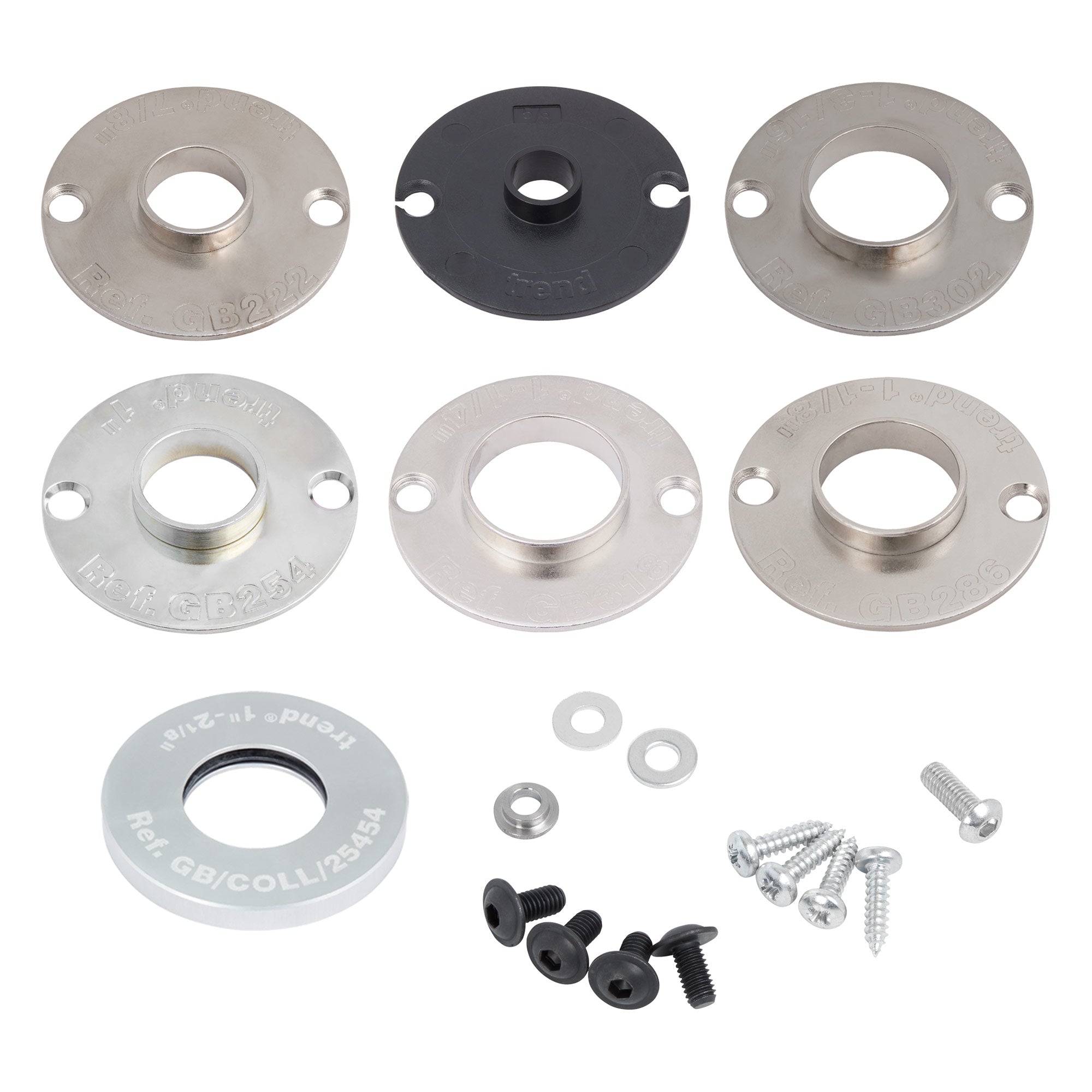

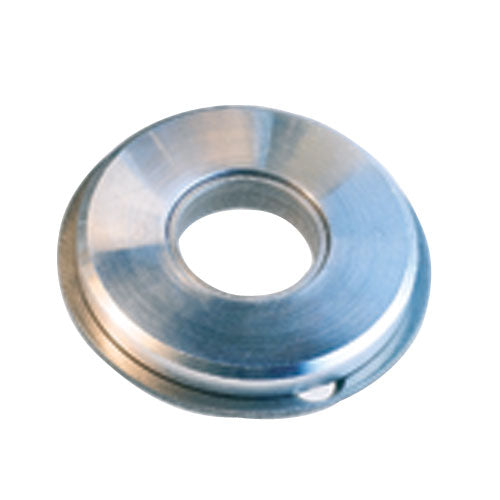

• Guide bushes are included but cutters are required.
• A Unibase may be required for certain makes & models of router.
• All tenons are cut with a 5/8 inch diameter straight cutter (Ref. C026).

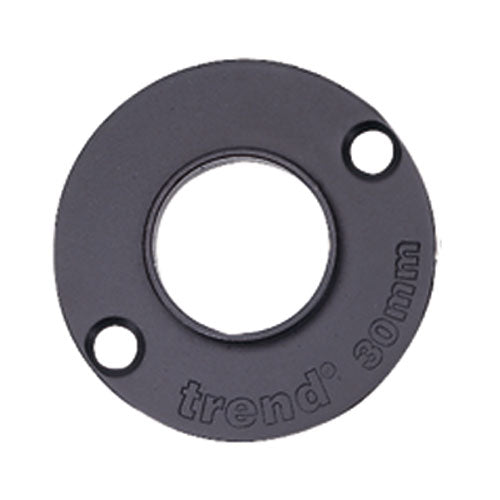

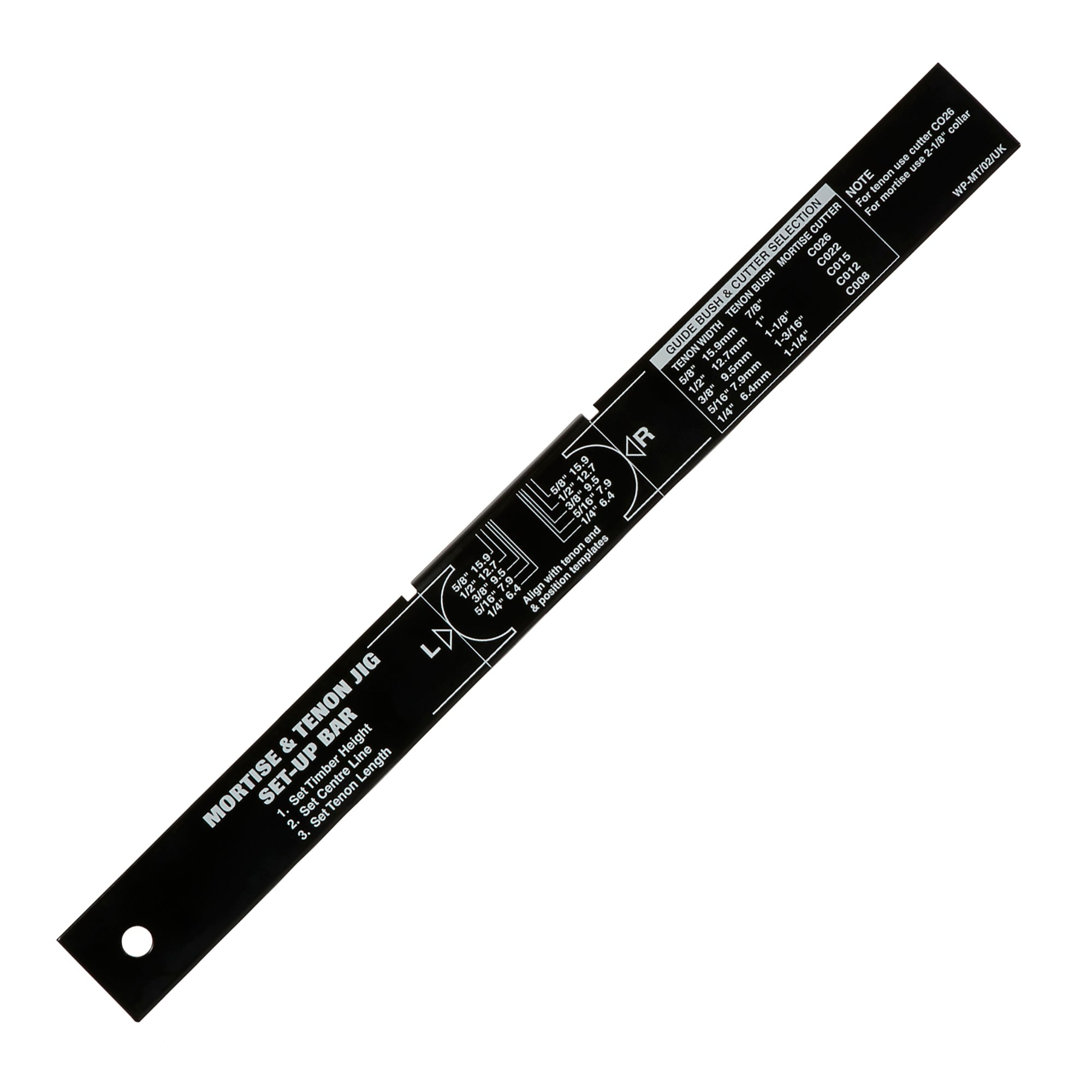

• The width of the tenon is adjusted by using different guide bush diameters.
• Jig requires:
• A portable plunge router with 6.35 mm (1/4 inch) shank capacity.

Specifications

• Material thickness min.=12 mm
• Material thickness max.=47 mm
• Tenon thickness min.=4.8 mm
• Tenon thickness max.=16 mm
• Tenon width max. using vertical guide+=90 mm
• Tenon length max.++=Approx. 25 mm
• Mortise length max. using vertical guide+++=90 mm
• Angle tilt compound=-10 degree to 45 degrees
• ++ depends on cut length and plunge depth of the router.
• +++unlimited if vertical guide removed and wood repositioned.
