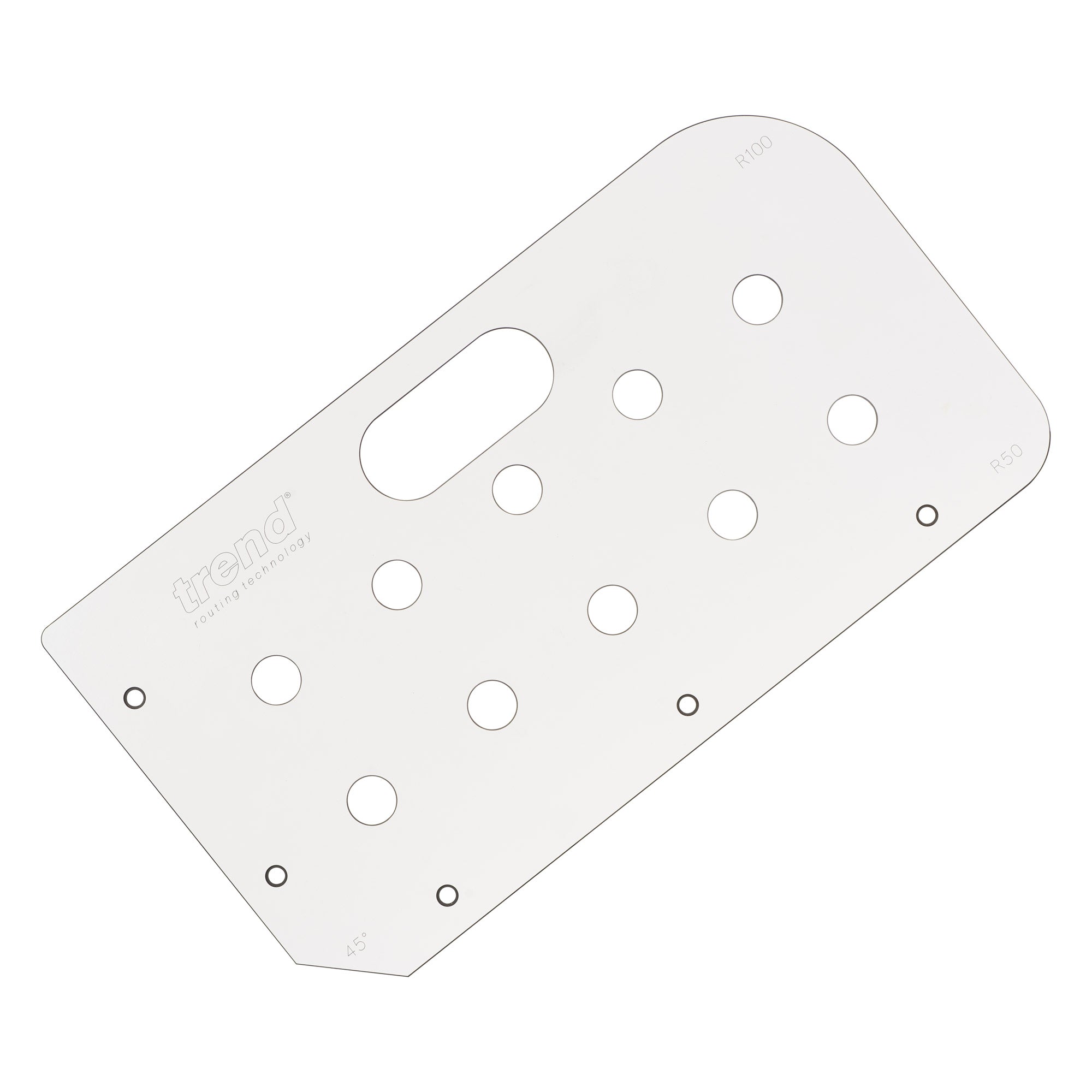

Trend Tools MFT/JIG Multi Functional Table Routing Jig

• Multi-functional table top making jig.
• Create accurate precise MFT style worktops quickly with a plunge router.
• For router drilling 20mm holes at 96mm centres.

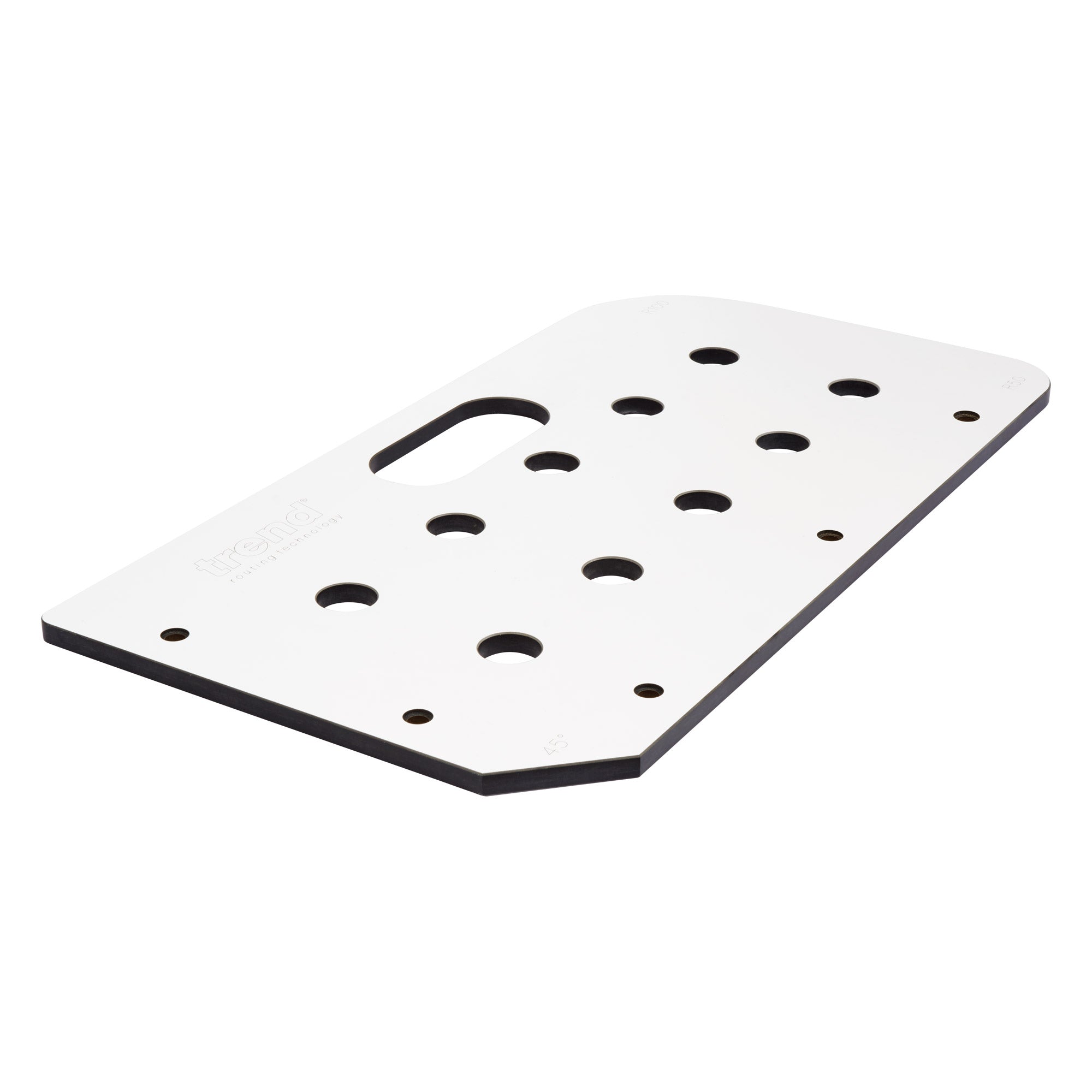

• Made from Compact Grade High Pressure Laminate 12mm thick.

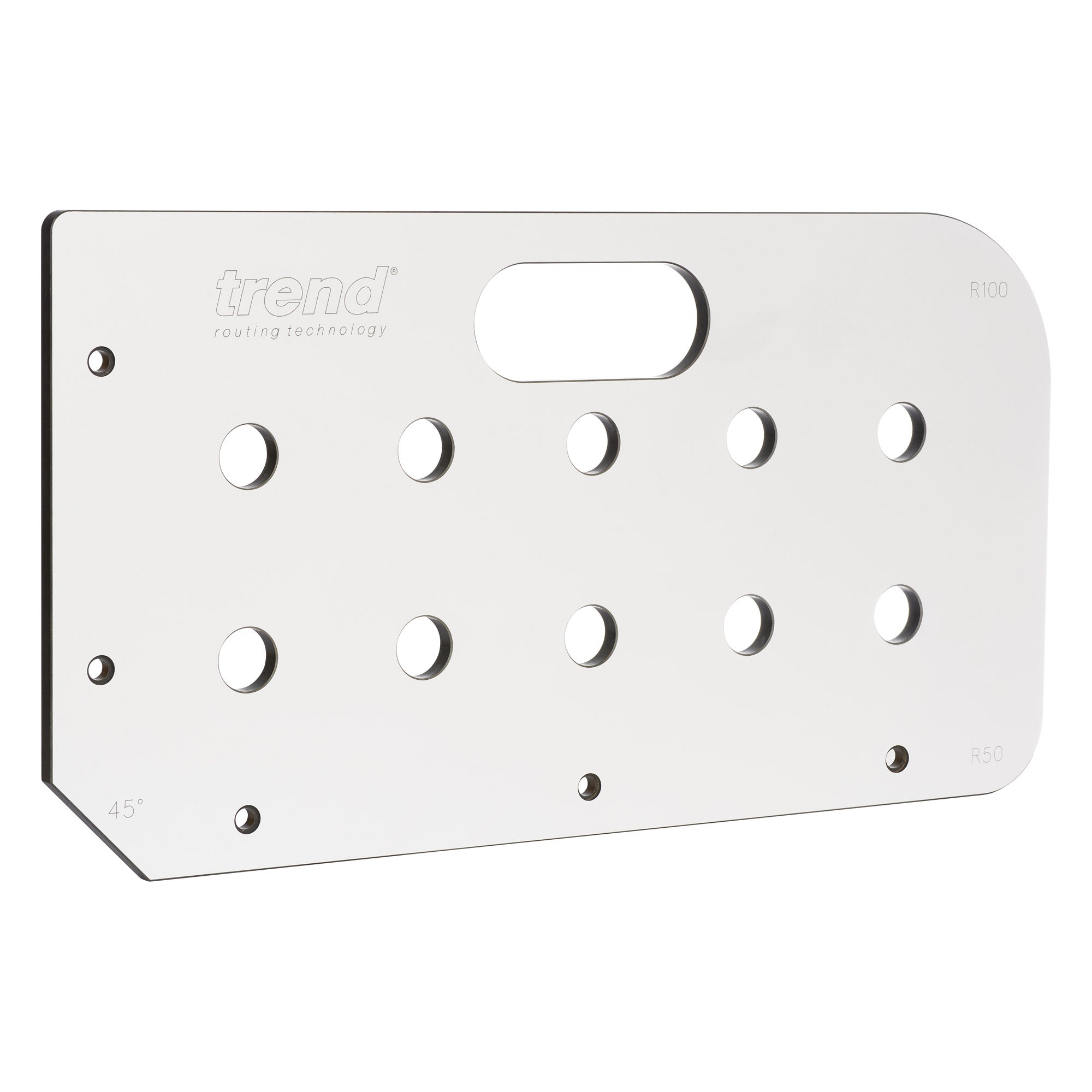

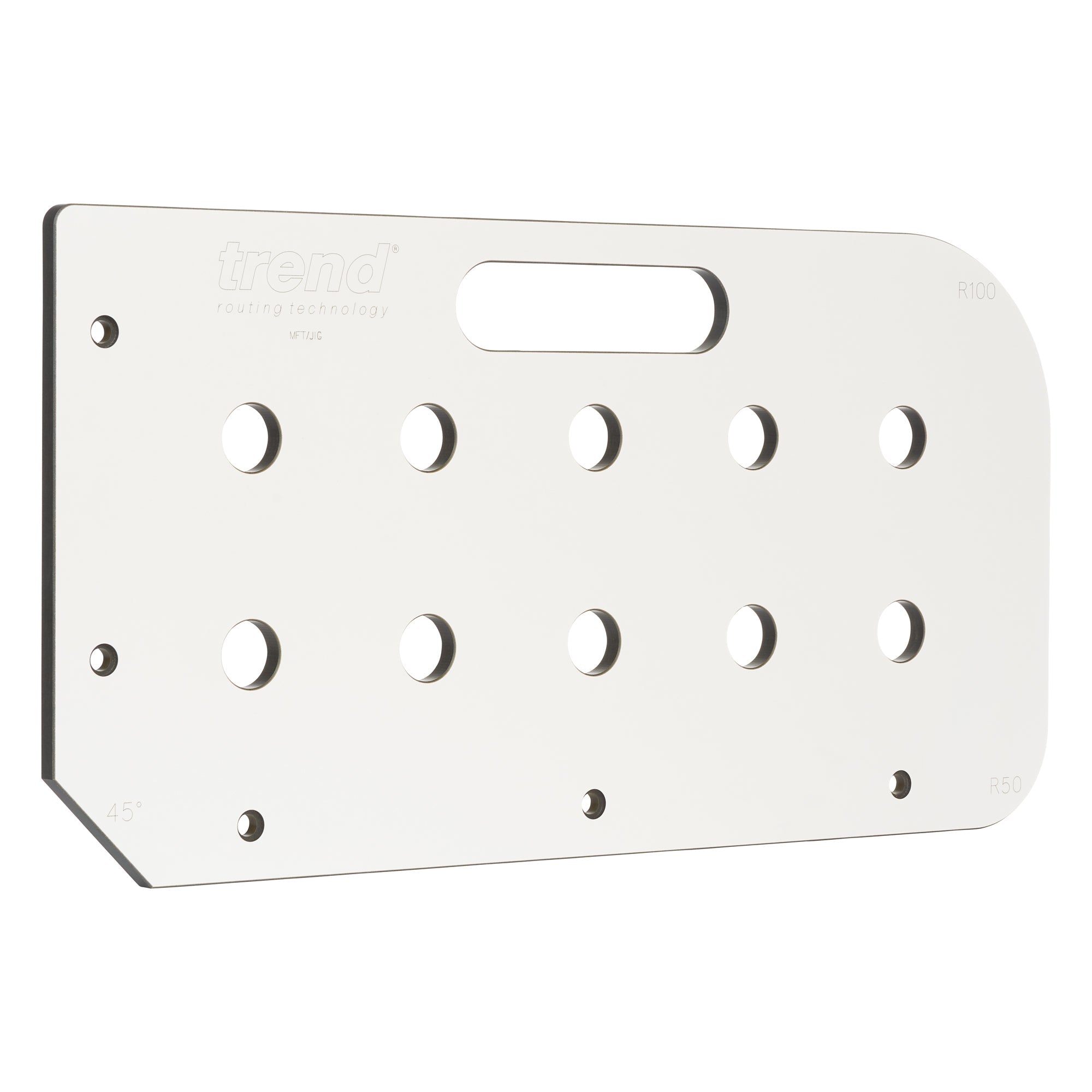

• Two corner radii and 45 degree end cut.

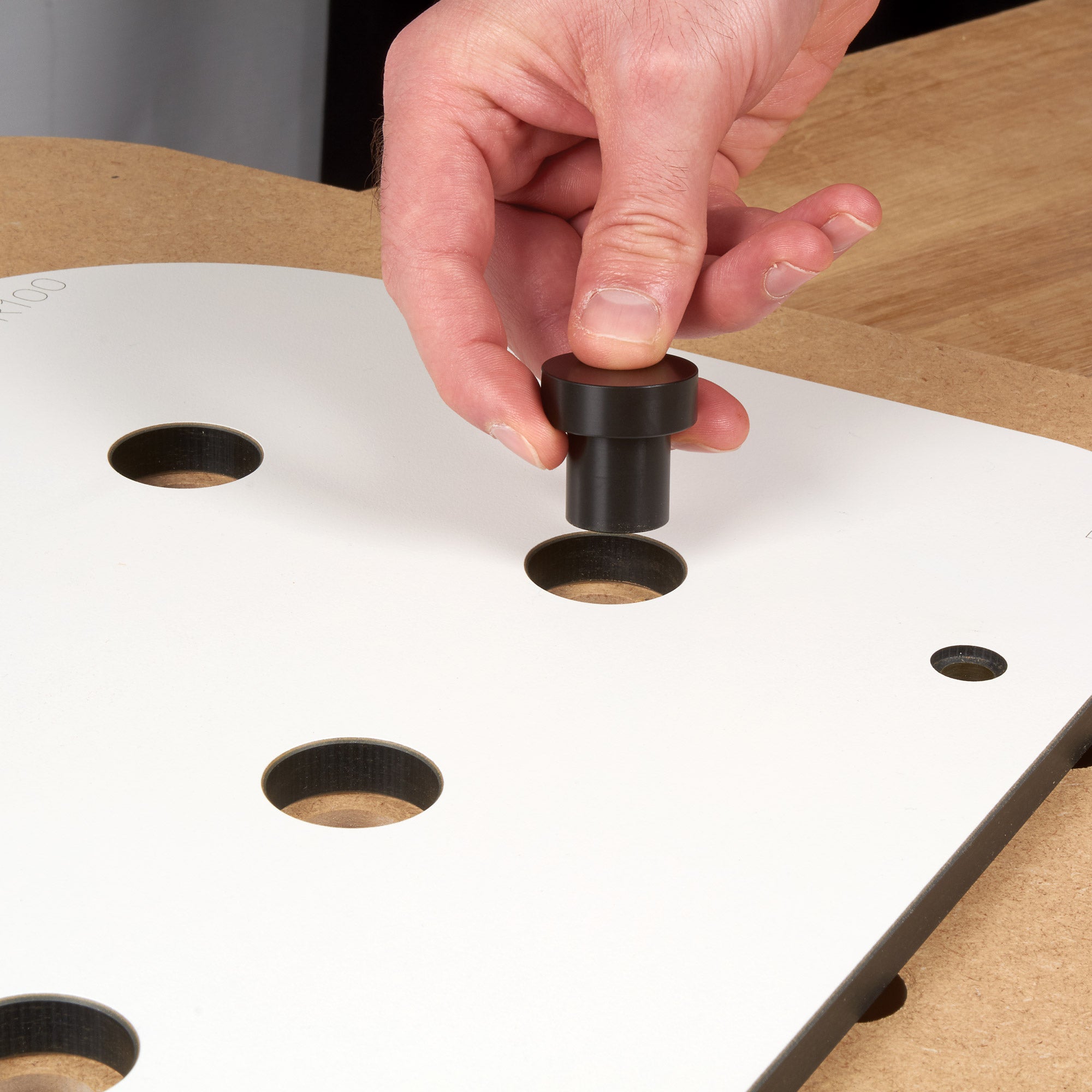

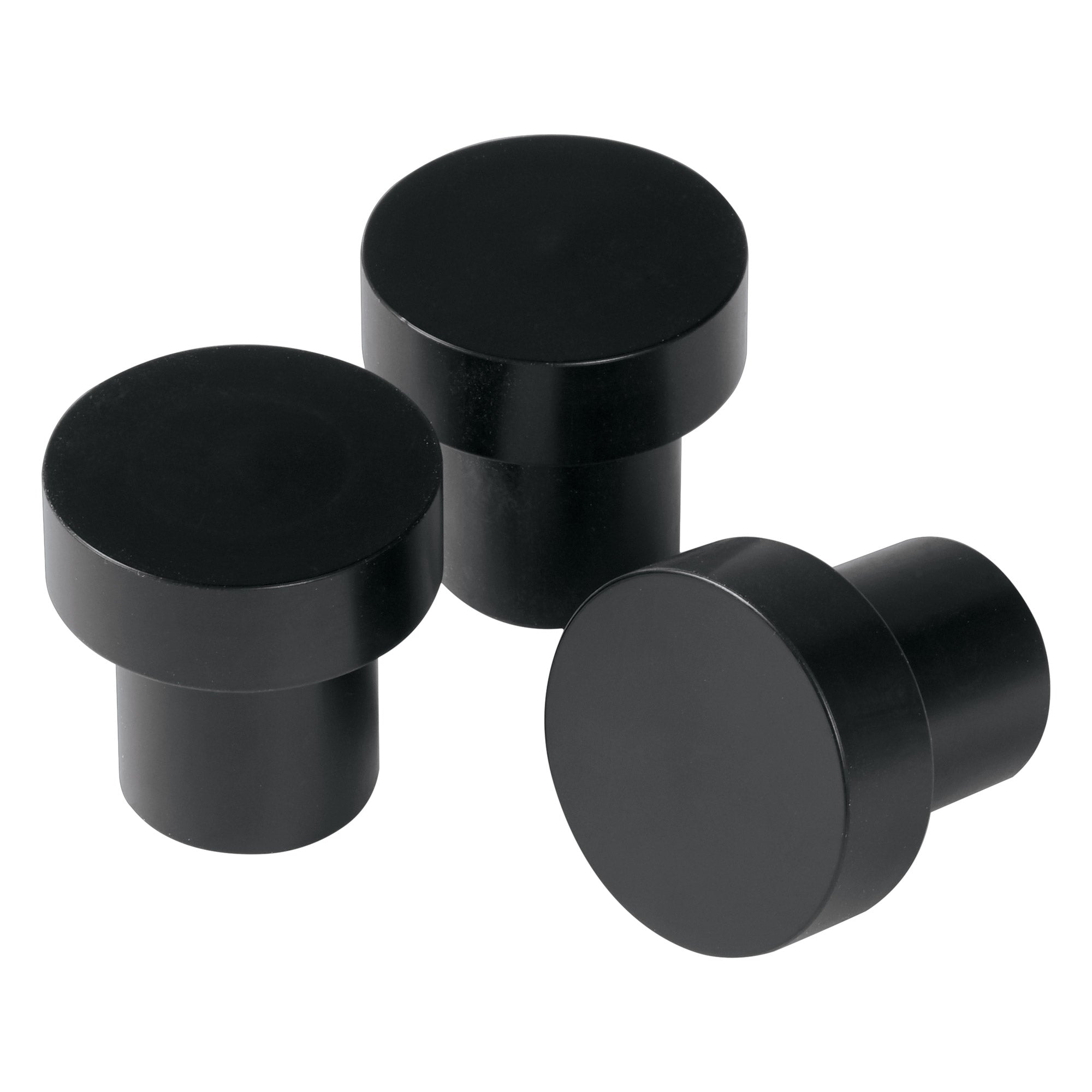

• Edge guides for initial rows, index pins for indexing for subsequent holes.
• Recess aperture facility for desk tidy.
• Jig requires:

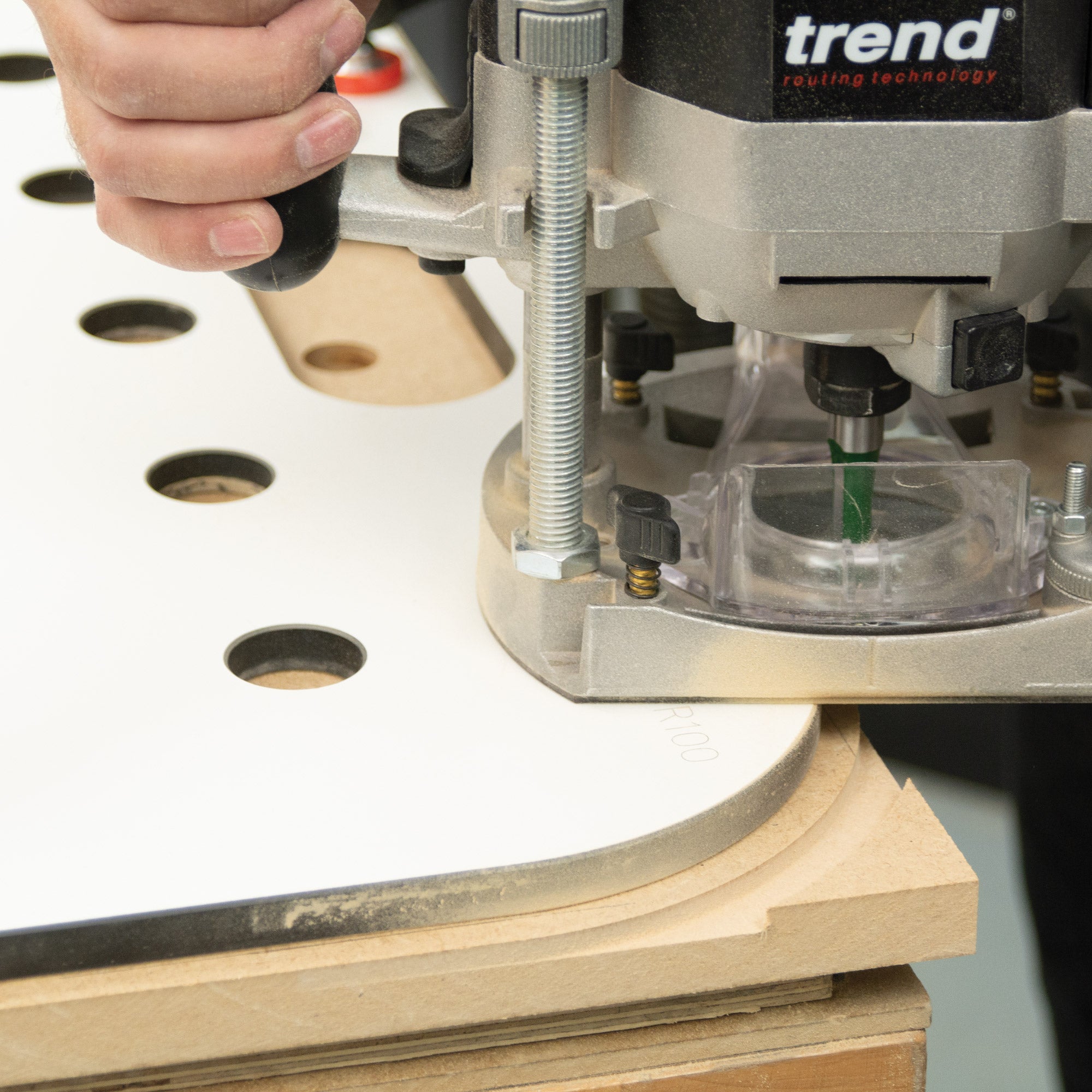

• A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
• A template guide bush with 30mm outside diameter ref. GB30/A.
• A long series TCT plunge cut router cutter with 20mm diameter and 37mm cut length.
• Two clamps.

Specifications

• Hole centres=96 mm
• Radii=50 mm & 100 mm
• End cut=45 degrees
• Size=298mm x 586mm
• Weight=3 Kg
• Guide bush=30 mm
• Plunge router=1/2-inch
• Cutter=20mm x 37mm cut with plunge cut
• Clamps=Two
• Please note
• When using a jig there will be a cumulative error that cannot be avoided when indexing the jig on existing holes.
