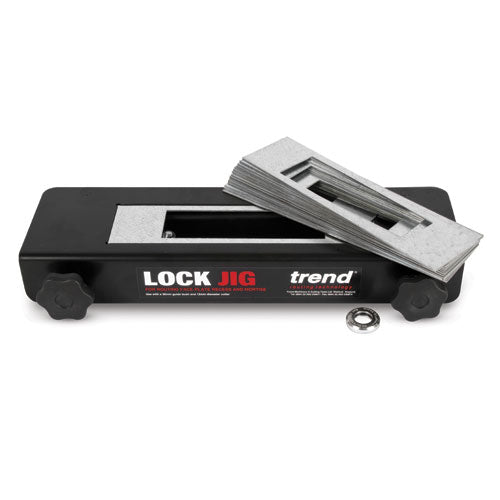

Trend Tools LOCK/JIG/A Lock Jig Large

• Contractor jig with interchangeable templates for use with a plunge router to cut the mortise & face-plate for larger locks quickly & accurately.
• Suitable for DDA (Disabilty Discrimination Act) lock size.

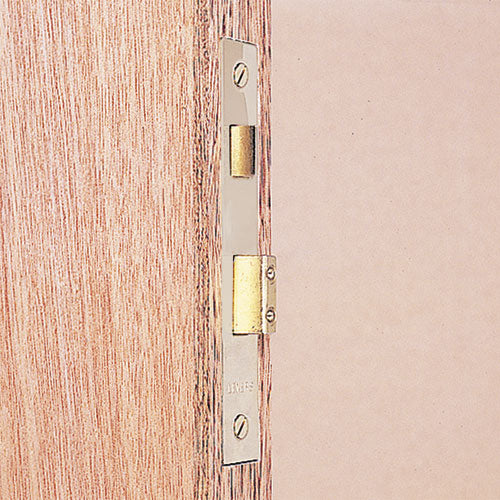

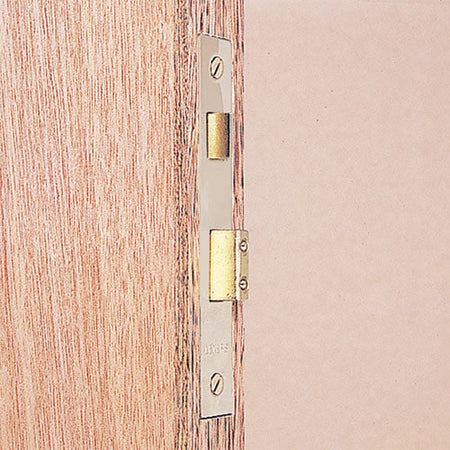

• 20mm x 235mm radius end face plate, 24mm x 235mm radius end face plate and 17mm x 170mm mortise.

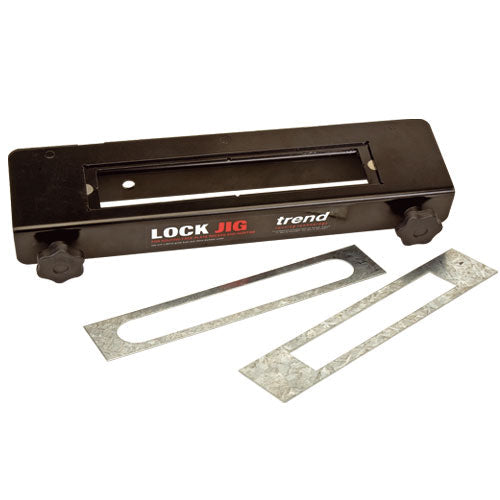

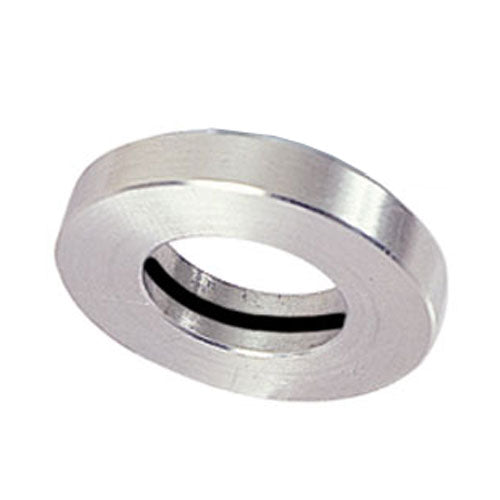

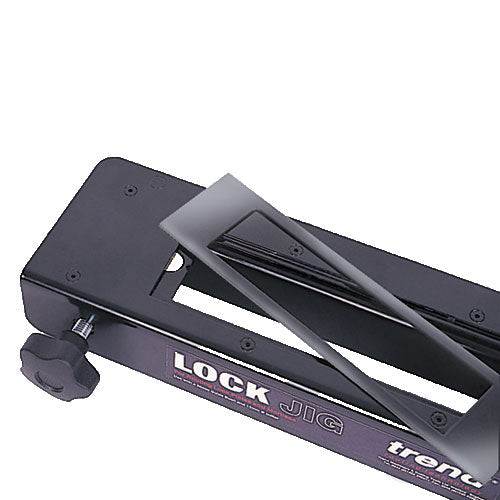

• Adaptor plate included to allow smaller templates (239mm x 60mm) to be fitted (as supplied with standard LOCK/JIG).

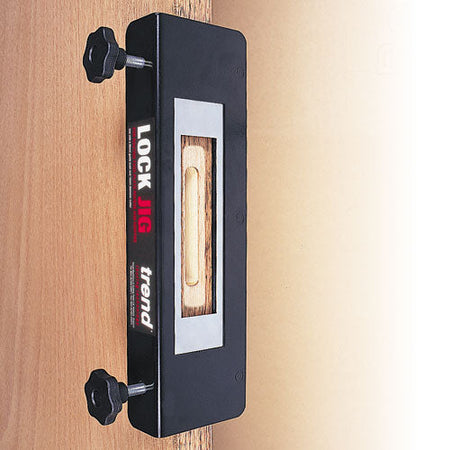

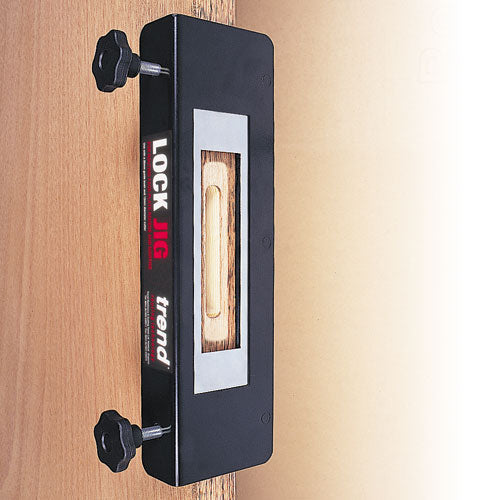

• Suitable for doors 34mm to 58mm thick.
• An auger bit and drill is required to complete deep mortises.

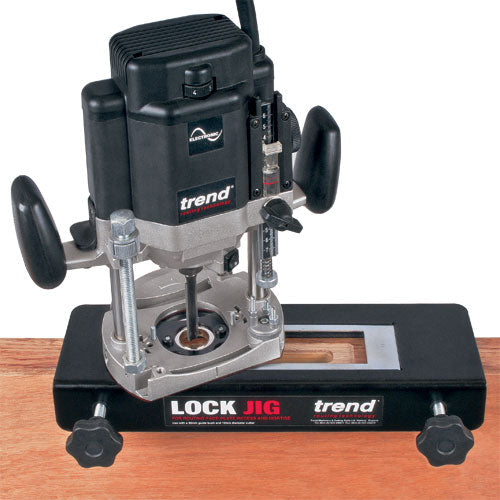

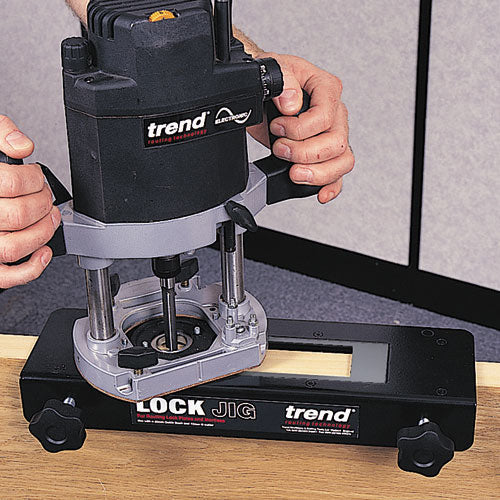

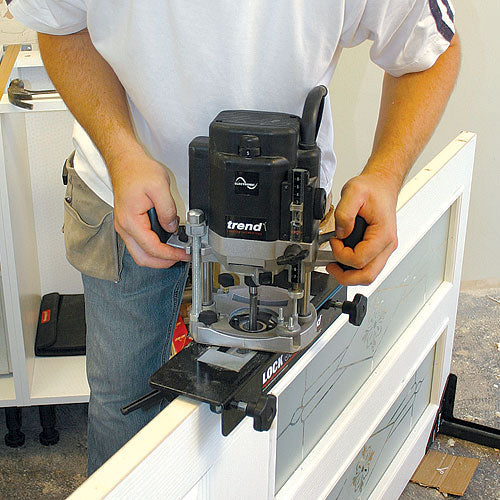

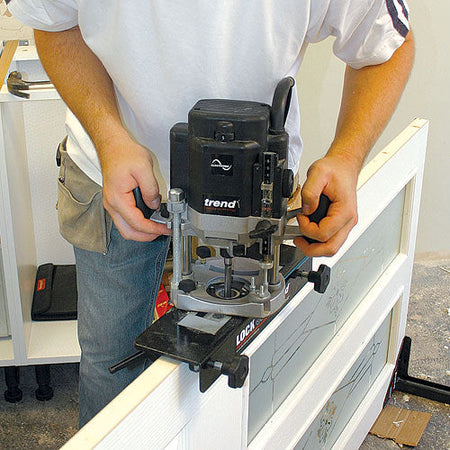

• The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.

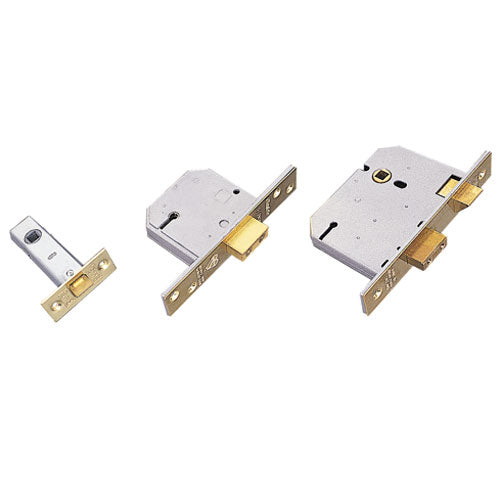

• Suits DIN style locks.

Specifications

• Door thickness min.=34 mm
• Door thickness max.=58 mm
• Lock faceplate sizes
• Metric (D x OL)=Template
• 20 x 235mm (RE**)=1
• 24 x 235mm (RE**)=2
• Lock mortise size
• 17 x 170mm*=A
• *Mortise is actually 180mm to give 5mm clearance each end.
• **Rounded ends
