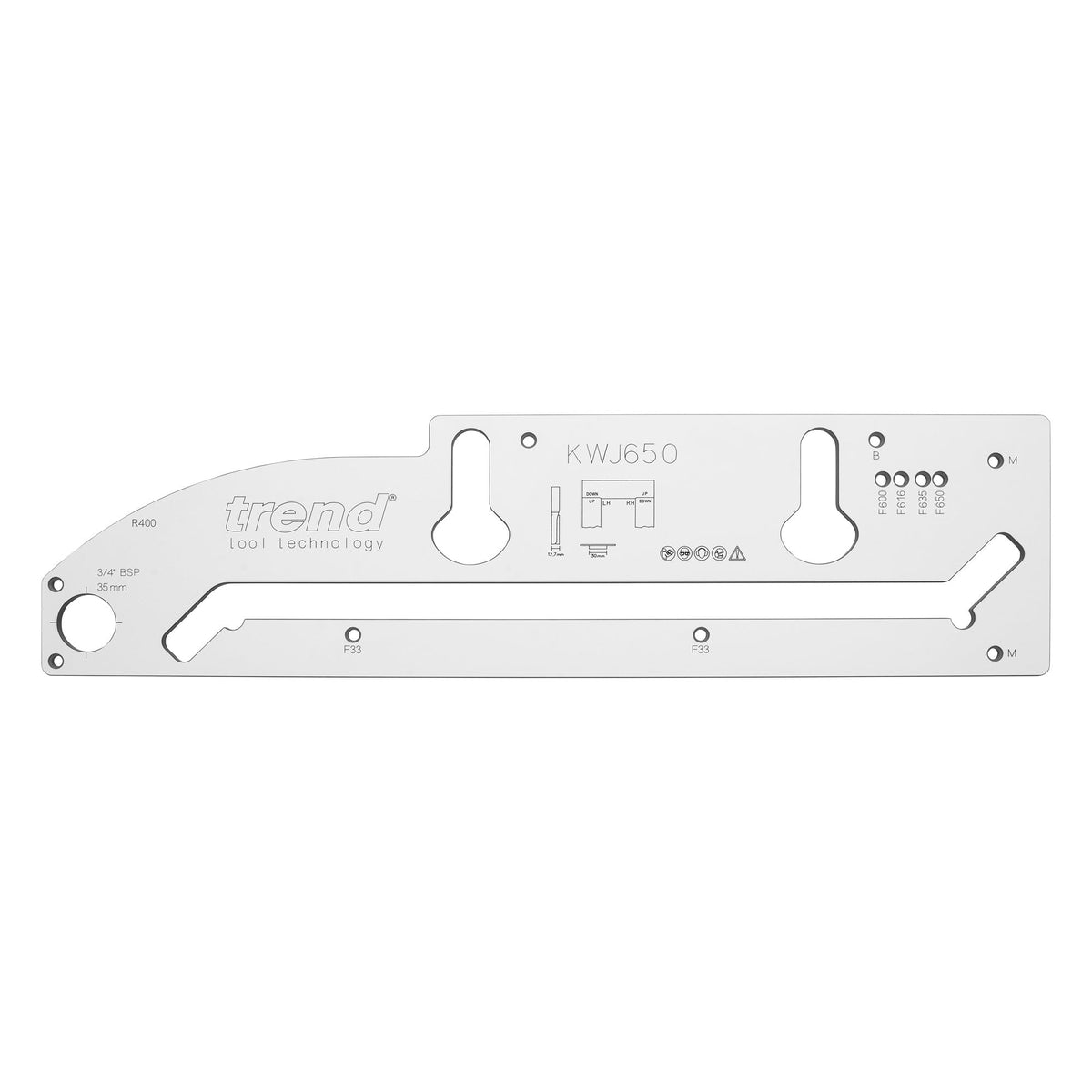

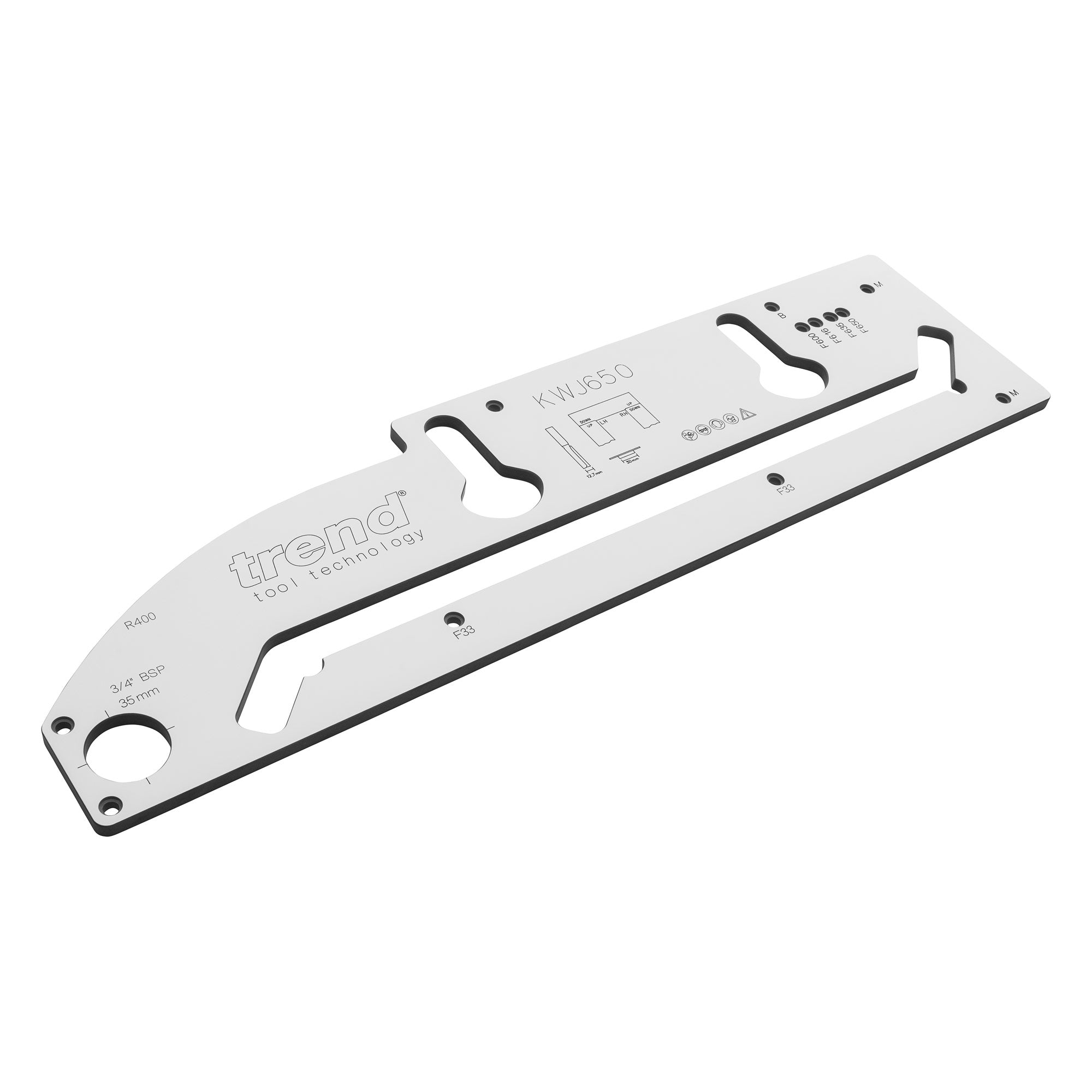

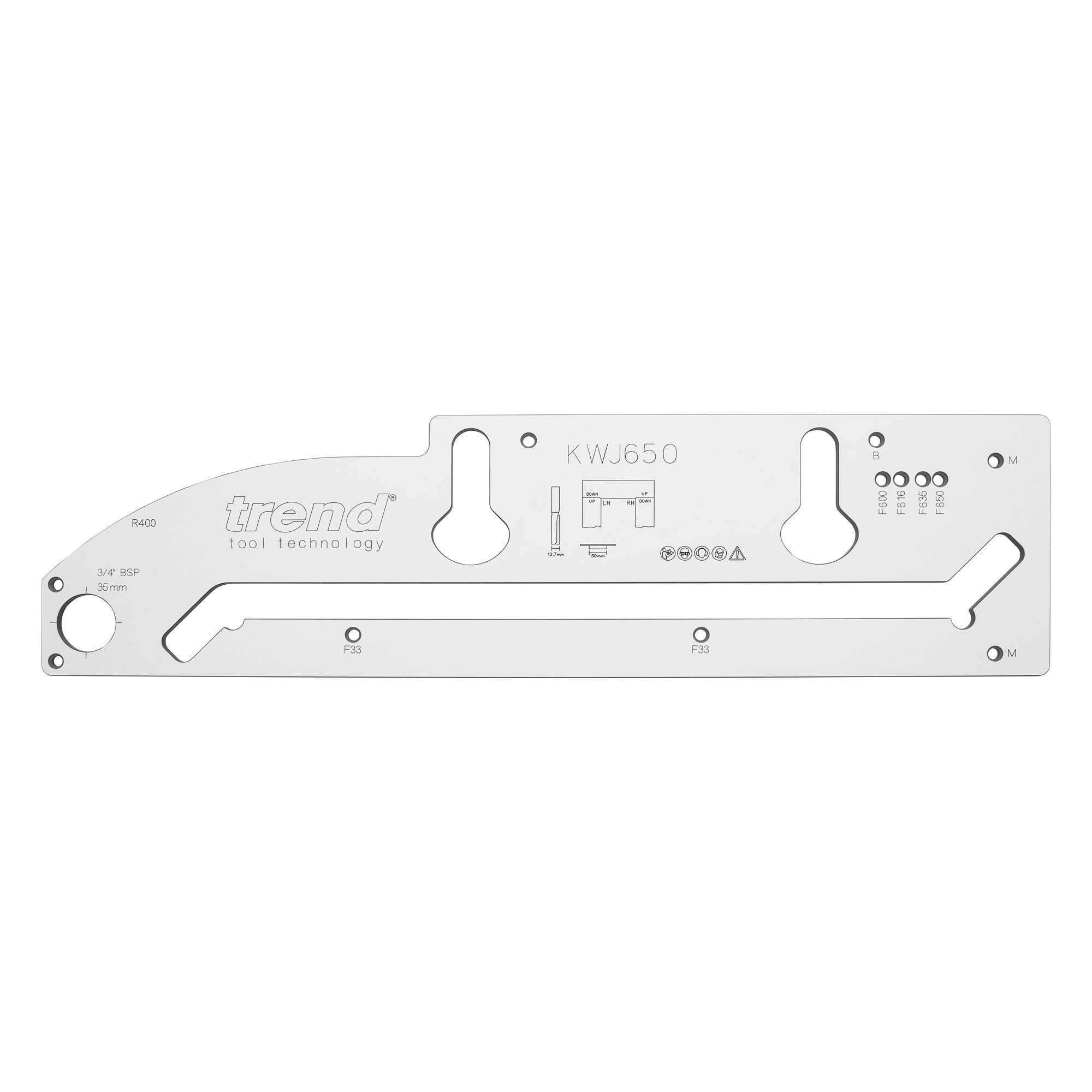

Trend Tools KWJ650 650Mm Compact Worktop Jig

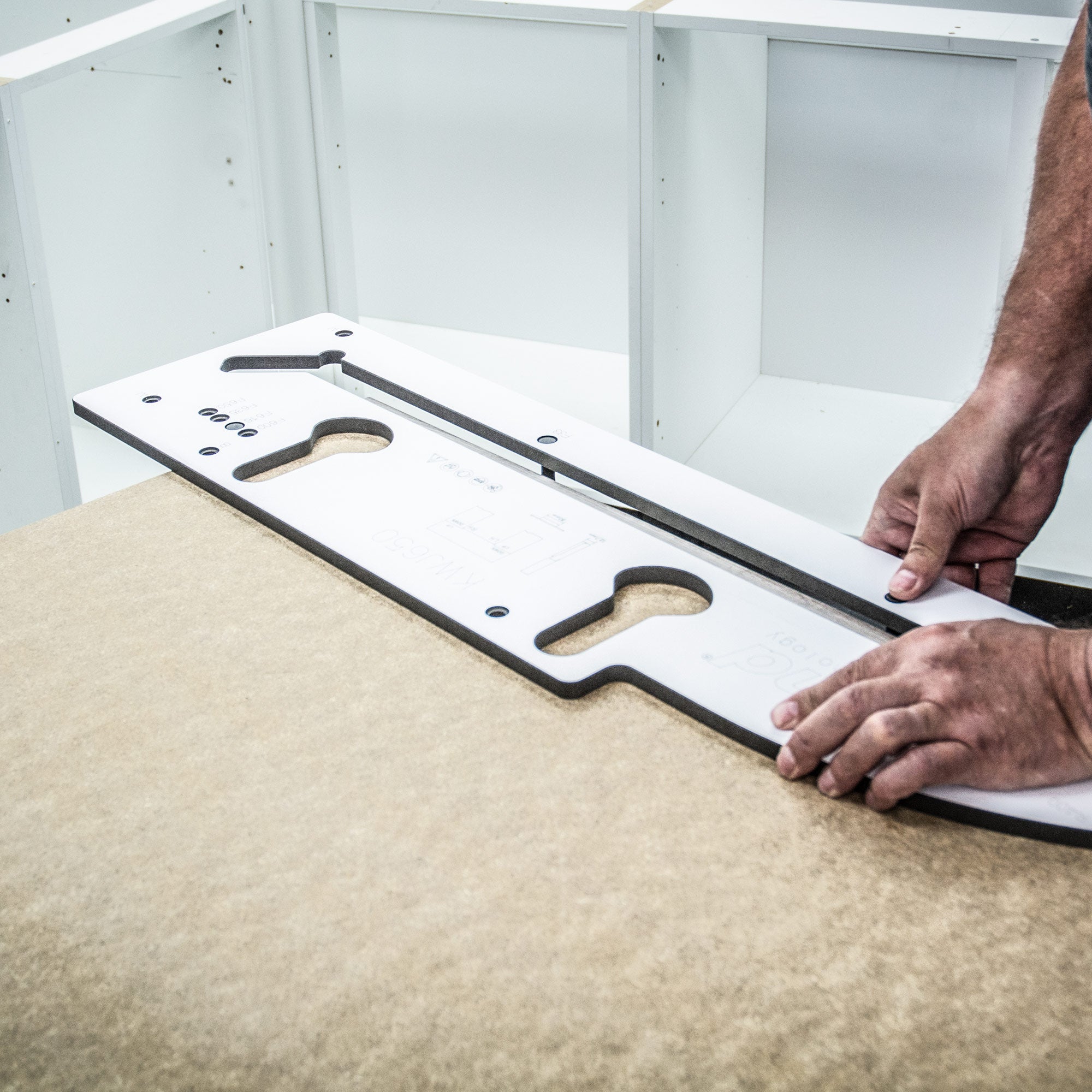

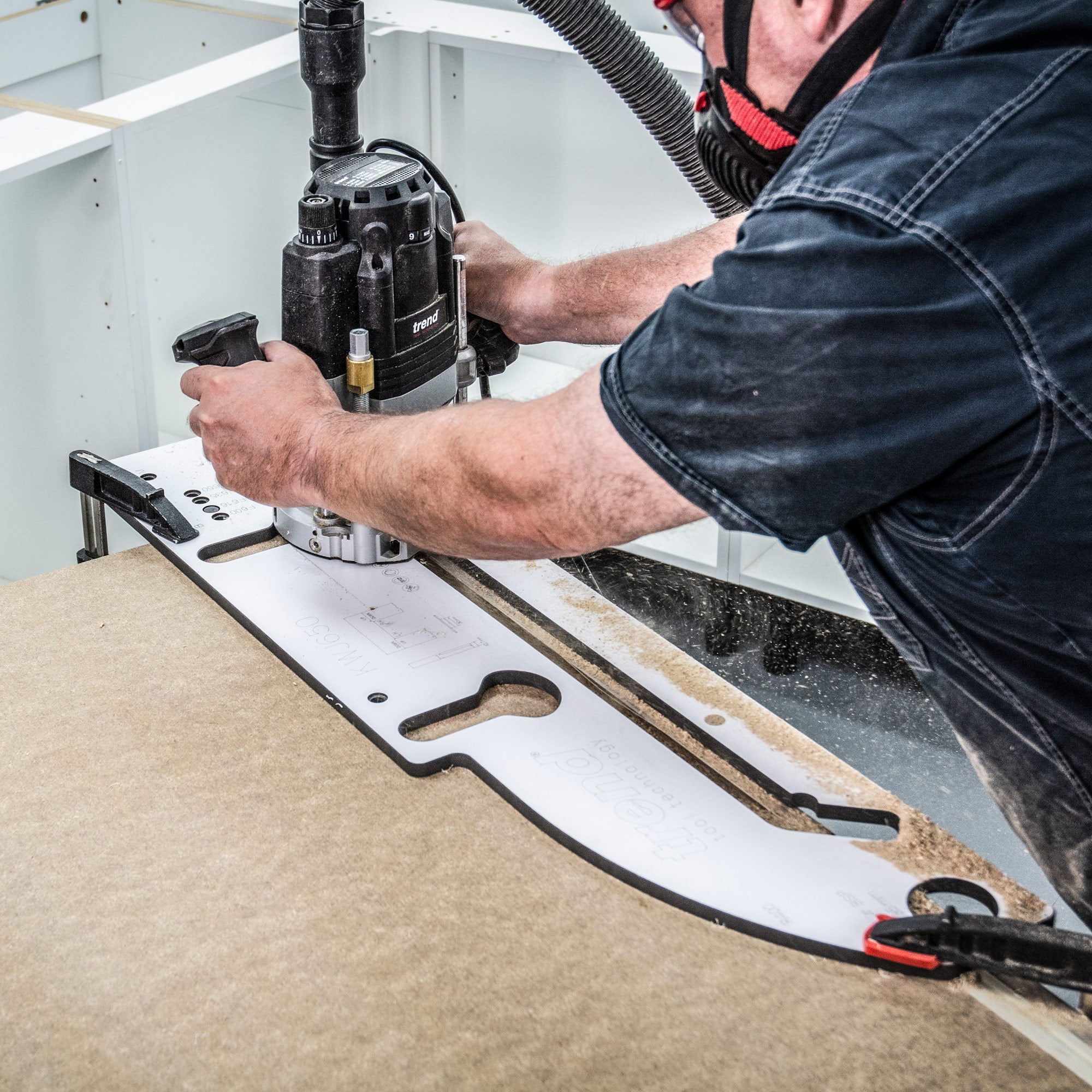

• A worktop routing jig for creating mitre joints in laminated, timber and compact laminate surfaces.

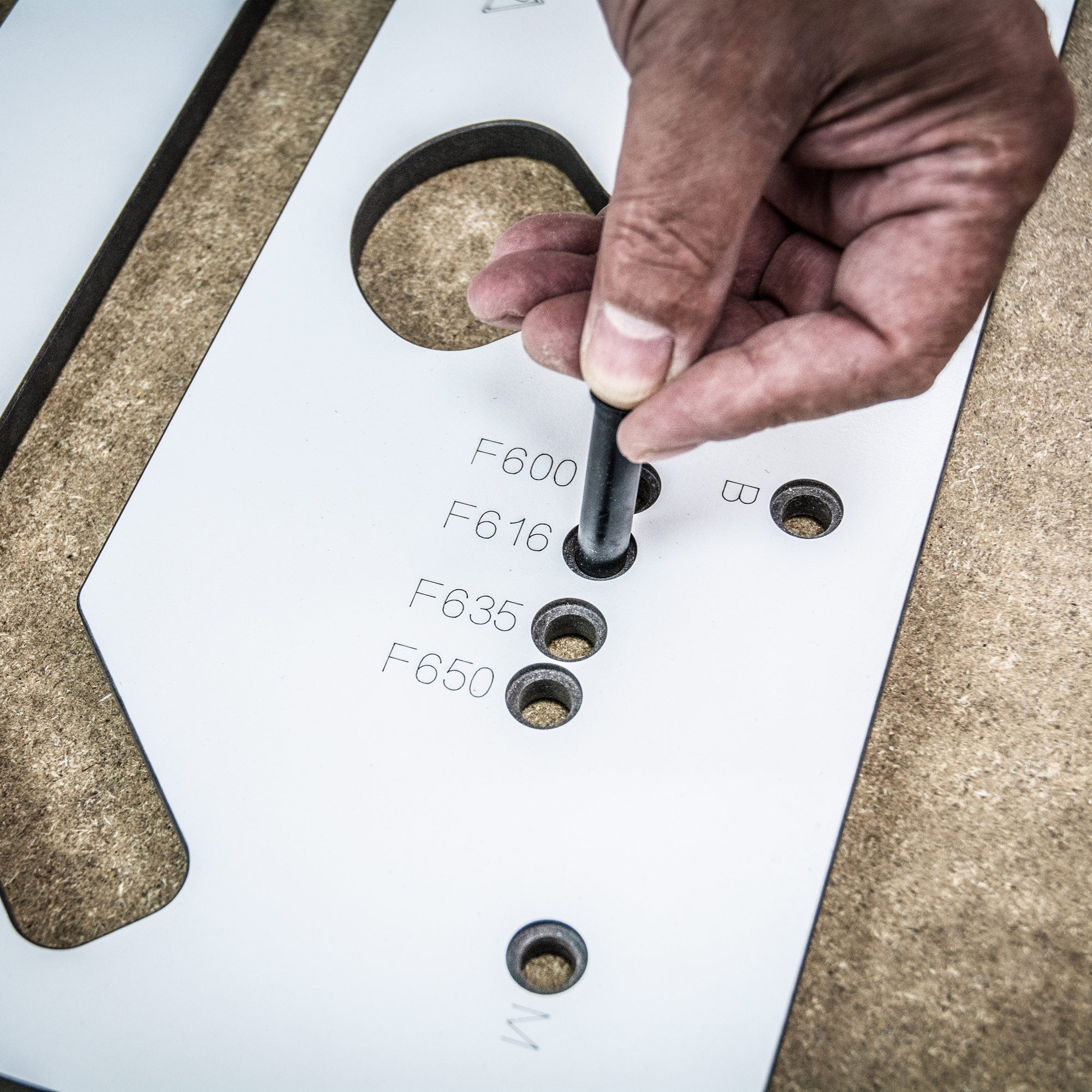

• Indexed Backsets for 600, 616, 635, and 650mm worktops allow the female joint to be setup quickly.
• 33mm Mitre Inset to suit all postformed, radiused and chamfered worktop materials.
• CNC-Machined Compact Grade HPL provides precision, strength and durability

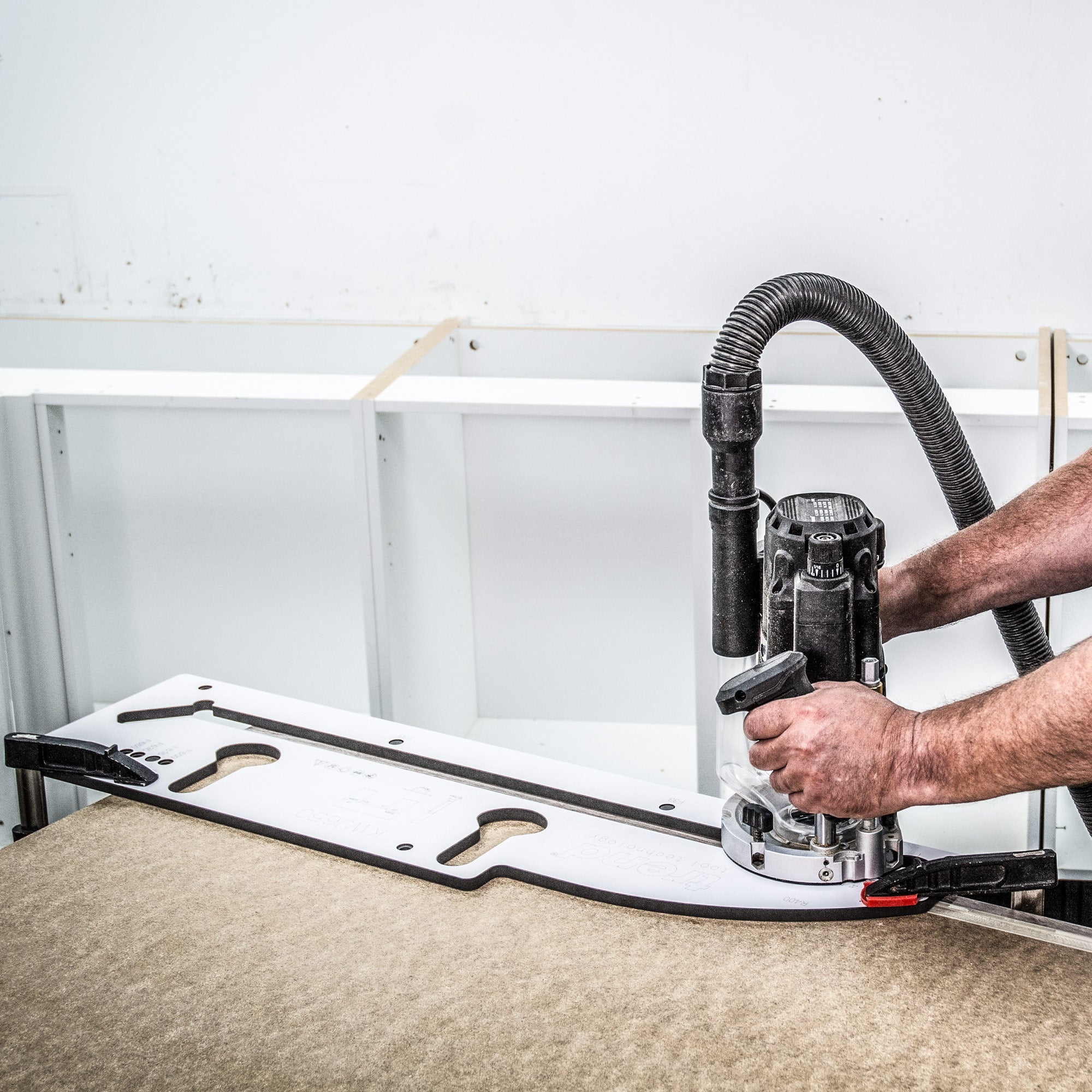

• 400mm Radius for breakfast bar and peninsula trimming.
• Preset Connector Bolt Recesses accommodate standard 150mm worktop bolts.
• 35mm Hinge / ?Ó BSP Recess for surface-mount monobloc tap and concealed hinge installation.

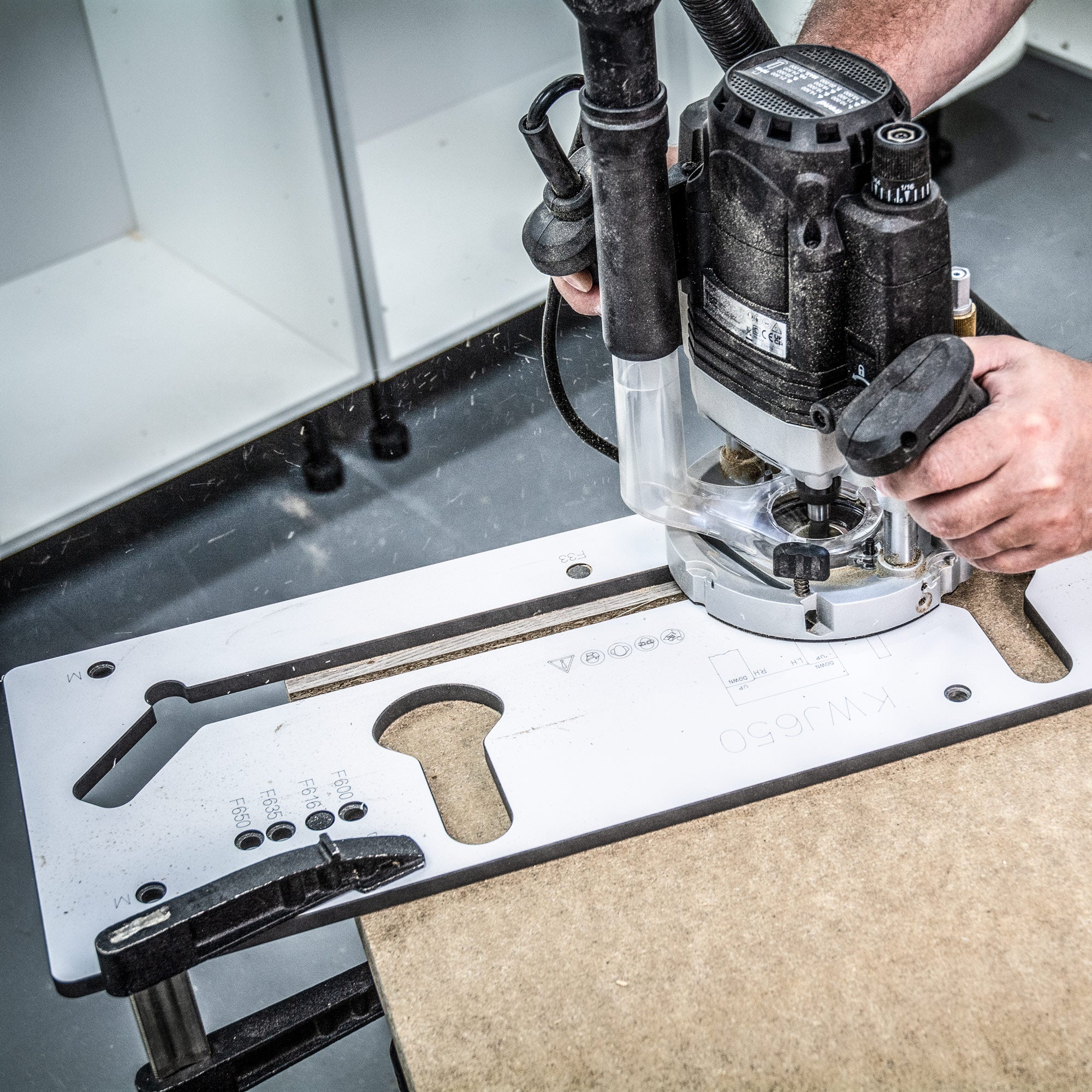

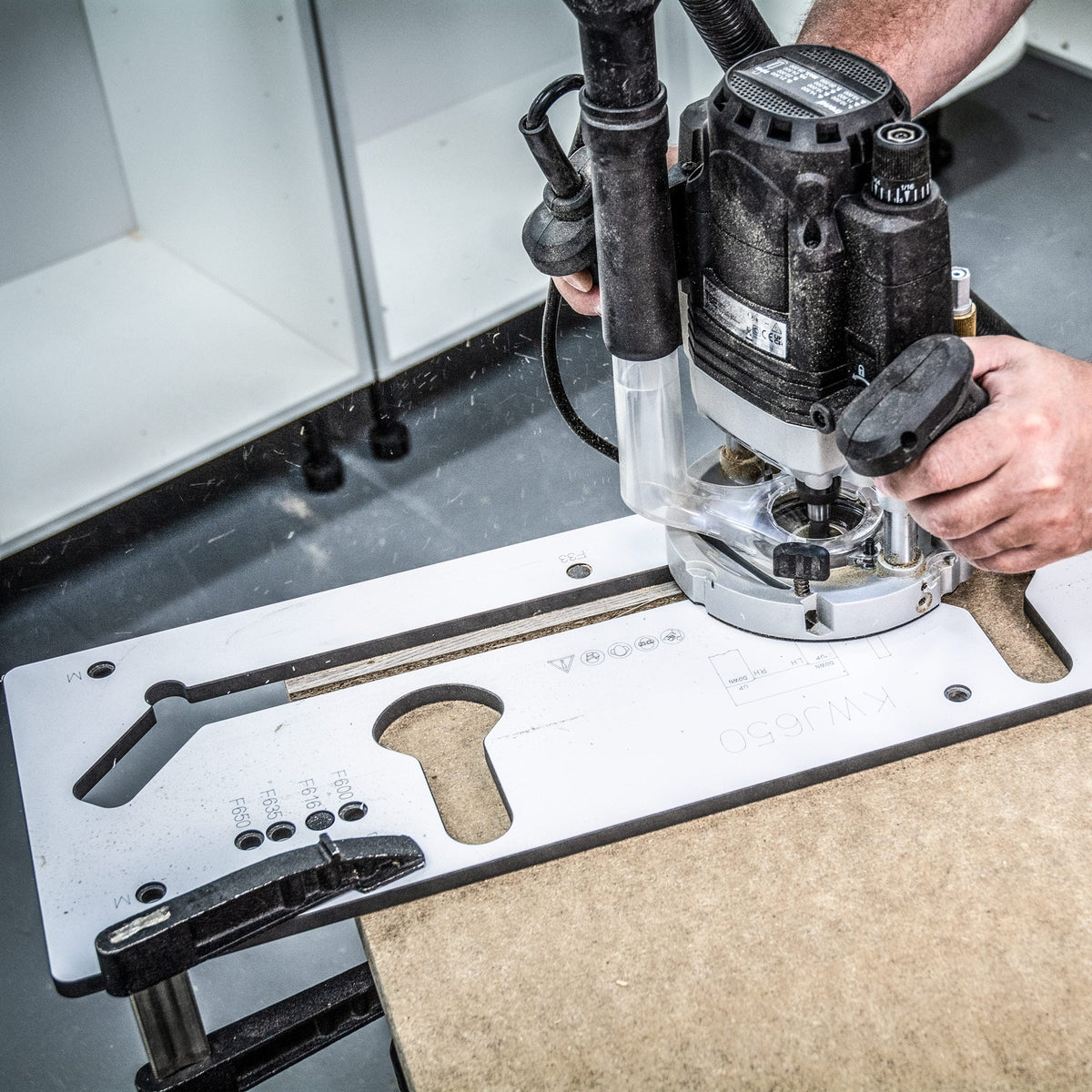

• Requires: ÚÓ/12mm Plunge Router (50mm plunge depth), ÚÓ/12mm Router Cutter (12.7mm cut diameter x 50mm cut length), 30mm Guide Bush, and 2 x clamps.

Specifications

• Length=881 mm
• Width=236 mm
• Thickness=12 mm
• Weight=3.3kg
• Female cut material width loss (inset)=33 mm
• Curved Peninsular Radius=400mm
• Bolt recesses=2
• Requires:
• Guide bush=30 mm
• Plunge router=1/2-inch (min. 1300 watts)
• Cutter=12.7 mm x 50 mm cut
• Clamps=Two
