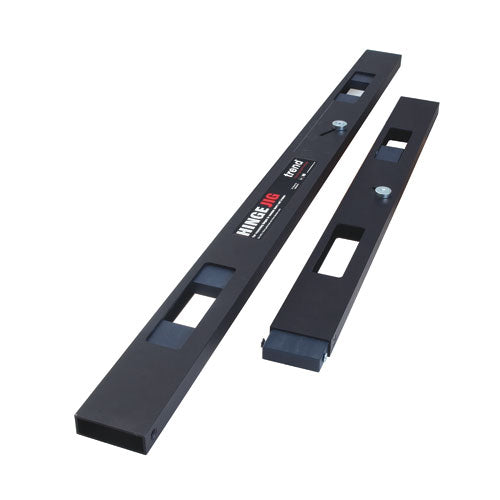

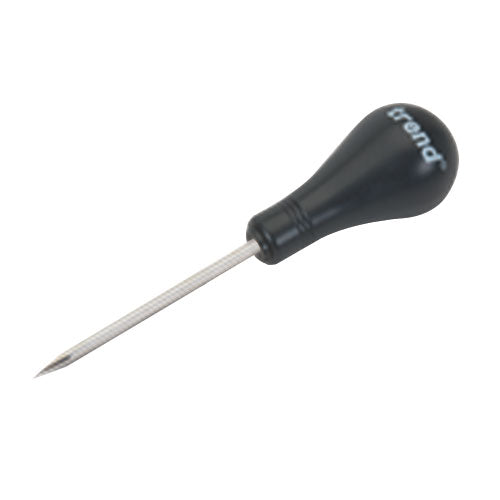

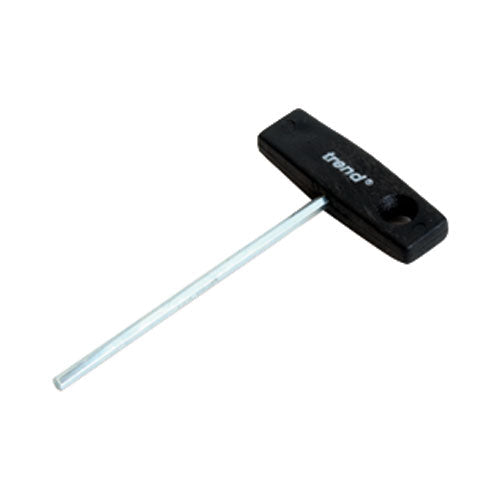

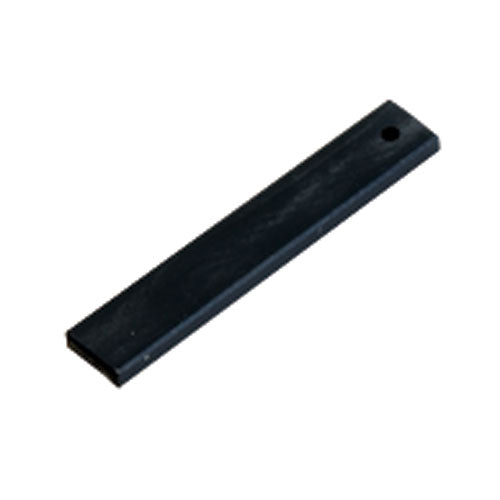

Trend Tools H/JIG/A Trend Hinge Jig A - Two Piece Jig For Quick, Accurate Repeatable Fitting Of Hinges To Doors And Frames

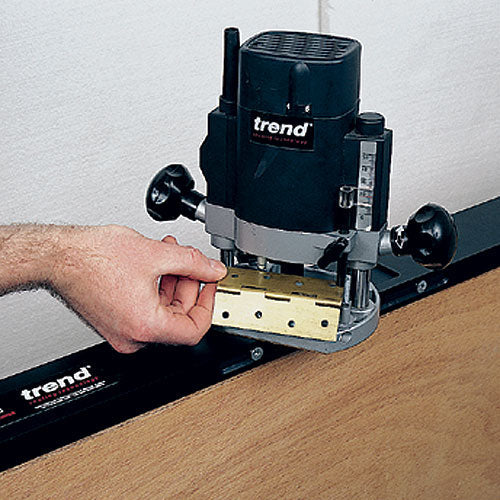

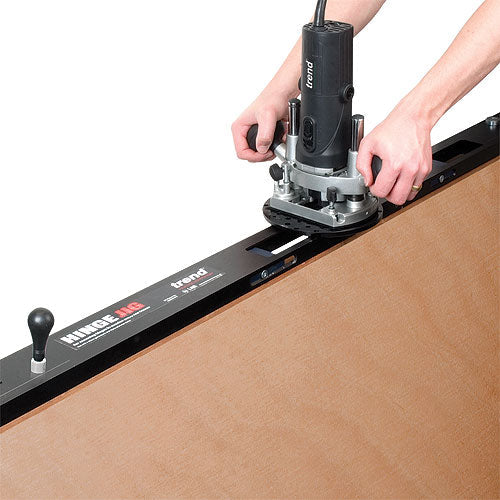

• The two part Contractor Hinge Jig is a portable template set designed for recessing hinges in wooden doors & frames using a plunge router.
• It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
• Used on-site & in joinery shops to increase productivity with excellent results.
• Four apertures for fire door requirements.
• No need for marking out in the conventional way.

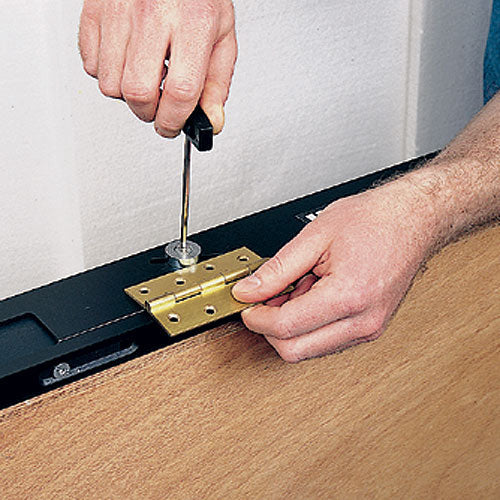

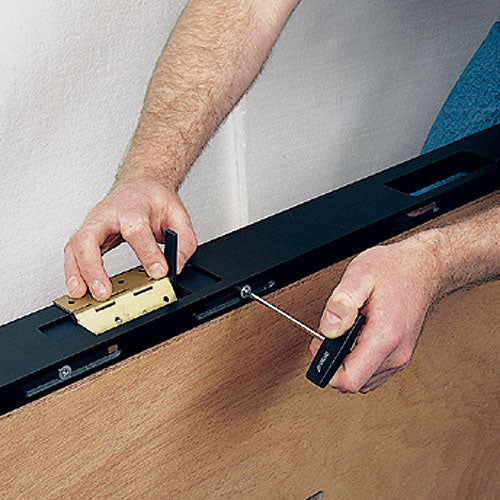

• Quick & simple to set-up as the hinge is used as the pattern.
• Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
• Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.
• Use with a light duty plunge router with 1/4 inch collet.
• Long reach router cutter required, 12mm diameter with 70mm overall length.
• Angled position slots to prevent creep.
• Unibase may be needed.

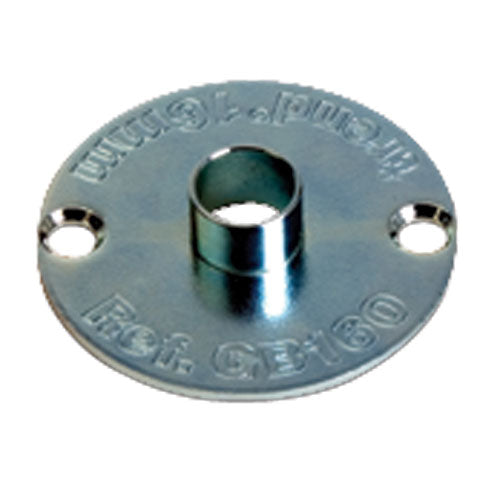

• T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

Specifications

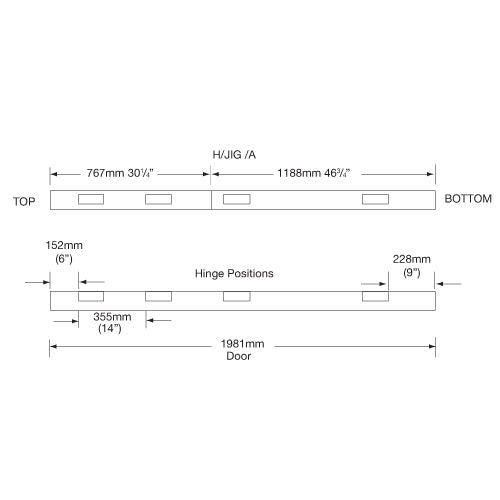

• Hinge sizes
• Length min.=2 5/8" (67 mm)
• Length max.=5" (127 mm)
• Width min.=3/8" (9.5 mm)
• Width max.=1 3/8" (35 mm)
• Width max. in 35mm rebate=20 mm
• Width max. in 44mm rebate=30 mm
• Door sizes possible
• Height min.=6' 5" (1955 mm)
• Height max.=2100 mm*
• Thickness min.=5/8" (16 mm)
• Thickness max.=2" (51 mm)
• Weight=3.3 kg
• Jig overall length=1957 mm
• Plate thickness=2 mm
• Fixed stop max. thickness=25 mm**
• * Please note for doors over 2040mm the bottom hinge will be higher than 9" up.
• ** Max. hinge leaf width 20mm (35mm doors)
