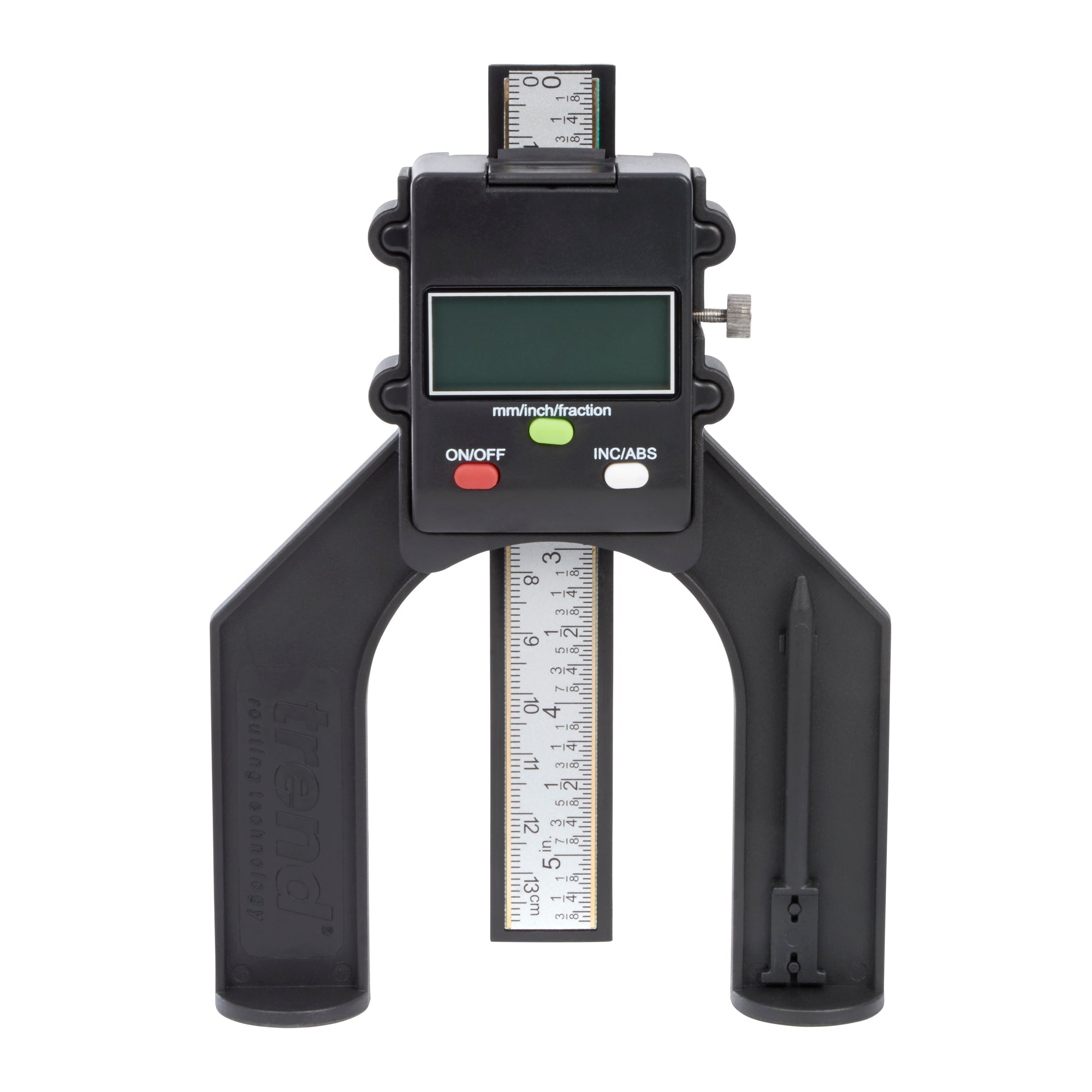

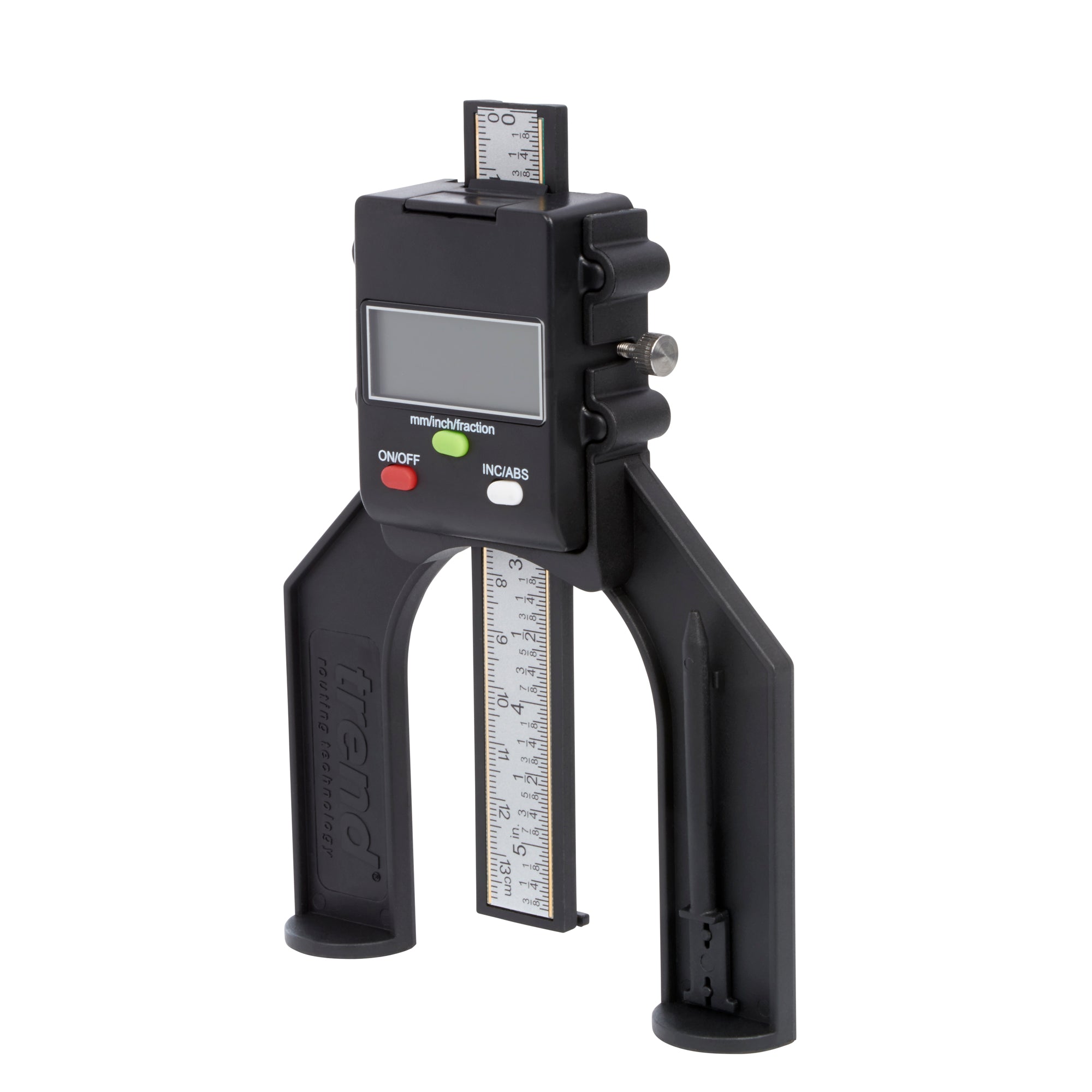

Trend Tools GAUGE/D60 Trend Digital Depth Gauge - For Setting And Checking Depths For Routing And Sawing Applications - Uk Sale Only

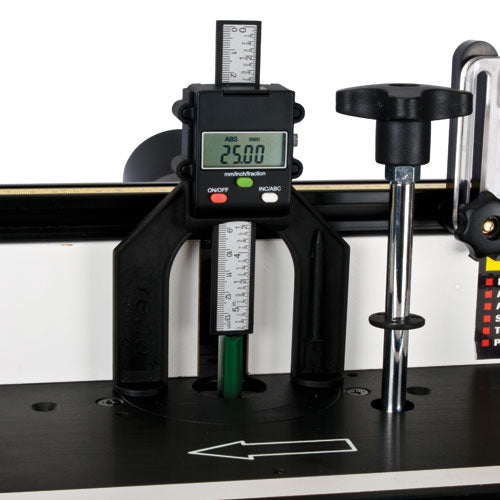

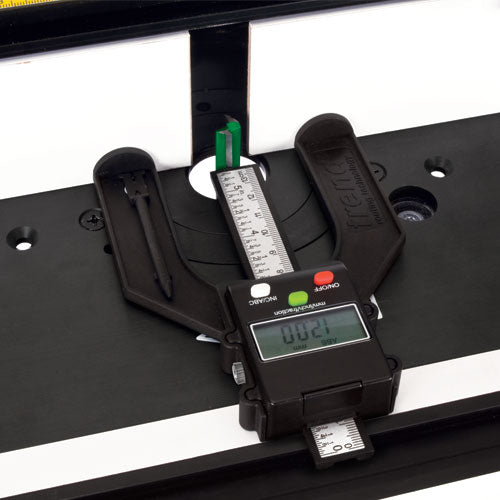

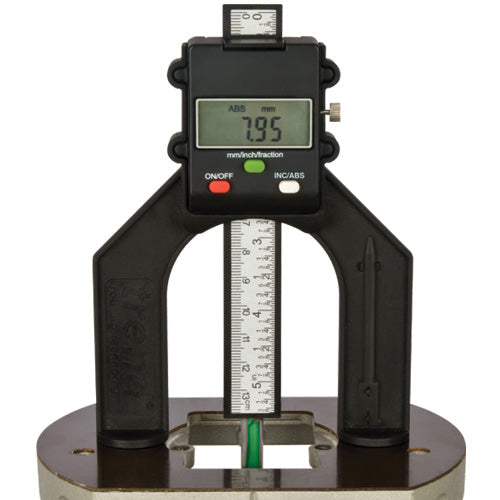

• Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.

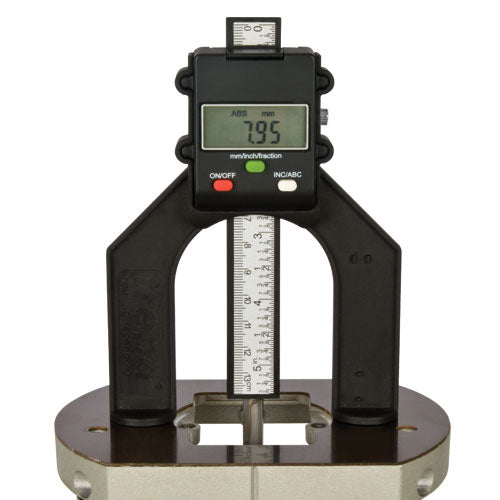

• For hand routers, router tables and saw benches.
• LCD readout for mm, imperial and fractions with auto shut off 5 mins.

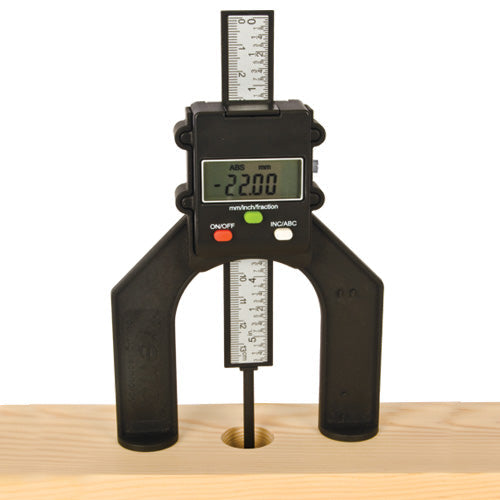

• Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 50.8mm (2 inch).

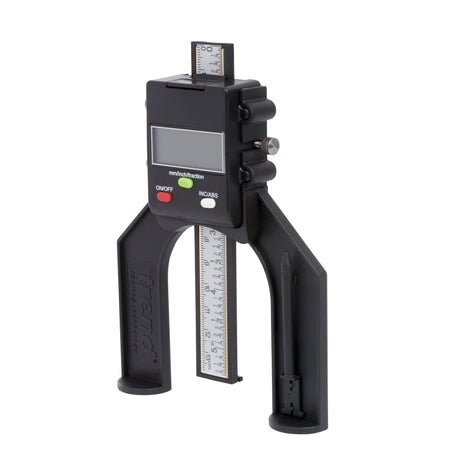

• Self standing with magnetic feet and flat back.
• Injection plastic moulding with plastic rule.
• 60mm wide aperture.
• Read-out has relative co-ordinate and absolute function.

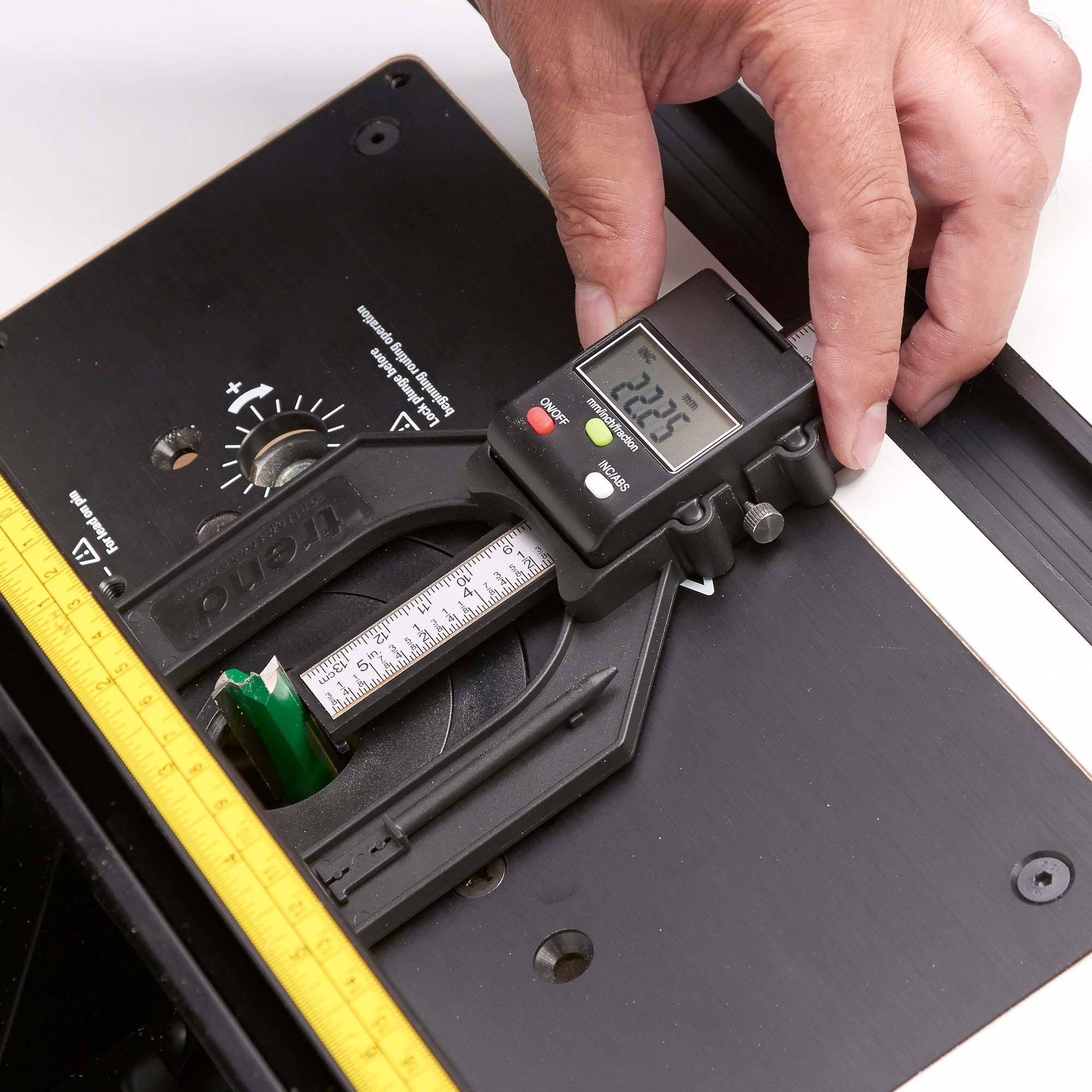

• Includes small rebate clip that fits to the base of the rule to allow the rule to be set flush to a router table back fence.
• For UK sale only.
• Spare battery available ref. BAT/CR2032/3V.

Specifications

• Measuring range=80 mm (3-1/8")
• Opening width=60 mm (2-3/8")
• Resolution=0.05 mm (0.002")
• Accuracy=+/- 0.1 mm (0.004")
• Repeatability=+/- 0.1 mm (0.004")
• Max. measuring speed=1.5 m/s (60 in/s)
• Pin diameter=4.5 mm
• Weight=92g
• Voltage=3 volt
• ABS mode (Absolute)=Measuring single amounts from Zero

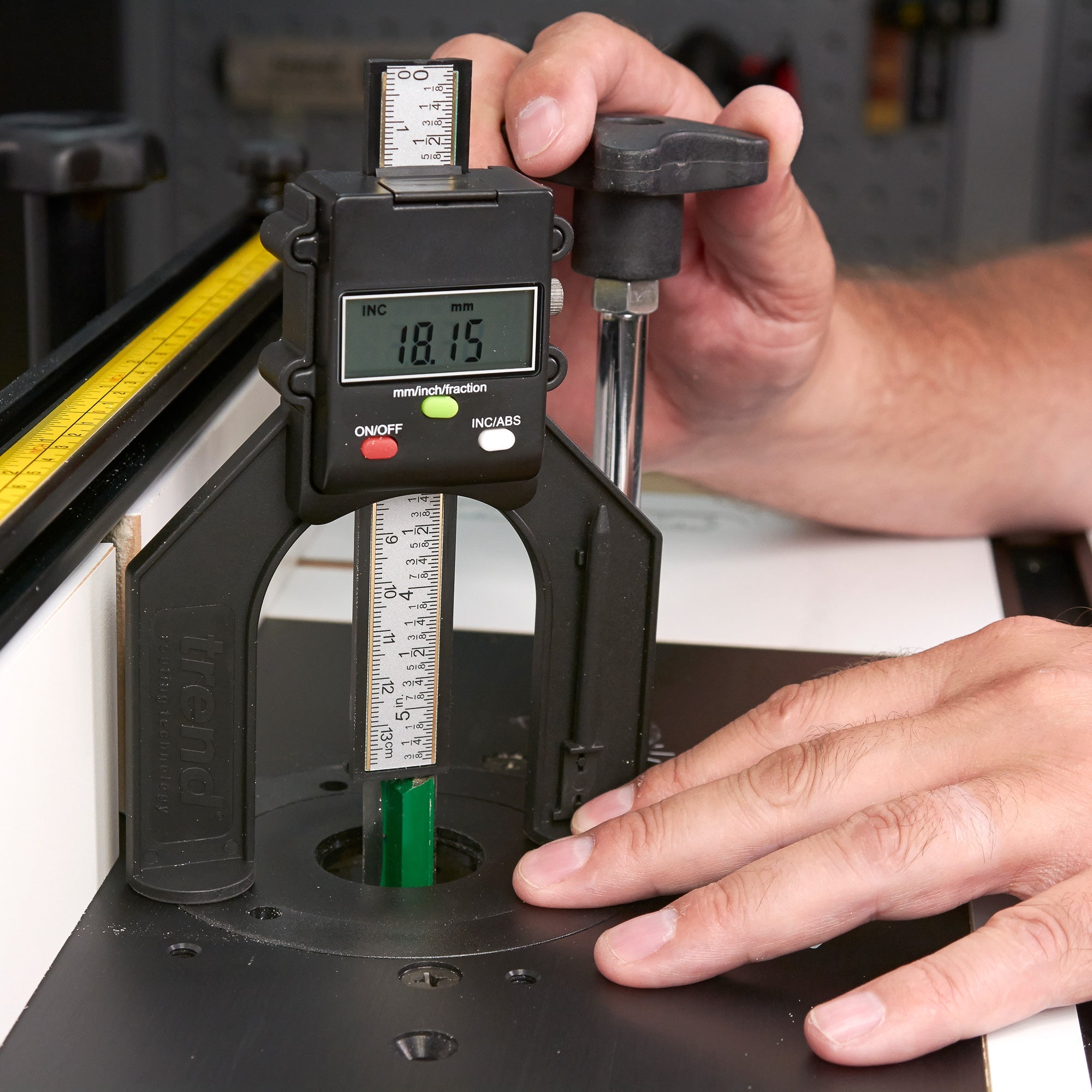

• INC mode (Relative)=Measuring from last point
• End of life=See below for Environmental Policy link
