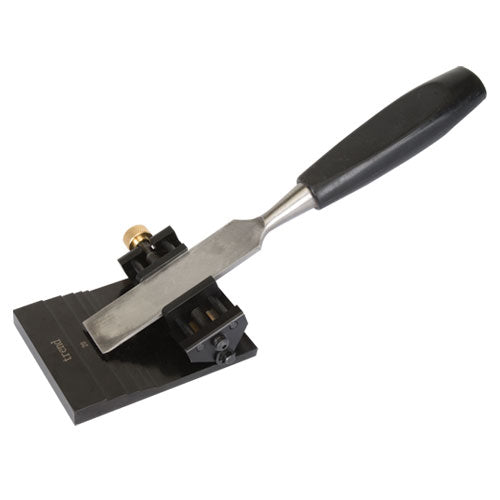

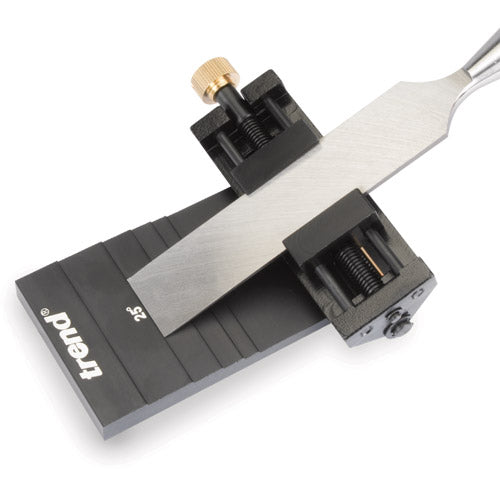

Trend Tools DWS/HG/SET Diamond Honing Guide Set

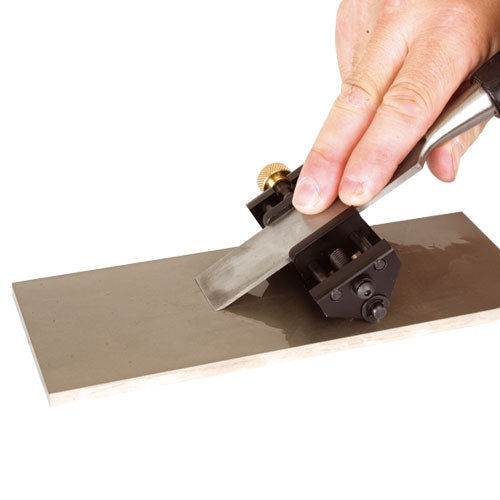

• Ensure correct angle is maintained on bevel edge chisels and plane irons when used with diamond whetstone.

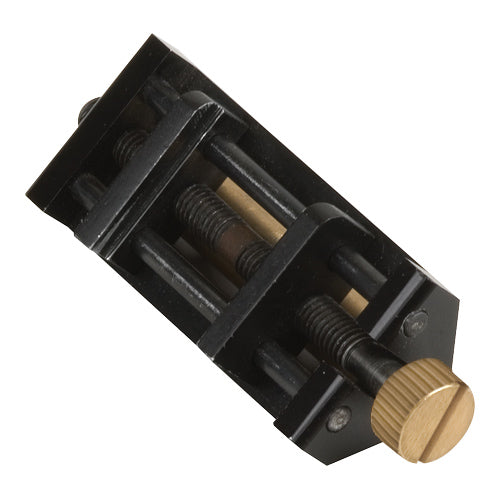

• Precision roller with alloy body which self-centre clamps bevel edge chisels from 3/8 inch (10mm) to 1-1/4 (32mm) and plane irons up to 2-3/8 inch (60.3mm) wide. Maximum tool thickness 7mm.

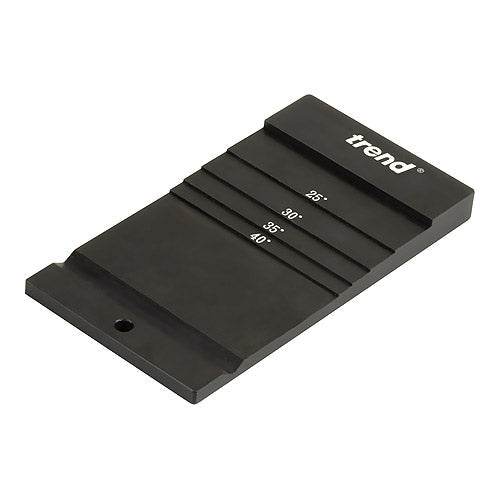

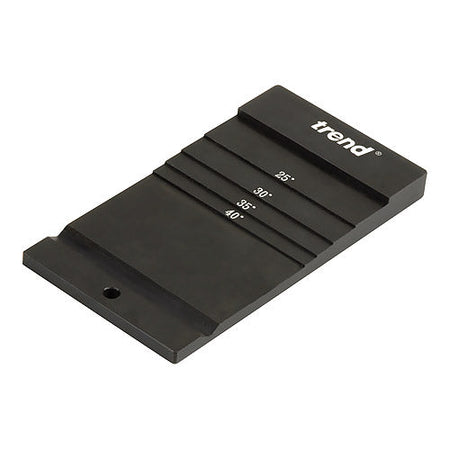

• The setting device is preset for 25 degree, 30 degree, 35 degree and 40 degree angles.
• Positive location for roller and blade.
• Adjustable stop for setting blade angle.
• Use with 63mm (2 1/2 inch) wide x 178mm (7 inch) long bench stones or workshop stones.
• Not for use with Firmer chisels or short blade (Butt) chisels.

Specifications

• Chisel blade width min.=10 mm
• Chisel blade width max.=32 mm
• Chisel blade thickness max.=7 mm
• Chisel blade length min.=75 mm*
• Plane blade width max.=60.3 mm
• Angle=25 deg, 30 deg, 35 deg & 40 deg
