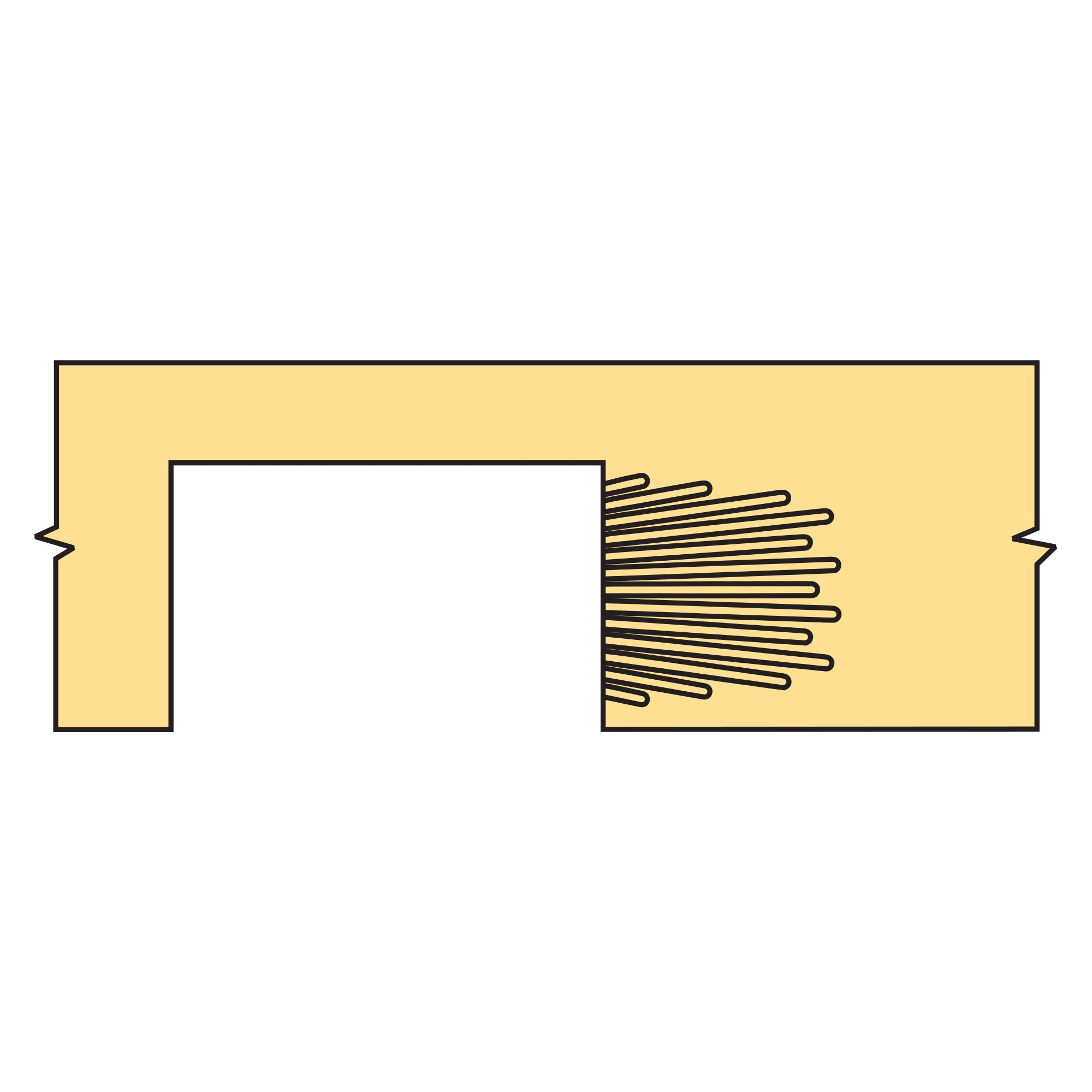

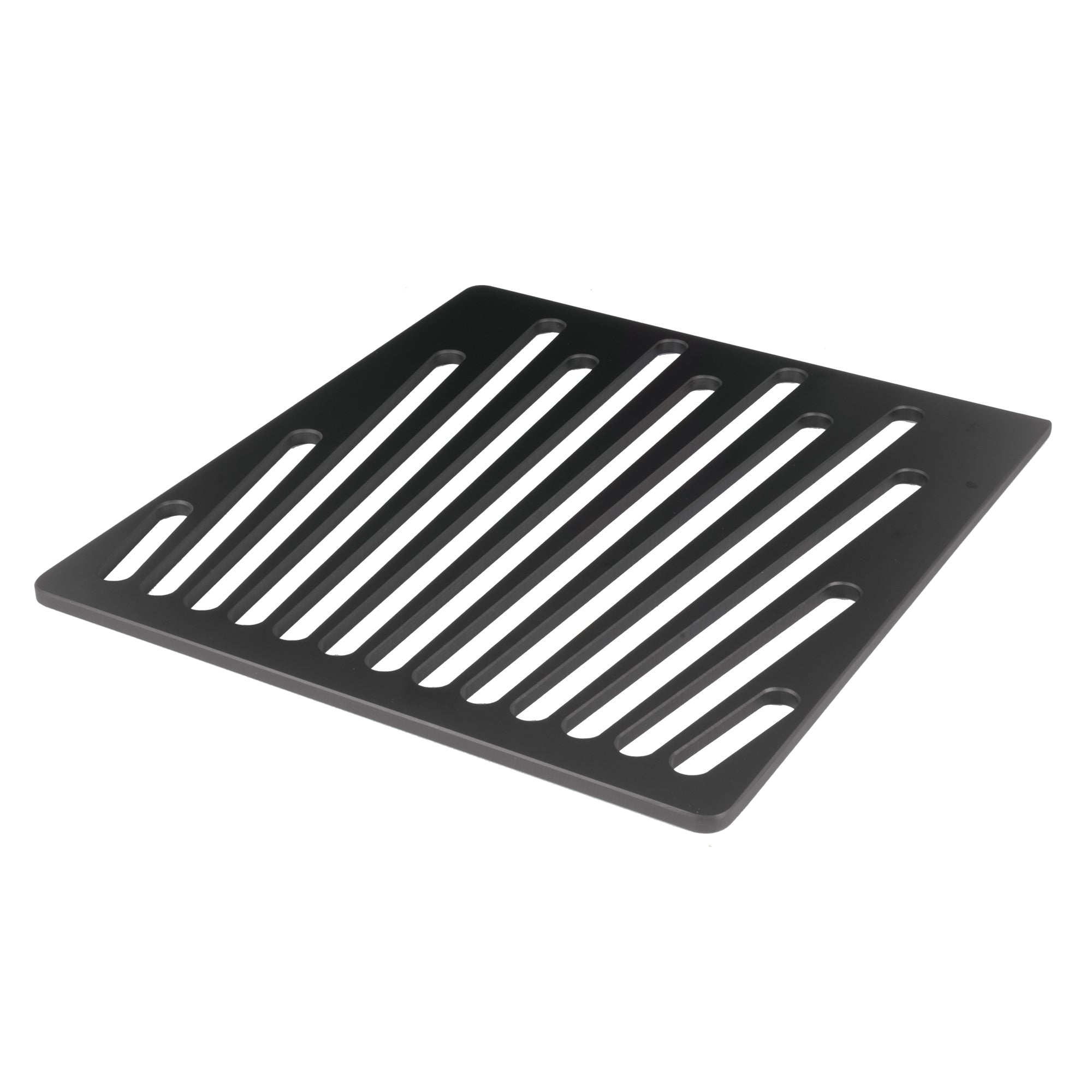

Accessory inner plate template for use with the Drainer Groove Pro jig to create straight fan drainer grooves in solid timber and solid surface worktops.
Made from 12mm hardwearing CNC machined Compact Grade High Pressure Laminate.
Requires suitable plunge router with 20mm guide bush and R15/64" cove cutter with long shank.
Must be used with the DG/PRO jig frame to maintain 0.5 degree fall.
Specifications
Pitch=1 17/64" to 1 47/64"
Groove length=16 47/64"
Guide bush=25/32"
Plunge router=1/2-inch
Cutter=Cove R15/64"
Length=19 11/16"
Width=19 11/16"
Thickness=15/32"
