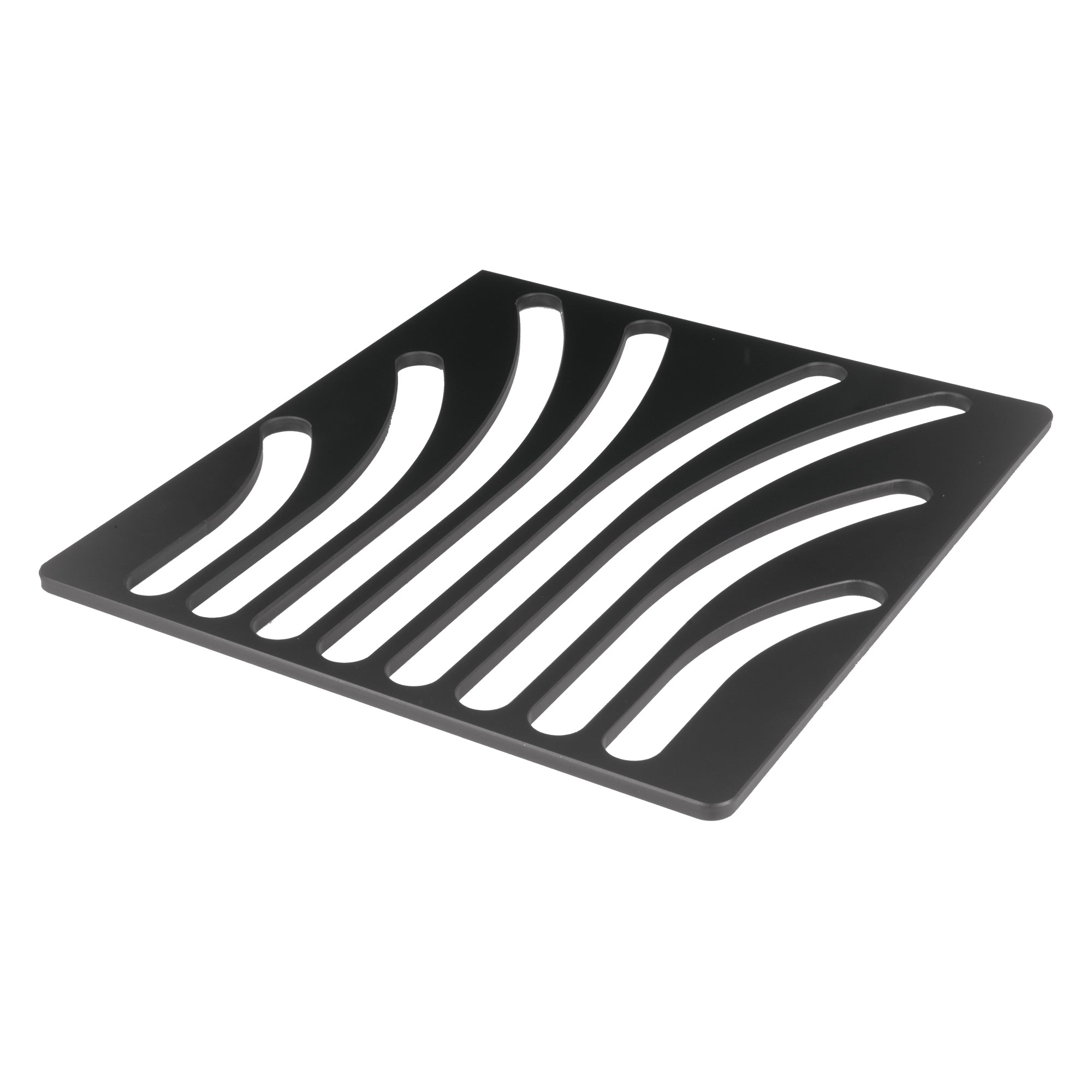

Trend Tools DGP/IP/CF Dg/Pro Inner Plate Curved Fan

• Accessory inner plate template for use with the Drainer Groove Pro jig to create curved fan drainer grooves in solid timber and solid surface worktops.
• Made from 12mm hardwearing CNC machined Compact Grade High Pressure Laminate.
• Requires suitable plunge router with 30mm guide bush and R9.5mm cove cutter with long shank.
• Must be used with the DG/PRO jig frame to maintain 0.5 degree fall.

Specifications

• Pitch=45 mm to 75 mm
• Groove length=438 mm
• Guide bush=30 mm
• Plunge router=1/2-inch
• Cutter=Cove R9.5 mm
• Length=500 mm
• Width=500 mm
• Thickness=12 mm
