Trend Tools DG/PRO Drainer Groove Pro Jig

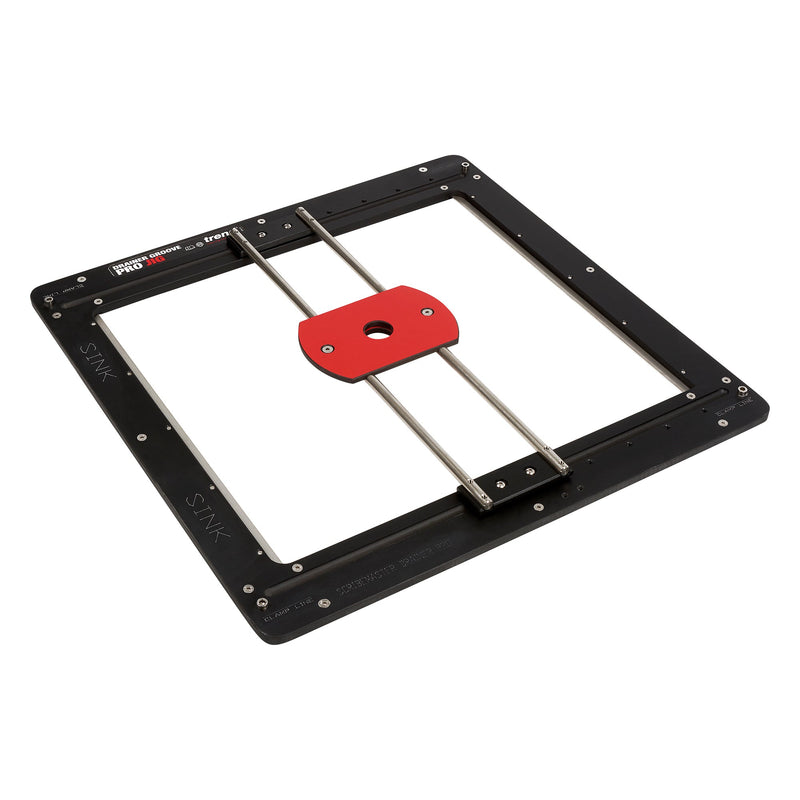

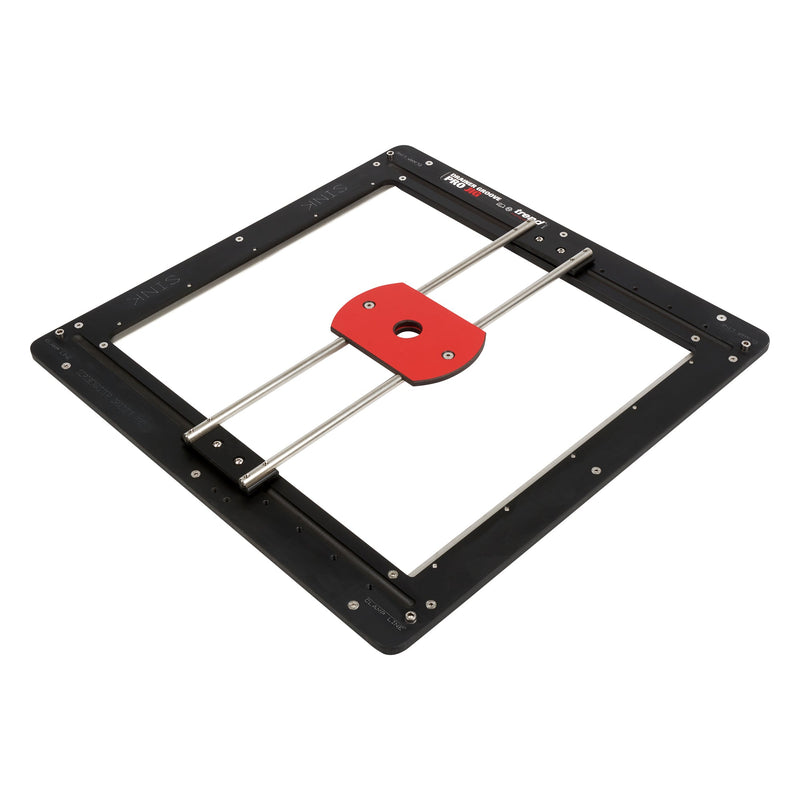

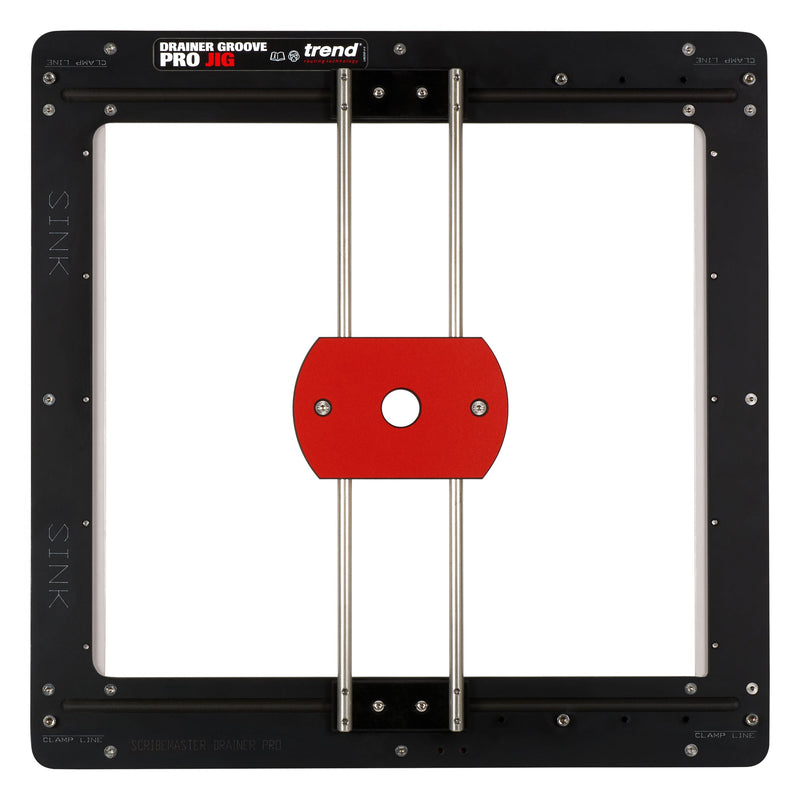

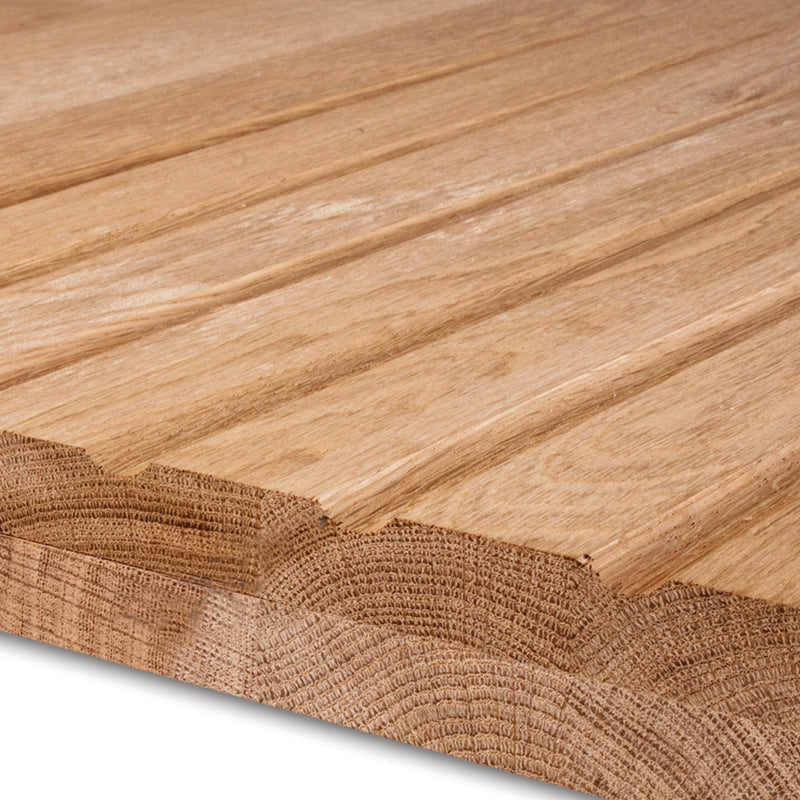

• Frame for routing drainer grooves in solid timber and solid surface worktops.
• Made from 12mm hardwearing CNC machined Compact Grade High Pressure Laminate.
• X and Y-axis ski and carriage allows forward and back, and side to side movement.
• Provides a 0.5 degree fall.

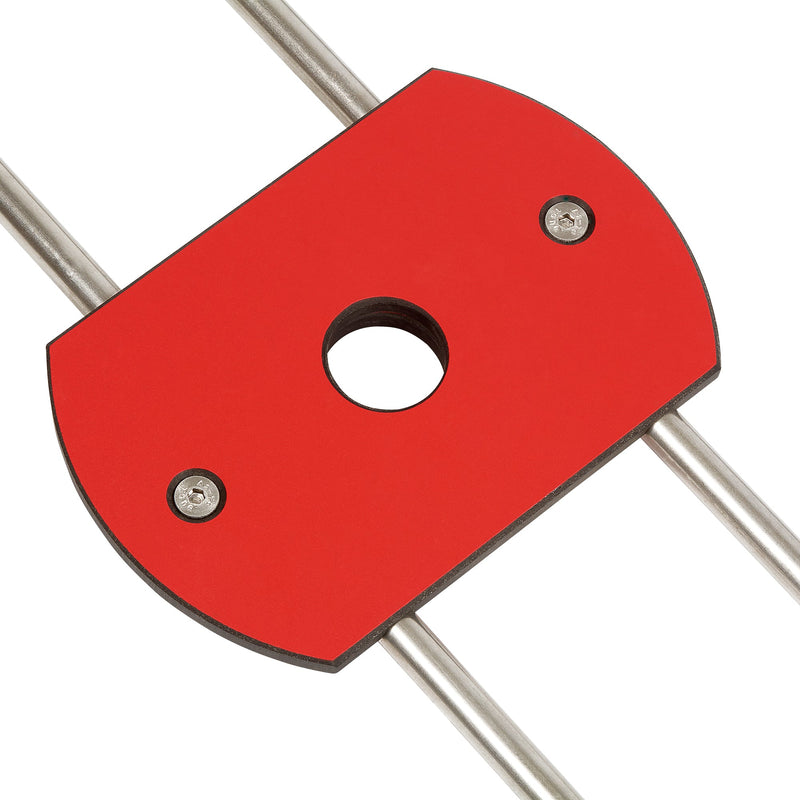

• Router carriage has hole to accept a 30mm guide bush.
• Carriage can be locked to allow parallel groove routing for standard drainer grooves.
• Router carriage can also be used for tapered surfacing applications with a 19mm diameter straight cutter.

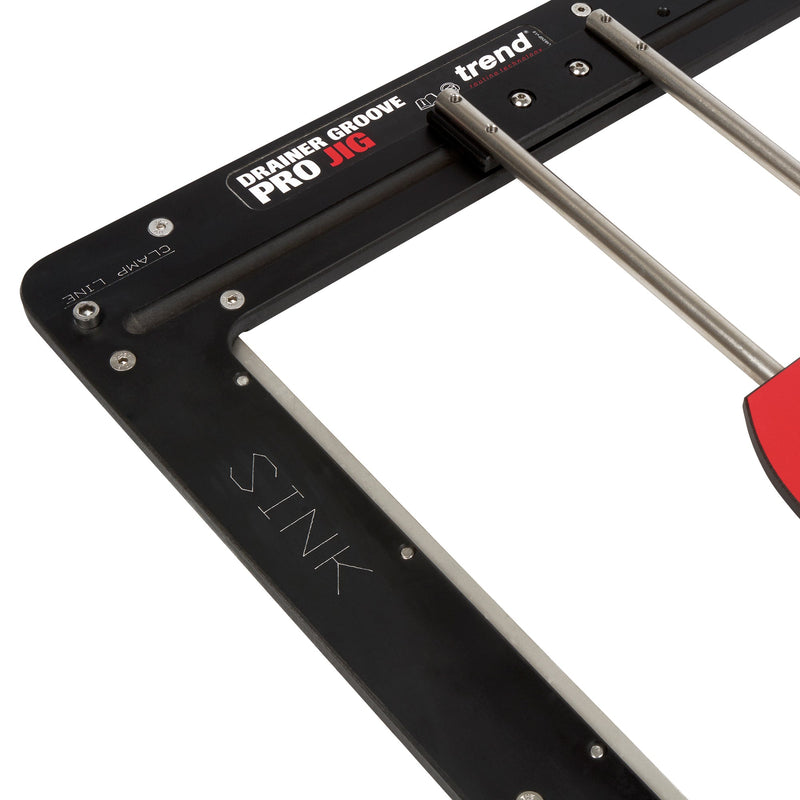

• Outer frame has index holes at 50mm centres to restrict length of slots and includes two index pins.

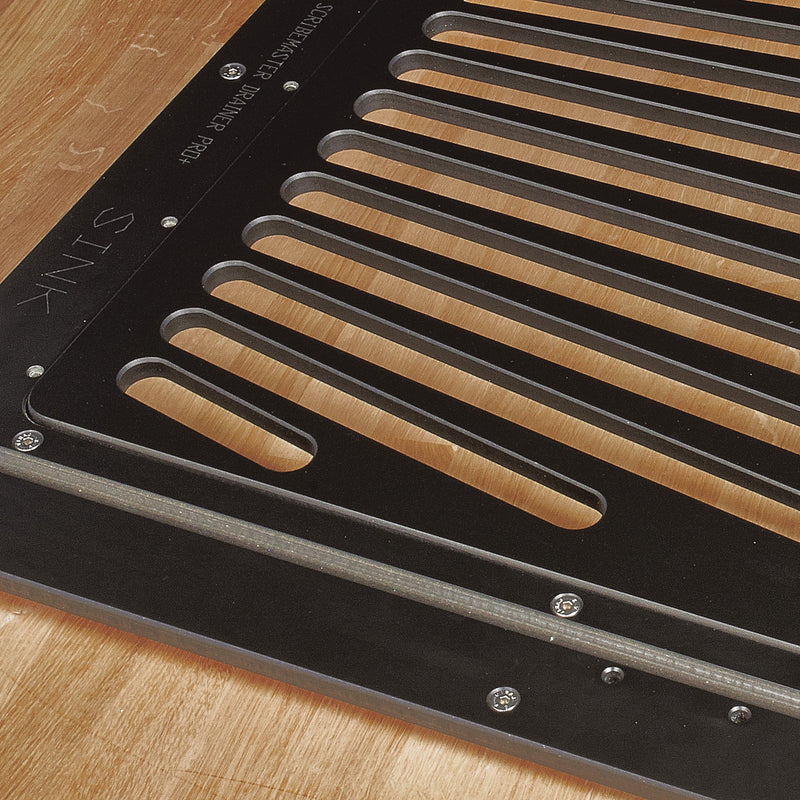

• Five inner templates accessories available to give various groove effects such as straight slot, straight fan, curved fan, lightning fan and hot rod.
• Router carriage is not used when inner templates are fitted.

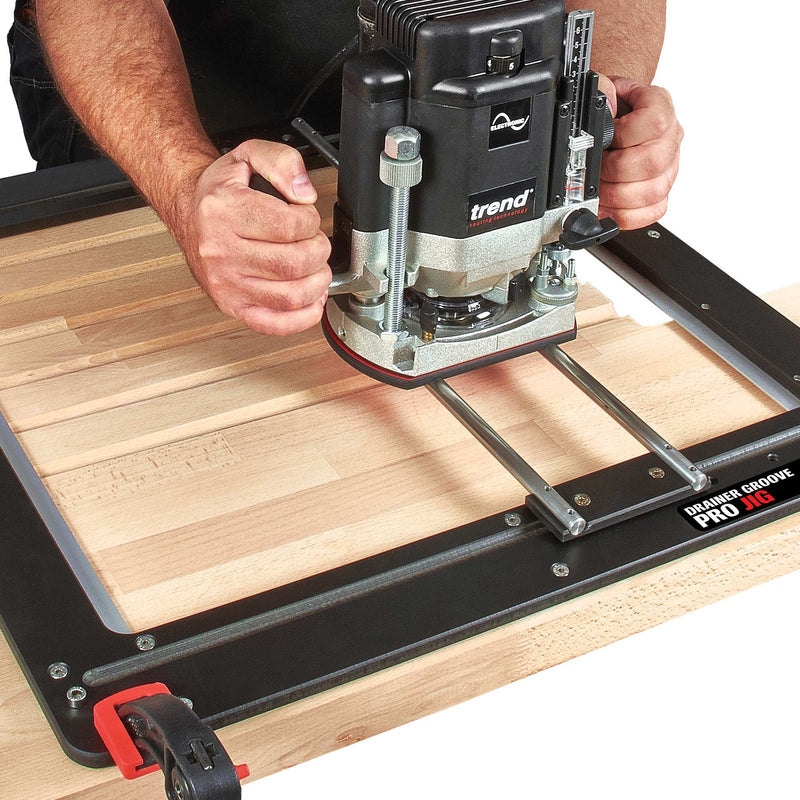

• Requires suitable plunge router with 30mm guide bush and cutters.
• Patent App. No. GB1718517.4
• A Unibase may be required for certain makes and models of router.

Specifications

• Fall=0.5 degree
• Groove length=447 mm
• X-axis=447 mm
• Y-axis=415 mm
• Length=600 mm
• Height=600 mm
• Width=12 mm
• Weight=4kg
• Guide bush=30 mm
• Plunge router=1/2-inch

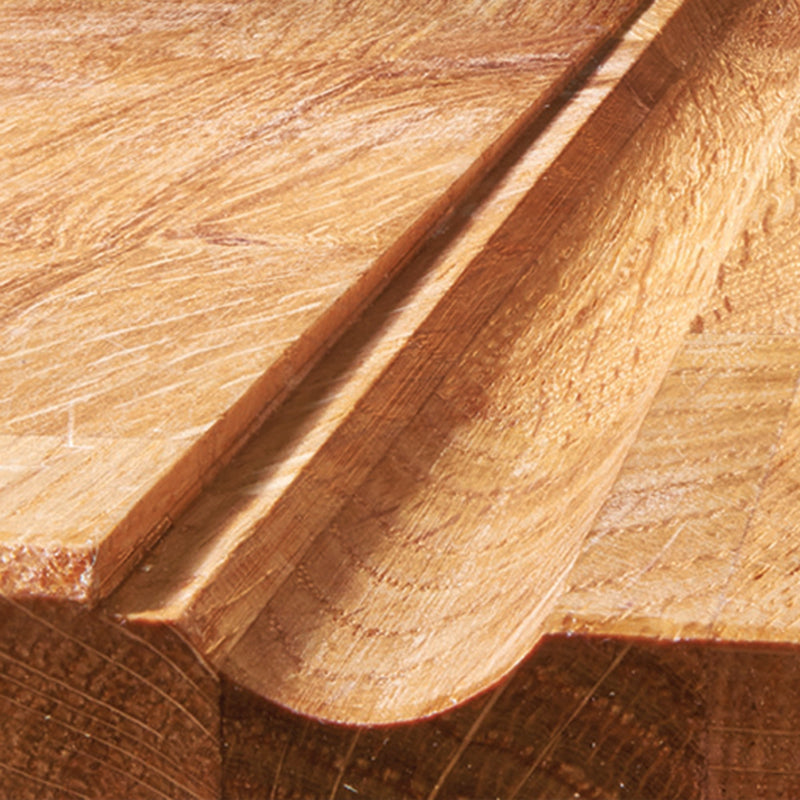

• Cutter=Cove R9.5 mm
