Trend Tools CURV/8X500 Mini Flexible Curve Guide 8Mm X 500Mm

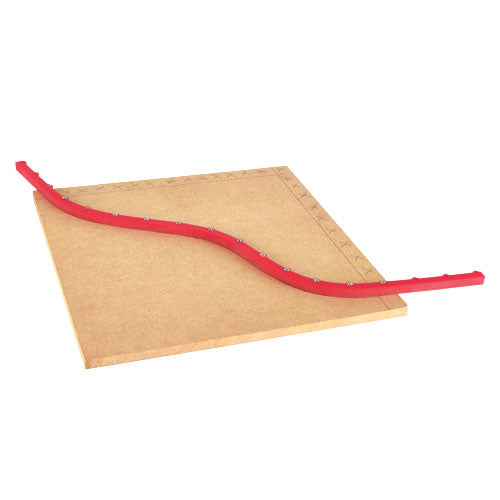

• A mini size flexible guide that is used to make a pattern, allows a shape to be cut repeatedly with precision.
• Will produce round, segmental or elliptical arch shapes, curves and cutouts.

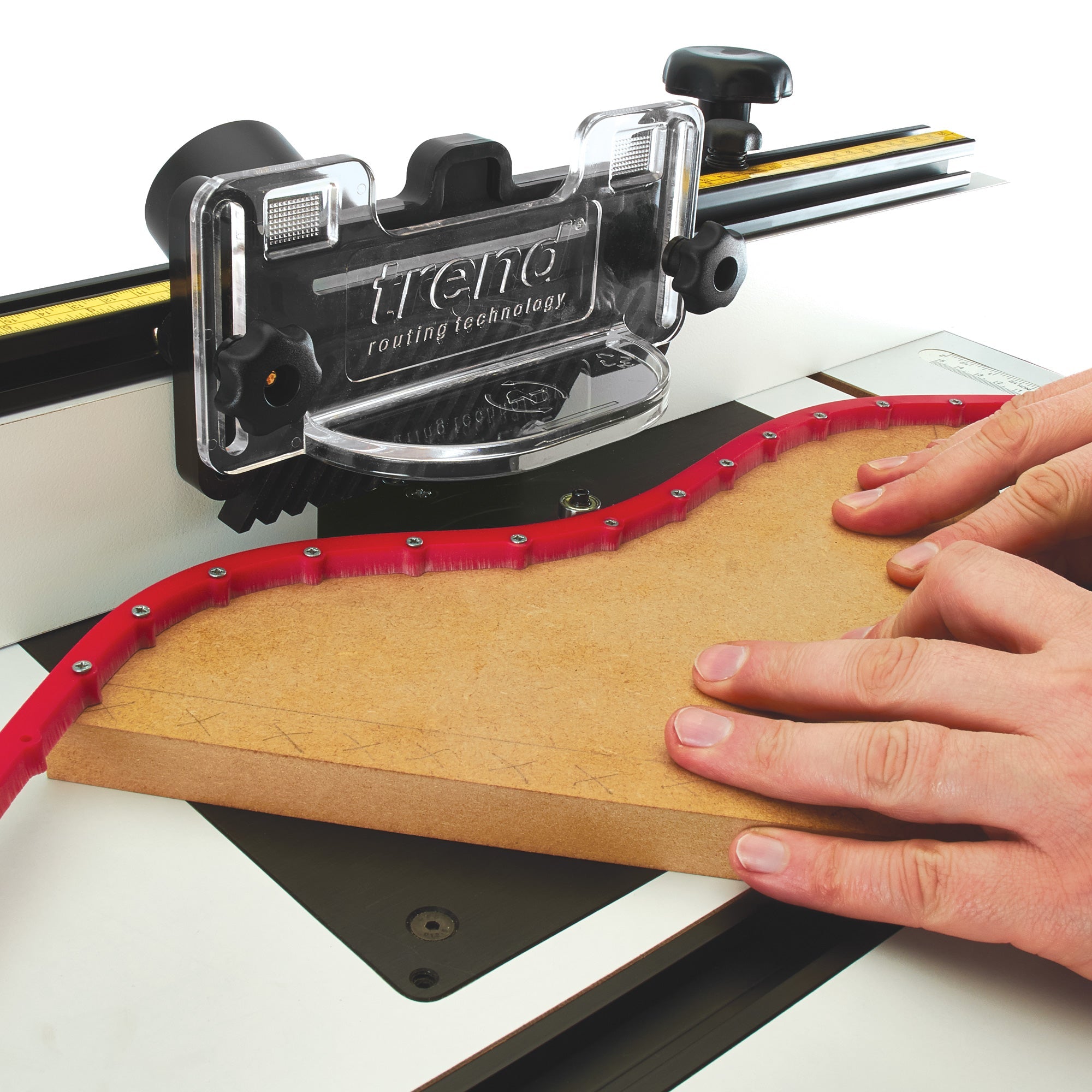

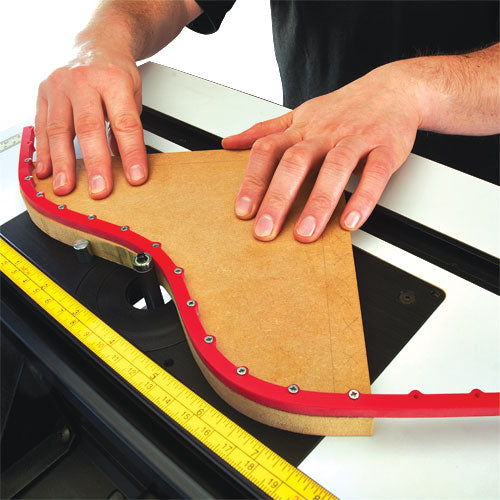

• Use with a router and bearing guided cutter or with a guide bush and unguided cutter.

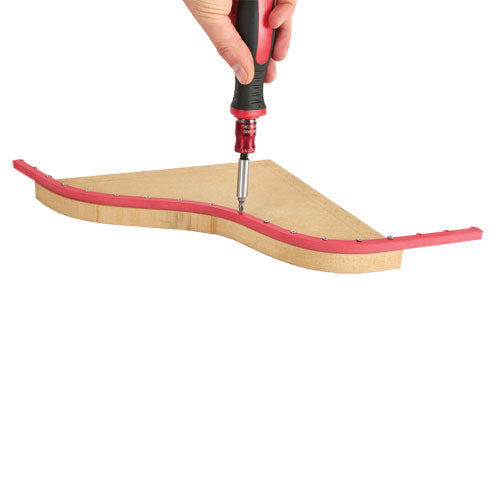

• Flexible guide is screwed to a template with the fixing screws included.
• Template should be rough cut oversize prior to routing.
• For MDF boards up to 10mm thick.
• An 8mm user made spacer should be fitted to underside of router to keep router stable.

Specifications

• Width (excl. holes)=8 mm
• Inside radius min.=30 mm
• Outside radius min.=35 mm
• Material max. thickness=10 mm
• Fixing screws=2.5mm x 16mm Csk Pozi
