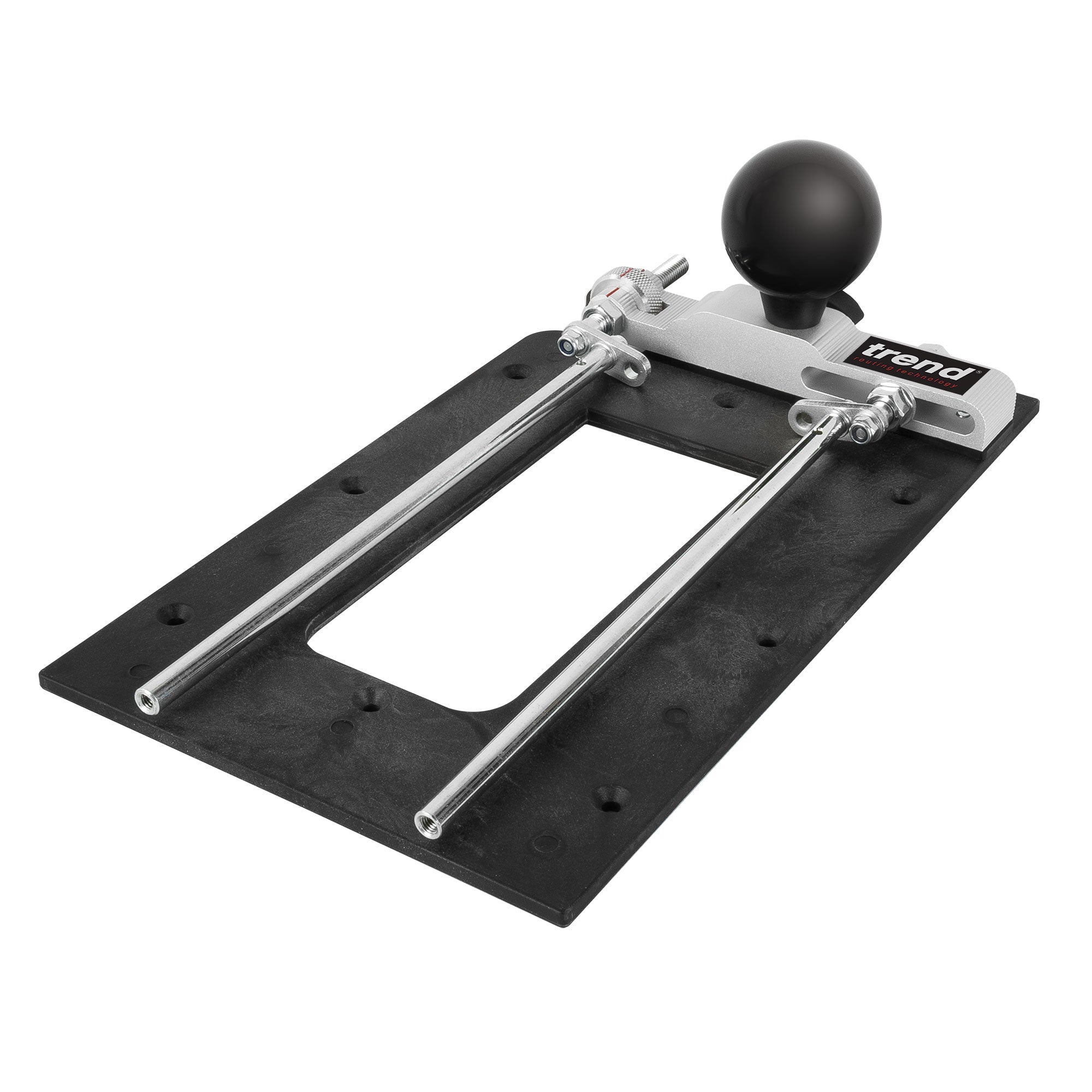

Trend Tools CRB Combination Router Base

• The Combination Router Base is a retro fit, quick change, multi-functional router base designed to:
• Increase the overall versatility of the router.
• Improve the quality of finish of every routing pass.
• Reduce the possibility of error.
• Increase stability during routing.
• Increase the level of precision achieved.
• Save set up time between tasks.
• Save space on storing hand made jigs.

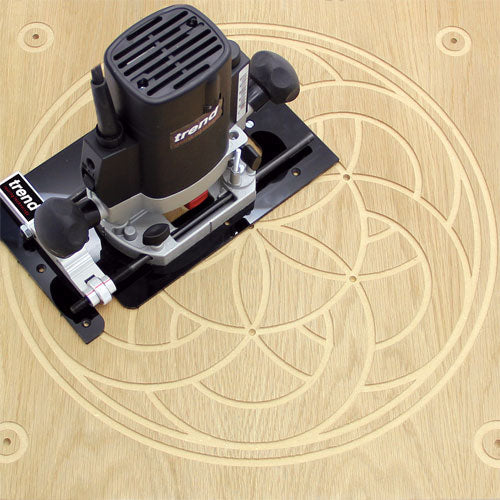

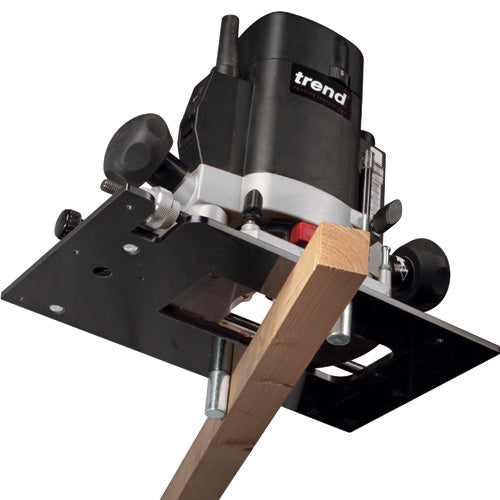

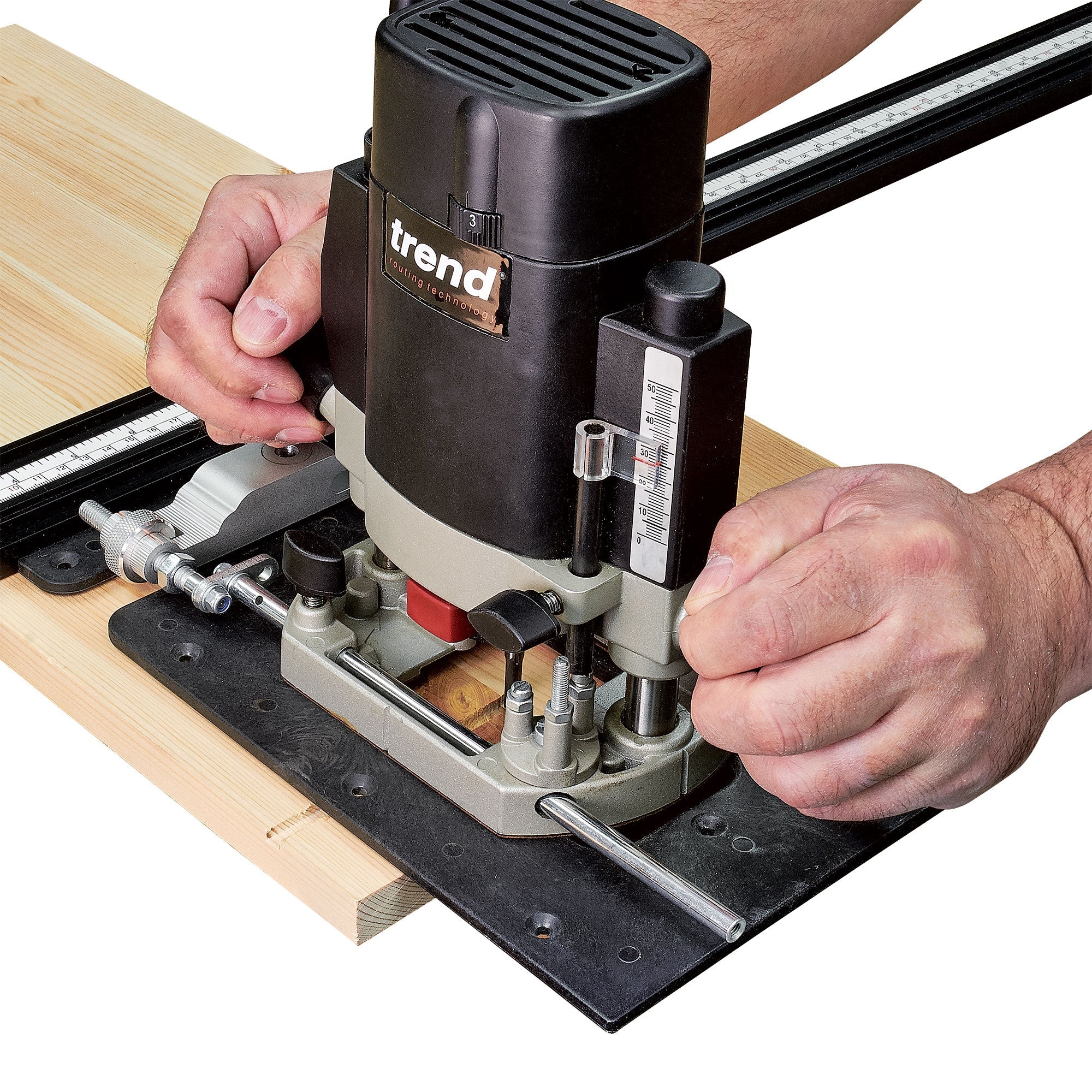

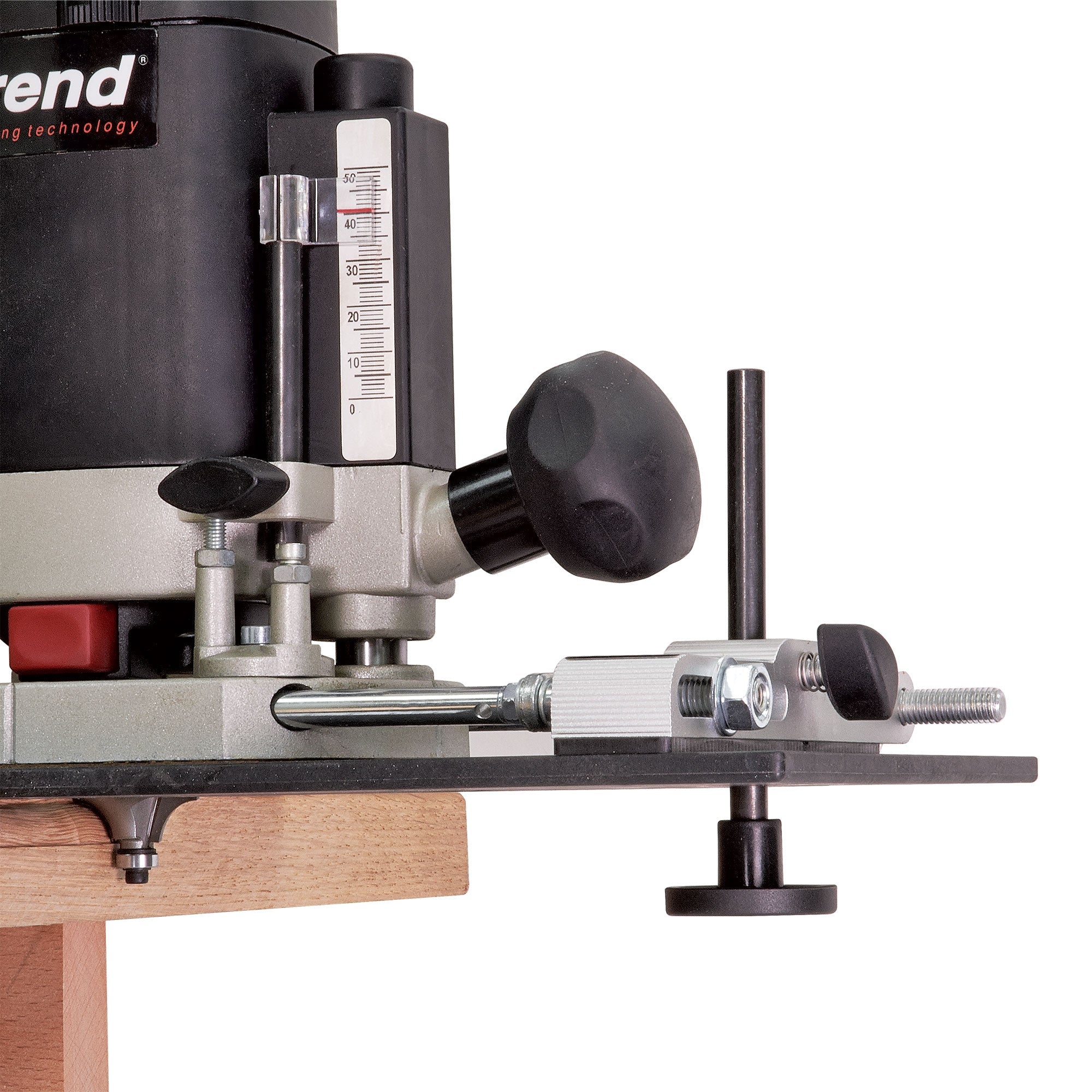

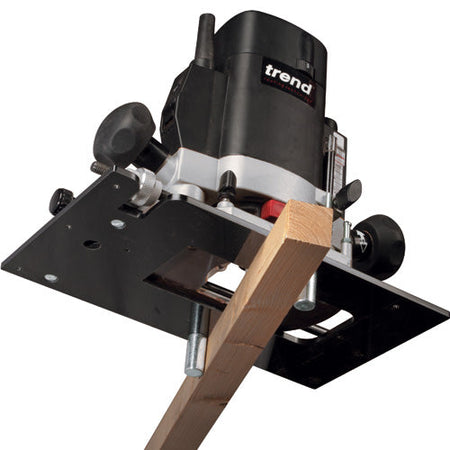

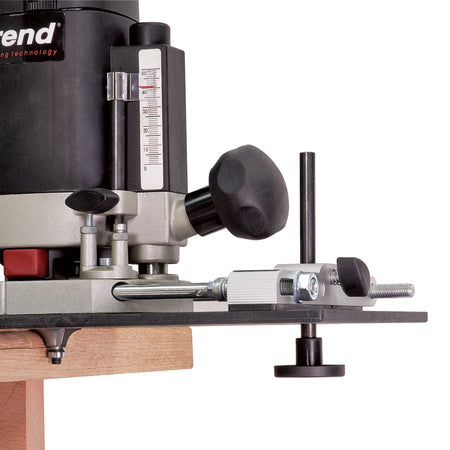

• The CRB has seven functions - an offset baseplate, router compass from 19mm to 224mm radius, adjustable trenching with a clamp guide with 40mm micro adjustment, adjustable anti-tilt support, adjustable mortising of timber from 50mm to 200mm width, adjustable false panel groove copier and also enhances the Varijig frame system as an anti-tilt device when used with routers that can accept Euro style guide bushes (a special guide bush ref GB40/B is required).
• The CRB will fit most routers with two 8mm, 10mm and 12mm fence rod holes at centres of 78mm to 130mm.
• An accessory quick fit edge trimming base is available for trimming lipping up to 16mm wide and 6mm projection, ref. CRB/TB.
• Larger circles can be accommodated by using ccessory extension rods ref. N/COMPASS/AEX to increase radius by 560mm.
• Design Reg. No. 3003693.

Specifications

• Rod size=8 mm
• Rod centres= 78 mm to 130 mm
• Mortising width min.=50 mm
• Mortising width max.=200 mm
• Anti-tilt height max.= 80 mm
• Anti-tilt height min.= 20 mm
• Lateral adjustment=110 mm
• Micro adjustment=40 mm
• One revolution=1.25 mm
• Circle radius min.=19 mm
• Circle diameter min.=38 mm
• Circle radius max.=224 mm
• Circle diameter max.=448 mm
• Length=292 mm
• Width=164 mm
• Thickness=5 mm
• Cutter diameter max. possible=40 mm. Please refer to router manufacturers specification
