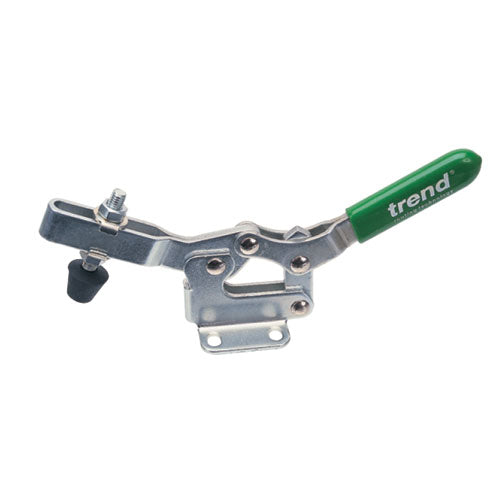

Trend Tools CR/H150 Toggle Clamp 150 Kg Force

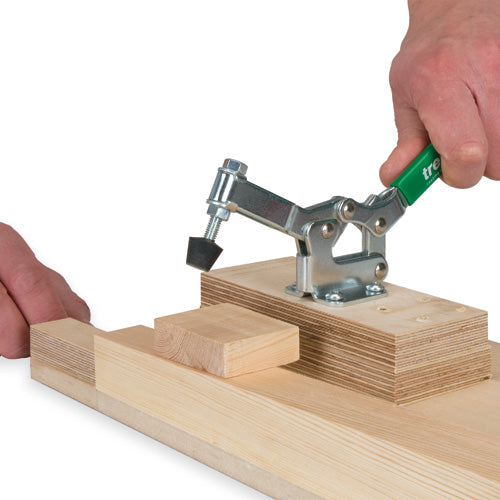

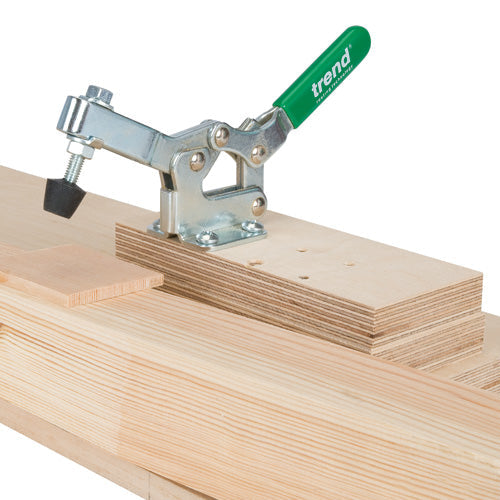

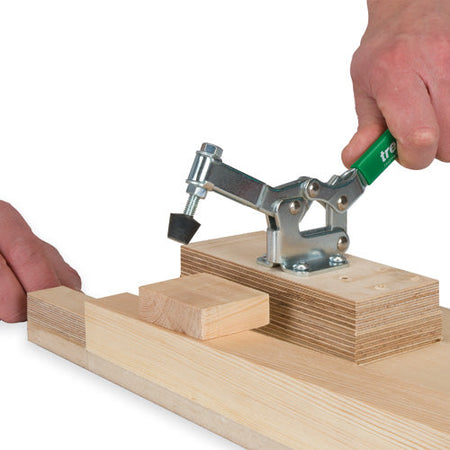

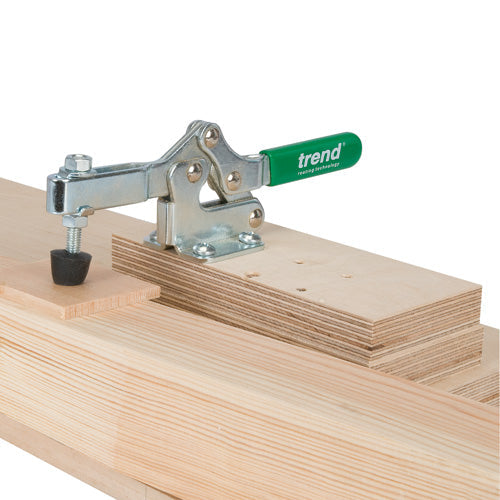

• Economy range clamp, ideal for securing workpiece either onto jigs or to the surface of the machine.

Specifications

• Clamping force=150 kg

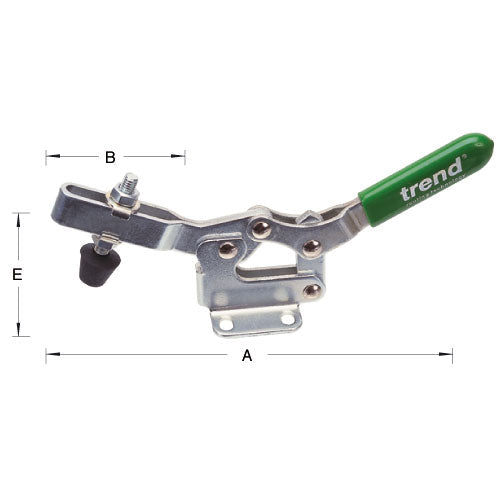

• E=50 mm
• A=160 mm
• B=53 mm
• Fixing hole spacing (length)=26.5 mm centre to centre
• Fixing hole spacing (width)=25 mm centre to centre
• Fixing hole width=8.5 mm
• Bar throat height=23 mm
• Max. thickness to pad=3 mm
• Spindle thread height adjustment=10 mm
• Pad subflush height adjustment=Minus 5 mm
