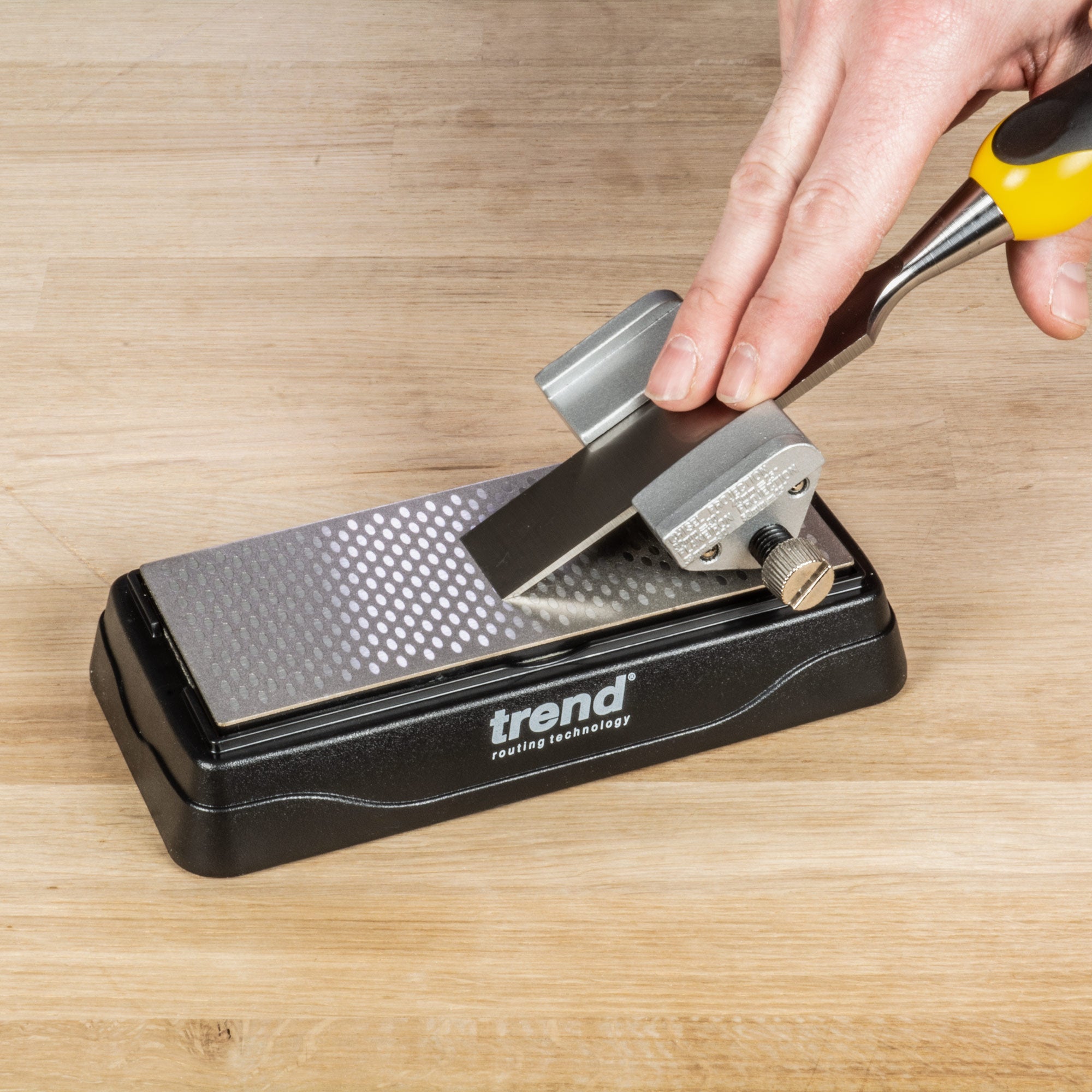

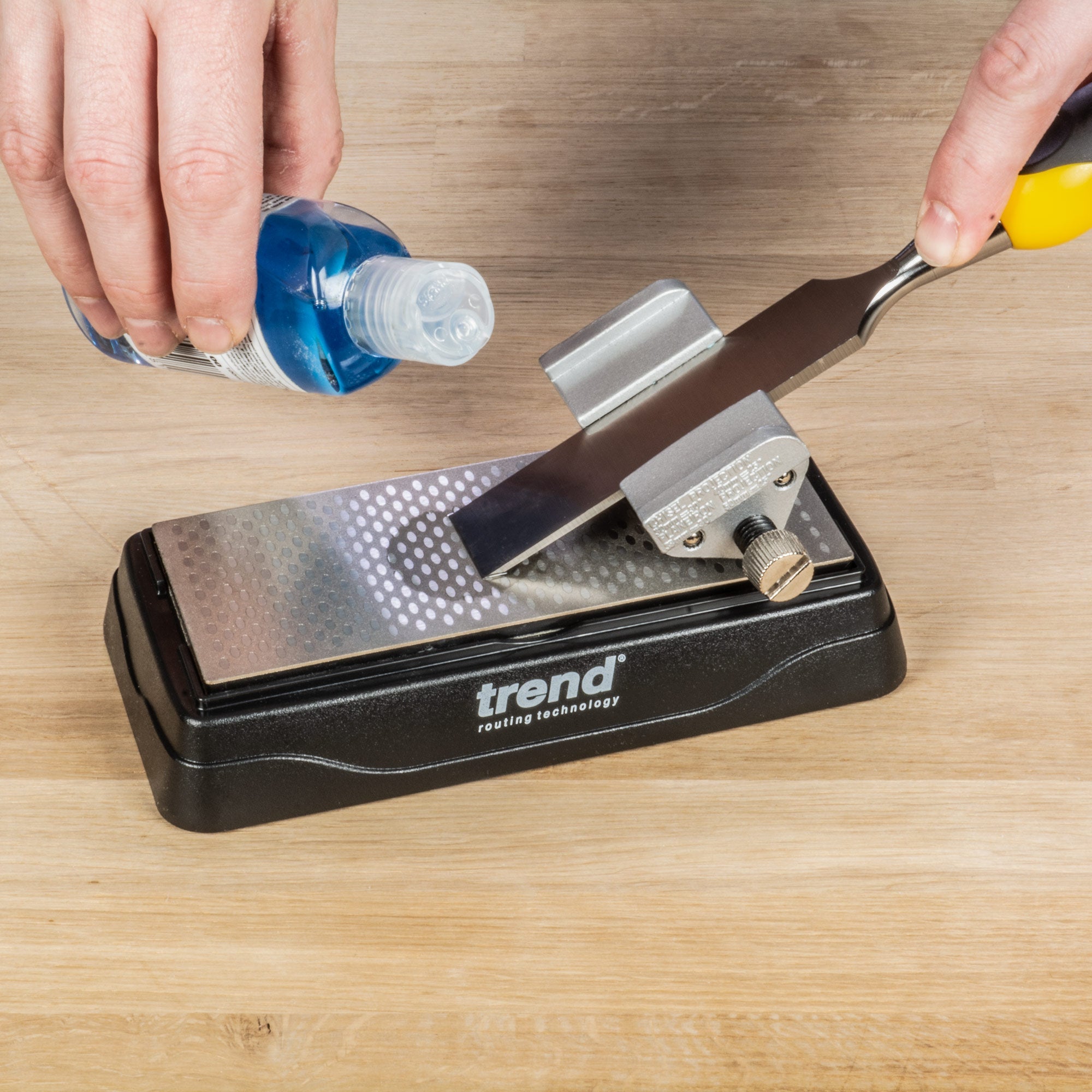

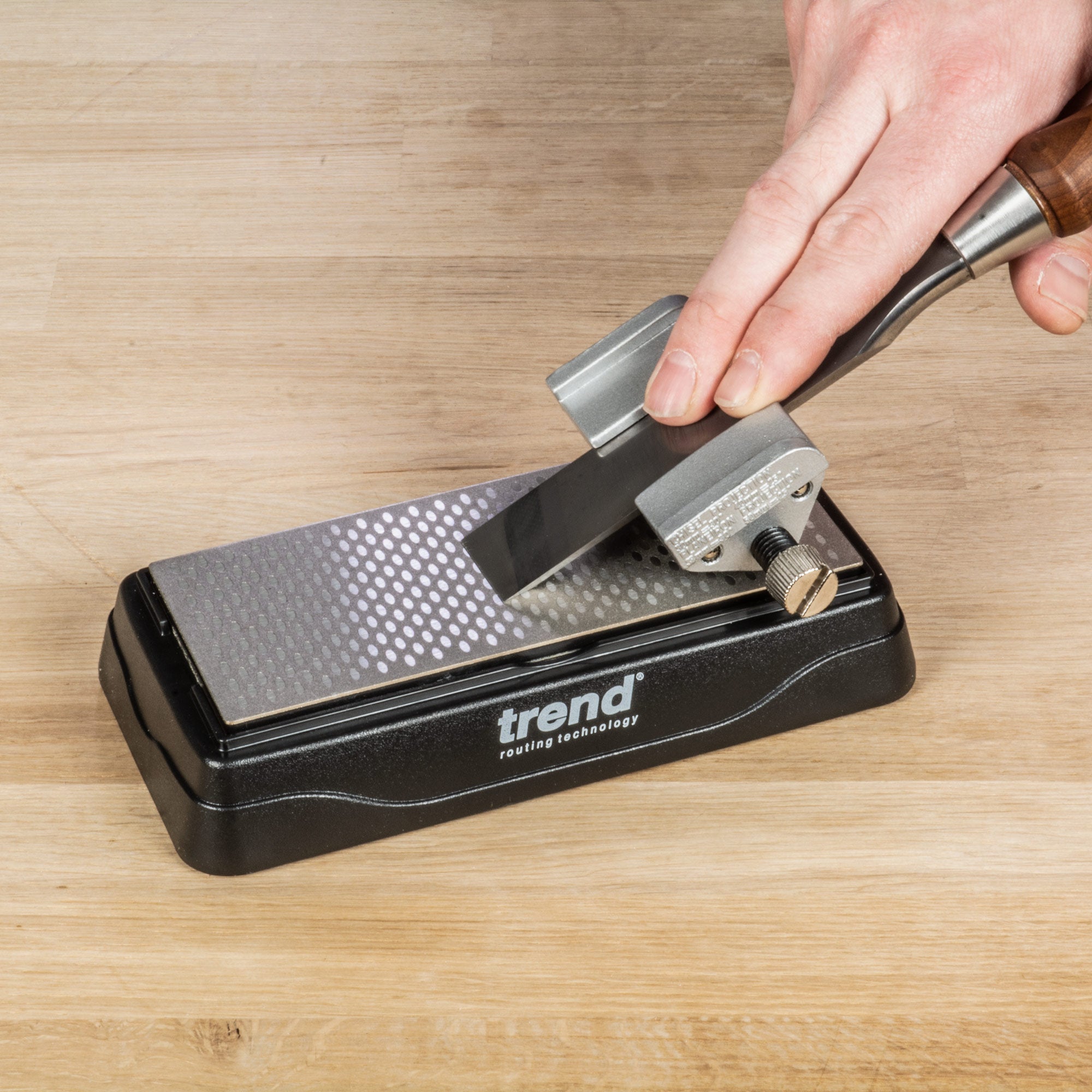

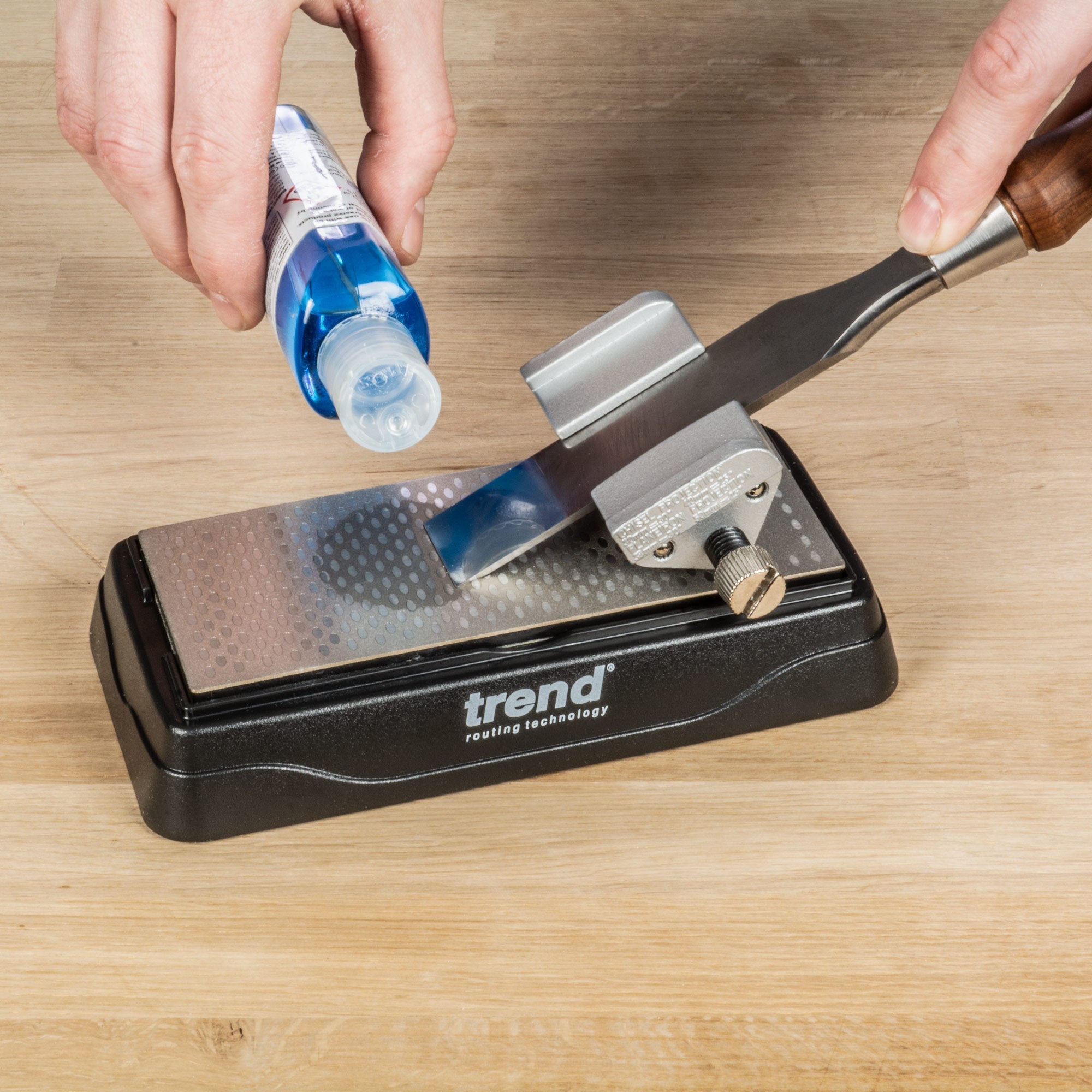

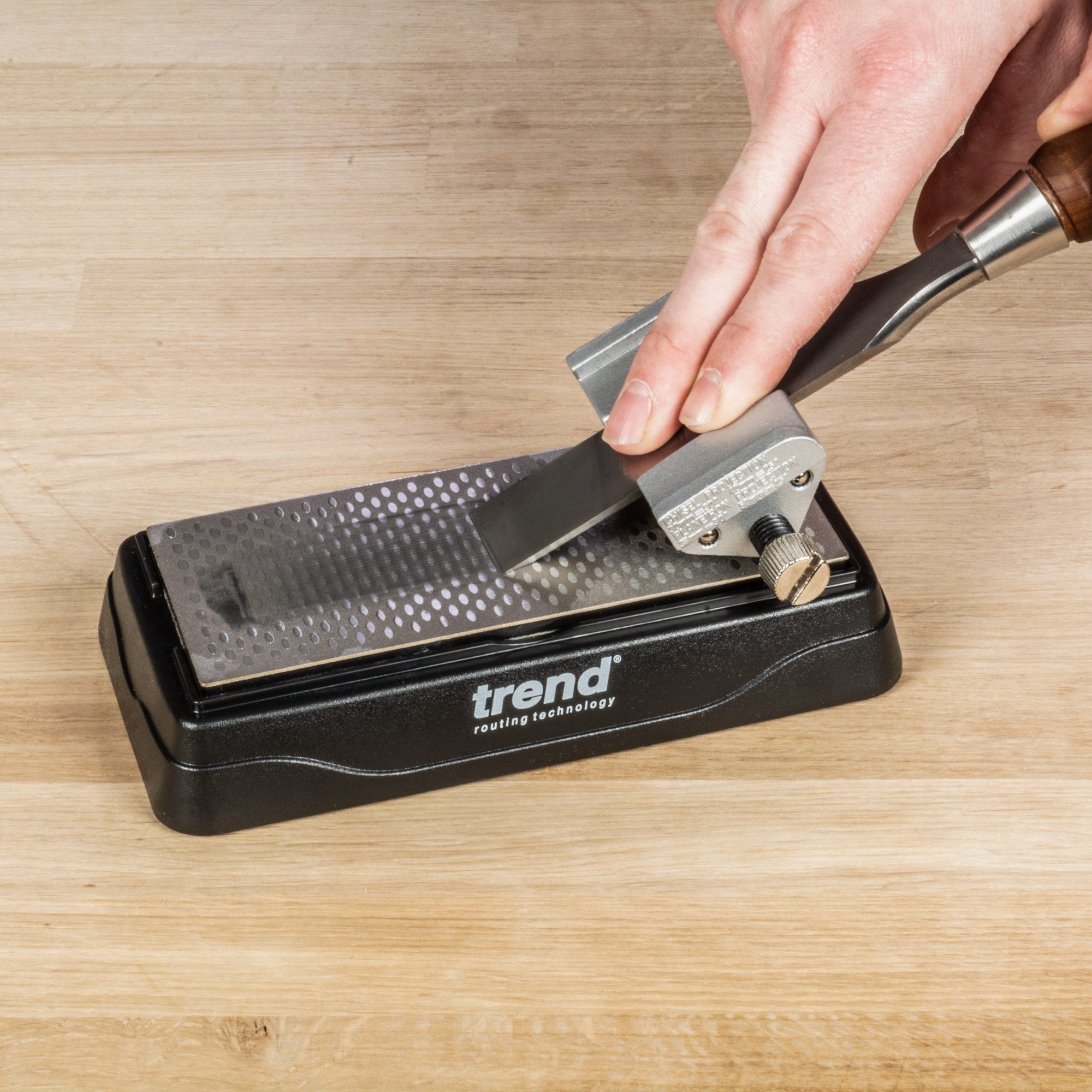

Ensure correct angle is maintained on bevel edge chisels and plane irons when used with diamond whetstone.

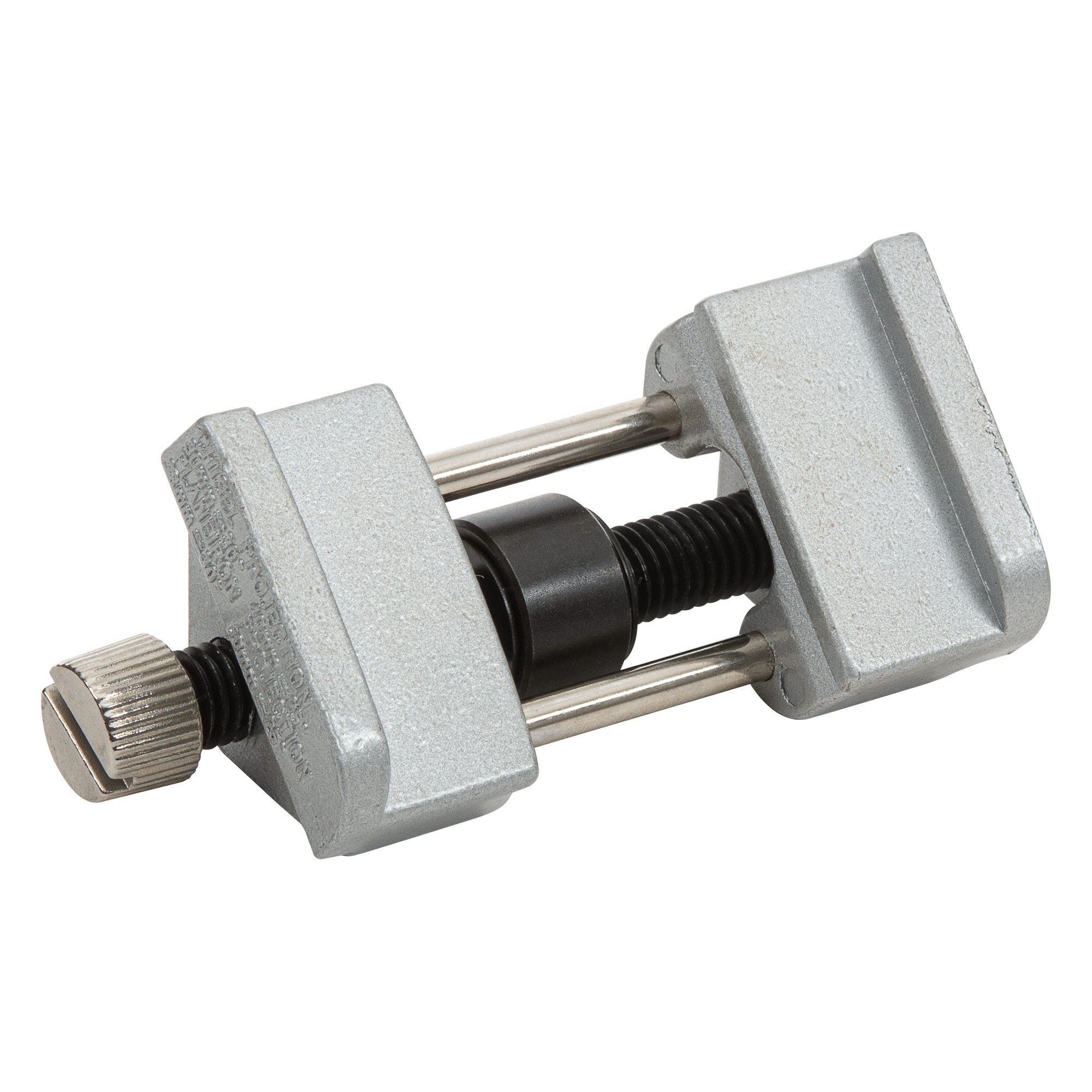

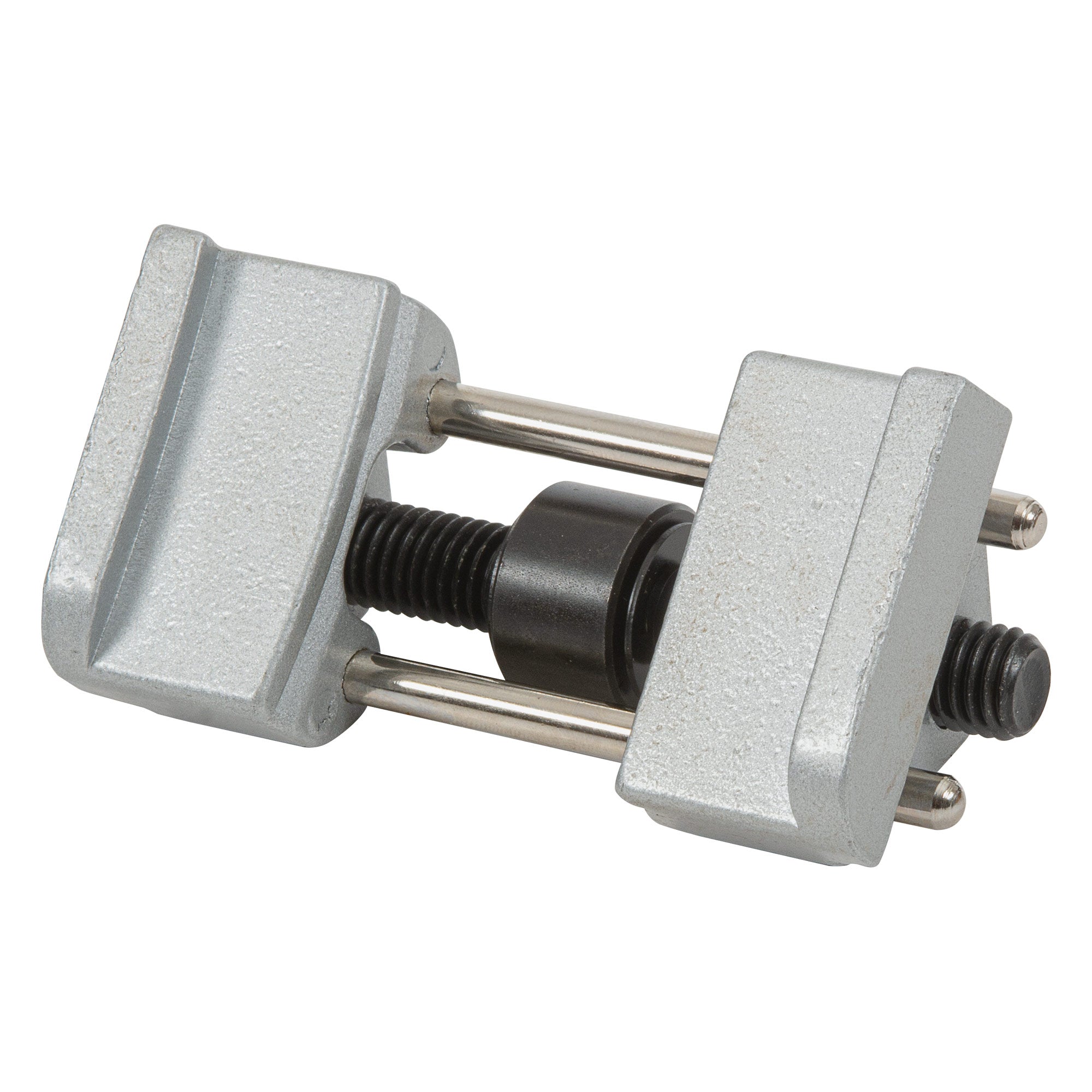

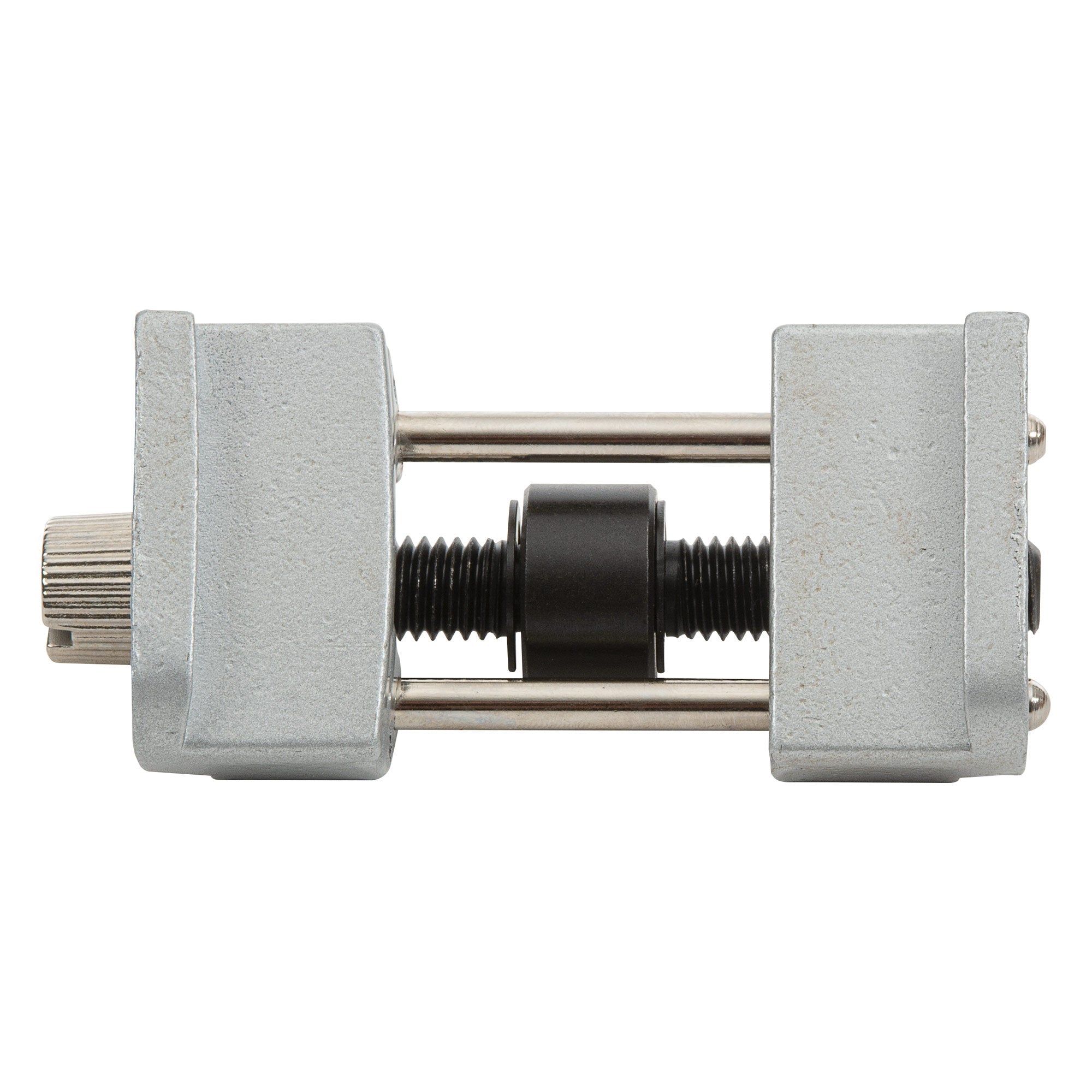

Roller with alloy body which self-centre clamps bevel edge chisels from 1/4 inch (6.35mm) to 1-1/4 (32mm) and plane irons up to 2- 9/16 inch (65mm) wide.
The setting device is marked for 25 degree and 35 degree angles.
Positive location for roller and blade.
Adjustable stop for setting blade angle.
Use with 63mm (2 1/2 inch) wide x 178mm (7 inch) long bench stones or workshop stones.
Not for use with Firmer chisels or short blade (Butt) chisels.
Specifications
Chisel blade width min.=6.35 mm
Chisel blade width max.=32 mm
Plane blade width max.=65 mm
Plane blade width min.=35 mm
Angle=25 deg & 30 deg
Thumb knob diameter=13 mm
Thumb knob slot=2 mm wide
