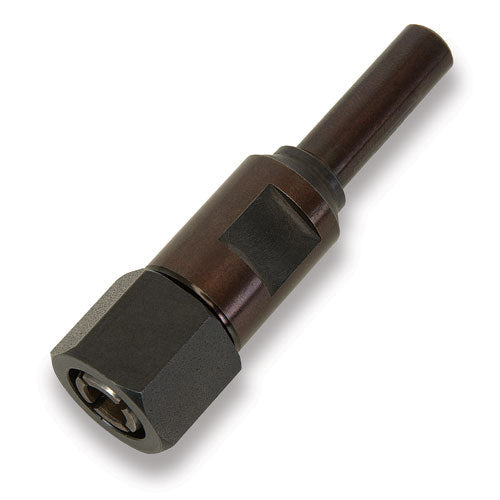

Trend Tools CE/8635 Collet Extension 8Mm Shank 1/4" Collet

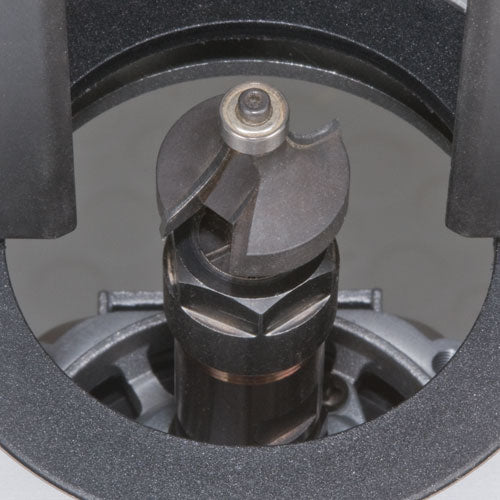

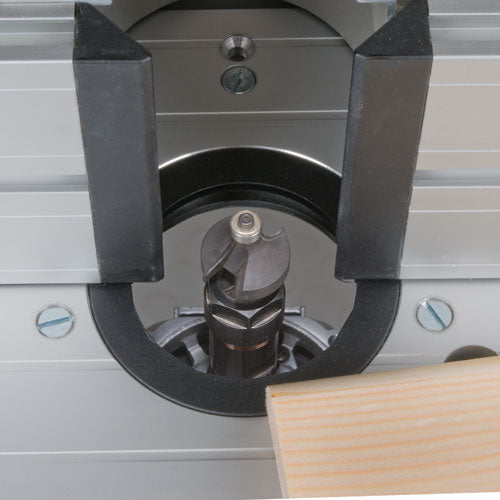

• For use in router tables where there is a limited router cutters shank length available.
• Precision machined one-piece steel body.
• With an 8mm shank, fitted with a multi-slit spring steel collet and collet nut.
• Should be used with medium duty routers of minimum 850 watts, use at maximum speed 18000 RPM and maximum cutter diameter 35mm.
• Increases spindle length by 41mm.
• Maximum tool cut length 25mm.
• Requires 12mm & 17mm A/F spanners.
• Accessory collet and nut sets available for other shank diameters.

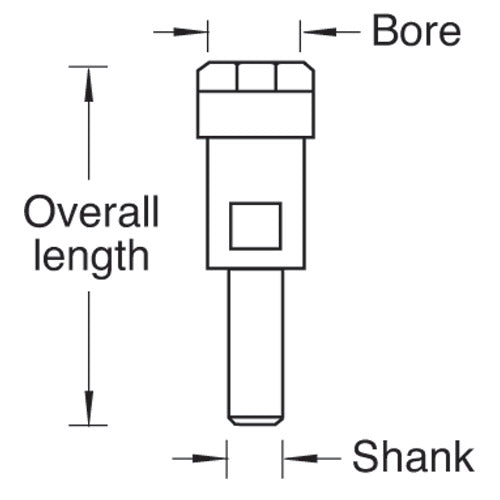

Specifications

• Shank size=8 mm
• Collet bore=6.35 mm (1/4 inch)
• Overall length=64 mm
• Nut dia. max.=19 mm
• Maximum speed=18000 rpm
• Maximum tool dia=35 mm
• Maximum tool cut=25 mm
• Requires spanners=12 mm & 17 mm A/F
