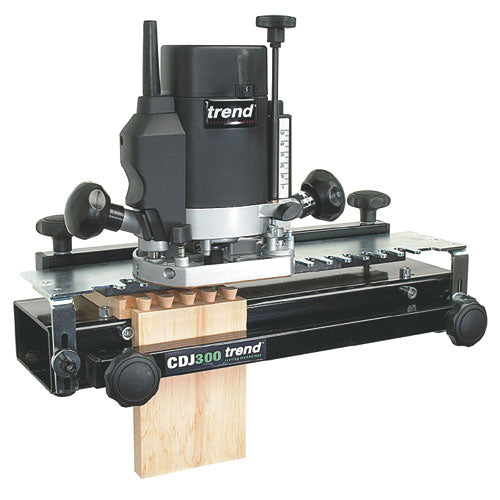

Trend Tools CDJ300/EURO Craft Dovetail Jig 300Mm Euro 8Mm Shank

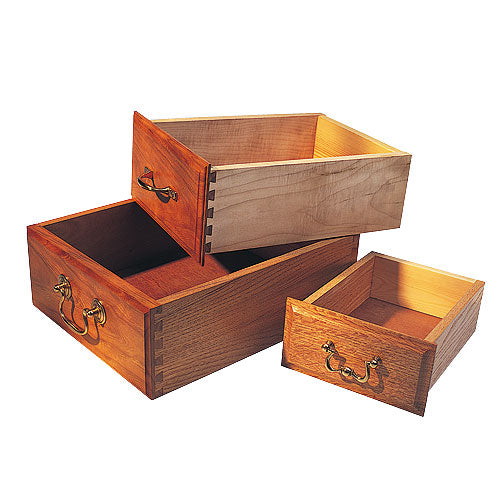

• An accurate and easy to use Dovetail Jig for a variety of elegant dovetail joints.

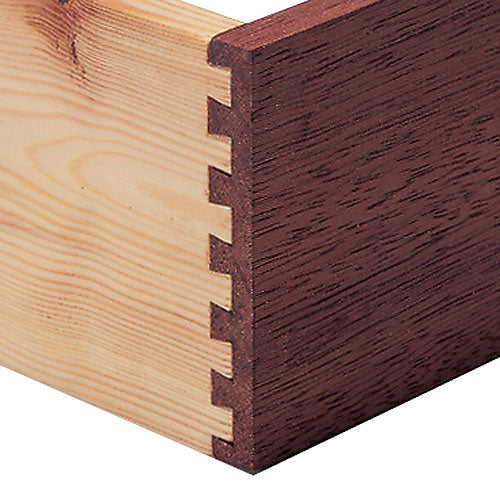

• Cuts 12.7mm (1/2 inch) wide half blind dovetails or rebated dovetails in one operation.
• Precision made laser cut zinc plated steel template with packing piece.
• A Unibase and fine height adjuster may be required for certain makes of router.

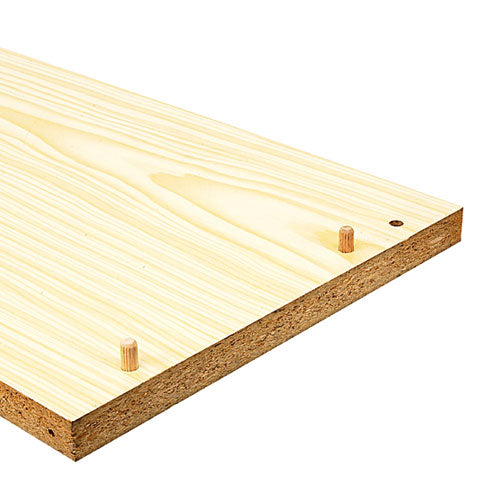

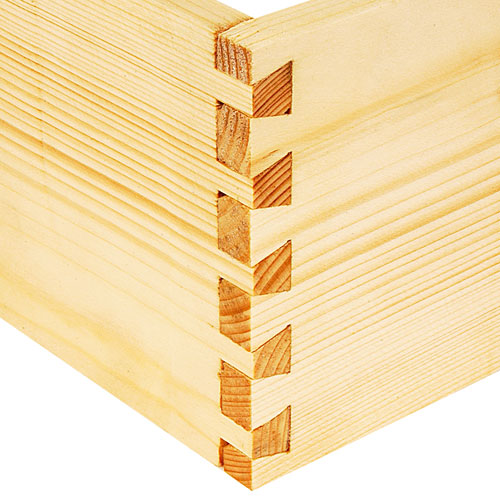

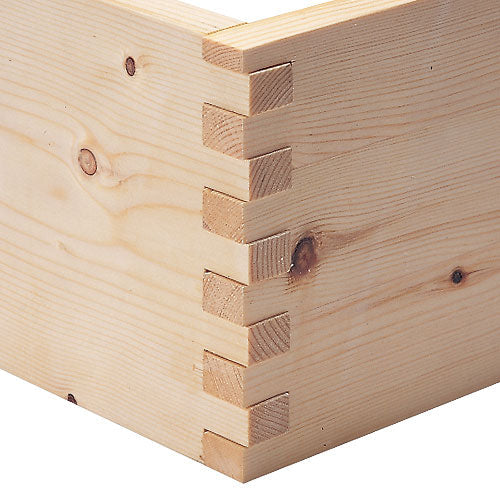

• A range of accessory templates are available for box joint, dowel and through dovetails.

Specifications

• Rating=Craftsman
• Dovetail size=12.7 mm
• Cutter shank=8 mm
• Workpiece width max.=300 mm
• Workpiece thickness min.=12 mm
• Workpiece thickness max.=25 mm

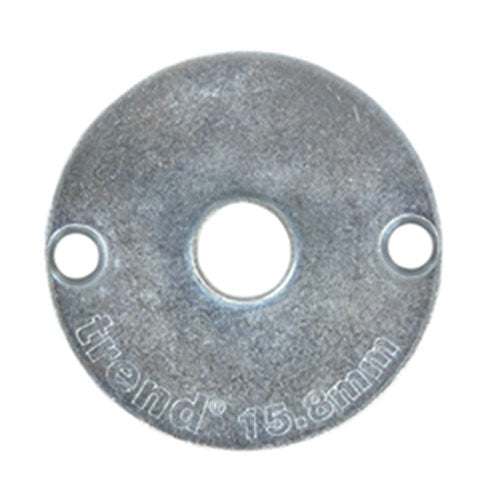

• Guide bush size=15.8 mm
• Router base dia. max=180 mm
