Trend Tools C193AX1/4TC Trend Craftpro 1/4In Bearing Guided Rebater 24Mm Dia X 12.7Mm Cut Depth

• Popular rebate sets which include different size bearings for a choice of rebates.
• Ease of setting-up and accurate depth of cut.
• Ideal for rebating straight and shaped work pieces.
• Ideal with delicate applications such as musical instrument production, when a small rebate is required for insertion of purfling.
• When using bearing Ref. B95A, make two passes when a full depth of cut is required by using a larger bearing first.

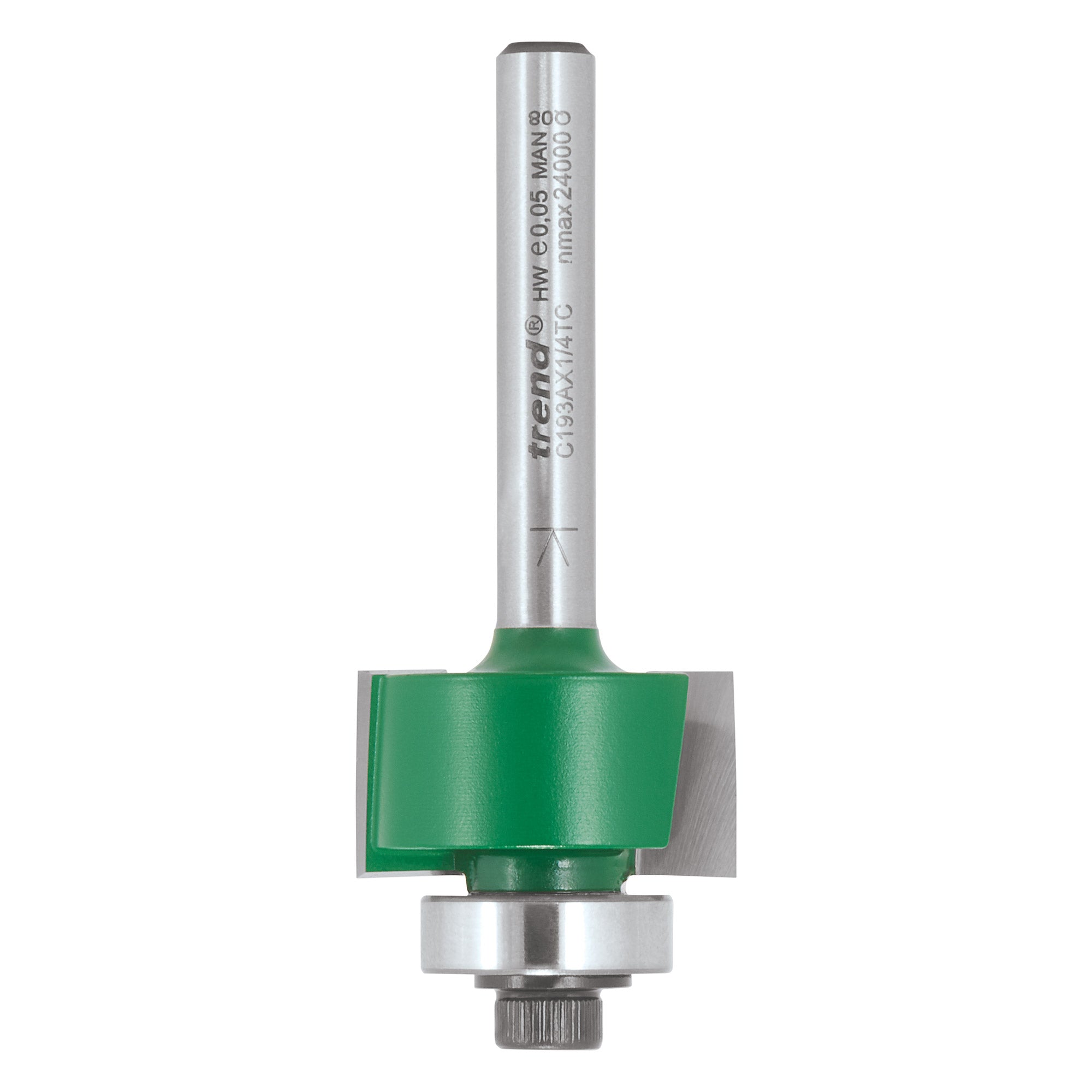

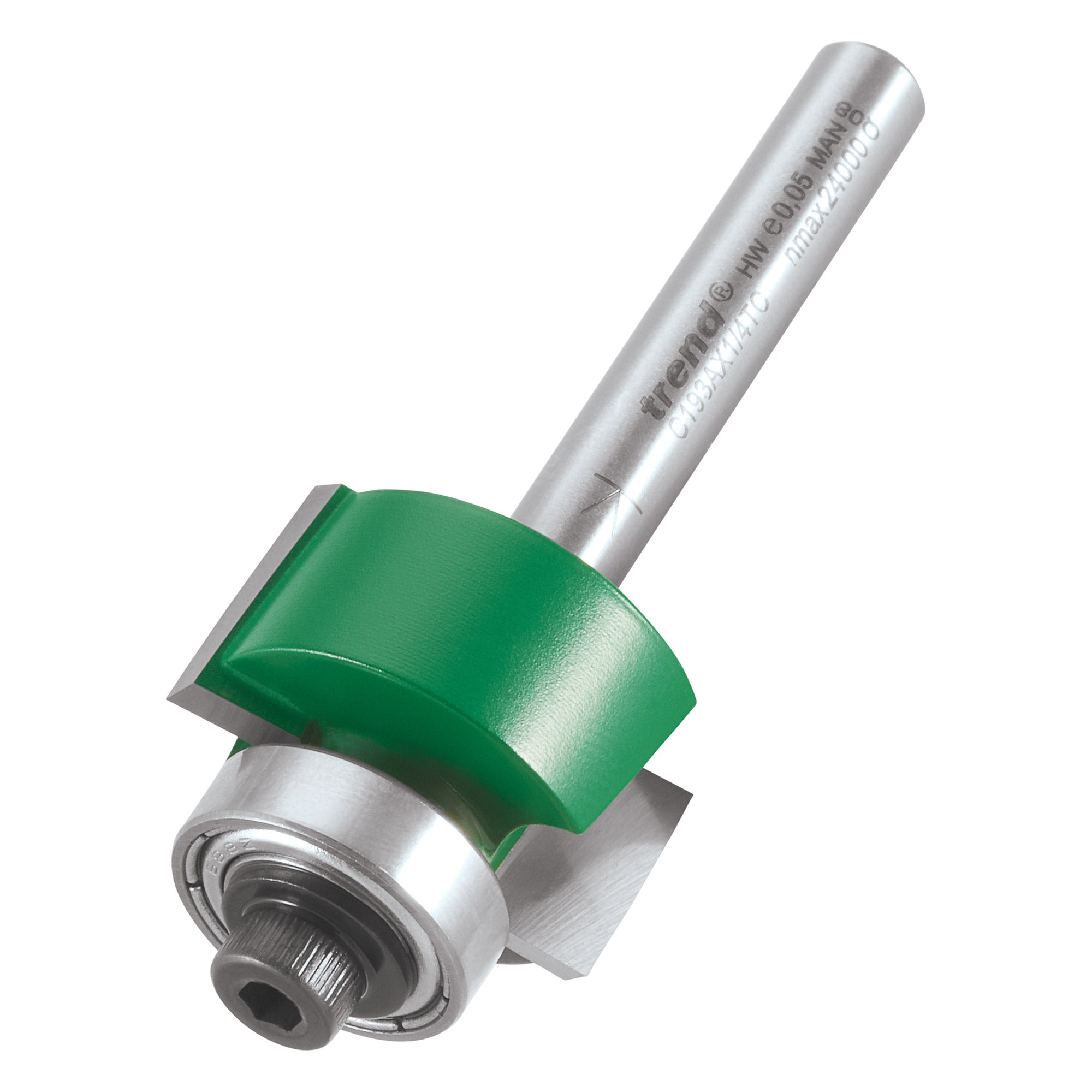

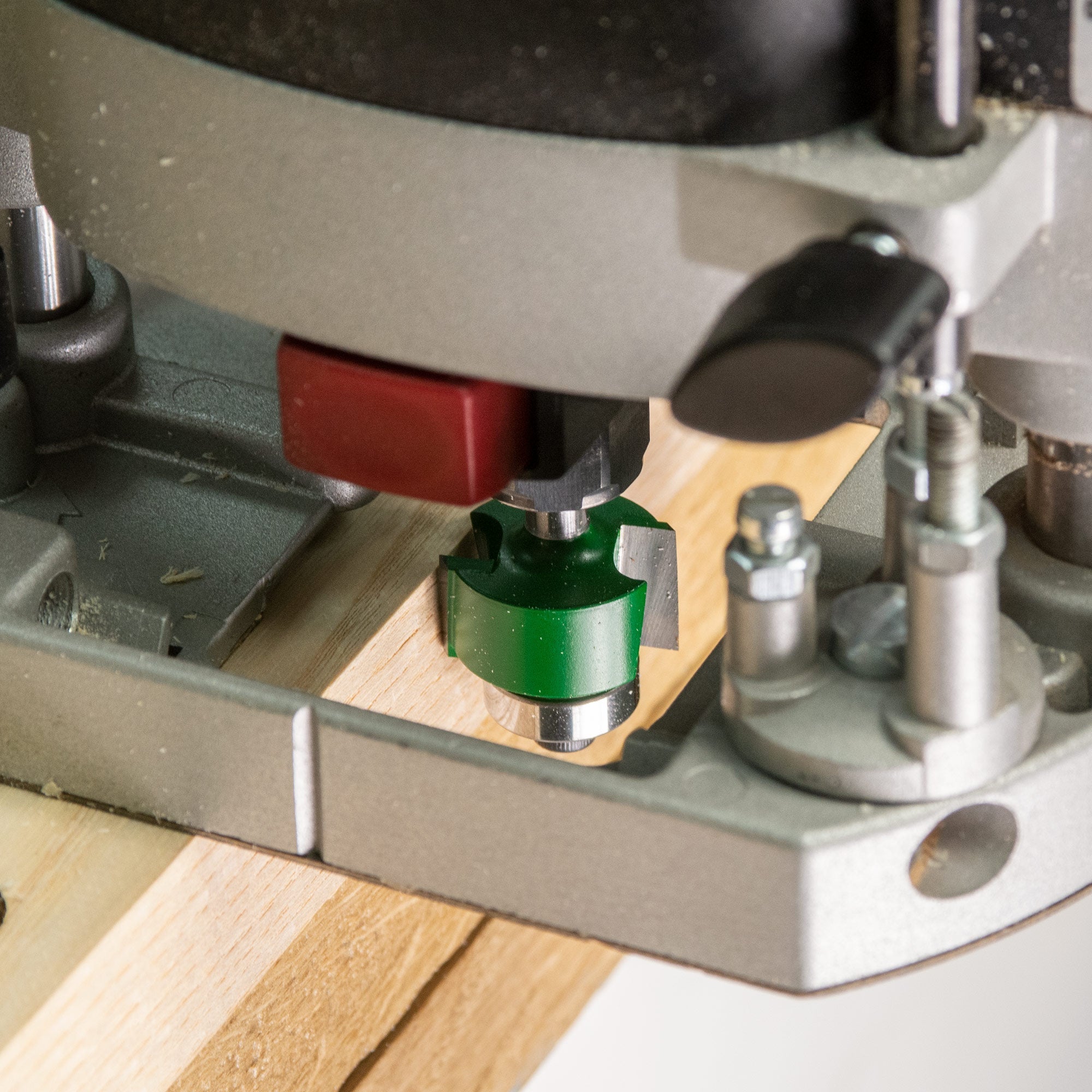

• 1/4" shank 24mm diameter 12.7mm cut depth twin flute TCT bearing guided rebating cutter.

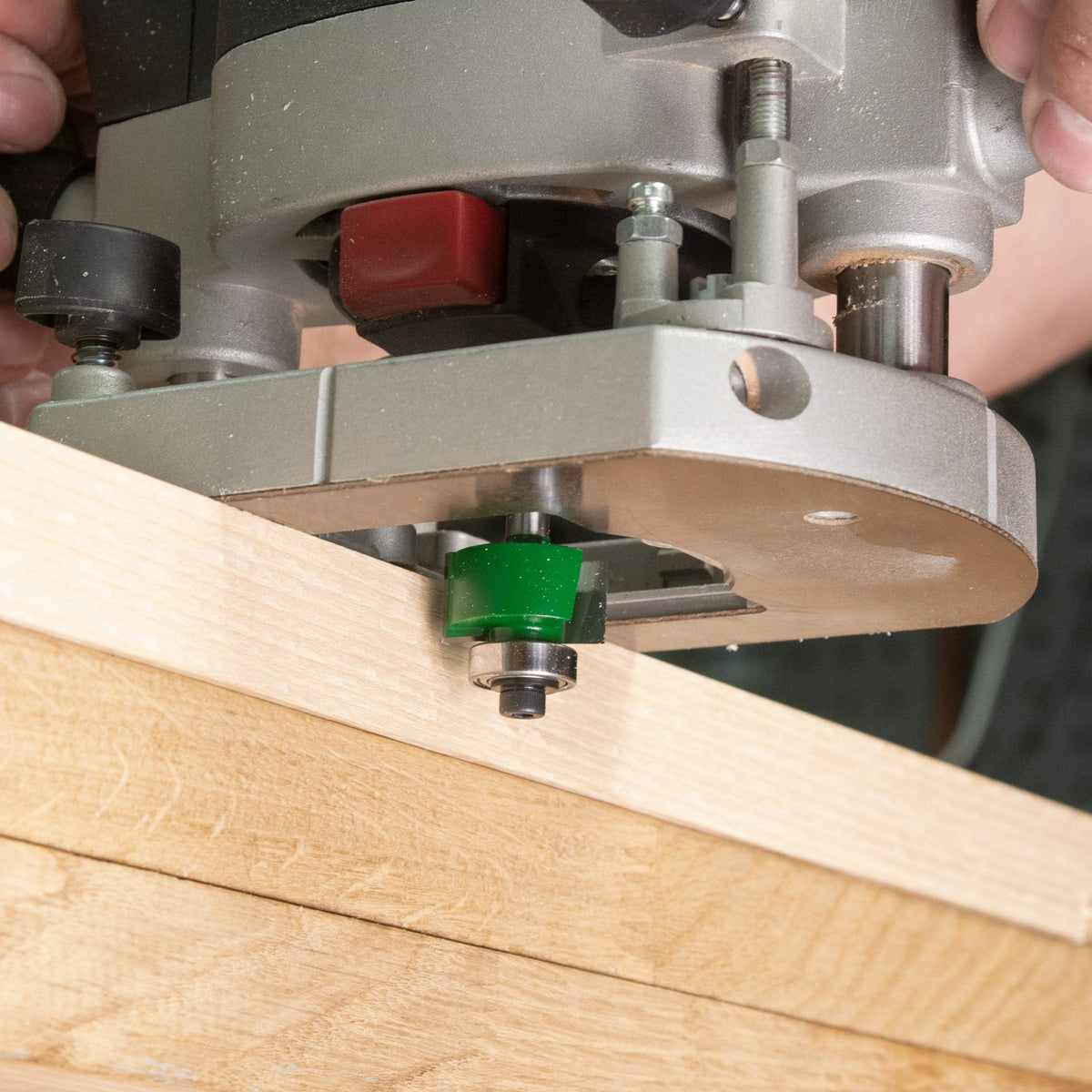

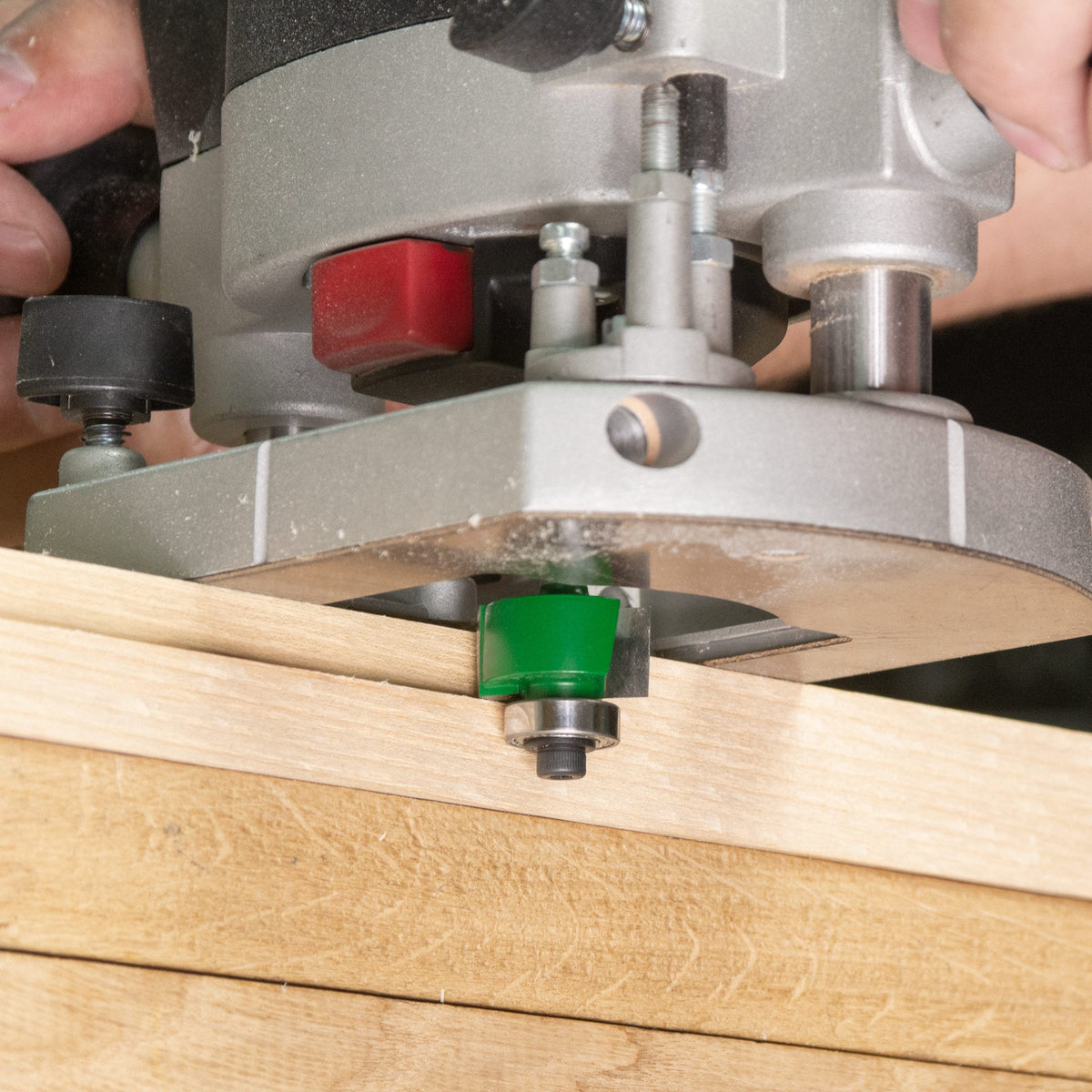

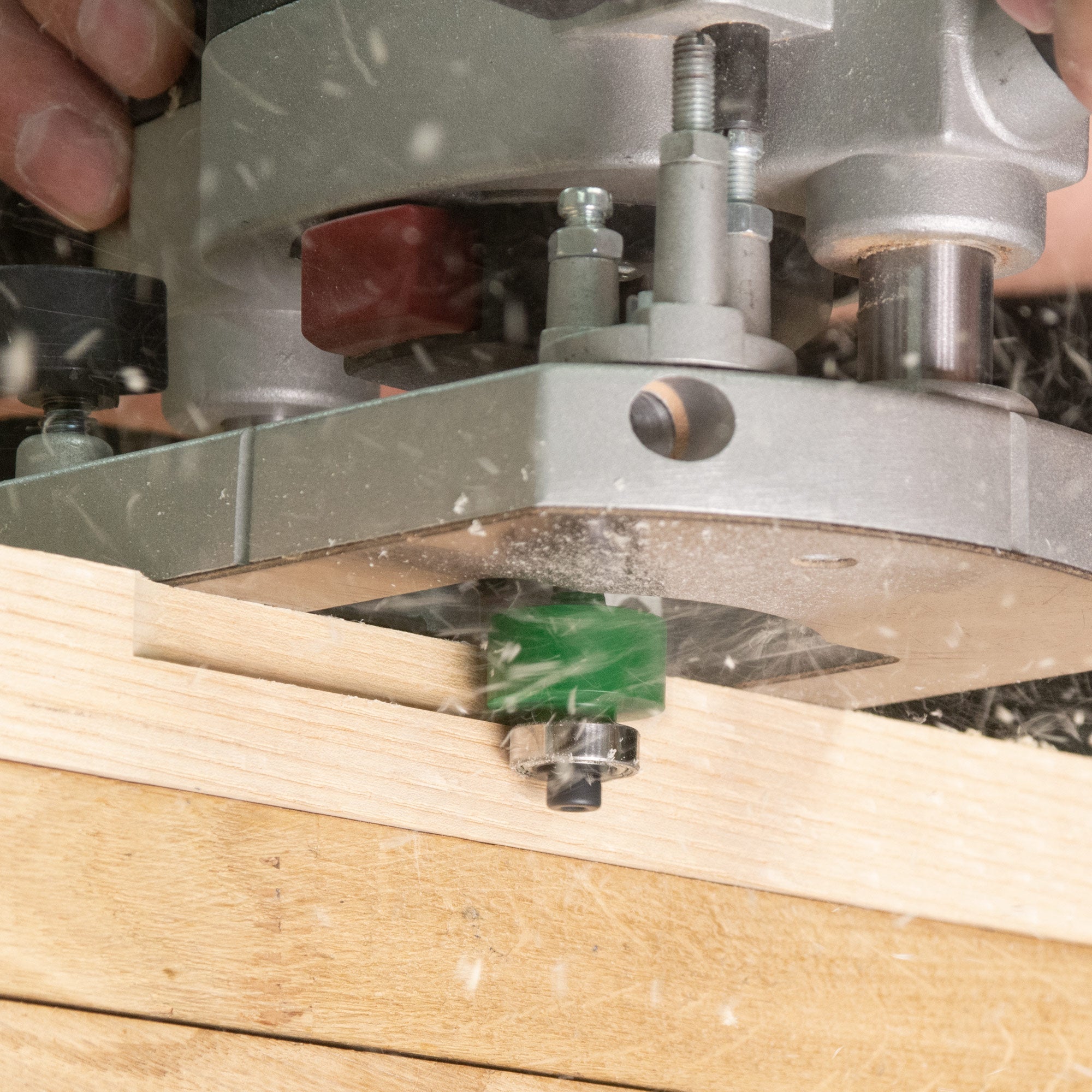

• Makes fast repeatable rebates on straight and curved edges.
• Supplied with 22mm, 19mm and 16mm bearings for 3 different rebating width options.
• Makes 4mm, 2.5mm and 1mm rebates for finer detailing, box making and shadow line detailing.
• 1/4" shank for easy control in smaller routers.
• PTFE coated bodies reduces friction and heat build-up for longer lifespan.
• 2mm thick Premium Micro-granular Tungsten Carbide Tips for an excellent finish in all materials.
• KÕ marked shank ensures correct insertion depth for safe routing.
• Additional shank markings to indicate maximum safe speed and cutter reference.

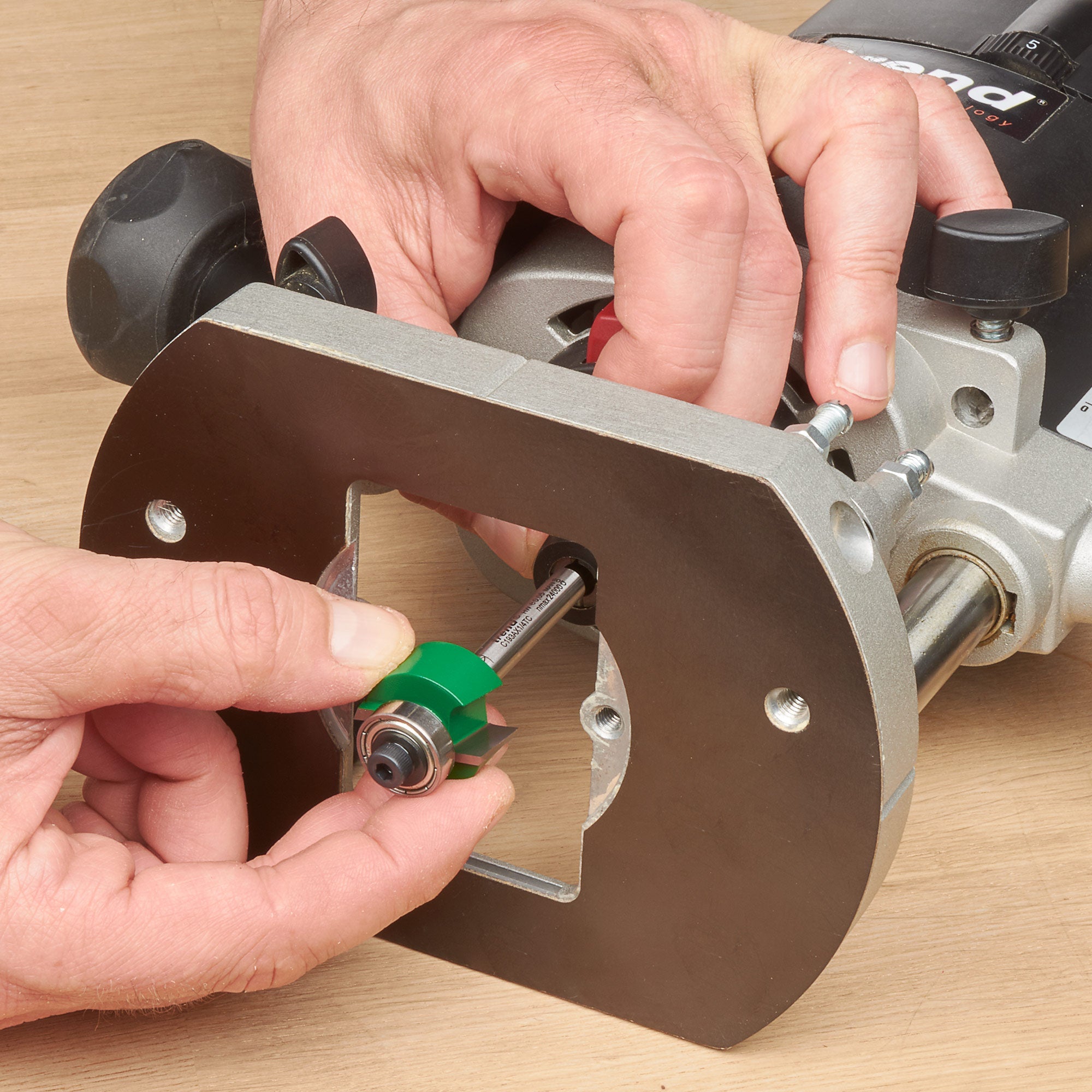

• Extra-long shank for use in router tables.

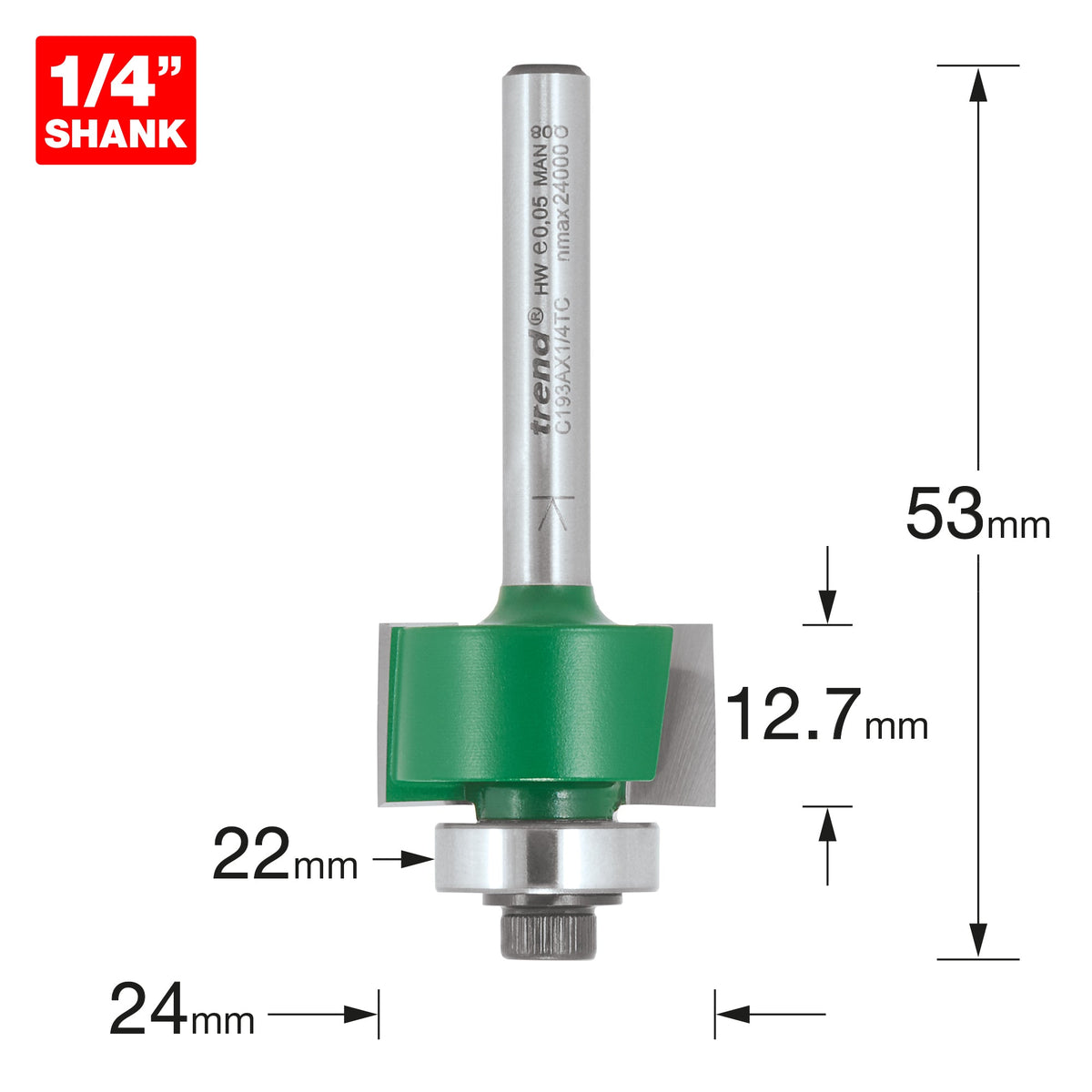

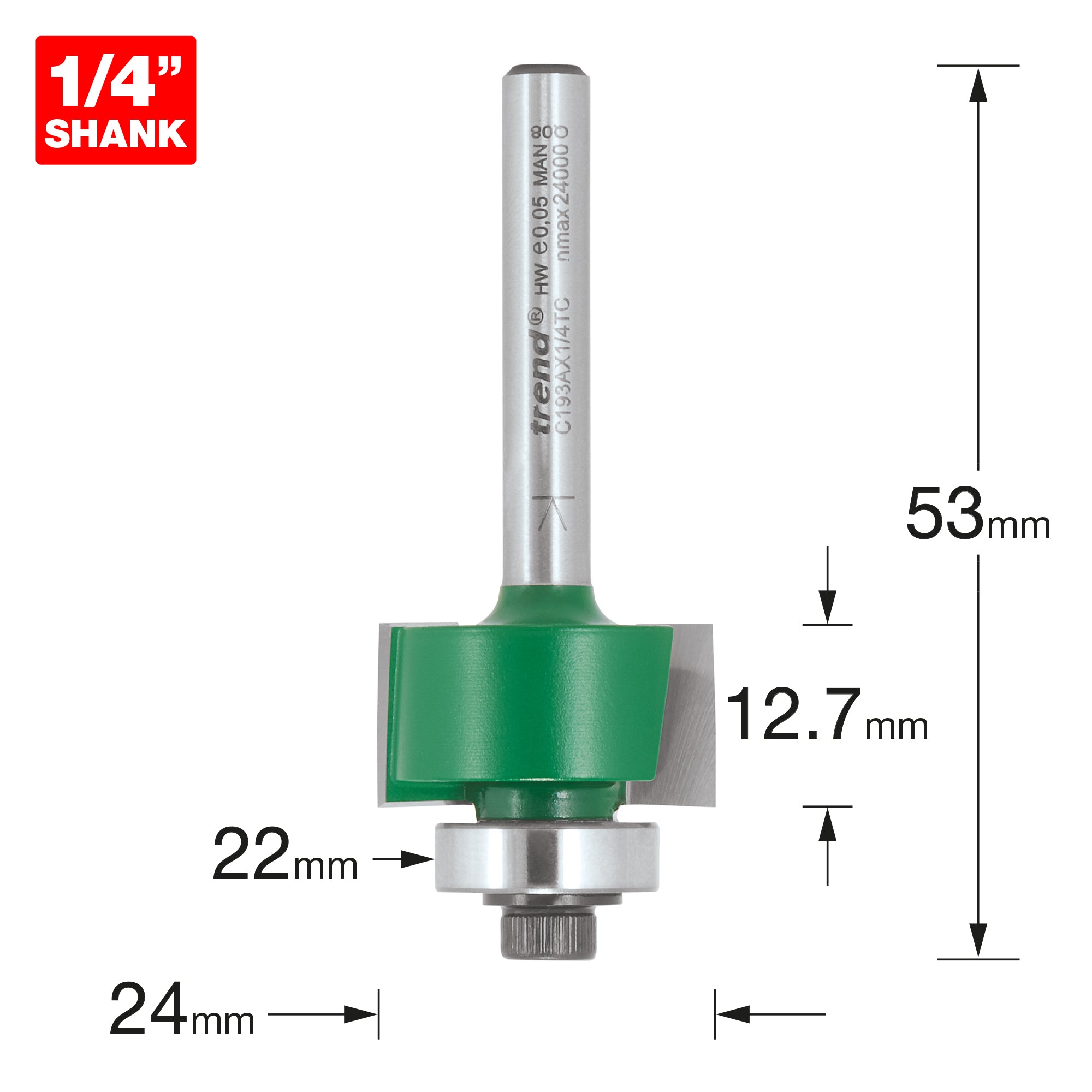

Specifications

• D=24 mm
• C=12.7 mm
• B=16 mm
• B2=19 mm
• B3=22 mm
• OL=53 mm
• Shank Diameter=1/4 inch
• B22=1.0 mm
• B19=2.5 mm
• B16=4 mm
