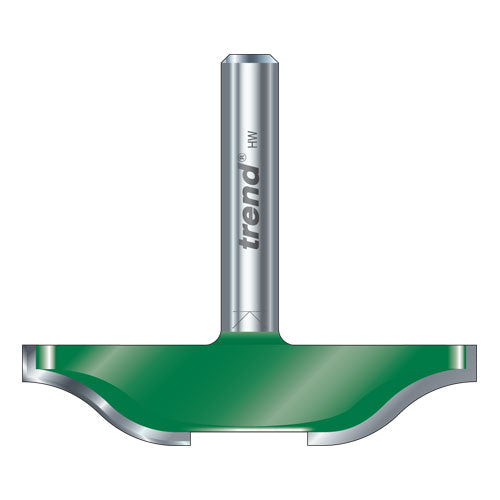

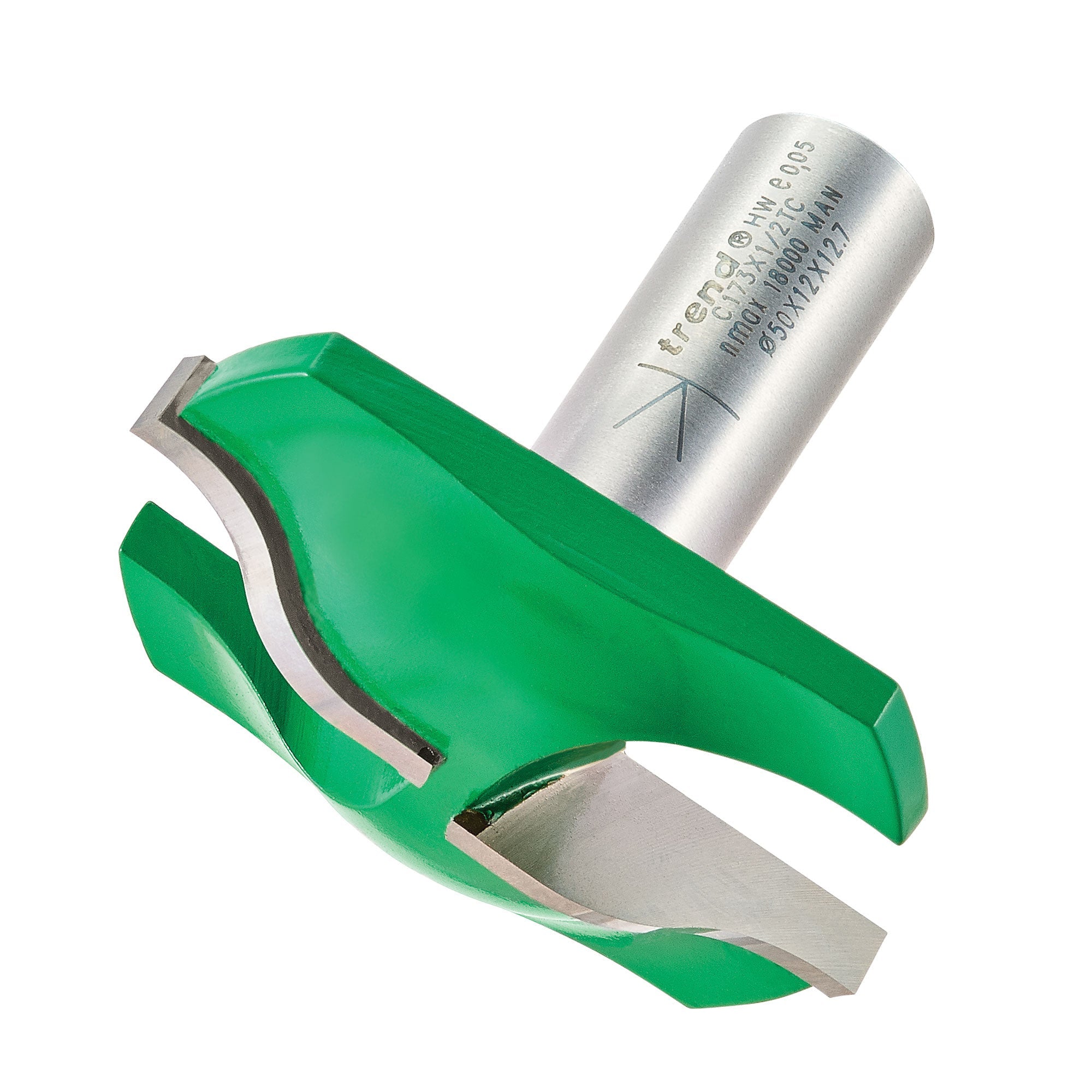

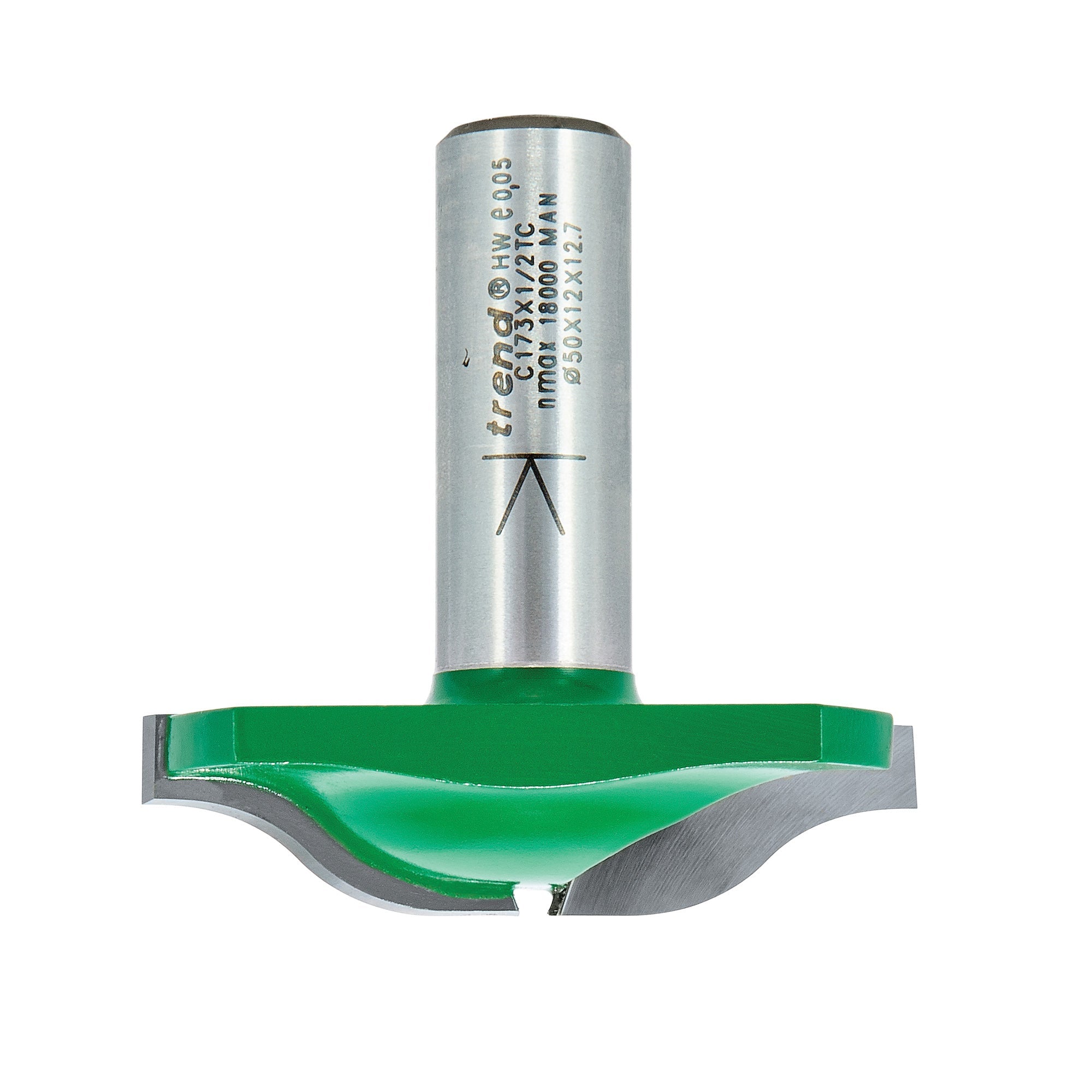

Trend Tools C173X1/2TC Large Panel Raiser Radius 12Mm

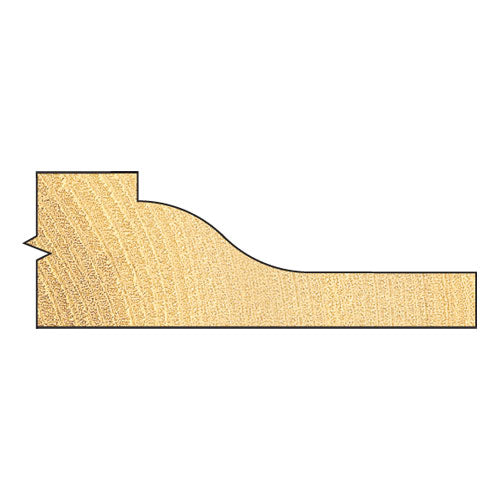

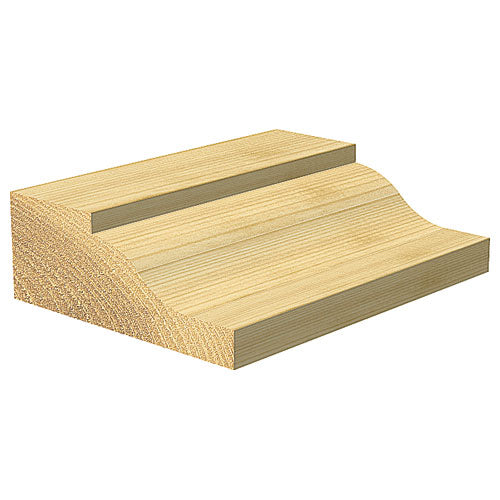

• Panel raiser cutters for producing the panel for cabinet panelled doors, tool matches our range of profile scribers. Suitable for use on natural timber and MDF.
• For use in a router table only.
• Take several passes, increasing the depth with each pass.
• Must be used in a stationary variable speed router either mounted overhead or inverted in a router table at a reduced speed. For use on natural timber and MDF.
• Stationary use only.
• Can be used for curved panels if a copy pin is used.

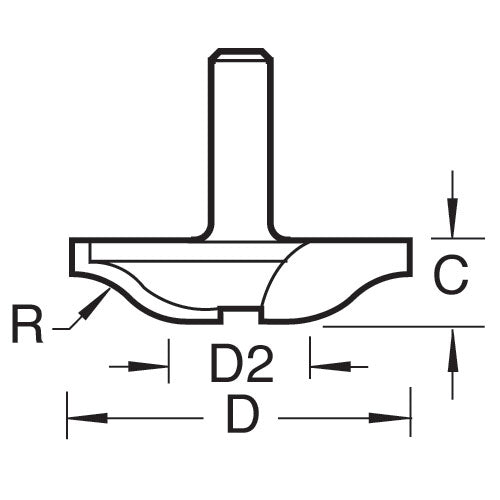

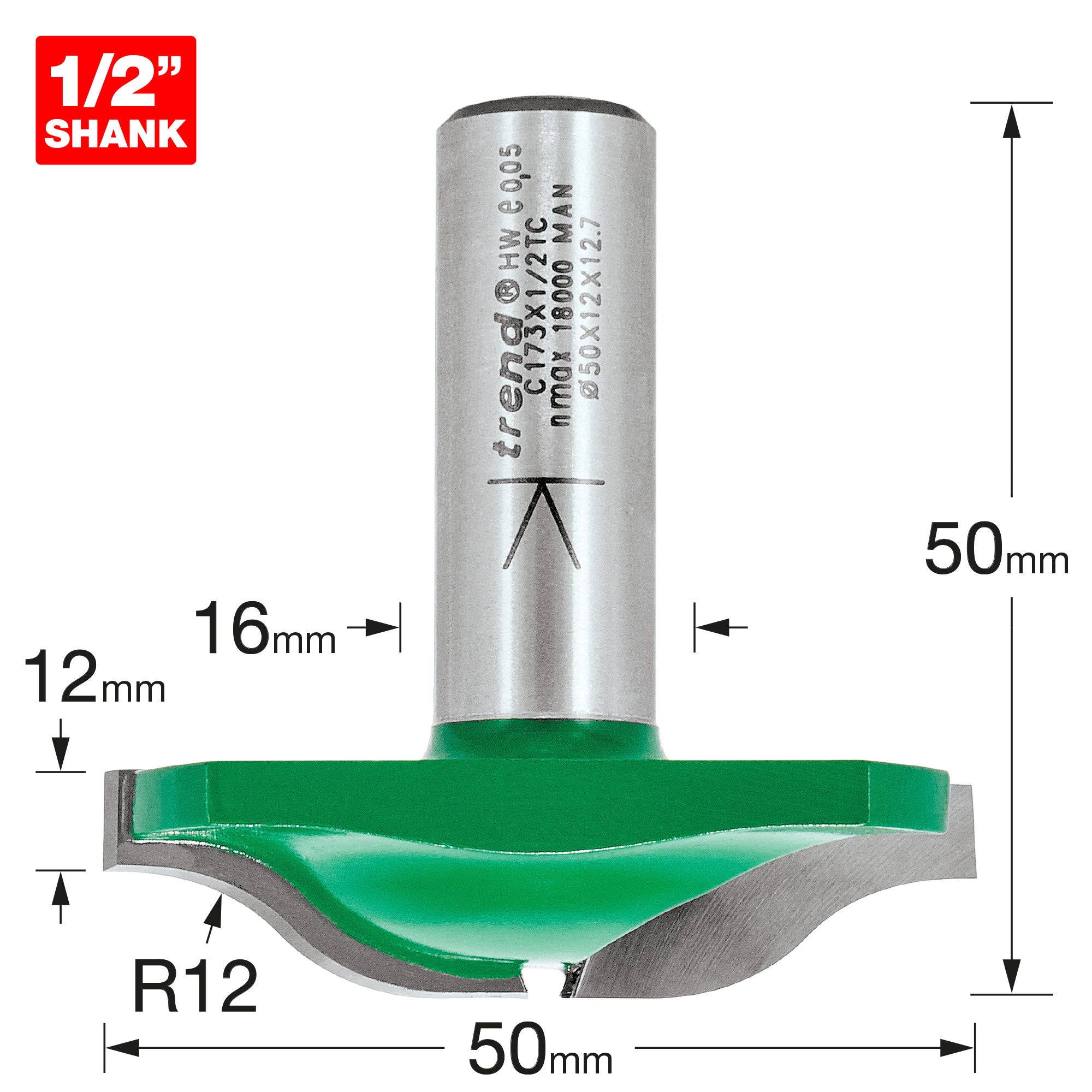

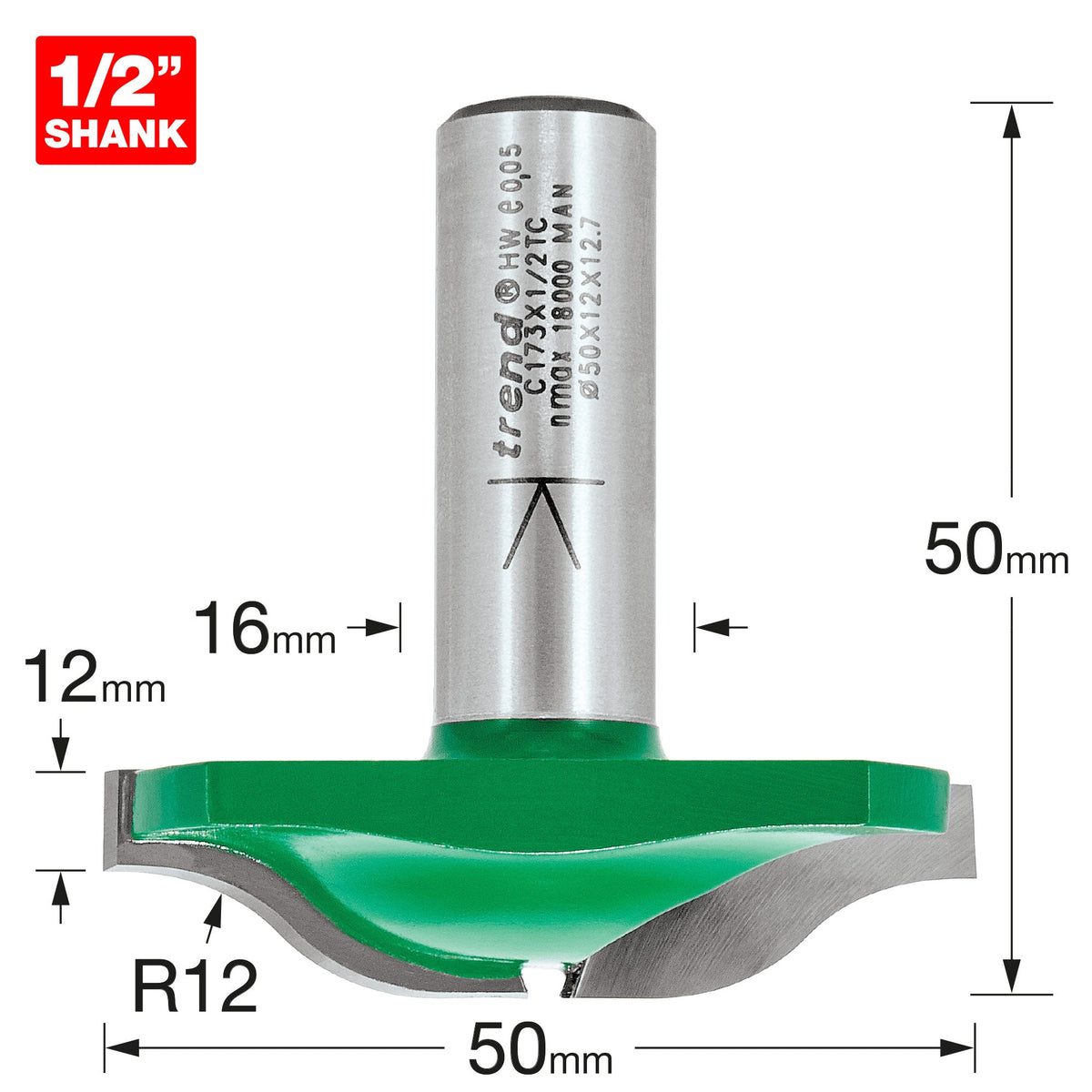

Specifications

• D=50 mm
• D2=16 mm
• C=12 mm
• R=12 mm
• OL=50 mm
• Shank Diameter=1/2 inch
• For stationary machines at max. recommended speed 18,000 RPM
