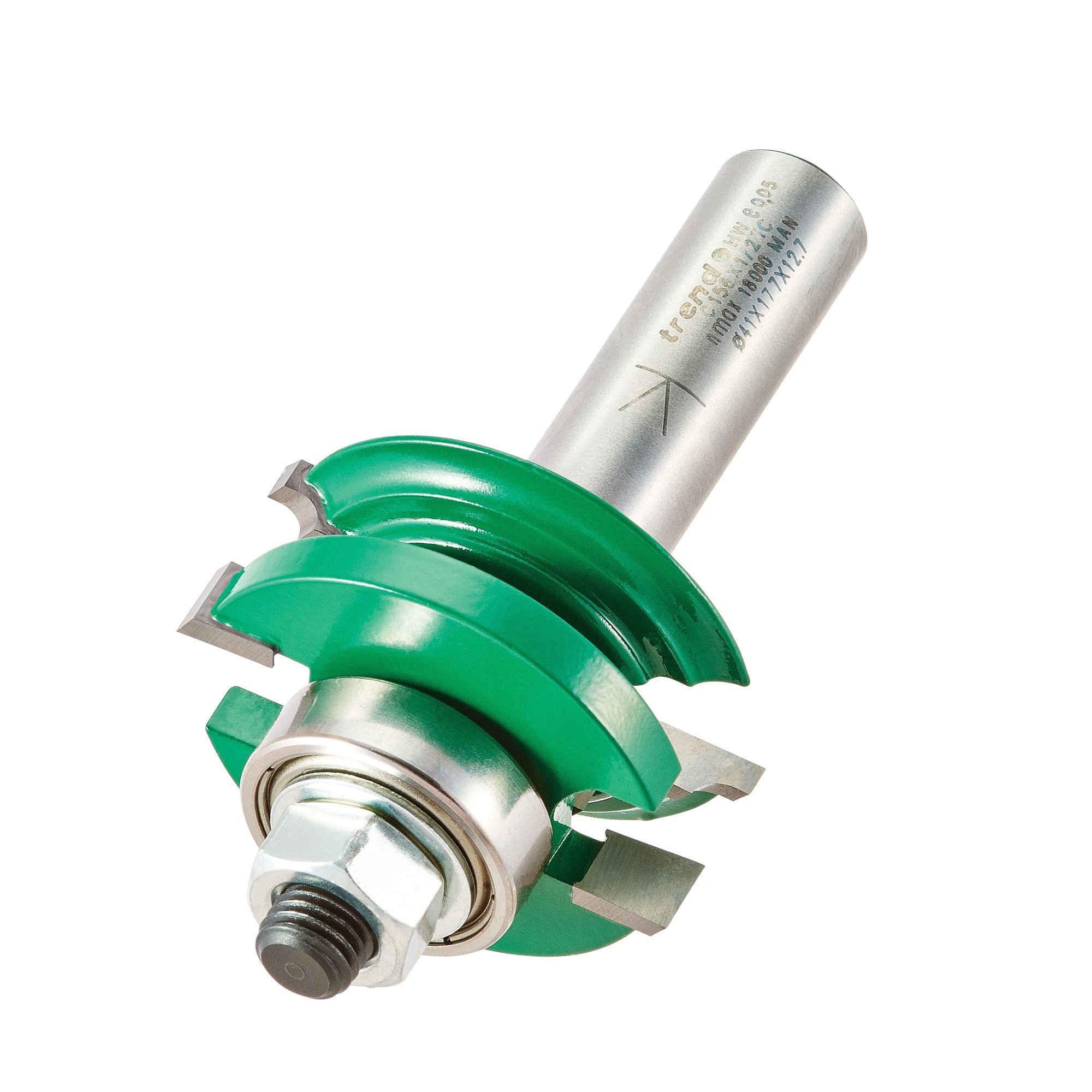

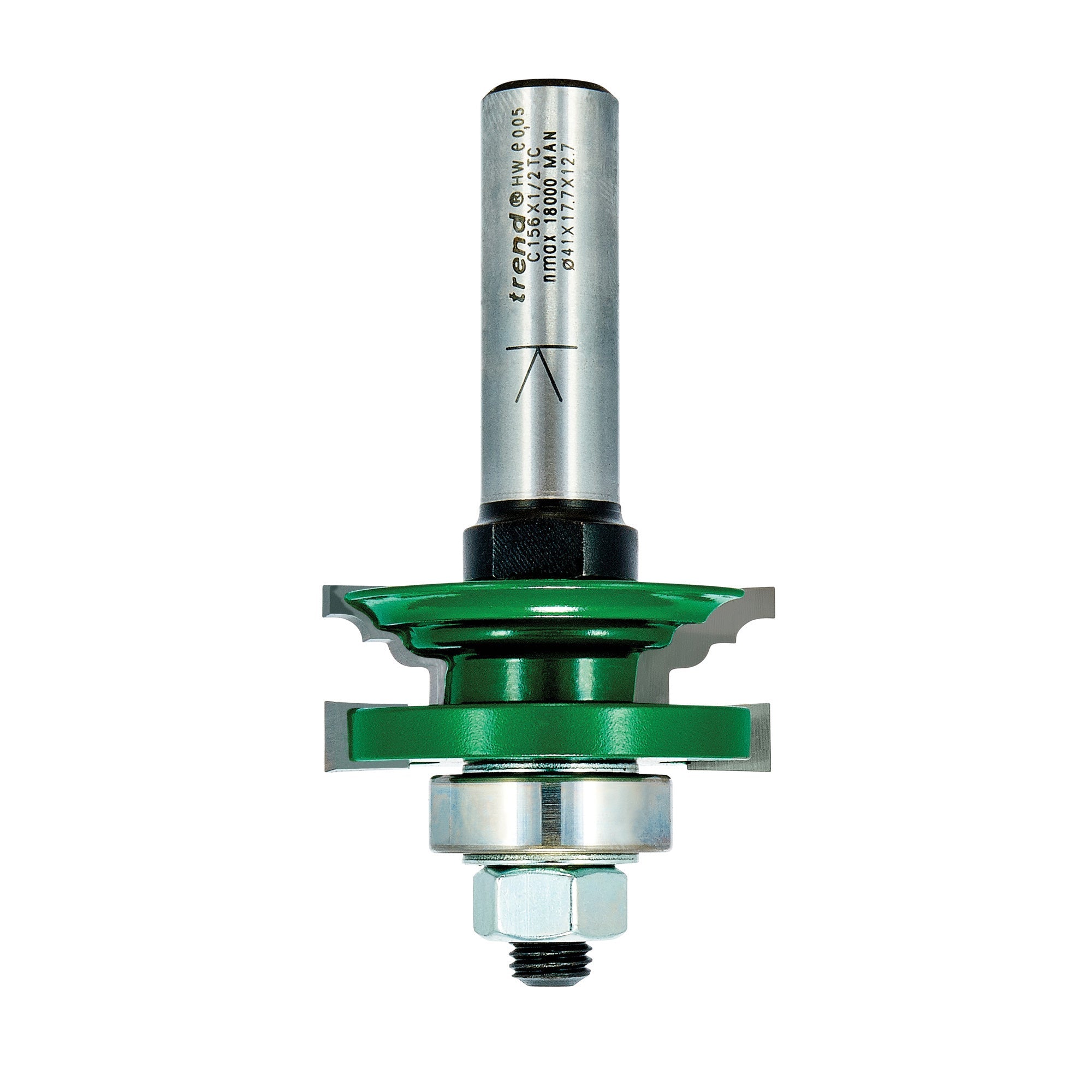

Trend Tools C156X1/2TC Profile Scriber Flat Classic Set

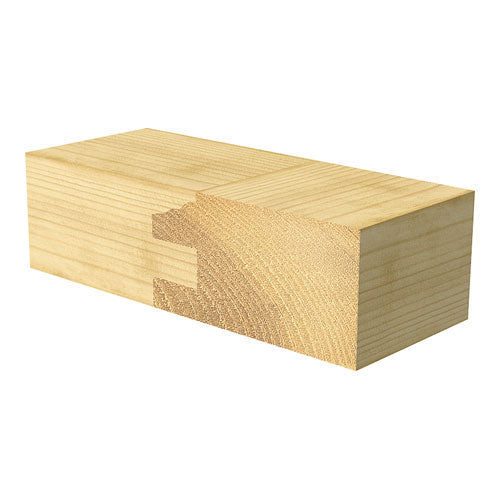

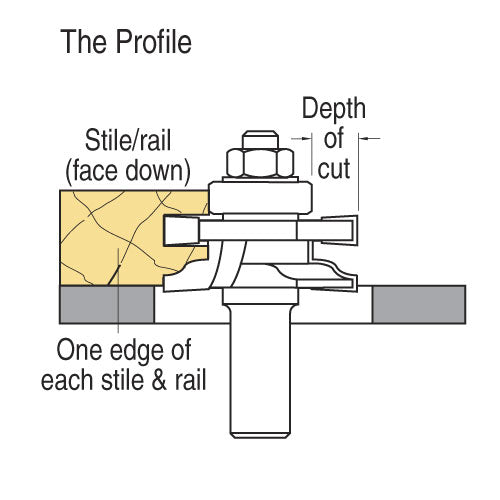

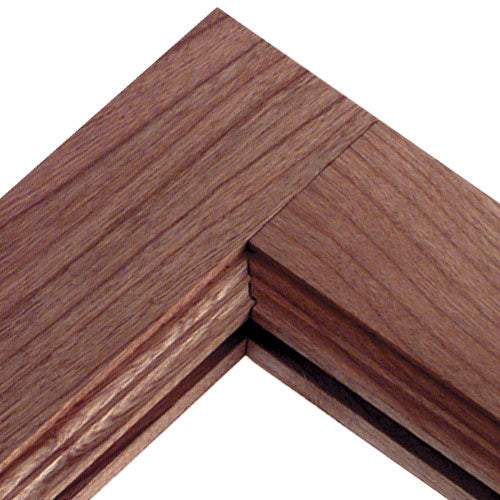

• The classic method of producing cabinet panelled door and drawer fronts is made easy with these Profile Scriber sets. With the combination type, components are re-arranged on the arbor to cut the profile or the scribe.

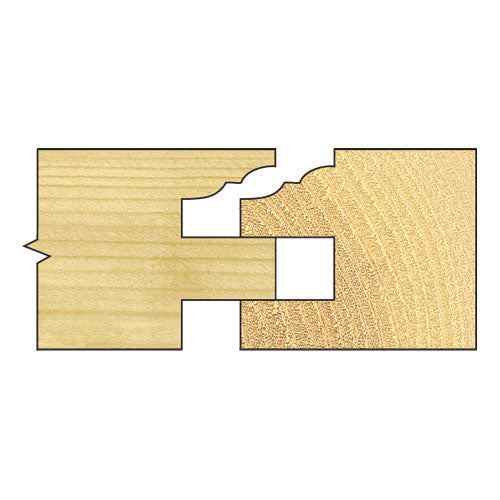

• Cuts both parts of the joint by reassembly of the tool.

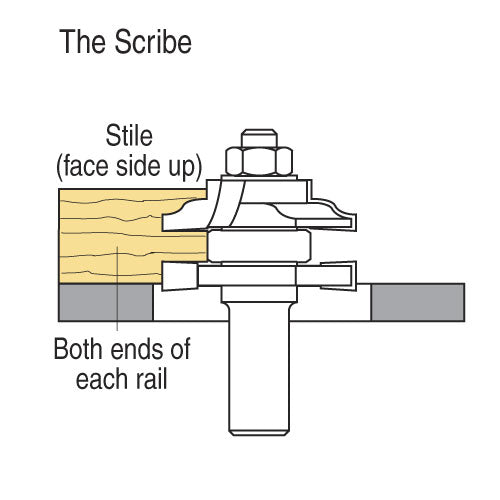

• Router table use only. 1/4 inch and 8mm shanks should only be used with a medium or heavy duty router. For certain routers the aperture in the base may need to be enlarged. A workholding device should be used when cutting the scribe cut on the rail ends. The cutting edges should be staggered to each other.

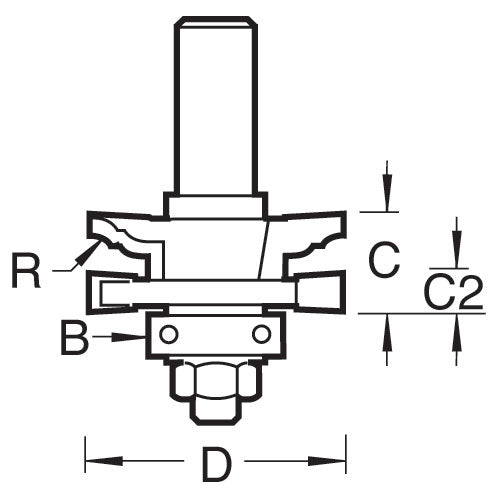

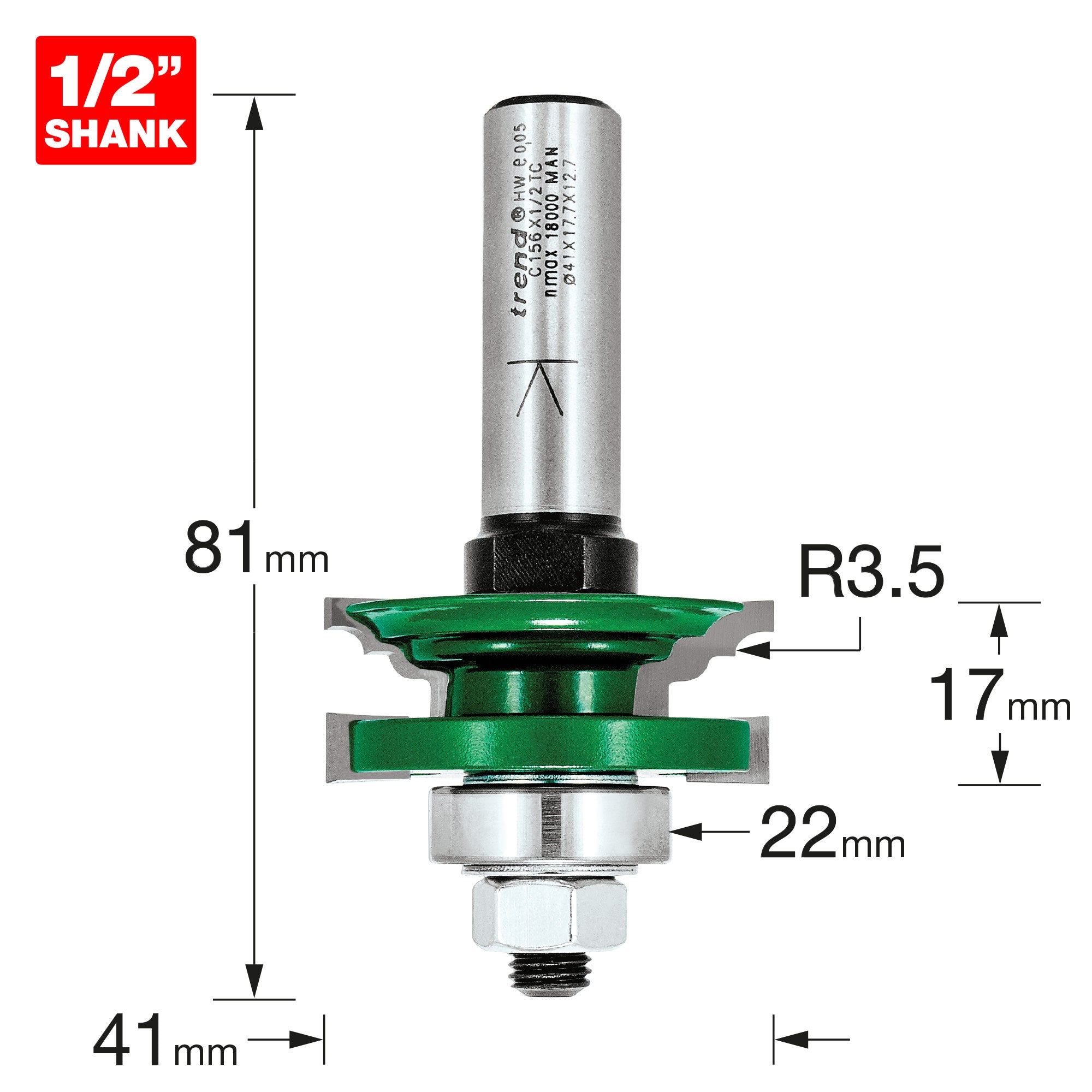

Specifications

• D=41 mm
• C=17 mm
• C2=6.35 mm
• B=22 mm
• R=3.5 mm
• Shank Diameter=1/2 inch
• OL=81 mm
• Timber thickness min.=18 mm
• Timber thickness max.=22 mm
