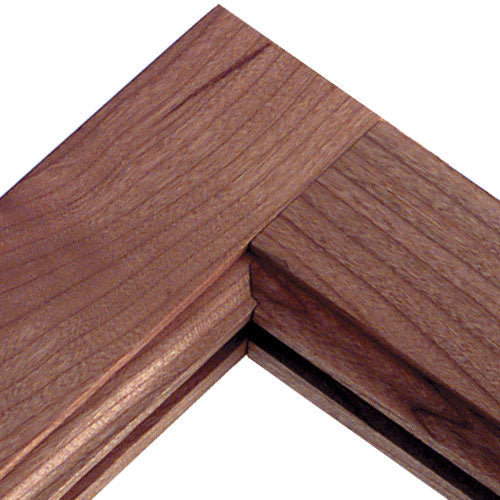

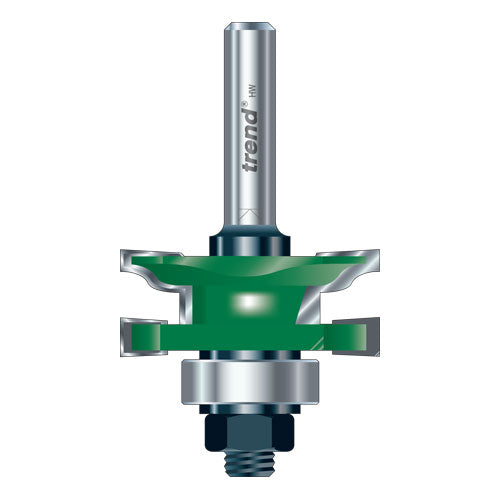

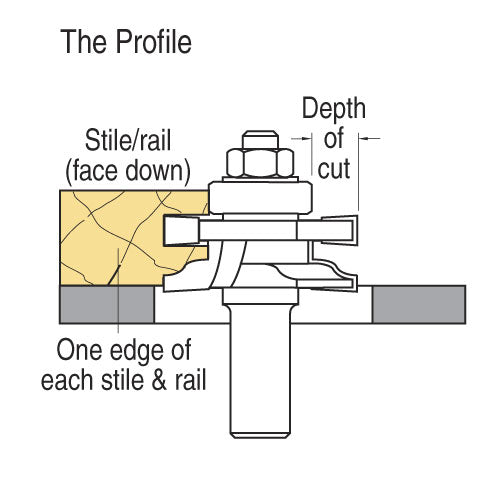

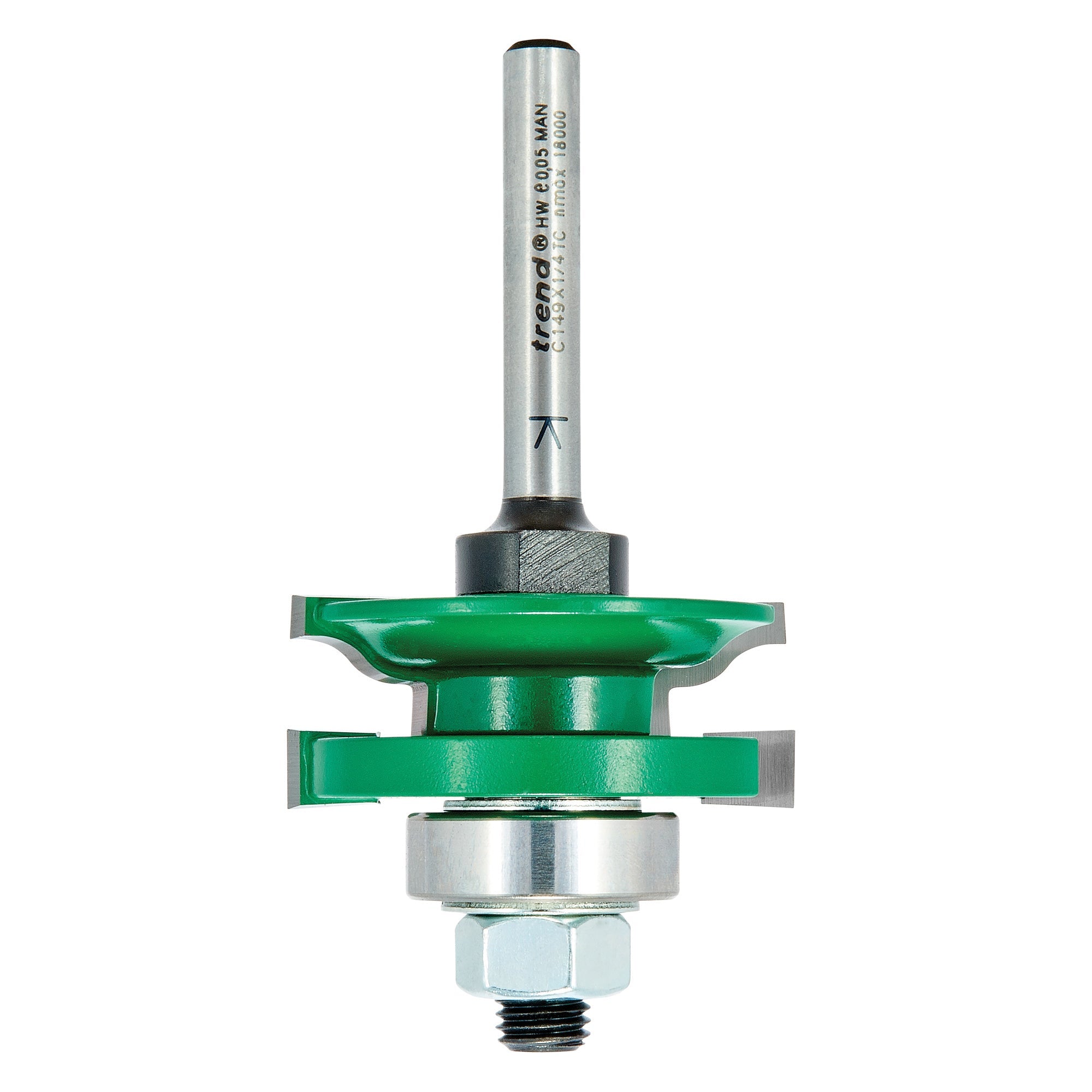

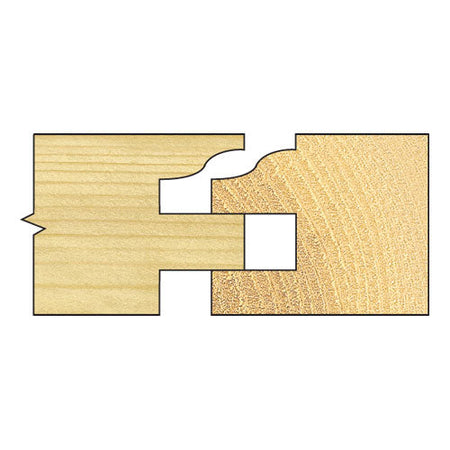

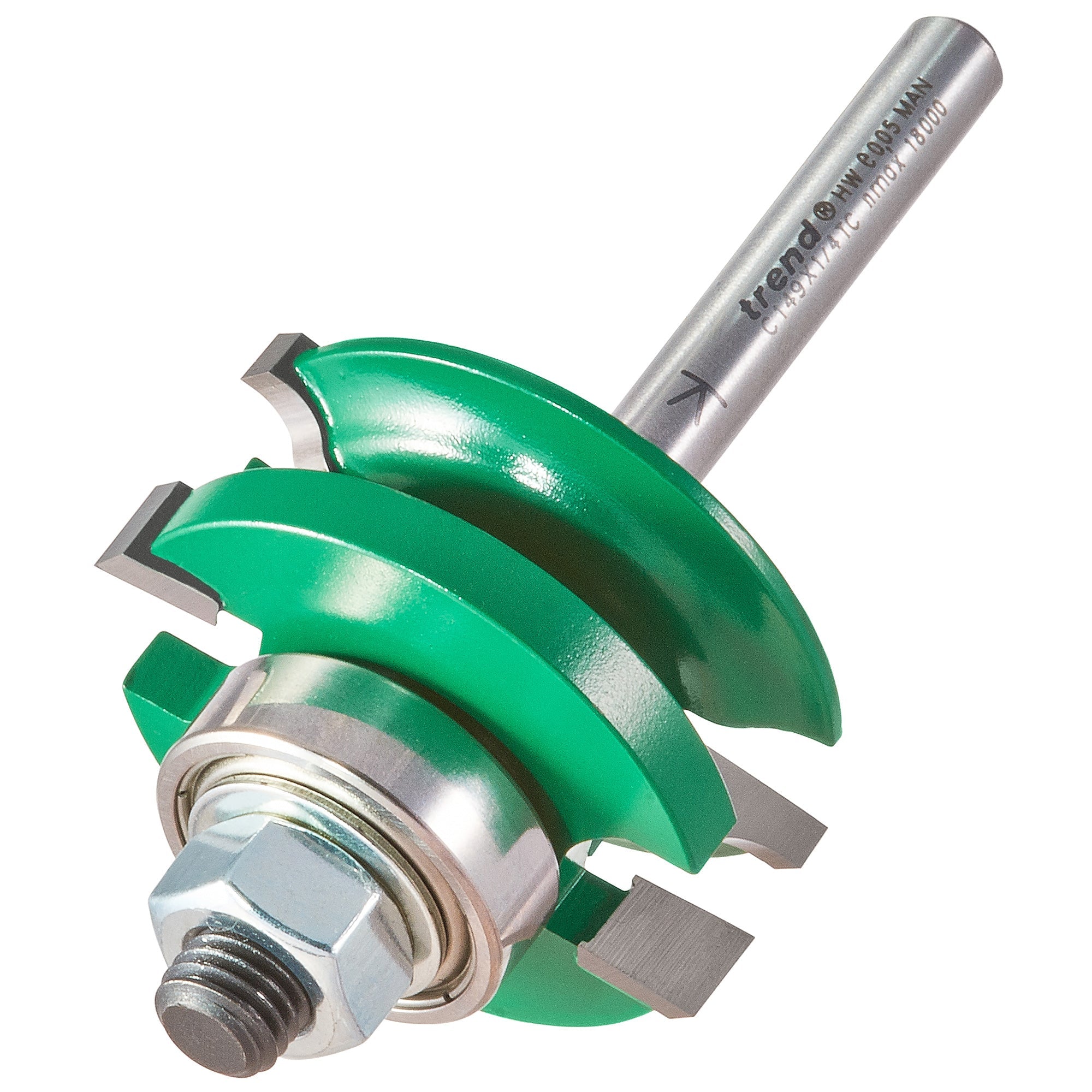

The classic method of producing cabinet panelled door and drawer fronts is made easy with these Profile Scriber sets. With the combination type, components are re-arranged on the arbor to cut the profile or the scribe.

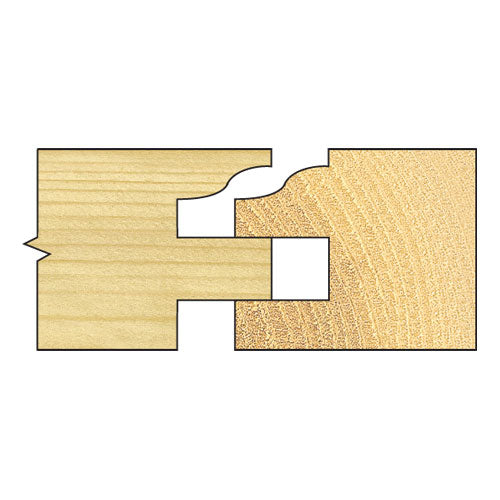

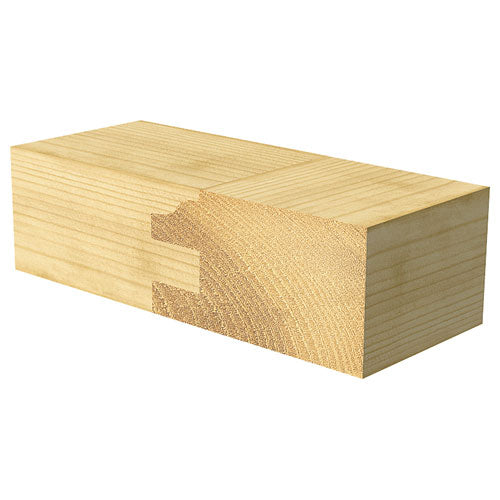

Cuts both parts of the joint by reassembly of the tool.

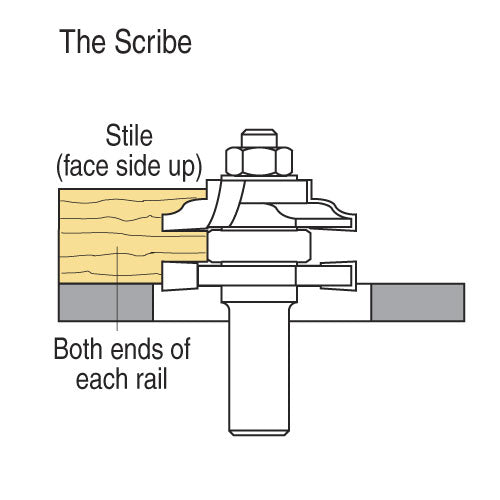

Router table use only. 1/4 inch and 8mm shanks should only be used with a medium or heavy duty router. For certain routers the aperture in the base may need to be enlarged. A workholding device should be used when cutting the scribe cut on the rail ends. The cutting edges should be staggered to each other.

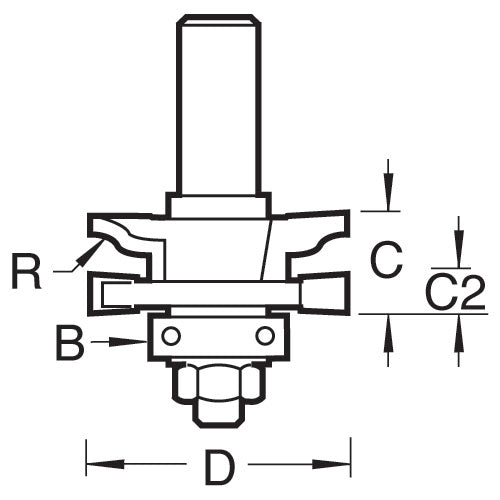

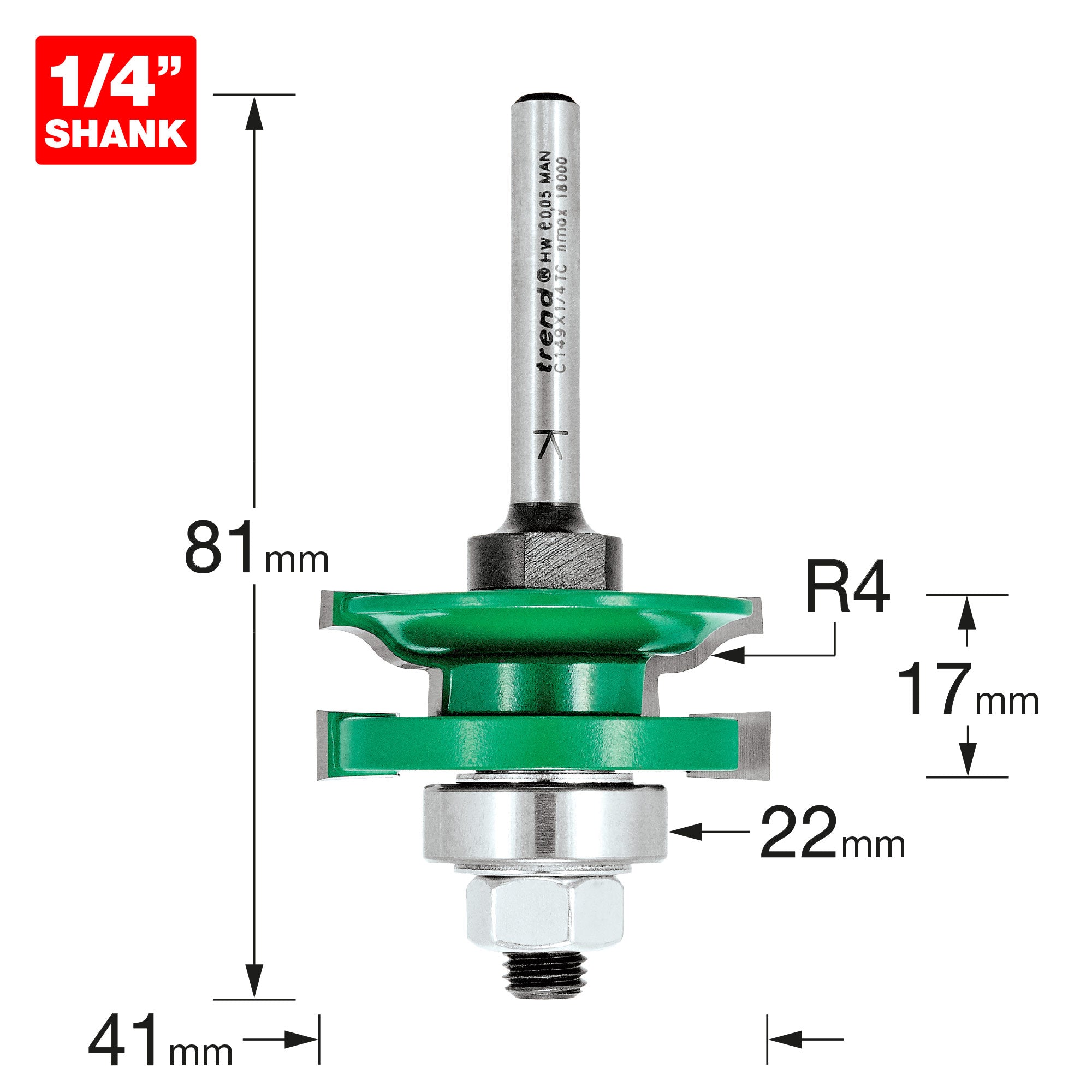

Specifications
D=41 mm
C=17 mm
C2=6.35 mm
B=22 mm
R=4 mm
Shank Diameter=1/4 inch
OL=81 mm
Timber thickness min.=18 mm
Timber thickness max.=22 mm
