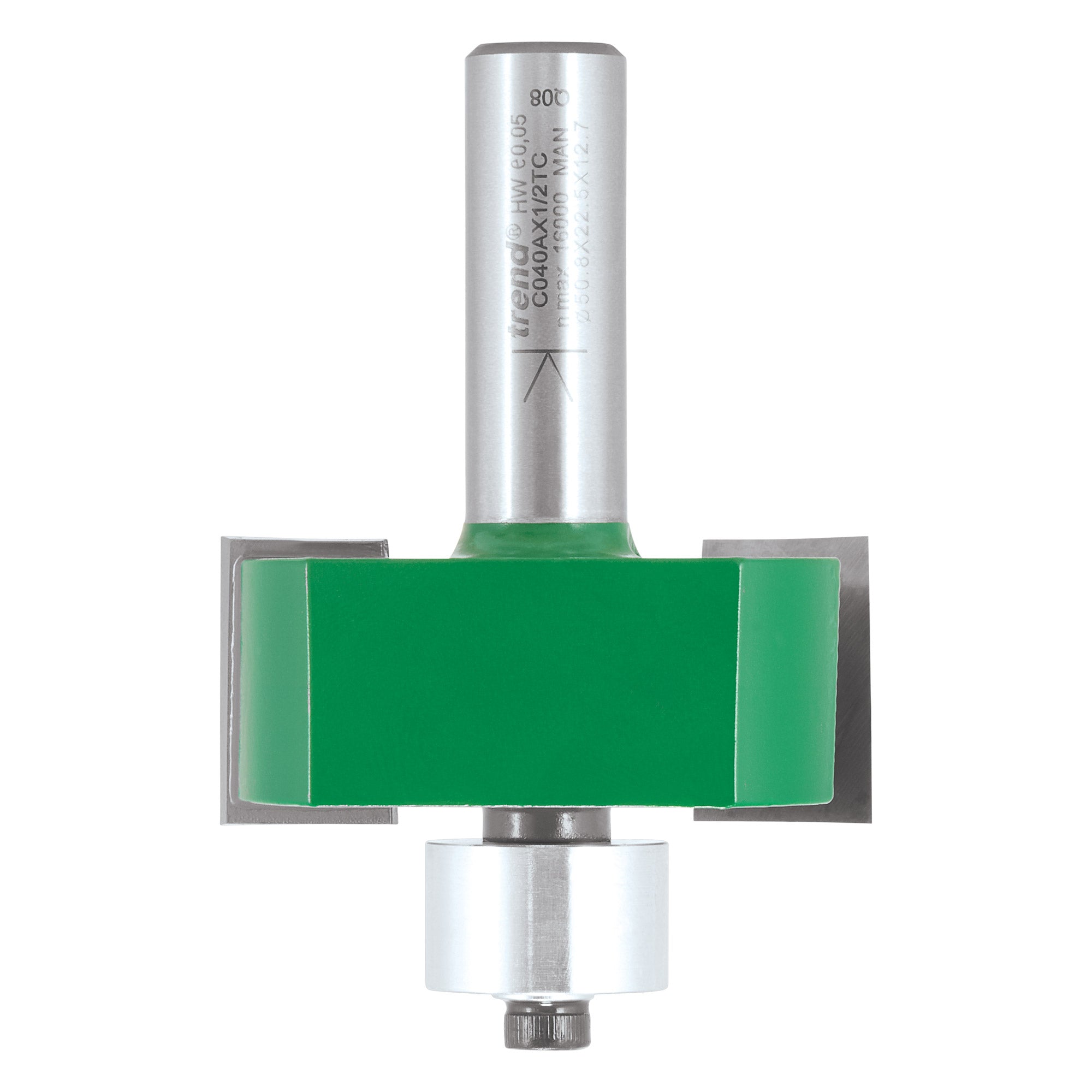

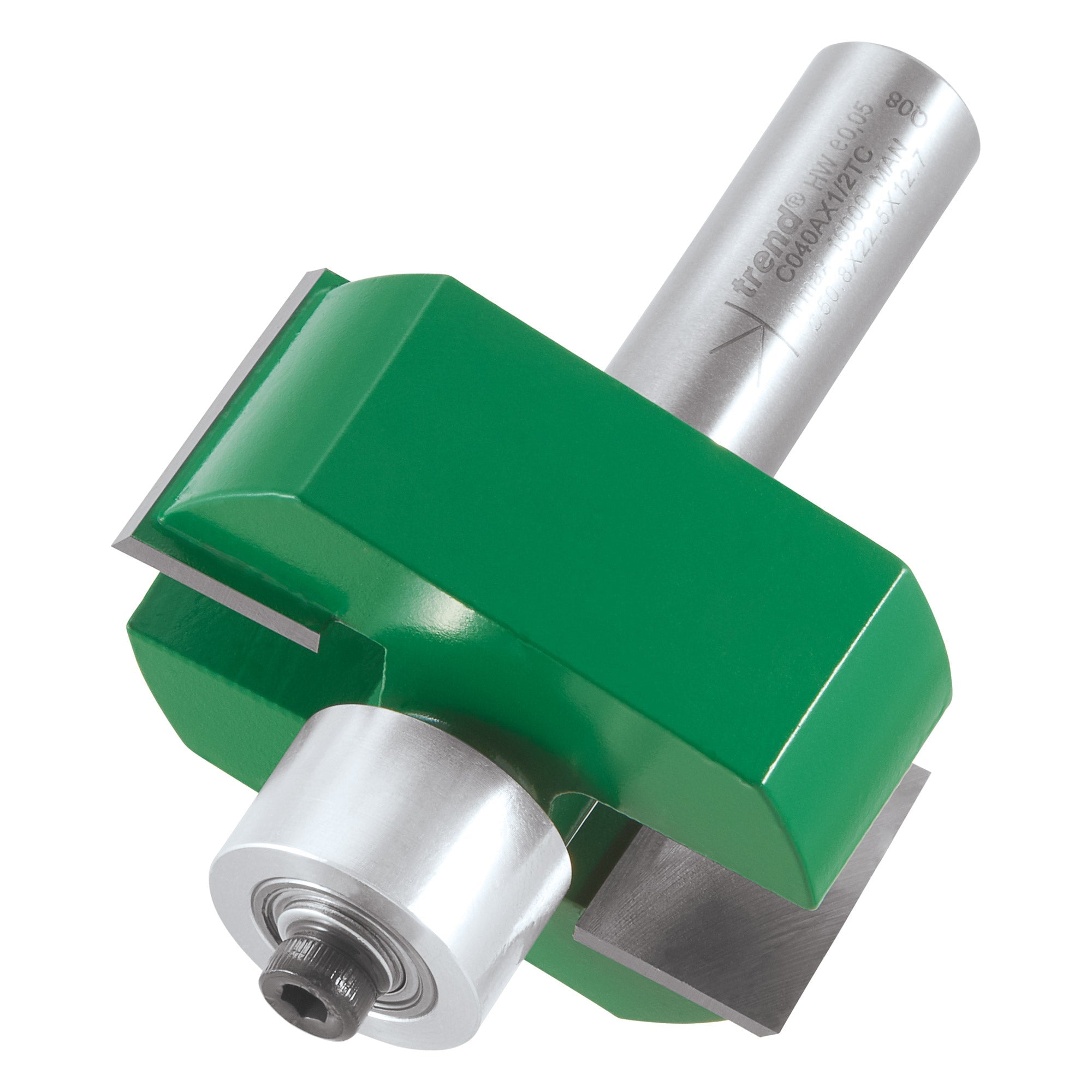

Trend Tools C040AX1/2TC Trend Craftpro 1/2In Bearing Guide Large Rebater Bit 50.8Mm Dia X 22.5Mm Cut Depth

• Bearing guided for straight or curved work.
• For portable and stationary routers.
• Supplied as standard with Ref. BR/191 fitted and internal bearing of B127.

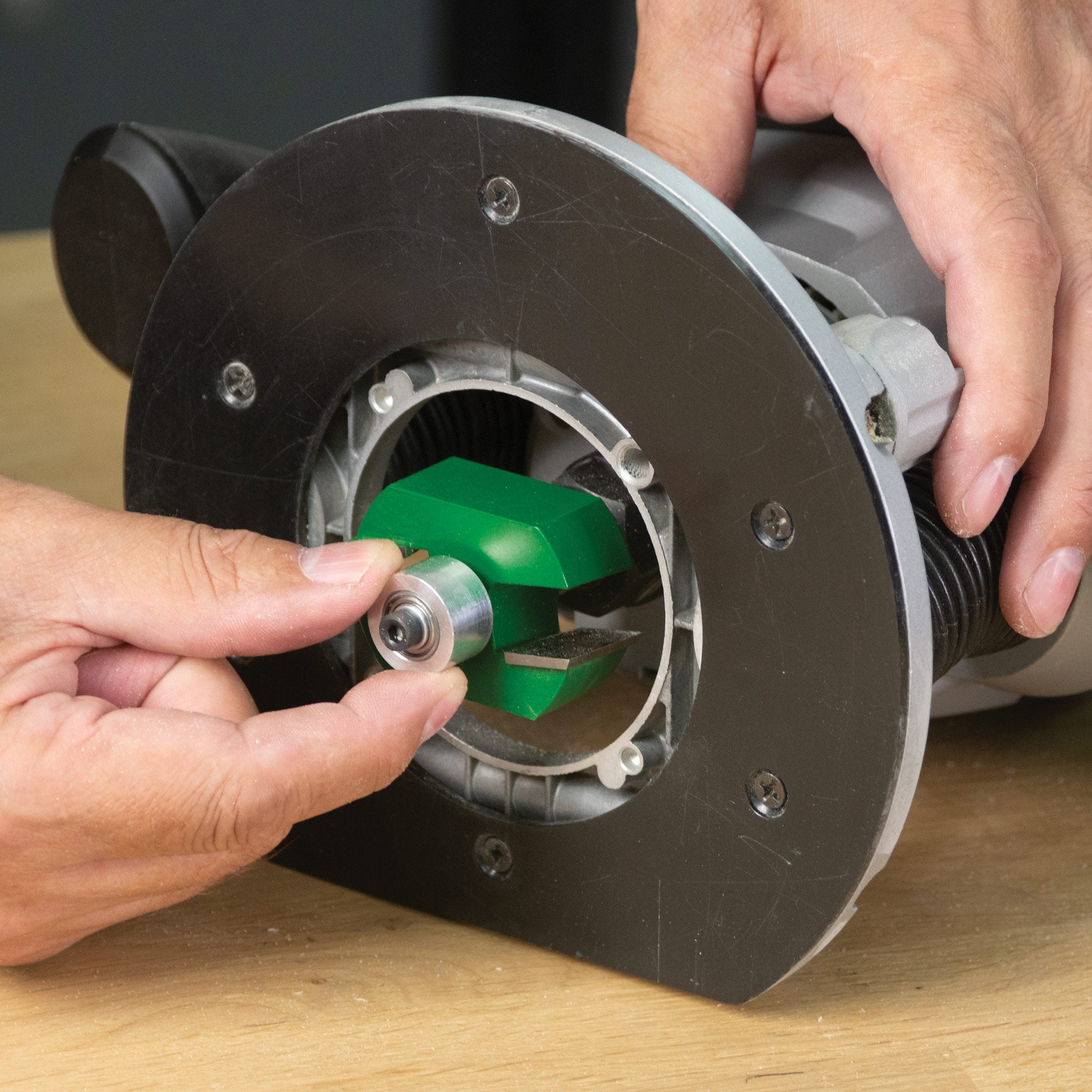

• A variety of alloy bearing rings are available to give various rebate sizes.

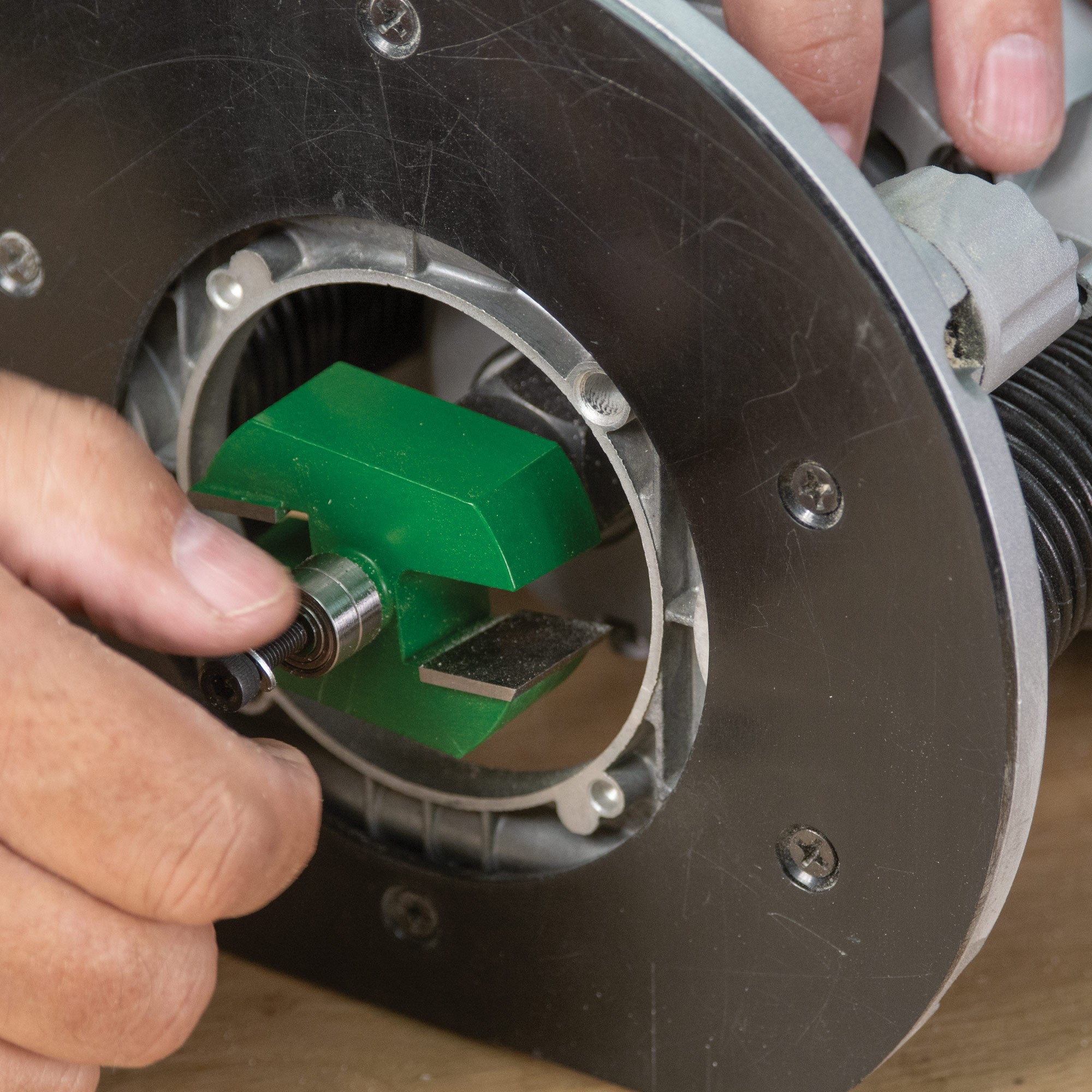

• Rings are secured between the two bearings.
• 1/2" shank 50.8mm diameter 22.5mm cut depth twin flute TCT bearing guided rebating cutter.

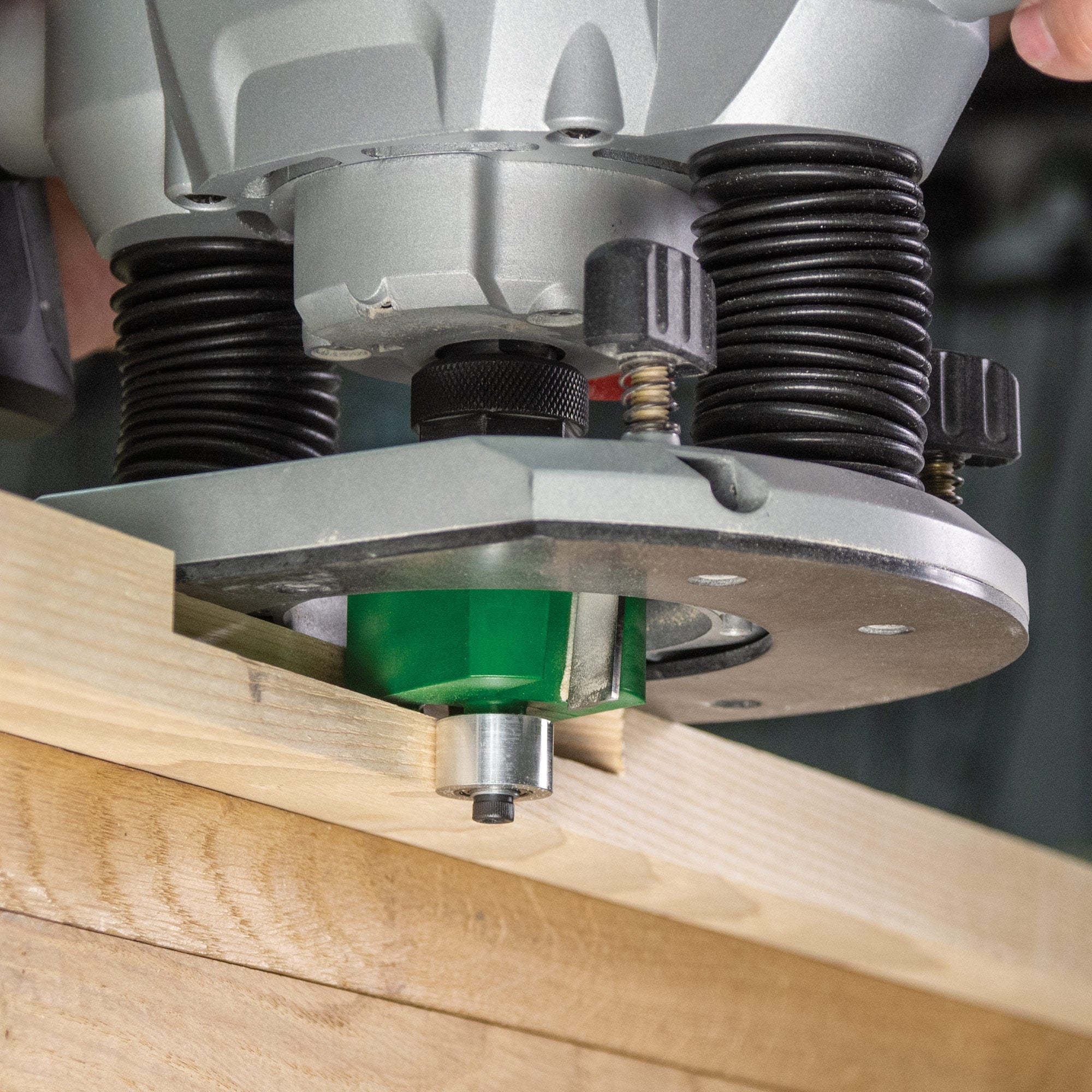

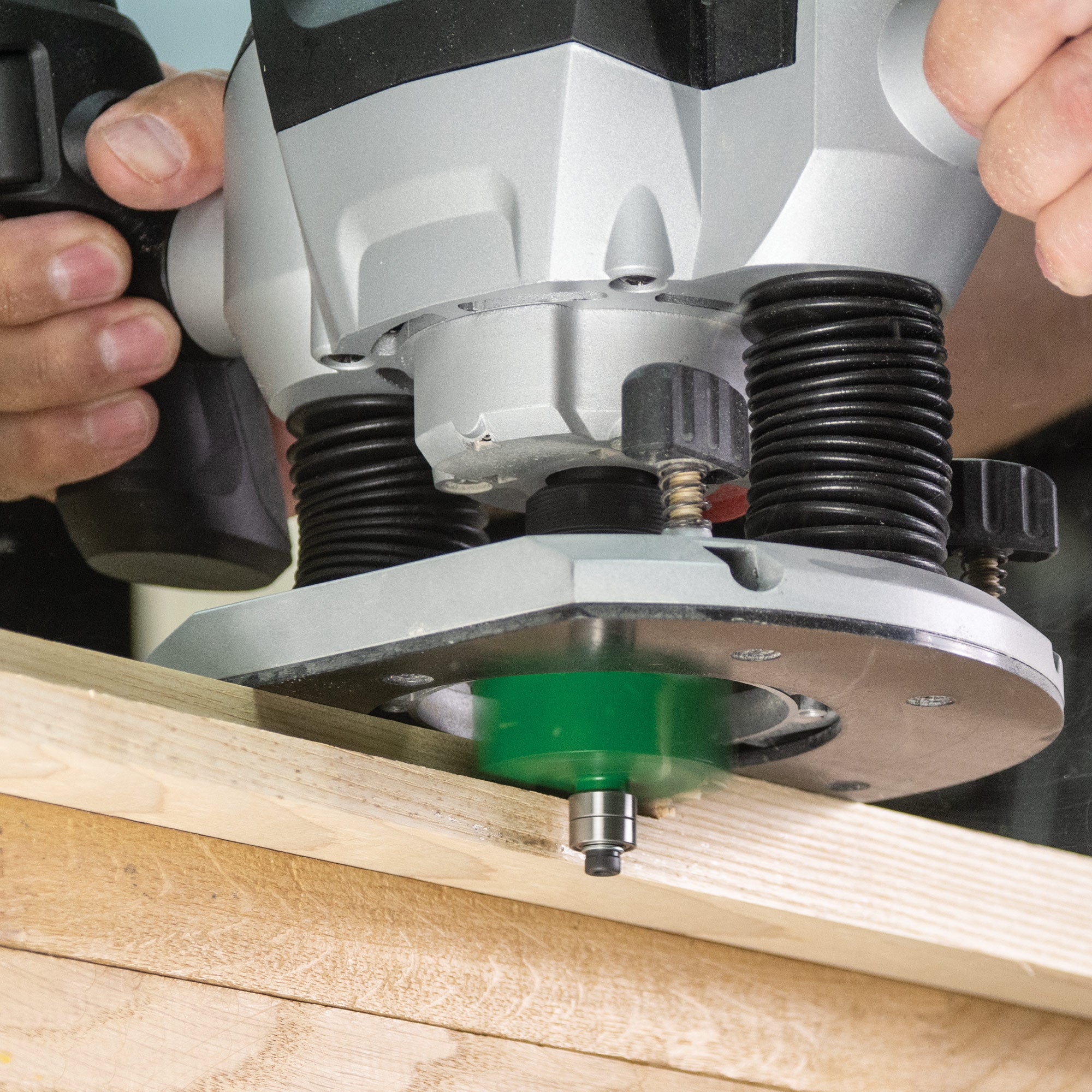

• Makes fast repeatable rebates on straight and curved edges.
• Heavy duty rebating cutter for deeper rebates in joinery type applications.
• Supplied with bearing for 19.1mm rebate backset and slide on collar for 15.9mm rebate backset.
• 22.5mm cut depth suitable for rebated meeting stiles in door construction.
• 1/2" shank for heavy duty applications and fast stock removal.
• PTFE coated bodies reduces friction and heat build-up for longer lifespan.
• 2mm thick Premium Micro-granular Tungsten Carbide Tips for an excellent finish in all materials.
• ÔKÕ marked shank ensures correct insertion depth for safe routing.
• Additional shank markings to indicate maximum safe speed and cutter reference.

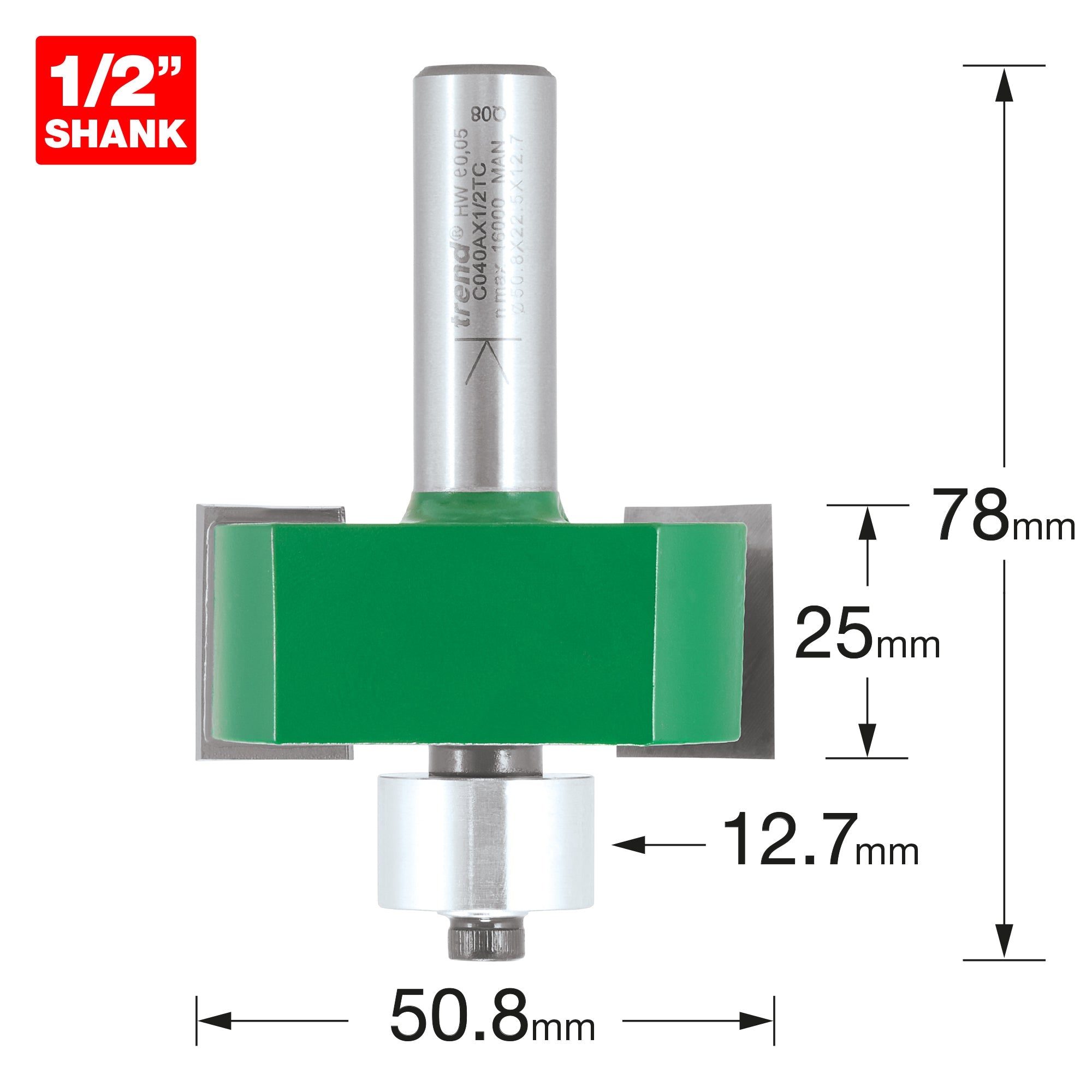

Specifications

• D=50.8 mm
• C=22.5 mm
• B=12.7 mm
• E=19.1 mm
• E=15.9 mm
• OL=78 mm
• Shank Diameter=1/2 inch
• Shank length=35 mm
• For stationary machines at max. recommended speed 18,000 RPM
