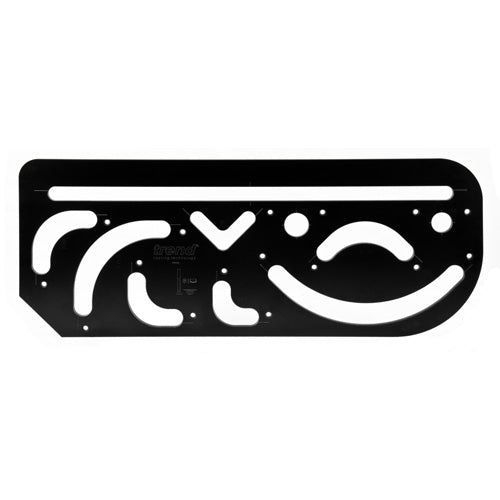

Trend Tools AR/JIG Aperture Radius Jig

• A jig to rout out apertures, recesses and radii in work tops to fit a range of sinks and hobs, and to suit curved cabinets.
• Will cut both an internal and external radiius with the use of either pins or engraved sight lines.
• Made from 12mm hardwearing CNC machined Compact Grade High Pressure Laminate.
• Will cut a 90 degree angle, which when combined with the straight slot will allow a hob or sink aperture to be routed. Central slot allows cuts up to 820mm long.
• Radius curves at 40mm, 60mm, 80mm, 100mm, 150mm and 250mm, and has external radii of 50mm, 100mm and 200mm
• Jig has a 45 degree end cut , plus 26mm and 35mm cabinet door hinge recess facility.
• Engraved lines to position jig to marked position on the worktop.
• Each of the six radius curves is paired with a set of peg holes that will set the jig to work top edge.

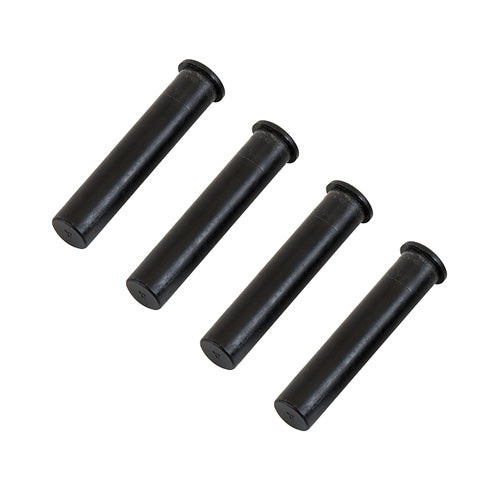

• Pins made from ABS plastic for strength.

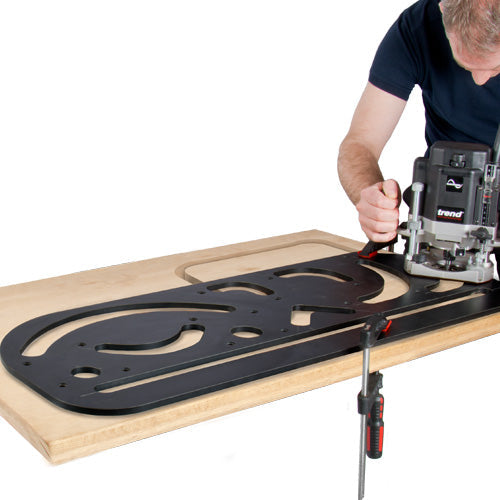

• Jig requires:
• A portable plunge router with 12.7mm (1/2 inch) shank capacity and minimum 1300 watts.
• A template guide bush with 30mm outside diameter.
• A TCT router cutter with 12.7mm (1/2 inch) diameter and 50mm (2 inch) cut length.
• Two clamps.

Specifications

• Corner angle=90 degree
• Slot length=830 mm
• Radius curves=40, 60, 80, 100, 150 & 250 mm
• External radius=50, 100 & 200 mm
• End cut=45 degrees
• Kitchen hinge recess=26 mm & 35 mm
• Length=1000 mm
• Thickness=12 mm
• Width=390 mm
• Weight=4.6 kg
