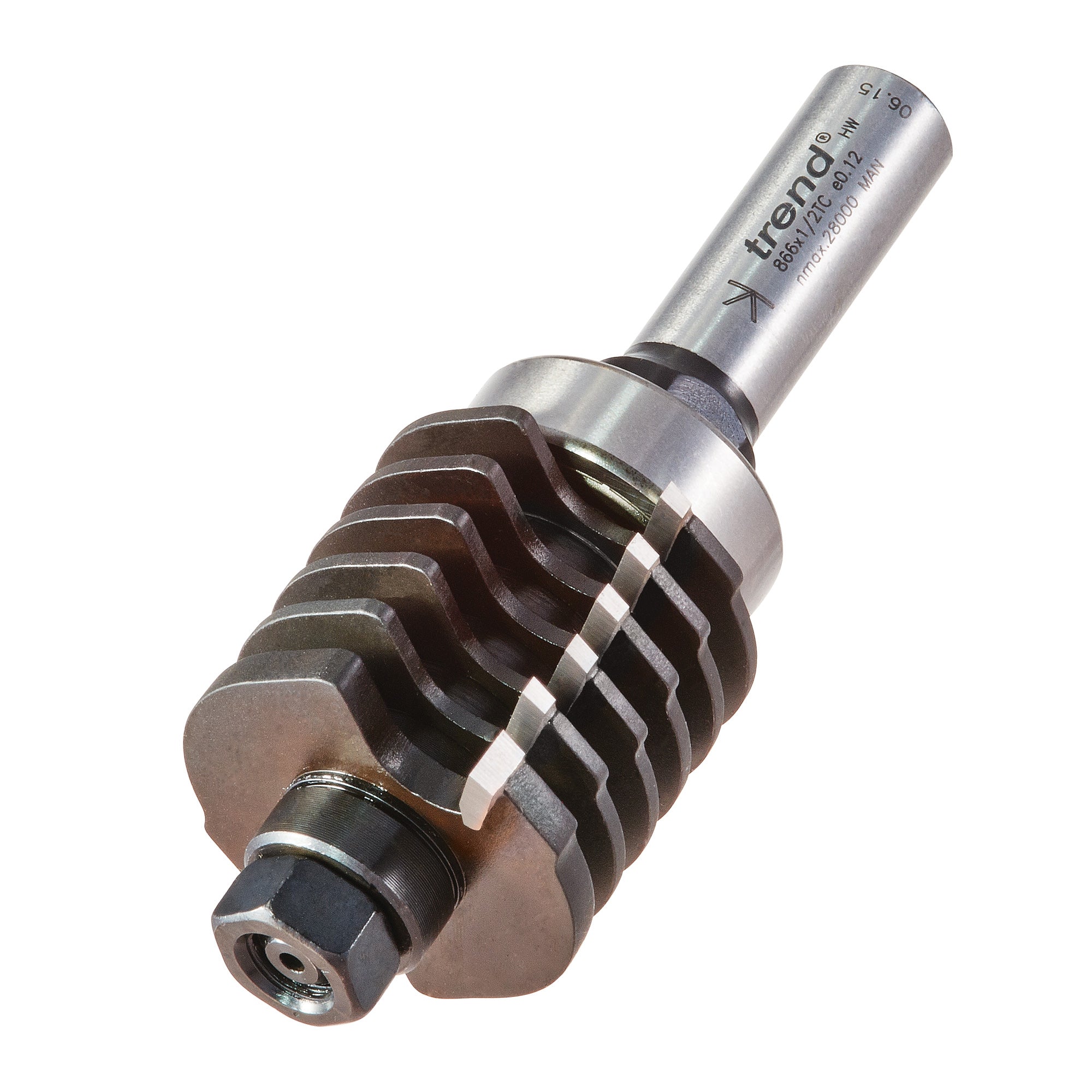

Trend Tools 866X1/2TC Finger Jointer

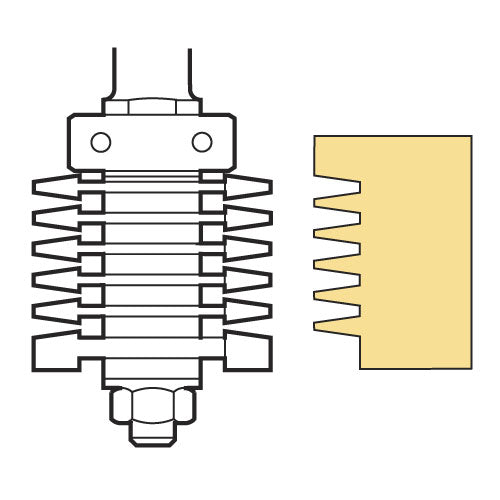

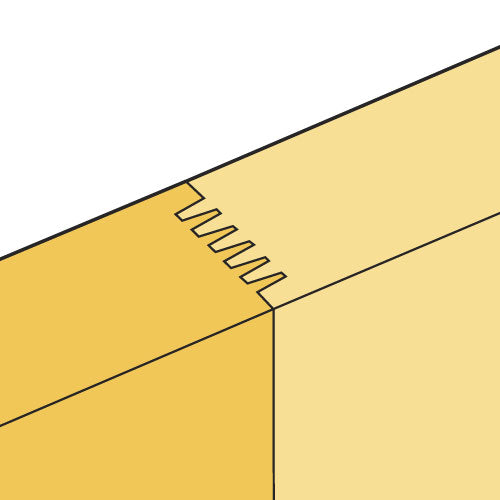

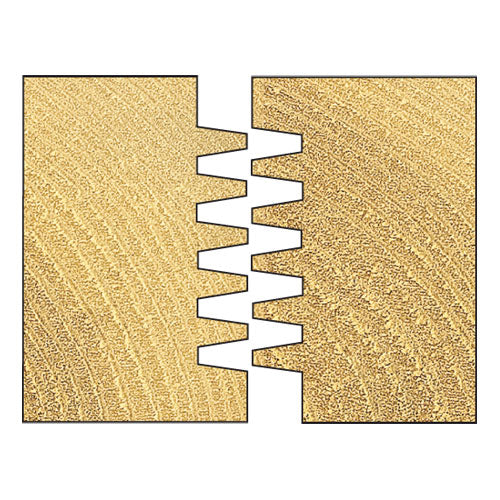

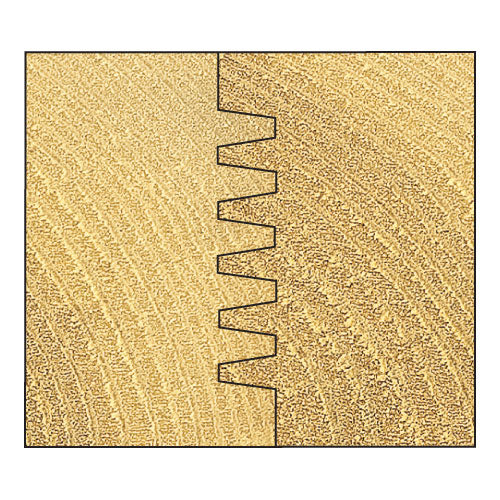

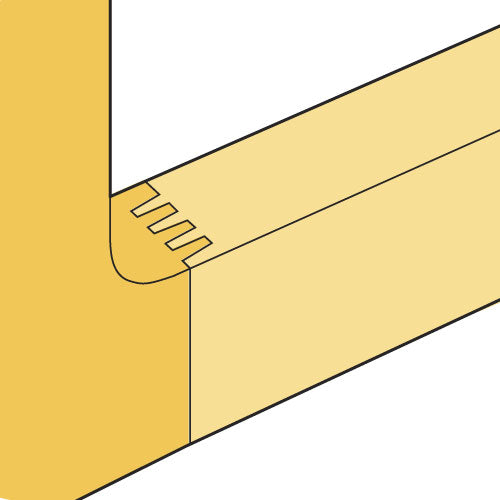

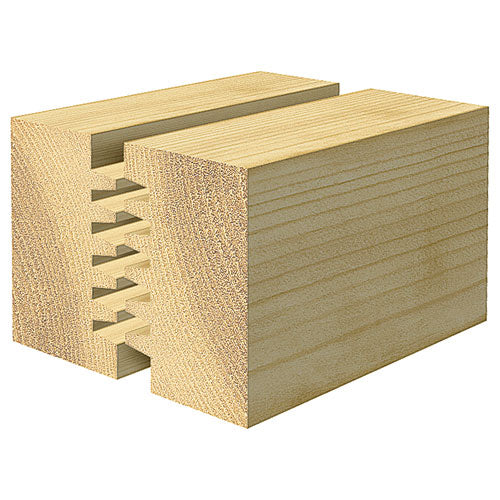

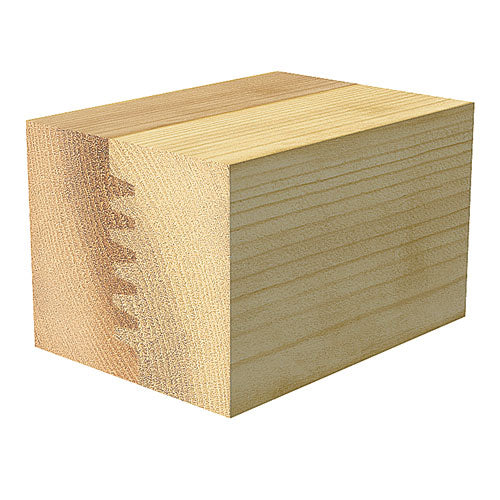

• Finger Jointer combines an assembley of five TCT slotting cutters with an abutting-edge cutter to produce a profile that extends the glue line threefold, resulting in an extremely strong joint.
• The Finger Jointer fits into any portable or stationary router with a 1/2 inch collet.
• Performing the cut
• Timber must be machined square.

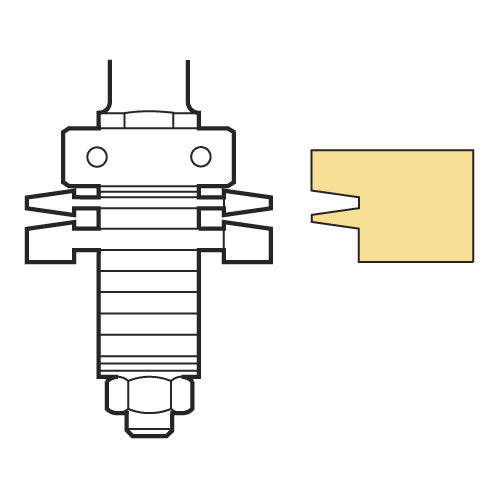

• The cutters should be assembled to match the spindle rotation, and be stacked at 90 degrees to one another to ease stress on the tool.

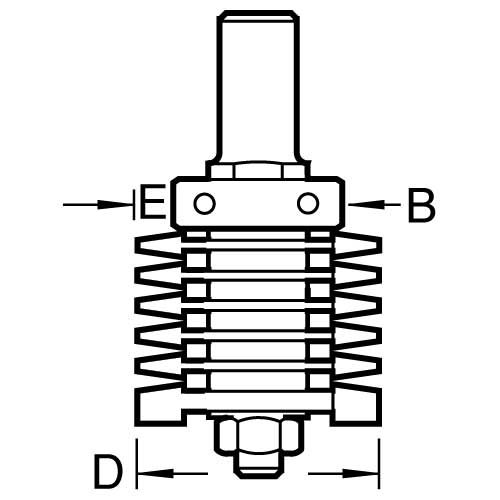

Specifications

• D=40 mm
• B=28 mm
• E=6.0 mm
• OL=96 mm
• Shank Diameter=1/2 inch
• Timber thickness min.=11 mm
• Timber thickness max.=36 mm
