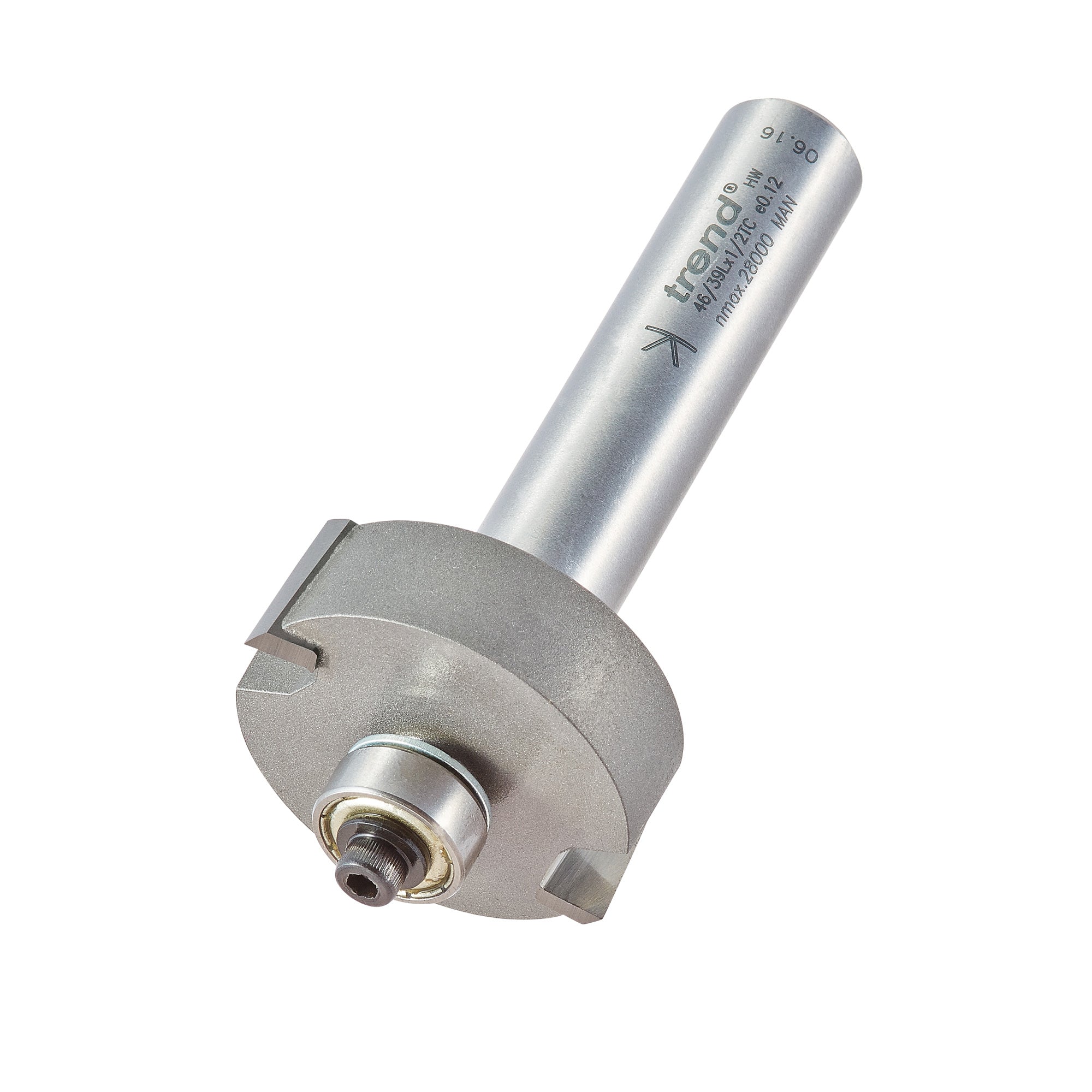

Trend Tools 46/39LX1/2TC Bearing Guided 35Mm Diameter Rebater

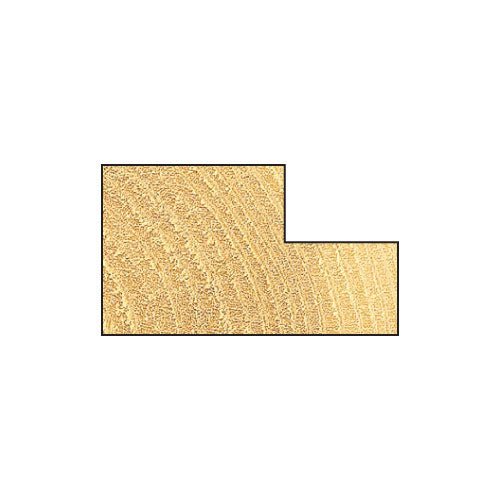

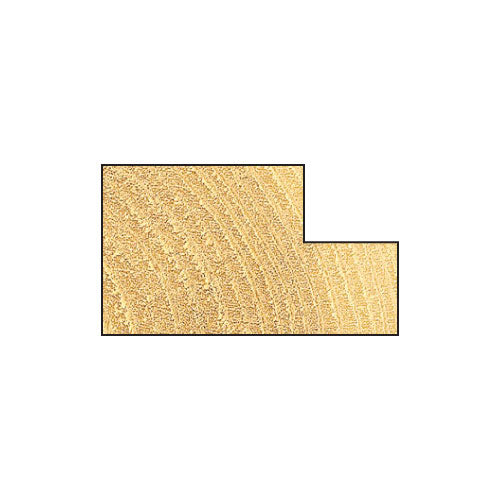

• Popular rebate sets which include different size bearings for a choice of rebates.
• Ease of setting-up and accurate depth of cut.

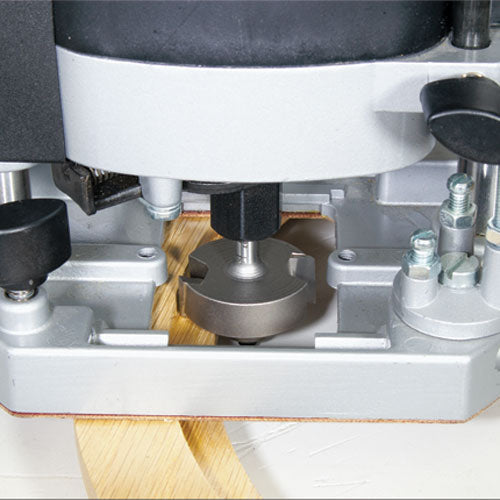

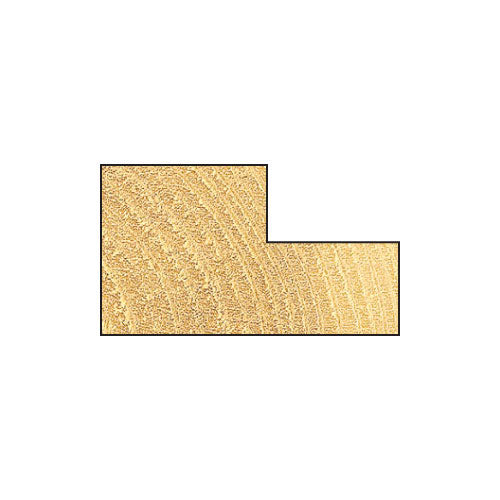

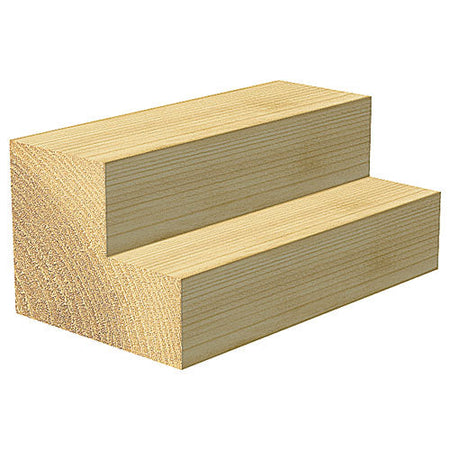

• Ideal for rebating straight and shaped work pieces.
• Has a 60mm shank length to give access to deep rebates.
• When using bearing Ref. B95A, make two passes when a full depth of cut is required by using a larger bearing first.

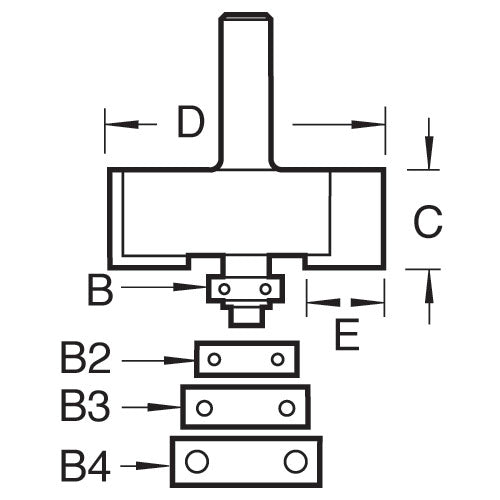

Specifications

• D=35 mm
• C=12.7 mm
• B=9.5 mm
• B2=12.7 mm
• B3=16 mm
• B4=19 mm
• Shank Diameter=1/2 inch
• B19A=7.9 mm
• B16A=9.5 mm
• B127A=11.1 mm
• B95A=12.7 mm
• OL=82 mm
