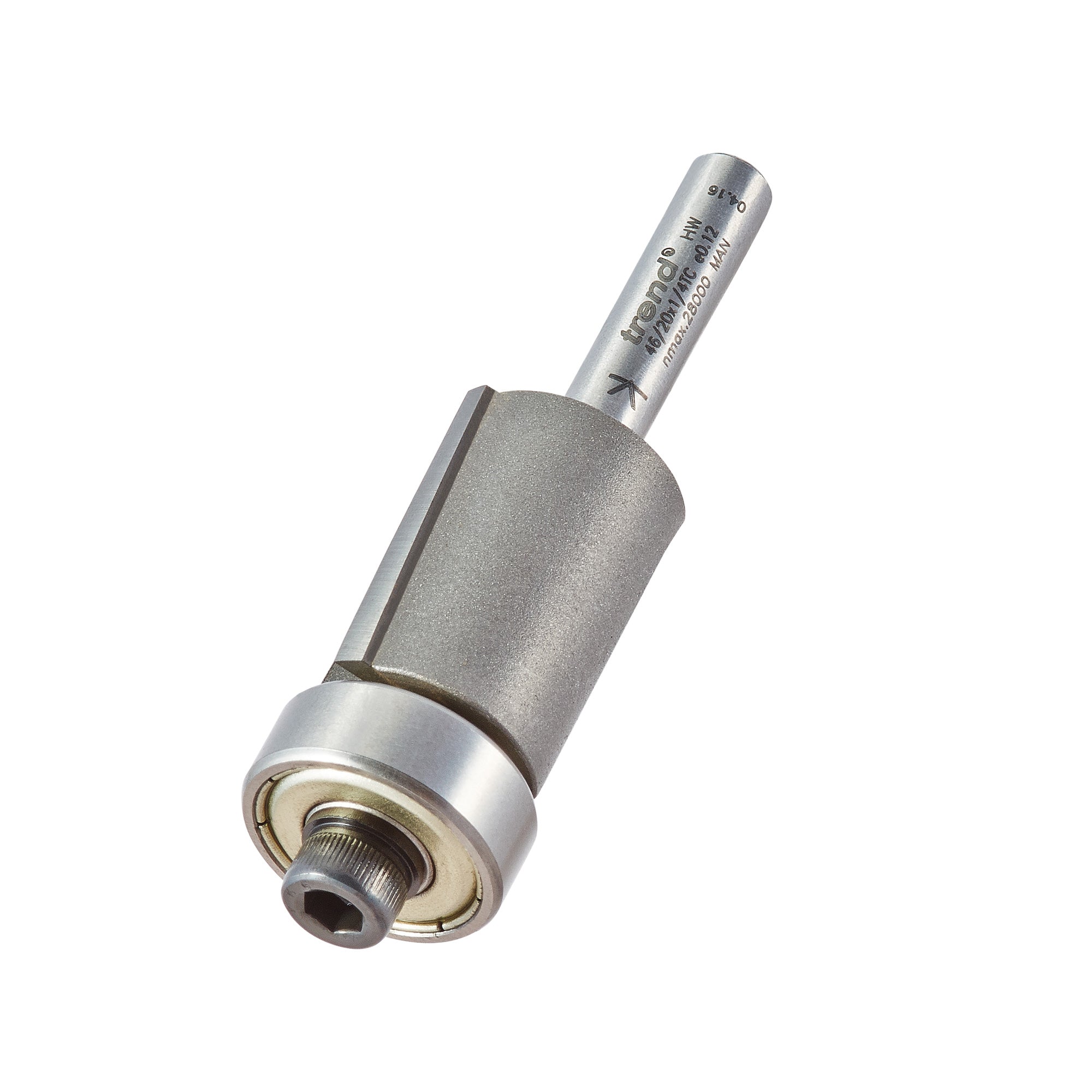

Trend Tools 46/20X1/4TC Guided Trimmer 19.1Mm Diameter 25Mm Length

• Self-guiding trimmers with bearings mounted on end of cutter.

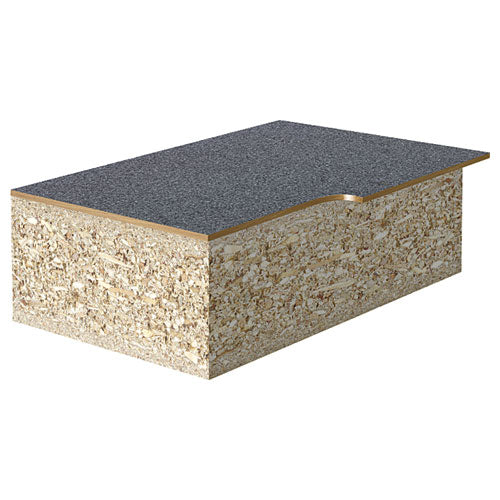

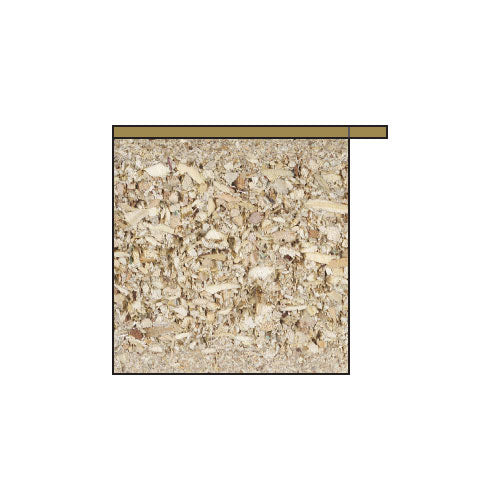

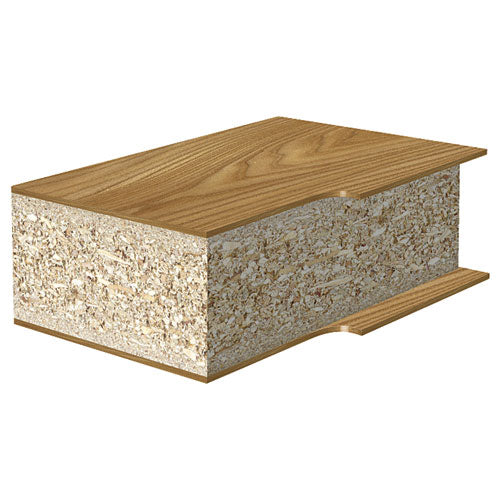

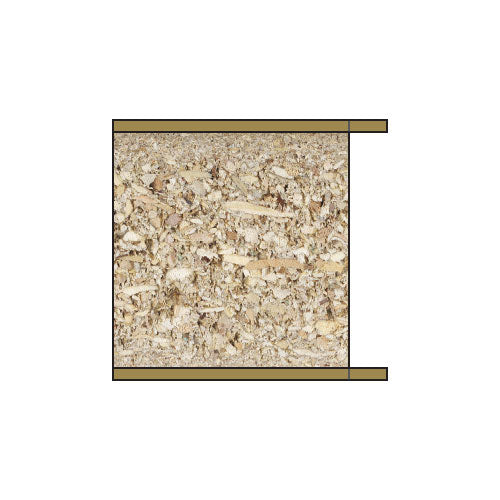

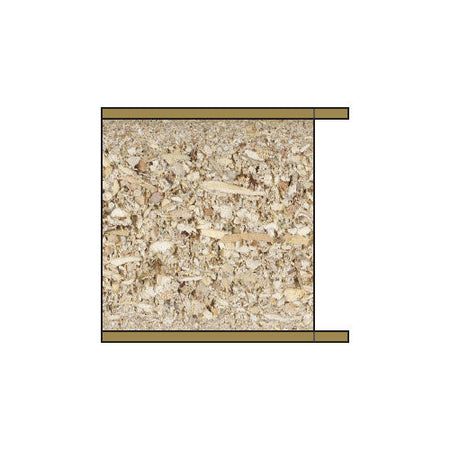

• For trimming plastic or plywood overlay.

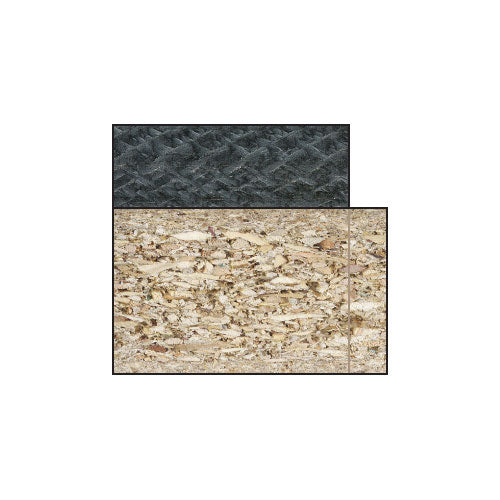

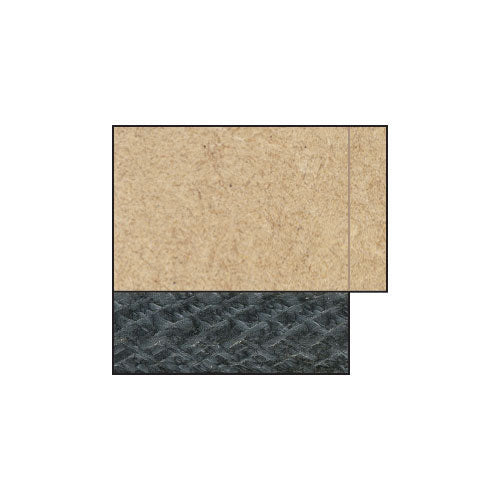

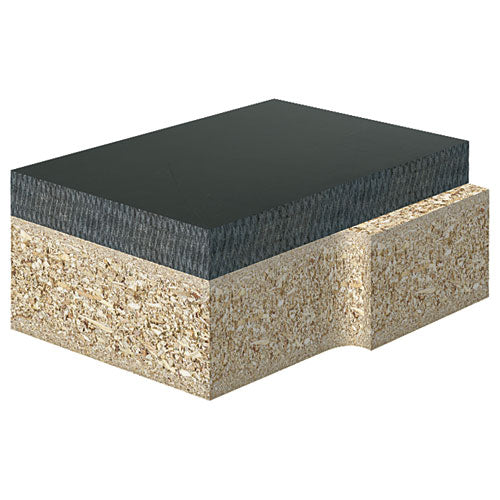

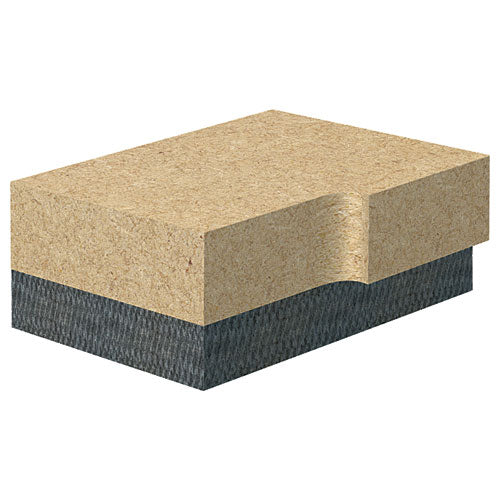

• For copy profiling, use the bearing to follow a template or base edge of board.
• An approximate 3mm overlap should be left before copy profiling. When using plastic laminate adhesive to dry before trimming. This avoids clogging the guide bearing.
• Downcut to prevent breakout on veneer.

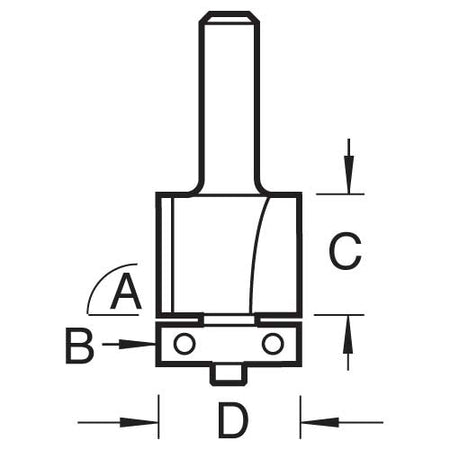

Specifications

• D=19.1 mm
• C=25 mm
• B=19.1 mm
• A=90 degrees
• OL=69 mm
• Shank Diameter=1/4 inch
• Shear=5 degrees
