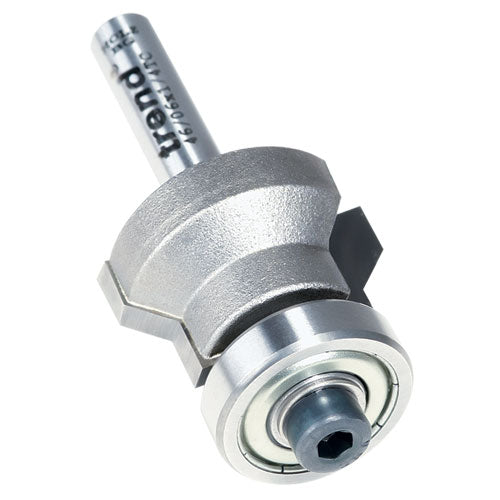

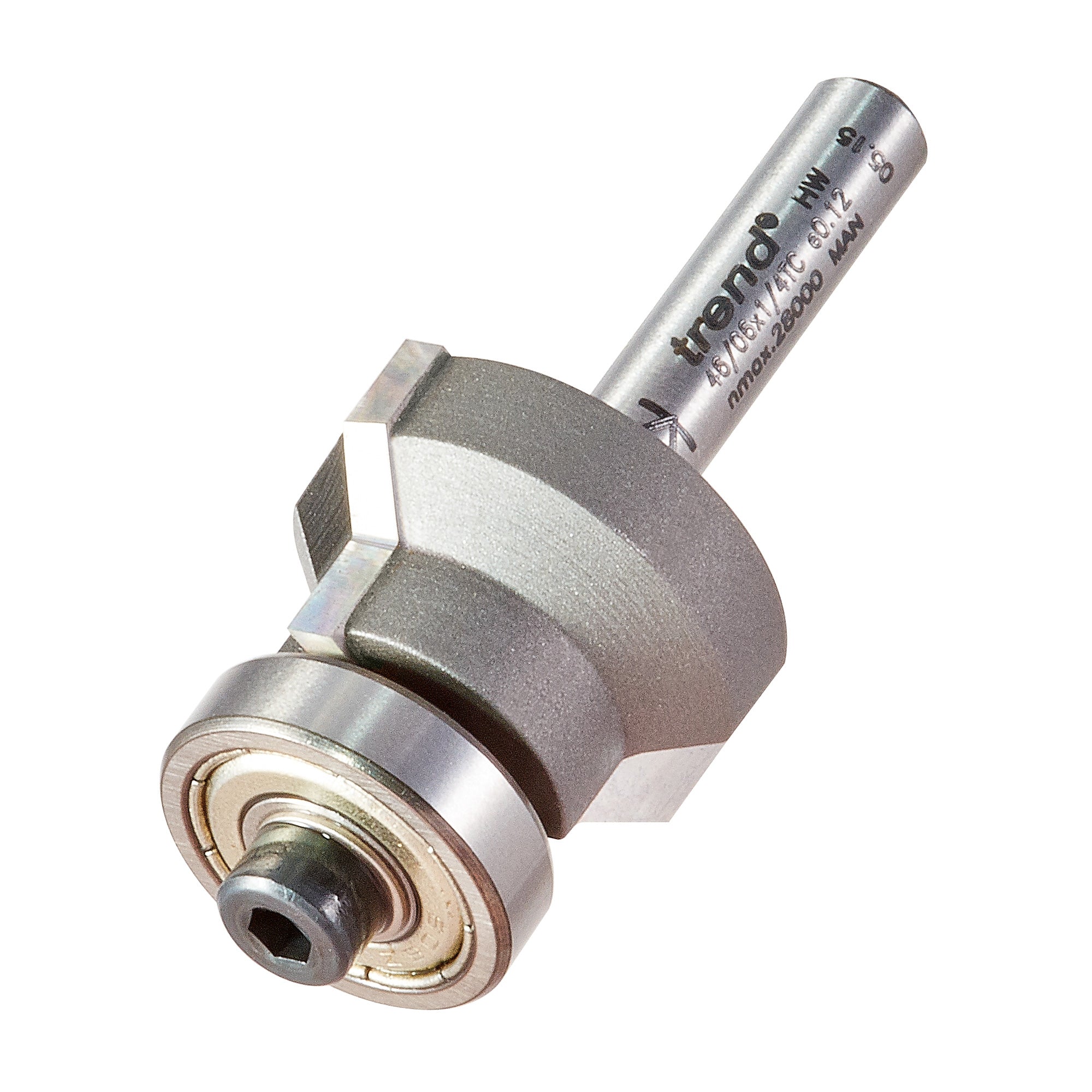

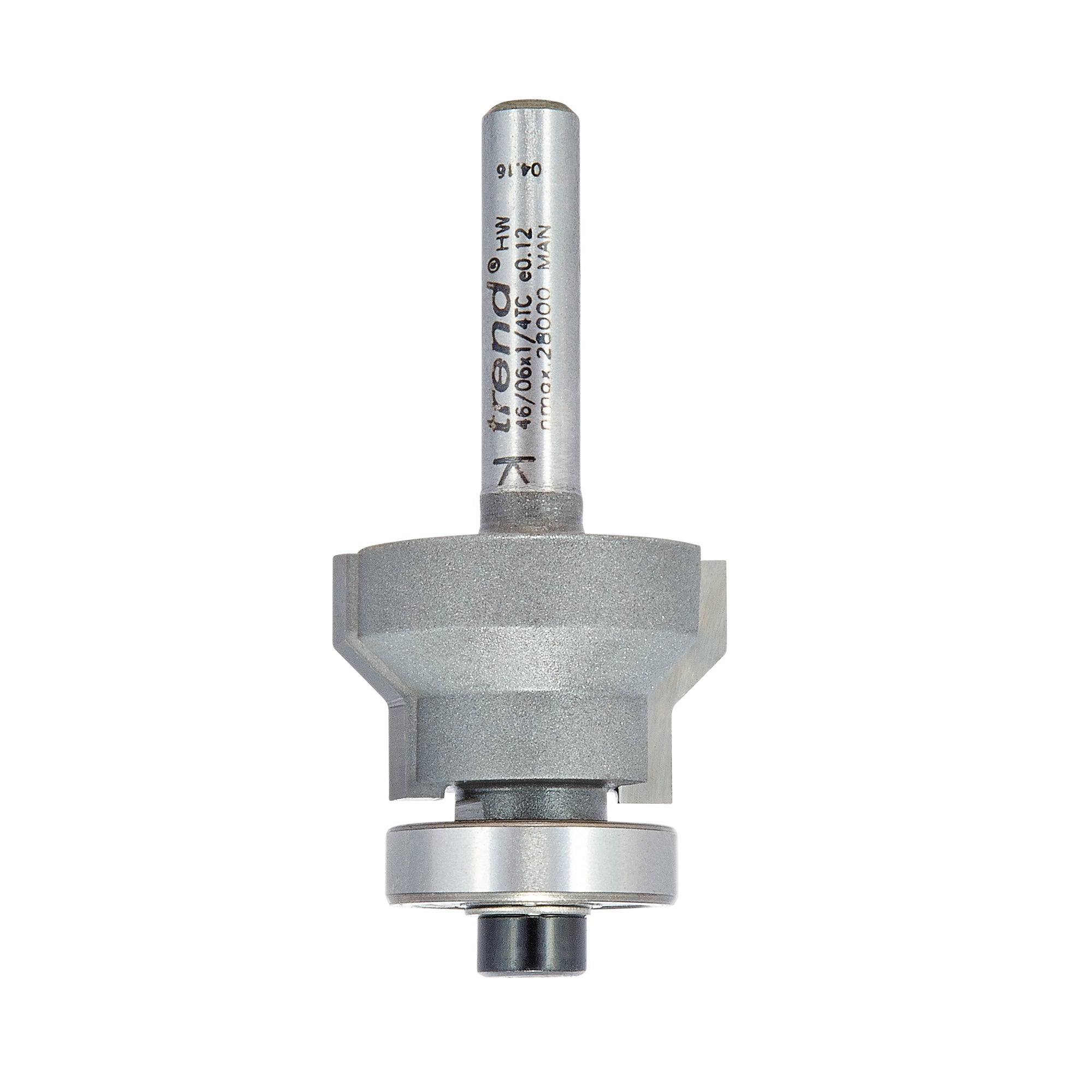

Trend Tools 46/06X1/4TC Combi Trimmer 24Mm Diameter

• A self-guided combination trimmer.
• A 90 degree trim is obtained by engaging the bottom half.
• A 45 degree trim is obtained by lowering the cutter.
• A fine height adjuster is recommended when using this cutter.
• A larger 20mm bearing will spread the wear of the cutting when 45 degree trimming.

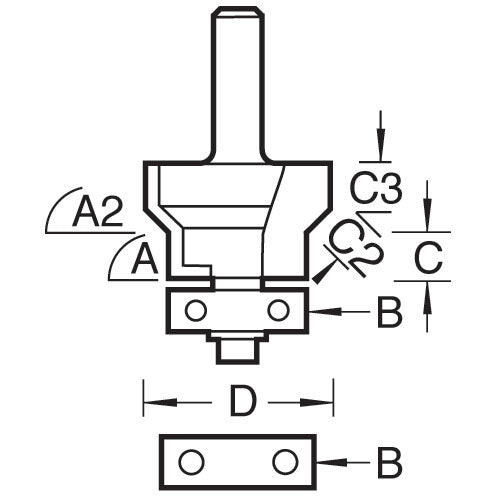

Specifications

• D=24 mm
• C=6 mm
• C2=5 mm
• C3=6 mm
• B=Fractionally larger than cutter dia
• OL=55 mm
• A=90 degrees,
• A2=45 degrees
• Shank Diameter=1/4 inch
